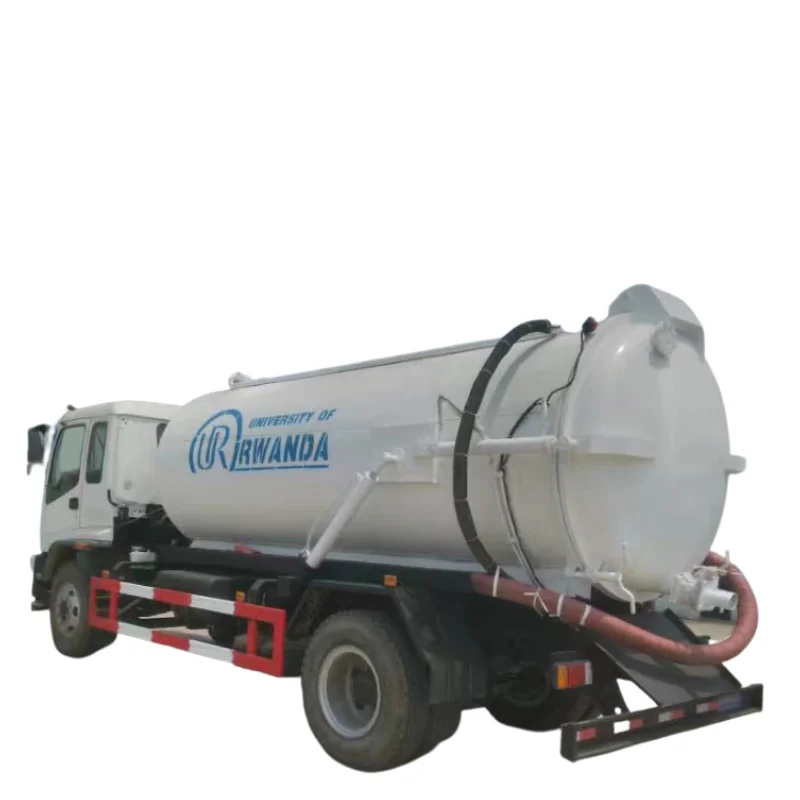

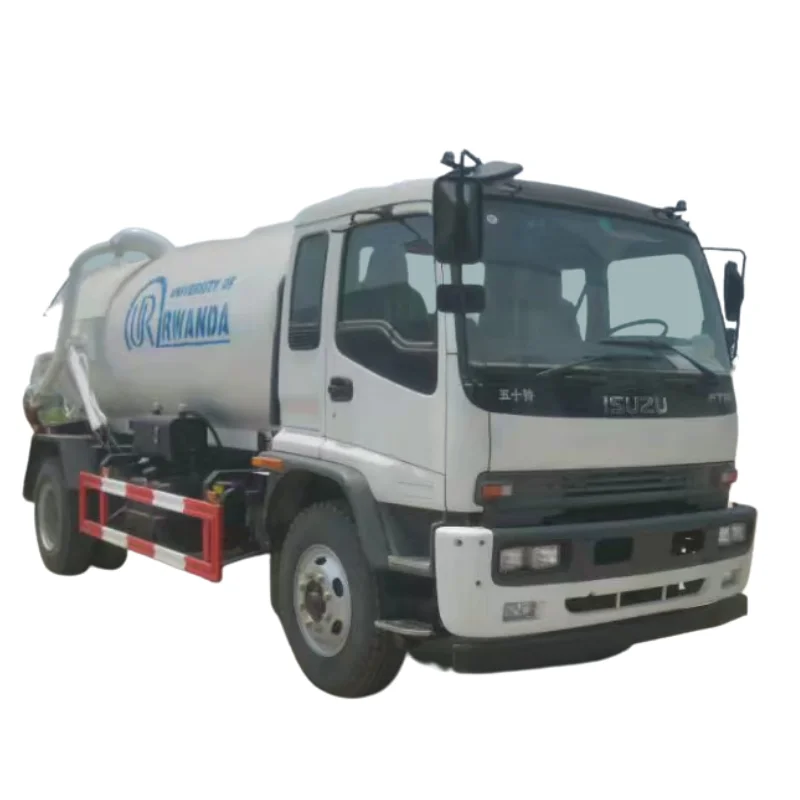

Best selling new refined ISUZU 190hp 6000L Vacuum Sewage Pump Suction Tank 1500gallons septic tanker truck LHD RHD
- Category: >>>
- Supplier: Hubei Shengda Automobile Co. Ltd.
Share on (1600717575808):
Product Overview
Description
specification

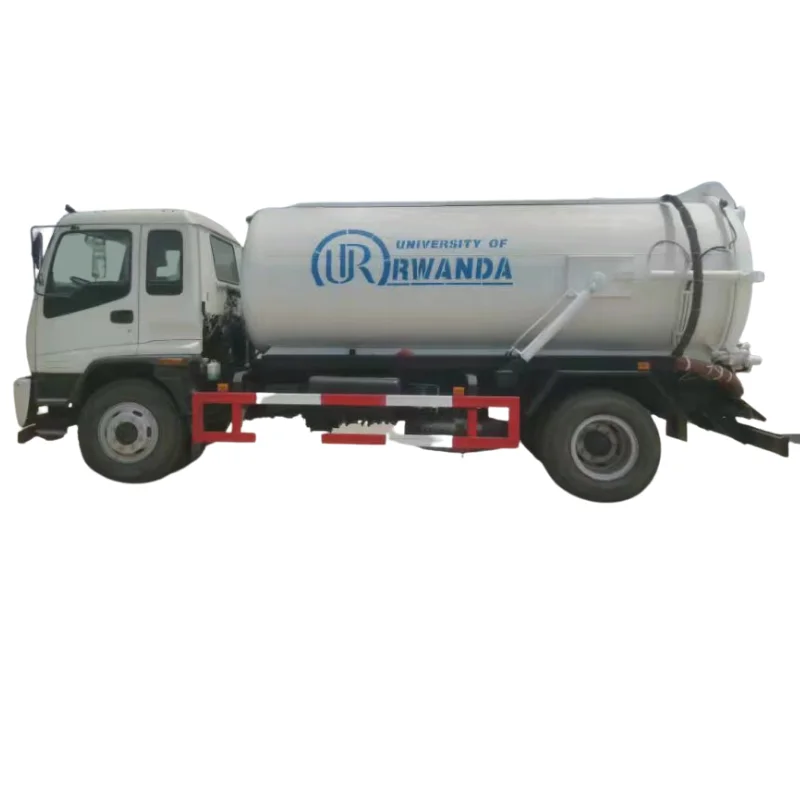

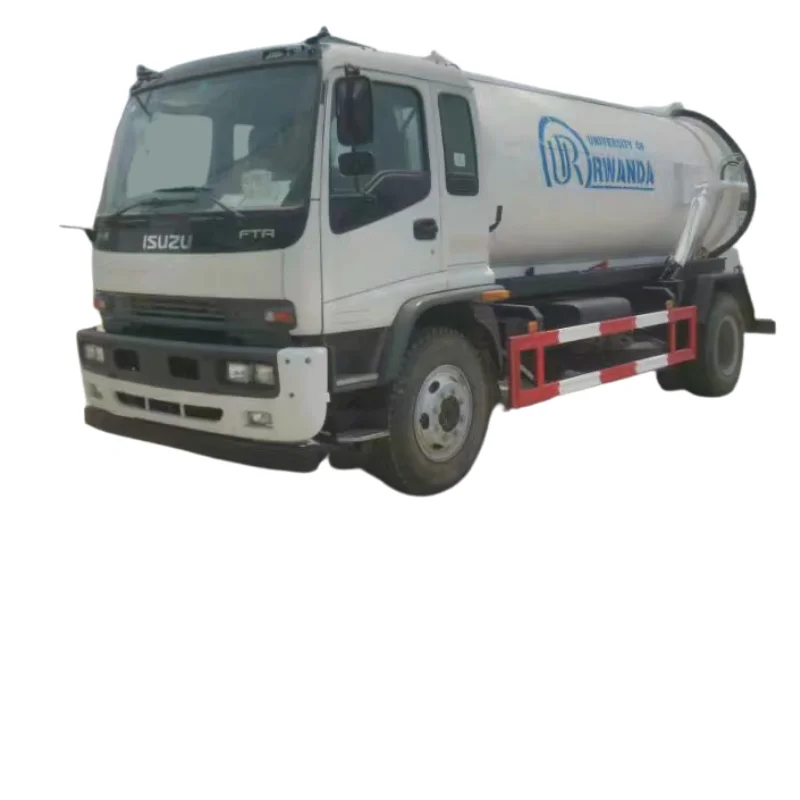

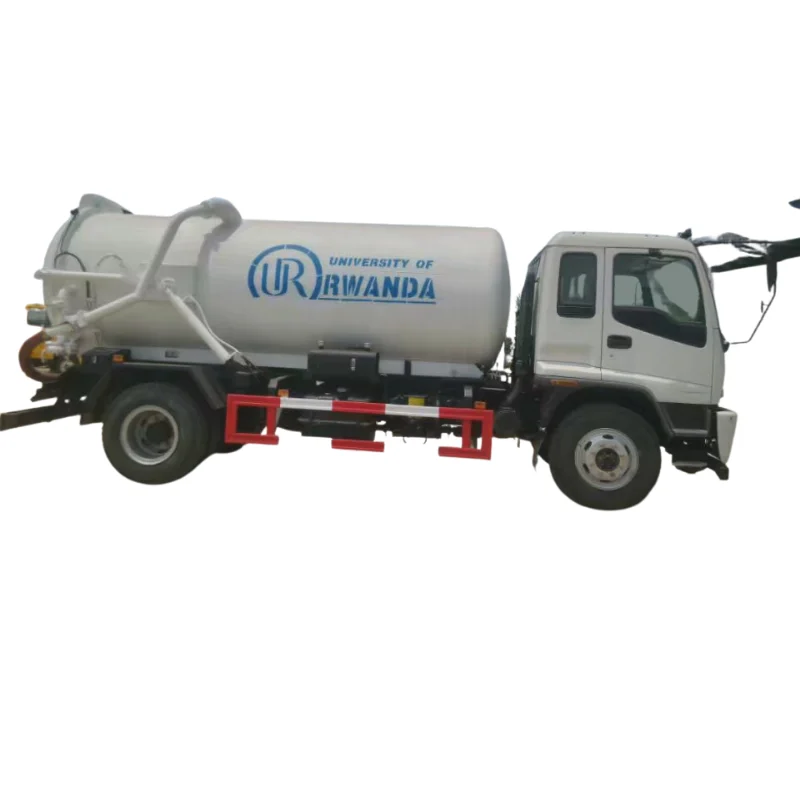

ISUZU FTR Sewage suction truck for sale vacuum tanker truck 10cbm volume
ISUZU FTR 4*2 LHD 10cbm sludge tanker truck
ISUZU FTR one row and a half driver cab,
4*2 LHD, RHD optional
4HK1-TC50 ISUZU 205hp diesel engine, Euro 5 emission standard
ISUZU MLD 6+1 gears, manual type,
6.3T front axle; 13T rear axle
10.00R20*6+1 spare
Air conditioner+air conditioner+power steering+ central lock+electric windows and doors, etc.
The volume of the ISUZU FTR sewage suction truck is 10,000Liters.
ISUZU FTR one row and a half driver cab,
4*2 LHD, RHD optional
4HK1-TC50 ISUZU 205hp diesel engine, Euro 5 emission standard
ISUZU MLD 6+1 gears, manual type,
6.3T front axle; 13T rear axle
10.00R20*6+1 spare
Air conditioner+air conditioner+power steering+ central lock+electric windows and doors, etc.
The volume of the ISUZU FTR sewage suction truck is 10,000Liters.
The vacuum sewage suction truck is also called sewage truck,vacuum pump sewage truck, sewer vacuum truck, sewer tanker truck, vacuum sewage suction truck, sewage suction tanker truck, etc. It mainly used for sucting, transporting and discharging of feces, sewage, wastes water from septic tanker and sludge from drains. Widely used by municipal environment and sanitation department and residential management.
the septic tanker truck manufactured is as below.

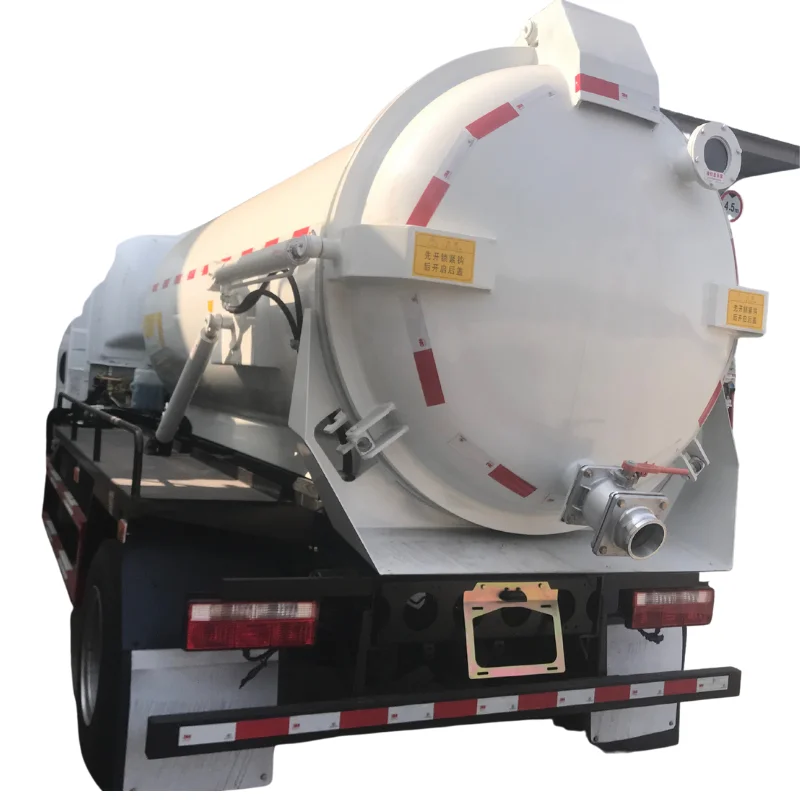

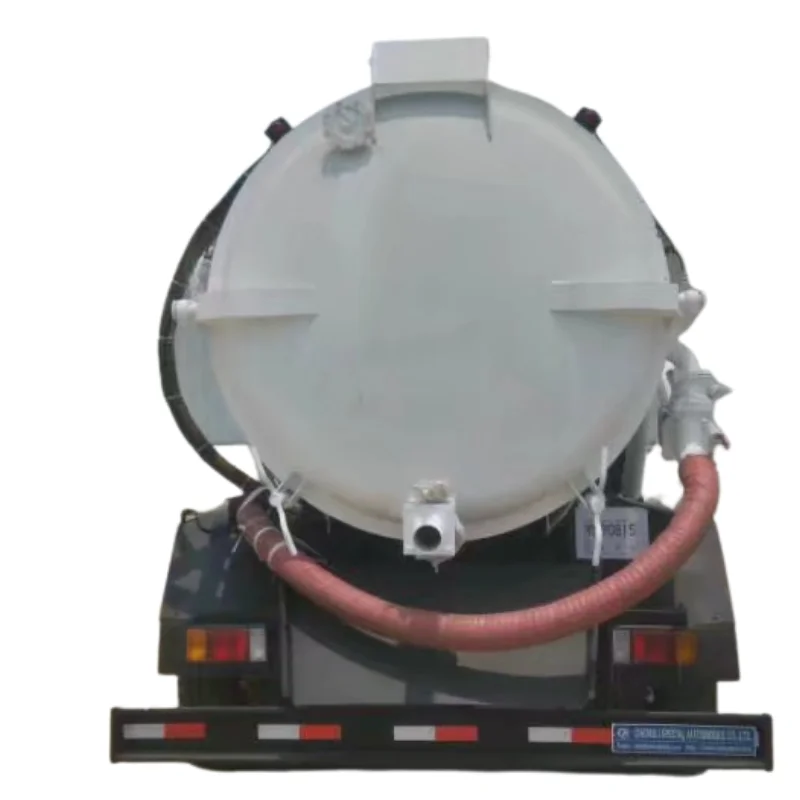

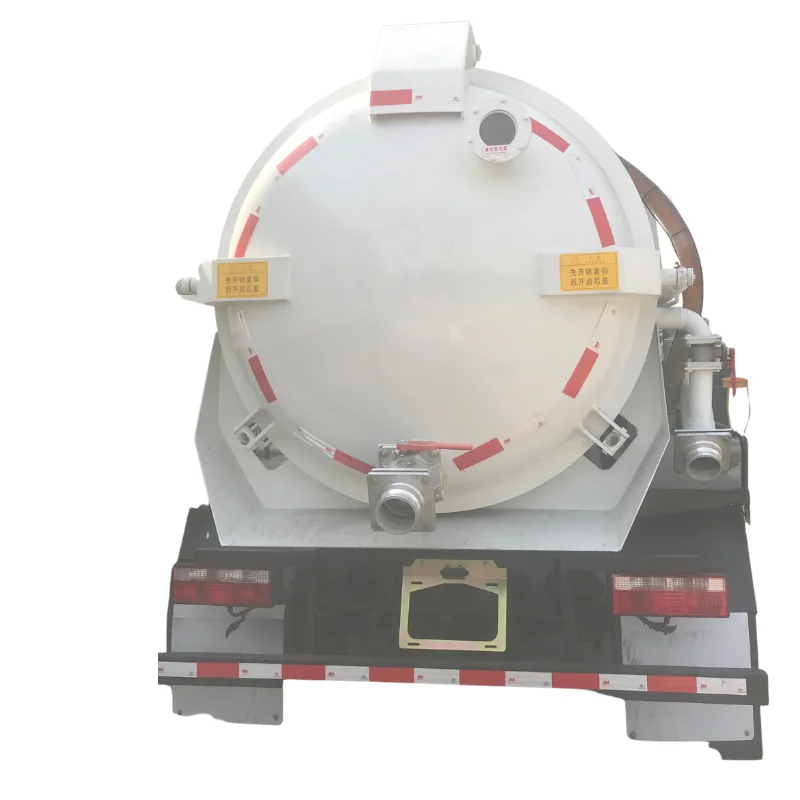

1.Tank can be lifted hydraulically to 40 to 45 degree.Rear door can be opened&closed hydraulically. With full opening design, discharge can be very quick&complete.
2.Overfill system with music horn is equipped to prevent the vacuum pump damage from sewage water into vacuum pump when the tank is full.
3.Super power of vacuum pump, seamless die casted sheel cover, designing for container with high ability of pressure-resistance, double hydraulic jack system, morestrength then cesspit emptier.

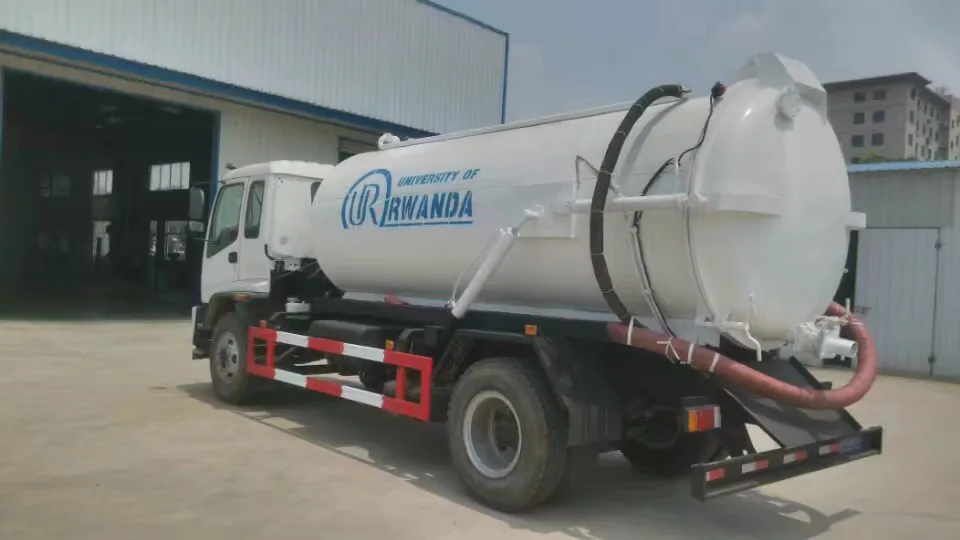

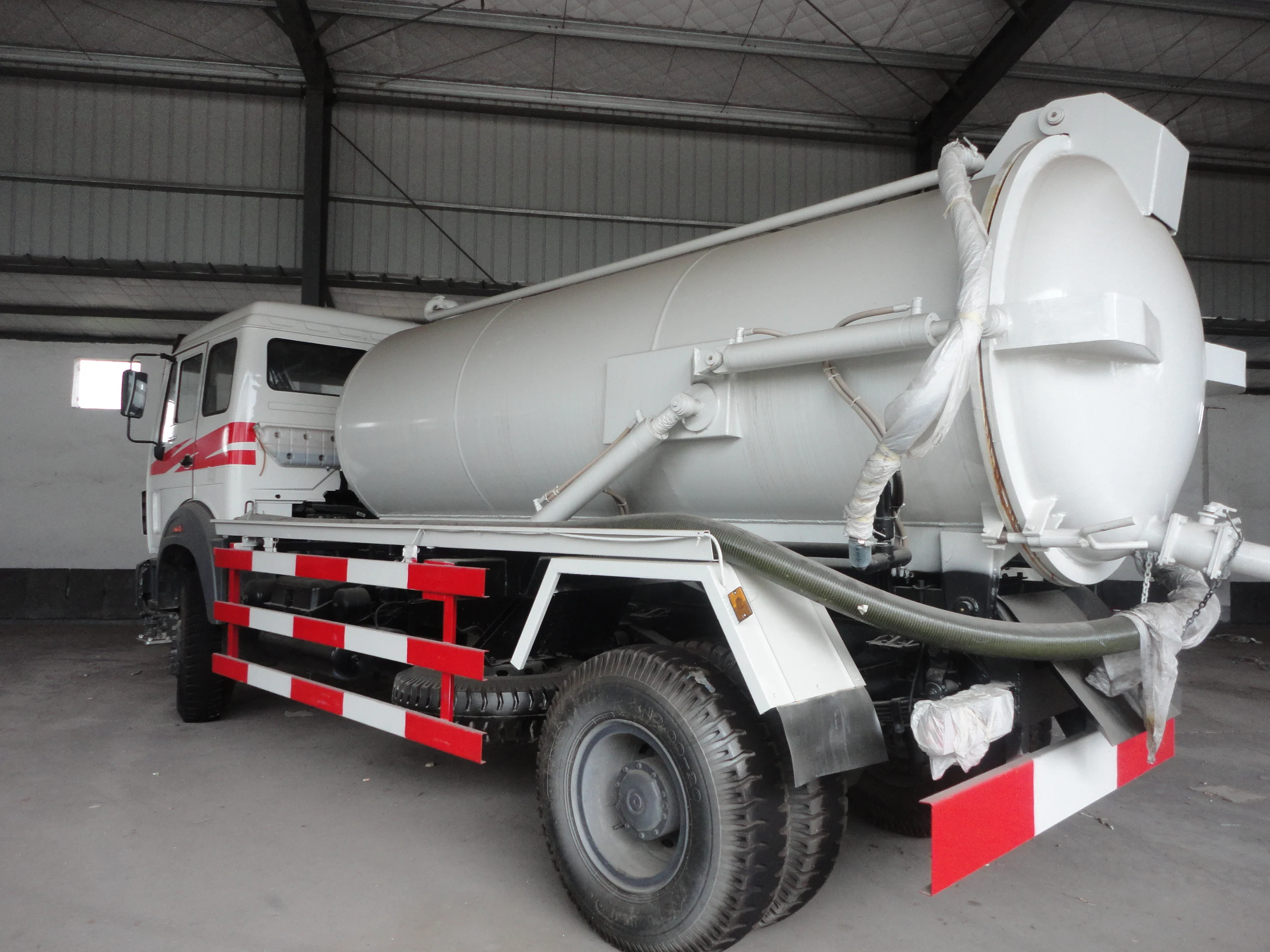

Details Images
Products Description
China leading manufacturer and supplier of sewage suction trucks
The cesspoolage truck is widely used to transport liquid manure, slurries, crude oils, and other liquid with small suspending impurity and mainly used in such conditions, including septic tanks, gutters, sewers, toilets, and more. The discharging has high pressure discharging and self-discharging, etc. The time of sucking full the feces tank is ≤6min, the vertical distance is ≥7m, the rated speed is 1450r/min, the flow is 60m3/h.
1. Equipped with hydraulically opened rear lid with self-discharge, high vacuum degree an sucking range.
2. Equipped with self-priming and self-draining vacuum pump (ratin rotate speed=1400r/m, min rotate speed>800r/m,max suction lift>
6m, vacuum>500mmhg, clockwise)
3. Time for full suction <5min.
1. Equipped with hydraulically opened rear lid with self-discharge, high vacuum degree an sucking range.
2. Equipped with self-priming and self-draining vacuum pump (ratin rotate speed=1400r/m, min rotate speed>800r/m,max suction lift>
6m, vacuum>500mmhg, clockwise)
3. Time for full suction <5min.
More information, please feel free to contact with Ms. Anita.
Whatsapp/Wechat/Mob.: 0086 13329899995
main technical parameters of ISUZU brand 4*2 LHD sewage suction truck is as below.
Truck model | dongfeng 4*2 LHD diesel vacuum tanker truck for sale (16cbm-10-12cbm) for sale |
Approximate Overall dimension(L*W*H)(mm) | 9120×2500×3800 |
Total mass(kg) | 18000 |
Curb mass(kg) | 13000 |
Rated mass(kg) | 11870 |
Truck chassis model | ISUZU |
Wheelbase(mm) | 4700mm |
Max speed | 89km/h |
Driver cab | ISUZU FTR one row and a half driver cab |
Gearbox | ISUZU MLD 6+1 gears, manual type |
Rear axle | 6.3T front axle; 13T rear axle |
Engine model | Cummins 210hp diesel Euro 3 engine |
Tire specification | 10.00R20*6+1 spare |
Power steering | Yes |
Tanker volume | 10cubic meters-12cubic meters |
Tanker shape | Round cylindrical shape |
Tanker wall thickness | 6mm |
Endheads thickness | 6mm |
Vacuum pump | DX-360(double united oil pump ) better for 16cbm & 18cbm |
Vacuum pump flow | 100L/s |
Vacuum pump Maximum vacuum | 99.6% |
Vacuum pump Absolute working pressure | -90000Pa |
Vacuum pump Maximum shaft power | 10KW |
Maximum suction length | ≥7.8 |
Discharging Angle of vacuum tanker | 45° |
Tanker lifting time | ≤15S |
Suction pipe diameter | 102mm |
Opening way of the rear door | hydraulically opened |
Rear door opening angle | 70° |
hydraulic system pressure | 16MPa |
Sucking time(sucking water) | ≈12min |
Remark | The data above is best for the volume of 16cbm and 18cbm. If client insist on 20cbm volume, then the vacuum tanker should use w ater circulation pump (model: 2BEA-204), which is better than the oil pump. |

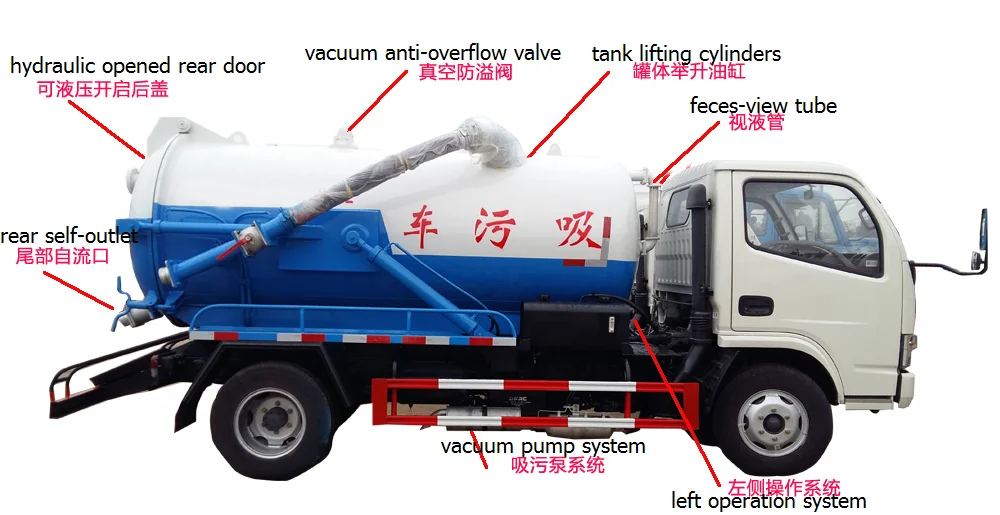

main parts
Sewage suction truck is a new type of environmental sanitation vehicle which collects and transports sludge and sewage and avoids secondary pollution. It can suck and drain by itself with high speed, large capacity and convenient transportation. It is suitable for collecting and transporting liquid substances such as feces, slurry and crude oil. The suction truck adopts the vacuum pump of
the domestic advanced suction truck, which has large suction force and long suction distance. It is especially suitable for suction, loading and discharge of the silt in the sewer, especially for sucking the mud, silt, stone, brick and other large objects in the sewer.
the domestic advanced suction truck, which has large suction force and long suction distance. It is especially suitable for suction, loading and discharge of the silt in the sewer, especially for sucking the mud, silt, stone, brick and other large objects in the sewer.

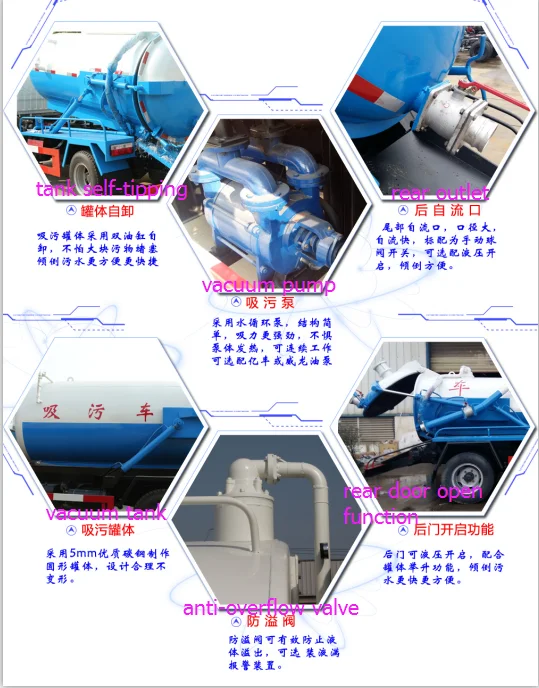

Oil-water separator, water-gas separator, hydraulic self-unloading device, special vacuum suction pump, volumetric pressure gauge, suction catheter, self-flow valve, vacuum tank, connector (fecal window), automatic relief valve, hydraulic suite.
Why Choose Us
Why choose us?
As a professional septic tanker truck manufacturer in China, the sewage truck capacity is from 3000 liter to 16000 liters. Besides left hand drive truck, we also have RHD toilet truck. The septic tanker trucks is with self-suction and self-unloding function.
The tank can be lifted by hydraulic cylinder to 45° and the rear door of the tank can also be open by hydraulic. So the sewage can be discharged from the tank completely. This is also convenient for you to maintenance and clean the tank.
The tank can be lifted by hydraulic cylinder to 45° and the rear door of the tank can also be open by hydraulic. So the sewage can be discharged from the tank completely. This is also convenient for you to maintenance and clean the tank.
FAQ
1. who are we?
We are based in Hubei, China, start from 2013,sell to Southeast Asia(30.00%),South America(25.00%),South Asia(20.00%),Mid East(15.00%),Eastern Asia(10.00%). There are total about null people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
special-purpose manufacture,construction machinery manufacture,auto spare parts,auto trading,hardware sales
4. why should you buy from us not from other suppliers?
professional special-purpose vehicle with indepedent research and development 30 years experience, 1000 workers, this is how wekeep superior quality and competitive offers for global valued customers
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
We are based in Hubei, China, start from 2013,sell to Southeast Asia(30.00%),South America(25.00%),South Asia(20.00%),Mid East(15.00%),Eastern Asia(10.00%). There are total about null people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
special-purpose manufacture,construction machinery manufacture,auto spare parts,auto trading,hardware sales
4. why should you buy from us not from other suppliers?
professional special-purpose vehicle with indepedent research and development 30 years experience, 1000 workers, this is how wekeep superior quality and competitive offers for global valued customers
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
Company Profile
Hubei Shengda Automobile Co., Ltd. is established in May, 2013. With more than 8 years development, we have more over 100 skilled salesmen and 20 logistics support personnel. We’re locate in Suizhou City, Hubei Province, where is famous for Emperor Yan and Chimes ancient music. At the same time, Suizhou city is famous for special purpose vehicles manufacturers in China.
Hubei Shengda Automobile Co., Ltd. is a leading manufacturer of special purpose vehicles in Suizhou. It can also sell Chusheng brand oil refueler trucks, water tanker trucks, vacuum tanker trucks, concrete mixer trucks, truck with cranes, refrigerated trucks, garbage truck, etc. more than 200 models. We Hubei Shengda Company mainly sell tanker vehicles, dump trucks, van trucks, sanitation trucks, concrete mixer truck, bulk cement tanker trucks, semitrailers, full-trailers, cargo truck with crane, etc.
Hubei Shengda Automobile Co., Ltd. is a leading manufacturer of special purpose vehicles in Suizhou. It can also sell Chusheng brand oil refueler trucks, water tanker trucks, vacuum tanker trucks, concrete mixer trucks, truck with cranes, refrigerated trucks, garbage truck, etc. more than 200 models. We Hubei Shengda Company mainly sell tanker vehicles, dump trucks, van trucks, sanitation trucks, concrete mixer truck, bulk cement tanker trucks, semitrailers, full-trailers, cargo truck with crane, etc.
“CHUSHENG BRAND” special purpose vehicles are sold all over China, and also export to so many countries, such as Africa, Asia, South America, Middle East, etc. Our Shengda Company follows the business philosophy “People-Oriented, Customer First” and adheres to the quality policy “Quality-Oriented, Pay Attention to Improvement, Integrity, Establish Brand”. We are sincerely with friends at home to join hands in continuous innovation and jointly build the “CHUSHENG” brand. We warmly welcome friends at home and aboard to buy our products. And also, we sincerely hope that friends at home to visit the company to discuss investment, cooperation and seek common development.

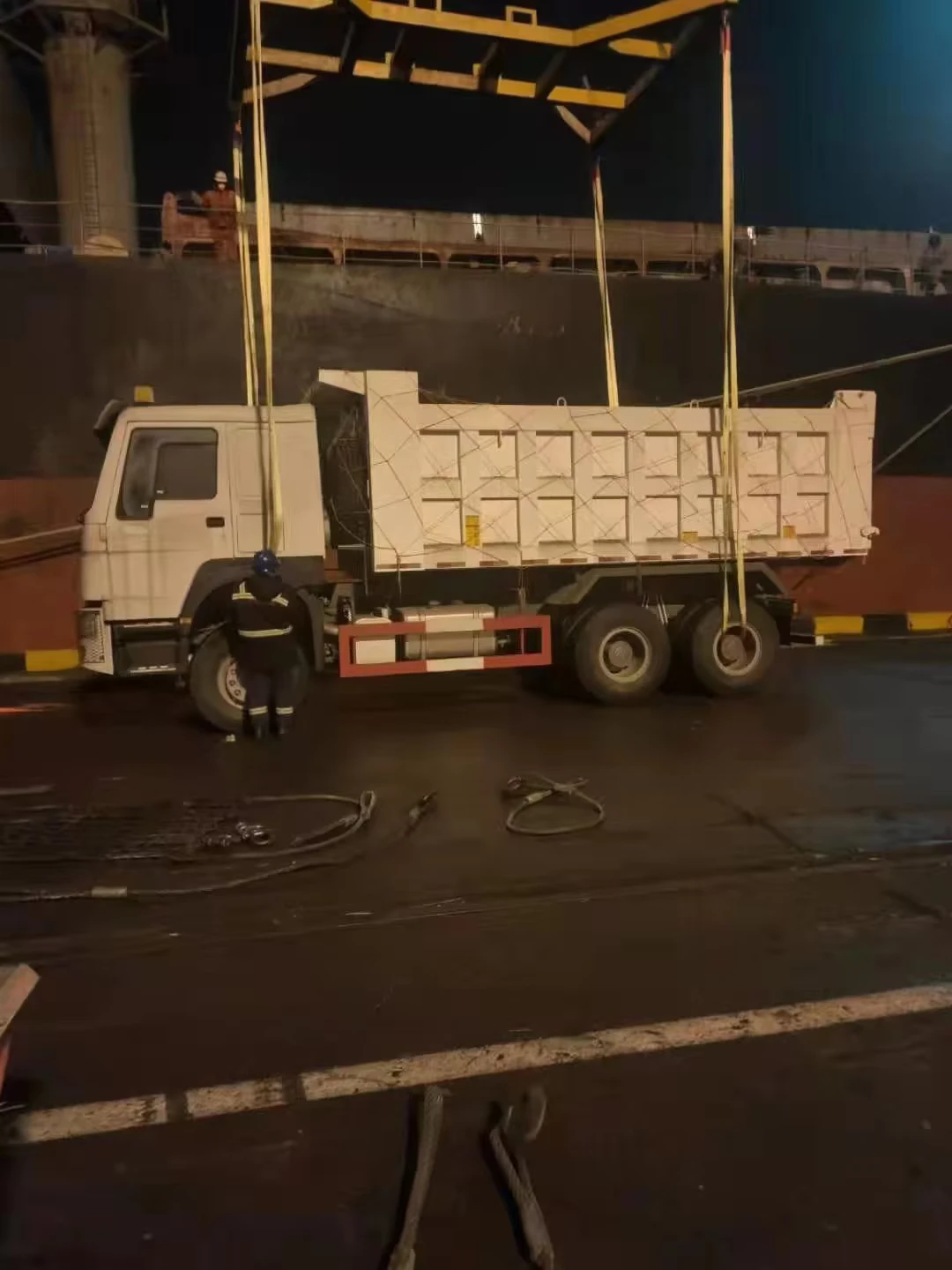

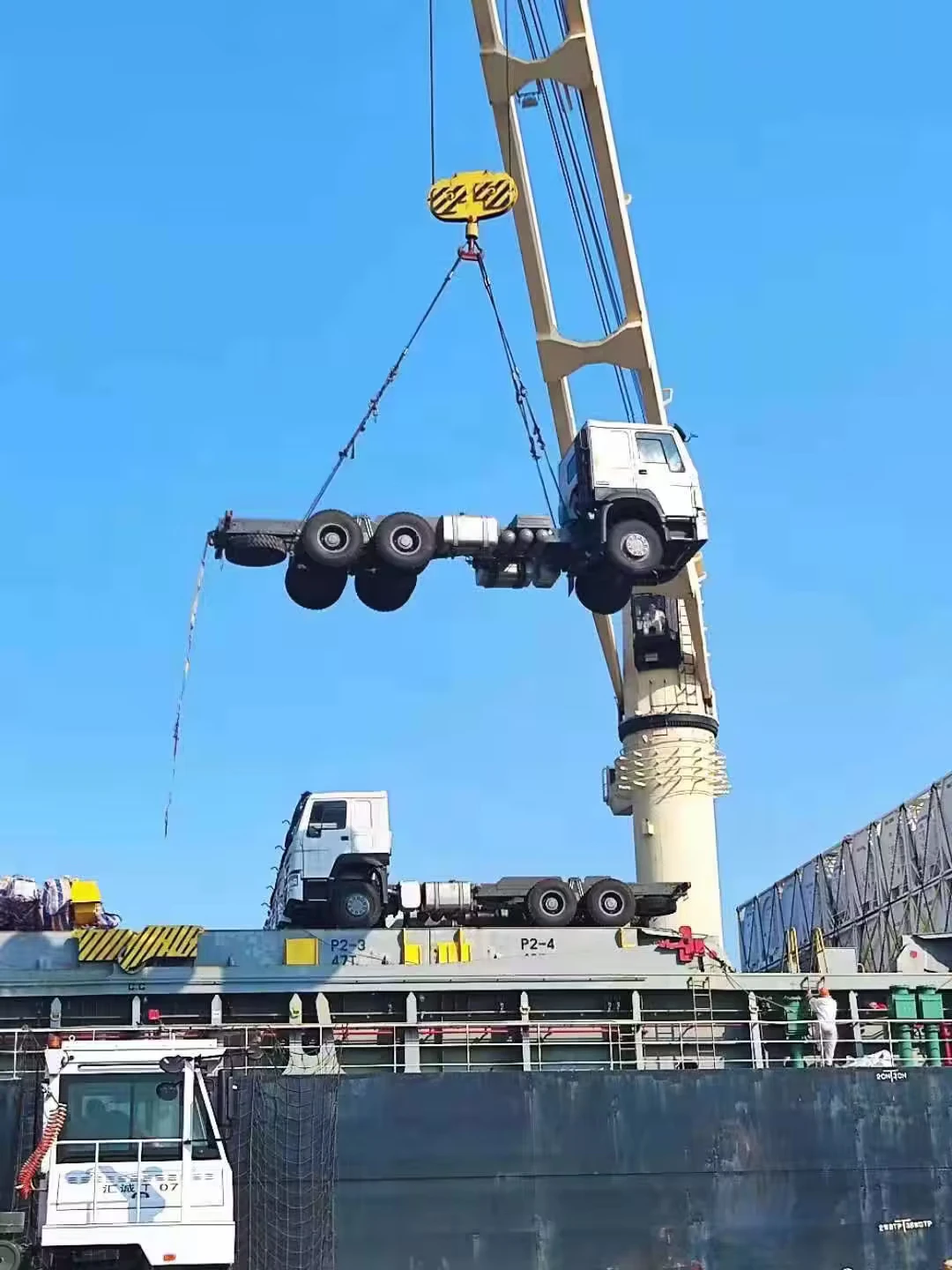

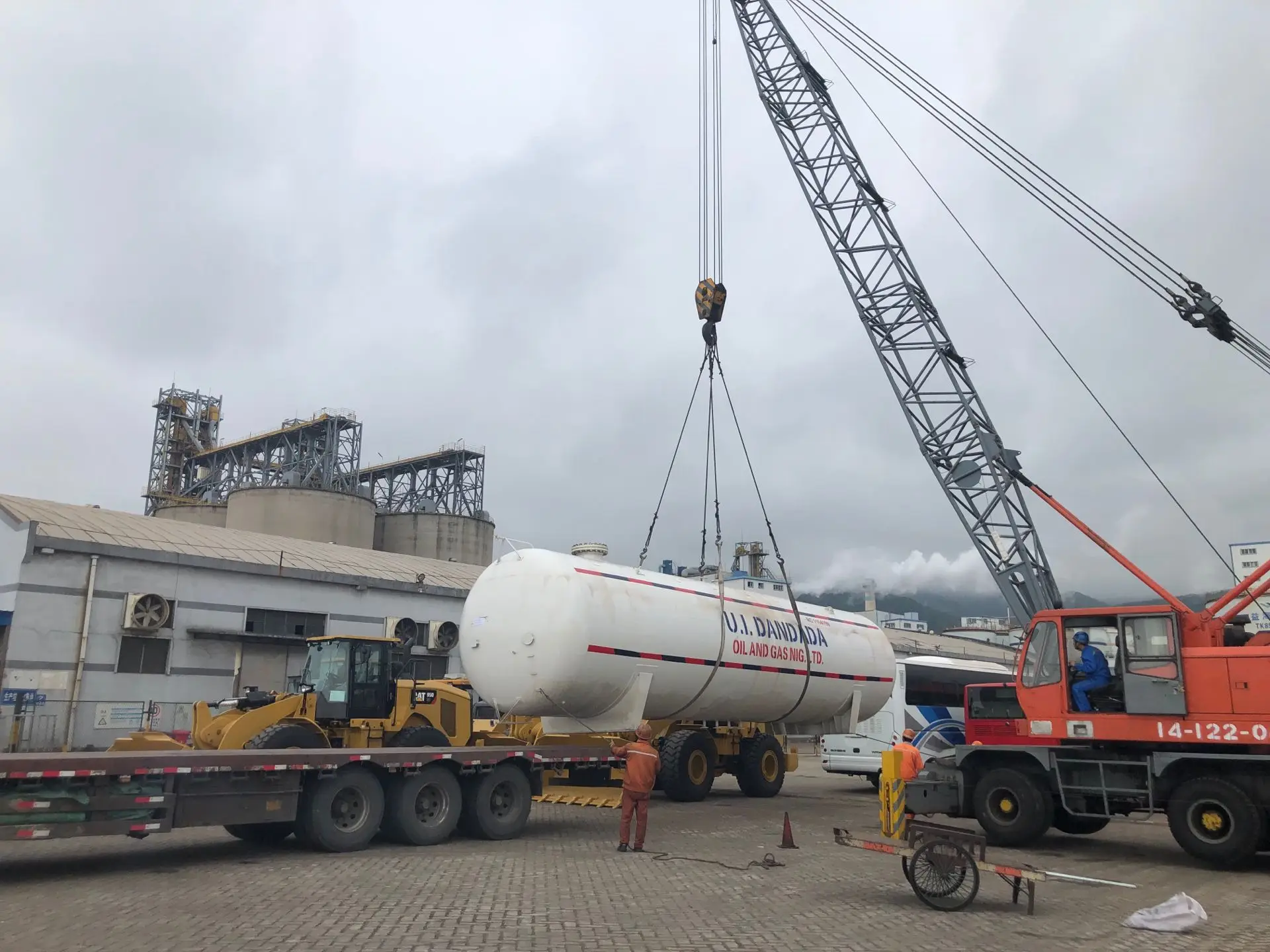

Shipment
