Structural Pipe Fittings Wall Plate Base Flange 131 Plastic End Cap
- Category: >>>
- Supplier: Hebei,Duotong,Trading,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Product Description | |
Product Name | Malleable Cast Pipe Clamps |
Size | 21.3mm, 26.9mm, 33.7mm, 42.4mm, 48.3mm, 60.3mm |
Material | Malleable Cast Iron (KTH350) |
Color | Sliver or Black |
| Type | plain end. |

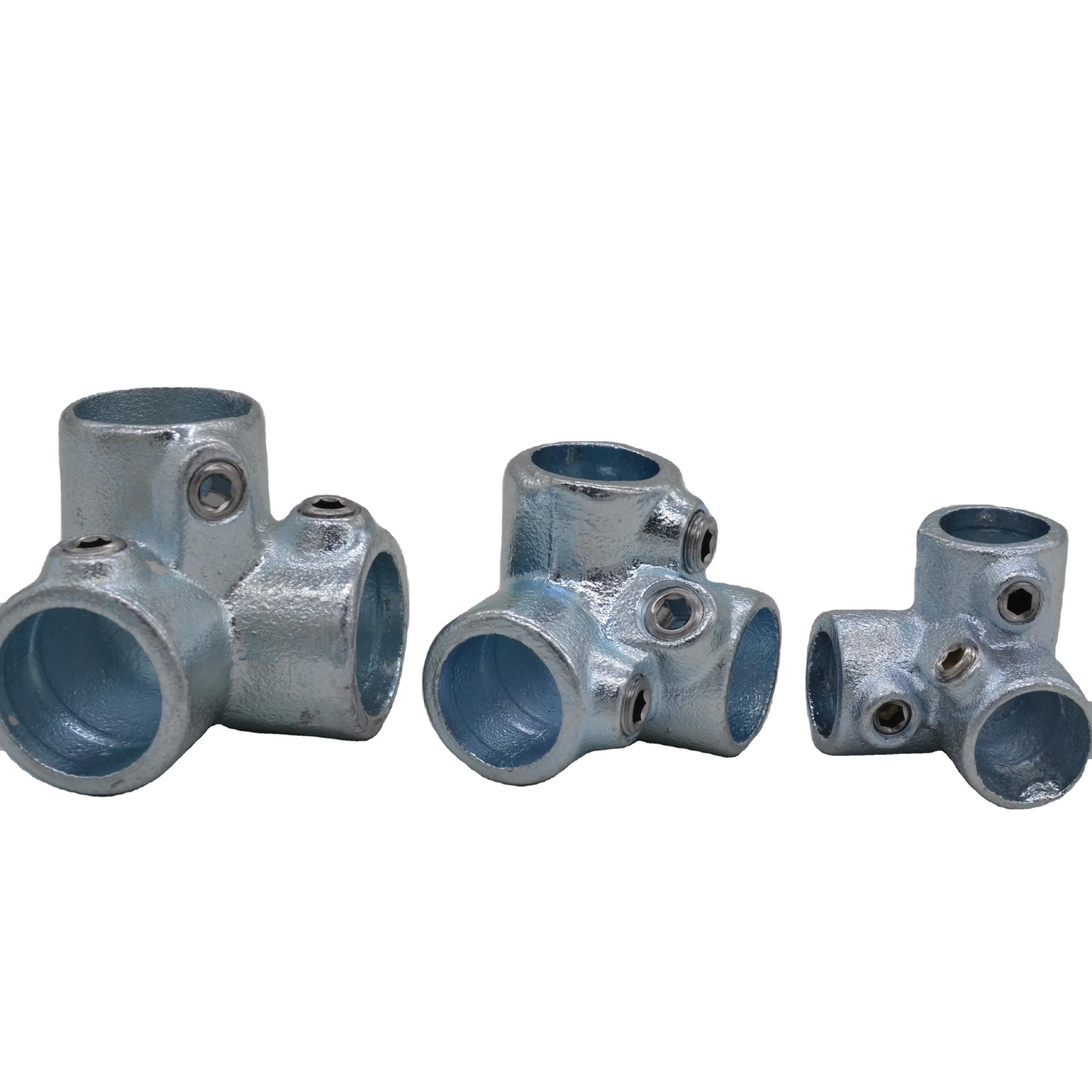

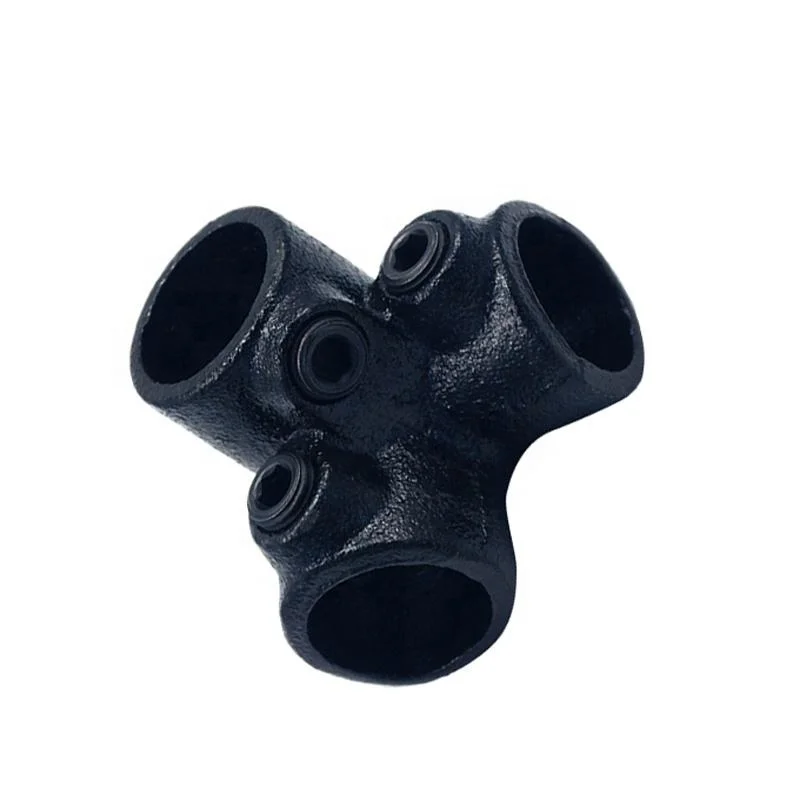

Products Range | 101 Short Tee; 104 Long Tee; 116 3-Way Corner Joint; 119 Two Socket Cross; 123 124 Variable Elbow; 125 90° Elbow; 127 Adjustable Long Tee (30° - 45°); 128 3-Way Elbow;129 Adjustable Short Tee; 130 Adjustable Cross (Middle Rail) ;131 Wall Flange; 132 Railing Base Flange;133 Plastic Stop End; 148 Swivel Short Tee (PAIR);149 External Sleeve Joint; 161 90 Degree Crossover; |
Surface Treatment | Hot Dip Galvanized /Electrogalvanizing / Natural Black / Coating Black |
Technology | Electrophoresis and hot dip,spraying coating. |
Usage | Connect Framework |
Pressure | Class 150, Class 300, PN10, PN16 |
Properties | Tensile Strength ≥ 330MPa / Elongation ≥ 8% / Hardness < 163 / Working Pressure: Max 1.5MP / Test Pressure: Max 2.5MPa |
MOQ | NO Min Order Quantity. |
Packing | carton+wood pallet |
Delivery Time | 15 days |
Payment Term | T/T, or To be negotiated |
Malleable iron pipe clamps is new connection method,
It's cost effective compared to traditional welded systems, it could be relocated and reused.
SIZE SPECIFICATION | ||
PIPE CLAMPS SIZE | NOMINAL BORE | OUTSIDE DIAMETER |
T | 1/2” | 21.3mm |
A | 3/4” | 26.9mm |
B | 1” | 33.7mm |
C | 1-1/4” | 42.4mm |
D | 1-1/2” | 48.3mm |
E | 2” | 60.3mm |

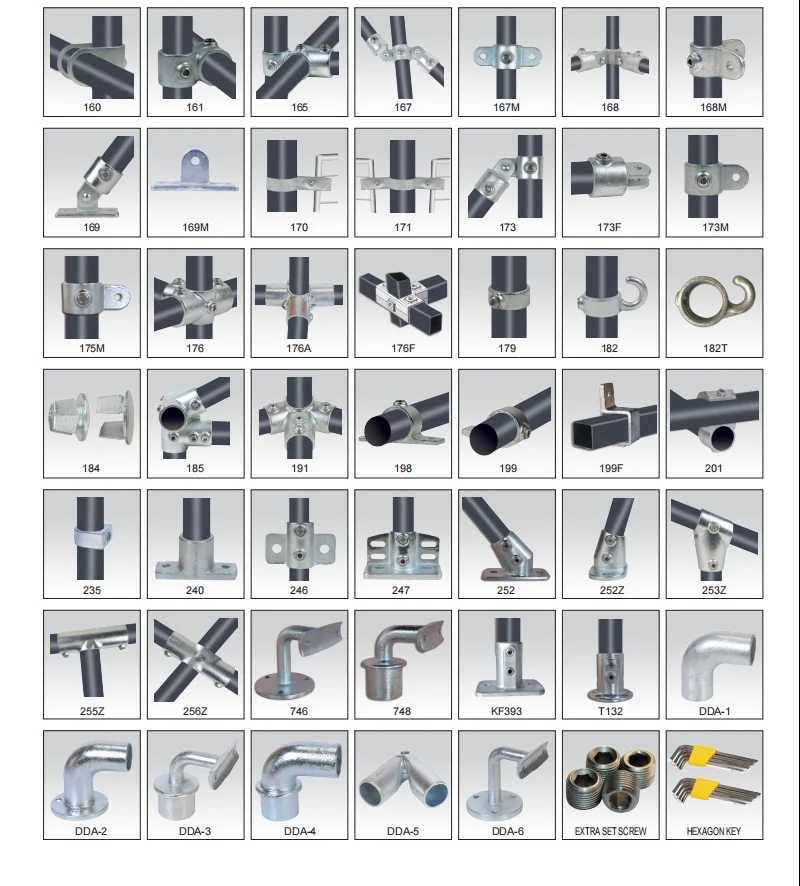

More items as below:
More Specifications, Please contact us for free. thanks
Providing Customized service, Category is complete and Quality guaranteed.

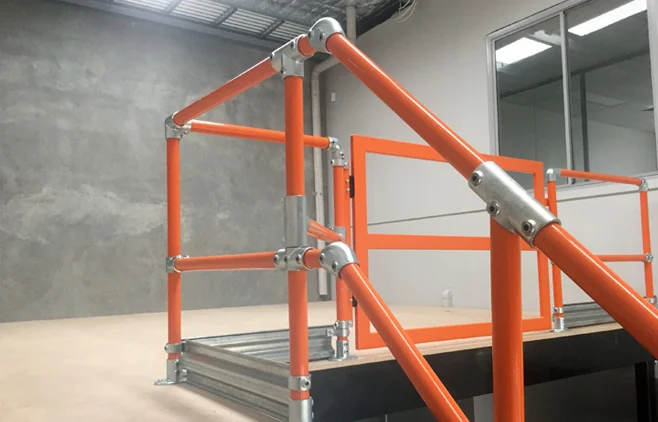

Applications include:
- Barriers and Handrails
- Balustrades
- Handrails for Mezzanine floors & staircases
- Permanent or temporary guard rails
- Playground equipment
- Sports goals
- Shopping trolley bays
- Agriculture enclosures
Packaging & Shipping
Related Products
Company Information
Our factory has developed into a corporation with a 17 thousand square metres workshop,
400 workers, 15 managers and its annually exporting quantity reached 5000mt,
We are specialized in producing and selling malleable iron pipe fittings,
They are widely used to connecting waterway, petroleum, fire protection, coal gas, crafts ect.
Meanwhile we have very strong technique power and a variaty of testing equipment
Depending on our excellent quality, perfect service, our products sell well all over the world.
Welcome to our company for visiting!
Our factory specialized in producing pipe fittings for 22 years.
Strict per-factory testing each product, Ensure the high quality of products.
Our Services
FAQ
1. What‘s your Advantage?
Our factory specialized in producing Malleable iron pipe fittings for 22 years with several Patented technology.
We have been supplied to the "Belt and Road Initiative" with high quality.
Our hot dip galvanized pipe fittings are insured by PICC, 100% stress Test before delivery.
2. What's your Registerend Trademark and Patented Product?
Floor flange with inscription"DS OS 1914","AM 1949" "DSDST 1914" is designed and produced by our company.
Self-owned brand "DSDST"
3. Where is your company located?
Our company is located in Shijiazhuang city, Hebei Provience, near to TIANJIN Port.
4. Would you offer free sample?
FREE SAMLE is okay for us.
5. Could you make OEM and ODM service?
YES, no problem.
6. What about the quality control?
Our products are strictly tested and passed all the states test.
We also accept third party inspection and any other way as customer's requests.
7. What's your payment?
T/T, L/C, other method can be negotiated.
