Product Overview
Description
Signs embossed uv printer wide format 2030
| Print Technology | |
| Printer Model | Glass Printing Machine 2030 UV Printer Ricoh Head |
| Max. Print size | 2000*3000 mm |
| Print head model | RICOH G5/G6; TOSHIBA CE4 |
| Print head Qty. | RICOH 2-8 pcs/ TOSHIBA 4-16 pcs |
| Print Direction | Unidirectional /Biodirectional |
| Print head cleaning | Postive presure cleaning |
| Print speed | Production mode: 35-45 sqm/h Quality mode: 25-30 sqm/h High resolution mode: 15-20 sqm/h |
| Ink system | |
| Ink type | UV eco-friendly ink |
| Ink color | CMYK+W+V |
| Ink tank volumn | 3500ML |
| Ink supply | Independent Dual negative pressure ink supply system |
| Drying type | Imported LED lamp curing |
| White ink stirring | Standard configuration |
| While ink circulation | Standard configuration |
| Media | |
| Media type | Acrylic/ aluminum/ ceramic/ foam board/ glass/cardboard and others |
| Max.media thickness | 100mm, Larger size can be customized |
| Operation | |
| Operation Language | Chinese / English |
| Operation system | Windows XP/ Windows 7/Windows 10 |
| Operation platform | Segmented vacuum adsorption platform |
| Operation Environment | Temperature:20℃~28℃ Humidity:40% RH~60% RH |
| PC configuration | System:XP,win7,win10,32/64 CPU:≥ Intel i5 RAM: ≥8GB Hard Disk: SATA 500G, NTFS CD Rom: DVD recordable Space for Disk C : ≥100 G |
| Others | |
| RIP software | PrintFactory,Unitedfancy |
| Interface | USB 3.0 |
| Color control | Comply with ICC standards with curve and density adjustment function. |
| Image format | TIFF,JPEG,POSTSCRIPT3,PDF |
| Power supply | AC220V,50/60HZ |
| Power consumption | 4.5 KW |
| Noise | Standby < 32dB Working < 65dB |
| UV lamp | LED curing, 20000 hours long lifetime, water colling |
| Machine size | 4000*3600*1400 mm |
Product Display

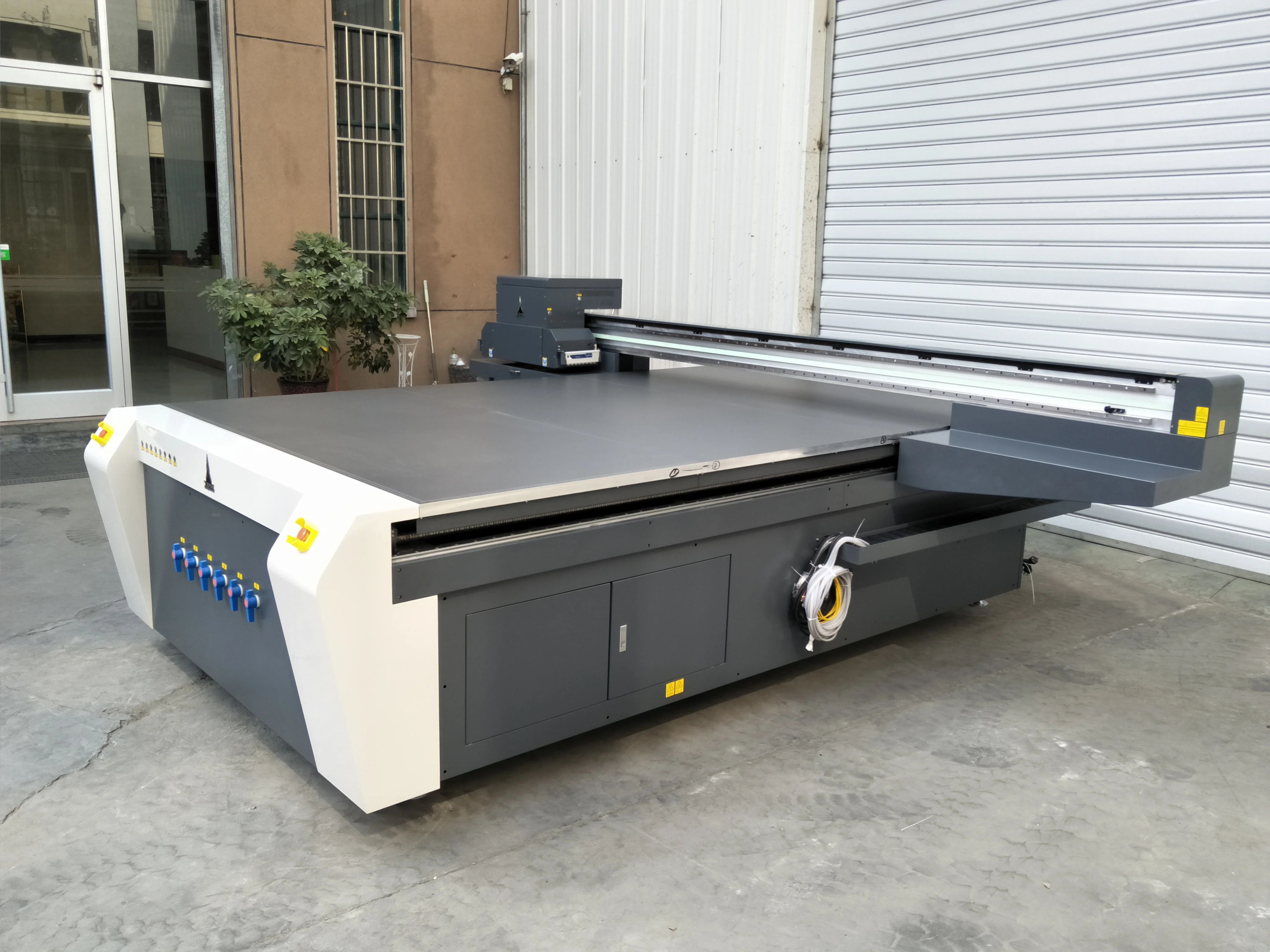

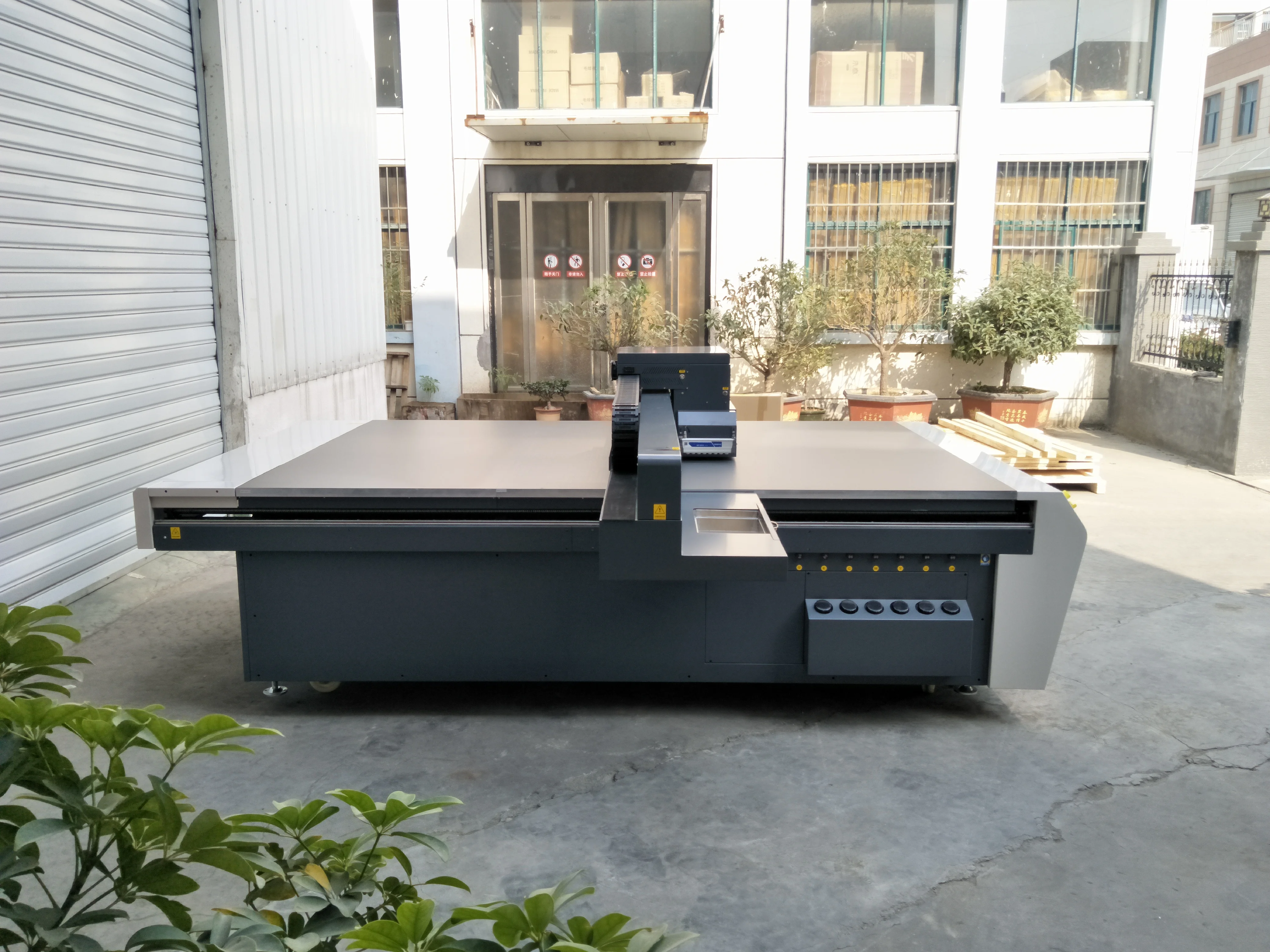

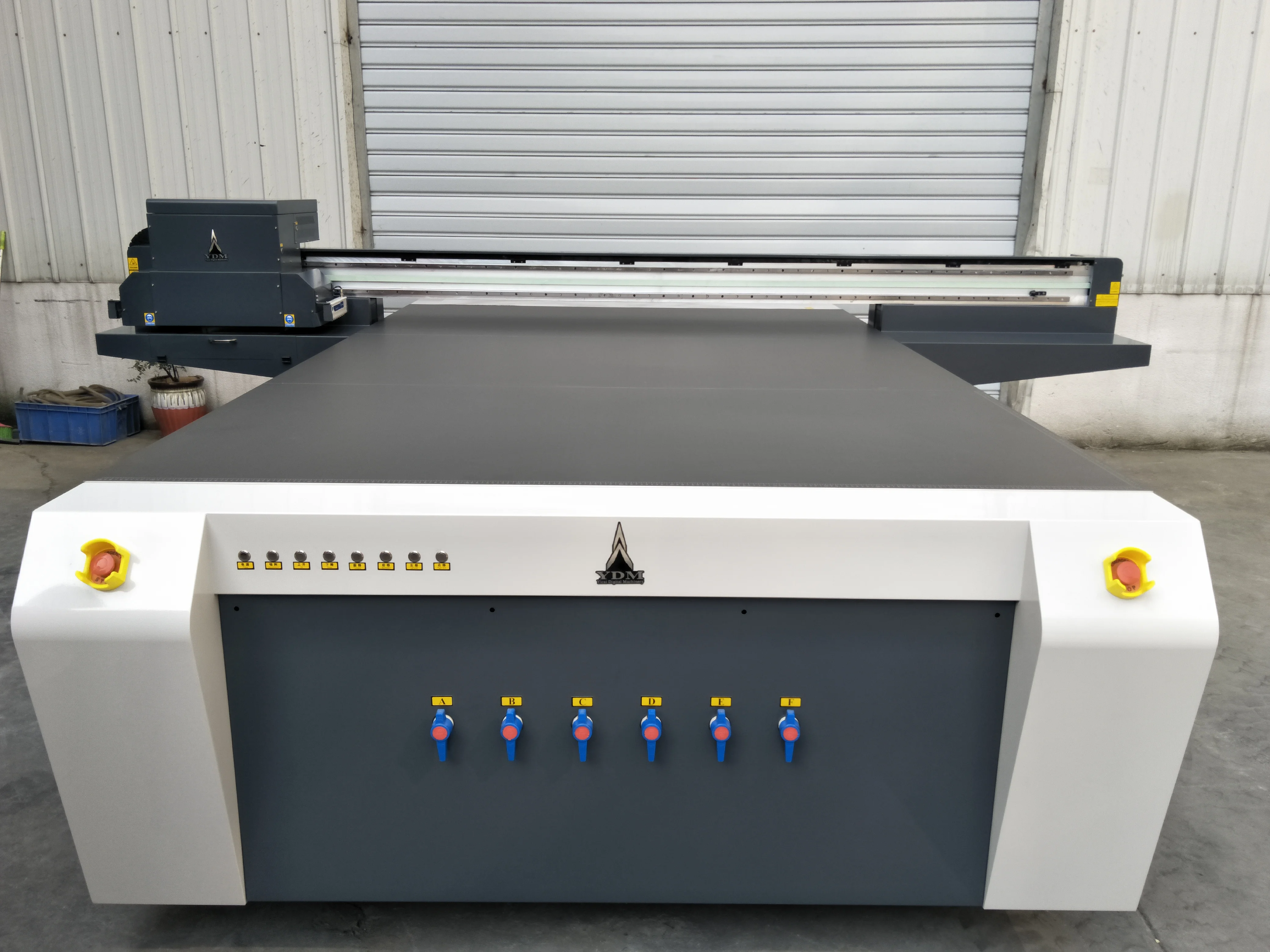

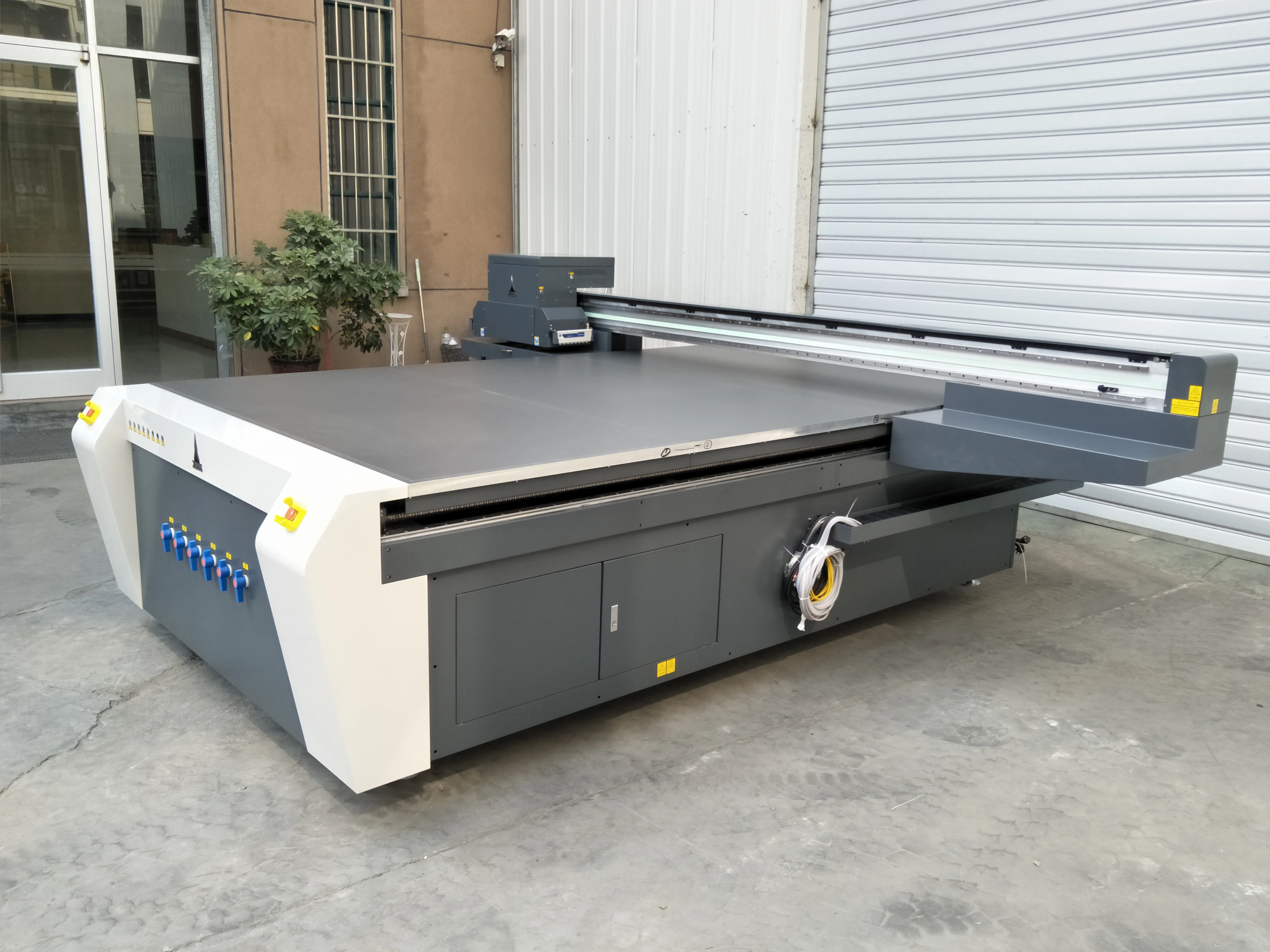

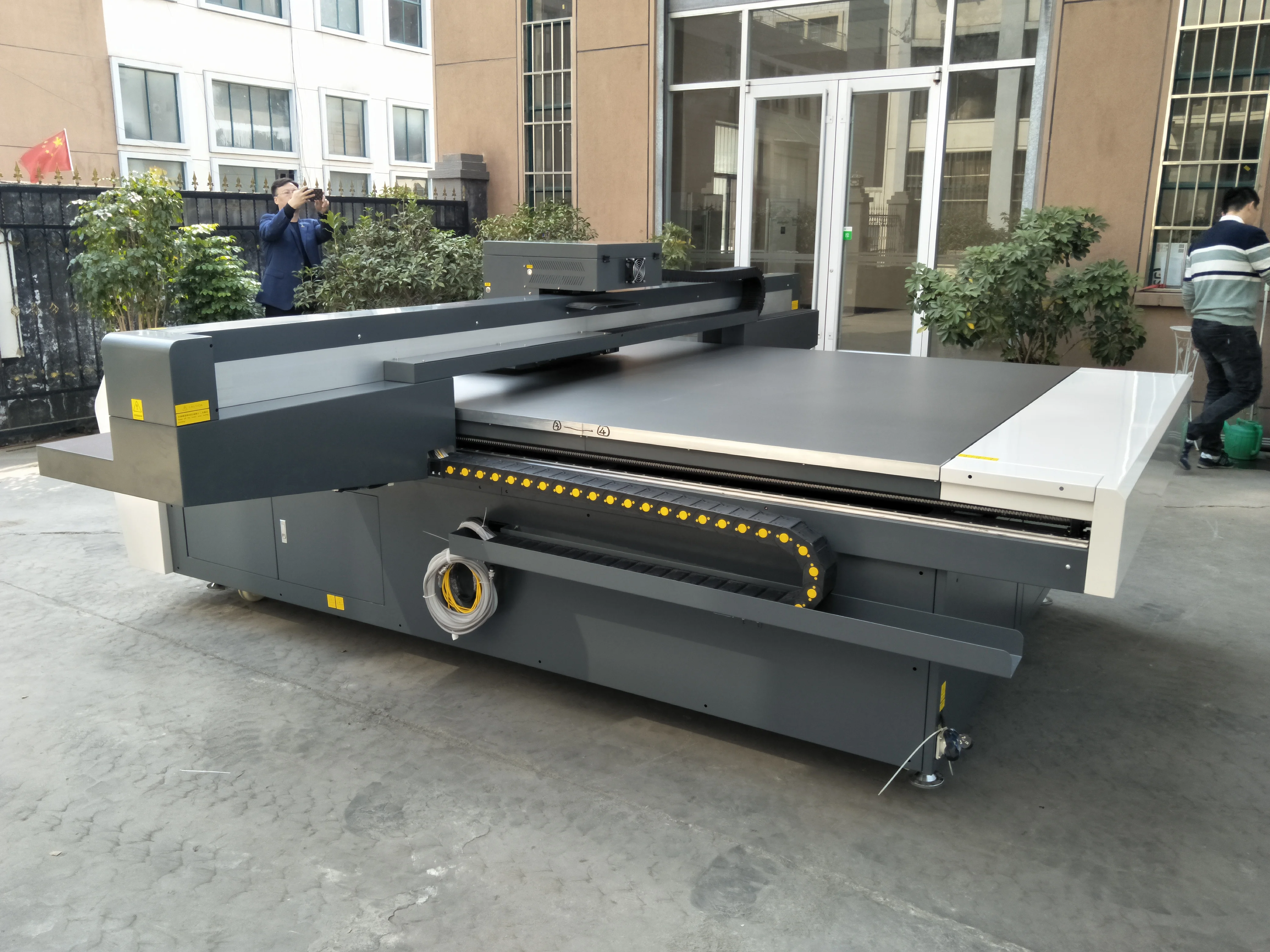

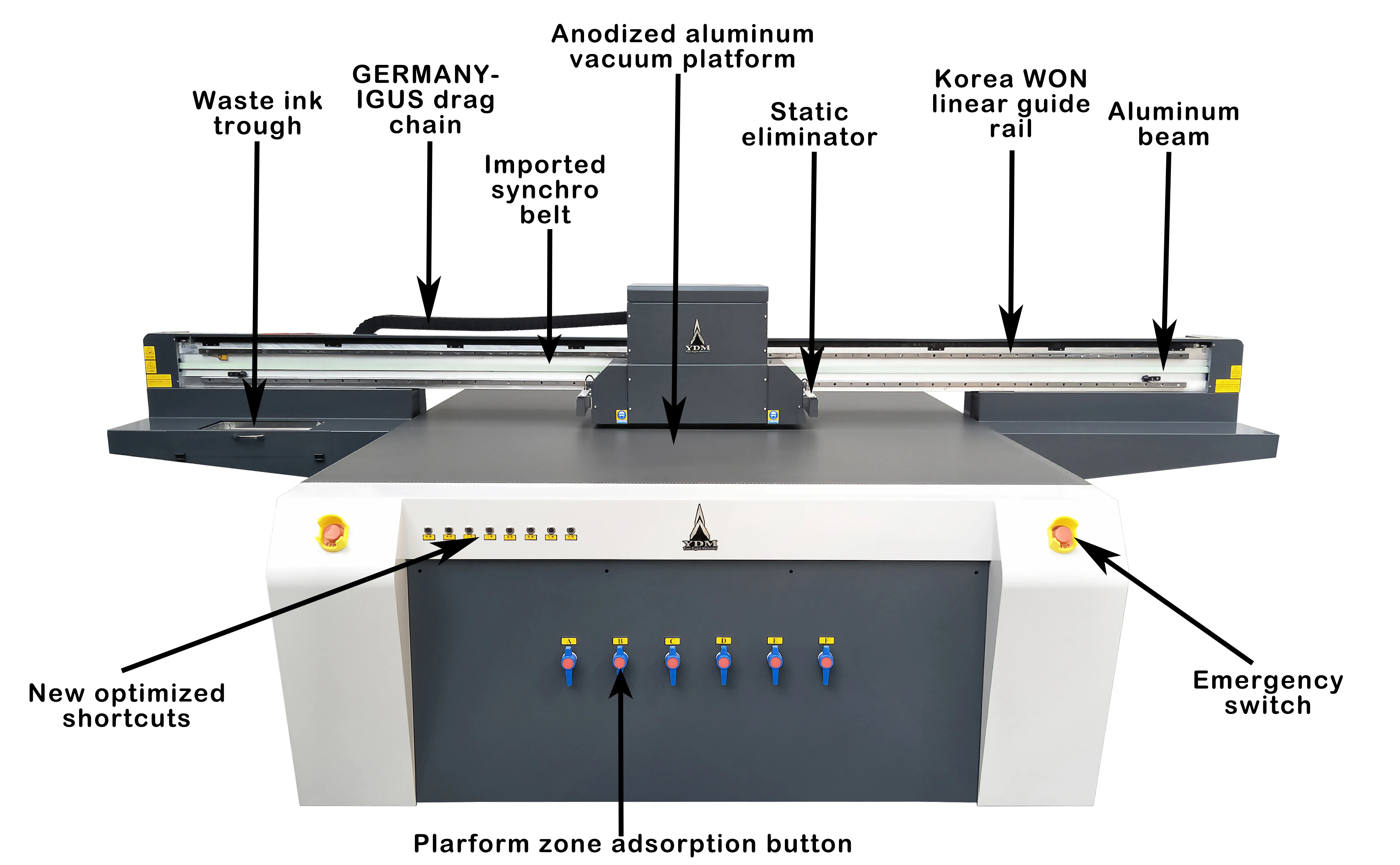

- YDM 2030 UV Printer with newest configuration
- 2030 uv printer equipped with 3500ml ink carriage with low ink warning system and white ink circuration&stiring system
- 2030 uv printer equipped with negative ink supply system,save your ink,and make printing work more frequently

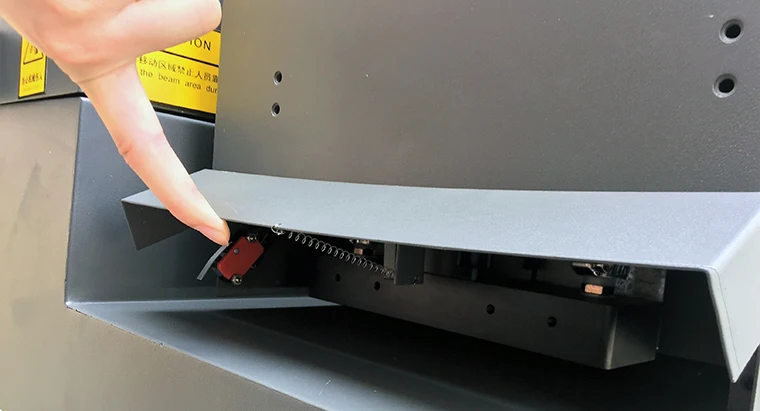

- 2030 uv printer equipped with anti-collision device for printhead

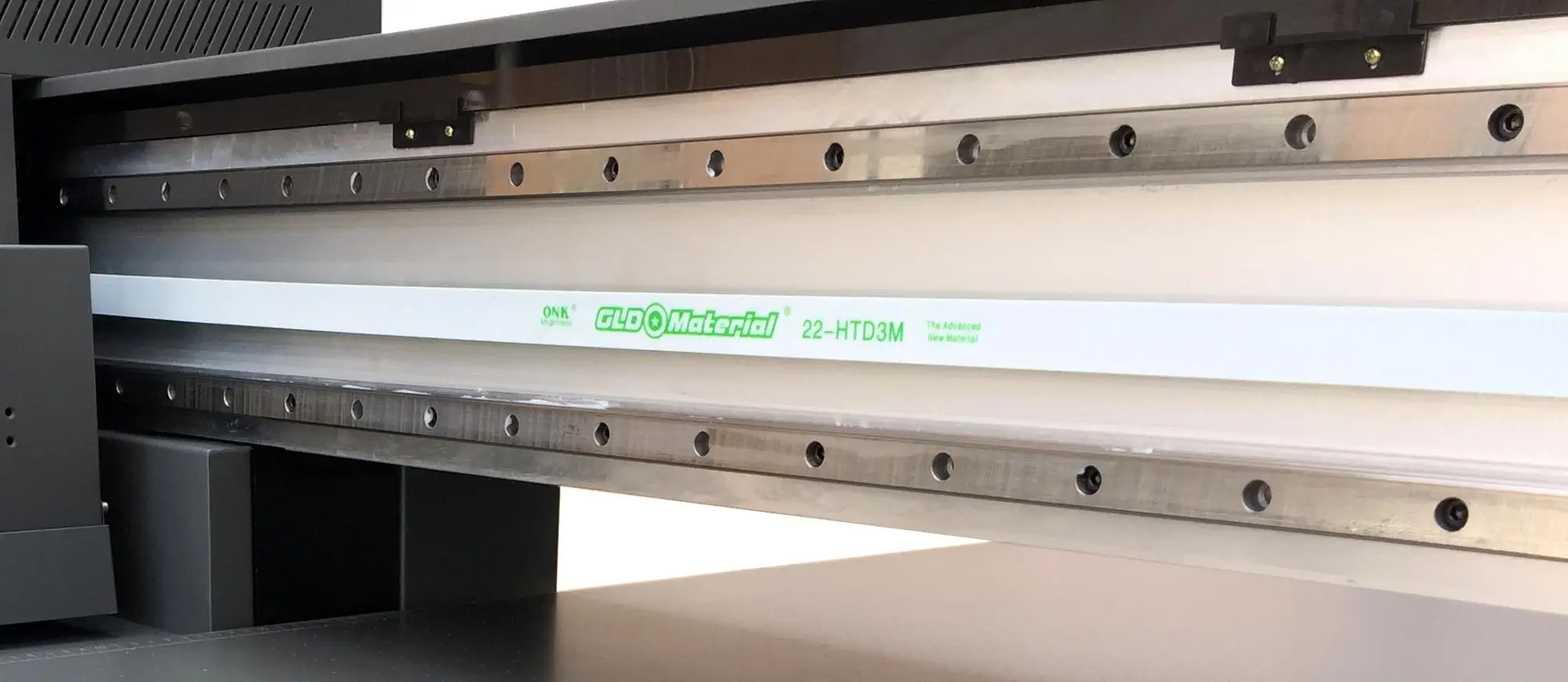

- THKGuide Rail&ONK Belt for YDM 2030 UV Printer
- Higher printing accuracy
- Printing more stability

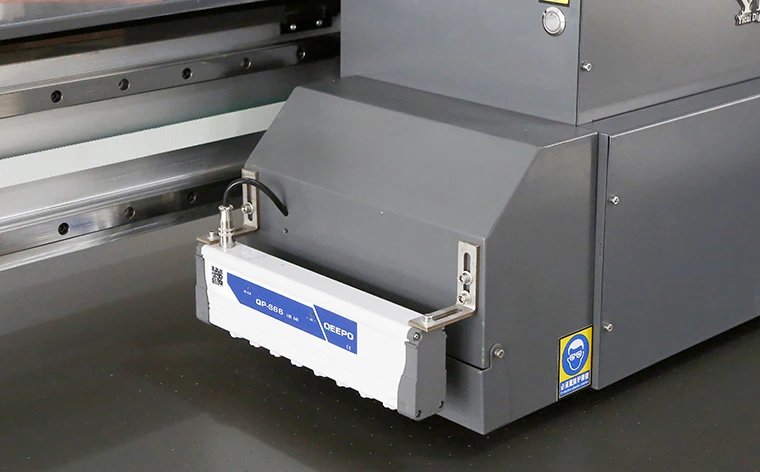

- YDM 2030 UV Printer equipped with double static eliminators and anti-collision device
- Printing on plastic material more frequency,avoid inks splashing when printing
- printing work more safe and easier

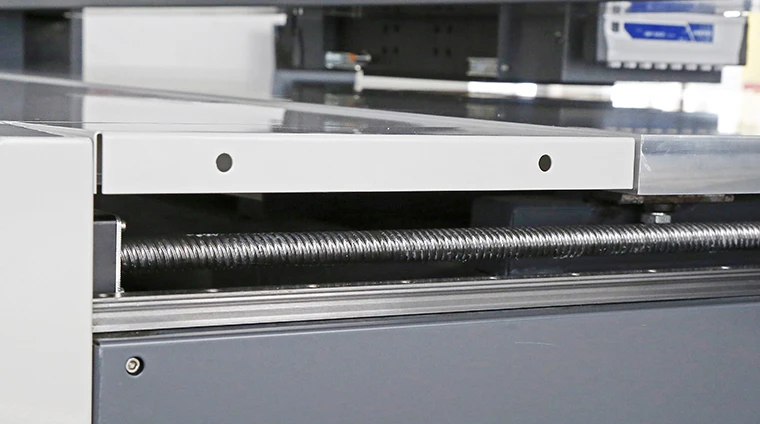

- YDM 2030 UV Printer equipped with double lead ball screw instead of belt
- Higher printing accuracy
- Printing more stability
Company Information
Team&Certifications
- YDM as the leading manufacturer of Inkjet printers and uv printers with more than 16years experience in China,we have a professional service team to fix the problem on time for our customers from all over the world.
- YDM uv printers and inkjet printers already were certificated by CE,SGS,TUV officially
- 24 hours*7,professional service
Printer Applications
- 2030 UV Printer is usually used in Advertising,decoration and other industry
- 2.0*3.0m printing machine equipped with Ricoh G5/G6,or Toshiba CE4M printhead,12-15sqm/h,it can reach your mass production demand.
- YDM 2030 uv inkjet printers is used to print on advertising signs,bill board,shoes,leather,acrylic,metal,glass,aluminum sheet,ceramic tiles,plywood,furniture and other materials.
Acrylic Printing:

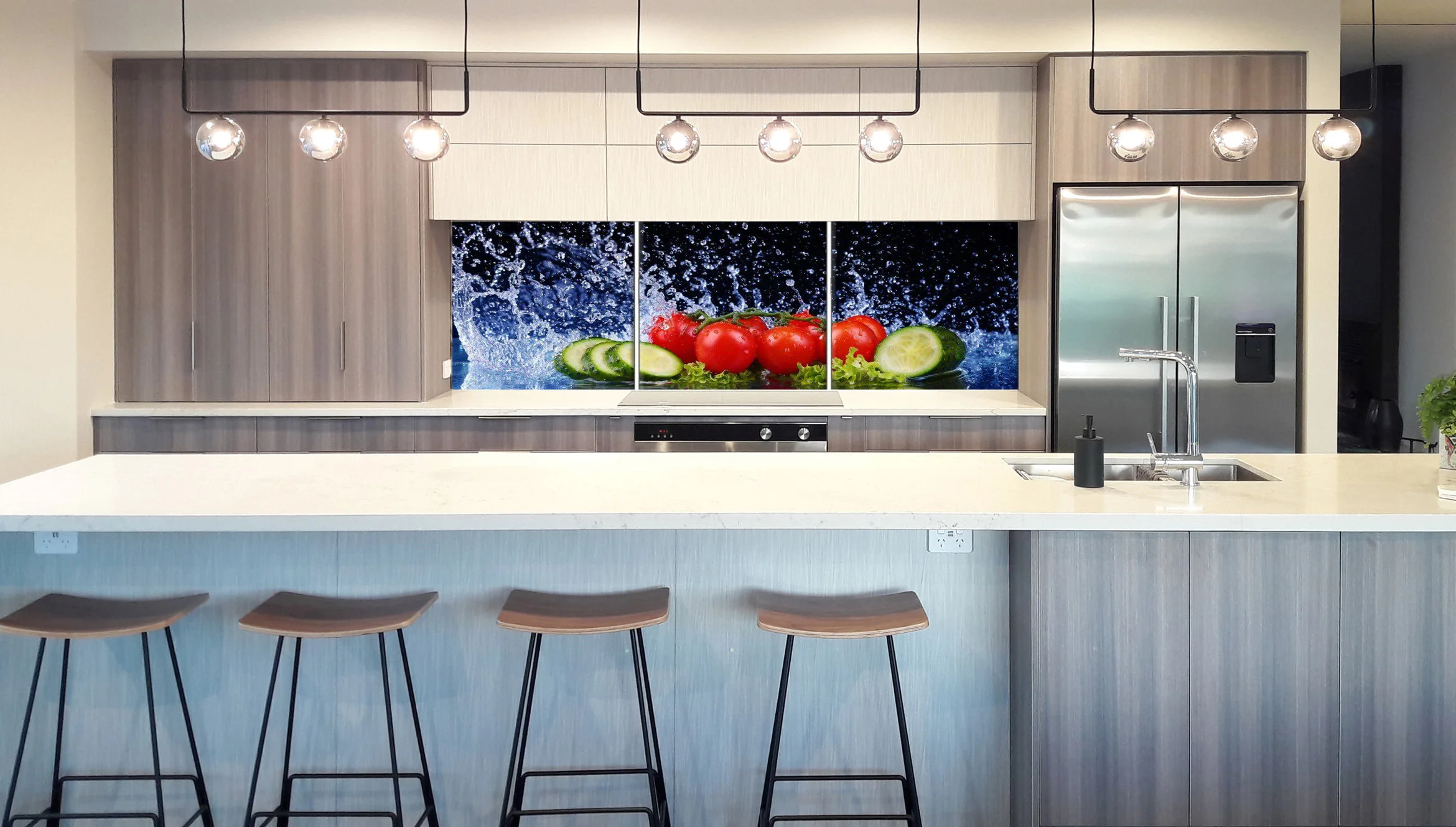

Glass Printing:(Glass Splashbacks/Glass Door and others)
Wallpanel Printing:
Ceramic Tiles Printing:
Metal Panel Printing:
Related Products
YDM is the Professional manufacturer of Printing Machine,like A3 Printer,UV 6090 Printer,UV 1313 Printer,UV 2513 Industry Printing machine,UV 2030 Industry Printing Machine,UV 4030 Industry Printing Machine And roll to roll wallpaper printing machine,More information,Pls clik below items:
FAQ
Q:What materials can print on?
A:POP board, KT board, Acrylic, organic glass etc. The UV printing reduce much work and trouble like lamination, fading, blistering, and save much working hours. Rigid signs board, hard carton or corrugated paper box, special market(like customize and decoration market): glasses, ceramic tiles, wood, even furniture.
Q:What’s RIP installation interface supported language?
A:Korean, German, French, Finnish, Dutch, Portuguese, Japanese, Spanish, Italian, English, Chinese (Simplified), Chinese (traditional)
Q:How to do when the status of the printhead is not good?
A:1. Trun off power, move the printhead to the initial position, check if the printhead and cap top is in the same line
2. Do one time cleaning action, and print the test status.
3. If above operation still can’t solve this problem, then disassembly the printhead, cleaning the printhead manually or use cleaning machine to clean the printhead
4 If the status keep the same after above all operations, then check other parts or change a new printhead to test.
Q: What is Warranty Policy
A: During the 1 year warranty if any part is faulty, our company will give you replacing parts for free. When the warranty expired, our company will still provide free technician support. Especially, you will gain the lifelong Warranty for your large format digital inkjet printer with continuously ink order.
Q: What about the after-sales service ?
A: We have many experienced technician, Provide the technical support for all of our customers ,We will teach you how to operate the machines until you master it ,sometimes our technician team will go abroad to test and repair the machines.
