4tools Atc Metal Engraving Milling Cnc Router Machine 3axis cnc gold jewelry engraver metal steel mold cnc router machine
- Category: Metal Engraving Machinery >>>
- Supplier: Jinan,Remax,Machinery,Technology,Co.,Ltd.
Share on:
Product Overview
Description

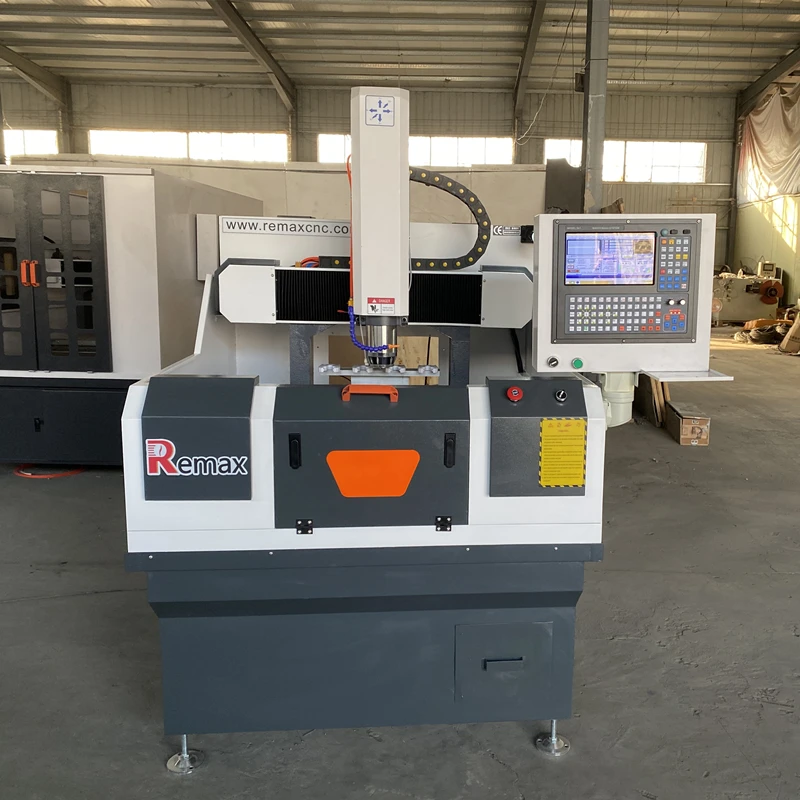

Remax 4040 ATC Metal CNC Router Machine
Product Description
Features:
1. CNC Mold Making Machine is a machine that combines CNC technology with engraving and milling technology.This is a multifunctional CNC machine tool.2. Stable and rigid structure: The gantry bed and the bed are integrated, the machine has good rigidity, and both have no installation errors. So even if it is used for a long time, the processing accuracy will not be affected.
3. CNC moulding machine is a fully enclosed design and adopts an external circulating cutting oil processing method. The body is fully cast, with stable structure and strong bearing capacity.
4. The whole machine is equipped with a well-known brand of precision bidirectional ball screw, Taiwan square rails and precision bearings with strong rigidity and high dynamic precision.
5. The CNC molding machine has been equipped with an automatic tool change system.
Product parameter:
Description | Parameter of cnc milling machine |
X,Y,Z Working Area | 400*400*300mm |
X,Y,Z Repositioning Accuracy | 0.02mm |
Table Surface | T-slot Table |
Frame | Whole machine cast by iron |
X, Y,Z Structure | Hiwin Square Rail and TBI Ball Screw |
Spindle Power | 3.2kw atc water cooling spindle |
Spindle Speed | 0-24000RPM |
Working Voltage | AC220/380V 50/60Hz |
Command Language | G Code |
Inverter | Delta/Fuling |
Auto tool change | Linear type 4pcs auto tool change |
Electrical components | Schneider |
Limit switch | OMRON |
Motor and driver | Leadshine htbrid servo motor and driver/Taiwan Delta servo motor and driver |
Running Environment Temperature | 0-45 Centigrade |
Relative Humidity | 30%-75% |

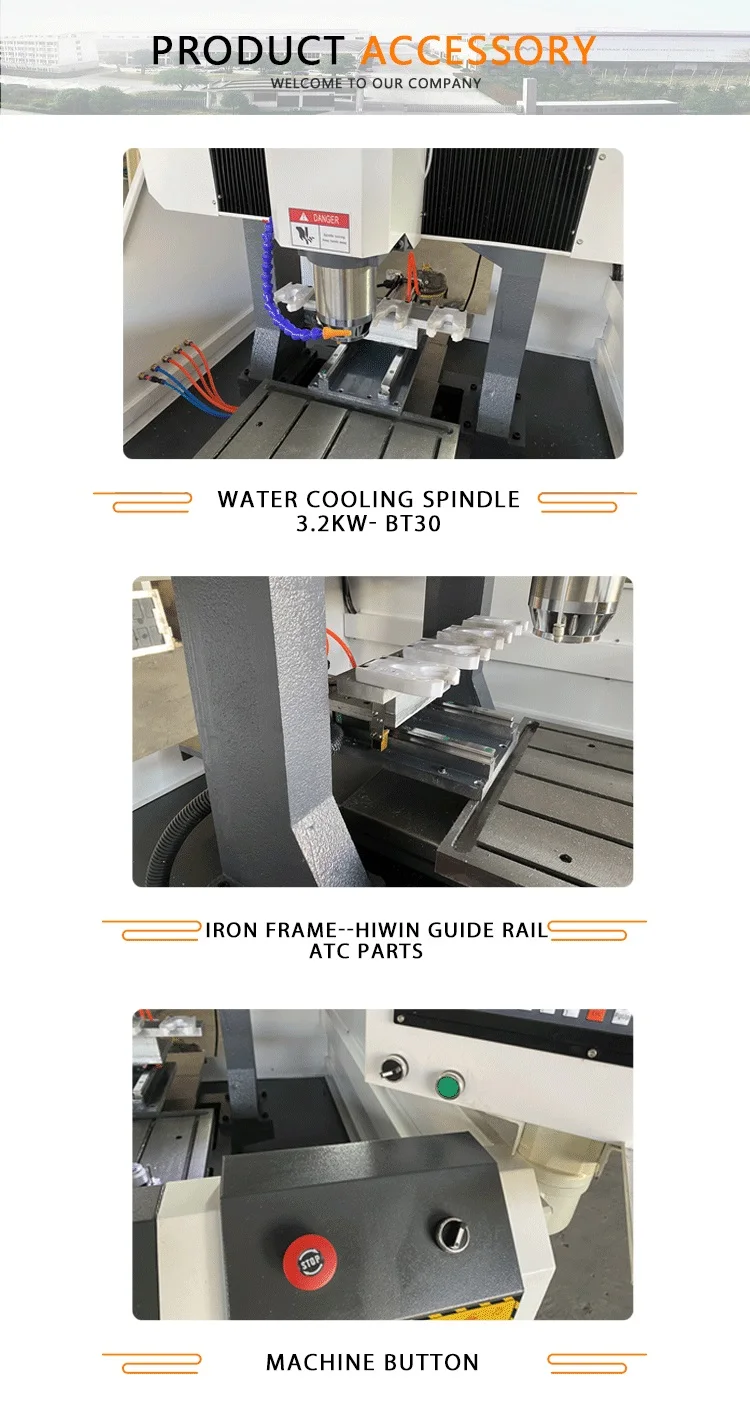

Detailed Photos

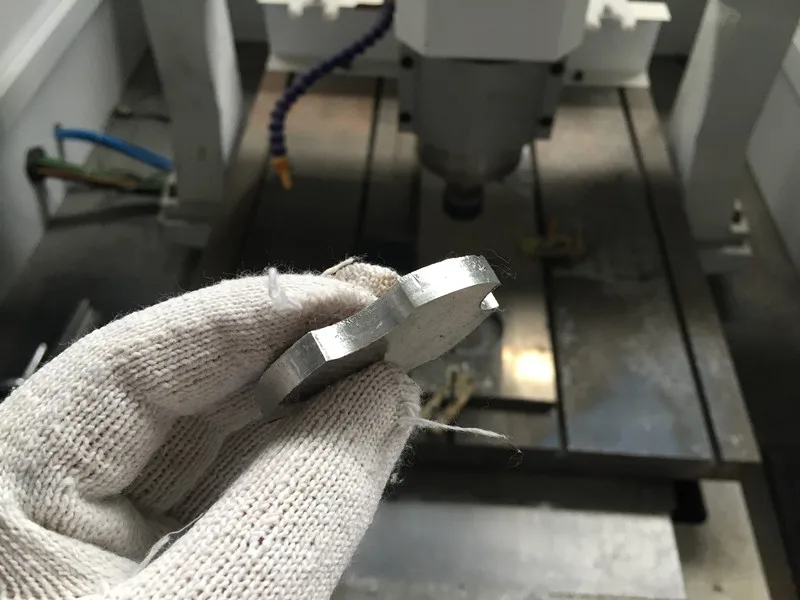

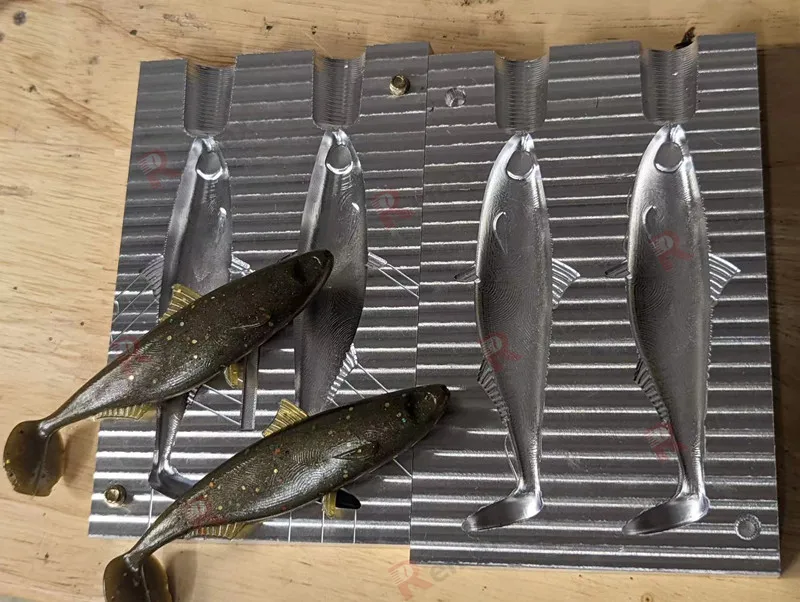

Samples
Company Profile
Packing & Delivery
Customer feedback
Our Service
FAQ
A This is the first time I use this kind of machine, is it easy to operate?
There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager online service at any time.
B If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period if machine have any problem.
C MOQ ?
The minimum order is 1 set machine, if you order more one time, the price will be better.
D How can I buy this machine from you? ( Very easy and flexible !)
1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
6. Send your order by air or by sea.
E 10 good reasons why you should buy from us?
1. We are a real factory offering products.
2.Free technical business for many years.
3.Company in business for many years.
4.Over 50 countries customers served!
5.Buy direct saving your money!
6.All machine with CE certificate.
7.Machine and spindle warranty 1year.
8.Our engineer can go to your country to provide technical guidance
9.We have phone support in English,if you have any questions,you can call it,
we can give you a best solution within 24 hours
10. Fast delivery,save your time.
There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager online service at any time.
B If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period if machine have any problem.
C MOQ ?
The minimum order is 1 set machine, if you order more one time, the price will be better.
D How can I buy this machine from you? ( Very easy and flexible !)
1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
6. Send your order by air or by sea.
E 10 good reasons why you should buy from us?
1. We are a real factory offering products.
2.Free technical business for many years.
3.Company in business for many years.
4.Over 50 countries customers served!
5.Buy direct saving your money!
6.All machine with CE certificate.
7.Machine and spindle warranty 1year.
8.Our engineer can go to your country to provide technical guidance
9.We have phone support in English,if you have any questions,you can call it,
we can give you a best solution within 24 hours
10. Fast delivery,save your time.
