ISO 9001 Graphite Electrode UHP D450mm L1800/2100mm with 241T4L Nipple
- Category: Graphite Products >>>
- Supplier: Linzhang,County,Hengqiang,Carbon,Co.,Ltd.
Share on:
Product Overview
Description

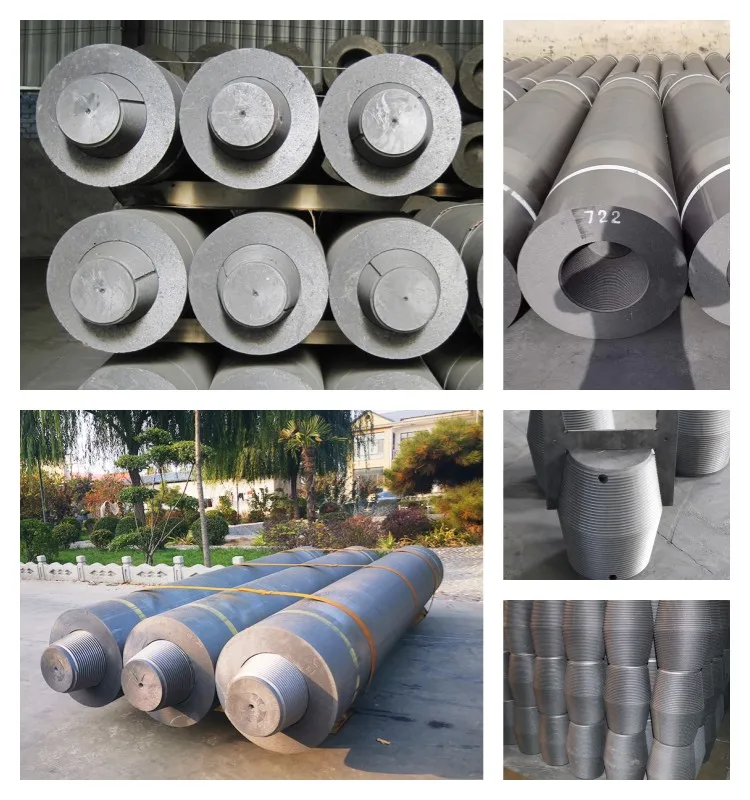

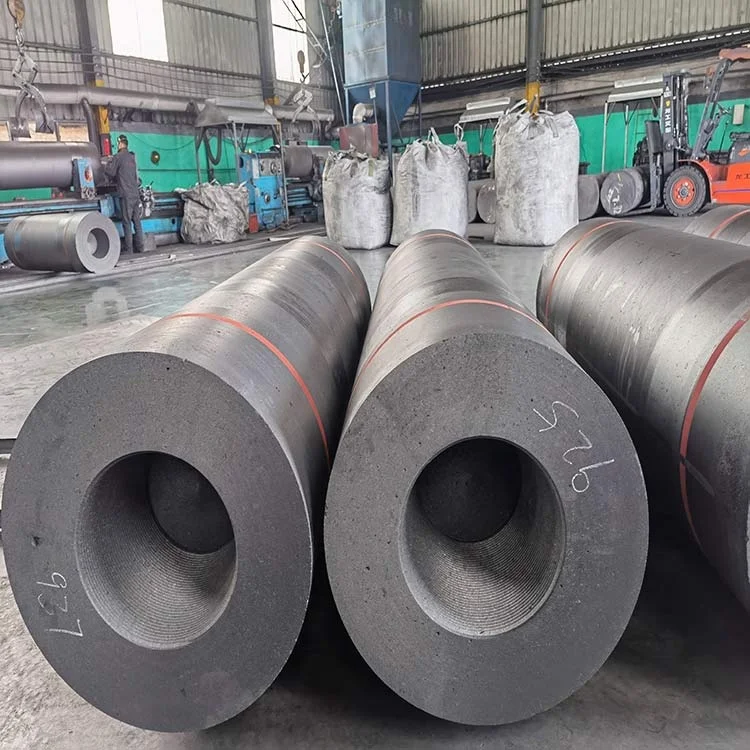

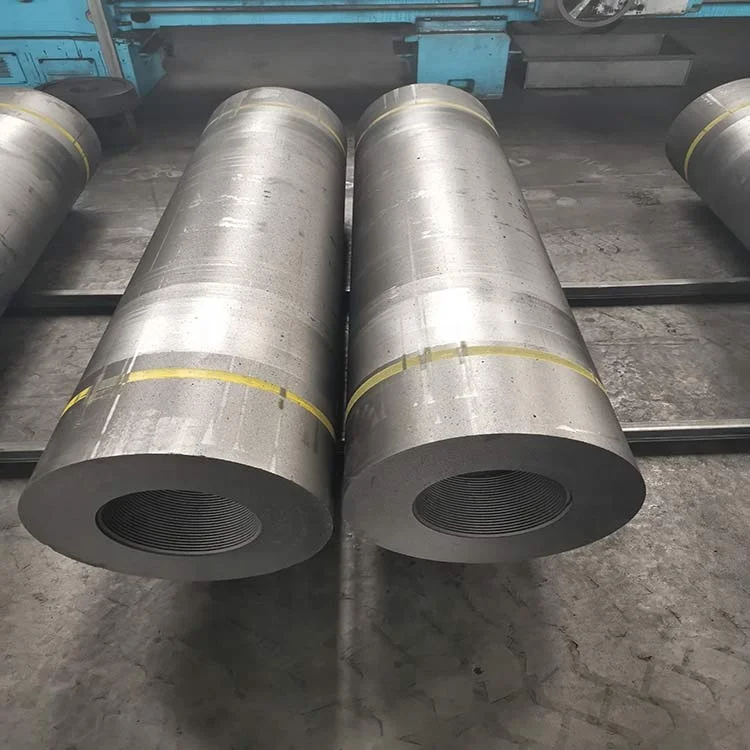

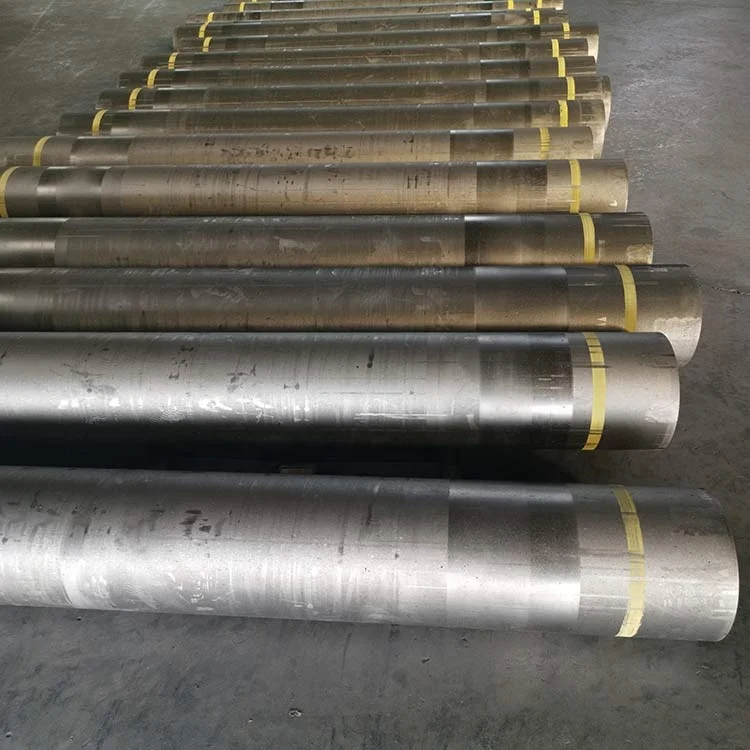

ISO 9001 Graphite Electrode UHP D450mm L1800/2100mm with 241T4L Nipple
Company Information
Graphite Electrode Factrory.
Have 20 Years industrial experience.
With Rich experience in Exporting by vessel, train and railway wagon.
Supply graphite electrodes RP/HP/UHP D100-D700mm
Graphite electrodes are widely used in Electric Arc Furnaces (EAF) and Ladle Furnaces (LF) for steel metal making.
Strict quality control from raw materials to finished products
Advanced production technology and strong technical force
Product Description
PRODUCT FEATURE
Has good electrical conductivity Strong thermal shock resistance
High mechanical strength Low consumption
Technical Data:
| UHP Graphite Electrode | ||||||
| Item | Classification | Unit | Nominal Diameter (mm) | |||
| 300-350 | 400-500 | 550-600 | 700 | |||
| Electrical resistivity (Max) | Pole Nipple | μΩm | 6.5-7 4.0 | 5.8 4.0 | 5.5 4.0 | 5.5 4.0 |
| Bending strength (Min) | Pole Nipple | Mpa | 10.5 18.0 | 10.5 18.0 | 11.0 20.0 | 11.0 20.0 |
| Young's modulus (Max) | Pole Nipple | Gpa | 14.0 18.0 | 14.0 18.0 | 14.0 22.0 | 14.0 22.0 |
| Bulk density (Min) | Pole Nipple | g/cm3 | 1.68 1.76 | 1.68 1.78 | 1.68 1.78 | 1.68 1.78 |
| Thermal expansion coefficient (Max) (100℃-600℃) CTE | Pole Nipple | ×10-6/℃ | 1.5 1.4 | 1.5 1.4 | 1.4 1.2 | 1.4 1.2 |
| Ash content (Max) | % | 0.2 | 0.2 | 0.2 | 0.3 | |
| Note: CTE and ash content are only for reference. | ||||||
Customer Visiting
Excellent sales at home and abroad, export to more than 20 countries and areas like Europe, the Middle East, Southeast Asia, the Americas, Africa etc..
Packaging & Shipping
Package: Packing: Wooden cases with pallet and steel belt fastening, make sure the packing is suitable to sea and train transportation.
Delivery time: within 25-30 days after the receipt of payments
ISO&Quality Control
Obtained ISO9001 quality system certification.
Verified by Alibaba, TUV.
Our Services
Quality assurance
On-time delivery
Excellent after-sales service
Comprehensive technical support
Hengqiang always adheres to the quality first & reputation first, provide you with good products and services. We are looking forward to establish a long-term relationship with you.
