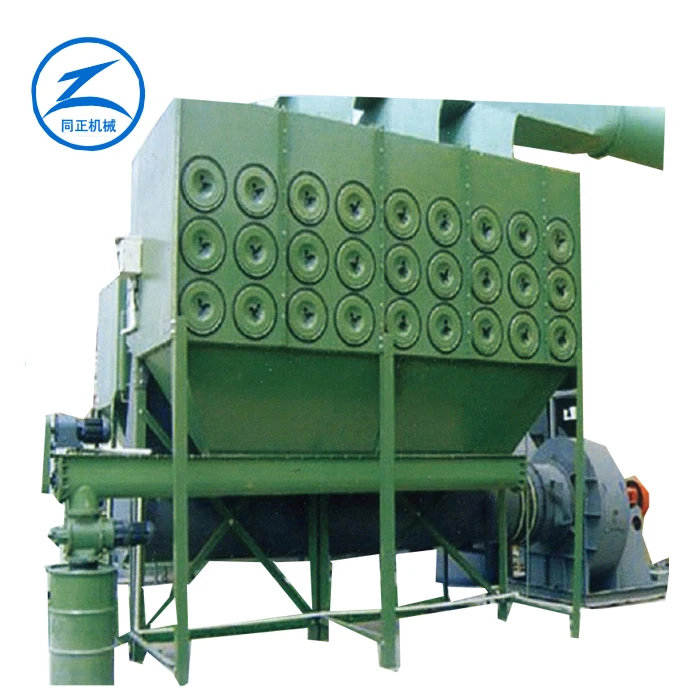

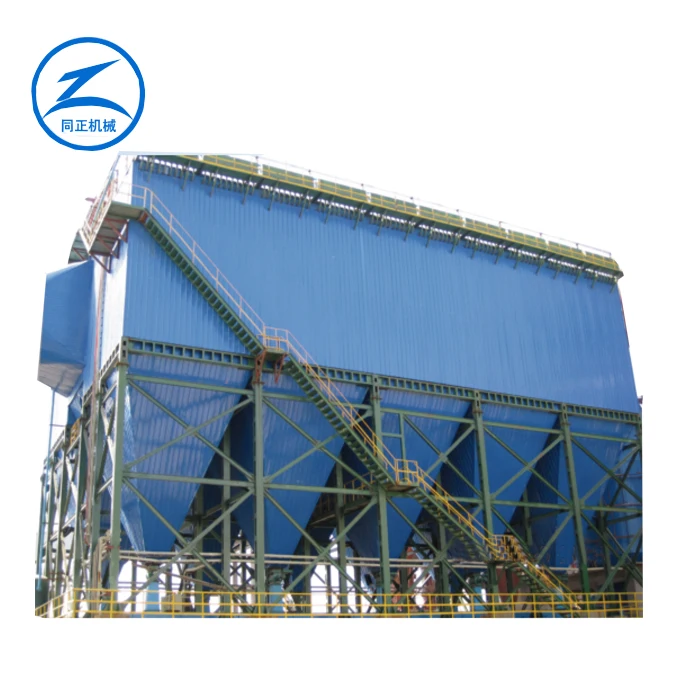

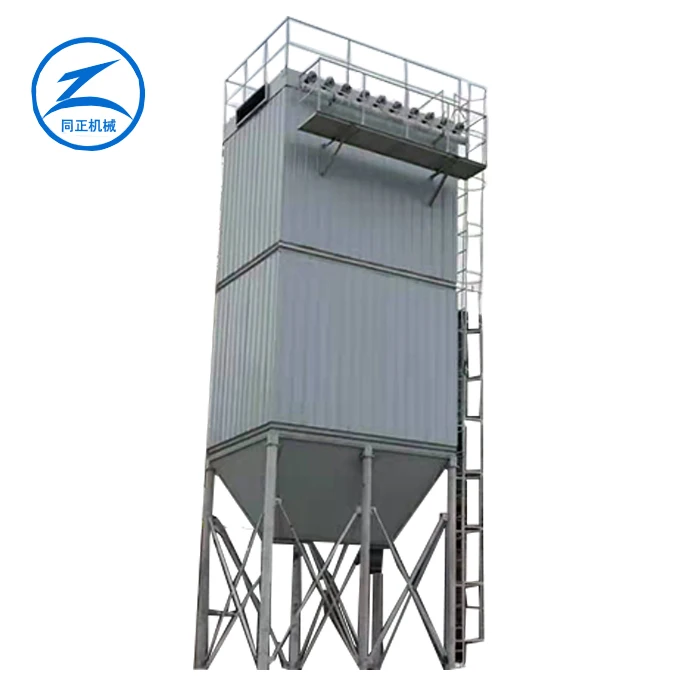

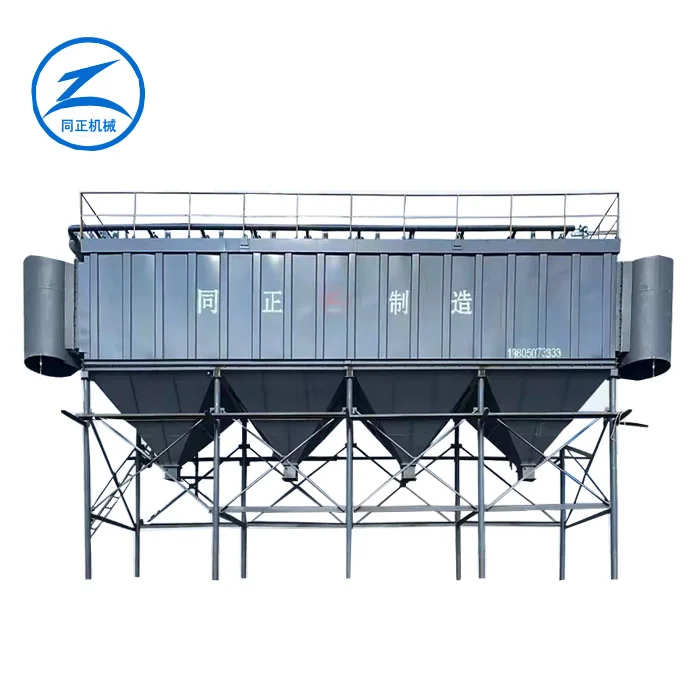

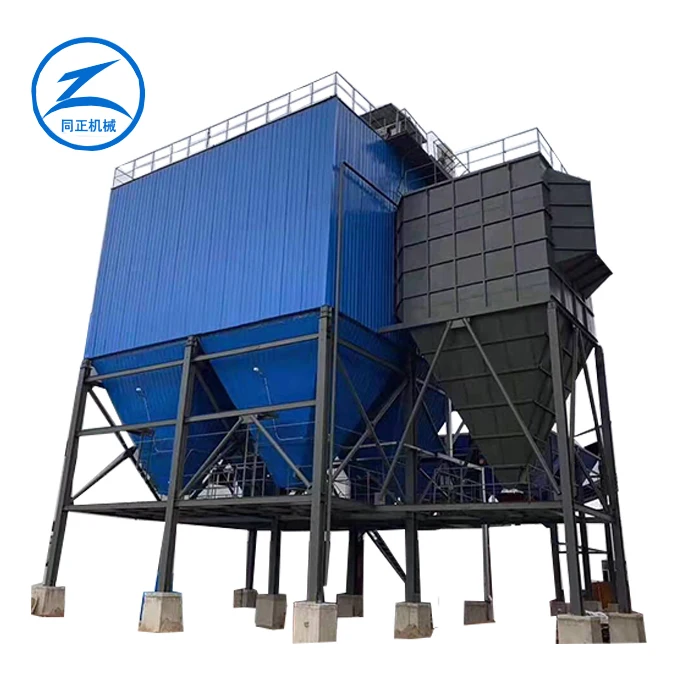

TZMC176 dust bag filter/ Industrial cyclone bag dust collector machine
- Category: >>>
- Supplier: Jiangsu Tongzheng Machinery Manufacturing Co. Ltd.
Share on (1600717834306):
Product Overview
Description
TZMC series large jet pulse long bag type dust collector is a pulse long bag type dust collector developed by our company on the basis of jet pulse dust removal technology and in combination with advanced dust removal technology at home and abroad to meet the needs of large air volume flue gas purification. It combines the advantages of chambered reverse blowing dust collector and pulse dust-cleaning dust collector, overcomes the shortcomings of insufficient intensity of
chambered reverse blowing dust removal and general pulse dust removal re-adsorption, so as to improve the dust removal efficiency and greatly reduce the injection frequency. The product uses submerged pulse valve, which reduces the pressure of injection air source and energy consumption of equipment operation, prolongs the service life of filter bag and pulse valve, and greatly improves the comprehensive technical performance.It is widely used in the purification of normal temperature or high temperature dusty gases in building materials, metallurgy, petrochemical, grain, steel, coal, power, garbage incineration, kiln and other industries and the recovery of powdered materials.
chambered reverse blowing dust removal and general pulse dust removal re-adsorption, so as to improve the dust removal efficiency and greatly reduce the injection frequency. The product uses submerged pulse valve, which reduces the pressure of injection air source and energy consumption of equipment operation, prolongs the service life of filter bag and pulse valve, and greatly improves the comprehensive technical performance.It is widely used in the purification of normal temperature or high temperature dusty gases in building materials, metallurgy, petrochemical, grain, steel, coal, power, garbage incineration, kiln and other industries and the recovery of powdered materials.
Model | TZMC 160-2*5 | TZMC 160-2*6 | TZMC 160-2*7 | TZMC 160-2*8 | TZMC 160-2*9 | TZMC 176-2*5 | TZMC 176-2*6 | TZMC 176-2*7 | TZMC 176-2*8 | ||||||||
Air volume(m3/h) | 23.04-28.8 | 27.65-34.56 | 32.5-40.32 | 36.86-46.08 | 41.47-51.84 | 25.34-38.02 | 30.41-38.02 | 35.48-44.35 | 40.55-50.68 | ||||||||
Total filter area(m2) | 4800 | 5760 | 6720 | 7680 | 8640 | 5305 | 6336 | 7392 | 8448 | ||||||||
Qty of chamber(pcs) | 10 | 12 | 14 | 16 | 18 | 10 | 12 | 14 | 16 | ||||||||
Total QTY of filter bags (pcs) | 1600 | 1920 | 2240 | 2560 | 2880 | 1760 | 2112 | 2464 | 2186 | ||||||||
Filter bags size (D*L mm) | φ160*6000mm | 320 | 384 | 448 | 512 | ||||||||||||
Qty of pulse valve (pcs) | 100 | 120 | 140 | 160 | 180 | 110 | 132 | 154 | 176 | ||||||||
Resistance(Pa) | ≤1500 | ||||||||||||||||
Filter air speed(m/min) | 0.8-1.0 if the user needs, it can be adjusted to be lower or higher speed. | ||||||||||||||||
inlet dust concentration (g/Nm3) | ≤100 | ||||||||||||||||
Air leakage rate(%) | ≤3 | ||||||||||||||||
Air source pressure(Mpa) | 0.3-0.5 | ||||||||||||||||
Performance characteristics
1. The pulse jet ash cleaning technology is used, which has strong ash cleaning capacity, high dust removal efficiency, low emission concentration, small air leakage rate, less energy consumption, less floor area and stable operation and has good economic benefits. It is suitable for flue gas dedusting in metallurgy, building materials, machinery, chemical industry, electric power, light industry and other industries.
2. The box is designed to be air tight with good sealing performance. The inspection door is made of excellent sealing materials. During the manufacturing process, diesel oil is used to detect and the air leakage rate is low.
3. The outlet air duct is arranged compactly with small air flow resistance.
4. The chamber air stop pulse jet is used to clean the ash, which has a long cleaning cycle and low consumption, and can double the service life of filter bags and valve pieces.
5. The bag can be changed without stopping the machine, and the maintenance will not affect the normal operation of the equipment.
6. The upper bag pulling method is adopted to improve the maintenance operation environment.
1. The pulse jet ash cleaning technology is used, which has strong ash cleaning capacity, high dust removal efficiency, low emission concentration, small air leakage rate, less energy consumption, less floor area and stable operation and has good economic benefits. It is suitable for flue gas dedusting in metallurgy, building materials, machinery, chemical industry, electric power, light industry and other industries.
2. The box is designed to be air tight with good sealing performance. The inspection door is made of excellent sealing materials. During the manufacturing process, diesel oil is used to detect and the air leakage rate is low.
3. The outlet air duct is arranged compactly with small air flow resistance.
4. The chamber air stop pulse jet is used to clean the ash, which has a long cleaning cycle and low consumption, and can double the service life of filter bags and valve pieces.
5. The bag can be changed without stopping the machine, and the maintenance will not affect the normal operation of the equipment.
6. The upper bag pulling method is adopted to improve the maintenance operation environment.
Q:How can I get the price?
A:We usually quote within 24 hours after we get your inquiry(Except weekend and holidays).If you are very urgent to get the price,please email us or contact us in other ways so that we can offer you a quote.
Q:Can I buy samples placing orders?
Q:What is your lead time?
A:It depends on the order quantity and the season you place the order.Usually we can ship within 15-20 days for small quantity,and about 30 days for large quantity.
Q:What is your payment term?
A:T/T,Western Union,L/C,and Paypal.This is negotiable.
Q:What is the shipping method?
A:It could be shipped by sea,by air or road and ect.Please confirm with us before placing orders.
A:We usually quote within 24 hours after we get your inquiry(Except weekend and holidays).If you are very urgent to get the price,please email us or contact us in other ways so that we can offer you a quote.
Q:Can I buy samples placing orders?
A:Yes.Please feel free to contact us.
Q:What is your lead time?
A:It depends on the order quantity and the season you place the order.Usually we can ship within 15-20 days for small quantity,and about 30 days for large quantity.
Q:What is your payment term?
A:T/T,Western Union,L/C,and Paypal.This is negotiable.
Q:What is the shipping method?
A:It could be shipped by sea,by air or road and ect.Please confirm with us before placing orders.
