Sport Safety Shoe Pu Foaming Pouring Sole Injection Moulding Making Machine
- Category: >>>
- Supplier: Foshan Dafeng Machinery Equipment Co. Ltd.
Share on (1600717838252):
Product Overview
Description
Product Description
Specification
item | value |
Applicable Industries | Manufacturing Plant |
Showroom Location | None |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | New Product 2020 |
Warranty of core components | 1 Year |
Core Components | PLC, Motor, Pressure vessel, Gear, Pump |
Condition | New |
Production Capacity | shoe sole Making Machine |
Place of Origin | China |
Guangdong | |
Brand Name | DAFENG |
Voltage | 380V/220V |
Power | 21kw |
Dimension(L*W*H) | 5500*1200*2200 |
Weight | 650 |
Warranty | 1 Year |
Key Selling Points | Easy to Operate |
After-sales Service Provided | Service Machinery Overseas |
Product name | Pu Foaming Pouring Sole Injection Moulding Machine |

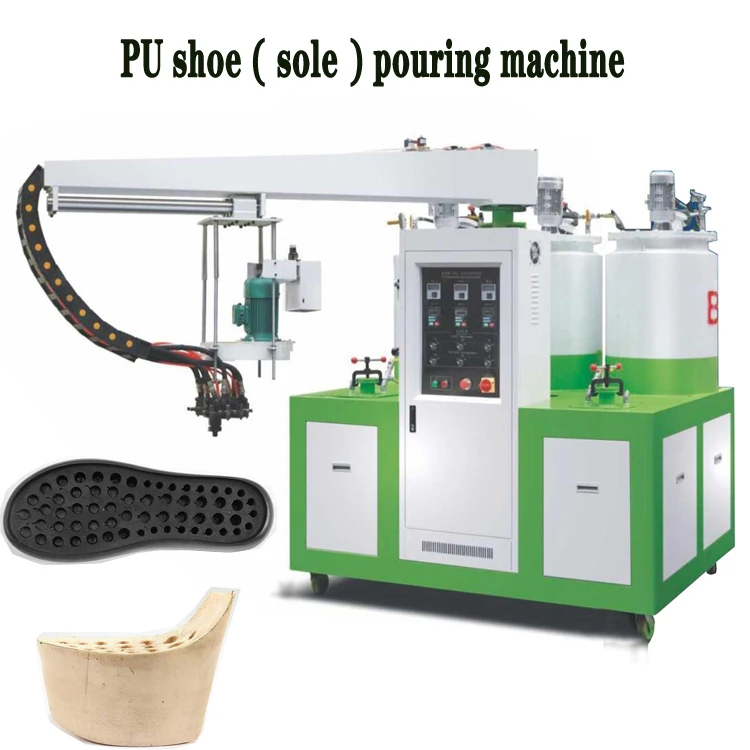

PU shoe ( sole ) pouring machine
1. The frequency transformer control rotating speed of head, the stable rotation speed is a guarantee of high-quality sole.
2. The frequency transformer with advantages of save energy and long life.
3. Use the tough-screen computer control system. The output with double chooses of time and weight. The computer can control the temperature directly, keep the stable temperature. Also with the timing switch function of metering pump and heat the material tank.
2. The frequency transformer with advantages of save energy and long life.
3. Use the tough-screen computer control system. The output with double chooses of time and weight. The computer can control the temperature directly, keep the stable temperature. Also with the timing switch function of metering pump and heat the material tank.

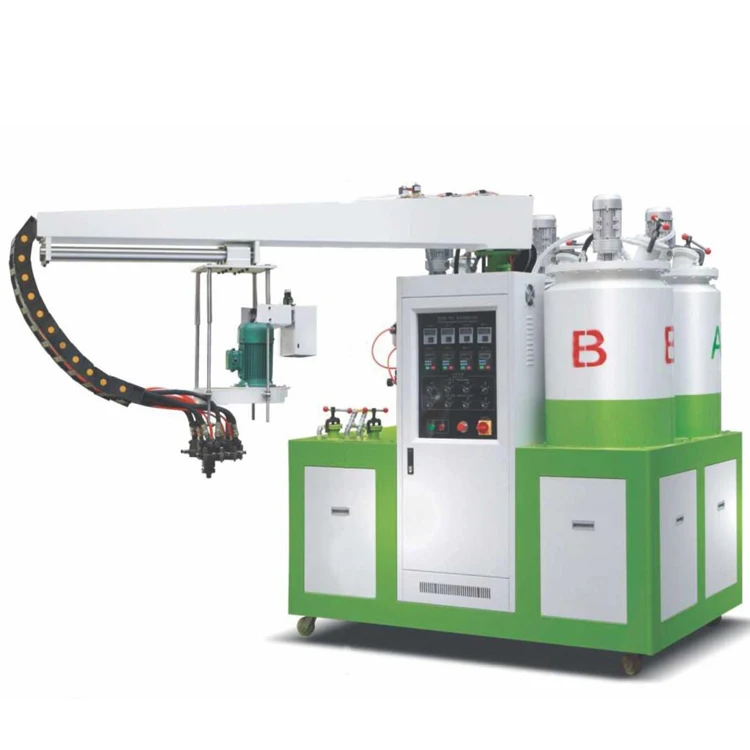

DF-701 Single color PU shoe ( sole ) pouring machine
2 tanks, capacity of each tank: 160L or 250L
Characteristics:
1. Have one A tank and one B tank, can make different color and different density foaming shoe sole by mixing with A and B raw material.
2. Under different proportion of A and B raw material, can get different properties polyurethane sole material. The mix head with two needle which can work independently.
3. Heating system with electricity, make heating more fast and more efficient in power saving.
4. Self-developed PLC, with function of setting time, real-time monitoring and so on.
5. The speed of metering pump use frequency conversion control, with advantages of energy saving and keep the rotational speed when voltage instability.
Characteristics:
1. Have one A tank and one B tank, can make different color and different density foaming shoe sole by mixing with A and B raw material.
2. Under different proportion of A and B raw material, can get different properties polyurethane sole material. The mix head with two needle which can work independently.
3. Heating system with electricity, make heating more fast and more efficient in power saving.
4. Self-developed PLC, with function of setting time, real-time monitoring and so on.
5. The speed of metering pump use frequency conversion control, with advantages of energy saving and keep the rotational speed when voltage instability.
Tank quantity | Tank capacity | Quantity of metering pump | Speed of metering pump | Precision | Mix rotating speed of head | Pouring head cleaning | Voltage | Power | Output |
2 | 160L-250L | 2 | 0-280r/min | ±0.5 | 8600rpm | Auto or manual | 380V | 15KW | 70G/S |
DF-702 Double color PU shoe ( sole ) pouring machine
3 Tanks, capacity of each tank: 160L or 250L Can make two colors two density PU shoe sole
Characteristics:
1. Have two A tank and one B tank, can make different color and different density foaming shoe sole by mixing with A and B raw material.
2. Under different proportion of A and B raw material, can get different properties polyurethane sole material. The mix head with three needle which can work independently.
3. Heating system with electricity, make heating more fast and more efficient in power saving.
4. Self-developed PLC, with function of setting time, real-time monitoring and so on.
5. The speed of metering pump use frequency conversion control, with advantages of energy saving and keep the rotational speed when voltage instability.
Characteristics:
1. Have two A tank and one B tank, can make different color and different density foaming shoe sole by mixing with A and B raw material.
2. Under different proportion of A and B raw material, can get different properties polyurethane sole material. The mix head with three needle which can work independently.
3. Heating system with electricity, make heating more fast and more efficient in power saving.
4. Self-developed PLC, with function of setting time, real-time monitoring and so on.
5. The speed of metering pump use frequency conversion control, with advantages of energy saving and keep the rotational speed when voltage instability.
Tank quantity | Tank capacity | Quantity of metering pump | Speed of metering pump | Precision | Mix rotating speed of head | Pouring head cleaning | Voltage | Power | Output |
3 | 160L-250L | 3 | 0-280r/min | ±0.5 | 8600rpm | Auto or manual | 380V | 15KW | 70G/S |
DF-703 Double color PU shoe ( sole ) pouring machine
4 tanks, capacity of each tank: 160L or 250L
Can make two colors two density PU and transparent PU shoe sole at the same time
Characteristics:
1. Have two A tank and two B tank, can make different density and different color foaming outsole, by mix each A and B under
requirement. Especially advantage in double pouring head can make transparent polyurethane outsole at same time.
2. Under different proportion of A and B raw material, can get different properties polyurethane sole material. The mix head with four needle which can work independently.
3. Heating system with electricity, make heating more fast and more efficient in power saving.
4. Self-developed PLC, with function of setting time, real-time monitoring and so on.
5. The speed of pump use frequency conversion control, with advantages of energy saving and keep the rotational speed when voltage instability.
Characteristics:
1. Have two A tank and two B tank, can make different density and different color foaming outsole, by mix each A and B under
requirement. Especially advantage in double pouring head can make transparent polyurethane outsole at same time.
2. Under different proportion of A and B raw material, can get different properties polyurethane sole material. The mix head with four needle which can work independently.
3. Heating system with electricity, make heating more fast and more efficient in power saving.
4. Self-developed PLC, with function of setting time, real-time monitoring and so on.
5. The speed of pump use frequency conversion control, with advantages of energy saving and keep the rotational speed when voltage instability.
Tank quantity | Tank capacity | Quantity of metering pump | Speed of metering pump | Precision | Mix rotating speed of head | Pouring head cleaning | Voltage | Power | Output |
4 | 160L-250L | 4 | 0-280r/min | ±0.5 | 8600rpm | Auto or manual | 380V | 23KW | 70G/S |
DF-705 Three colors PU shoe ( sole ) pouring machine
4 tanks, capacity of each tank: 160L or 250L
Can make three colors three density PU shoe sole
Characteristics:
1. Have two A tank and two B tank, can make different color and different density foaming shoe sole by mixing with A and B raw material.
2. Under different proportion of A and B raw material, can get different properties polyurethane sole material. The mix head with four needle which can work independently.
3. Heating system with electricity, make heating more fast and more eficient in power saving.
4. Self- developed PLC, with function of setting time, real-time monitoring and so on.
5. The speed of metering pump use frequency conversion control, with advantages of energy saving and keep the rotational speed when voltage instability.
Can make three colors three density PU shoe sole
Characteristics:
1. Have two A tank and two B tank, can make different color and different density foaming shoe sole by mixing with A and B raw material.
2. Under different proportion of A and B raw material, can get different properties polyurethane sole material. The mix head with four needle which can work independently.
3. Heating system with electricity, make heating more fast and more eficient in power saving.
4. Self- developed PLC, with function of setting time, real-time monitoring and so on.
5. The speed of metering pump use frequency conversion control, with advantages of energy saving and keep the rotational speed when voltage instability.
Tank quantity | Tank capacity | Quantity of metering pump | Speed of metering pump | Precision | Mix rotating speed of head | Pouring head cleaning | Voltage | Power | Output |
4 | 160L-250L | 4 | 0-280r/min | ±0.5 | 8600rpm | Auto or manual | 380V | 21KW | 70G/S |
Why Choose Us
Company Profile
About us-Professional shoe machine manufacturer
Guang dong Da feng shoe making machine since the date of the establishment,Uphold the "integrity, quality, service,communication"principle, To continue to meet the real needs of target customers, The true mission of customer satisfaction,Forgeahead and Intentions, Force Venture Street brand shoes, Service.
Da feng shoe making machine is a research and development, production, sales, service, agent for the integrated company, Products covered Measuring machine,folding machine,splitting machine,toe lasting machine, Vacuum vulcanizing forming machine ,upper binding machine,attaching machine,nailing machine,heat setter,chilling machine,molding machine,steaming machine,pounding machine,bootleg flattening machine,upper flatten machine,cutting machine,NIR conveyor Etc. And provide Mold, Accessories Etc。
We Can provide the relevant equipment, technical guidance, staff training, service, material supply and other services
Thank customers for their support and concern ，Da feng shoes machinery will be a more reasonable price, Better quality, Better services, And you work together to create brilliant.
Da feng shoe making machine is a research and development, production, sales, service, agent for the integrated company, Products covered Measuring machine,folding machine,splitting machine,toe lasting machine, Vacuum vulcanizing forming machine ,upper binding machine,attaching machine,nailing machine,heat setter,chilling machine,molding machine,steaming machine,pounding machine,bootleg flattening machine,upper flatten machine,cutting machine,NIR conveyor Etc. And provide Mold, Accessories Etc。
We Can provide the relevant equipment, technical guidance, staff training, service, material supply and other services
Thank customers for their support and concern ，Da feng shoes machinery will be a more reasonable price, Better quality, Better services, And you work together to create brilliant.
HONOR
Transaction Process
project case
FAQ
Q1: Are you factory or trading company?
A1: We are factory with 18 years experience in producing shoe machines. We have confidence of both the quality and price. Welcome you to visit our factory.
Q2: What is your MOQ of your Product?
A2: MOQ is 1 set. For regular customers and dealers,more orders, more preferential price.
Q3: What's your payment term?
A3: We accept TT advance payment, CAD or DP through bank, or Letter of Credit .
Q4: What's your machine voltage?
A4: We can customize the voltage as your request. Like 110v/220/380V/415V,single phase/three phases.
A4: We can customize the voltage as your request. Like 110v/220/380V/415V,single phase/three phases.
Q5: What's your after-sales service?
A5: All machines has one year warranty service, any parts damaged (except easy wearing or electronic parts used over 3 months) can be claimed from us. We have exclusive agents and local technical team in India,Vietnam, Bangladesh, Cambodia etc more than 8 countries , every single customer has their communication group chat through whatsapp or wechat with our sales and technicians, any machine problem will be promptly replied. For complete line project.
Q6: What is the product package?
A6: To be packed in wooden case or pallet, suitable for long distance shipment and adaptation to climate change, well protected against moisture and shocks.
A6: To be packed in wooden case or pallet, suitable for long distance shipment and adaptation to climate change, well protected against moisture and shocks.
Q7: Do you test all your goods before delivery?
A7: Yes, our procedure is to pass the QC check 100% before delivery.
Q8: How to install the machine?
A8: The normal machines are already installed before deliver.So after receiving the machine,you can directly connect to the power supply and use it. We may also send you the manual and operating video to teach you how to use it. For bigger machines,we can arrange for our senior engineers to go to your country to install the machines.They can give you technical training.
A8: The normal machines are already installed before deliver.So after receiving the machine,you can directly connect to the power supply and use it. We may also send you the manual and operating video to teach you how to use it. For bigger machines,we can arrange for our senior engineers to go to your country to install the machines.They can give you technical training.
Q9:Why can i trust you and place order with you?
A9: Our company established since 2005, so far we have served more than 2000 clients from more than 40 ountries/areas, cooperate with many famous brand like Nike, Adidas, Hush Puppies, Lotto,Zara, H&M etc. We are awarded china Top 10 shoe machine manufacturer, DAFENG offer complete solution for More than 500 shoe factories, well-know for the quality and service.
