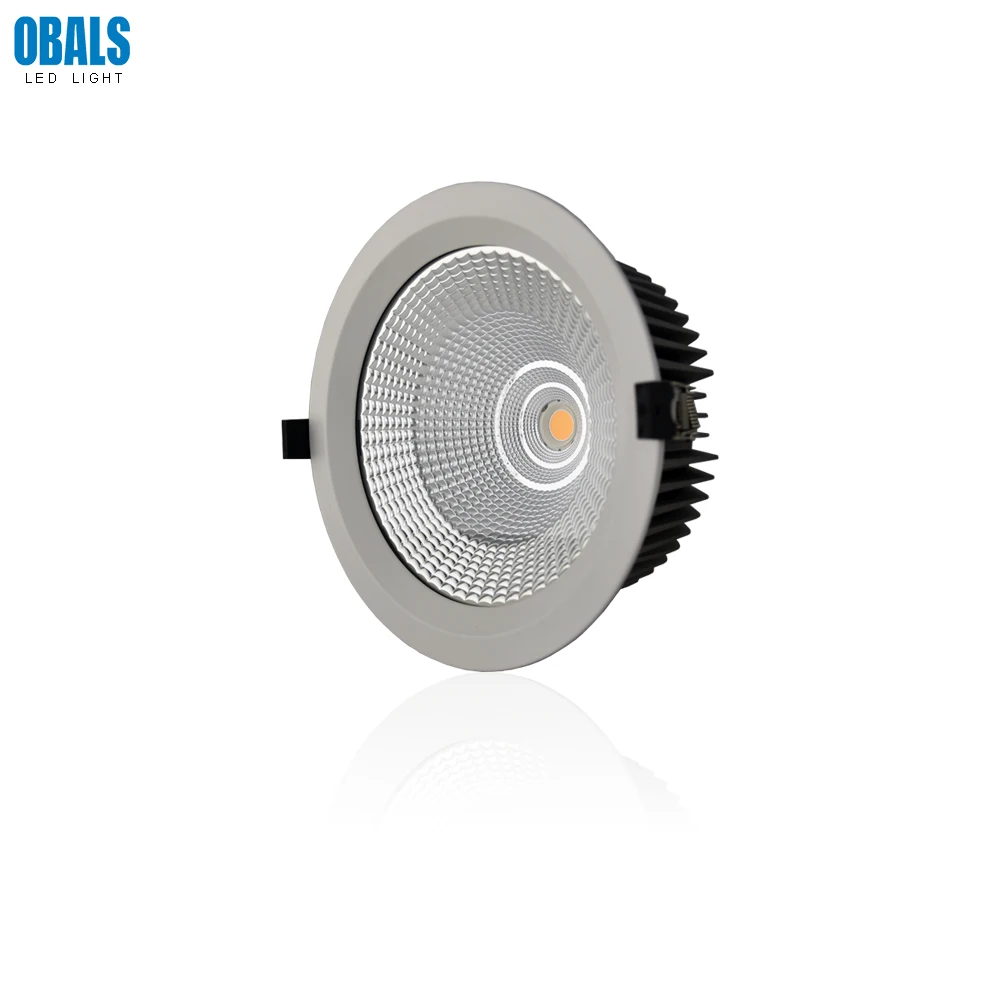

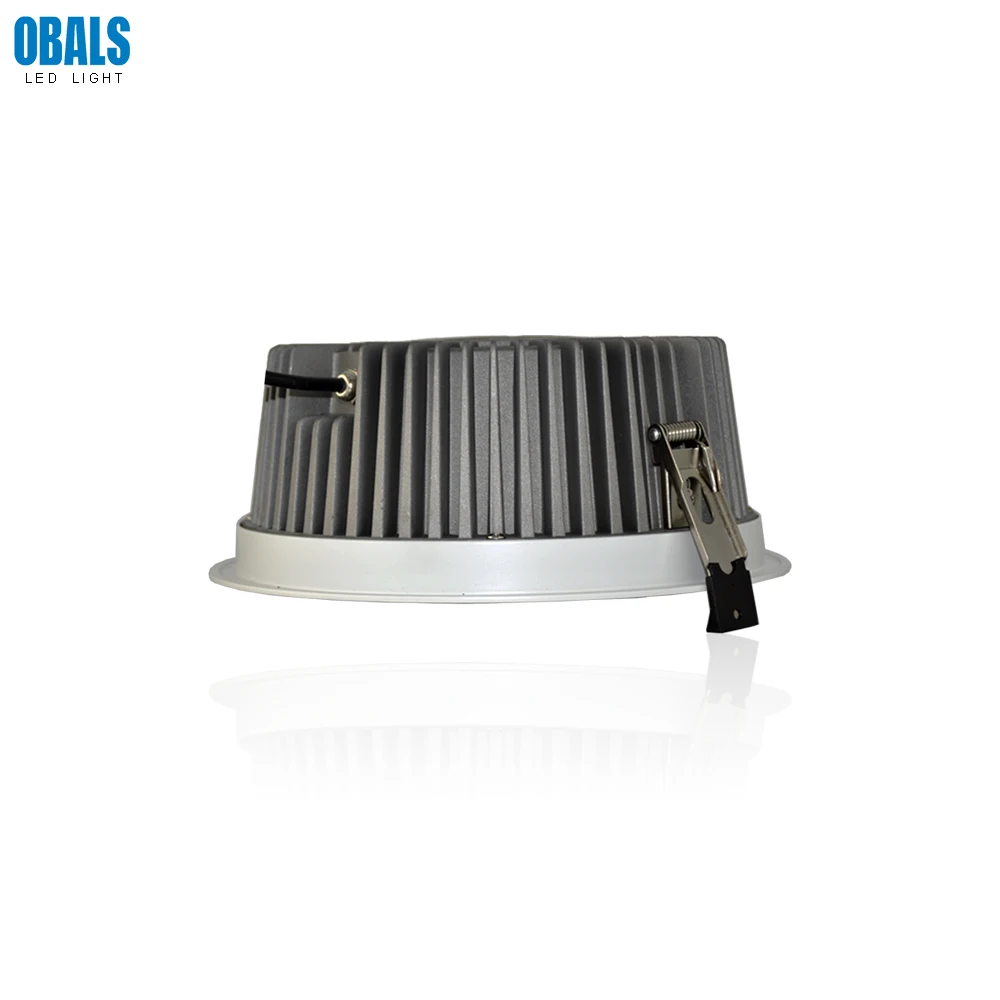

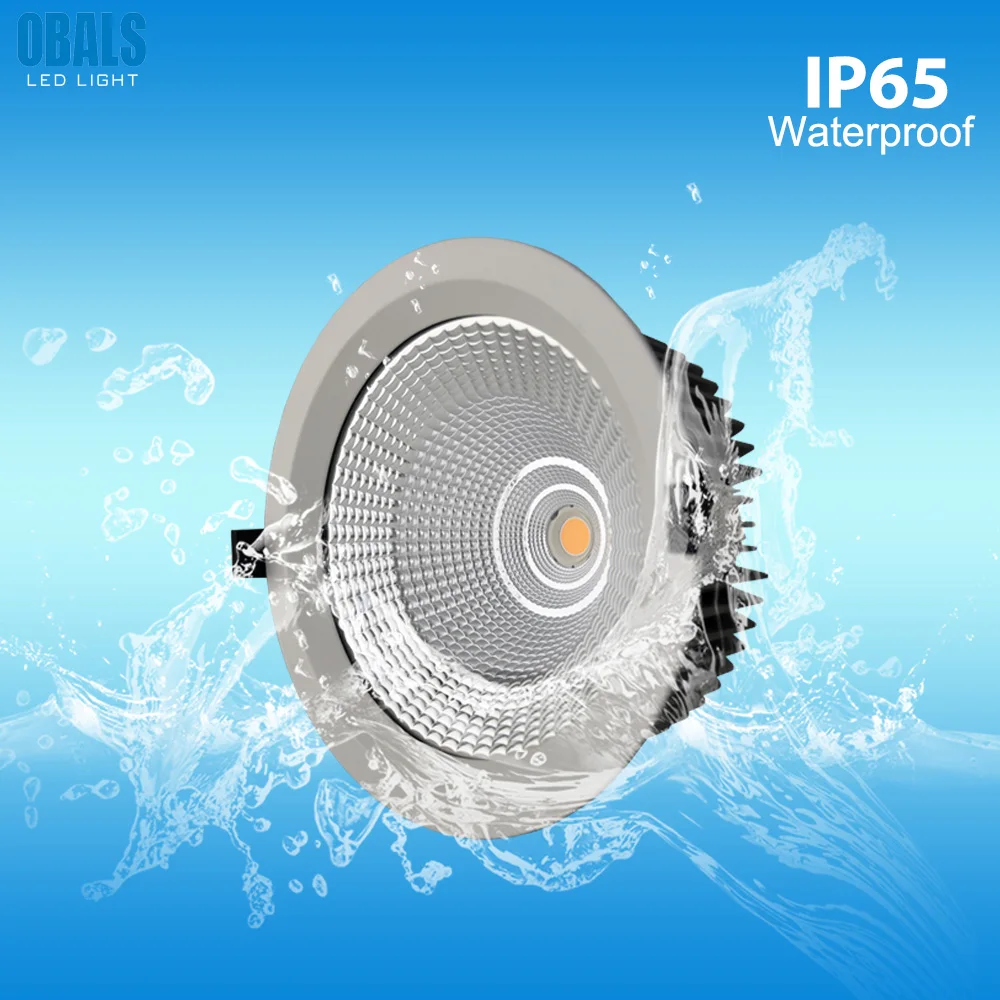

IP65 Waterproof aluminum housing ceiling downlight led down light led downlights round recessed down light ceiling lamp
- Category: >>>
- Supplier: Zhongshan Obals Lighting & Electric Co. Ltd.
Share on (1600717839264):
Product Overview
Description
Specification
Model | OBS-D1001B-110S | OBS-D1001-130S | OBS-D1001-165S | OBS-D1001-220S | |||||
Power(W) | 12 | 20 | 30 | 48 | |||||
In putvoltage |Non dimmable | AC220 - 240V 50 / 60Hz | ||||||||
LED Current(mA) | 300 | 500 | 750 | 1200 | |||||
Led chip | bridgelux | ||||||||
Drive | LFD | ||||||||
CCT | 3000K / 4000K / 5000K | ||||||||
Luminousflux (lm±5%) | 3000K | 1044 | 1898 | 2972 | 4763 | ||||
4000K | 1152 | 1998 | 3150 | 5001 | |||||
5000K | 1116 | 1991 | 3112 | 4954 | |||||
Efficiency (lm/w±5%) | 3000K | 87 | 93 | 99 | 99 | ||||
4000K | 96 | 101 | 105 | 106 | |||||
5000K | 93 | 100 | 104 | 105 | |||||
Beam angle | 55° | 60° | |||||||
Ra | ≥80 | ||||||||
Operating ambient temperature | - 20～ +40℃ | ||||||||
Operating environment humidity | 10 - 80% | ||||||||
Life span | 30000 Hour | ||||||||

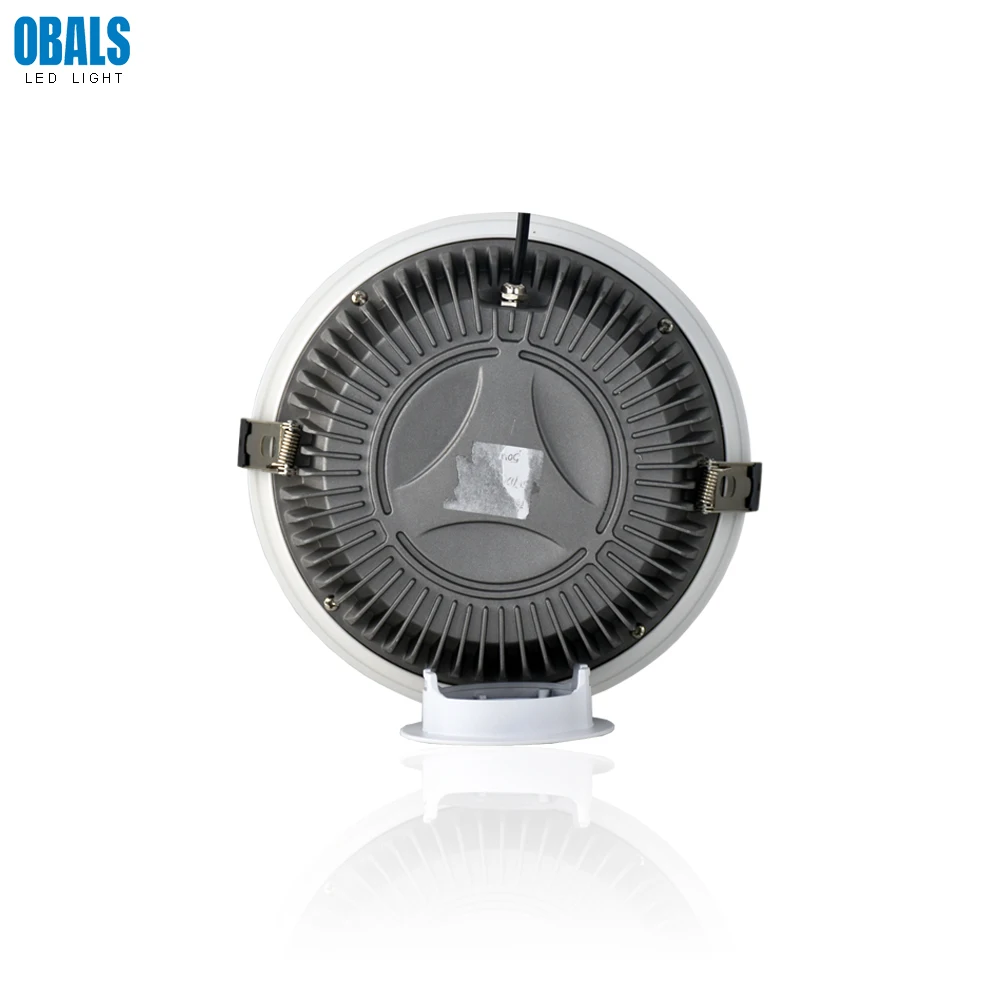

Color | White frame + Grey radiator | ||||||||
Dimensions | 110*110*H59mm | 127*127*H70mm | 165*165*H80mm | 220*220*90mm | |||||
Cut hole | 95*95 mm | 110*110 mm | 145*145mm | 200*200mm | |||||
IP grade | IP65 | ||||||||
Product Description
Company Profile
Lighting Industry Experienced Designer

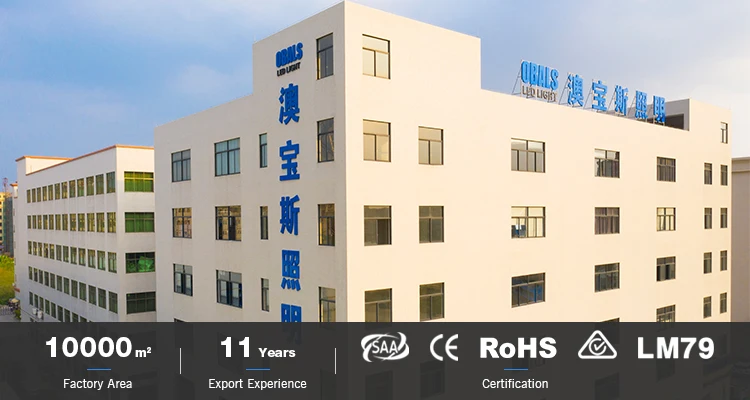

Founded in 2010, OBALS Lighting is a client-focused, technology-oriented and professional leading LED commercial lighting manufacturer. For 10 years, we always insist on the idea of Sincerity, Rapidity and Win-win. OBALS Lighting has its own production base in Zhongshan, 10,000 square meters factory areas with 1200 square meters of new smart showroom. OBALS has passed ISO9001:2015, all the products got approval for CE,SAA,RoHS,C-Tick and also available to provide the energy efficiency test, likeERP, LM-79, ISTMT, LCP, which meets different markets qualification standard.
Our Team

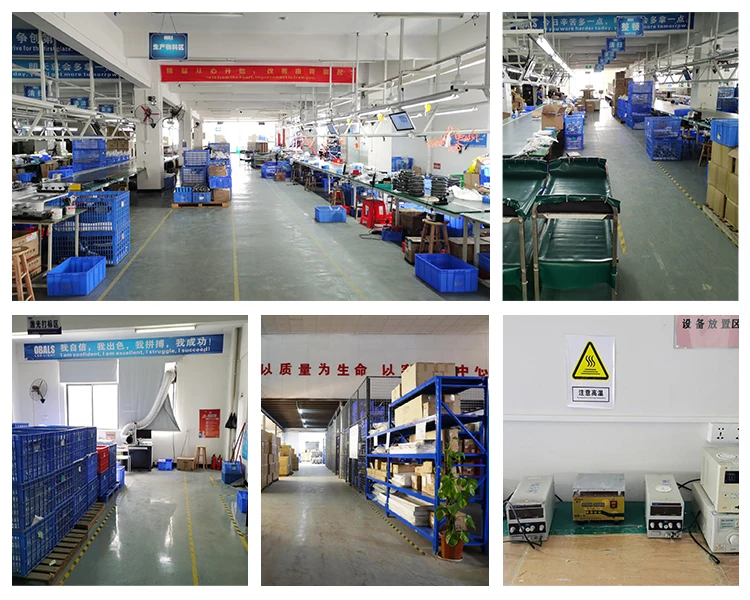

Workshop
Showroom
Certifications
Why Choose Us
Workshop 6S management
Seiri / Seition / Seiso / Seiketsu / Security / Shitsuke

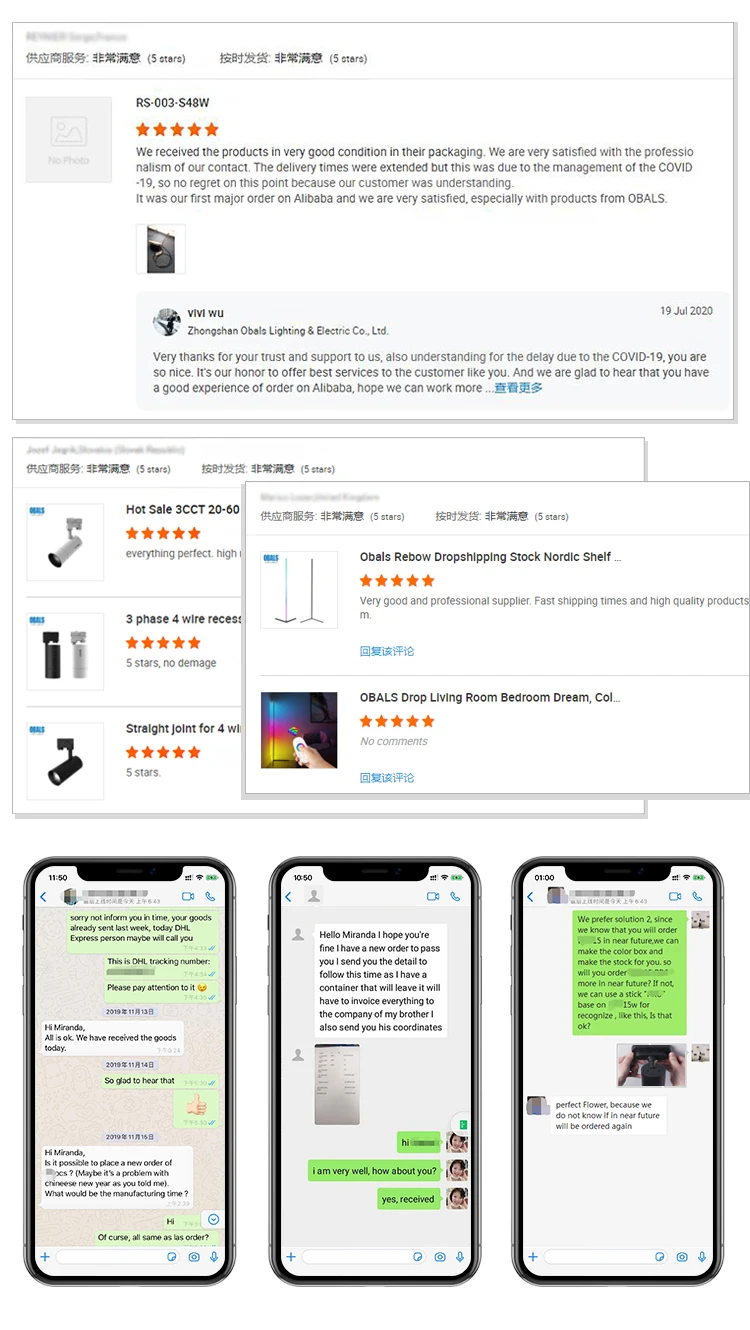

Buyer Feedback
High quality OBALS products are known around the globe
Packing & Shipping

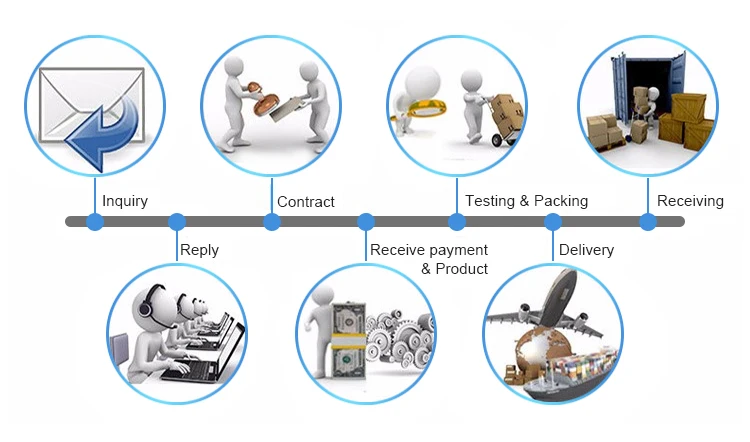

Trading Process
We are having professional merchandisers who could work as delivery consultant for you!
Packaging & Shipping
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient
packaging services will be provided.
FAQ
Q1. What is the warranty of your products?
For most of our old products, the warranty is 5 years. However, we develop the new products with the purpose of competitive price,
so the warranty is 3 years only. And, for other economical products like panel light, etc, the warranty is 2 years.
Q2. What about your payment terms?
Our standard payment term is 30% deposit prepaid by T/T, and the balance should be paid before shipment. But, when our cooperation
is getting bigger, we can also adjust percentage of T/T, and support other payment terms, such as L/C, O/A, etc.
Q3. Can you support OEM and ODM design?
Yes. OEM and ODM design is no problem for us. We own independent R&D team, and we have rich experience on helping customers to
find perfect solutions. We can also help customers design their product package.
Q4. What is lead time for the order?
For samples(if not the new products), it normally takes 3-5 days, while mass order would need 20-40 days according to order
quantity. For customized products, it roughly needs about 90 days, including opening the molds. In addition, if you need very
urgent delivery, we can also send you the goods from our other customers at local.
Q5. What about your product quality? Do you have quality control?
We pay great attention to product quality. There is 4 quality inspection procedures in our company, including IQC, IPQC, OQC, FQC.
In addition, we have spent a lot on purchasing profession quality inspection equipment to control and improve our product quality.
Q6. How long do you do aging testing for products?
For our old products which have been very mature and bore verification from market, normally we do aging testing for 8 hours at
least. For the new products, we will do aging testing for 24 hours to ensure the quality.
Q7. Can you please offer IES files for Dialux?
Yes. We have testing equipment with well-known brand “EVERFINE” for integrating sphere and dark room. We can offer IES files for
your each orders. If necessary, we can also help you do the Dialux, but we need you to send us the detailed demands.
Q8. How long do you deal with complaint?
We can give you a fast, high effectively and cheerful after-sales service. Normally we need 3days to provide solutions after all
necessary information collected. If it is due to quality problem, we will give compensation accordingly, but we need you provide
us with detailed photos and video. After our QC analyse and find out the reason, we will give you the solutions.
For most of our old products, the warranty is 5 years. However, we develop the new products with the purpose of competitive price,
so the warranty is 3 years only. And, for other economical products like panel light, etc, the warranty is 2 years.
Q2. What about your payment terms?
Our standard payment term is 30% deposit prepaid by T/T, and the balance should be paid before shipment. But, when our cooperation
is getting bigger, we can also adjust percentage of T/T, and support other payment terms, such as L/C, O/A, etc.
Q3. Can you support OEM and ODM design?
Yes. OEM and ODM design is no problem for us. We own independent R&D team, and we have rich experience on helping customers to
find perfect solutions. We can also help customers design their product package.
Q4. What is lead time for the order?
For samples(if not the new products), it normally takes 3-5 days, while mass order would need 20-40 days according to order
quantity. For customized products, it roughly needs about 90 days, including opening the molds. In addition, if you need very
urgent delivery, we can also send you the goods from our other customers at local.
Q5. What about your product quality? Do you have quality control?
We pay great attention to product quality. There is 4 quality inspection procedures in our company, including IQC, IPQC, OQC, FQC.
In addition, we have spent a lot on purchasing profession quality inspection equipment to control and improve our product quality.
Q6. How long do you do aging testing for products?
For our old products which have been very mature and bore verification from market, normally we do aging testing for 8 hours at
least. For the new products, we will do aging testing for 24 hours to ensure the quality.
Q7. Can you please offer IES files for Dialux?
Yes. We have testing equipment with well-known brand “EVERFINE” for integrating sphere and dark room. We can offer IES files for
your each orders. If necessary, we can also help you do the Dialux, but we need you to send us the detailed demands.
Q8. How long do you deal with complaint?
We can give you a fast, high effectively and cheerful after-sales service. Normally we need 3days to provide solutions after all
necessary information collected. If it is due to quality problem, we will give compensation accordingly, but we need you provide
us with detailed photos and video. After our QC analyse and find out the reason, we will give you the solutions.
