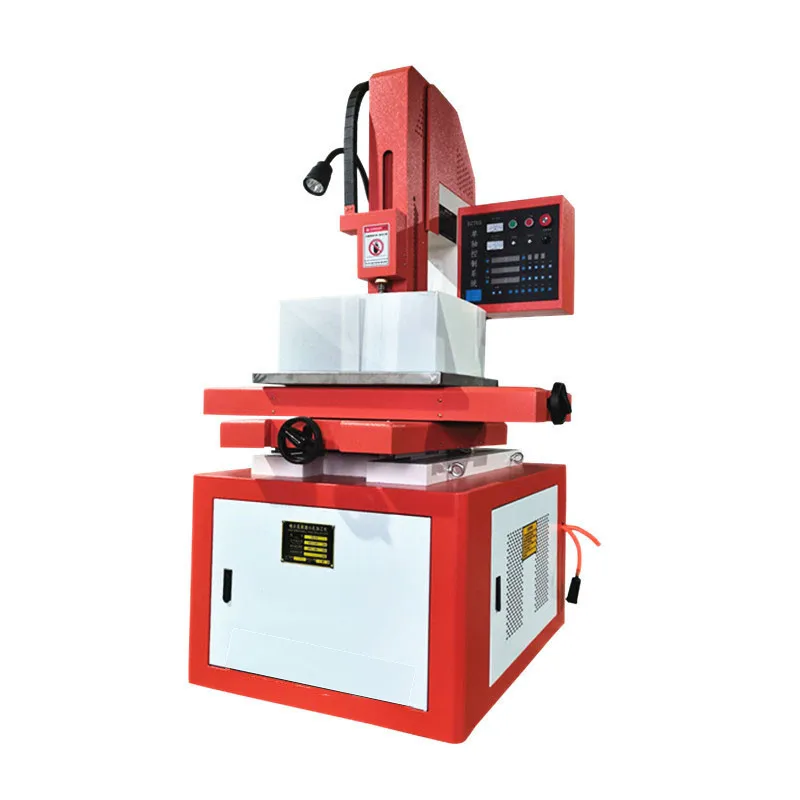

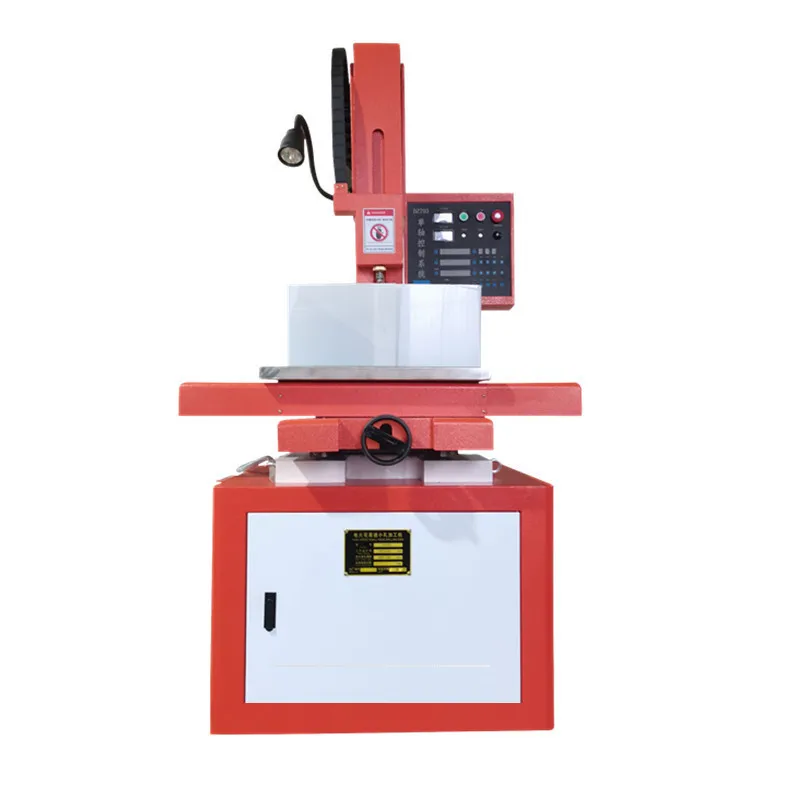

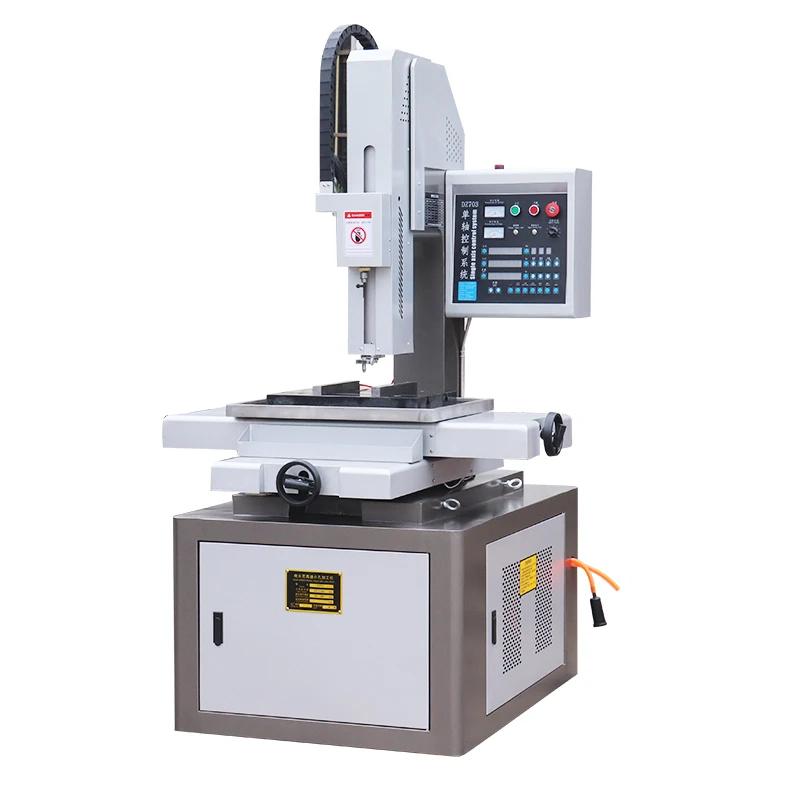

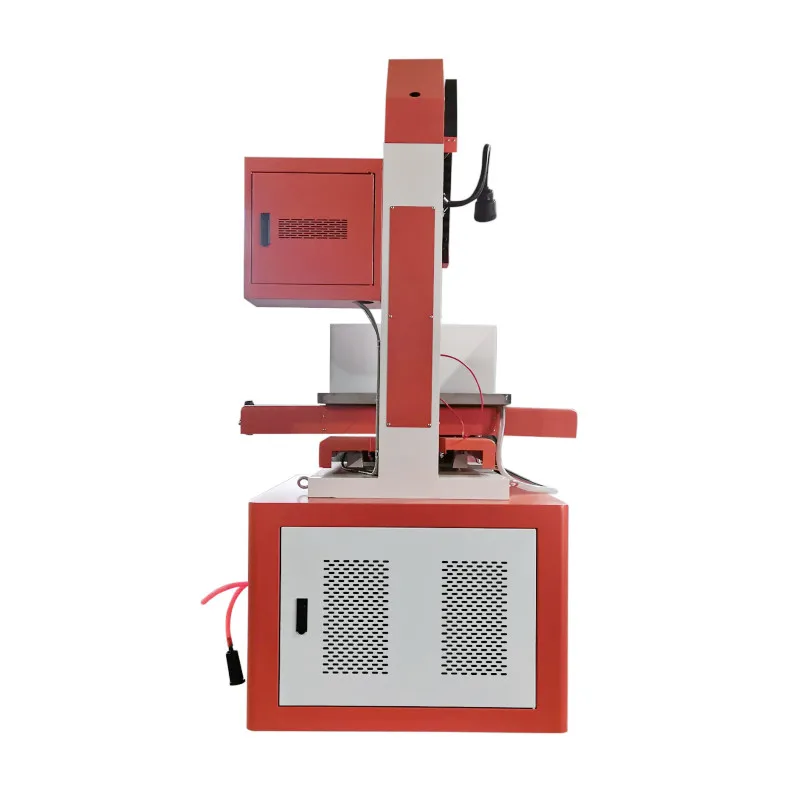

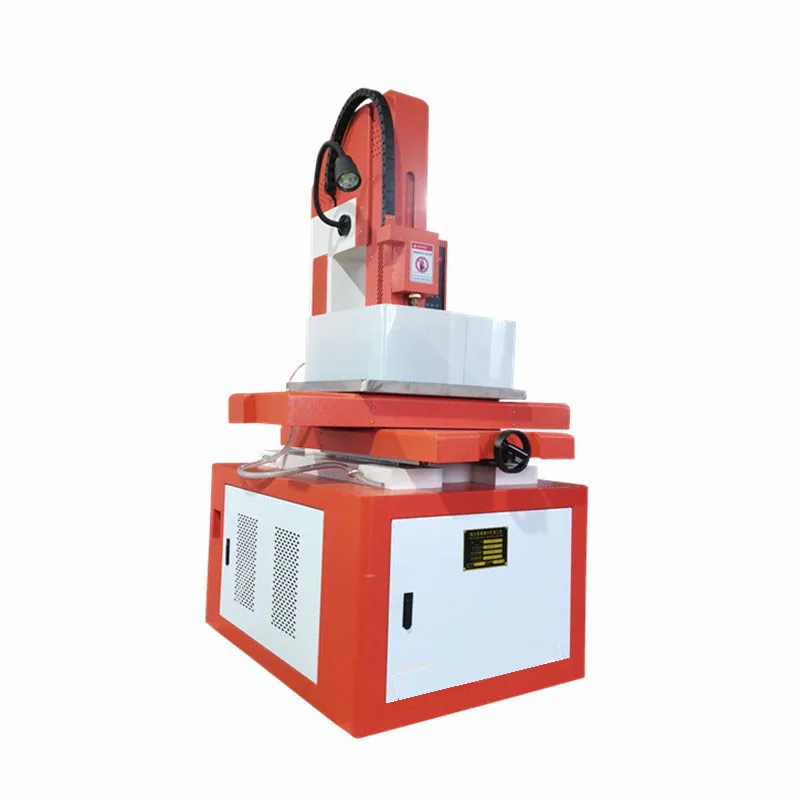

Drilling EDM Spark Machines Spark Drilling Machine
- Category: >>>
- Supplier: Taizhou Dongqi Cnc Equipment Co. Ltd.
Share on (1600717849488):
Product Overview
Description

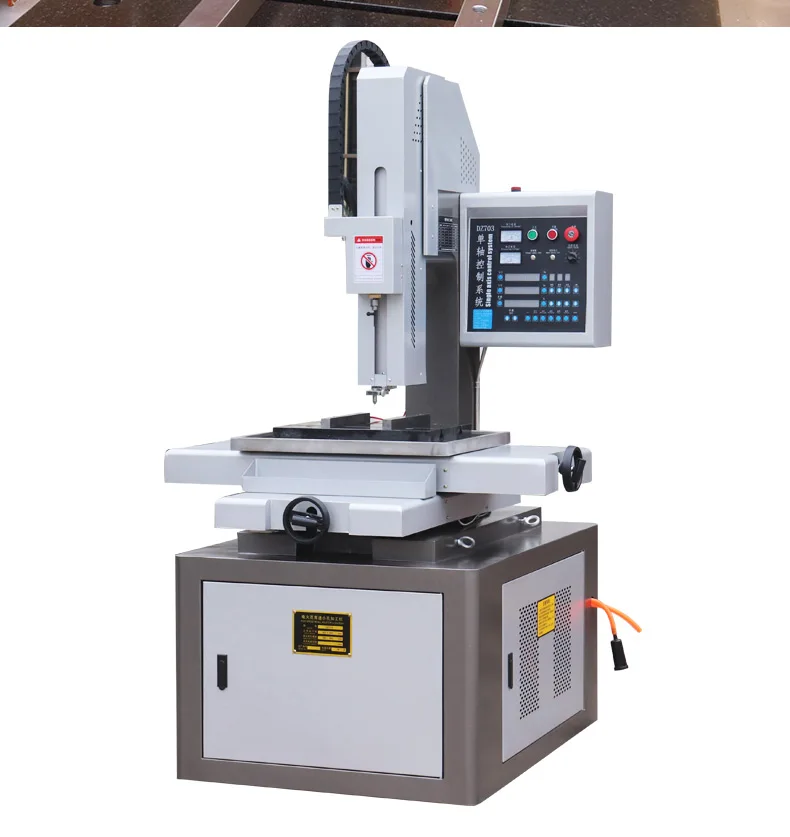

Drilling EDM Spark Machines Spark Drilling Machine
| Model Number | DD703.30 | DD703.50 |
| X-Y travel(mm) | 300*400 | 500*630 |
| Workbench size(mm) | 260*380 | 700*1000 |
| Spindle servo travel(mm) | 300 | 600 |
| Spindle head travel(mm) | 200 | 500 |
| Spindle head speed | 20-120rpm | 20-120rpm |
| Electrode wire diameter(mm) | 0.3-3 | 0.3-3 |
| Maximum distance between the director and the table(mm) | 300 | 500 |
| Input power(KW) | 3 | 3 |
| Dimension(mm) | 1260*1160*1900 | 2000*1500*1900 |
