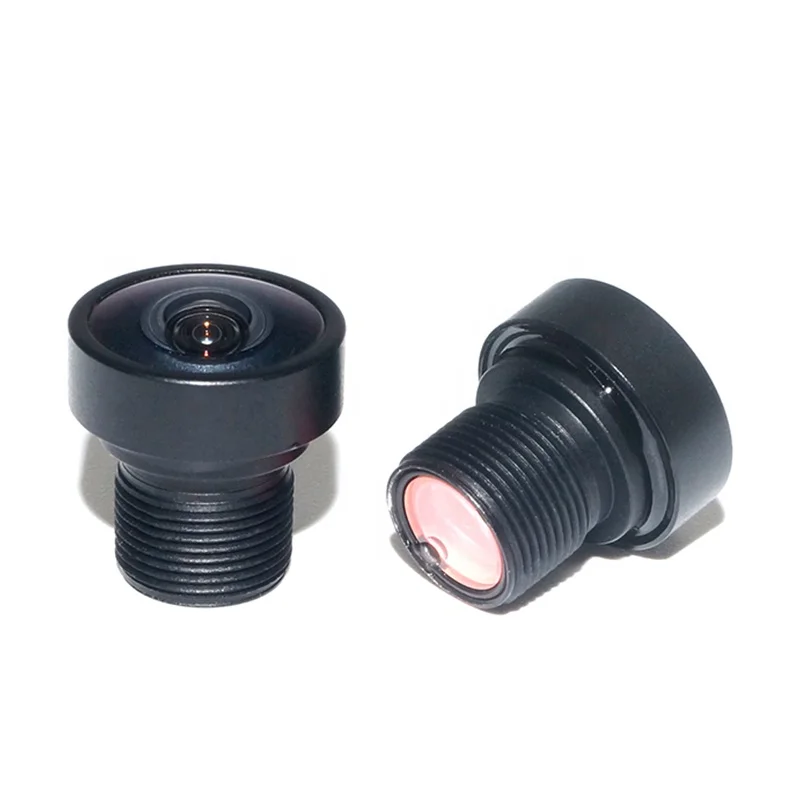

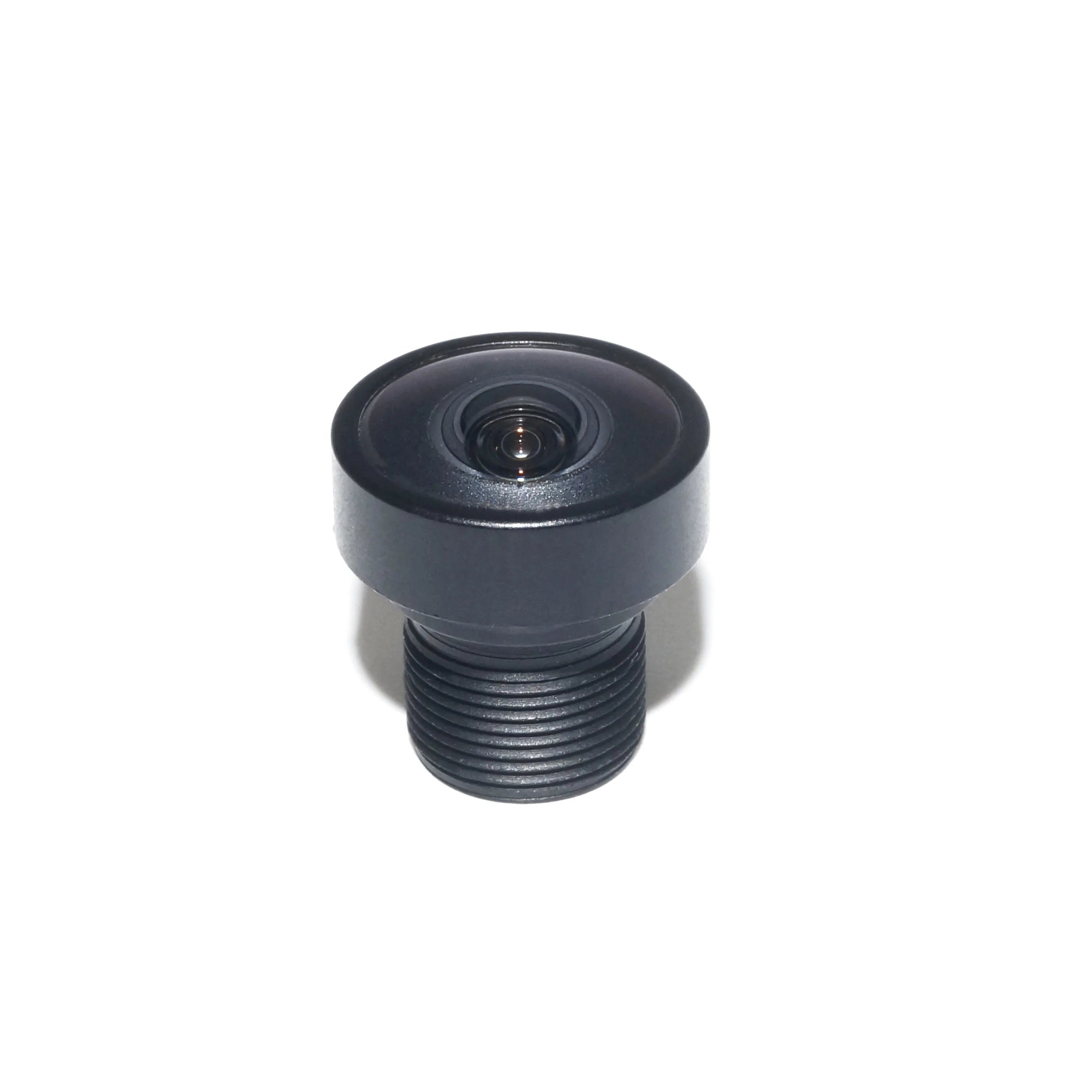

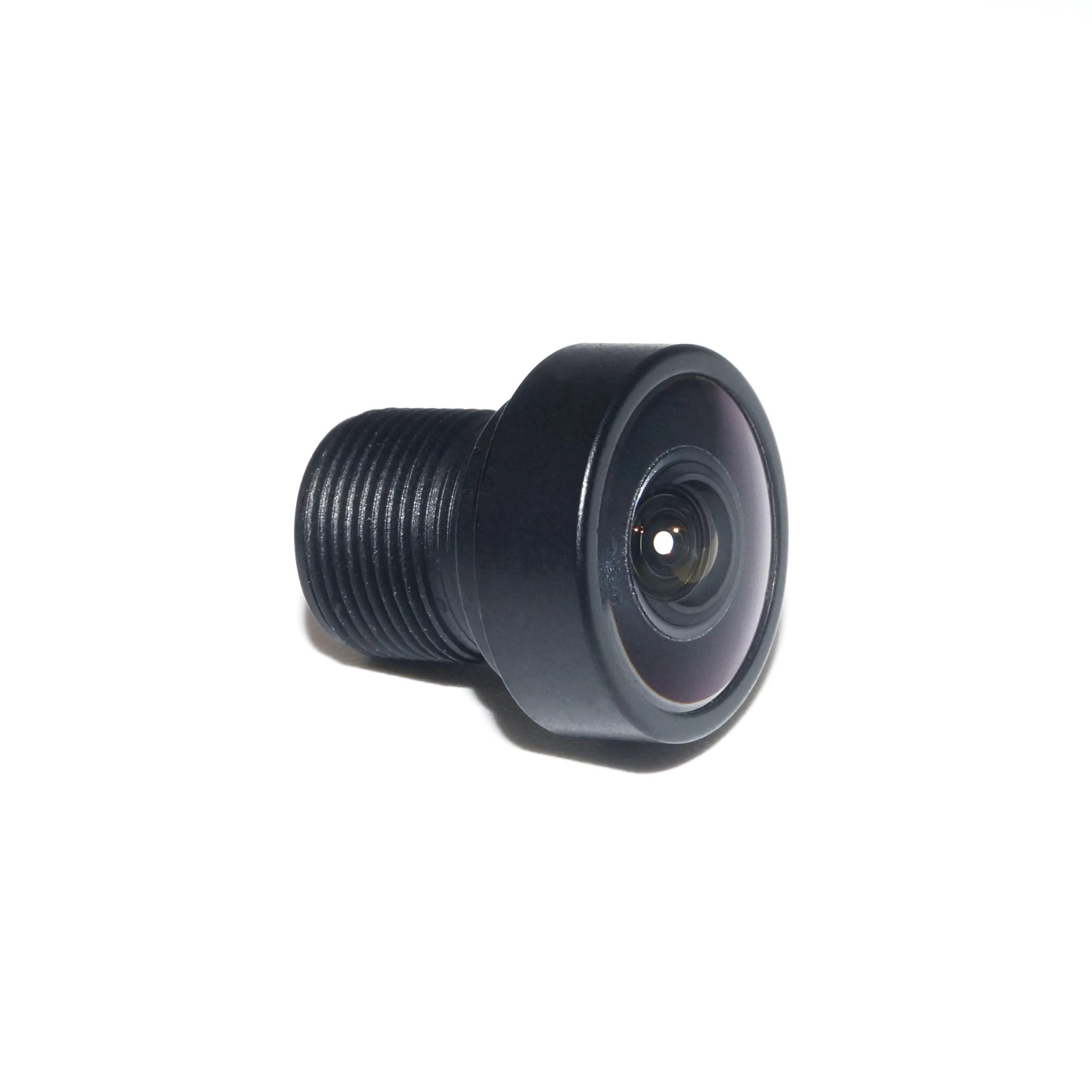

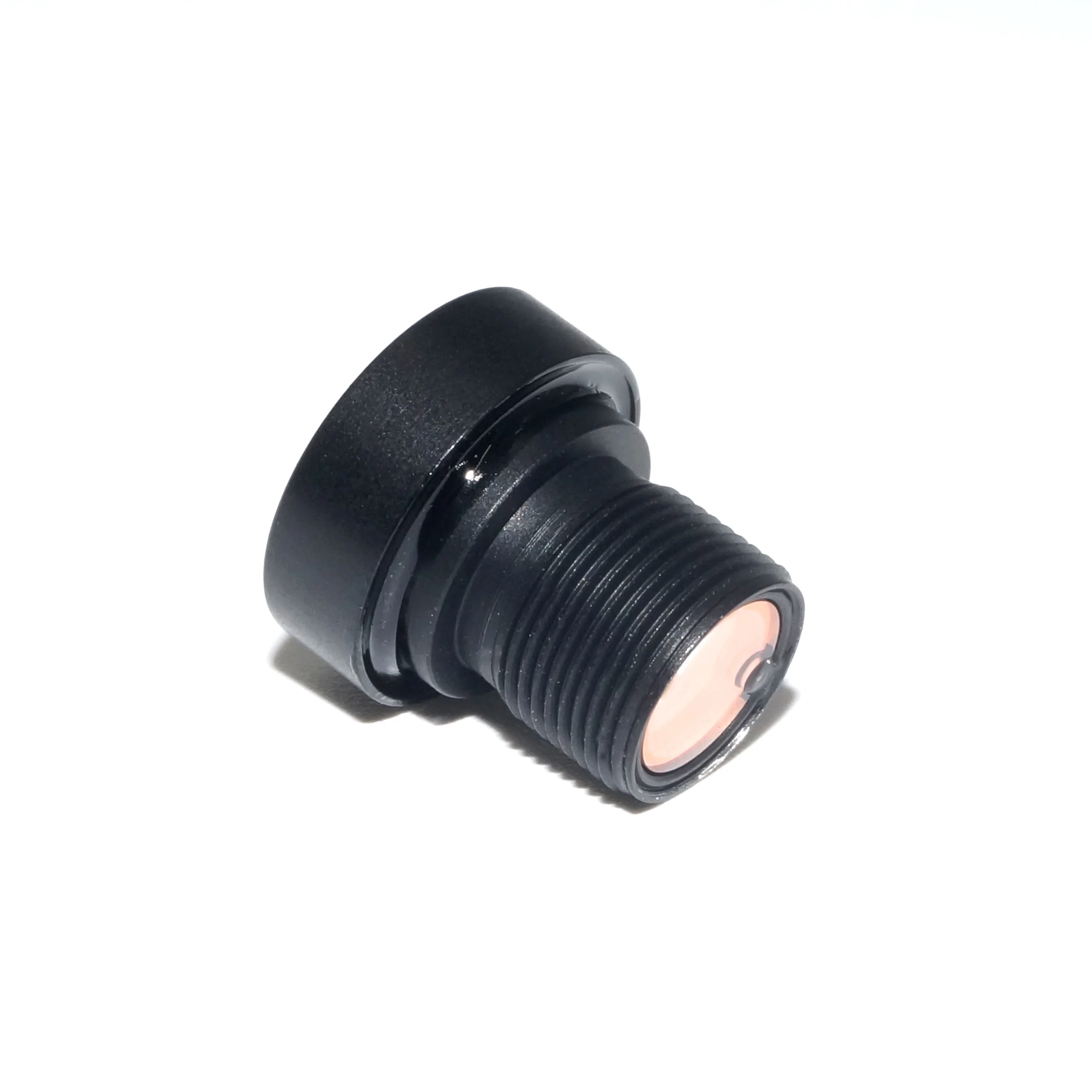

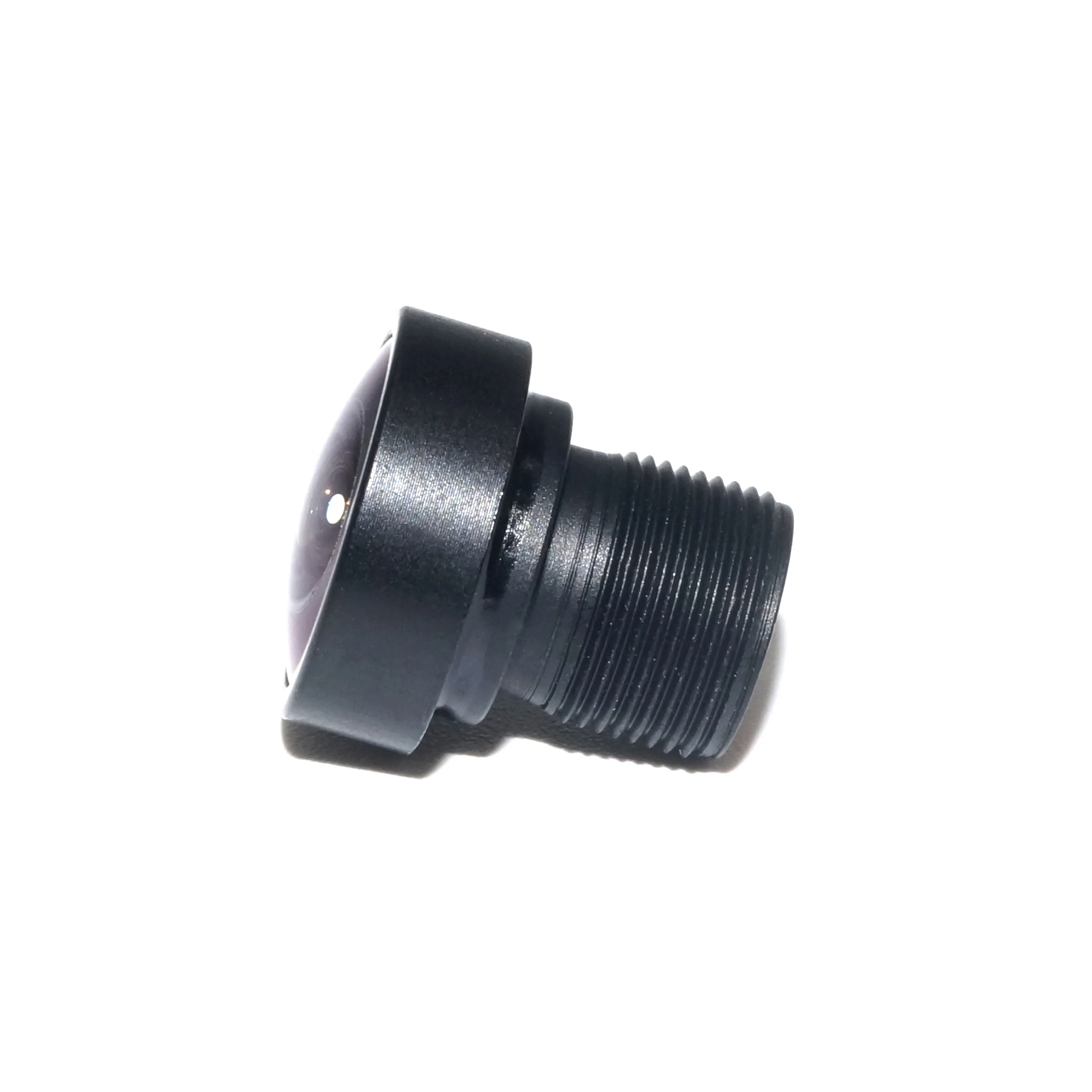

f2.0 180 Wide Angle Lens Car Vehicle Mounted Lens mount m8 1/4' fixed focal 1mp Fisheye Lens For Cctv camera

Share on (1600717854530):


Price:$3.05 - $3.10

Quantity:


Product Overview

Description



Products Description


f2.0 1mp 180 Wide Angle Lens Car Vehicle Mounted Lens mount m8 1/4'' Fisheye Lens For Cctv



Model
YT-6007-B1
Sensor Size
1/4''
Wave Length(nm)
400-1000
Focal Length(EFL)(mm)
1.3
F/NO.(Infinite)
2.0

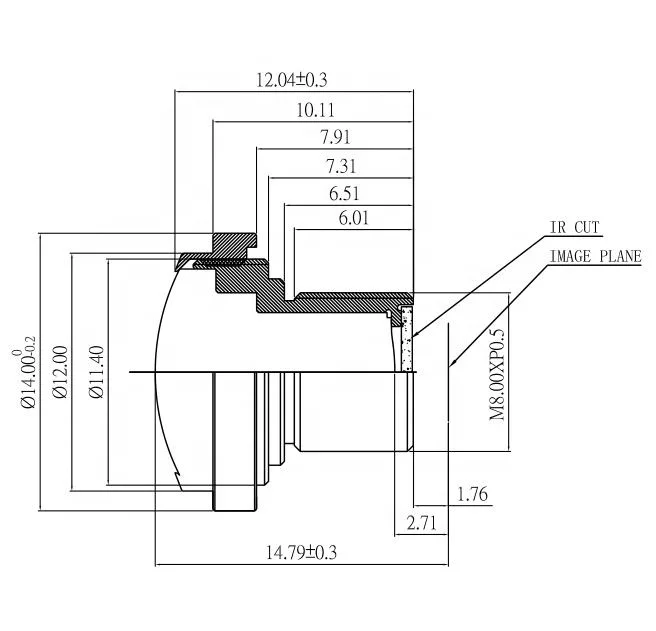

Optical TTL(mm)
14.79±0.3
Back Focal Length(mm)
2.71
Flange Back Length(mm)
1.76
TV Distortion
-32%
Thread Size
M8*P0.5
Structure
4G2P-IR


Why Choose Us?
1.Free samples for testing.
2.Professional research and development, production, and sales team. We will match your requirements with the appropriate product.
3.High quality and Fast delivering.Our own factory has more than 17 years manufacturing experience.We also support OEM and ODM.


Recommend Products


YT-7054P-A1
MAX Img-Circle(mm): dia 4.08
Sensor: 1/3" 1/4"
EFL(mm): 0.98
F/NO.: 1.6
Optical TTL: 13.83
TV Distortion: <-47%
FOV: D>200 V>147 H>200
YT-7711P-L8
MAX Img-Circle(mm): dia 7.0
Sensor: 1/2.7"
EFL(mm): 3.18
F/NO.: 1.8
Optical TTL: 20.93
TV Distortion: <-18%
FOV: 146*61*119
YT-1683-C1
MAX Img-Circle(mm): dia 7.0
Sensor: 1/2.7"
EFL(mm): 3.2
F/NO.: 2.2
Optical TTL: 21.26
TV Distortion: <-18%
FOV: 140*59*115


YT-3555P-C1
Sensor: 1/2.7''
FOV: 91 *82 *51 deg
EFL: 3.37
F/No: 2.2
TTL: 14.5
Structure: 1G3P
TV Distortion: <-1.6%
YT-6031-A1
sensor size: 1/2.8" 1/4''
FOV: 200°*200°*125°
EFL: 1.51mm
F/NO.: 2.4
TTL: 1.51
structure: 6G+IR
TV Distortion: <-8%
YT-3551P-C1
Sensor: 1/2.7''
FOV: 99*58*90 deg
EFL: 2.96
F/NO.: 2.4
Optical TTL: 14.59±0.3
structure: 2G2P
TV Distortion: <-1.35%










Company Profile


was established in August 2006, which
focus on developing,manufacturing and marketing all kind of optical fixed lenses. Wintop has a production base of 12000 square meters in Hubei province and a research and development team with 16 years of in-depth professional experience in Shenzhen.We were the first factory to adopt
waterproof gasket into lenses
in China in 2008. This technology has still been copying by our competitors and never has been
passed.

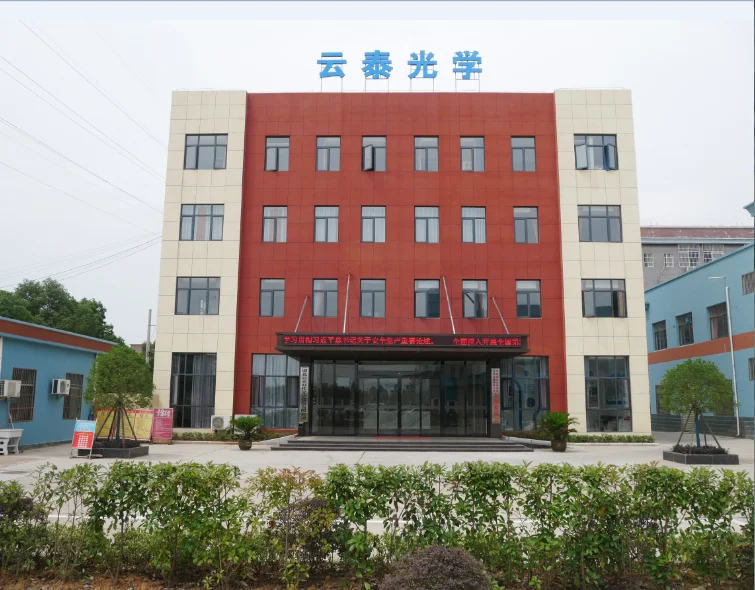

Our Factor and Equipment


Hubei factory(Hubei Yuntai Era Optical Instrument Co., Ltd.) covers an area of 12000 square meters, glass grinding monthly output value reach 2 million pieces, lens assembly equipped with 1000-level dust-free workshop, which has 8 manual assembly lines and 3 automatic production lines, with monthly output approach 2 million sets optical lenses.


Glass grinding dept
Mold dept
Reliability test equipment


Coating dept
Inking dept
Inking dept


Assembly dept
Assembly dept
Auto assembly dept


Injection dept
Injection dept
Injection dept


Certifications




Exhibition




FAQ


Q1: What can you get from WINTOP Optics?
A1: We are specializing in developing and producing all kind of optical fixed lens for 16 years. You can get 1 to 1 professional services at any time here. All the products you buy from WINTOP have unlimited warranty.
Q2: Can I have some free samples?
A2: Yes. We can provide several free samples for customers upon request. So if you need some free samples for testing,just contact us right now.
Q3: What is the MOQ?
A3: We can accept sample orders within 100 pieces. Don't be hesitated to send us your request.
Q4: When can I received the products I ordered?
A4: Sample orders will be sent out within 3-5 working days after payment received. The fast delivery time of massive orders will be 15  working days after receiving 30% deposit.


If this lens is not what you are looking for, please contact me and tell me your requirements,
I will find the most suitable lenses that you want.
