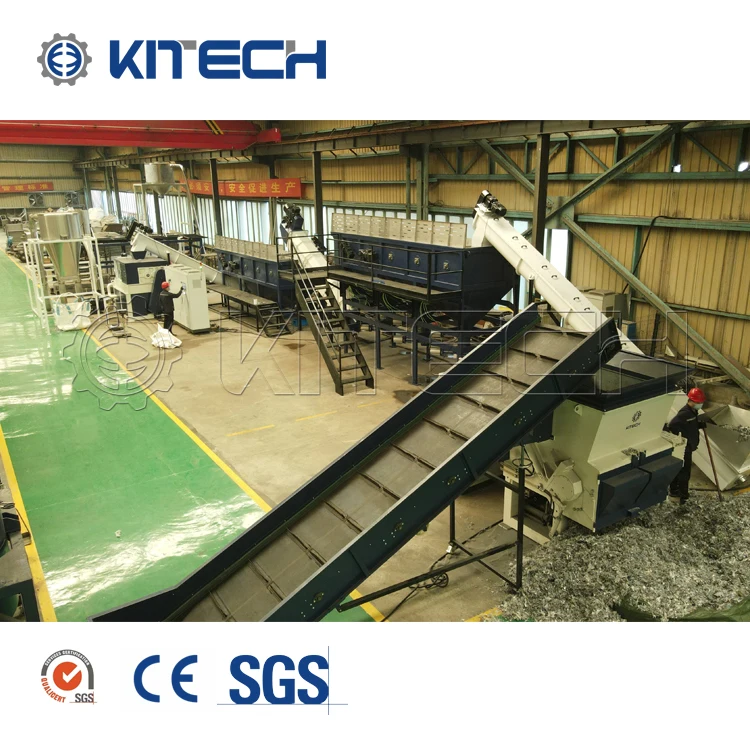

Full Automatic Complete 500 1000KG/H PP Woven Washing Line Plastic Made Machine Washing Recycling Line
- Category: >>>
- Supplier: Jiangsu Acemech Machinery Co. Ltd.
Share on (1600717859761):
Product Overview
Description
KiTech Machinery Co., Ltd.
>>KiTech is a globally active machinery corporation, specialized in developing plastics recycling machines and system components.
>>We proud that provided our plastic recycling system solution to over 150customers in 35coutries over the world, such as Canada, American,Germany, Russia, Australia, Mexico, Chile, Brazil, Japan, Vietnam, Malaysia, Iran, Saudi Arabia, Egypt,Namibia, and so on.All of them are quite satisfied our quality and after service.
>>KiTech is a globally active machinery corporation, specialized in developing plastics recycling machines and system components.
>>We proud that provided our plastic recycling system solution to over 150customers in 35coutries over the world, such as Canada, American,Germany, Russia, Australia, Mexico, Chile, Brazil, Japan, Vietnam, Malaysia, Iran, Saudi Arabia, Egypt,Namibia, and so on.All of them are quite satisfied our quality and after service.
Product Overview

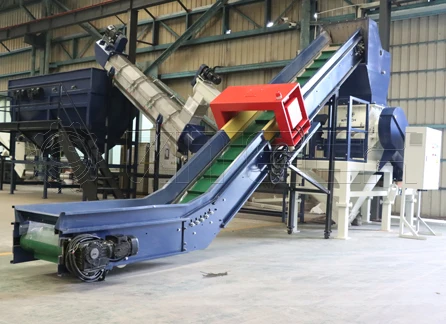

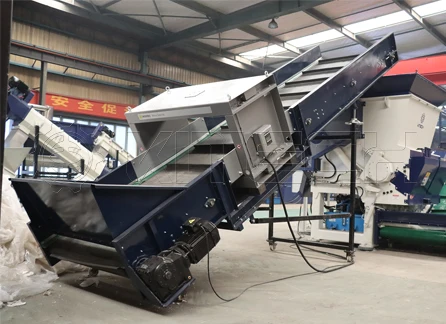

Belt Conveyor
>>Heavy duty type, adopt gear motor;
>>Side walls to avoid spilling of feeding material;

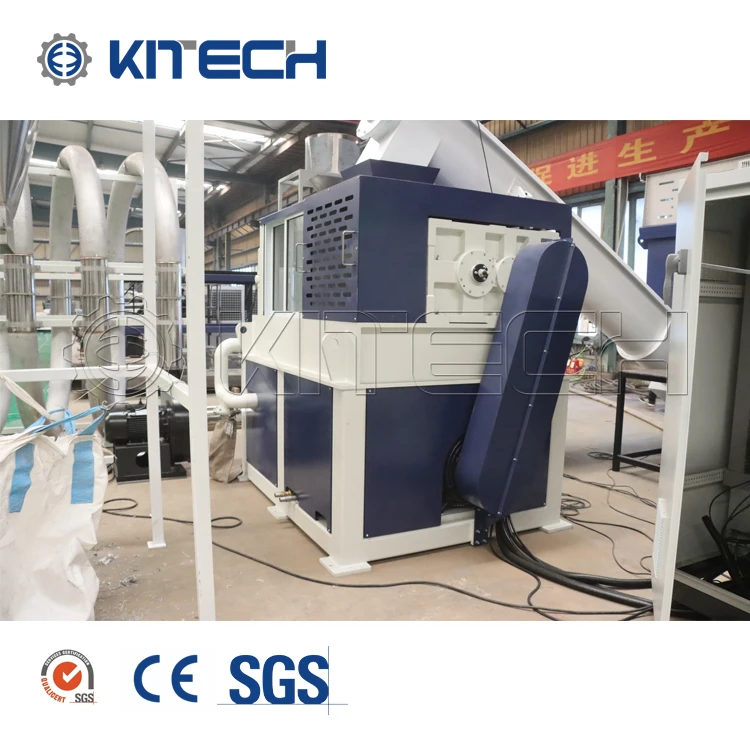

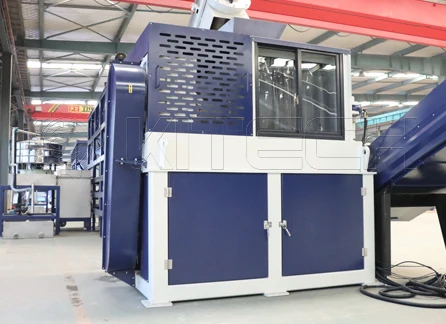

Crusher
>>Optimally designed blades are sharp and powerful;
>>Enclosed cutting chamber to prevent materials flying out;
>>Knives are externally adjustable;

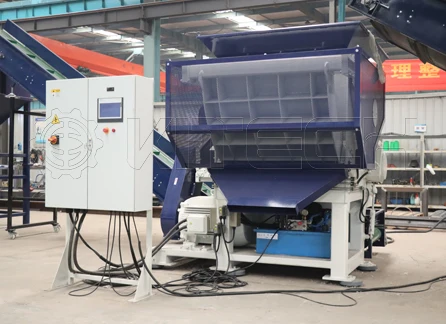

Shredder
>>Special designed hopper to avoid material flying out;
>>4-way rotating knives with special knife holders;
>>Extremely robust pedestal bearing housings;
>>External mounted of bearing pedestal designs;

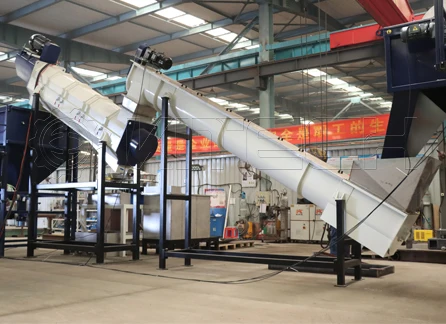

Screw Conveyor&Friction Washer
Screw Conveyor:
>>Screw adopt wear resistant stainless steel; >>Triple sealing, External bearing design;
>>Screw adopt wear resistant stainless steel; >>Triple sealing, External bearing design;
Friction Washer:
>>Rotor and blades adopt wear resistant steel;
>>Rotor and blades adopt wear resistant steel;
>>Rotor with dynamic balance treatment. >>Accuracy: ±3-5g;
>>Active material washing to protect downstream units;

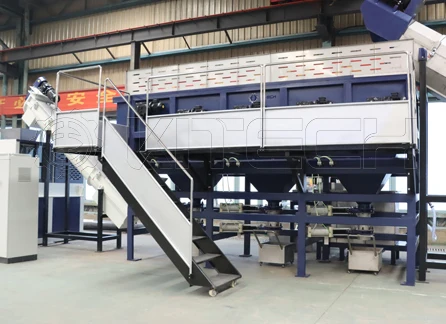

Washing Tank
>>Double station discharge valve at bottom; >>All Thumb-wheel speed variable by inverter control;
>>Heavy duty washing, separation
of different specific densities material;
of different specific densities material;
Squeezing Dryer
>>Heavy built shaft and balde;
>>Double hydraulic press units;
>>Motorized Screw Squeezing;

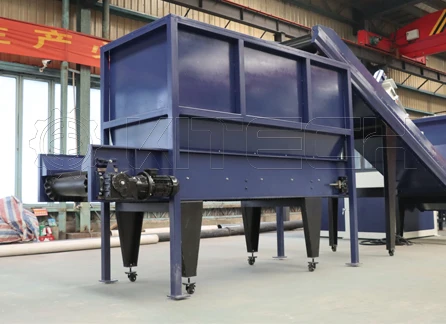

Storage Buffer
>>Direct connect with pelletizing process; >>Large Storage capacity;

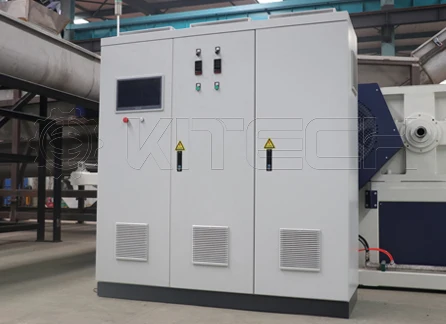

Electrical Cabinet
>>International brand Low voltage components ;
>>Double circuit safety relay;
>>Intelligent and modular PLC controlling system；
Technical Data

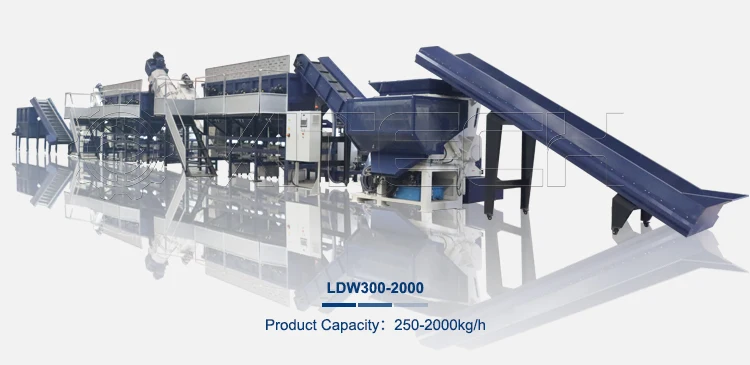

Type | LDW300 | LDW500 | LDW1000 | ||
Capacity(kg/h) | 300 | 500 | 1000 | ||
Energy consumption(KWH) | 95 | 156 | 229 | ||
Installation power(KWH) | 146 | 241 | 352 | ||
Dimension: L*W*H(m) | Depends on factory layout | Depends on factory layout | Depends on factory layout | ||
Belt conveyor | Belt width(mm) | 600 | 800 | 1200 | |
Motor power(KW) | 1.5 | 2.2 | 3 | ||
Metal detector-Optional | Pass width(mm) | 800 | 1000 | 1200 | |
Pass height(mm) | 400 | 400 | 400 | ||
Crusher | Grind chamber(mm) | 500*700 | 700*1000 | / | |
Motor power(KW) | 55 | 75 | / | ||
Shredder | Grind chamber(mm) | / | / | / | |
Motor power(KW) | / | / | 75 | ||
Screw conveyor | Screw diameter(mm) | 300 | 400 | 500 | |
Motor power(KW) | 3 | 4 | 5.5 | ||
Washing tank | Dimension of tank(mm) | 4000×1400 | 5000×1600 | 7000×1800 | |
No. of thumb-wheel(pcs) | 4 | 6 | 7 | ||
Discharge plate valve(pcs) | 2ports*2=4 | 3ports*2=6 | 4ports*2=8 | ||
Friction washer | Screw diameter(mm) | 300 | 400 | 500 | |
Motor power(KW) | 11 | 18.5 | 30 | ||
Squeezing dryer | Screw diameter(mm) | / | 320 | 410 | |
Motor power(KW) | / | 55 | 75 | ||
Storage buffer | Storage capacity(CBM) | 3 | 4 | 6 | |
Motor power(KW) | 2.2 | 3 | 4 | ||
Waste water filtration device-Optional | Vibration screen size | 800 | 1000 | 1200 | |
Screen mesh | 40 | 40 | 40 | ||
Electrical cabinet | PLC controller | / | / | / | |
Button type | / | / | / | ||
Man power(person/shift) | 3 | 3-4 | 3-4 | ||
Delivery time(day) | 60-90 | 60-90 | 60-90 | ||
Warranty(month) | 12months | 12months | 12months | ||
Technical assistance | Egnineer available to service machinery overseas | gnineer available to service machinery overseas | gnineer available to service machinery overseas | ||
Customer&Partner
Kitech is a professional manufacturer of plastic recycling machinery in China.With the scientific progressive conception of rapid introduction, we make our machinery cover all over the overseas market. We have been producing our goods with mature techniques and first-class quality. We warmly welcome customers all over the world to visit our manufacture.
Our Services
7/24 Online Service
1.Machine running video
2.Watch our factory online
3.More service contact us
Successful recycling machine Plant
1.Supply a running recycling machine in your country , you can see machine running directly.
Installation / Debug / Training
1.We will arrange seasoned technician for equipment installation, debug and test production.
2.Our company offers technology training to the customer in his factory.
3.We promise that our goods are all new and not used.
2.Our company offers technology training to the customer in his factory.
3.We promise that our goods are all new and not used.
After-sales Service
1.After checking, we offer 12 months as a quality guarantee, free offer wearing parts and offer other parts at the lowest price.
2.If you could not solve the problems, we will arrange a technician to your factory solving the problems.
3.After quality guarantee, we offer technical support and after-sales service.
2.If you could not solve the problems, we will arrange a technician to your factory solving the problems.
3.After quality guarantee, we offer technical support and after-sales service.
Our Company
About Kitech
1.Standardized workshop of total 3650 square meters.Different types of processing units, such as water jet cutter, plasma cutter, laser cutter, CNC machine, ensure the precision of parts.
2.The equipment will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechanical stability.
3.Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
4.Engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers’ requirements to save space.
5.Professional installation team who can speak fluent English can help customers make benefits in a shortest time.
2.The equipment will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechanical stability.
3.Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
4.Engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers’ requirements to save space.
5.Professional installation team who can speak fluent English can help customers make benefits in a shortest time.
Certificate &Patent
1.International certification, National Certificate of equipment verification, and more than 10 invention patents are done in Kitech .
2.Verification Certificates of equipments: CE Certificate , SGS , TUV
3.National Certificate of equipment verification: Logo trademark registration.
2.Verification Certificates of equipments: CE Certificate , SGS , TUV
3.National Certificate of equipment verification: Logo trademark registration.
FAQ
HOW TO FIND KITECH MACHINE?
● Search Alibaba, Made in China, Google, Youtube , Facebook and Link in.
● Visit exhibition in different countries
● Send KITECH Machine an request and tell your basic inquiry
● KITECH Machine sales manager will reply you in short time and add instant chatting tool
YOU ARE WELCOME TO OUR FACTORY AT ANY TIME.
● If we can fullfill your request and you interested in our products, you may pay a visit to KITECH Machine site
● The meaning of visiting supplier, because seeing is believing, KITECH Machine with own manufacture and developed& research team, we can send you engineers and make sure your after sales service.
HOW TO GUARANTEE YOUR FUNDS TO BE SAFE AND DELIVERY TO BE ON TIME?
● Through Alibaba letter guarantee service, it will ensure the on time delivery and the quality of the equipment you want to buy.
● By letter of credit, you can lock the delivery time easily.
● After the factory visit, You can ensure the facticity of our bank account.
SEE KITECH MACHINE HOW TO ENSURE THE QUALITY!
● In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
● Each component before assembly needs strictly control by inspecting personnel.
● Each assembly is in charged by a master who has working experience for more than 20 years
●After all the equipment are completed, we will connect all the machines and run the full production line to ensure the stable running in customers' factory
THE AFTER-SALE SERVICE OF KITECH MACHINE!
● After finish the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools.
● After the commissioning, we will package the equipment by standard export package for shipment.
● According to the customer's request, we can arrange our engineers to customers' factory to do the installation and training.
● Engineers, sales managers and after-sales service manager will form a after-sales team, online and off line, to follow the customers' project.
