JSDSOALR Solar Inverter 3Kw 5Kw 10Kw 12Kw 30Kw 33Kw 40Kw Hybrid Off Grid Pv Solar Power Inverter Price
- Category: >>>
- Supplier: Shenzhen Jinsdon Lighting Technology Co. Ltd.
Share on (1600717869030):
Product Overview
Description
Advantages of Jsdsolar
Product Description
Specification

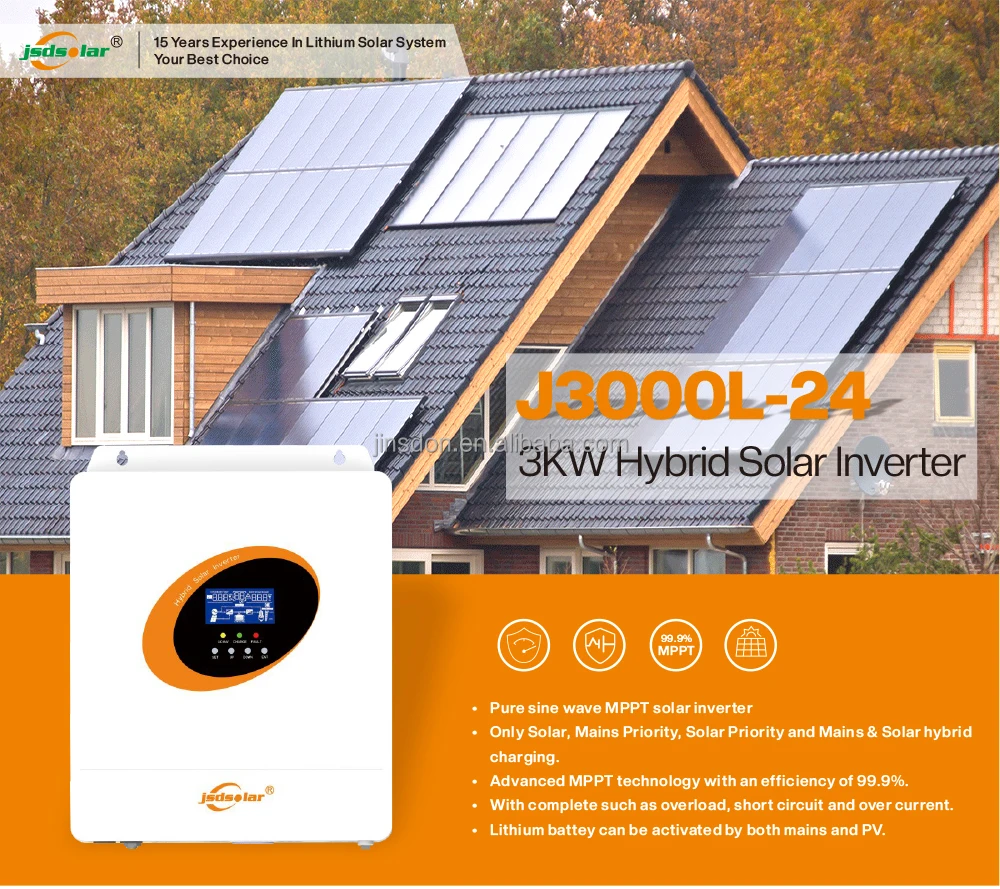

MODEL | J3000L-24 | |
Rated input voltage | 220/230VAC | |
Input voltage range | (170~280VAC)±2% (90-280VAC)±2% | |
Frequency | 50Hz/ 60Hz (Auto detection) | |
Efficiency | >95% | |
Inverter Mode | ||
Rated output power (W) | 3000 | |
Rated output voltage (VAC) | 230VAC | |
Efficiency | >95% | |
Rated battery input voltage | 24V (Minimum starting voltage 22V) | |
AC Charging | ||

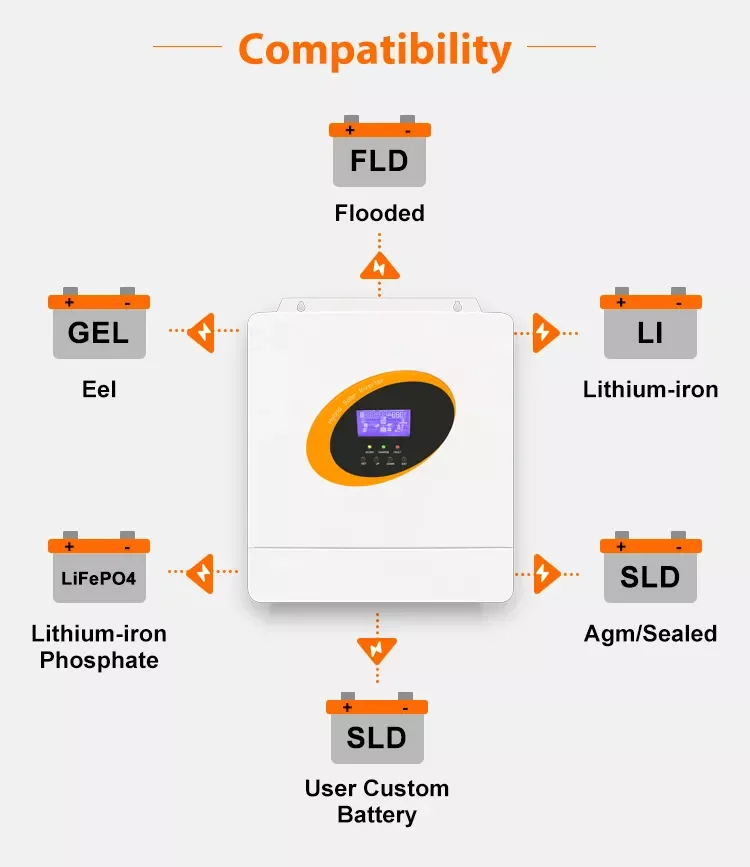

Battery type | Lead acid or lithium battery | |
Maximum charge current | 80A | |
Charge voltage range | 20VDC~33VDC | |

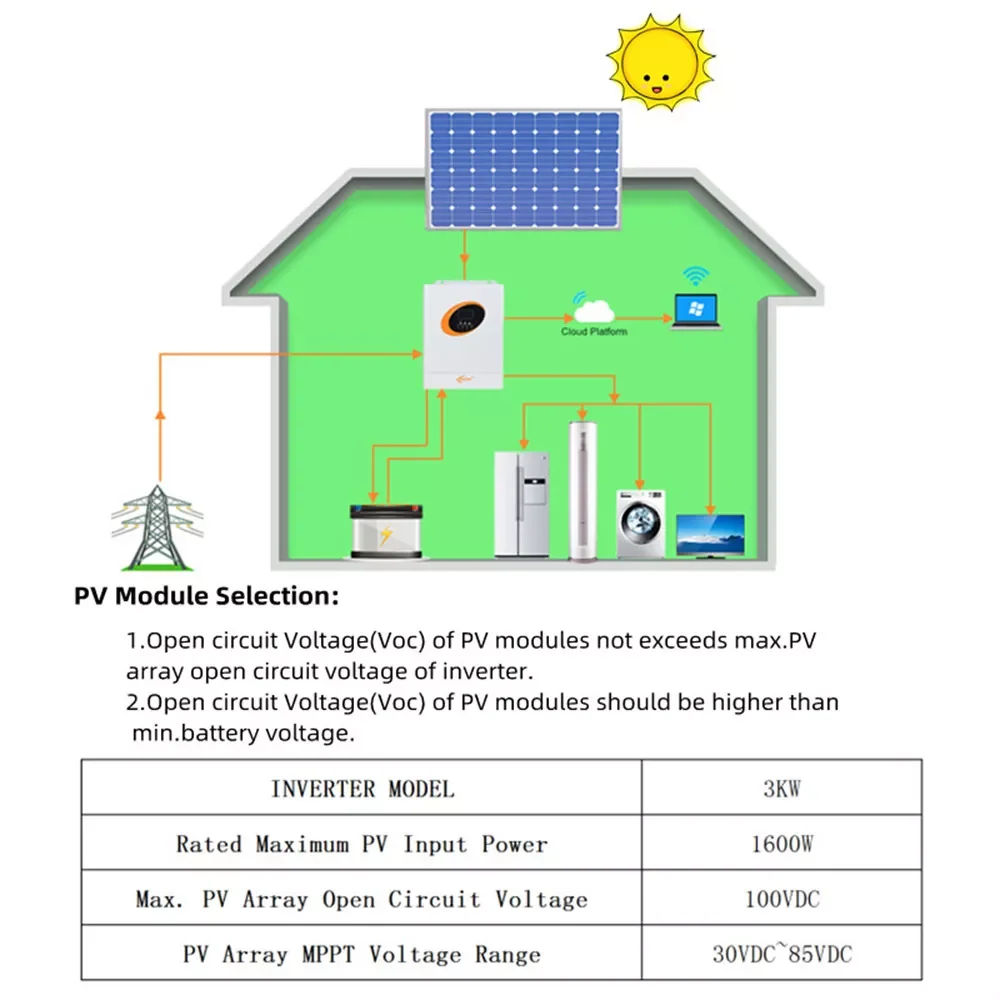

PV Charging | ||
Maximum PV open circuit voltage | 100VDC | |
MPPT voltage range | 30- 85VDC | |
Battery voltage range | 20-33VDC | |
Rated Maximum PV Input Power | 1600W | |
PV charging current range | 0-60A | |
Certified Specifications | ||
Operating temperature range | -15°C to 55°C | |
Storage temperature range | -25°C ~ 60°C | |
Humidity range | 5% to 95% (Conformal coating protection) | |
Communication interface | USB | |

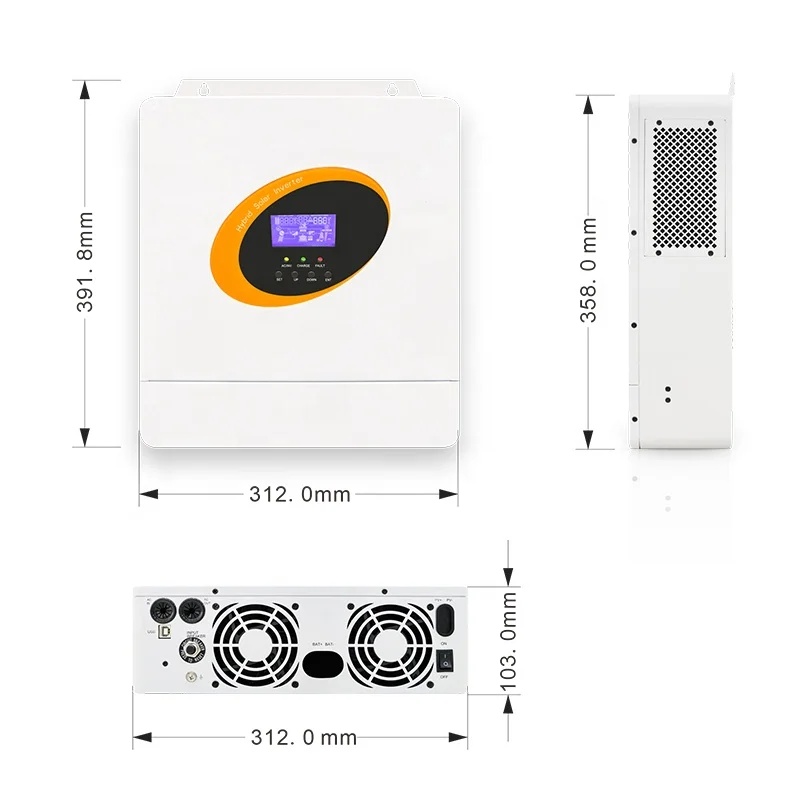

Size (L*W*D) | 385*312*103mm | |
Net Weight | 6.9KG | |
Recommend Products
Company Profile
Headquarter & Factory Location | No68, Baigongao Industrial area, Fucheng Street, Longhua District, Shenzhen, China |
Industry Experience | 12-Year Manufacturer and Trading, Alibaba Supplier |
Product Range | Solar Inverter, Solar Battery (lithium ion battery), Solar System, Solar Street Light, Solar Garden Light, Solar Wall Light, Solar Controller etc. |
Main Market | Africa, Middle East & Asia ( Ukraine, Russia, Vietnam, Pakistan, Nigeria, Kenya, South Africa, Ghana,etc.) |
Department | 2-teams Marketing Dept, 1-team R&D, 1 Manufacturing Center, 6-team producing Dept, After-sale Service Dept. |
Certificate | ISO9001:2008, CE, RoHs, SGS, TUV, EMC, FCC etc. |
Patent | Software Patent, Design Patent, Project Patent. |
