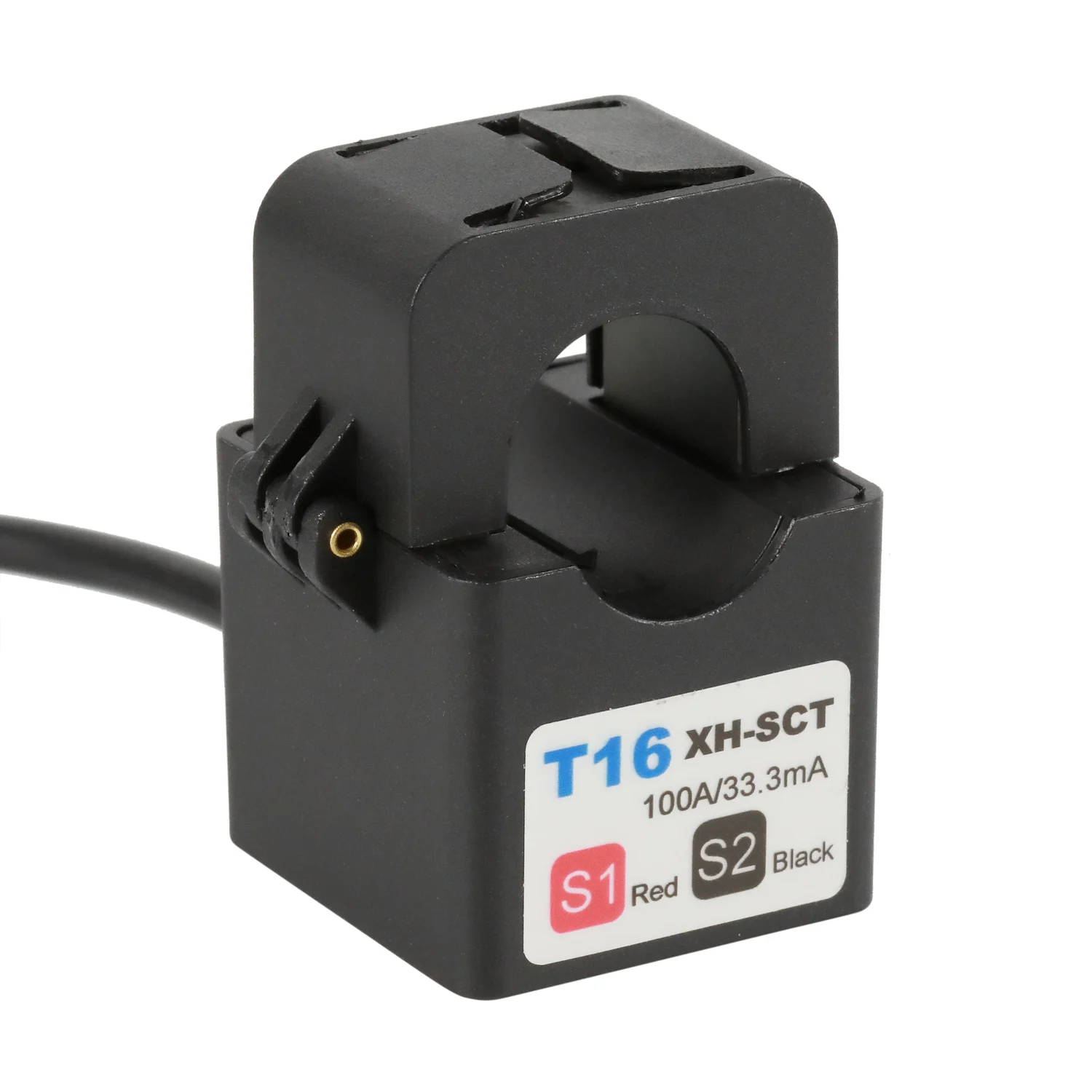

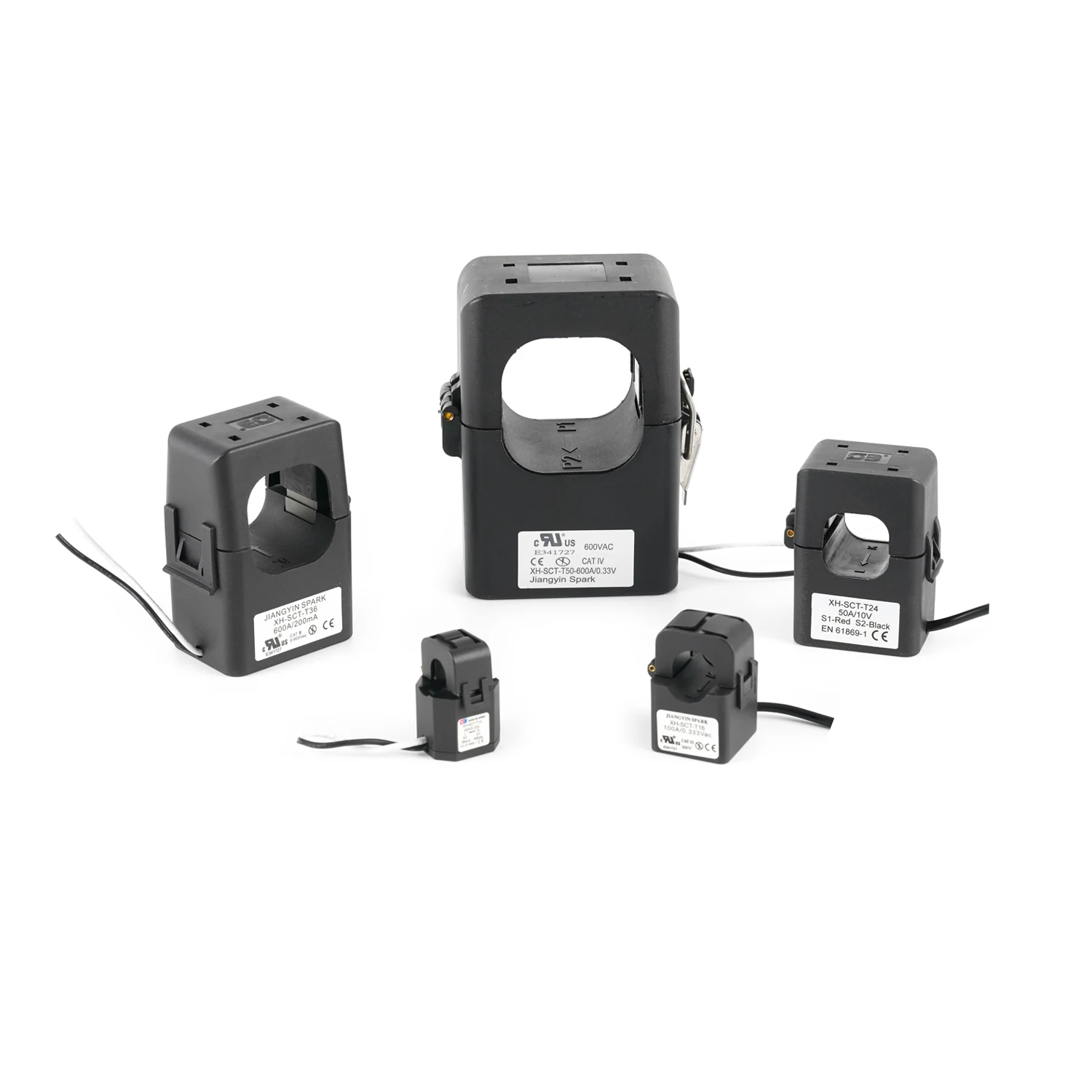

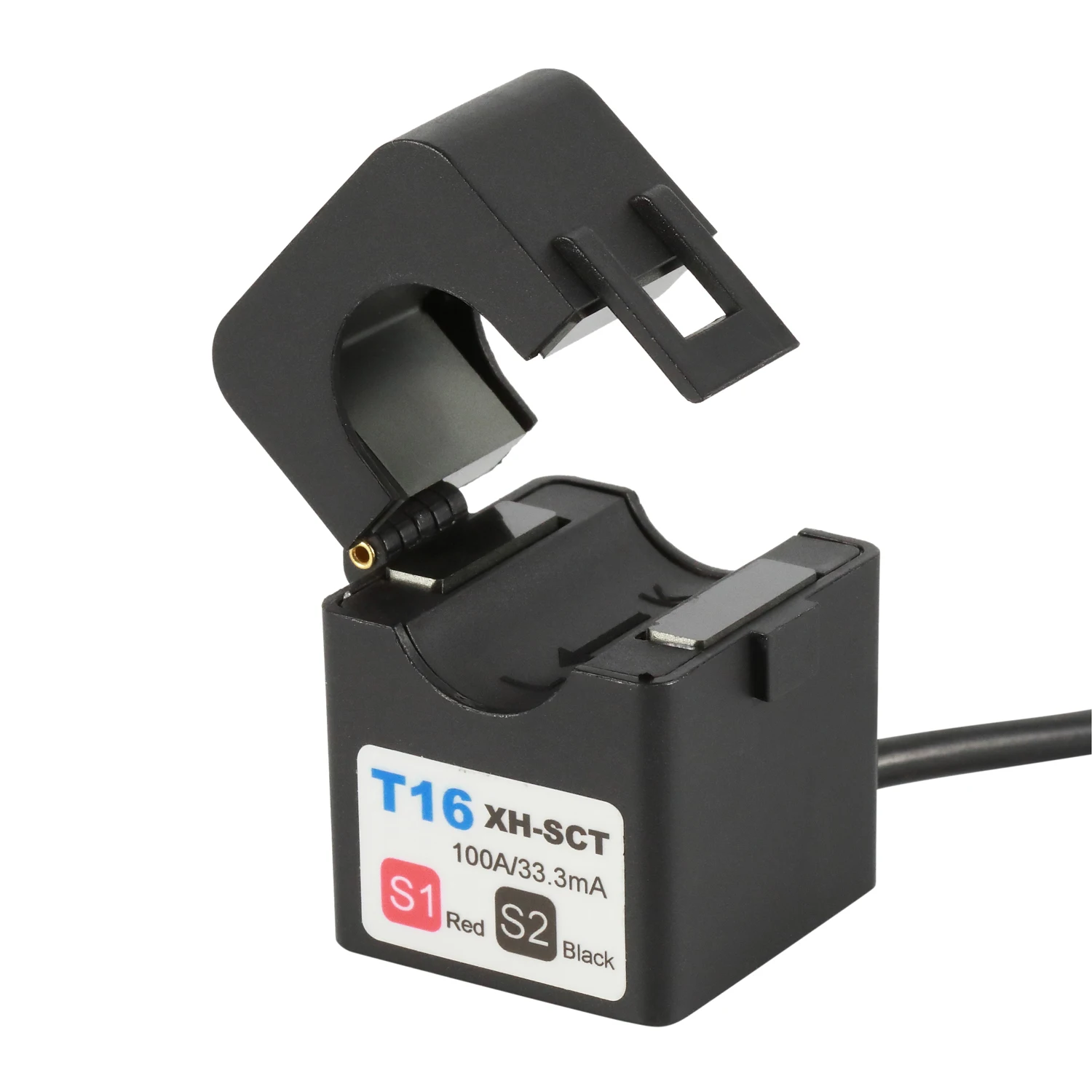

xh sct t16 split core current transformers

Product Overview

Description

Split core current transformer with high quality and CE  RoHS UL certification

Specifications:
Maximum continuous primary current 120A
Secondary turns: 3000 or as per customer datasheet

current transformer output: 40mA
Wire leads: 24# AWG UL2464 24AWG
Frequency: 50/60Hz

Accuracy: 1%

DC resistance: 460ohms @ 20degree Celsius

Applications:
Portable instruments
Sub-metering
Monitor motor load

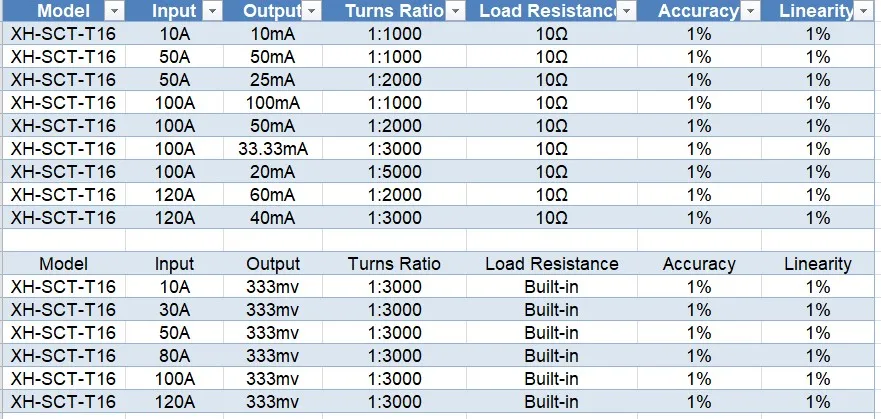

Model	Input	Output	Turns ratio	Wire lead	Ratio error
SCT-T16	100A	50mA	2000:1	1m	0.5

Our main products:



Split Core Current Transformer, Split Core Current Sensor, Split Core Current Transducer, Clip on Current Sensor, Current Transformer Manufacturer, Split Core Cts Manufacturer, Current Sensor Manufacturer, Clamp on Current Transformer, AC Split Core Current Transformer, Flex Core Current Transformer



Drawing size

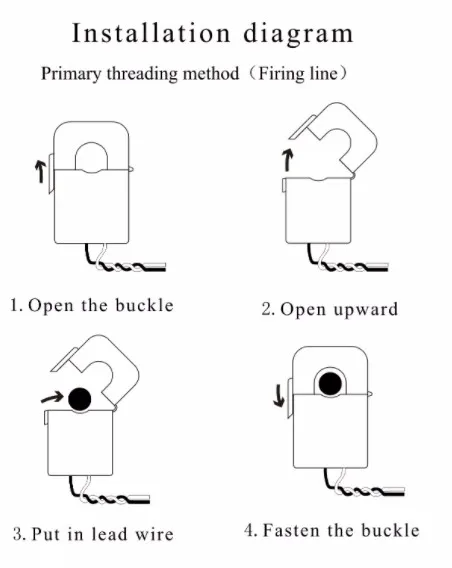

 Application of T16 model
