High Quality XJ750(150t) XJ850/1000(180t) Workover Rig for Sale Oil Well Drilling Equipments
- Category: >>>
- Supplier: Huayu Petro Machinery Co. Ltd.
Share on (1600717891706):
Product Overview
Description
Product Description

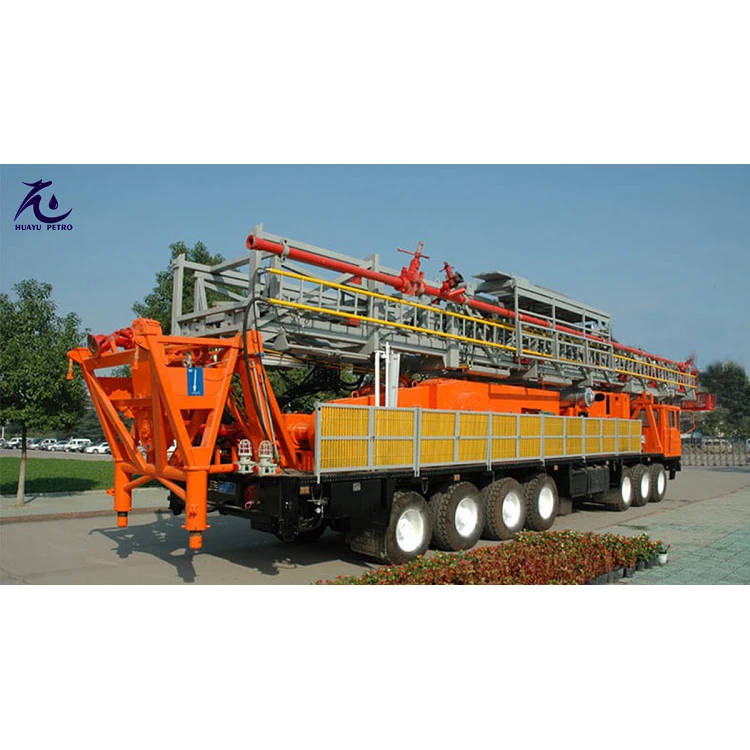

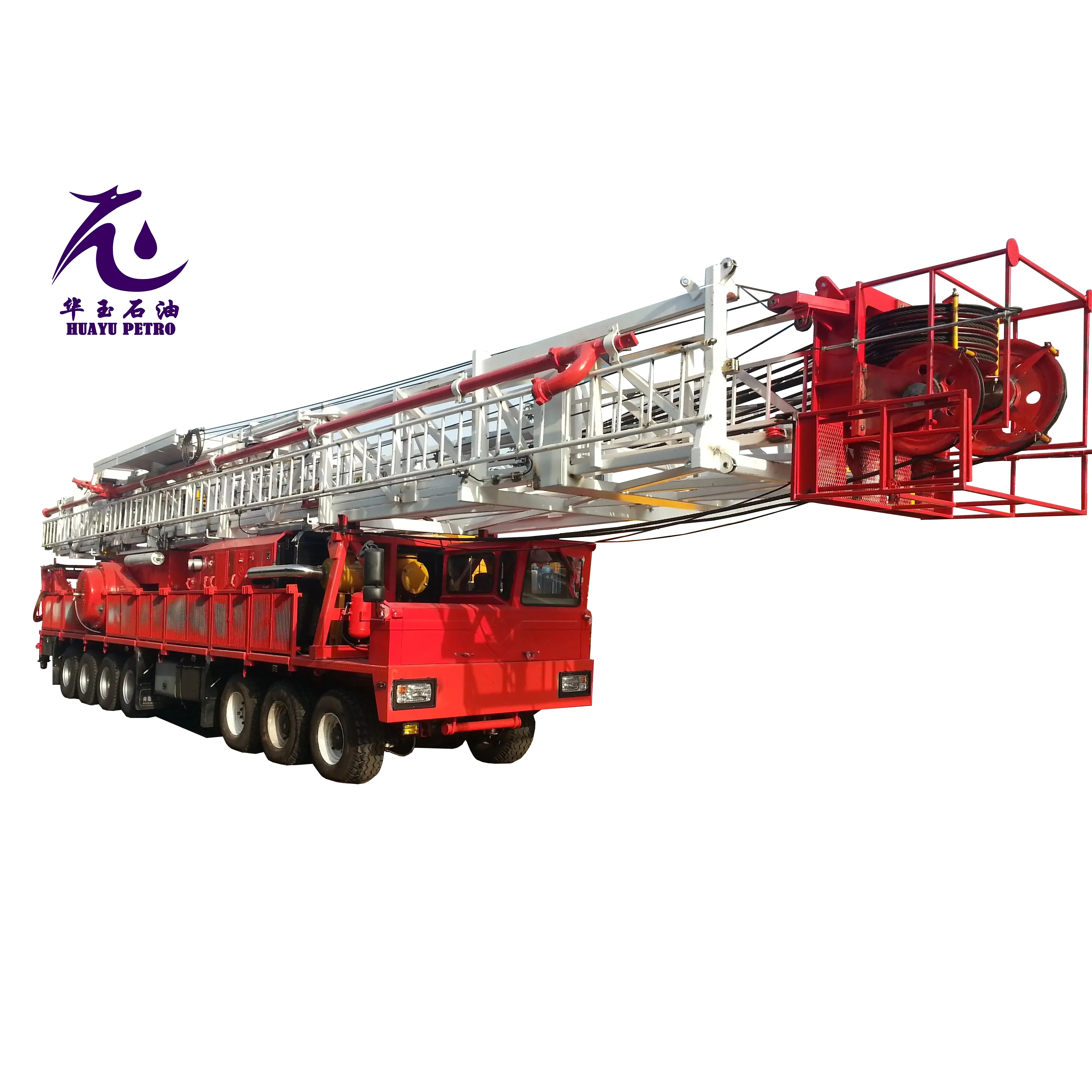

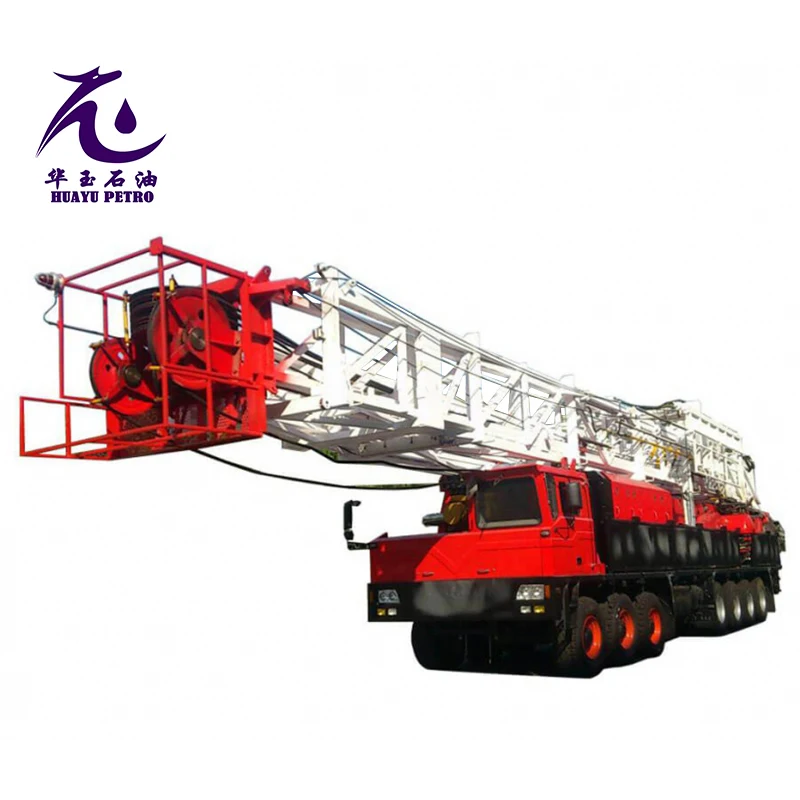

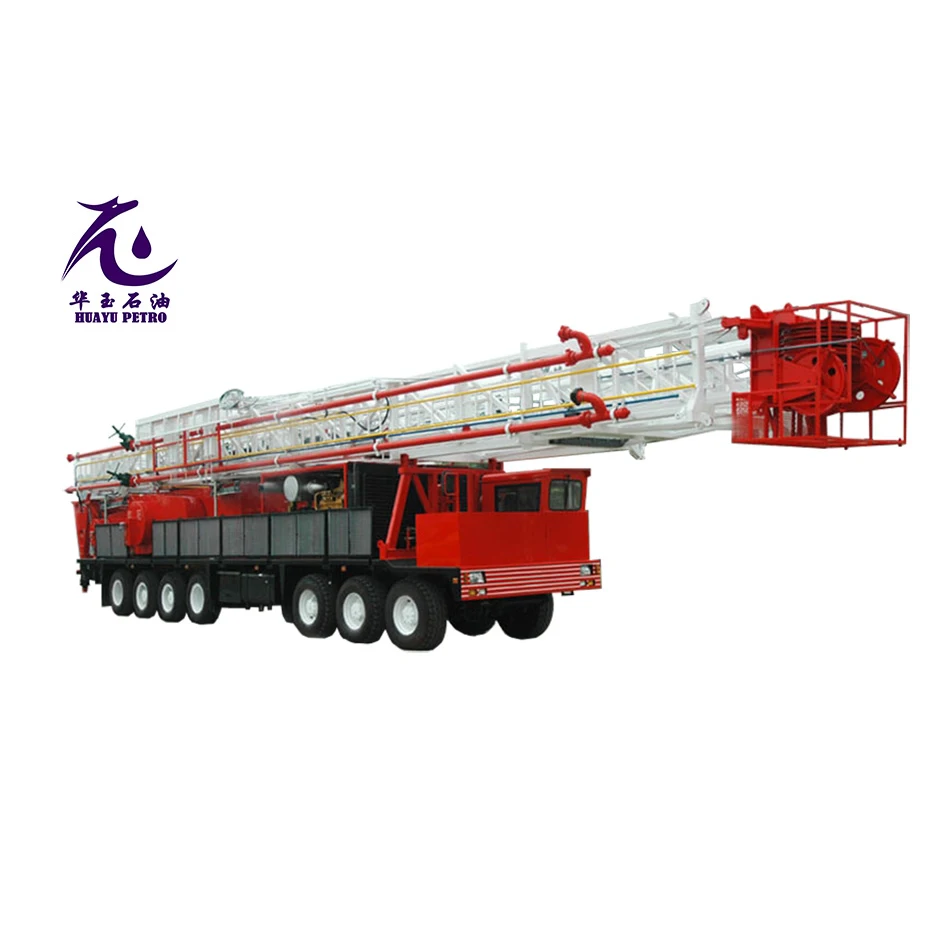

Workover Rig
1. The workover rig driven by diesel engine, with reasonable power matching, high transmission efficiency and high reliability. The whole machine has compact structure, high assembly degree and small occupation area.
2. Adopt homemade or class II heavy-duty chassis, equipped with hydraulic power steering system, with good mobility, off-road and lateral stability.
3. The main brake adopts belt brake or hydraulic disc brake, and the auxiliary brake adopts pneumatic water-cooled brake or water brake.
4. Mast with front opening double section mast-shaped derrick, forward or upright, hydraulic cylinder lifting and retractable, equipped with wind and load rope.
5. The turntable drive system can realize the rotary table forward rotation, reverse, hang, disconnect, equipped with a reverse torque release device to ensure the safe release of the rotary table drilling string torque.
6. The substructure adopts telescopic or rotary structure, and the floating platform on both sides can be flipped, and the whole skid can be lifted and transported. Table height, size, layout can be customized according to the requirements. Light workbench can be selected as required.
2. Adopt homemade or class II heavy-duty chassis, equipped with hydraulic power steering system, with good mobility, off-road and lateral stability.
3. The main brake adopts belt brake or hydraulic disc brake, and the auxiliary brake adopts pneumatic water-cooled brake or water brake.
4. Mast with front opening double section mast-shaped derrick, forward or upright, hydraulic cylinder lifting and retractable, equipped with wind and load rope.
5. The turntable drive system can realize the rotary table forward rotation, reverse, hang, disconnect, equipped with a reverse torque release device to ensure the safe release of the rotary table drilling string torque.
6. The substructure adopts telescopic or rotary structure, and the floating platform on both sides can be flipped, and the whole skid can be lifted and transported. Table height, size, layout can be customized according to the requirements. Light workbench can be selected as required.
Model | XJ250 | XJ350 | XJ450 | XJ550 | XJ650 | XJ750 | XJ1000 | |||||
Nominal service depth（27/8″EUE tubing）m | 3600 | 4000 | 5500 | 7000 | 8000 | |||||||
Nominal workover depth（27/8″DP） | 2500 | 3200 | 4500 | 5800 | 7000 | 8000 | 9000 | |||||
Drilling depth M（41/2″DP）m | 600 | 1000 | 1500 | 2000 | 2500 | 3000 | 4000 | |||||
Max hook load kN | 600 | 900 | 1125 | 1350 | 1580 | 1800 | 2250 | |||||
Rated load capacity kN | 400 | 600 | 800 | 1000 | 1200 | 1500 | 1800 | |||||
Engine power kW | 245～280 | 320～360 | 320～360 | 450～500 | 450～500 | 700～900 | ||||||
Hydraulic transmission model | 5620 | 5620 | 5620 | 6620 | 2×5620 | 2×6620 | ||||||
Transmission type | hydraulic+ mechanical | |||||||||||
Mast height m | 29 | 32 | 33 | 35 | 36/38 | 36/38 | ||||||
Traveling system | 4×3 | 5×4 | 5×4 | 5×4/6×5 | 5×4/6×5 | 6×5 | ||||||
Main wireline diameter mm | 26 | 26 | 26 | 26 | 32 | 32 | ||||||
Hook speed m/s | 0.2~1.75 | 0.2～1.2 | 0.2～1.4 | 0.2～1.3/0.2～1.4 | 0.2～1.3/0.2～1.2 | 0.2～1.3 | ||||||
Chassis model/ drive type | XD40/8×6 | XD50/10×8 | XD50/10×8 | XD60/12×8 | XD70/14×8 | XD70/14×8 | ||||||
Approaching angle/leaving angle | 26°/16° | 26°/17° | 26°/17° | 26°/18° | 26°/18° | 26°/18° | ||||||
Min. ground clearance mm | 340 | 311 | 311 | 311 | 311 | 311 | ||||||
Max grade ability | 30% | 26% | 26% | 26% | 26% | 26% | ||||||
Min turning radius m | 28 | 33 | 33 | 38 | 41 | 41 | ||||||
Rotary table model | ZP90 | ZP135 | ZP135 | ZP175 | ZP205/ ZP275 | ZP205/ ZP275 | ||||||
Traveling block model | YG90 | YG110 | YG135 | YG160 | YG180 | YG225 | ||||||
Swivel model | SL110 | SL110 | SL135 | SL160 | SL225 | SL225 | ||||||
Overall dimension m | 16.7×2.8×4.1 | 18.5×2.8×4.2 | 18.8×2.85×4.3 | 20.4×2.85×4.45 | 22.5×3.0×4.45 | 22.5×3.0×4.48 | ||||||
Main unit weight kg | 42000 | 50000 | 55000 | 65000 | 76000 | 78000 | ||||||

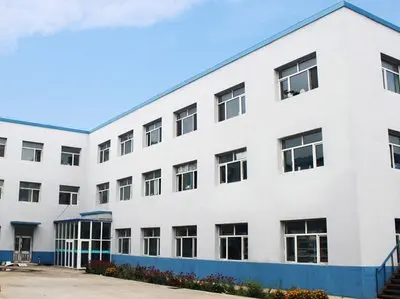

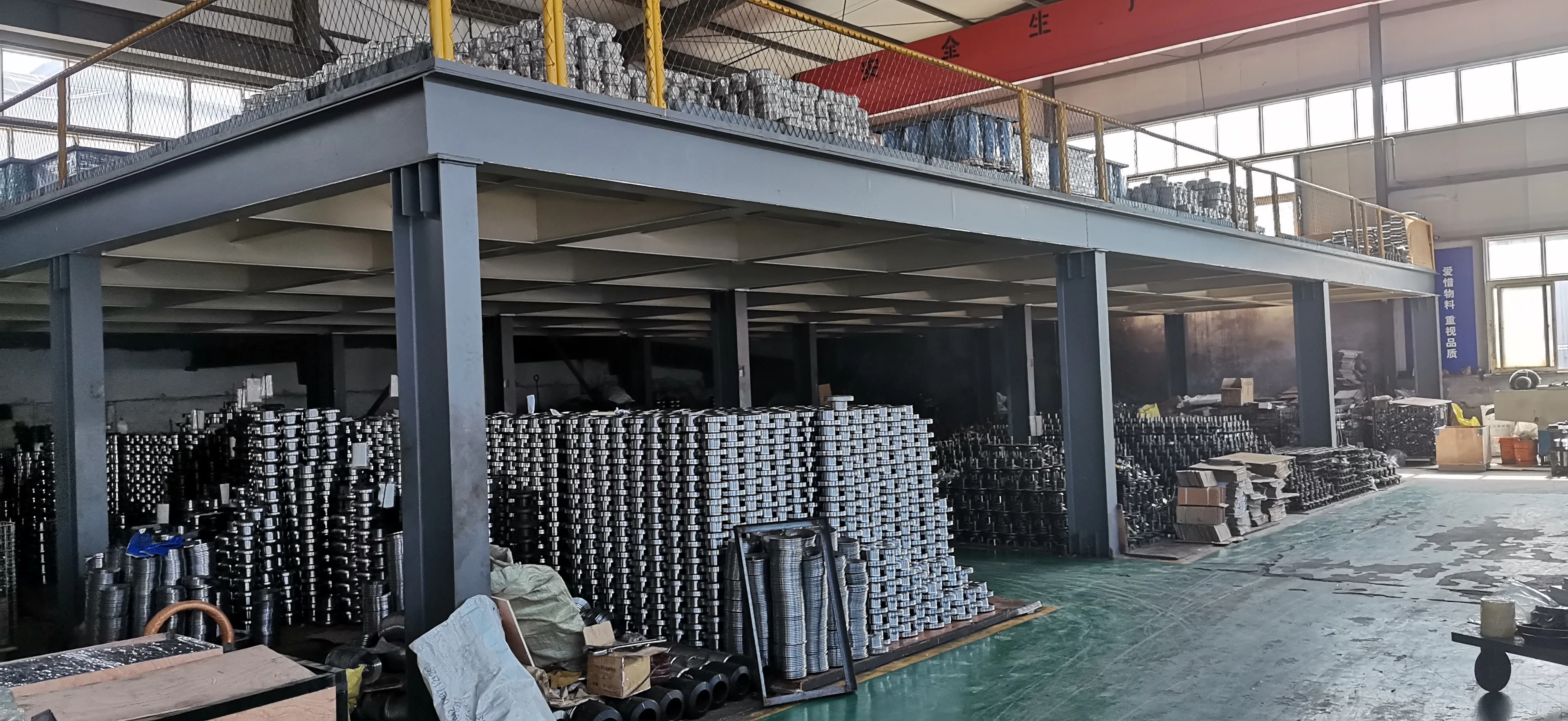

Company Profile
HUA YU PETRO MACHINERY CO.,LTD is a professional supplier of various oilfield equipment, including oil drilling and workover rig, oil production equipment, wellhead & downhole tools and spare parts. Following the principle of “quality first “, our products have exported to more than 30 countries and regions. With stable quality, reasonable price and professional service, HUA YU PETRO MACHINERY CO.,LTD has become long-term partner and supplier of some large international petroleum companies.
We manufacture 1000m-9000m skid drilling rig, 1000m-4000m truck-mounted drilling rig and 40 ton 225 ton workover rig and its components such as mast, substructure, swivel, hook block, drawworks…etc.

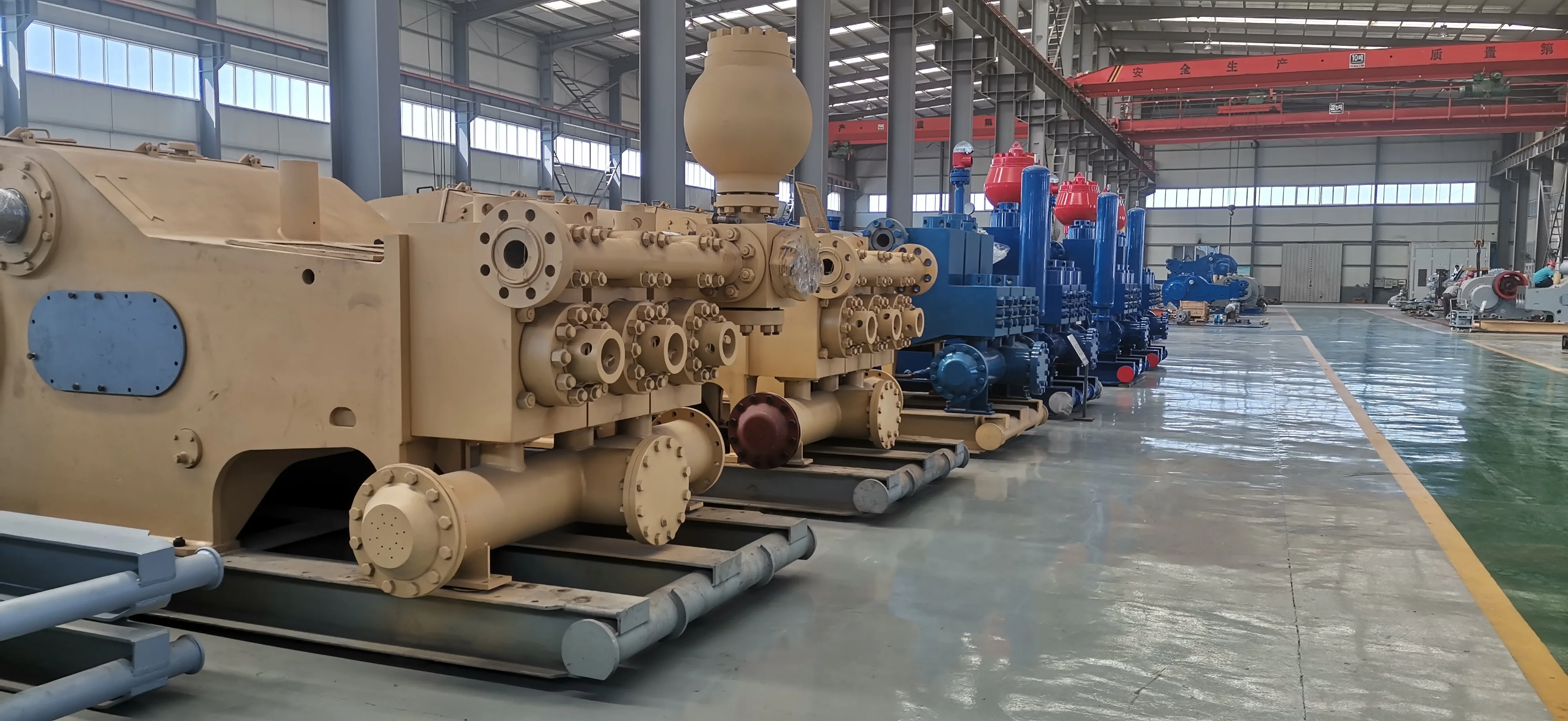

We supply solid control system, mud pump unit, well control, drill pipe, generator…etc. We also make commissioning for rig together with periphery equipment.
We are focusing on the best quality equipment from Manufacture directly to the users of the oil filed. We can supply most of equipment and spare parts of the rigs.
We stick to our vision: To be the best Manufacturer and supplier for oil filed.
We manufacture 1000m-9000m skid drilling rig, 1000m-4000m truck-mounted drilling rig and 40 ton 225 ton workover rig and its components such as mast, substructure, swivel, hook block, drawworks…etc.
We supply solid control system, mud pump unit, well control, drill pipe, generator…etc. We also make commissioning for rig together with periphery equipment.
We are focusing on the best quality equipment from Manufacture directly to the users of the oil filed. We can supply most of equipment and spare parts of the rigs.
We stick to our vision: To be the best Manufacturer and supplier for oil filed.

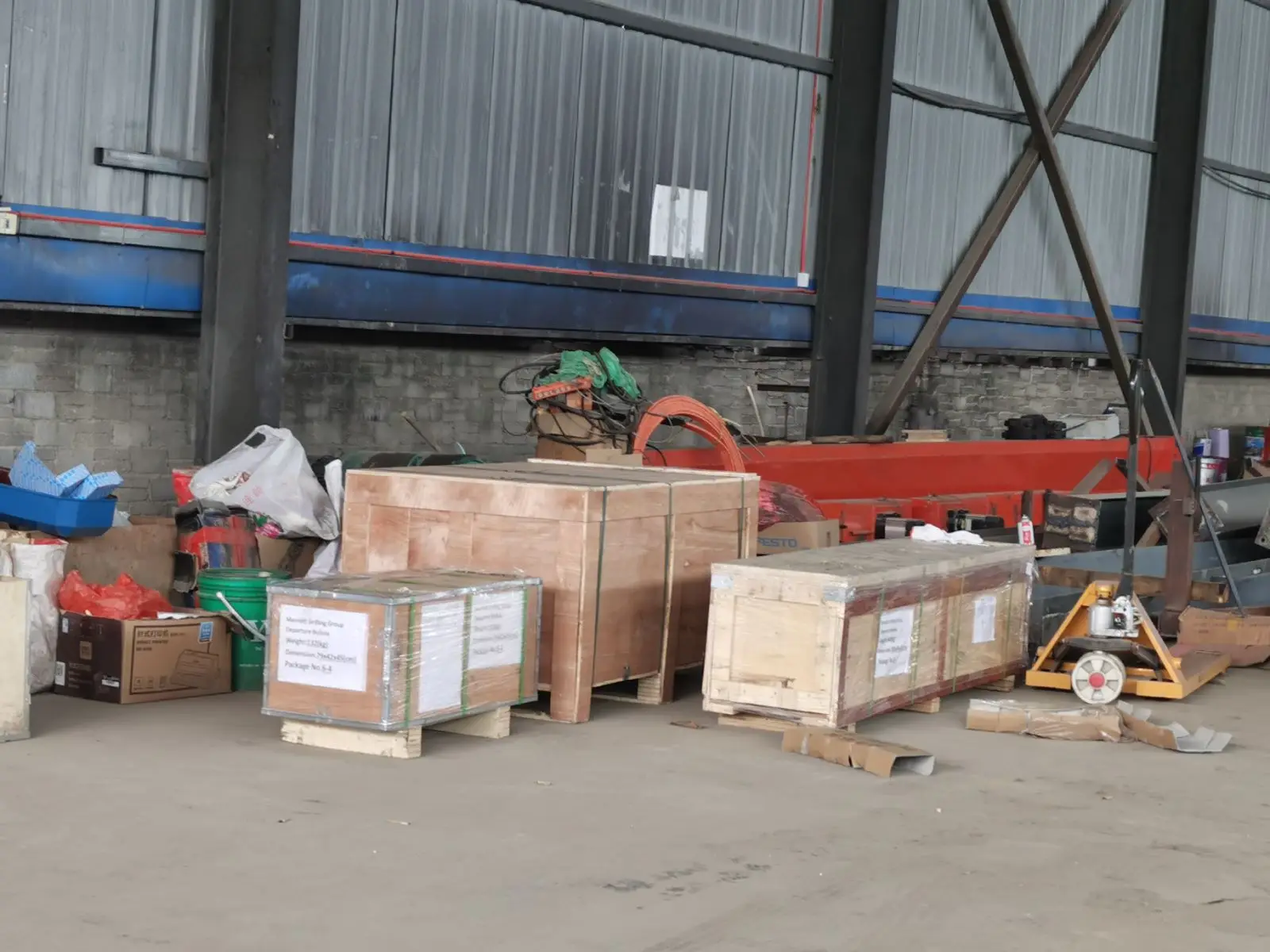

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Why Choose Us
20+ Years of rig equipment supply experience.
5000+ Square meters of workshop area.
50+ Employes for company business.
30+ Export countries and regions.
100+ Long-term overseas partners.
200+ Domestic cooperative factories.
Products conform to API QC and the other qualified standards
Quality Assurance
In order to create famous brands, improve enterprise visibility and establish enterprise image, we are in line with the spirit of "all the pursuit of high quality, customer satisfaction for the purpose", and the principle of "the most preferential price, the most thoughtful service, the most reliable product quality" solemnly promise to you:
I.Product quality commitment
1.The manufacturing and testing of the products have quality records and testing data.
2.For the detection of product performance, we sincerely invite users to personally inspect the whole process and performance of the products, and then pack and ship the products after they are confirmed to be qualified.
II.Product price commitment
1.In order to ensure the high reliability and advancement of the products, the materials of the system are selected from domestic or international high-quality brand products.
2.Under the condition of equal competition, our company will not reduce the product technical performance, do not change the product components, and sincerely provide you with the most preferential price.
III.Delivery time commitment
III.Delivery time commitment
As far as possible according to user requirements, if there is a special requirement that needs to be completed in advance, our company can specially organize production, installation, and strive to meet user needs
IV.After-sales service commitment
1.Service tenet: Fast, decisive, accurate, thoughtful and thorough.
2.Service objective: Service quality to win customer satisfaction.
3.Service efficiency: if the equipment fails during or outside the warranty period, the supplier will reply and provide solutions within 24 hours after receiving the notice.
4.Service principle: The product warranty period is 12 months. During the warranty period, the supplier will repair and replace the parts caused by quality reasons for free, the damage of parts outside the warranty period, the provided parts only charge cost, the equipment damage caused by human factors, the supplier repair or provide parts are calculated according to the cost price.
