Autel Robotic 640T Enterprise 42min Flight Time Long Range Thermal Drone Professional Drones 8k Camera For Dji Mavic 3
- Category: >>>
- Supplier: Shenzhen Zhimu E-Commerce Co. Ltd.
Share on (1600717909031):
Product Overview
Description
Products Description

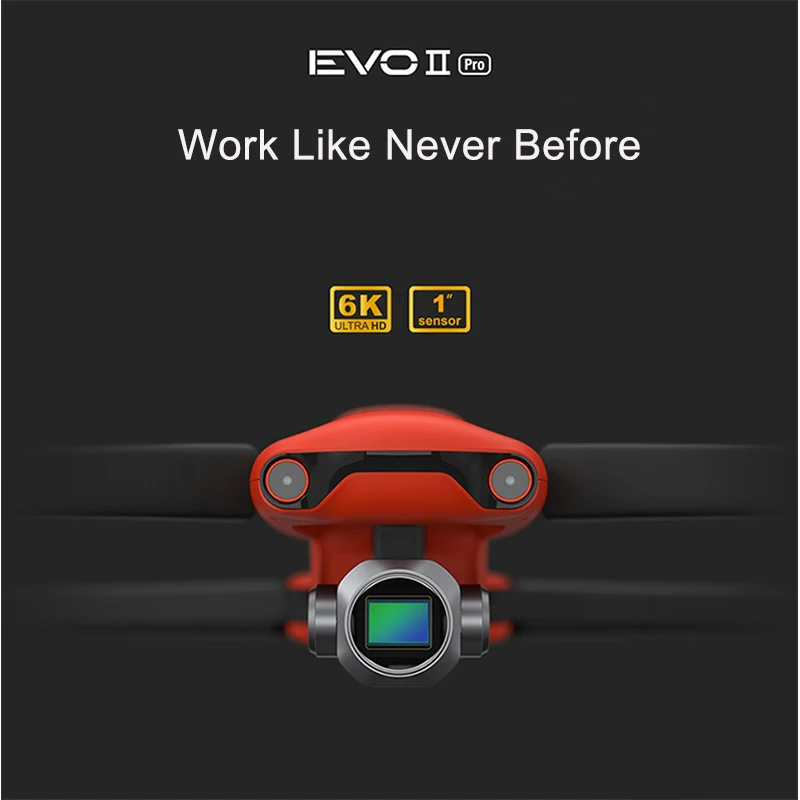

6K Camera, 20MP Stills, HDR Video, 1” Sensor, Interchangeable Gimbal
Autel Robotics EVO II Pro Drone can capture images at resolutions up to 5472*3648 and HDR video up to 5472*3076.
EVO II Pro Drone records 6K video at 30 fps, 5.5/4K HDR video at 60 fps.With 1” CMOS sensor and 6K camera, there are no limitations.
Adjustable Aperture & ISO for Professional Results
EVO II Pro Quadcopter comes with adjustable f/2.8-f/11 aperture to create stills and videos with different depth of field and ISO range from 100- 12800 for photos and 100- 6400 for videos with professional results.
Powerful Telephoto Zoom
Resolutions up to 640x512 enable EVO II 640T pilots to capture subjects with great detail from up to 100 meters - 4x farther than any aircraft of its class. The 30Hz refresh rate produces smooth dynamic thermal movement by matching thermal images to video frame rate.
EVO II Dual 640T Enterprise collect high-definition images from a safe distance with 16x digital zoom that supports 4x lossless zoom
Superior Flight Performance
The EVO II Enterprise's flight performance has been fully optimized thanks to its new power system and carbon fiber structural design. Equipped with an industry-leading dual-frequency image transmission system, the unit also provides stronger anti-interference capabilities and stable transmission of high-definition images up to 1080p.
Autel EVO II Pro adopted Dynamic Track 2.0
With Autel patented Dynamic Track 2.0, you can follow subjects autonomously around obstacles at high speeds and watch as AI technology creates smart flight paths in real-time. Dual-core powered object detection recognizes up to 64 subjects at once including people, vehicles, and animals
Multiple Temperature Measurement Modes
EVO II Dual 640T Enterprise has built-in infrared sensors and high-speed processors, provides a variety of temperature measurement functions, easy to interpret temperature data.
* Spot Temperature Measurement
Displays the temperature of a selected object with just a tap of the screen.
* Regional Temperature Measurement
Allows the user to adjust image brightness, contrast, and image details in real time.
* Temperature Alarm
Displays the temperature of a selected object with just a tap of the screen.
* Central Temperature Measurement
Alerts the user when the temperature of an area reaches a predetermined threshold.
* Isotherm
Detects any objects within a specified temperature range.
* Image Enhancement
Allows the user to adjust image brightness, contrast, and image details in real time.
<< Please click here to leave your question , we will reply you ASAP >>
Product Paramenters

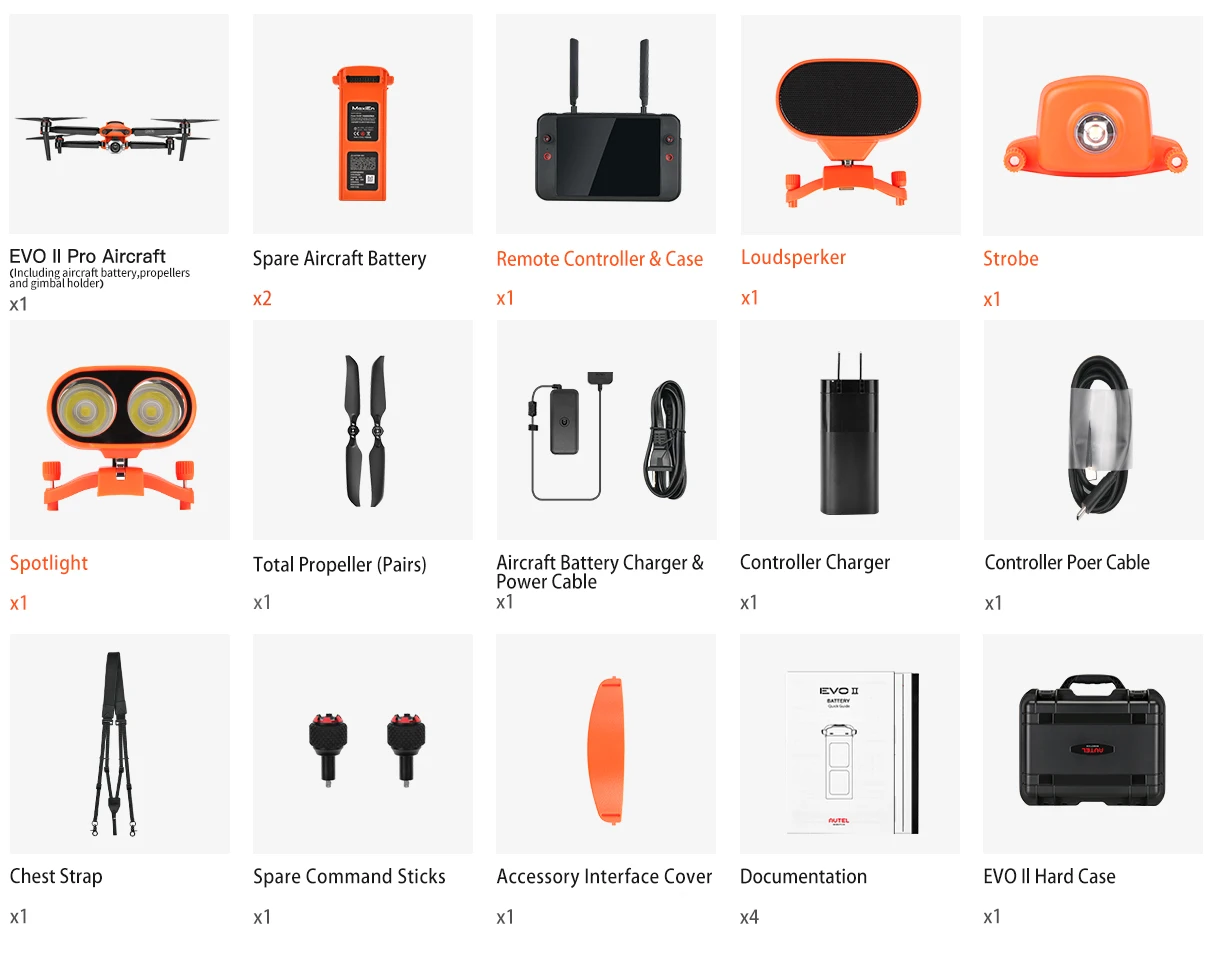

Enterprise Accessories
Loudspeaker | Spotlight | Strobe | RTK (Sold Separately) |
Aircraft | ||||||
Takeoff Weight(Without Accessories) | EVO II Pro Enterprise：2.45 lbs (1110 g) | |||||
EVO II Dual 640T Enterprise：2.51 lbs (1136.5 g) | ||||||
Diagonal Length | 16.8 inches (427 mm) | |||||
Size(L*W*H) | 245*130*111mm（folded） | |||||
506*620*111mm（unfolded） | ||||||
Max Service Ceiling Altitude | 4.3 miles (7000 m) MSL | |||||
Max Ascent Speed | 18 mph (8 m/s) (Ludicrous) | |||||
Max Descent Speed | 9 mph (4 m/s) (Ludicrous) | |||||
Max Level Flight Speed | 45 mph (20 m/s) (Ludicrous) | |||||
Max angular velocity | 120°/s | |||||
Max tilt angle | 33° (Ludicrous) | |||||
Max Flight Time (no wind) | 42 min（without accessories） | |||||
Max Hovering Time (no wind) | 38 min（with strobe） | |||||
29 min（with spotlight） | ||||||
34 min（with loudspeaker） | ||||||
36 min（with RTK module） | ||||||
Operating Temperature Range | 14℉ to 104℉ (-10℃ to 40℃) | |||||
Max Wind Speed Resistance | 12 m/s (Take-off and landing) | |||||
Operating Frequency | 2.400 GHz - 2.4835 GHz； | |||||
5.725GHz - 5.850 GHz | ||||||
Hovering accuracy | When RTK is enabled and working normally: | |||||
Vertical: ±0.1 m; Horizontal: ±0.1 m | ||||||
Vertical: ±0.1 m (when the visual positioning is working normally); | ||||||
±0.5 m (when GPS works normally) | ||||||
Horizontal: ±0.3 m (when the visual positioning is working normally); | ||||||
±1.5 m (when GPS works normally) | ||||||
Internal storage | 8GB | |||||
SD storage | max. support 256GB (UHS-3 or Class 10) | |||||

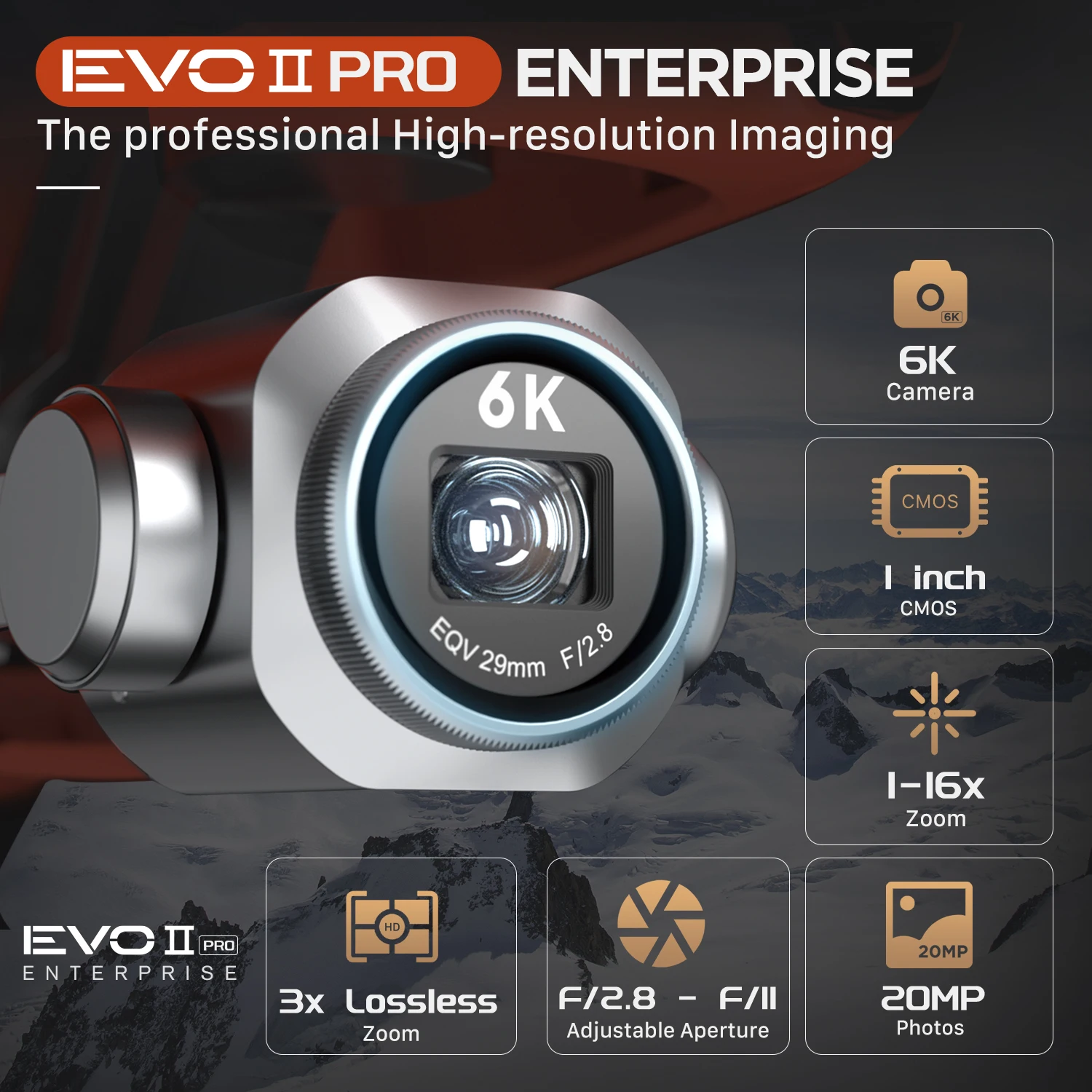

EVO II Pro Enterprise Camera | ||||||
Sensor | 1-inch CMOS; 20 million effective pixels | |||||
FOV | 82° | |||||
Aperture | f/2.8 - f/11 | |||||
Equivalent Focal Length | 28.6mm | |||||
ISO Range | Video: 100-6400 (auto) | |||||
Photo: 100-3200 (auto) | ||||||
Zoom | 1-16x (up to 3x lossless zoom) | |||||
Still Photography Modes | Single Shot | |||||
Burst shooing: 3/5 frames | ||||||
Automatic Exposure Bracketing (AEB)： | ||||||
3/5 bracketed frames at 0.7 EV Bias | ||||||
Timelapse：JPG：2s/5s/7s/10s/20s/30s/60s | ||||||
DNG：5s/7s/10s/20s/30s/60s | ||||||
HyperLight：support (under 4K JPEG format） | ||||||
Long Exposure: Max 8s | ||||||
HDR imaging: (under 4K JPEG) | ||||||
Still Photography Resolution | 5472*3648 (3:2) | |||||
5472*3076 (16:9) | ||||||
3840*2160 (16:9) | ||||||
Video Format | MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265) | |||||
Video Resolution | 6K 5472*3076 p30/p25/p24 | |||||
4K 3840*2160 p60/p50/p48/p30/p25/p24 | ||||||
2.7K 2720*1528 p120/p60/p50/p48/p30/p25/p24 | ||||||
1080p 1920*1080 p120/p60/p50/p48/p30/p25/p24 | ||||||
Max Bitrate | 120Mbps | |||||
EVO II Dual 640T Enterprise Thermal Camera | ||||||
Sensor | Vanadium oxide uncooled infrared focal plane detector | |||||
Viewing Angle | H33°V26° | |||||
Sensor resolution | 640x512 | |||||
Pixel Pitch | 12μm | |||||
Focal Length | 13mm | |||||
Wavelength range | 8～14μm | |||||
Accurate temperature measurement distance | 2-20 meters | |||||
Temperature measurement accuracy | ±3℃ or ±3% of reading (whichever is greater) | |||||
@ambient temperature -20℃~60℃ | ||||||
Temperature range | High gain mode: -20° to +150°C | |||||
Low gain mode: 0° to +550°C | ||||||
Zoom | 1-16x | |||||
Photo shooting mode | Single shooting, continuous shooting,time-lapse shooting | |||||
Camera resolution | Infrared mode: 640*512 | |||||
Picture in Picture: 1920*1080, 1280*720 | ||||||
Video Resolution | 640*512 30fps | |||||
Video format | MOV / MP4 (support H.264/H.265) | |||||
EVO II Dual 640T Enterprise Visual Camera | ||||||
Sensor | 1/2 inch CMOS; 48M effective pixels | |||||
FOV | FOV：79° | |||||
Aperture | f/1.8 | |||||
Focus range | 0.5m to ∞ | |||||
Equivalent Focal Length | 25.6mm | |||||
ISO Range | Video: 100-6400 (auto) | |||||
Photo: 100-3200 (auto) | ||||||
Zoom | 1-16x (up to 4x lossless zoom) | |||||
Still Photography Modes | Single Shot | |||||
Burst shooing: 3/5 frames | ||||||
Automatic Exposure Bracketing (AEB)： | ||||||
3/5 bracketed frames at 0.7 EV Bias | ||||||
Timelapse： | ||||||
JPG：2s/5s/7s/10s/20s/30s/60s | ||||||
DNG：5s/7s/10s/20s/30s/60s | ||||||
HyperLight：support (under 4K JPEG format） | ||||||
Long Exposure: Max 8s | ||||||
HDR imaging: (under 4K JPEG) | ||||||
Still Photography Resolution | 8000*6000 (4:3) | |||||
7680*4320 (16:9) | ||||||
4000*3000 (4:3) | ||||||
3840*2160 (16:9) | ||||||
Video Format | MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265) | |||||
Video Resolution | 8K 7680*4320 p25/p24 | |||||
6K 5760*3240 p30/p25/p24 | ||||||
4K 3840*2160 p60/p50/p48/p30/p25/p24 | ||||||
2.7K 2720*1528 p120/p60/p50/p48/p30/p25/p24 | ||||||
1080P 1920*1080 p120/p60/p50/p48/p30/p25/p24 | ||||||
Max Bitrate | 120Mbps | |||||
Gimbal | Remote controller | |||||
Gimbal | 3-axis stabilization | Operating Frequency | 902-928 MHz; 2.400-2.4835 GHz; 5.725-5.850 GHz | |||
Mechanical range | Tilt: -135° to +45°; | Max Transmission Distance (unobstructed, free of interference) | FCC: 13km | |||
Pan: -100° to +100° | CE: 7km | |||||
Controllable rotation range | Tilt: -90° to +30°; | Transmitter Power (EIRP) | 902-928 MHz | |||
Pan: -90° to +90° | FCC:≤30dBm | |||||
Max control speed (Tilt) | 300°/s | 2.400-2.4835 GHz | ||||
Angular Vibration Range | ±0.005° | FCC:≤30dBm | ||||
Capacity | 7100 mAh | CE：≤20dBm | ||||
Voltage | 11.55 V | 5.725-5.850 GHz | ||||
Battery type | LiPo 3S | CE：≤14dBm | ||||
Energy | 82 Wh | Internal Storage | 128GB | |||
Weight | 365 g | Video Output Port | HDMI | |||
Charging temperature range | 5℃ to 45℃ | Built-in Battery | Name: Intelligent Li-ion battery | |||
Storage temperature and humidity | -10~30℃，65±20%RH | Capacity：5800mAh | ||||
Recommended storage temperature | 22-28℃ | Voltage：11.55V | ||||
Max charging power | 93W | Battery Type：Li-ion | ||||
Charging time | 90 minutes | Battery Energy：67 Wh | ||||
Charger | Charging time：120 min | |||||
Input | 100-240 V, 50/60 Hz, 1.5A | Battery Life | 3hr (Max. intensity) | |||
Output | 13.2 V ⎓ 5 A | 4.5hr (50% intensity) | ||||
5V⎓3A 9V⎓2A 12V⎓1.5A | Operating Temperature | -20℃ - 40℃ | ||||
Voltage | 13.2±0.1V | RC Size | 303×190×87mm(Ant. folded) | |||
Rated power | 66W | 303 x 273 x 87 mm (Ant. unfolded) | ||||
Multi-Charger | Weight | 1150g (Without protective case) | ||||
Voltage | 13.2 V | 1250g (With protective case) | ||||
Charging temperature range | 5℃ to 45℃ | Satellite Positioning Module | GPS + GLONASS + Galileo | |||

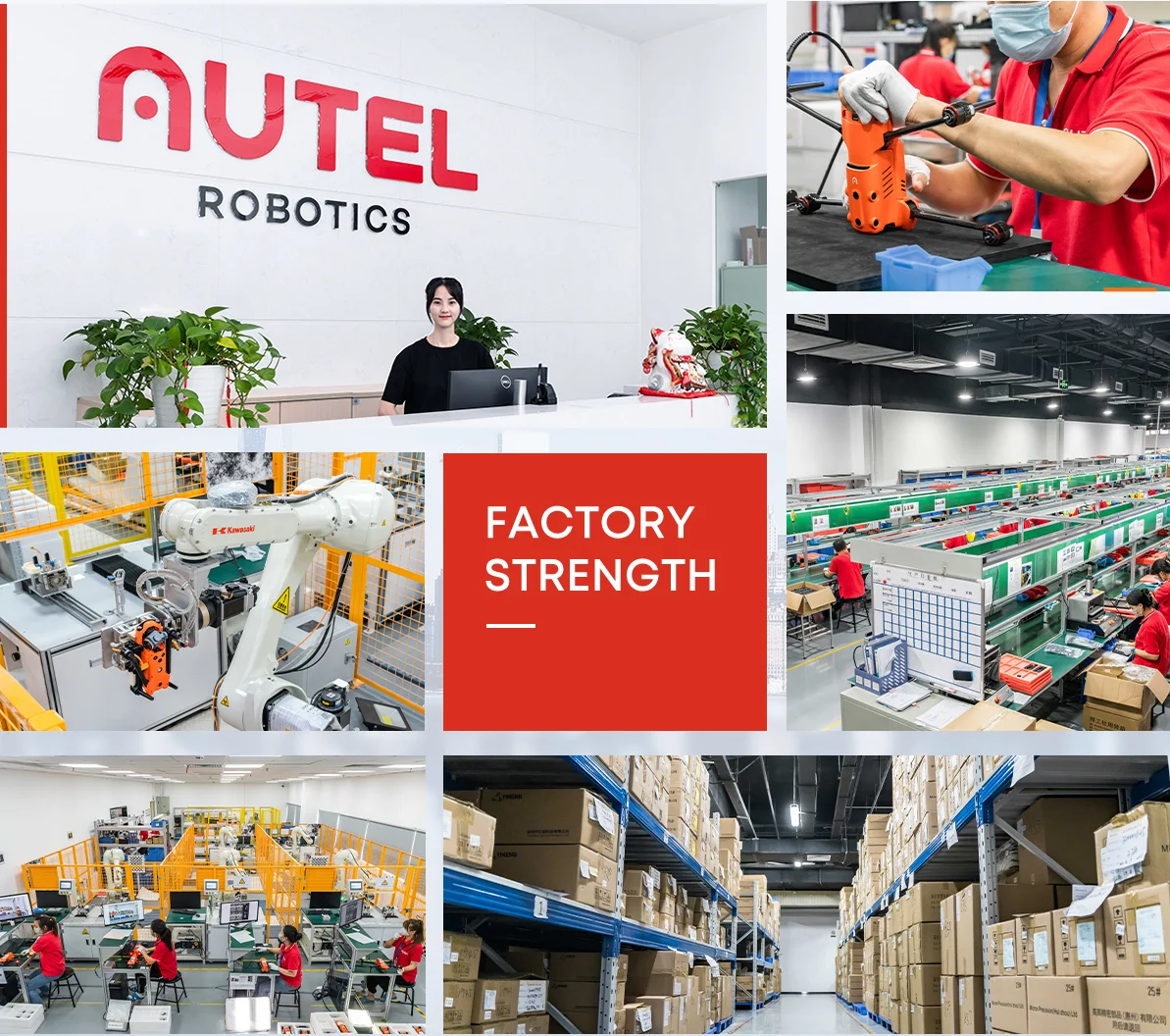

Company Profile
Our company is headquartered in Shenzhen, the industrial and software frontier city of the drones.Autel also has extensive subsidiaries bases in the US, Germany, Italy and Singapore, recruiting top talent to R&D leading drone technologies and autonomous solutions.
Among them,our R&D base at Nanshan i Park covers an area of 19,000㎡, the production base of Guangming Industrial manufacturing facility covers an area of 37,000㎡,and we have overseas warehouses including Germany, Spain, United Kingdom,England,Austrain,Poland, Russia etc.
Autel Robotics has invested more than $166 Million in R&D and deployed 2215 patent applications worldwide, and 879 patents have been authorized globally. Autel Robotics' committment to R&D has earned it a leading position in the global drone industry.
Certifications

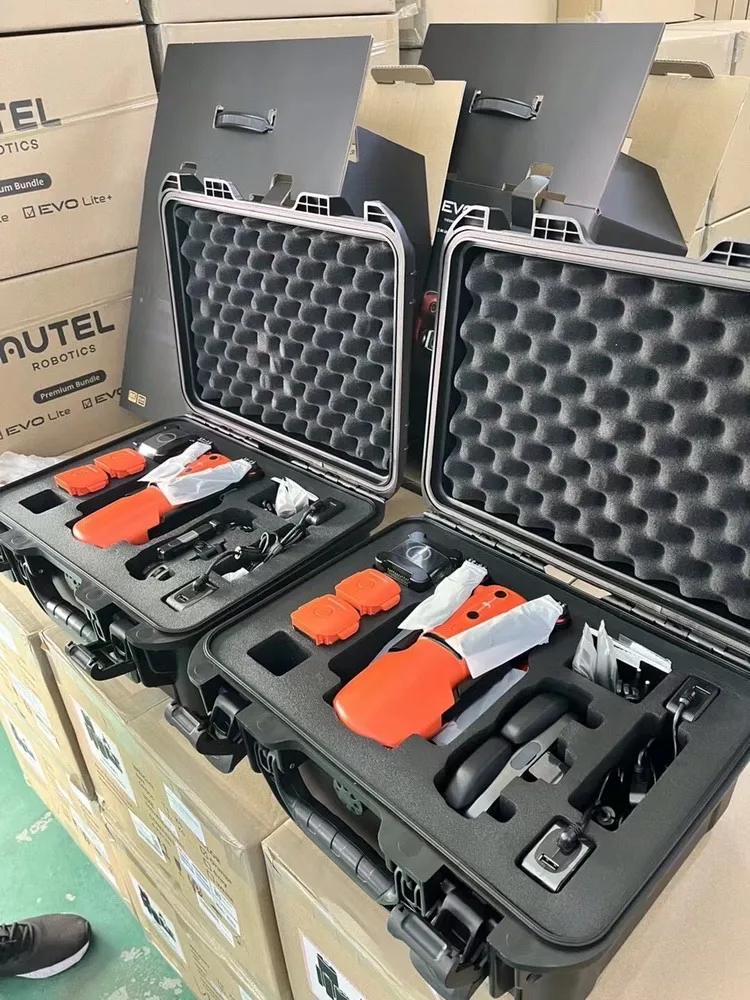

Warehouse&Shipping
