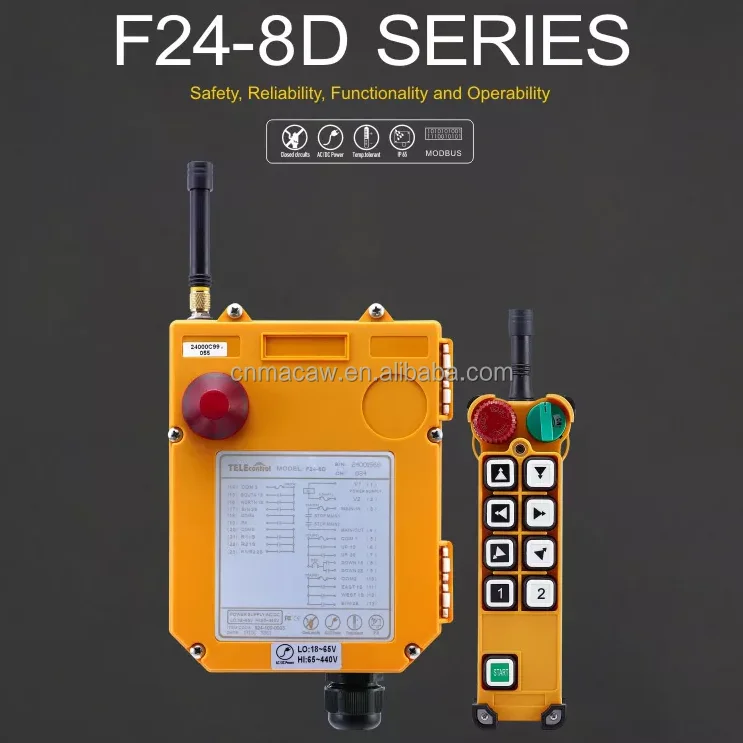

CE FCC certificated Universal industrial wireless remote control F24 8D radio crane remote control
- Category: Remote Control Switches >>>
- Supplier: Toptech,Machinery,Wuxi,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

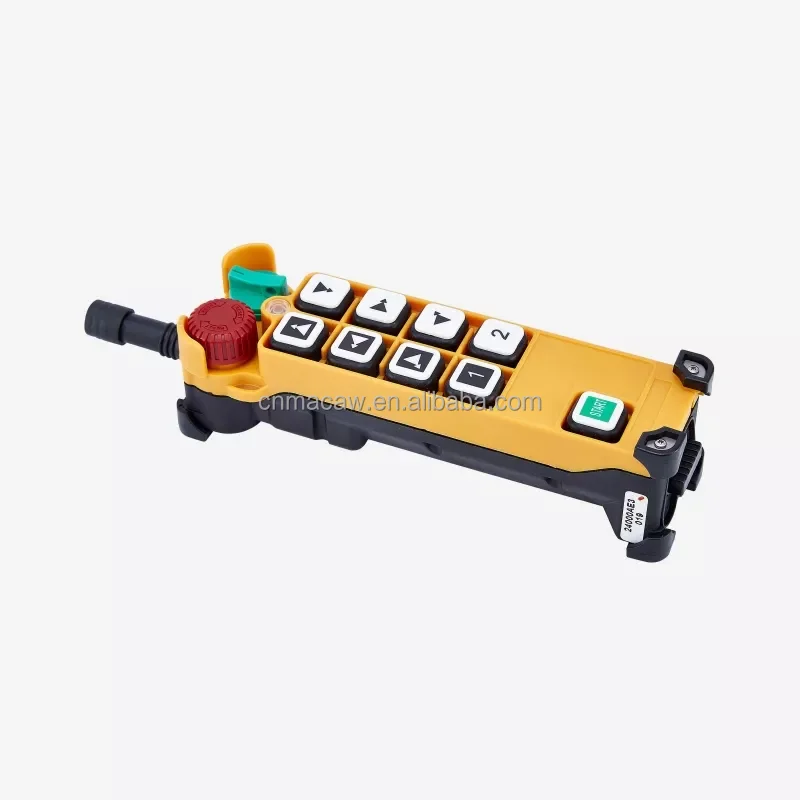

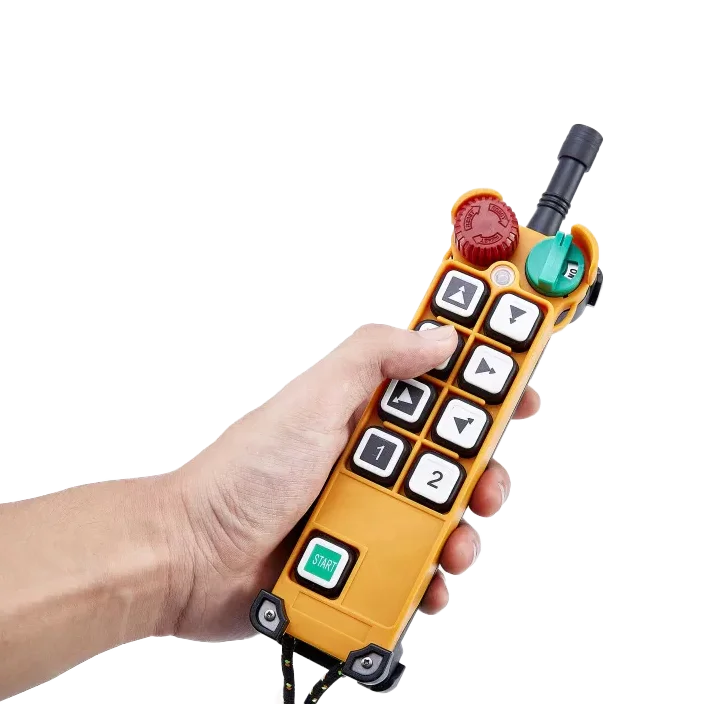

F24-8D Transmitter Parameters | ||
Material | Glass-Fiber PA | |
Enclosure protection class | IP65 | |
Frequency range | VHF:310-331MHz;UHF:425-446MHz | |
Transmitter power | ≤10dBm | |
Transmitter power supply | 2 AA alkaline batteries (not included) | |
Safety Code | 32 bits(4.3billion) | |
Operating Temperature | -40℃-+85℃ | |
Control distance | Approx 100m(200 meters is customized) | |
Size | 186x61x51mm | |
Weight | 280g (without battery) | |

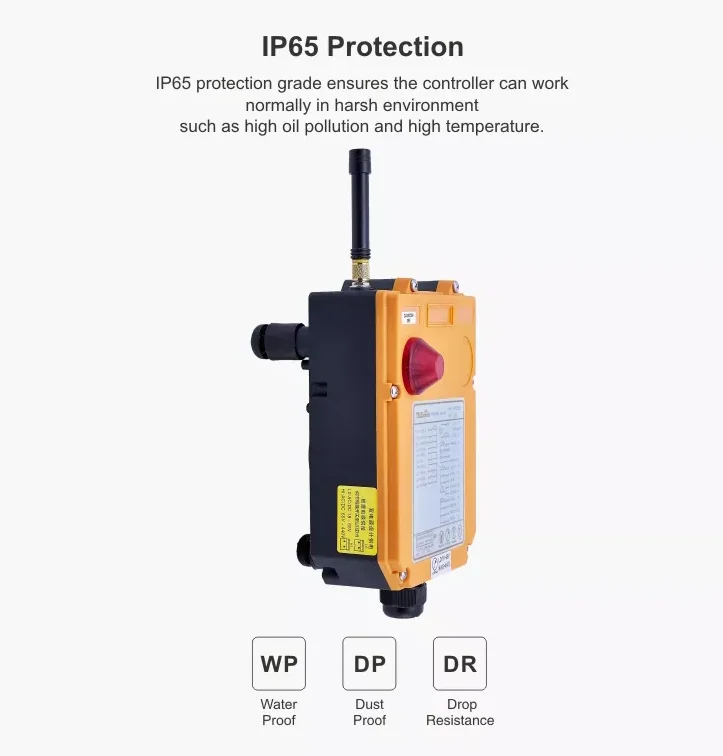

F24-8D Receiver Parameters | ||
Material | Glass-Fiber PA | |
Enclosure protection class | IP65 | |
Frequency range | VHF: 310-331MHz; UHF: 425-446MHz | |
Receiver sensitivity | -110dBm | |
Receiver power supply | 18~65V AC/DC; 65~440V AC/DC (optional) | |
Safety code | 32 bits (4.3billion) | |
Temperature range | -40℃-+85℃ | |
Output contactor capacity | 8A sealed relay output (with AC 250V/10A relays, 10A fuse) | |
Cable length | 1.65m (Other length can be customized) | |
Size | 210x162x107mm | |
Weight | 1220g | |
Specification
Packing & Delivery
Company Profile
TOPTECH MACHINERY, is a processional manufacture and supplier of Electric hoist and crane comments in China
We carry a comprehensive range of high-quality products:
1.\tElectric cran,Electric Chain hoist, wire rope hoist
2.\tEnd carriages , conductor rails etc. for overhead crane
3.\tManual chain hoist, wire rope puller, geared trolley and other manual lifting tools
4.\tLifting clamp, lifting slings..
Currently, our main export markets include South America, Africa Singapore, South East Asia, Hong Kong, etc.
We carry a comprehensive range of high-quality products:
1.\tElectric cran,Electric Chain hoist, wire rope hoist
2.\tEnd carriages , conductor rails etc. for overhead crane
3.\tManual chain hoist, wire rope puller, geared trolley and other manual lifting tools
4.\tLifting clamp, lifting slings..
Currently, our main export markets include South America, Africa Singapore, South East Asia, Hong Kong, etc.
FAQ
1. Q:What is your MOQ?
A:MOQ of all our products is 1 set.
2. Q:Which certificates fo you have?
A:We have CE, CC, ISO9001. For explosion-proof type, we have got explosion-proof certificate.
3. Q:Is there any warranty?
A:Warranty of all products is 12 months.We also provide in-time after sales service and technical support, when you have anyquestions, feel free to contact us.
4. Q:Can you customize products?
A:Yes.You can send me an inquiry with your needs, we can customized with technical engineers.
5. Q:Will you provide the after-sales?
A:Of course
1) All products have been strictly quality checked in factory before packing.
2 )All products have been well packed in our factory, and the second packaging by express service before shipping.
3) If any problem during operation or installation, please contact us freely, we will solve with professional instruction.
6. Q:Are your price is the lowest?
A:Do you mind the quality? We supply the quality is worthy for the price, bad quality products will waste and effect the process of the job, why don’t choose the medium price to operate well?
7. Q:Have product 100% assembled well in stock?
A:Yes, all the products are 100% assembled well.
2. Q:Which certificates fo you have?
A:We have CE, CC, ISO9001. For explosion-proof type, we have got explosion-proof certificate.
3. Q:Is there any warranty?
A:Warranty of all products is 12 months.We also provide in-time after sales service and technical support, when you have anyquestions, feel free to contact us.
4. Q:Can you customize products?
A:Yes.You can send me an inquiry with your needs, we can customized with technical engineers.
5. Q:Will you provide the after-sales?
A:Of course
1) All products have been strictly quality checked in factory before packing.
2 )All products have been well packed in our factory, and the second packaging by express service before shipping.
3) If any problem during operation or installation, please contact us freely, we will solve with professional instruction.
6. Q:Are your price is the lowest?
A:Do you mind the quality? We supply the quality is worthy for the price, bad quality products will waste and effect the process of the job, why don’t choose the medium price to operate well?
7. Q:Have product 100% assembled well in stock?
A:Yes, all the products are 100% assembled well.
