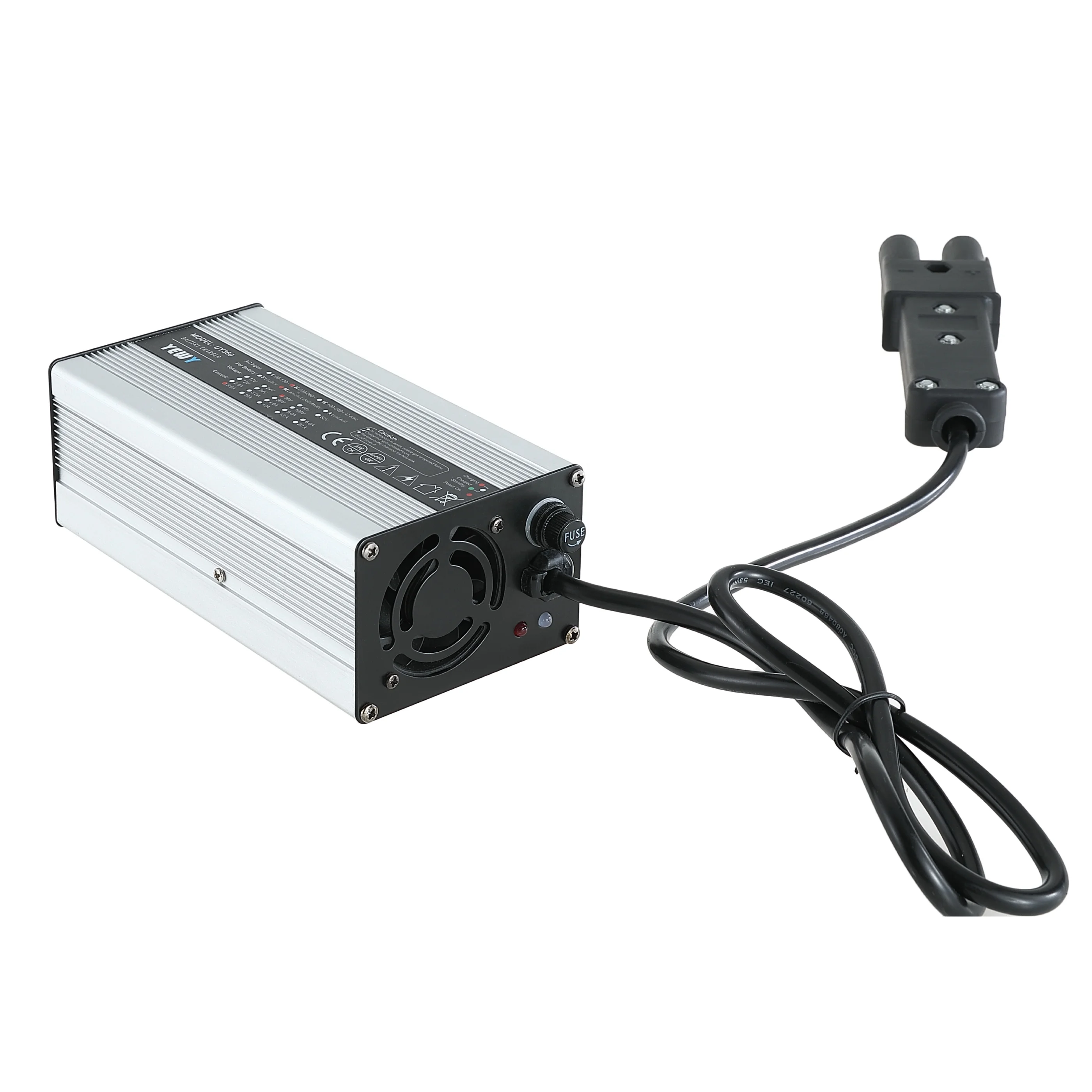

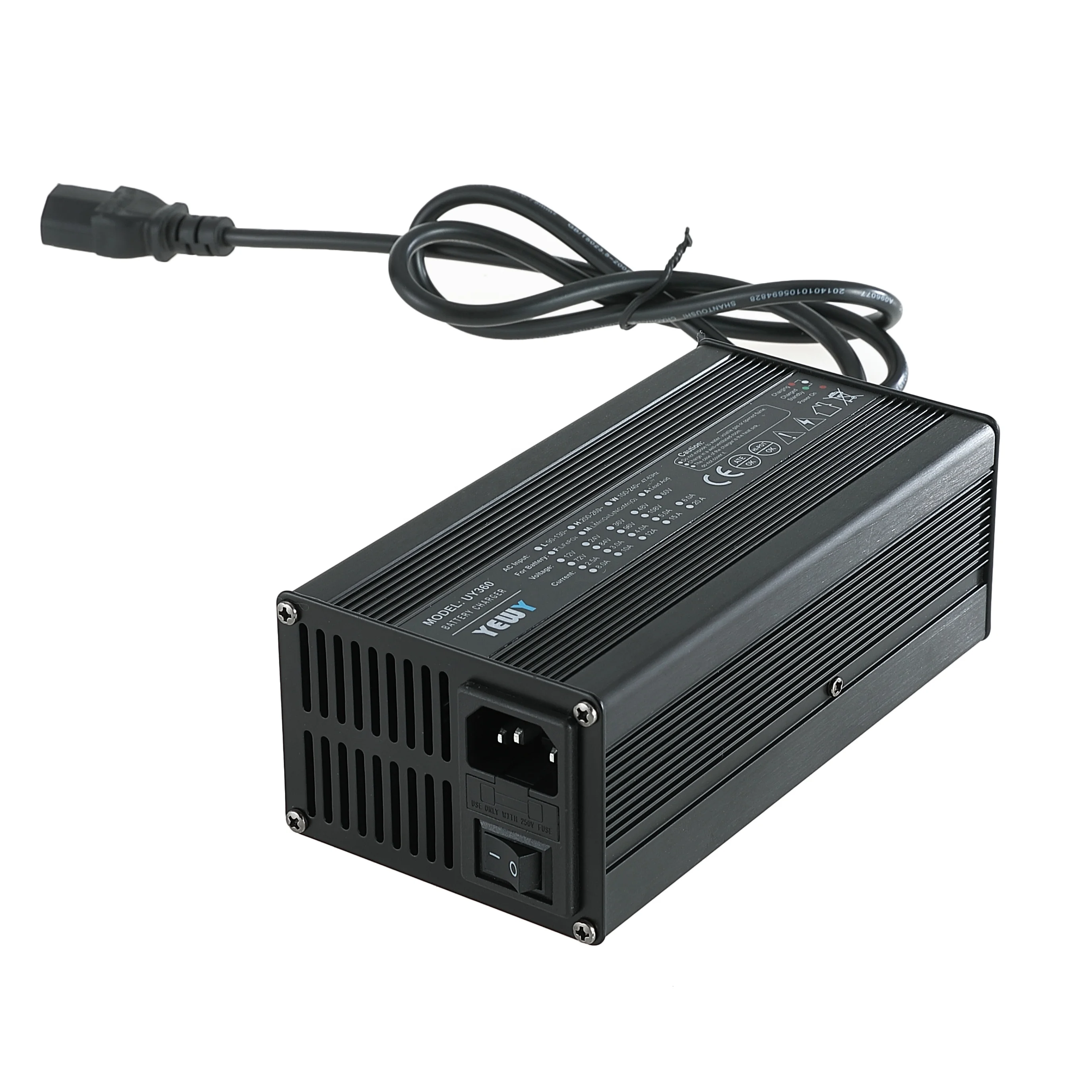

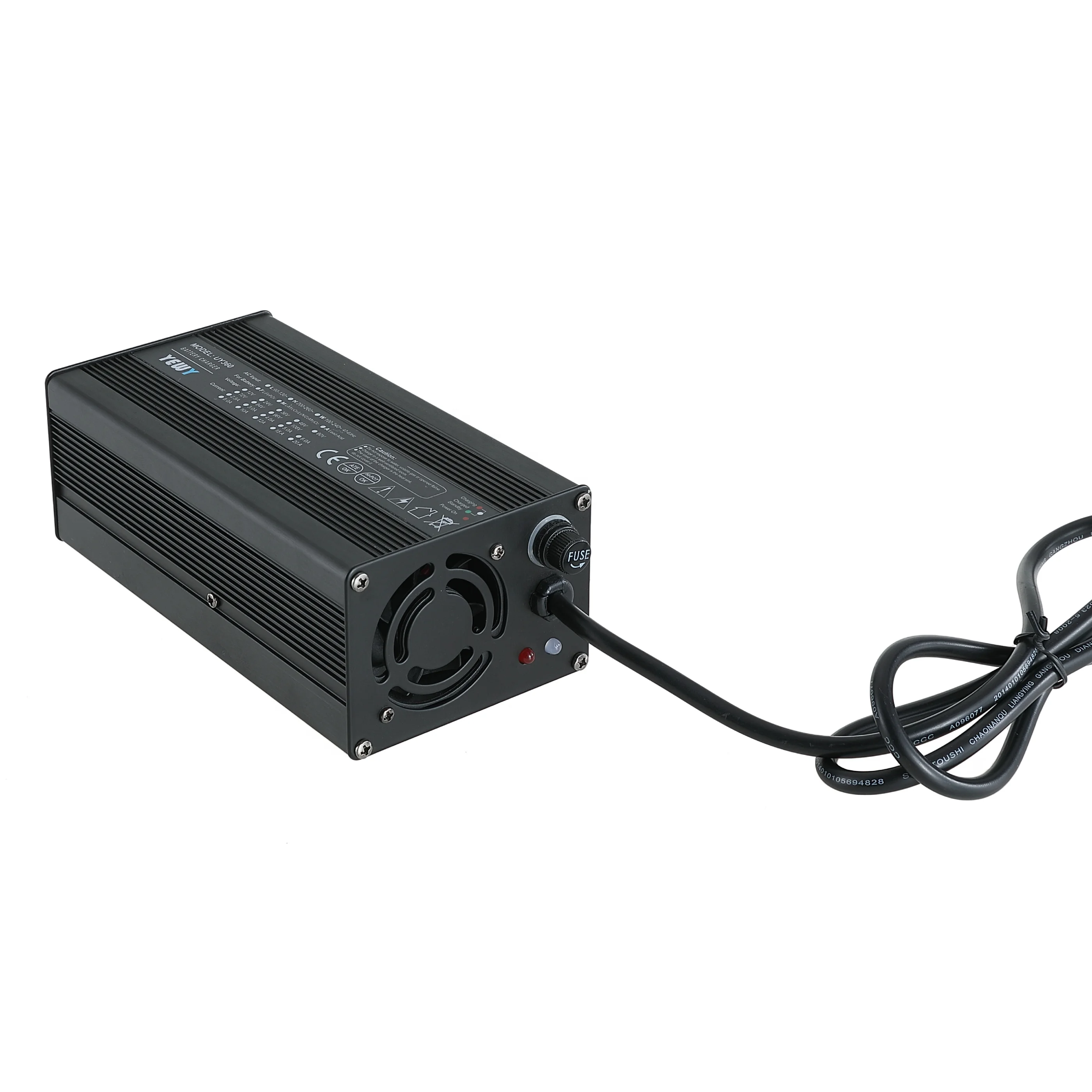

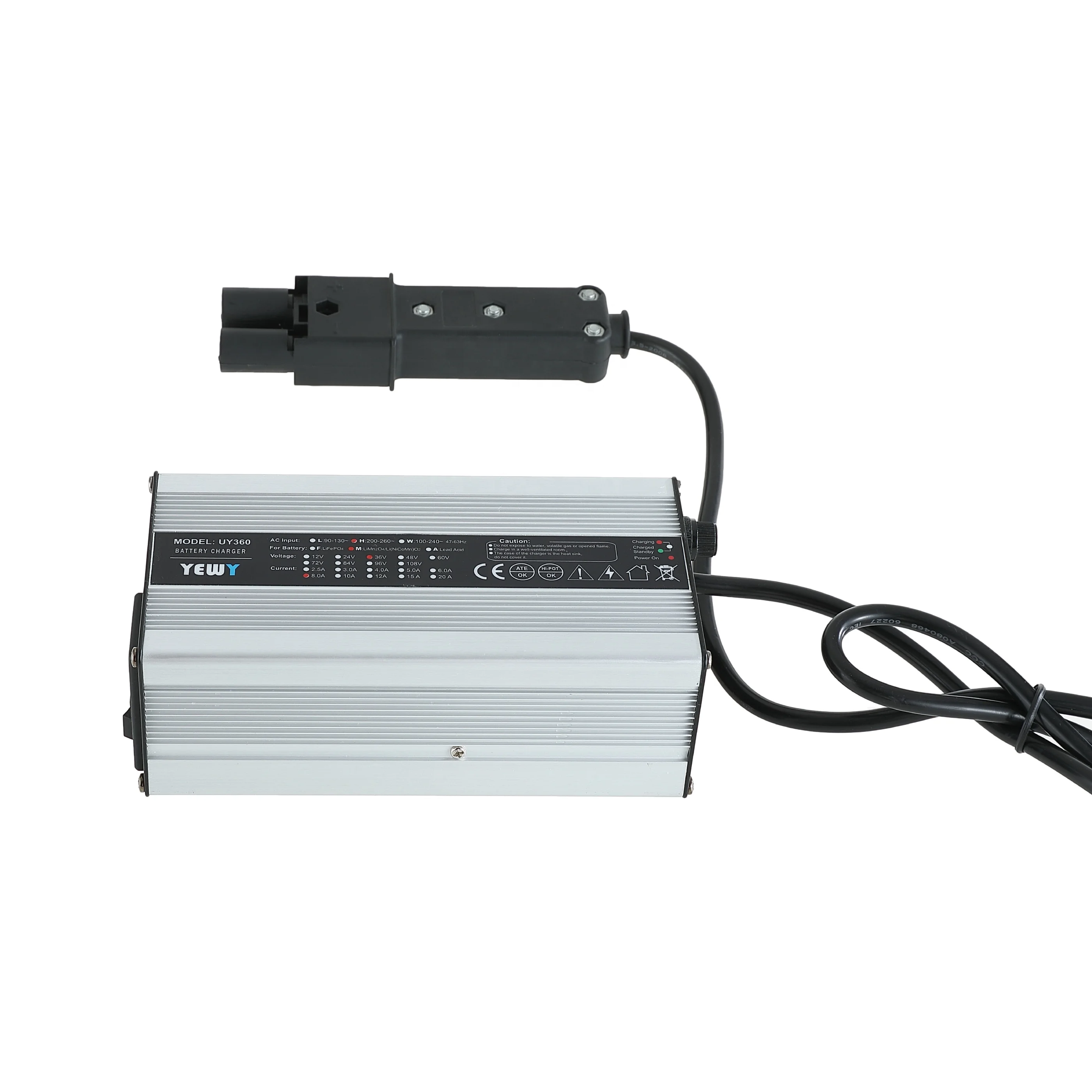

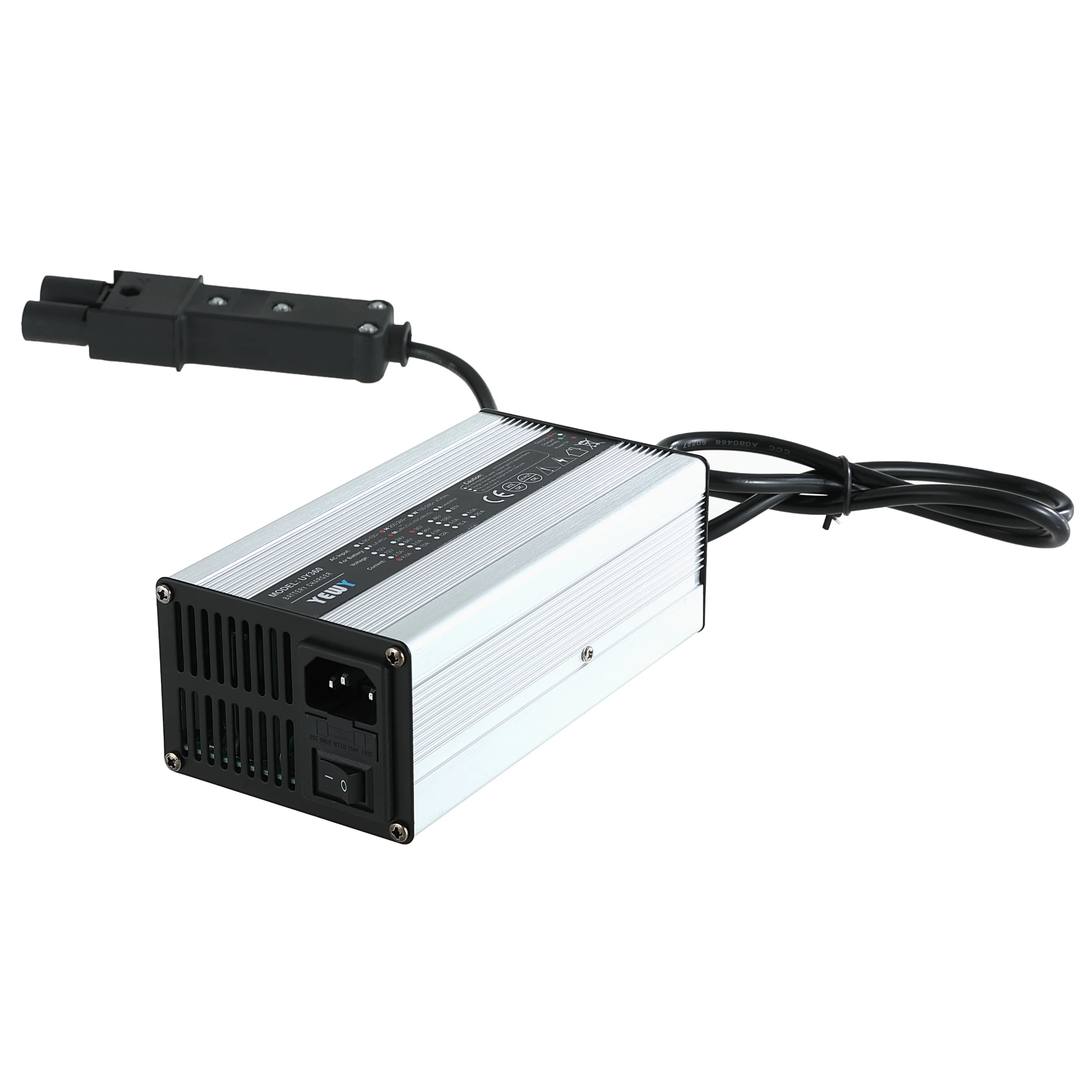

Lithium Battery Charger 24V 36V 48V 48 Volt 60V 120A 100A 70A 60A 360W Lithium Battery Charger
- Category: >>>
- Supplier: Kowint Energy (shenzhen) Co. Ltd.
Share on (1600717969155):
Product Overview
Description
Product Features
1）360W
2）Economy
3）Circuit topology: Voltage Half-bridge type
4）Dual-color LED charging status and digital voltage display
5）Intelligent PWM IC control, full automatic transition of CC,CV and Float/Cut-off, meet the demands for
different Curve
6）Protections: Over Current, Over Voltage, Over temperature, Short Circuit, Reverse Polarity, shut off or
trickle and anti-reverse charge
7）Aluminum case, Robust, Elegant and Reliable
1）360W
2）Economy
3）Circuit topology: Voltage Half-bridge type
4）Dual-color LED charging status and digital voltage display
5）Intelligent PWM IC control, full automatic transition of CC,CV and Float/Cut-off, meet the demands for
different Curve
6）Protections: Over Current, Over Voltage, Over temperature, Short Circuit, Reverse Polarity, shut off or
trickle and anti-reverse charge
7）Aluminum case, Robust, Elegant and Reliable
Output Reference
Type | Specification | DC Voltage(Max) | (CC:A) Charging current | Light Turning(A) | ||||||
Cell Brand | REPT | Li-ion | Lifepo4 | Lead acid | Lithium | Lead acid | ||||
UY360 | 12V 20A | 12.6V/16.8V | 14.6V | 14.7V | 20A | 8%CC | 25%CC | |||
24V 12A | 25.2V/29.4V/33.6V | 29.2V | 29.4V | 12A | ||||||
36V 8A | 42V/46.2V | 43.8V | 44.1V | 8A | ||||||
48V 6A | 50.4V/54.6V/58.8V | 54.75V/58.4V | 58.8V | 6A | ||||||
60V 5A | 63V/67.2V/71.4V | 73V | 73.5V | 5A | ||||||
72V 4A | 79.8V/84V | 87.6V | 88.2V | 4A | ||||||
84V 3A | 88.2V | 102.2V | 107.8V | 3A | ||||||
Brand Name | YEWY | Model Number | UY360 | ||
Input Voltage | 100-240Vac | Frequency | 50~60HZ | ||
Input fuse | 10A | Dimension | 170×90×63(mm) | ||
Efficiency | >=86% | Leakage Current | <=0.75mA | ||
Operating humidity | 5%-95%RH Non-condensing | Altitude | 2000m | ||
Operating Temperature | -20℃—+40℃ | Storage Temperature | -40℃-+70℃ | ||
Safety certifications | CE, RoHS Directive-compliant | ||||
Suitable battery Type | Lead Acid/LiFePo4/Li-ion | ||||
Charging Time | Cut-off point for Li battery is 8% of CC and it can be set between 3-10%.(charging time:3-4 hours) | ||||
Transition for Lead acid charger is 25% of CC.(charging time:6-8 hours) | |||||
Protection | Over Current, Over Voltage, Over temperature, Short Circuit, Reverse Polarity, shut off or trickle and anti-reverse charge | ||||
Advantage | MCU and intelligent PWM IC control ,full automatic transition of CC,CV and Float/Cut-off, meet the demands for different Curve. | ||||
Advantage | Aluminum case, Robust, Elegant and Reliable | ||||
Package Contents | 1*battery charger 1*Input Wire 1*User Manual This battery charger is your affordable necessity without sacrificing performance. It features an integrated MCU and PWM for power control. | ||||
