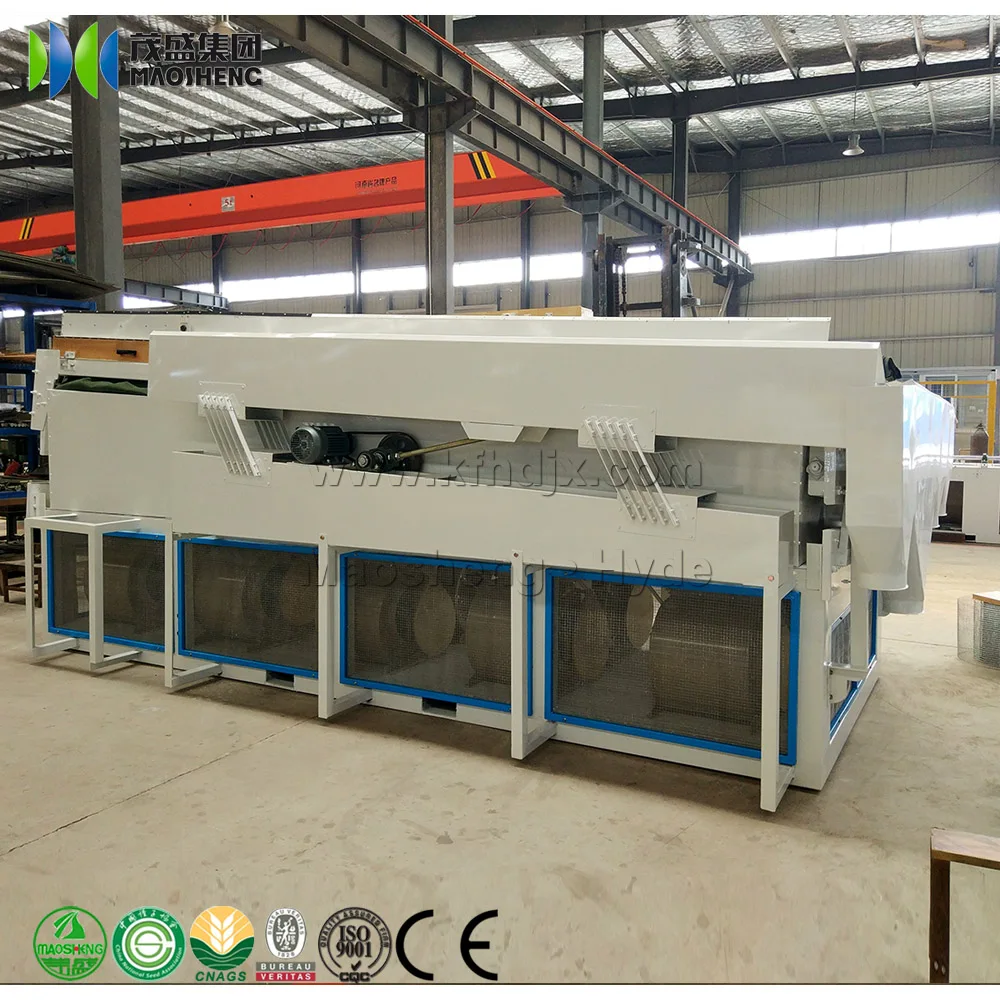

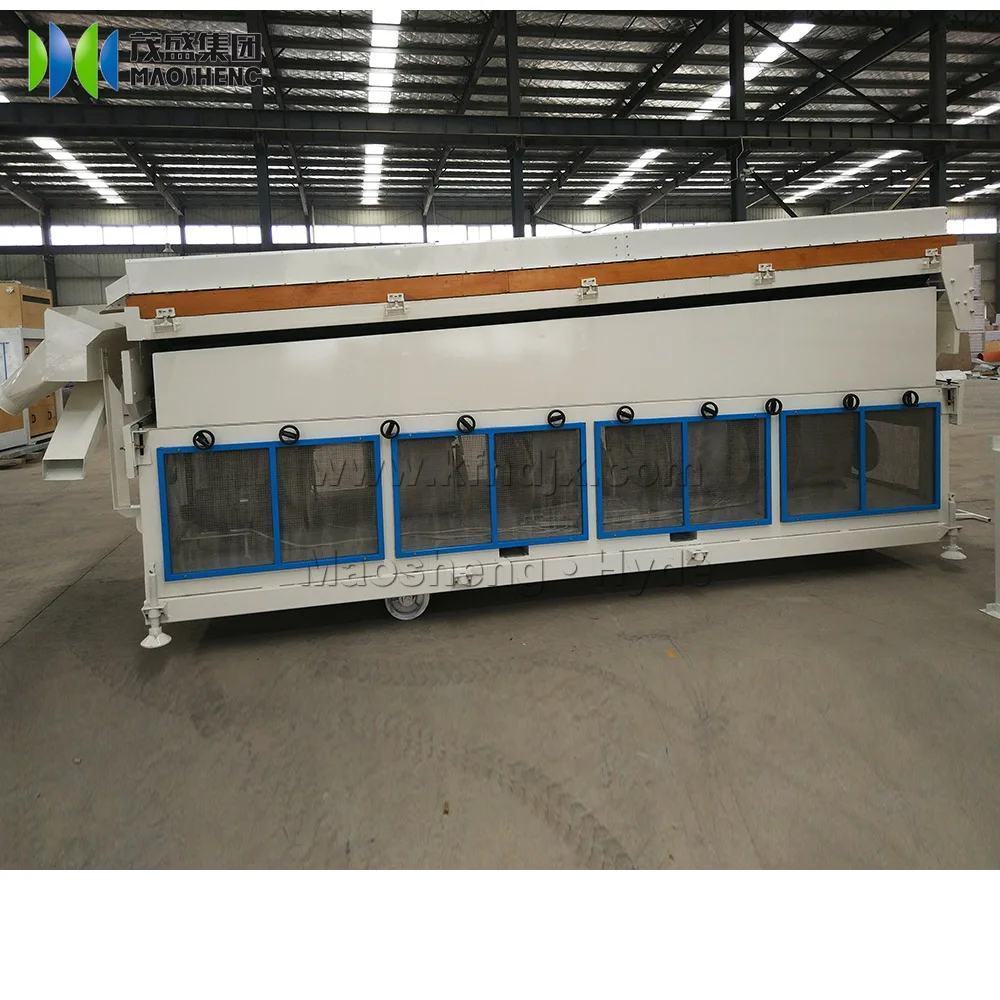

Corn Multi Air Gravity Separator Machine
- Category: Other Farm Machines >>>
- Supplier: Kaifeng,Hyde,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Maosheng-Hyde
Maosheng-Hyde
Product Description
Product Description
Product Application
1) Function: fine cleaning, sorting, separating to remove bad, immature, insect damaged, moldy and germinated seeds, impurities, and admixtures such as same-size stones but with different specific weight.
2) Application: granular grains and seeds.
3) Capacity: 3t/h, 5t/h, 10t/h, 15~20t/h (wheat).
Working Principle.
Seeds and grains can be separated and graded by the suspension and friction characteristics.
Seeds flow over the inclined vibrating screen covered rectangular deck, in which pressurized air is forced through causing the material to be suspended and stratify according to its specific weight. The heavy particles float uphill while the light particles travel downhill.
Rectangular deck makes the particles travel a longer distance, ensuring the cleaner separation of light and heavy particles and the lowest percentage of middlings, improving the quality of the end product.
Feature.
Optimal effects rely on the precise adjustment of feed rate, screen deck inclination (lengthwise and sidewise), vibration speed and air volume.
Structural features:
1) Heavy duty and robust steel structural frame to absorb the vibrations.
2) Fans are dynamically balanced with individual adjustable controller for each fan for precise control of air flow and easy maintenance.
3) Cellular vertical air distribution device mounted under the deck make the air lifting evenly.
4) Square woven mesh screen made of steel wire with no bottom fabric ensures air passing through no dead band.
5) Variable feed speed, deck inclination, vibration speed and air volume by individual control units.
6) Safe guards to all moving parts ensure the safe operation.
7) Environmentally friendly with screen dedusting cover, low noise.
Special features:
1) Built-in fans are air-conditioner fans with lower noise, higher pressure and larger amount of wind.
2) Larger motor for heavy seed.
3) Self-lubrication system can be added.
4) Stainless steel available for edible products.
Technical Parameters
Technical Parameters
Detailed Images
Detailed Images
Machine Parts
Name: Working Table
T The nest important part of the Gravity Separator is the sieve deck because it is the main separating surface. It consists of a carefully constructed wooden frame to counteract vibration problems with a steeless screen or cloth overcover which is the surface on which the separation takes place.
Main Features
Name: Finger Plate
On the open end of the deck are mounted two cutting fingers which are adjustable to channel different fractions of the finished product according to their value. On the heavy side of the deck towards the feed end is the rock trap which is used to bleed a heavy trash product from the machine to avoid contamination of good heavy product
Machine Parts
Name: Adjustable hadle and panel for air blower
Air regulation is one of the most important adjustments to
be made on a gravity separator. The most common mistake in air regulation is the use of too much air. Separation is not made by "blowing" the light material from the heavy but by using a controlled air flow to create the stratified layers which are then separated by the vibrating action of the deck
Main Features
Name: Material Outlet
It is consisted of three outlet, which is heavy Discharge, Middle discharge and Light discharge to have a good effect.
Application of 5XZ Gravity Table
