China Manufacturer Directly Non Woven Spunbonded 100% Polypropylene Nonwoven Non Woven Fabric for Agriculture Medical and Homete
- Category: >>>
- Supplier: Henan Yaan Electrical Insulation Material Plant Co. Ltd.
Share on (1600718009249):
Product Overview
Description
Product Introduction
China Supplier High Grade Electrical Insulation Material Polyester Non-woven Fabric For Motor Winding
Type: 7031 Electrical Non-Woven fabric
Thickness: 0.05mm-0.07mm
Thickness: 0.05mm-0.07mm

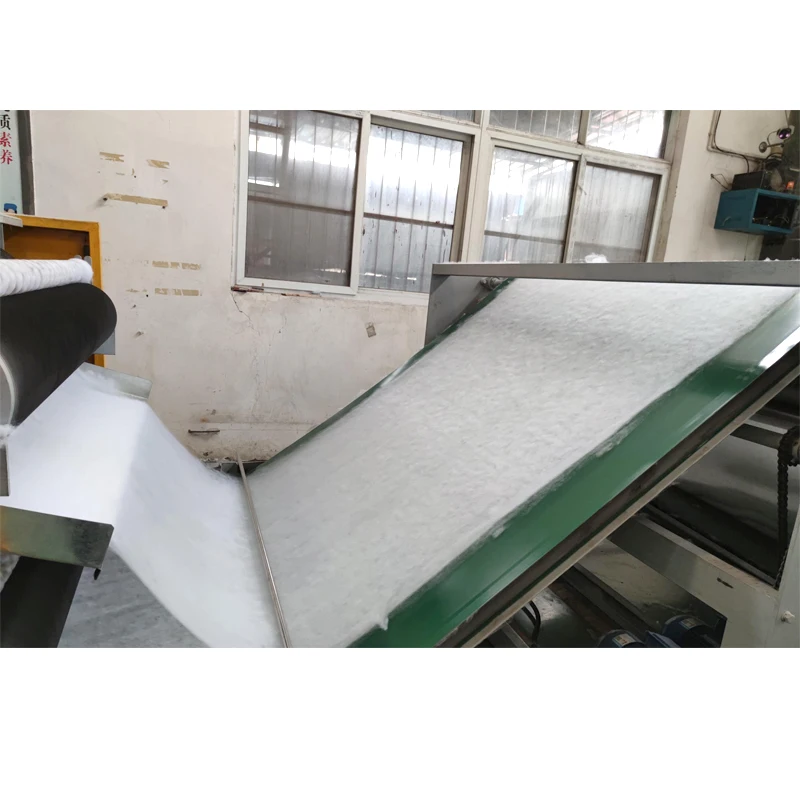

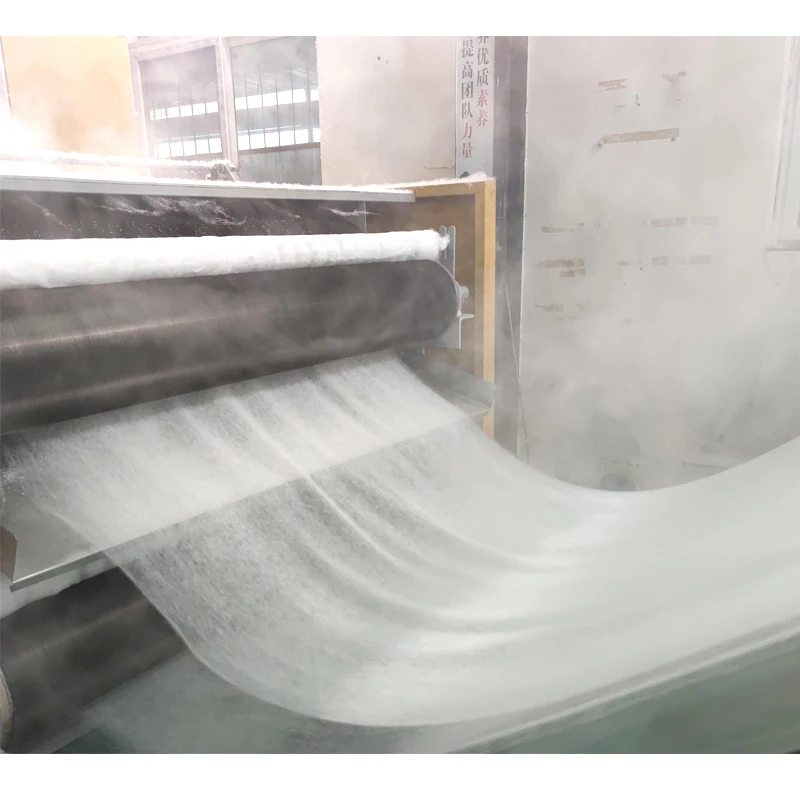

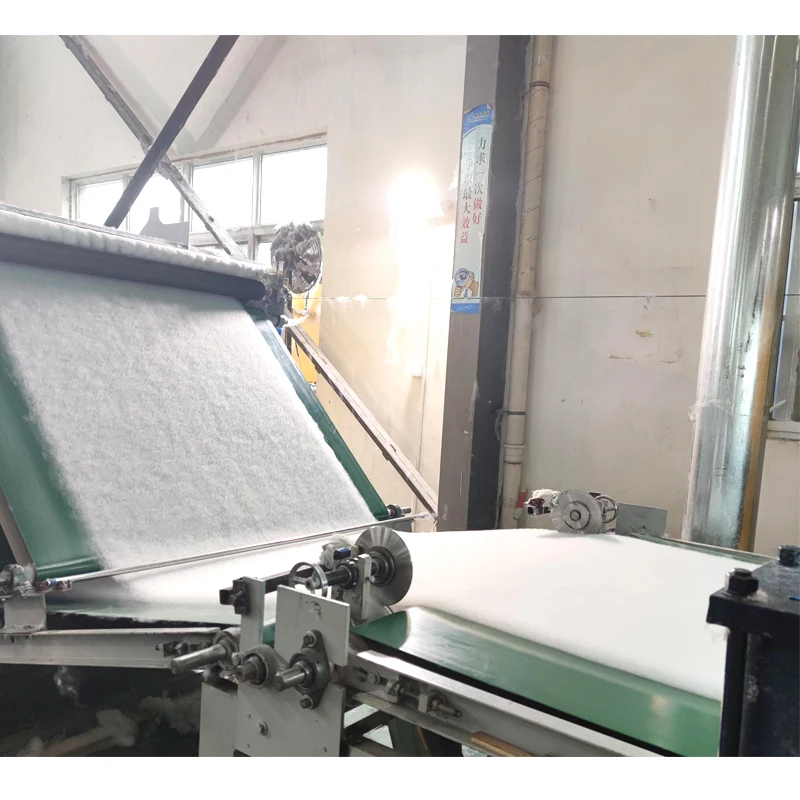

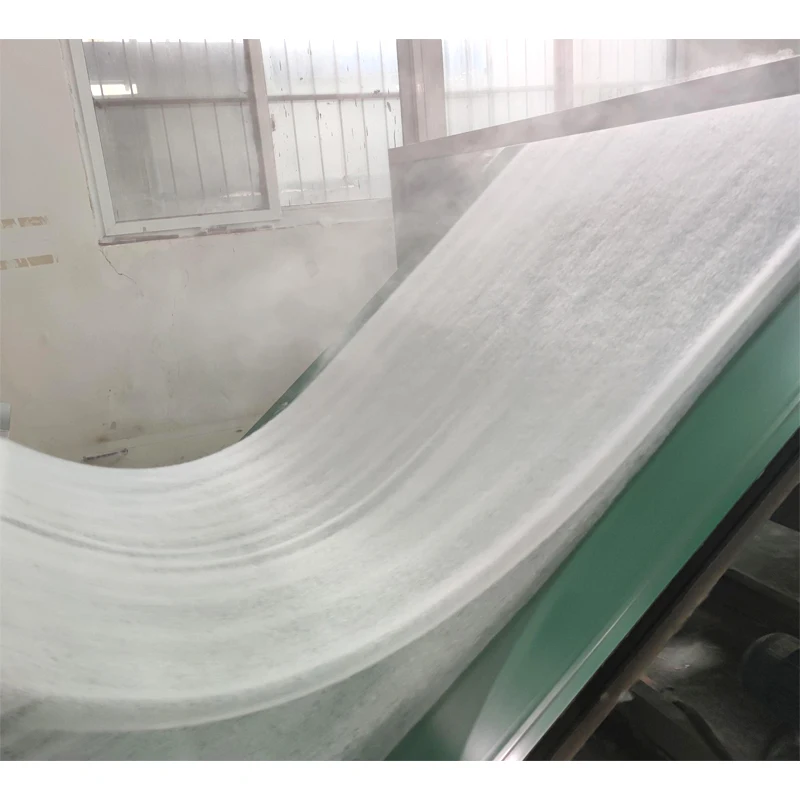

7031# Electrical Polyester Fiber Non-woven Fabric is constructed by mechanical carding forming net. The tensile strength of MD is much higher than that of TD.
Product Features:
Electrical Polyester Fiber Non-woven Fabric with the characters of low cost, light weight and good insulation.
Product details
Item | Units | Index | Index | Inner | Inner |
Nominal thickness | mm | 0.05 | 0.07 | 0.05 | 0.07 |
Thickness tolerance average | mm | ±0.01 | ±0.01 | ±0.005 | ±0.005 |
Thickness tolerance individual | mm | ±0.02 | ±0.02 | ±0.01 | ±0.01 |
Tensile force MD | N/50mm | ≥60 | ≥80 | 60-85 | 80-150 |
Tensile force TD | N/50mm | ≥20 | ≥25 | 20-30 | 25-45 |
Elongation at Break MD | % | ≥6 | ≥8 | 9.5-18 | 16-26 |
Elongation at Break TD | % | ≥3 | ≥5 | 6-11 | 6-13 |
Thermal shrinkage (150℃,1h) MD | % | ≤4 | ≤4 | 0.2-1.0 | 0.2-1.0 |
Thermal shrinkage (150℃,1h) TD | % | ≤3 | ≤3 | 0-1.0 | 0-1.0 |
Application
Electrical Polyester Fiber Non-woven Fabric is widely applicable for producing electrical insulation flexible laminates(such as DM, DMD, DMDM), mica tapes’ reinforced materials, the basic cloth of insulating varnish cloth, electrical laminated products, the coil terminal of electric motors wrapping, mini, soft cable & communication cable
Related products
You can CLICK the picture to our website and view all the products
Certification
Company Profile
Product Packaging

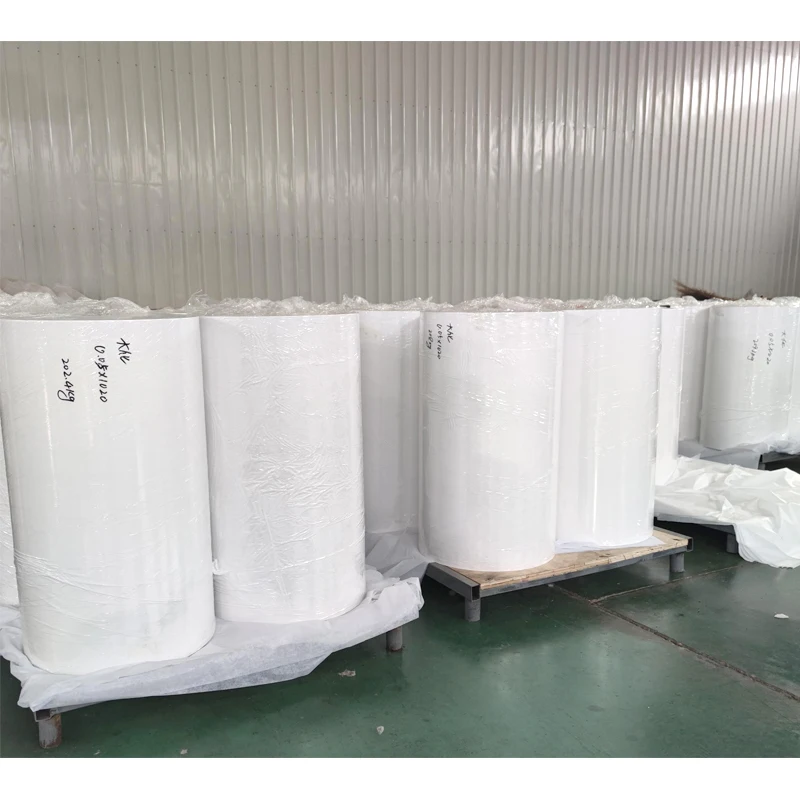

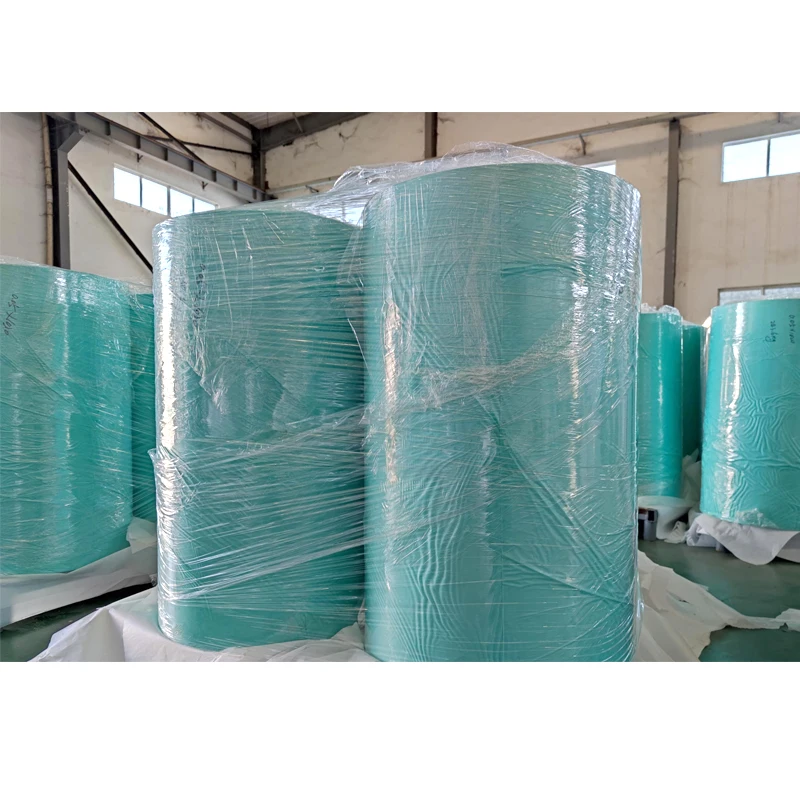

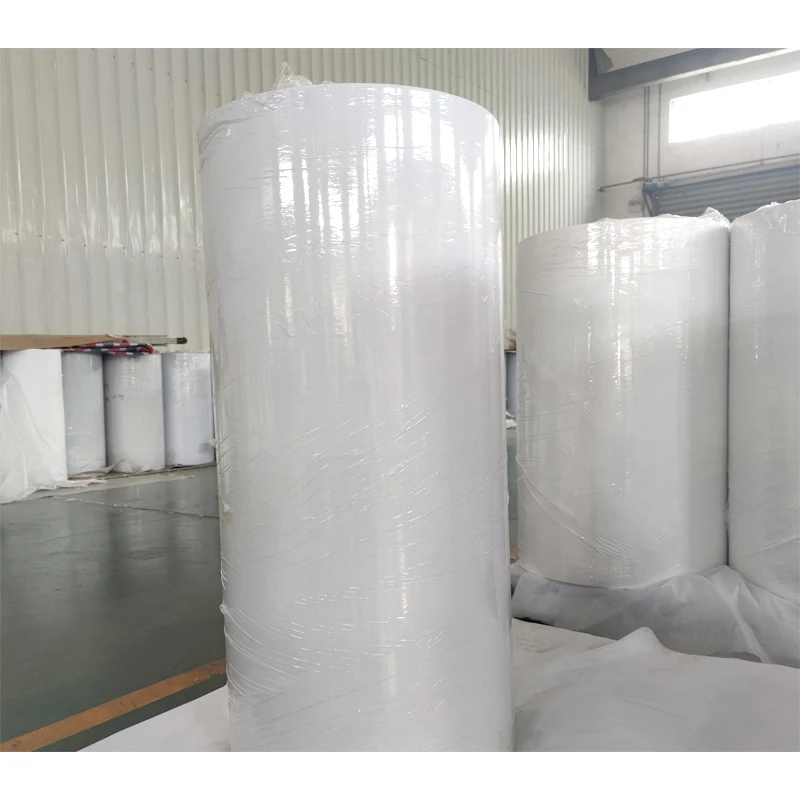

This product is packed in roll form, the outside diameter of every roll is no less than 250mm, 3 splices in each roll are acceptable, and there are obvious marks at the point of every splices, but the minimum length is no less than 100 meters between the splices.
