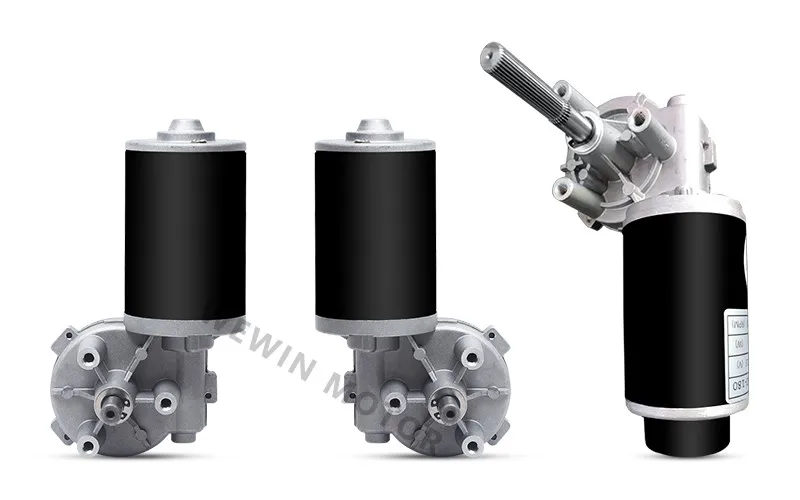

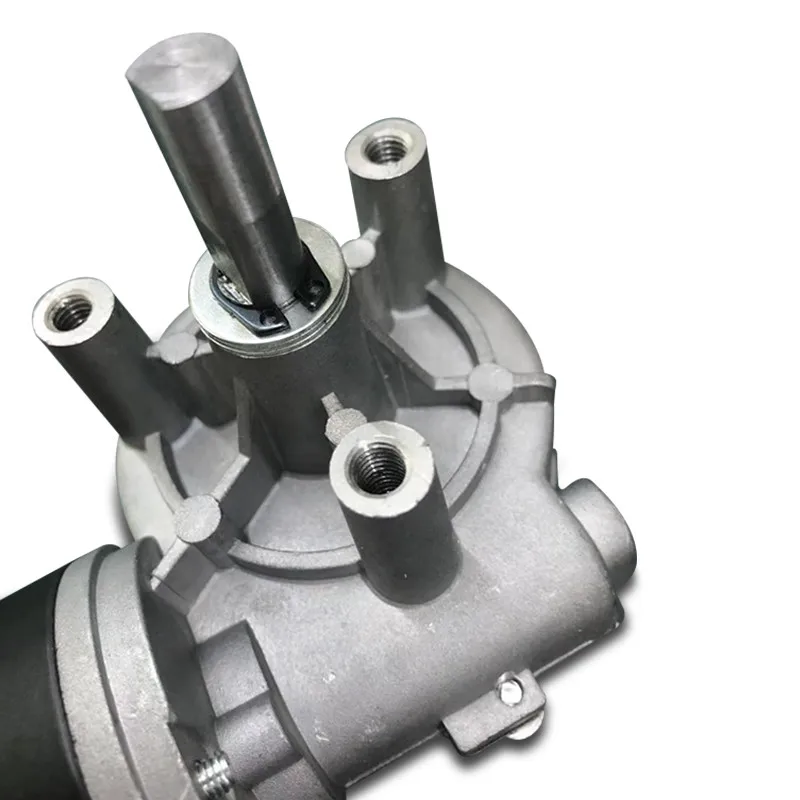

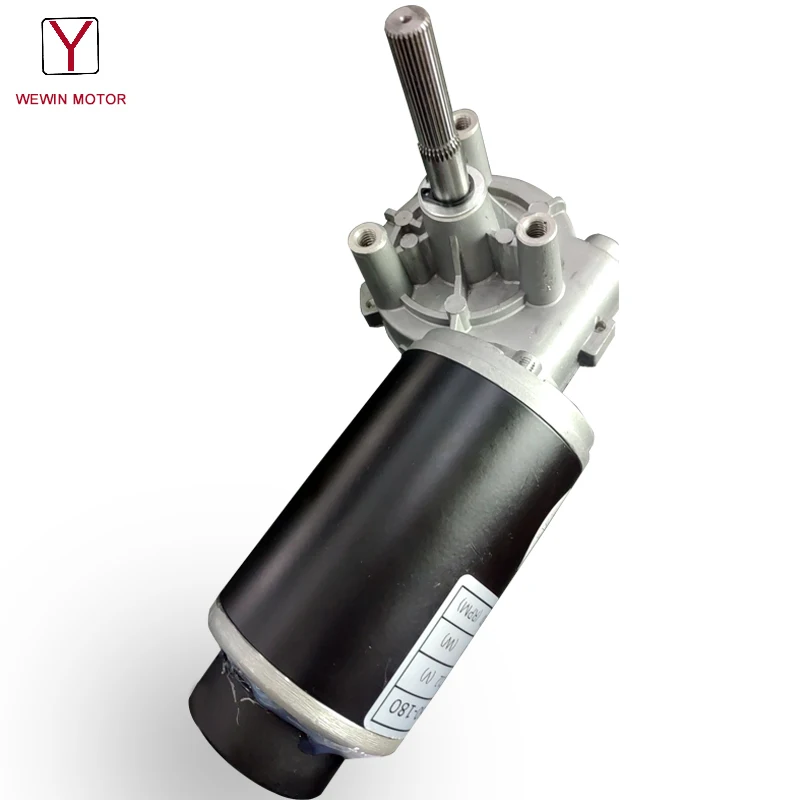

Manufacturer Electric 12V Dc Motor 10W 30W 60W 80W Spline Shaft Dc Motor for Medical Lifting Garage Door
- Category: >>>
- Supplier: Guangzhou Wewin Motor Co. Ltd.
Share on (1600718015409):
Product Overview
Description
Manufacturer Electric 12V Dc Motor 10W 30W 60W 80W Spline Shaft Dc Motor for Medical Lifting Garage Door
NOTE:
1.Please inform the application of your brushed dc gear motors.
2.Please provide the load speed and load torque.
3.Please choose the mounting distance 50.80mm or 72mm.
2.Please provide the load speed and load torque.
3.Please choose the mounting distance 50.80mm or 72mm.
Product Overview

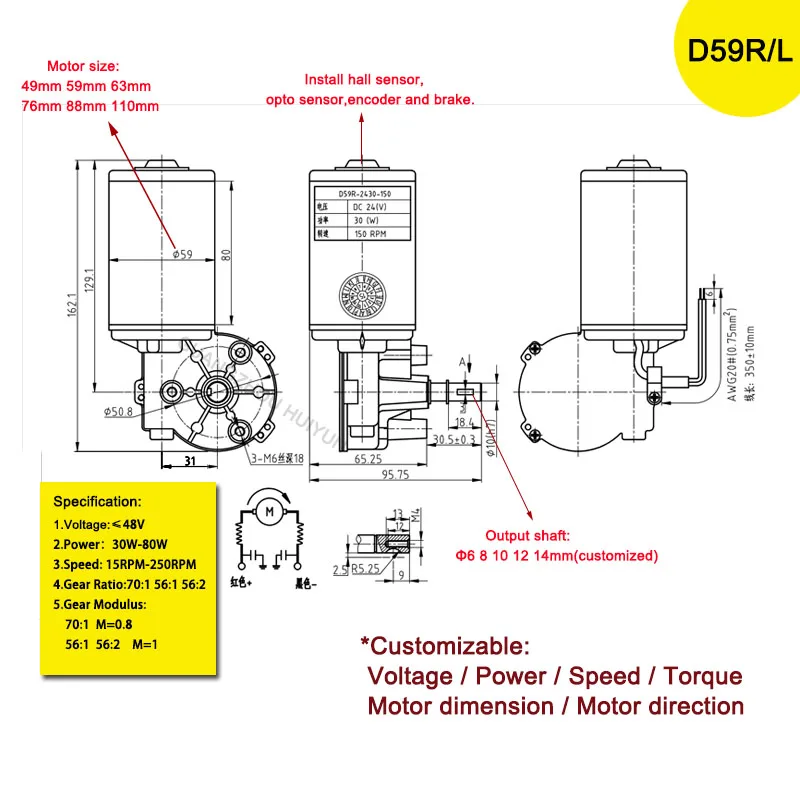

Geared Motor Specification
Motor Dimension | 45mm 49mm 59mm 63mm 76mm 88mm 110mm |
Motor Power | DC 12V 24V 36V 48V 72V 110V |
Material of Gear | Plastic gear / bronze gear |
Motor Type | 12v dc motor 10w |
Motor Gearbox | Right Angle Gearbox Motor , Left Anlge Gear boxes |
Diameter of Output Shaft | 6mm 8mm 10mm 12mm 14mm(Optional) |
Speed Sensor | Hall Sensor,Dc Motor with Encoder,Opto sensor,Brake motor |
Factory Address | Huadu,Guangzhou |
Our Dc Motors Advantage | 1.Low noise < 60db 2.Long life span > 4000hr(continuously working) 3.Self Locking Motor, Forward & Reverse 4.Competitive factory price 5.Sample order are welcome |
Products Type | Voltage (V) | Power (W) | No Load | Load | Gear Ratio | ||||||||
Speed (RPM) | Current (A) | Speed (RPM) | Current (A) | Torque (N.M) | Max Torque(N.M) | ||||||||
D59R/L-2460-20 | 24 | 60 | 20±2 | ≤0.5 | 15±2 | ≤4.0 | ≥6.0 | ≥10.0 | 1:70 | ||||
D59R/L-2480-27 | 24 | 80 | 27±2 | ≤0.5 | 19±2 | ≤5.0 | ≥8.0 | ≥14.0 | 1:70 | ||||
D59R/L-11080-60 | 110 | 80 | 60±3 | ≤0.5 | 50±3 | ≤3.5 | ≥12.0 | ≥19.0 | 1:56 | ||||
D59R/L-4830-65 | 48 | 30 | 65±3 | ≤1.0 | 60±3 | ≤5.5 | ≥12.0 | ≥19.0 | 1:56 | ||||
D59R/L-2480-120 | 24 | 80 | 120±±5 | ≤0.8 | 90±5 | ≤6.5 | ≥7.0 | ≥13.0 | 1:28 | ||||
D59R/L-2430-180 | 24 | 30 | 180±5 | ≤1.2 | 150±5 | ≤13.0 | ≥10.0 | ≥15.0 | 1:28 | ||||
D59R/L-2450-260 | 24 | 50 | 260±5 | ≤1.5 | 230±5 | ≤15.0 | ≥9.5 | ≥14.0 | 1:28 | ||||
Recommend Products
D63R/L Series
Motor Power:
30W - 120W
No-load Speed:
20 -300 RPM(Max)
High Torque Geared Dc Motor:
10N.m - 15N.m
Steel Sheel Length:
74-80mm
Gear Ratio:
75:1 60:1 60:3 60:4
Gear Modulus:
75:1 M=0.8
60:1 60:3 60:4 M=1
30W - 120W
No-load Speed:
20 -300 RPM(Max)
High Torque Geared Dc Motor:
10N.m - 15N.m
Steel Sheel Length:
74-80mm
Gear Ratio:
75:1 60:1 60:3 60:4
Gear Modulus:
75:1 M=0.8
60:1 60:3 60:4 M=1
D49R/L Series
Motor Power:
10W - 50W
No-load Speed:
15 - 300 RPM
Torque: 5N.m - 8N.m
Steel Sheel Length:56-71mm
Gear Ratio:
70:1 56:1 56:2
Gear Modulus:
70:1 M=0.8
56:1 56:2 M=1
10W - 50W
No-load Speed:
15 - 300 RPM
Torque: 5N.m - 8N.m
Steel Sheel Length:56-71mm
Gear Ratio:
70:1 56:1 56:2
Gear Modulus:
70:1 M=0.8
56:1 56:2 M=1
D59R/L Series
Motor Power:
20W - 80W
No-load Speed:
15 RPM - 250 RPM
Torque:6N.m - 10N.m
Steel Sheel Length:74-80mm
Gear Ratio:
70:1 56:1 56:2
Gear Modulus:
70:1 M=0.8
56:1 56:2 M=1
20W - 80W
No-load Speed:
15 RPM - 250 RPM
Torque:6N.m - 10N.m
Steel Sheel Length:74-80mm
Gear Ratio:
70:1 56:1 56:2
Gear Modulus:
70:1 M=0.8
56:1 56:2 M=1
D76R/L Series
Motor Power:
45W - 200W
No-load Speed:
15RPM-300 RPM
Torque:12N.m-18N.m
45W - 200W
No-load Speed:
15RPM-300 RPM
Torque:12N.m-18N.m
Steel Sheel Length:
77-97mm
Gear Ratio:
75:1 60:1 60:3 60:4
Gear Modulus:
75:1 M=0.8
60:1 60:3 60:4 M=1
77-97mm
Gear Ratio:
75:1 60:1 60:3 60:4
Gear Modulus:
75:1 M=0.8
60:1 60:3 60:4 M=1
D88R(72) Series
Motor Power:
100W - 1000W
No-load Speed:
15RPM - 220 RPM
Torque:23N.m - 30N.m
Steel Sheel Length:100mm
Gear Ratio:
82:1 82:2 64:1 53:1
Gear Modulus:
82:1 82:2 M=1
64:1 M=1.25
53:1 M=1.5
100W - 1000W
No-load Speed:
15RPM - 220 RPM
Torque:23N.m - 30N.m
Steel Sheel Length:100mm
Gear Ratio:
82:1 82:2 64:1 53:1
Gear Modulus:
82:1 82:2 M=1
64:1 M=1.25
53:1 M=1.5
D88-D110 NMRV040 Gear Motor
Motor Power:
120W - 1000W
No-load Speed:
15-200RPM
WEWIN could efficiently give solutions for meeting customers’requirements on different torques by adopting high quality brushed dc motor with gearbox, which are customized and providing corresponding encoders and brakes for choice.
Motor Usage
Dc Gear Motor Applications:
Roller door motors ,clothes drying stand motor,kitchen hood motor,sit stand desk motor,ball machine motor,hospital bed lift motor,garbage disposal motor,wire feed motor,Sewing Machine Motor,Vending Motor,Smart Home Intelligent Equipment,Office Intelligent equipment,Lifting Cabinet Motor,Electric Hospital Lift Bed Motor,Hydraulic Pump Motor ,Electric Forklift Motor,Motorized TV Rack Motor.
FAQ
Q1：Are you trading company or manufacturer ?
A1：We are manufacture Integration of industry and trade, with over 20 years experience in dc worm gear motor. Our company have accumulated skilled production line, complete management and powerful research support, which could match all of the customers' requirements and make them satisfied.
Q2：What is your main product?
A2：DC Motor: dc worm gear motor and high speed motor without gearbox
Welding equipment: Wire feeder for Mig Mag Welding Machine
Q3：What if I don't know which DC motor I need?
A3：Don't worry, Send your specification,and our team will help you find the right
model you are looking for.
model you are looking for.
Q4：Can I get some samples?
A4：It depends. If only a few samples for personal use or replacement, I am afraid it will be difficult for us to provide, because all of our motors are custom made and no stock available if there is no further needs. If just sample testing before the official order and our MOQ, price and other terms are acceptable, we'd love to provide samples.
Q5：Is there a MOQ for your motors?
A5： Yes. The MOQ is between 1000~10,000pcs for different models after sample approval.
But it's also okay for us to accept smaller lots like a few dozens, hundreds or thousands
For the initial 3 orders after sample approval.For samples, there is no MOQ requirement. But the less the better (like no more than 5pcs) on condition that the quantity is enough in case any changes needed after initial testing.
But it's also okay for us to accept smaller lots like a few dozens, hundreds or thousands
For the initial 3 orders after sample approval.For samples, there is no MOQ requirement. But the less the better (like no more than 5pcs) on condition that the quantity is enough in case any changes needed after initial testing.
Q6：How long is your delivery time?
A6：Usually it takes about 35 days if you accept our standard output shaft.If the output shaft is customized,the production time depends on what the customization shaft it is.

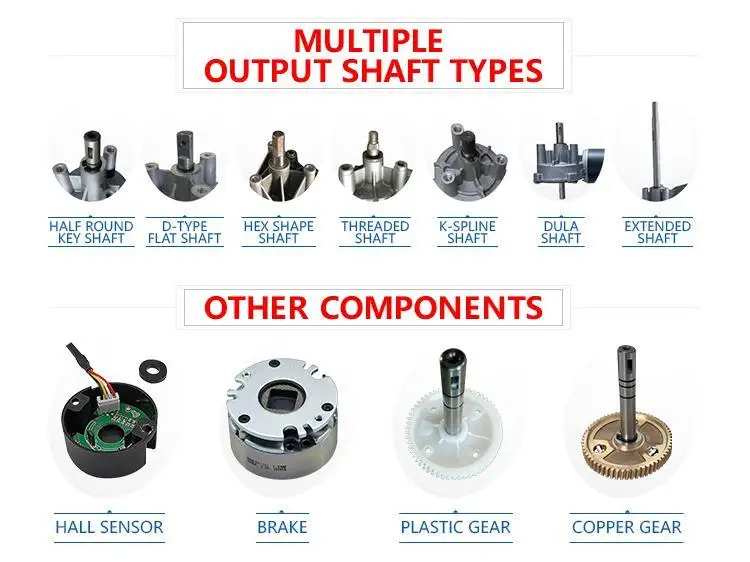

Details Images
1.Motor Plastic Gear
The plastic gear with low noise,low cost,long life within the torque range.
2.Copper Gear
The copper gear with high torque and high temperature resistance,and the life can belonger if the lubrication effect can be guranteed,So the cost higher thanplastic gear .
3.Electronic Rotor
Pure copper coil configuration,reducing resistance and high conductivity to ensure motor efficienty,stable and safe operation.
4.Magnet
Thickened magnets,strengthen the magnetic filed,high torque and strong anti-interference.
5.Worm Gearbox
All made of high qualiy metal,it has good impact resistance, durablity and reducing noise.Thus prolong the life of the motor gearbox. Right angle & Left angle gearbox optional
6.High Quality Carbon Brush
The wear resistance of the carbon brush directly determines how long the motor can last.
7.Hall Sensor
The sensor could record the speed if gear motor dc has encoder.
8.Brake
If the gear dc motor has brake,it could still rotate when the brake stops.

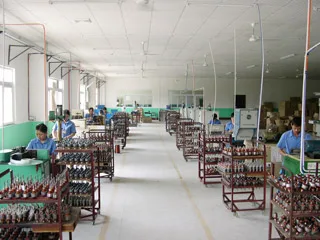

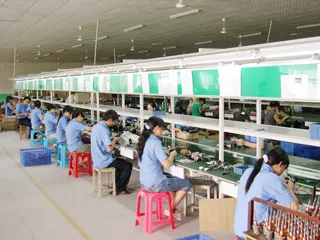

Manufacturing Technique
CNC Machining
Lathe
Milling
Hydraulic Press
Scan the QR code and get the factory panorama
Hobbing
Winding
Spot Welding
Gearbox
Die Casting Manal
Assembly QC
Life Tester
Torque Tester
Temp & Humi Chamber
Packing

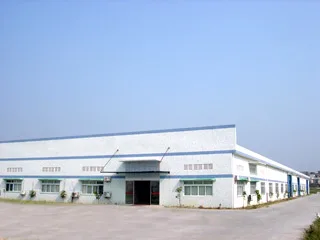

Company Profile
Company Advantages:
1.Professional motor OEM & ODM manufacturer
2.20 years motor design experience 3.Experienced engineering designers
4.Fast delivery time,about 15-20 days if use our conventional output shaft
5.We have strict quality control system,each batch of goods will be tested for torque and noise before leaving the factory
4.Fast delivery time,about 15-20 days if use our conventional output shaft
5.We have strict quality control system,each batch of goods will be tested for torque and noise before leaving the factory
Our main market:
Europe,America and Asia,including United Kingdom, Germany, Italy, France, Sweden, United State, India,Korea and so on.
Europe,America and Asia,including United Kingdom, Germany, Italy, France, Sweden, United State, India,Korea and so on.

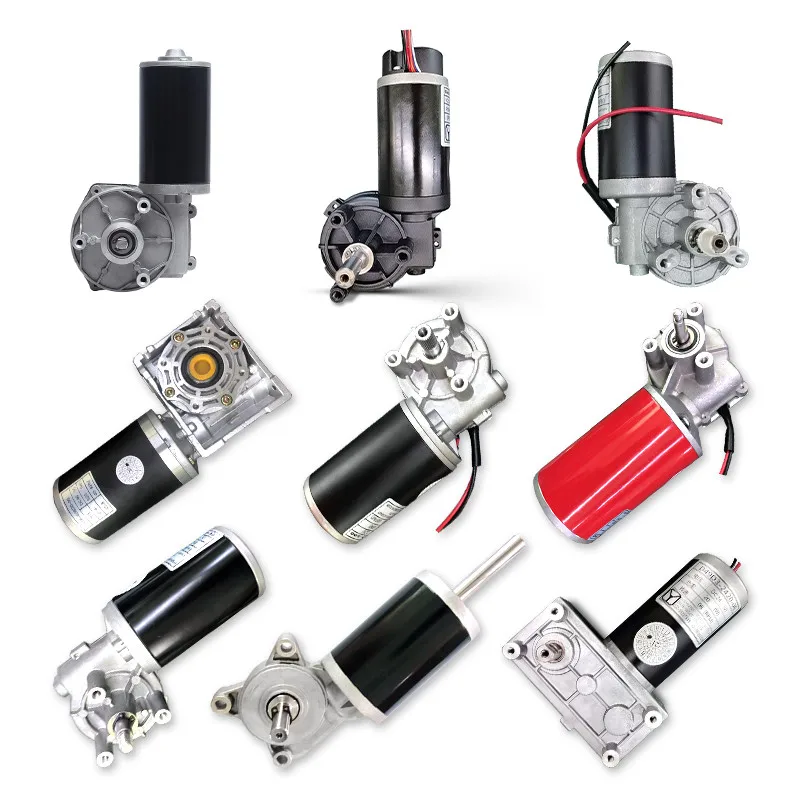

Guangzhou Wewin Motor Co.,Ltd. is a professional company specialized in design and customization of small dc worm gear motor. The motor models mainly include D49 D59 D63 D76 D88 series, and all the motors can be installed with hall sensor, encoder, opto sensor and brake,so we accept OEM and ODM orders ,and manufacture the motor according to your required like voltage, power, speed,
torque, dimension and motor direction.
Our boss is a doctor of dc gear motor with over 20 years experience in motor customization and production,we also has professional R & D team and testing centers to test gears and motors, and could guaranteed high quality products for customers,welcome to contact our customer service center.
torque, dimension and motor direction.
Our boss is a doctor of dc gear motor with over 20 years experience in motor customization and production,we also has professional R & D team and testing centers to test gears and motors, and could guaranteed high quality products for customers,welcome to contact our customer service center.
