TESmart OEM ODM KVM Switcher hdmi usb [email protected] Support L/R Audio With EDID Emulator 1in 4 out 4 Port HDMI KVM Switch
- Category: KVM Switches >>>
- Supplier: Shenzhen,Zhichuang,Liangyi,Information,Technology,Co,Ltd.
Share on:
Product Overview
Description
Products Description
The 4x1 HDMI KVM Switch supports USB 2.0 device, you even can attach USB drive, printer, barcode scanner or other USB devices to the KVM. Switching can be controlled through variable methods, front panel buttons, IR signals, keyboard hot keys and mouse gesture to control KVM to switch inputs. Support analog L/R audio output. Support keyboard and mouse pass through mode to improve KM compatibility
Features:

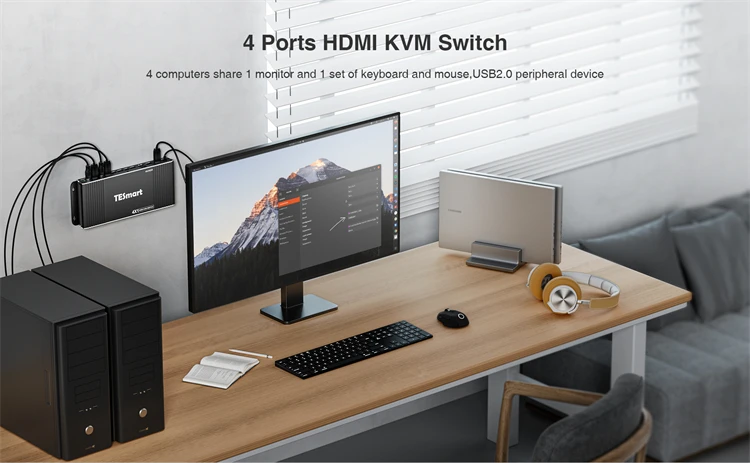

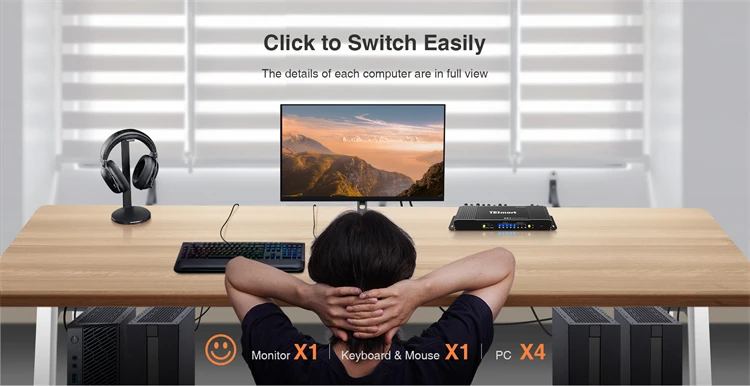

* Using only 1 set of keyboard, mouse and monitor to control 4 PCs
* Support auto switching to monitor computers in a specified time interval
* Support front panel buttons, IR signals, keyboard hot keys and mouse gesture to control KVM to switch inputs
* Available to use keyboard and mouse without any delay after switch input sources
* Support resolution up to 3840*[email protected] 4:4:4
* HDCP 2.2 compliant
* Support USB 2.0 for printers, USB drives, etc

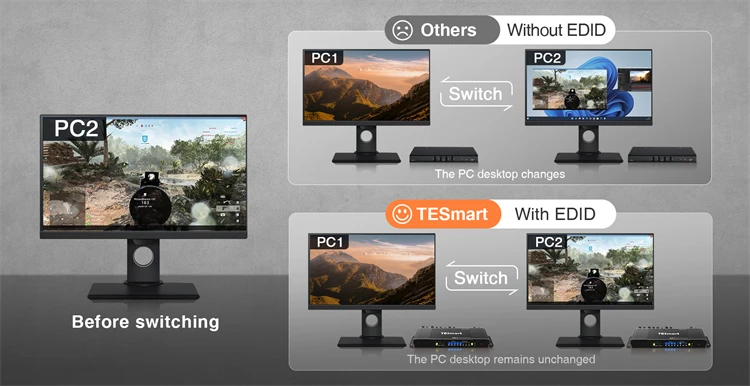

* With EDID emulators in eachinput port, keep PCs always having correct display information
* Support Unix/Windows/Debian/Ubuntu/Fedora /Mac OS X/Raspbian/Ubuntu for Raspberry Pi and other Linux based system.
* Support hot plugged, connect or disconnect devices to the KVM switch in any time and without turn off devices
* Support analog L/R audio output
* Support HDR 10 and Dolby Vision

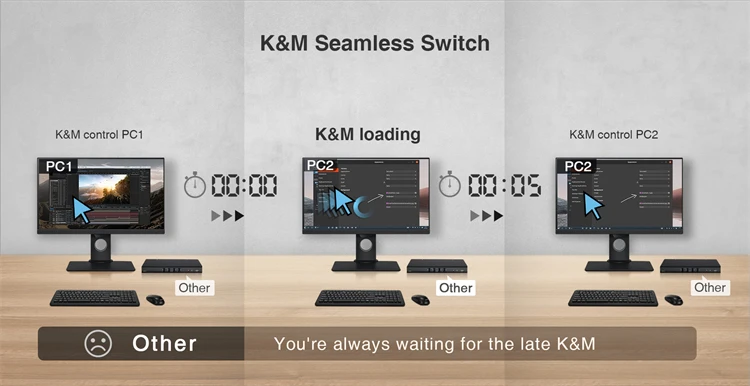

* Support keyboard and mouse pass through mode to improve KM compatibility
* Support auto switching to monitor computers in a specified time interval
* Support front panel buttons, IR signals, keyboard hot keys and mouse gesture to control KVM to switch inputs
* Available to use keyboard and mouse without any delay after switch input sources
* Support resolution up to 3840*[email protected] 4:4:4
* HDCP 2.2 compliant
* Support USB 2.0 for printers, USB drives, etc
* With EDID emulators in eachinput port, keep PCs always having correct display information
* Support Unix/Windows/Debian/Ubuntu/Fedora /Mac OS X/Raspbian/Ubuntu for Raspberry Pi and other Linux based system.
* Support hot plugged, connect or disconnect devices to the KVM switch in any time and without turn off devices
* Support analog L/R audio output
* Support HDR 10 and Dolby Vision
* Support keyboard and mouse pass through mode to improve KM compatibility
Specification
HKS0401B2U | 4x1 HDMI KVM Switch [email protected] 4:4:4 | |||
Functionality: | ||||
Auto Scan | Yes | |||
Port selection | Front panel buttons | Yes | ||
Keyboard hotkeys | Yes | |||
IR remote control | Yes | |||
Technical: | ||||
Resolution | Up to [email protected] 4:4:4 | |||
Auto to get EDID | Yes | |||
Data rate | 18 Gbps | |||
Auto scan interval | 1~250 Seconds | |||
Beep Sound | On/Off | |||
OSD | No | |||
Supported OS | Unix/Windows/Debian /Ubuntu /Fedora /Mac OS X/ Raspbian /Ubuntu for Raspberry Pi and other Linux based system | |||
ESD protection | Human body model - ±8kV (Air-gap discharge) | |||
Mechanical: | ||||
Chasing material | Aluminum Alloy | |||
Product dimensions | 262 (L) x 108 (W) x 33w (H) mm | |||
Item weight | 800g | |||
Recommend Products

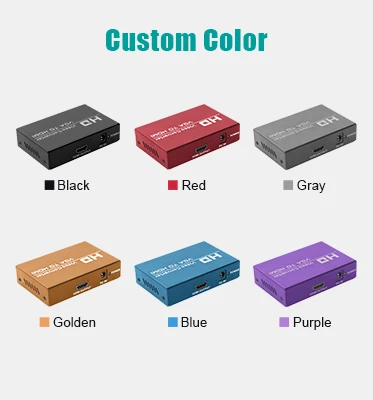

Customized Products

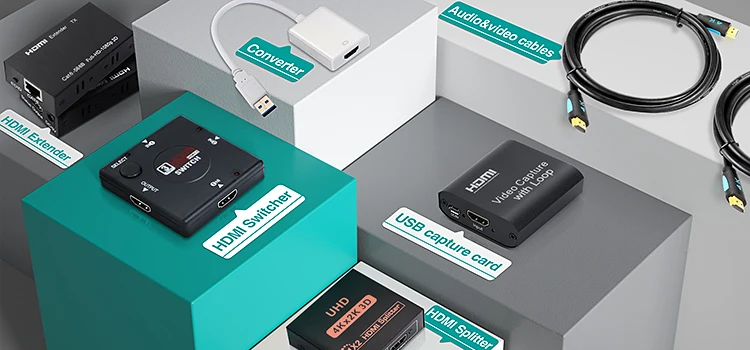

Audio Converter
