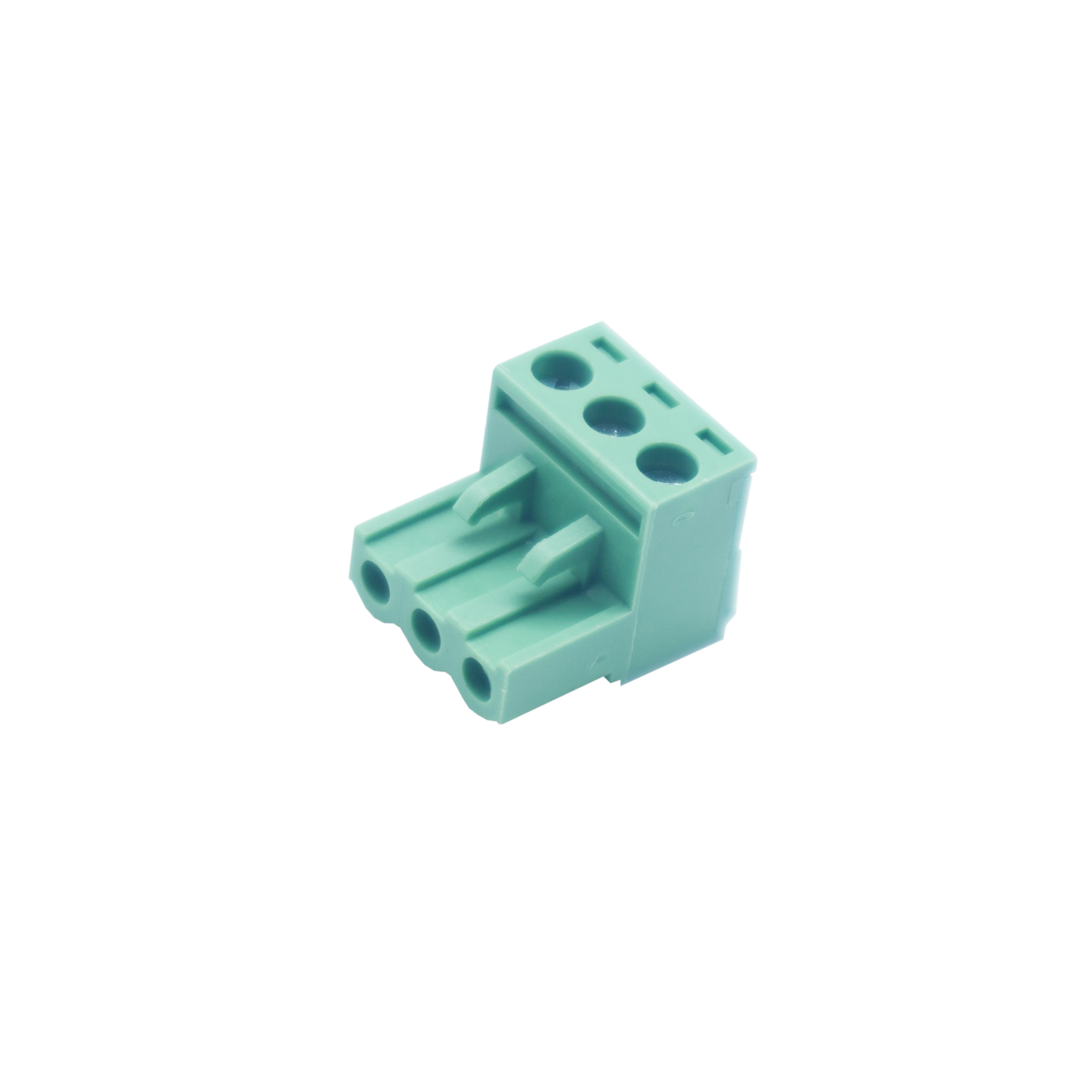

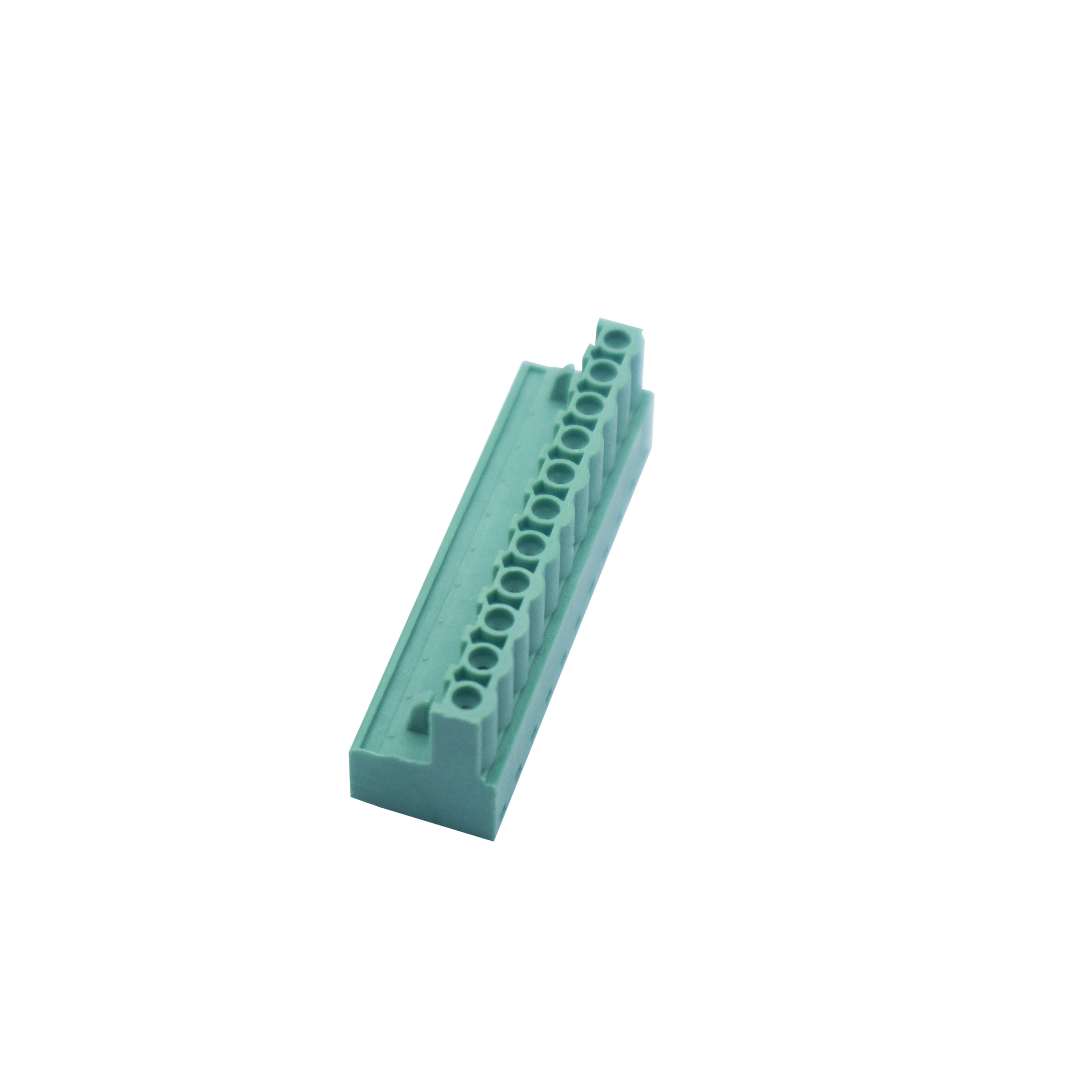

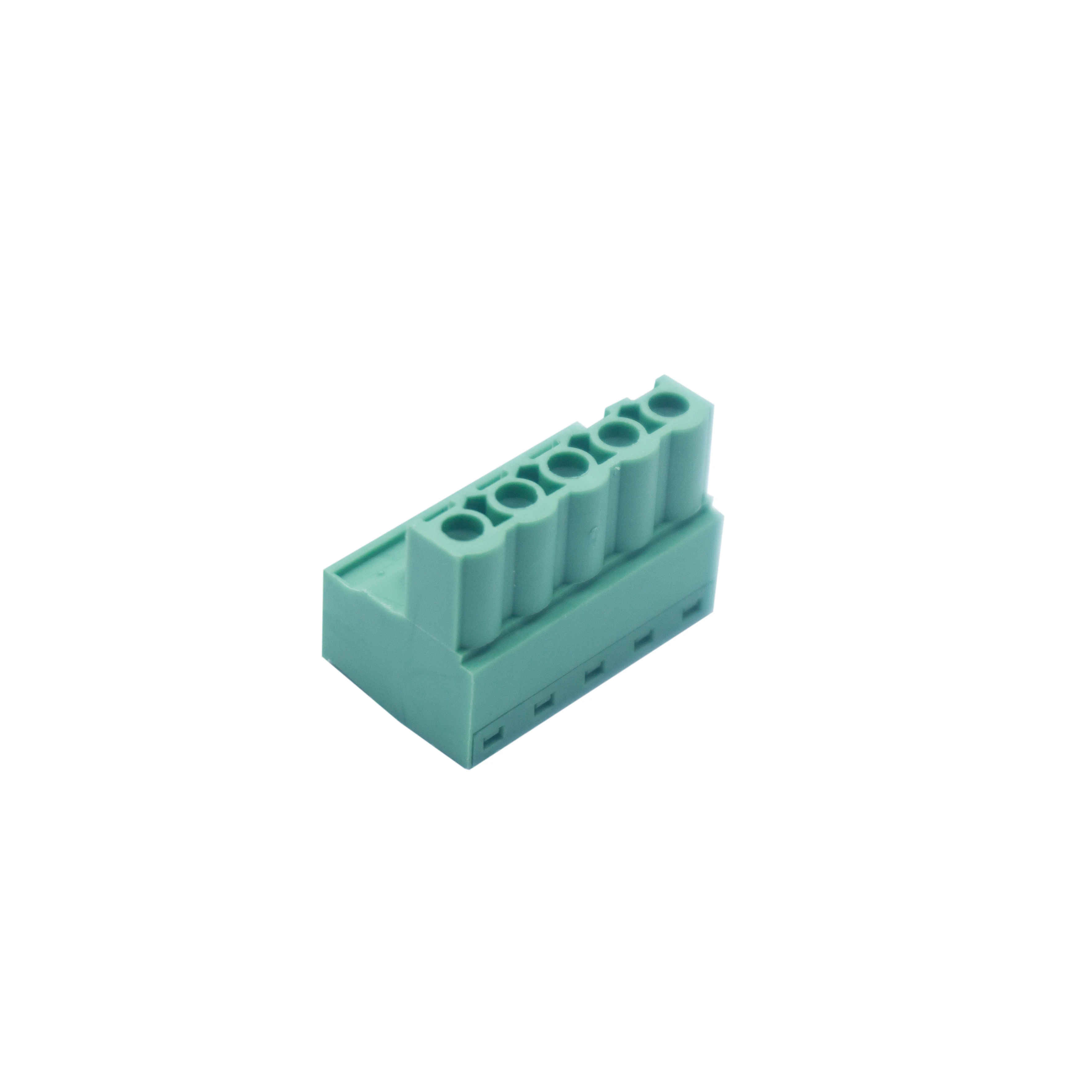

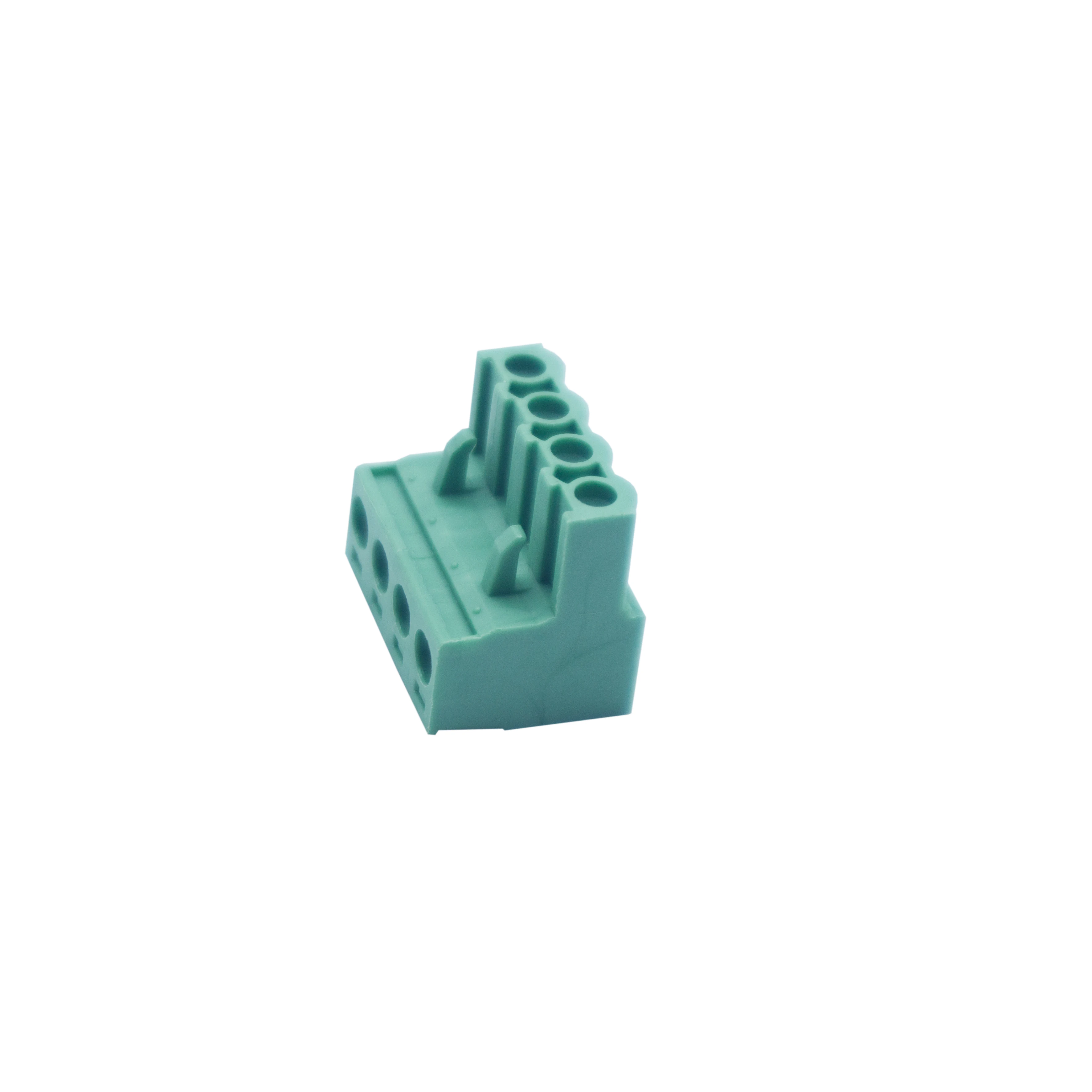

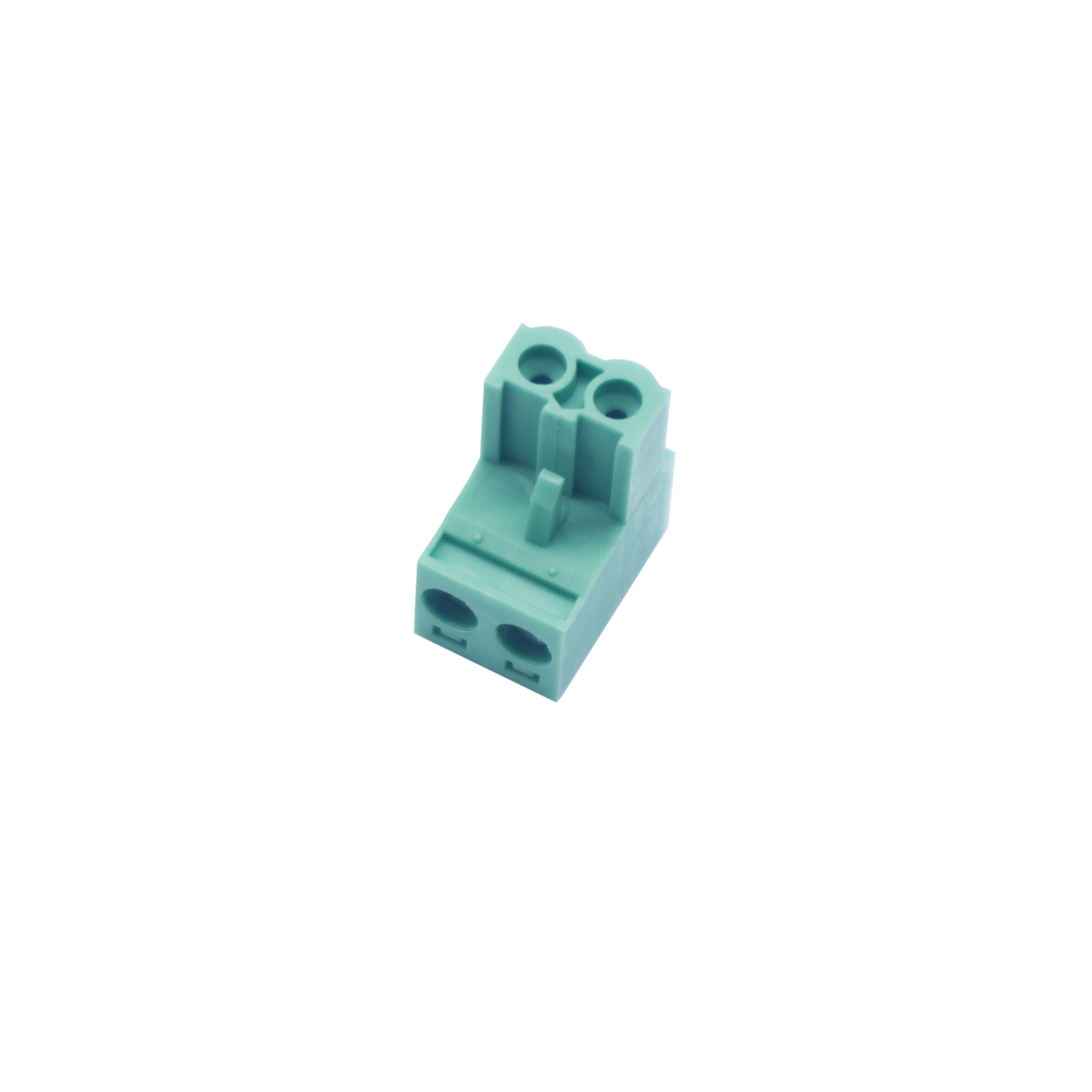

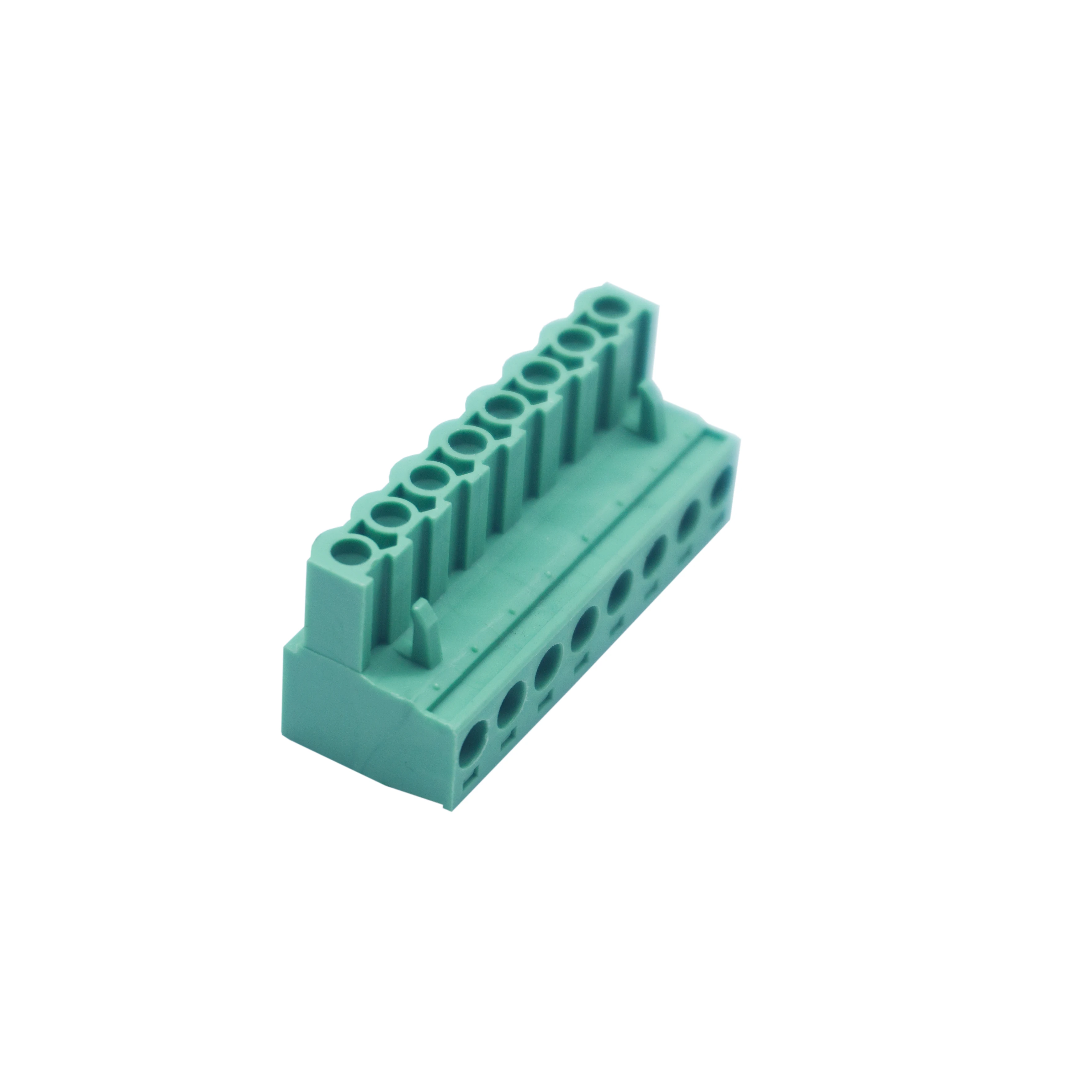

PCB Terminal Block Connectors5.08mm 2 24P 2.54PH terminal block wire to board type green connector
- Category: >>>
- Supplier: ShenZhen XinNanTian Technology CO. LTD
Share on (1600718059133):
Product Overview
Description
Overview
Quality assurance, worry-free operation
Brand: Xinnantian | Series: Terminal Block series |
Name: Terminal Block | Gender: Female |
Current rating: 0.5mA | Rated voltage: 5V RMS |
Rating |
Operating Temperature: -40ºC~+85ºC |
Storage Temperature: -40ºC~+85ºC（500 hours） |
Relative humidity: 95%Maxmum (non-condensing) |
Test Condition |
Temperature range: 20ºC ±5ºC |
Humidity range: 40%~85% |
Product details
Details determine quality, every place is a work of ingenuity
Good card contact performance
Use the force of 10N to insert and dial without interruption,Contact is good after 5000 times
High solderability and flatness
Immerse the tin feet in a tin oven at ±245°C for 5.5 seconds The surface area of tin sticking is not less than 97%, and reflowSoldering temperature 260±5°C, 20-40 seconds
