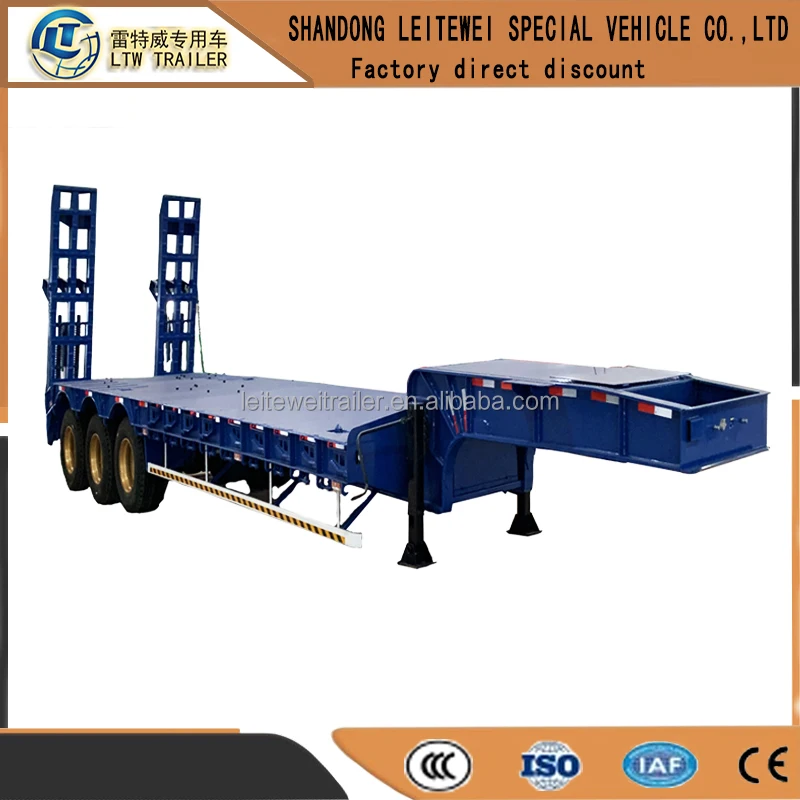

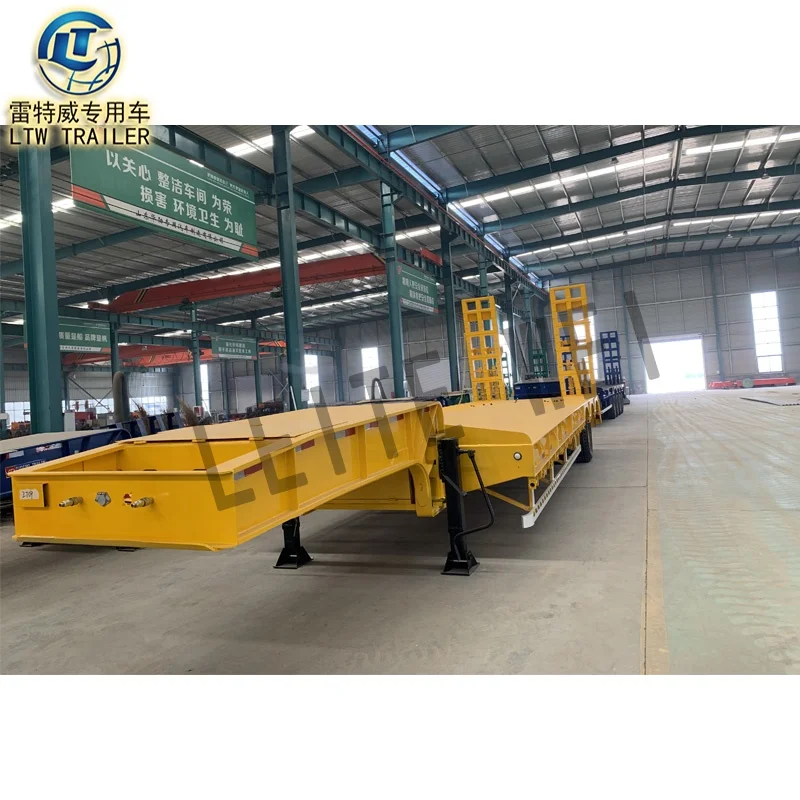

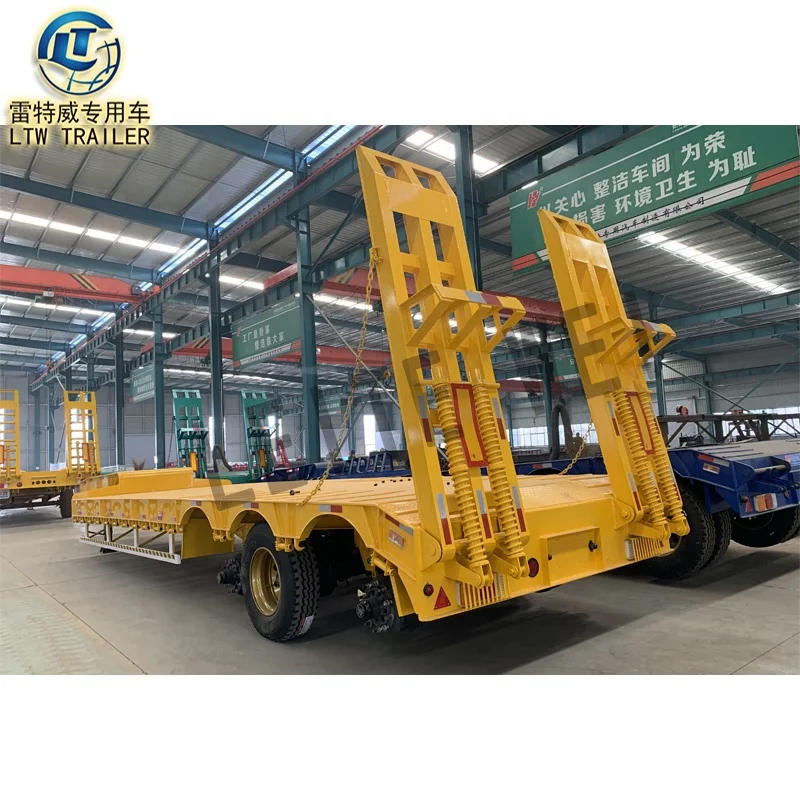

35 ton Low Bed Flatbed Semi Trailer for Digger Transportation / Lowbed Truck And Semi Trailers with Hydraulic Ladder
- Category: >>>
- Supplier: Shandong Leitewei Special Vehicle Co. Ltd.
Share on (1600718129209):
Product Overview
Description
Product Description

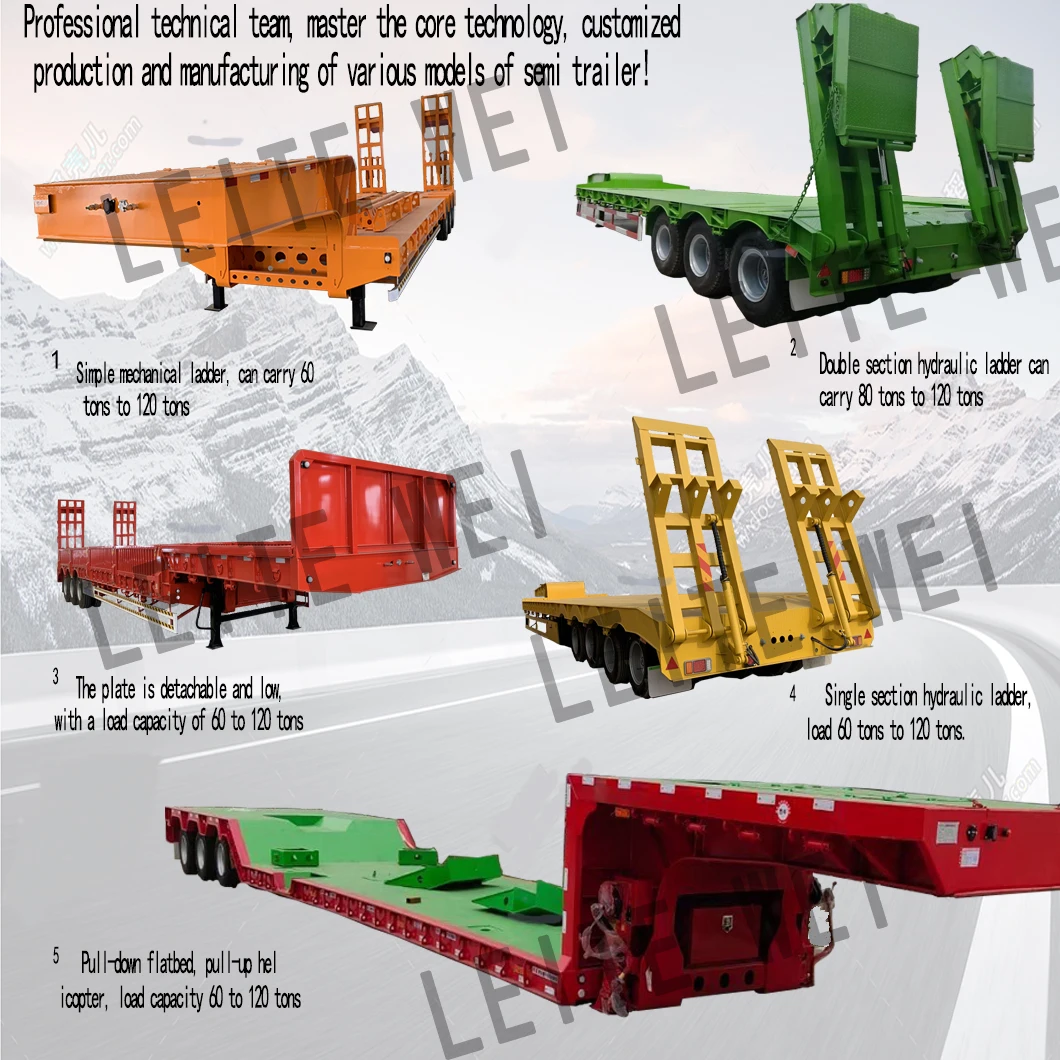

Can be customized according to the needs of various trailers
Factory direct sales, big discount.

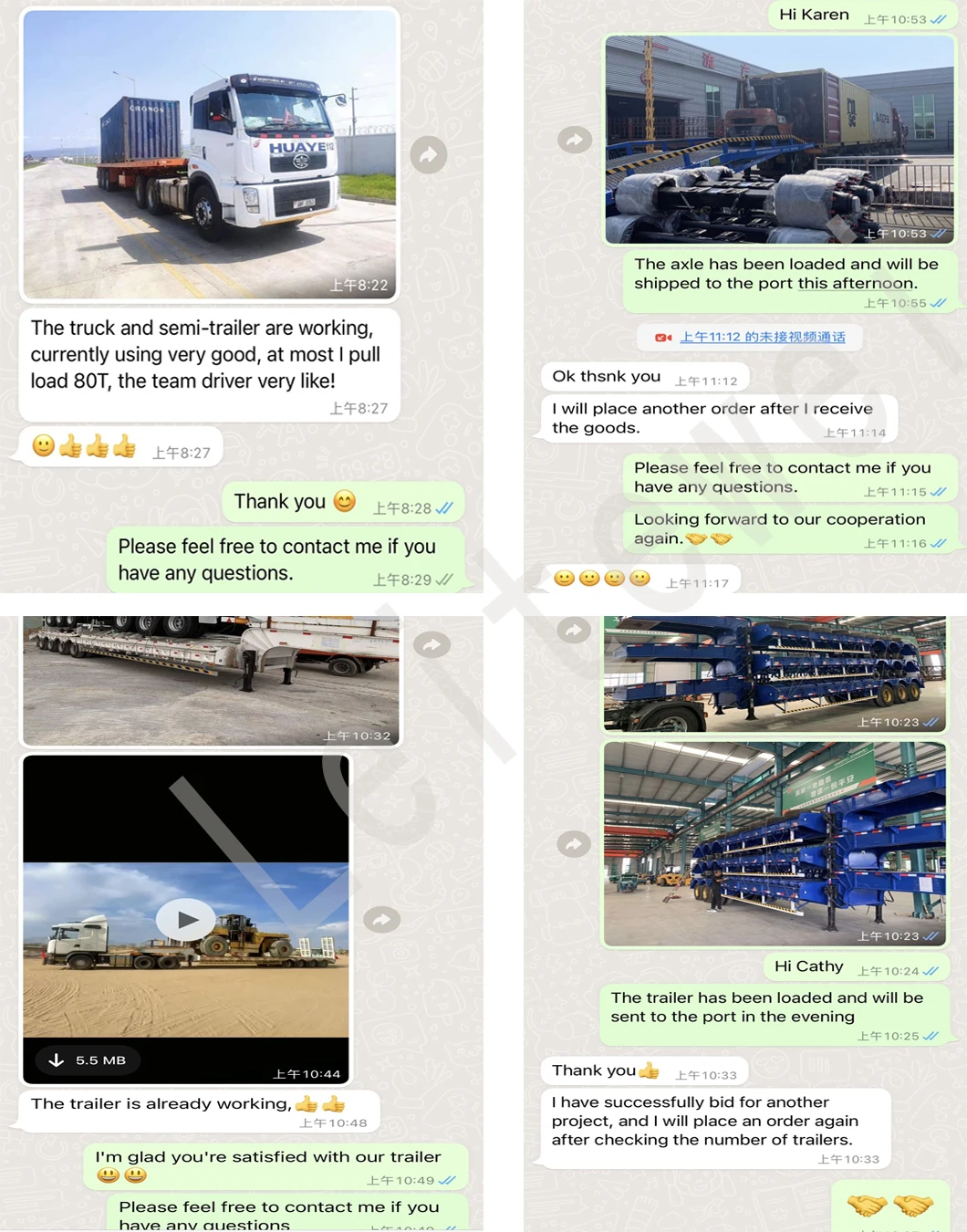

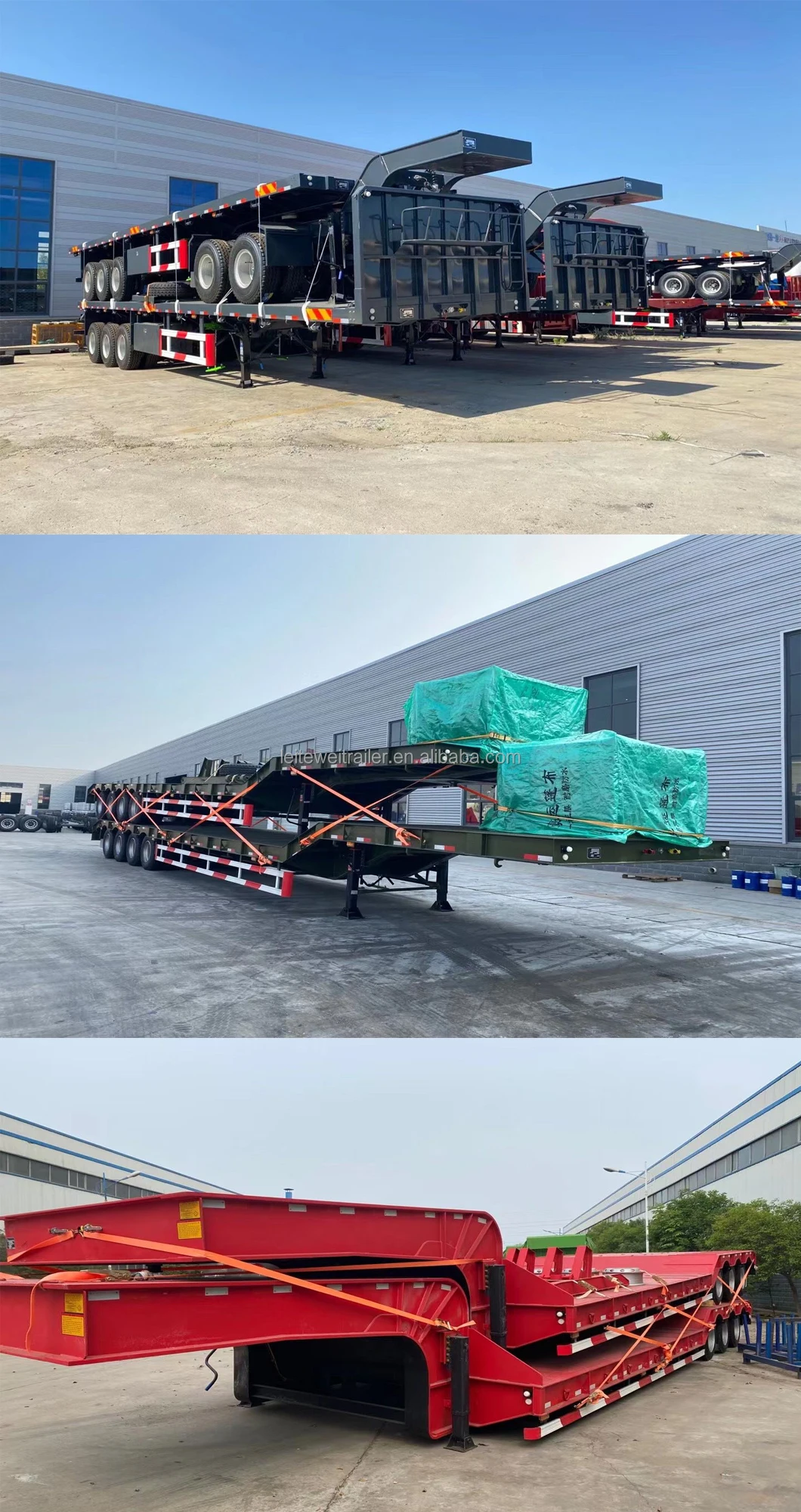

Customer Photos
Specification
Product name | 60/80/100/120ton Low bed semi trailer(Can be customized) | ||||
multi-purpose | Transport containers, loaders, tractors, and high rails for bulk cargo(Can be customized) | ||||
Axle | 2/3/4 pieces, 13T FUWA/BPW axle | ||||
Wheelbase | Can be customized+1310+1310mm,or other | ||||
Tyre | 12 pieces, 10.00R20 11.00R20 12.00R20 12R22.5(Can be customized) | ||||
Dimensions(LxWxH) | 10000 -17000mm x 3000 x 1750mm | ||||
Tare weight | 10 tons to 12 tons | ||||
Axle spacing | 1310mm | ||||
Rims | 8.5-20, 9.0-20 | ||||

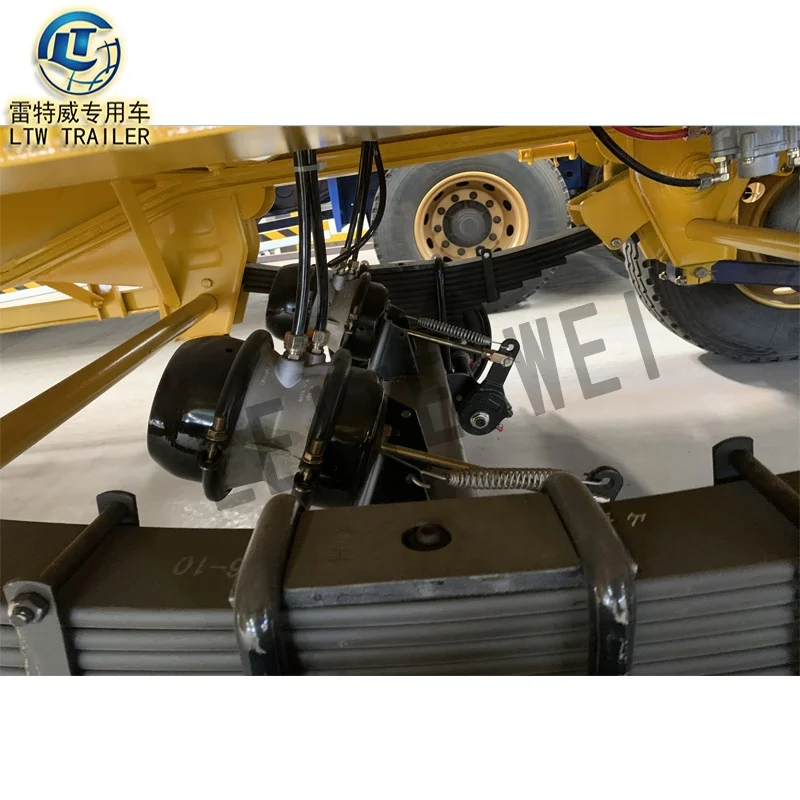

Suspension System | Leaf spring suspension / air suspension | ||||
Brake System | Dual line pneumatic brake system with WABCO emergency relay valve | ||||

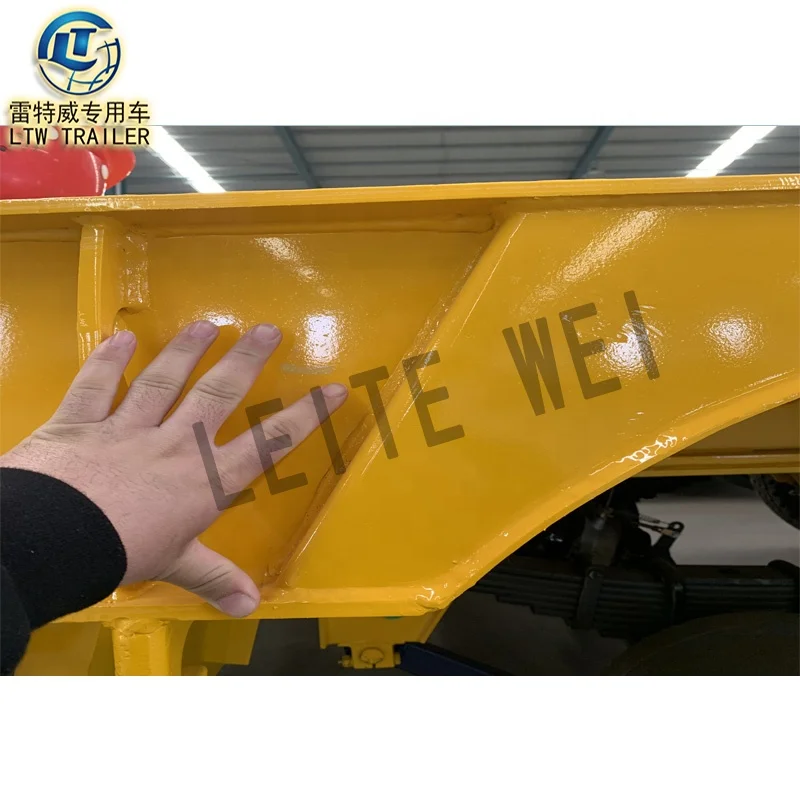

Main Beam | Height 500mm Q345 carbon steel | ||||
Side beam | 16mm-25mm channel steel(Material is Q235 carbon steel) | ||||
Chassis | upper 20mm, lower 25mm. Mid web 12mm | ||||

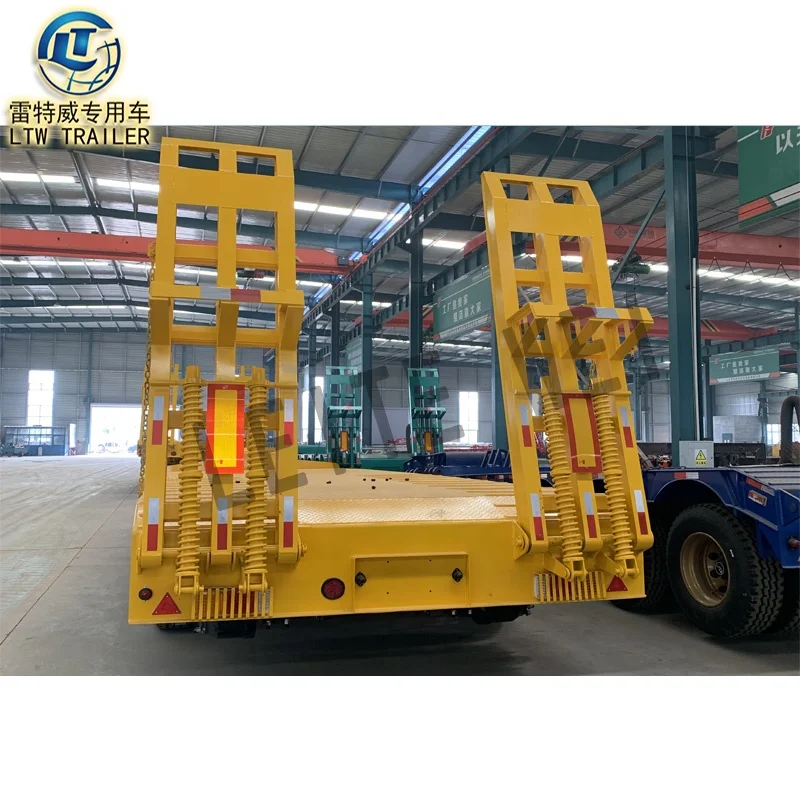

Rear Loading Ramps | 2 nos, 720 mm width, spring loaded & manually operated with safety chain | ||||
Kingpin | 2' or 3.5' interchangeable,JOST brand | ||||
Landing Gear | 28 Tons , Two speed manual operation (Jost or FuhuaCan be customized) | ||||
Electrical System | 1.Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) German standard | ||||
Lights and Reflectors | Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light | ||||
Painting | Shot blast to SA 2.5 Standard prior to application of primer, polyurethane top coat. Total DFT not less than 100μm;Any color will be available | ||||
Tool Box | One tool box with a set of standard trailer tools | ||||
Spare Tyre Carrier | One piece or two pieces | ||||
Packing | Polish with wax before shipping | ||||
Packing & Delivery
1.The trailer is waxed before it is packed to prevent seawater from corroding the trailer surface.
2.We will choose the most suitable transportation method for customers and reduce the transportation costs of customers.
2.We will choose the most suitable transportation method for customers and reduce the transportation costs of customers.
Company Profile
Shandong leitewei Special Vehicle Co., Ltd. is located in Jining City, Shandong Province. We operate in good faith and specialize in R & D, mass production, retail sales of semi-trailer and other transportation equipment. With international advanced and first-class integrated production line, special trailer development team and the combination of Chinese and foreign technology, various types of trailers can be customized. Based on the rich traffic advantages and resources in Central China, lettewei is committed to providing global customers with high-quality and cost-effective transportation equipment.
Our Advantages
Price advantage:
We sell in factories without middlemen, so our price will be better than that of trading companies
Quality advantage:
From the moment the customer places an order, we will be equipped with a professional team. Professional personnel are responsible for the design, production, tracking and transportation. We adopt the principle of responsibility system, and the quality can be
guaranteed.
Professional advantages:
We have our own R & D team and design team. Our team has received professional training and good education, and is skilled in using CAD, SW and other drawing tools
Service advantages:
The staff will give the most favorable and accurate quotation to the customer within 2 hours according to the customer's requirements, make the most appropriate purchase scheme for the customer, and formulate the perfect solution according to the customer's after-sales demand within 10 hours.
We sell in factories without middlemen, so our price will be better than that of trading companies
Quality advantage:
From the moment the customer places an order, we will be equipped with a professional team. Professional personnel are responsible for the design, production, tracking and transportation. We adopt the principle of responsibility system, and the quality can be
guaranteed.
Professional advantages:
We have our own R & D team and design team. Our team has received professional training and good education, and is skilled in using CAD, SW and other drawing tools
Service advantages:
The staff will give the most favorable and accurate quotation to the customer within 2 hours according to the customer's requirements, make the most appropriate purchase scheme for the customer, and formulate the perfect solution according to the customer's after-sales demand within 10 hours.
FAQ
1.What is the delivery date?
It usually takes 15 to 25 days of receiving the deposit.
2.Payment and mode of transportation?
We accept both T/T and D/P .Bulk, rolling, loading, land transportation, I will actively provide customers with cheaper transportation.
3. If Our Vehicle/Trailer Can Couple With Your Tractor Head ?
- 90% Of The Truck In The Market Can Coupling With Our Vehicle, As Howo, Shachman, Beiben, Volve...
- If Other Brand Truck Head, Please Inform Our Sales Manager Before Order Placing.
It usually takes 15 to 25 days of receiving the deposit.
2.Payment and mode of transportation?
We accept both T/T and D/P .Bulk, rolling, loading, land transportation, I will actively provide customers with cheaper transportation.
3. If Our Vehicle/Trailer Can Couple With Your Tractor Head ?
- 90% Of The Truck In The Market Can Coupling With Our Vehicle, As Howo, Shachman, Beiben, Volve...
- If Other Brand Truck Head, Please Inform Our Sales Manager Before Order Placing.
4.Can you satisfy my special requirement?
Definitely!We can make the trailers or trucks based on your requirement.
Definitely!We can make the trailers or trucks based on your requirement.
