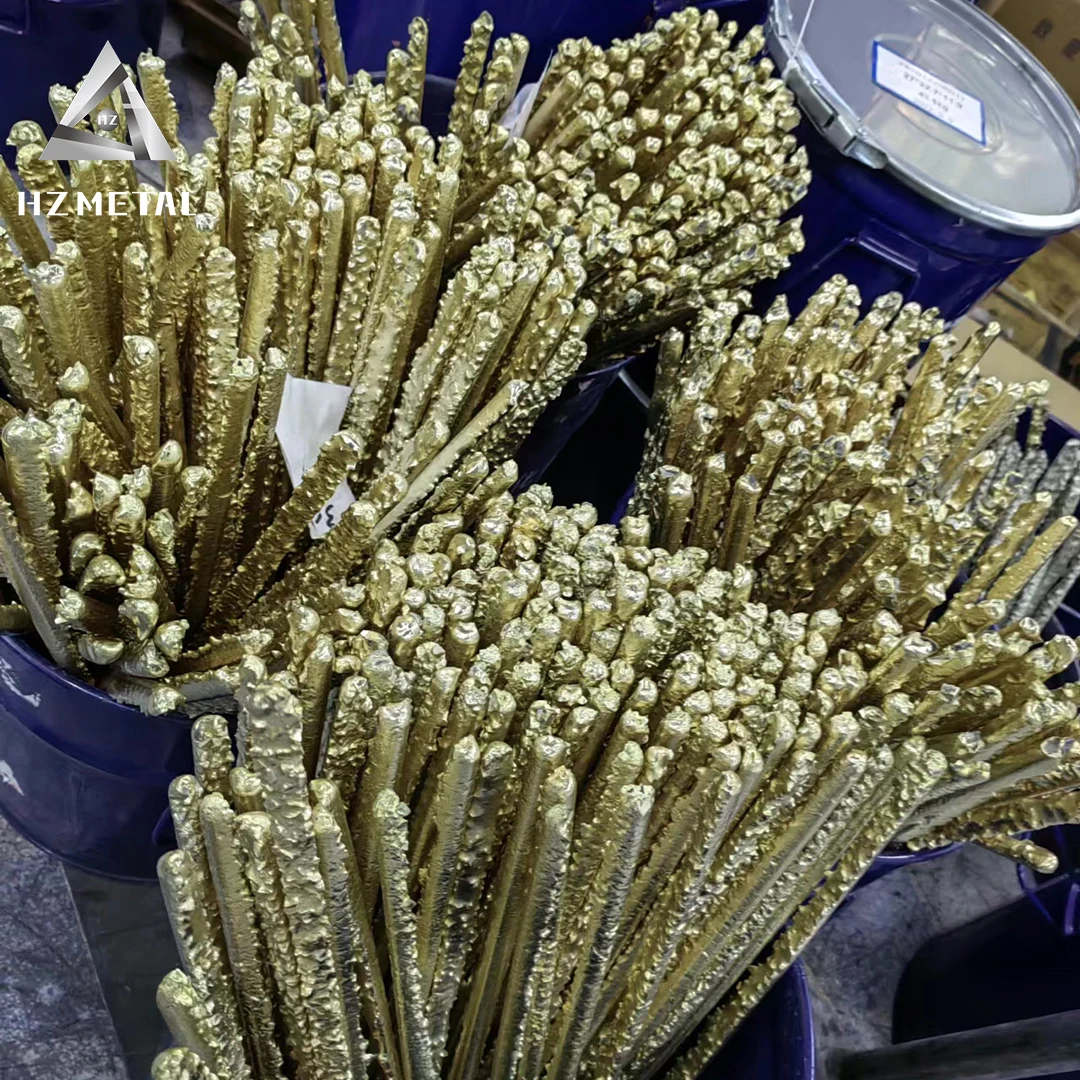

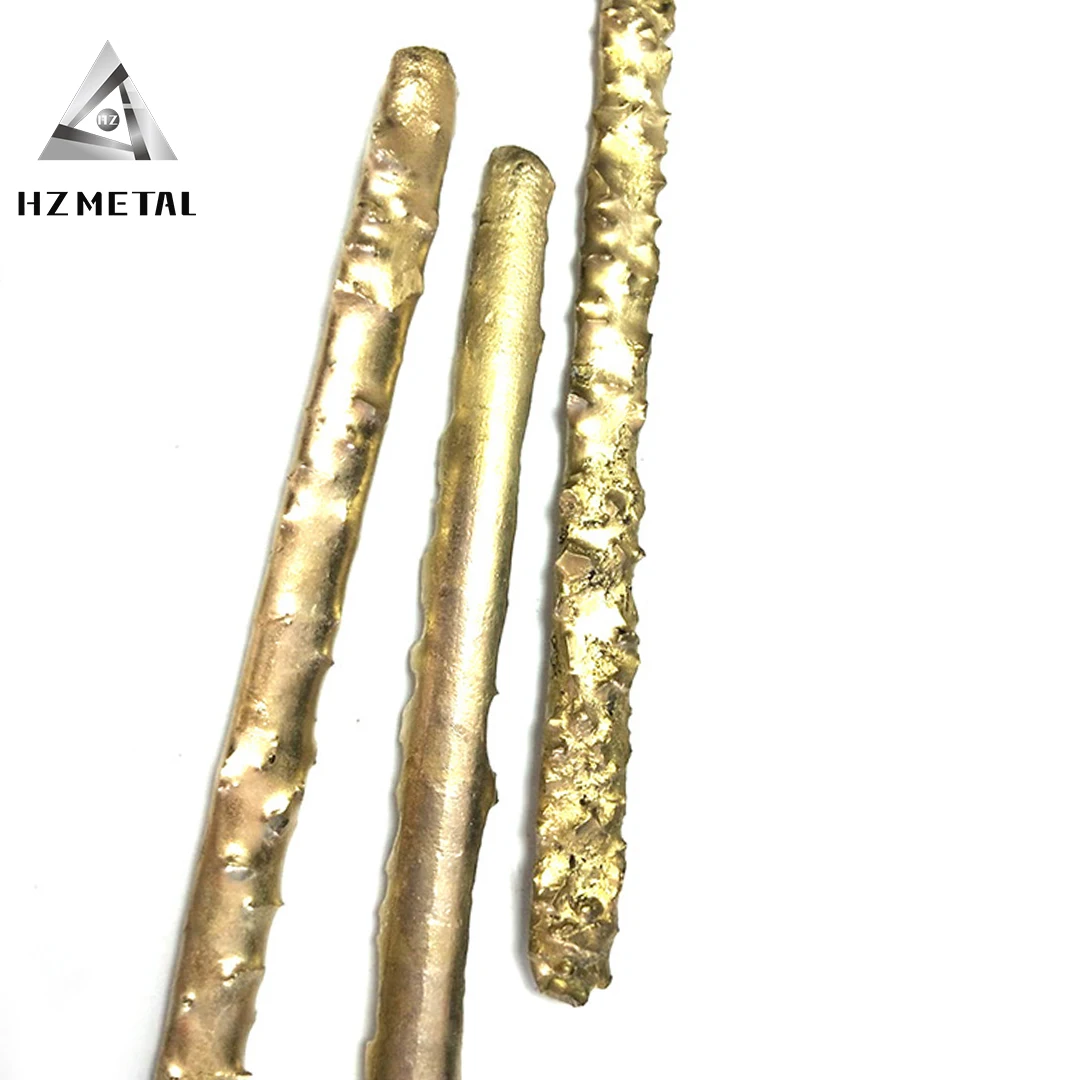

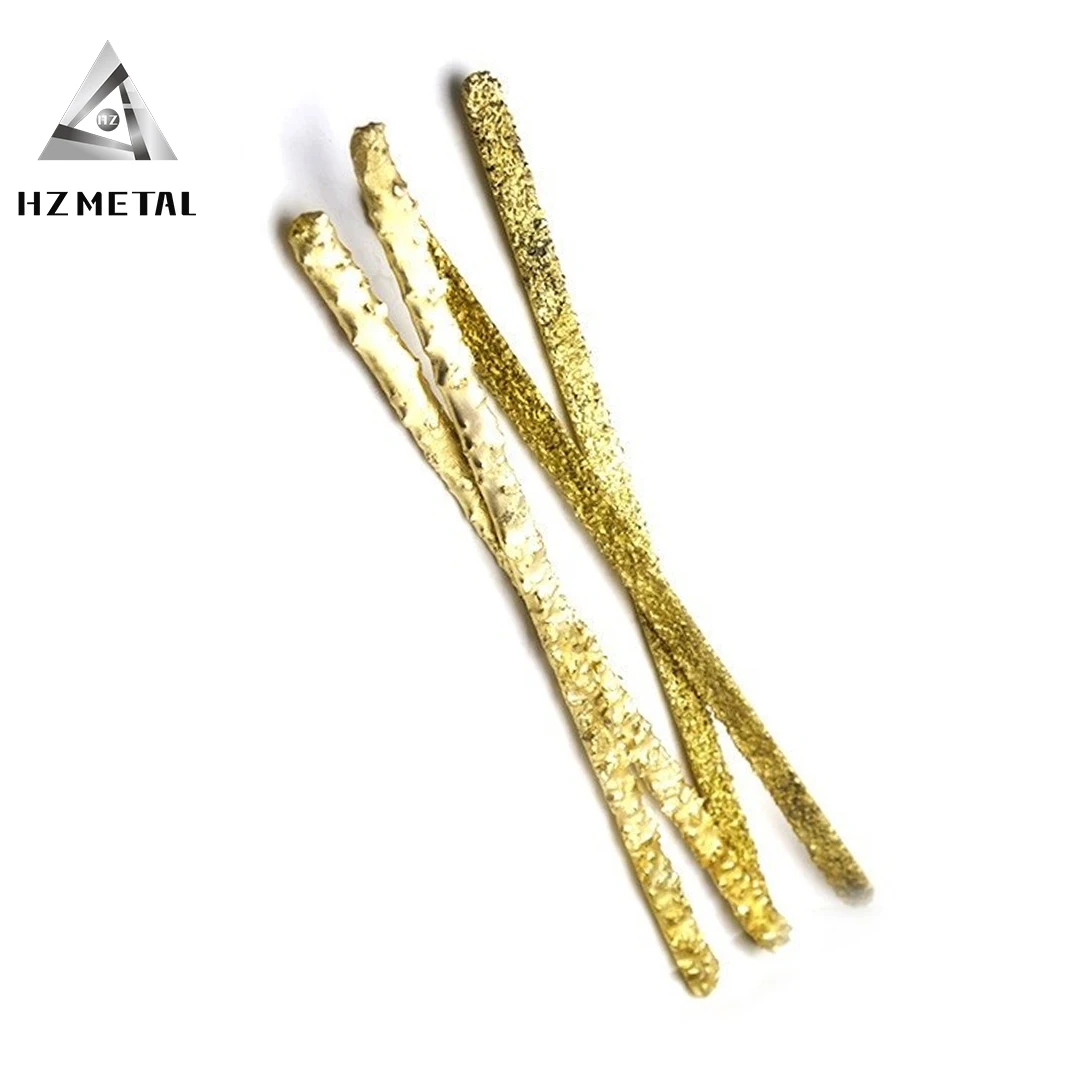

Brazing Alloy Tungsten Carbide Hardfacing Electrodes / composition Welding Rod
- Category: >>>
- Supplier: Zhuzhou Hezhi Metal Materials Co. Ltd.
Share on (1600718188306):
Product Overview
Description
Product Overview

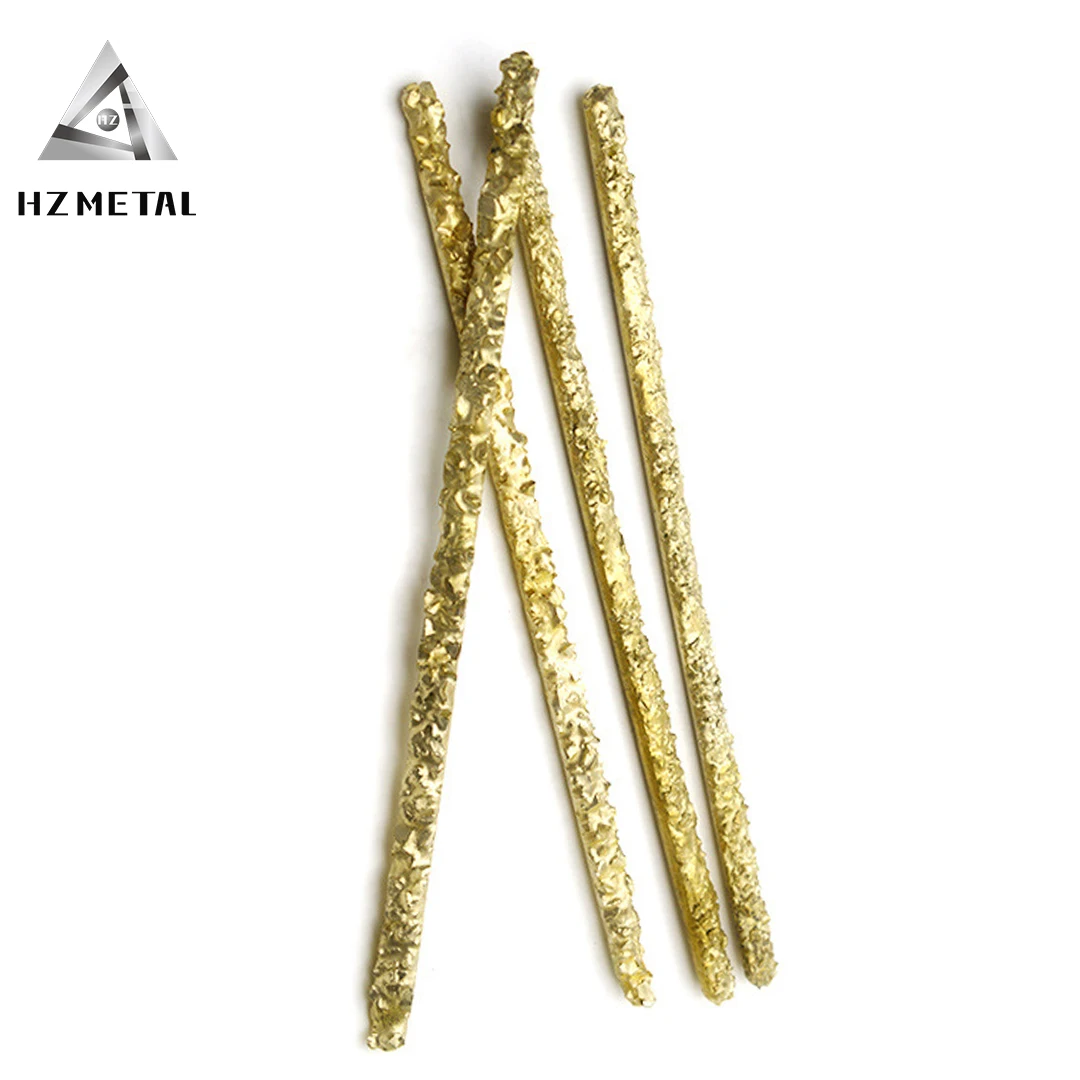

Carbide Wear Parts China Yd Tungsten Carbide and Copper Welding Rods

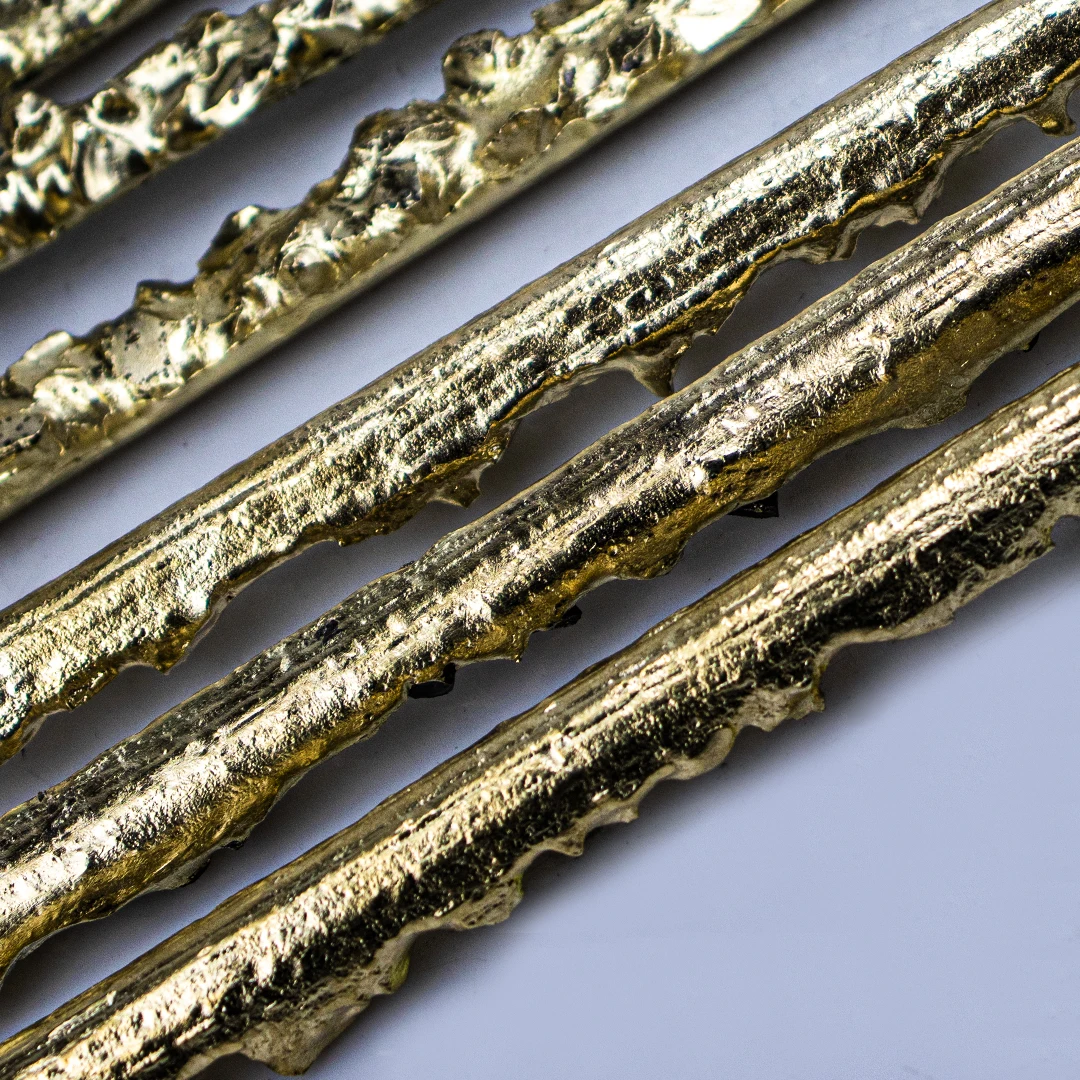

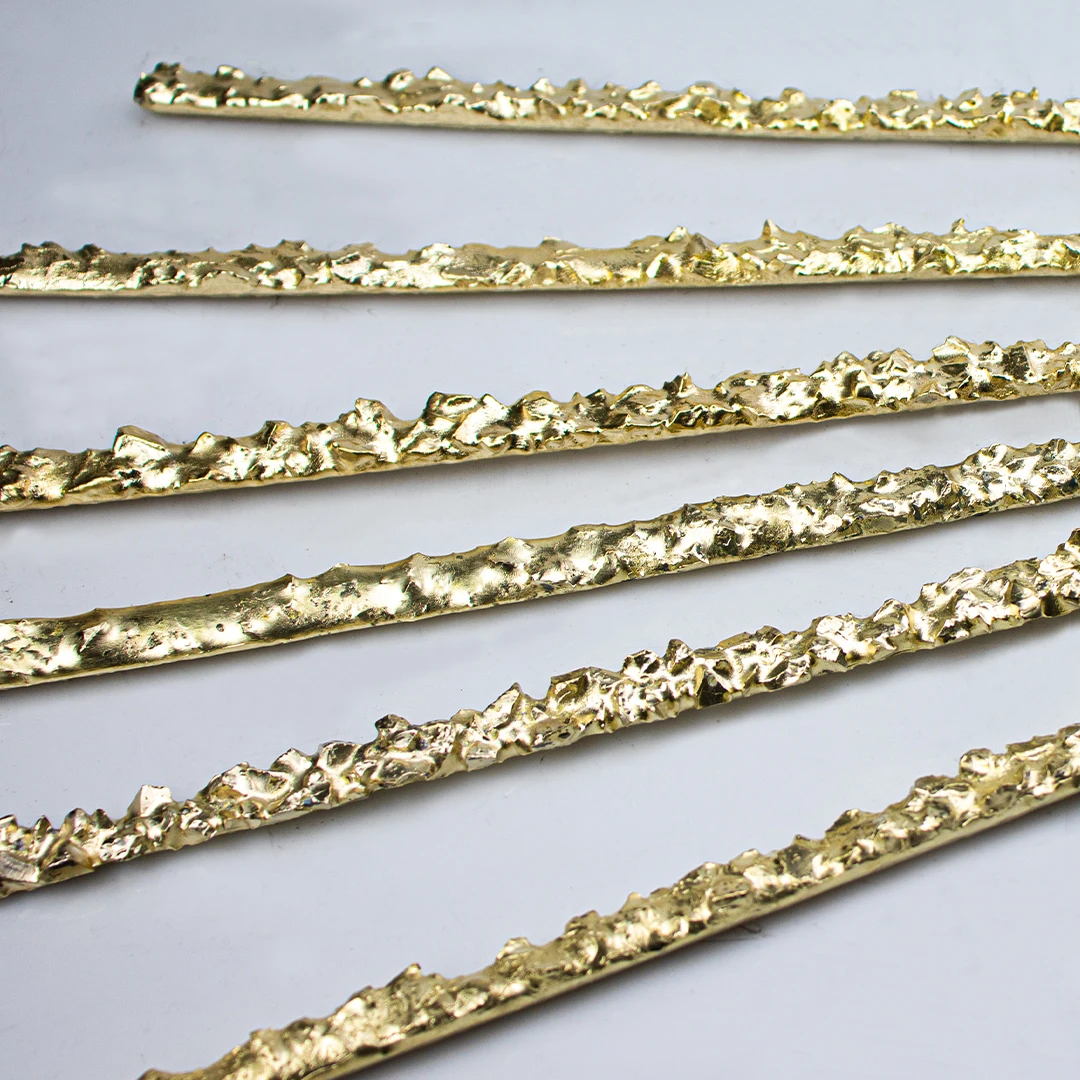

Tungsten carbide copper Brazing Rod YD it is made of by sintering tungsten carbide scrap and elastic matrix alloy,Outer layer of the special flux and coloring is marking scrap grade,the composition of sintering tungsten carbide scrap is mainly CO and WC,The hardness is HRA 89~91,tire body matal is Ni and copper alloy,strength can up to 690MPa, hardness HB≥160.
Product Description

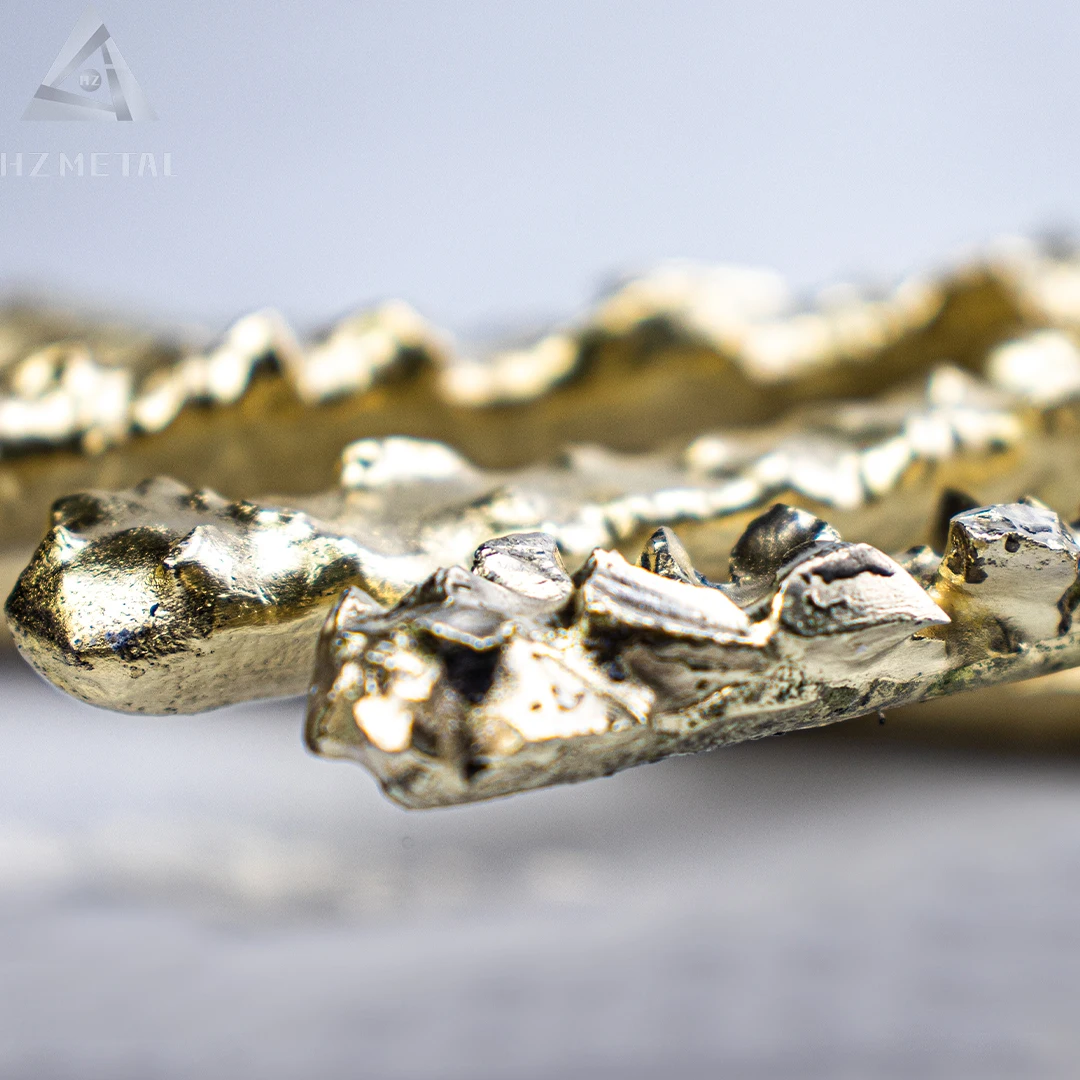

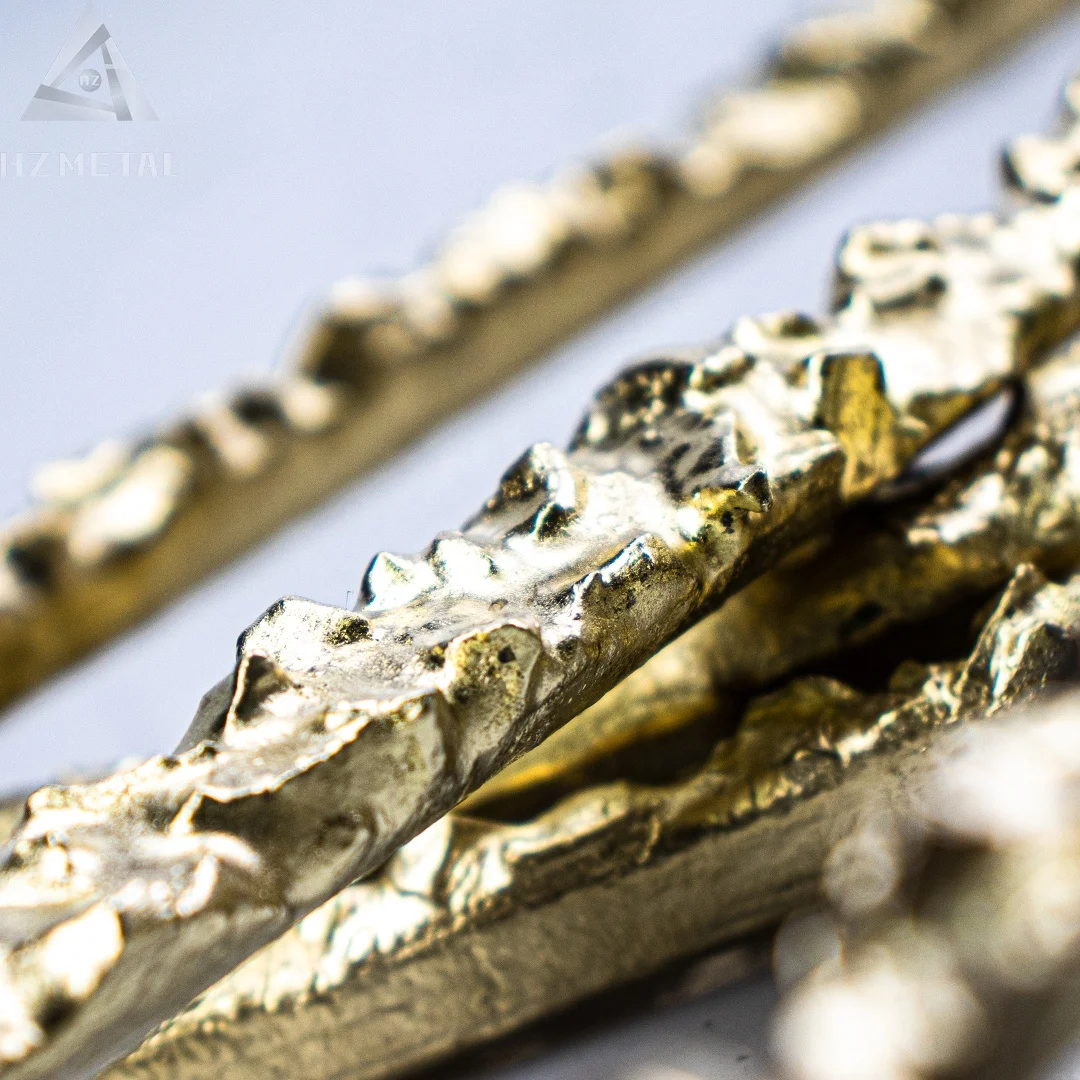

YD type carbide rod (referred YD type electrode), is composed of granular cemented carbide alloy casing with a flexibleblend.Coated with a layer of special flux and coloring to identify the size of the particle level. Sintered carbide particlesprimarily tungsten carbide cobalt.
carbonized oxyacetylene, but argon arc welding is also applicable with a declined wear resistance.
PRODUCT SPECIFICATIONS
Grade | Chemical Composition(Wt%) | ||||||
Ni+Cu+Zn+Sn | Cu+Zn+Sn | WC | Co | ||||
Cu-30 | -- | 30±2 | 63-65 | 5.2-6.0 | |||
Cu-40 | -- | 40±2 | 53-56 | 4.6-4.8 | |||
Cu-45 | -- | 45±2 | 48-52 | 4.2-4.5 | |||
Cu-50 | -- | 50±2 | 44-48 | 3.8-4.2 | |||
Ni-Cu-30 | 30±2 | -- | 63-65 | 5.2-6.0 | |||
Ni-Cu-40 | 40±2 | -- | 53-56 | 4.6-4.8 | |||
Ni-Cu-45 | 45±2 | -- | 48-52 | 4.2-4.5 | |||
Ni-Cu-50 | 50±2 | -- | 44-48 | 3.8-4.2 | |||
Item | Length(mm) | Width(mm) | Shape | ||
1 | 280mm | 12mm | Special Shape (like:Hexagonal Cylinder) | ||
2 | 350mm | 12mm | Special Shape (like:Hexagonal Cylinder) | ||
3 | 450mm | 16mm | Special Shape (like:Hexagonal Cylinder) | ||
4 | 450mm | 22mm | Special Shape (like:Hexagonal Cylinder) | ||
Item | Carbide Grain Size(inches) | Carbide Grain Size(mm) | Available Rod Length(mm) | |||
MEDIUM | 1/16"~1/8" | 1.6~3.2mm | 280mm 350mm 450mm | |||
MEDIUM | 1/8"~3/16" | 3.2~4.8mm | ||||
COARSE | 3/16"~1/4" | 4.8~6.4mm | ||||
COARSE | 1/4"~5/16" | 6.4~8.0mm | 280mm 350mm 450mm | |||
COARSE | 5/16"~3/8" | 8.0~9.5mm | ||||
COARSE | 3/8"~1/2" | 9.5~12.7mm | ||||
Coarse and medium sizes used primarily for cutting | ||||||
Carbide Grit:70% WC+Co (Crushed by 100% Pure YG8) | ||||||
Also, can 50%,60%,65% depend on your demand | ||||||
Composition | Black Silicon Carbide Grits | Ni/Ag(Cu) | ||||
Proportion | 60-70% | 30-40% | ||||
30% Matrix: Cu+Ni+Zn.(Ni10%nr.) （Ni% can according to customer requirment) | ||||||
% Matrix: Cu+Ni+Zn.(Ni10%nr.) (Also,can 35%,40%,50% depend on your demand) | ||||||
Product application
Tungsten carbide composite rod is applied to perform one or both of two functions: one, to increase the speed of downhole milling and cutting; and two, to protect the surface of tools subject to abrasive wear, maintaining full guage on stabilizers, guides keyseat wipers, and other downhole tools.
The oxyacetylene butt, the operating process is as follows:
overlaying process of tungsten carbide copper Brazing Rod YD
(1) clean up the workpiece, make the welding workpieces surface with metallic luster.
(2) the flat position of welding, therefore can use the appropriate clamping fixture for control of surfacing layer thickness,
thick piece of available.
thick piece of available.
(3) with a neutral flame preheating, flame core not contact surface, the distance to 25 mm is advisable.
(4) carbide surfacing welding layer.With YD type electrode surfacing, the use of neutral flame (can be slightly carbonizing flame) tip is steady on the workpiece surface movement, the flame of the alloy electrode heating (be careful not to make flame cone tip contact alloy particles), tire body in the electrode alloy melt, carbide particles are also falling.Before the tire body of molten metal solidification, the particles arrange, can use left hand of the alloy electrode fingers, or another person holding a base electrode or pull rod on graphite rod in a quick stir particles, making them evenly aligned neatly.Surfacing layer thickness control according to the requirements of design.
(5) after the workpiece welding, where no ventilation, slow cooling, cannot quench, conditional usable asbestos blanket cover.
(6) the workpiece after cooling to room temperature, if necessary, grinding surface surfacing to required size and shape.
(7) clean up the workpiece, remove all splash, slag, etc.
Carbide composite rod has been acknowledged throughout oil drilling, mining and construction industry worldwide for its extrahardness and high wear resistant properties. The use is even spreading to more industries and gets greater uses. Carbide compositerod has wear and cutting properties coupled by high-end weldability and low fuming, allowing the material to use in stabilizers,reamers, drill pipe joints, construction drilling, hydraulic-cutter, pipe cutter blades, core bit, scraper, twist drill, millingand grinding shoes etc.
Product application
Product application
Product application
Used for
Reamers/Openers/Fishing Tools
Casing Cutters/Milling Tools/Coring Tools/Stabilizers/Screw Feeders/Slurry Paddles/Construction Drilling/Foundry Sand Mixing/General
abrasive wear prevention
Two grades are available, One for wear applications and one for cutting applications
Casing Cutters/Milling Tools/Coring Tools/Stabilizers/Screw Feeders/Slurry Paddles/Construction Drilling/Foundry Sand Mixing/General
abrasive wear prevention
Two grades are available, One for wear applications and one for cutting applications
Our Advantages
1. High efficient in crushing
2. Low energy consumption
3. Long service life
4. Easy to replace
5. 100% virgin raw
6. Advanced production equipment
7. With production experience over 7 years
2. Low energy consumption
3. Long service life
4. Easy to replace
5. 100% virgin raw
6. Advanced production equipment
7. With production experience over 7 years
Company Information
Zhuzhou Hezhi Metal Material Co., Ltd. is a professional enterprise dedicated to the research, development , production and sales of high-quality alloy products, hard-facing materials,and other metal products , the company is located in Zhuzhou,a famous alloy industrial city of Hunan Province, China. We have a high inventory level to assure first-time delivery. In other words, customers can get 100% quality assurance and fast delivery . Welcome to inquire and we are ready to receive your orders. Our team members are well-trained and experienced , We believe that we be your strong business partner and achieve a win-win situation. Welcome to contact us.
Main product
Packaging & Shipping
Tungsten Carbide Composite Rod package way
1. 5KG/PVC BOX
2. small order is 4 boxes per carton and total weight is 20kg/ carton
3.500kg/wooden carton for big order
3.500kg/wooden carton for big order
plastic inside and carton or wooden case outside also can according customer requires.
