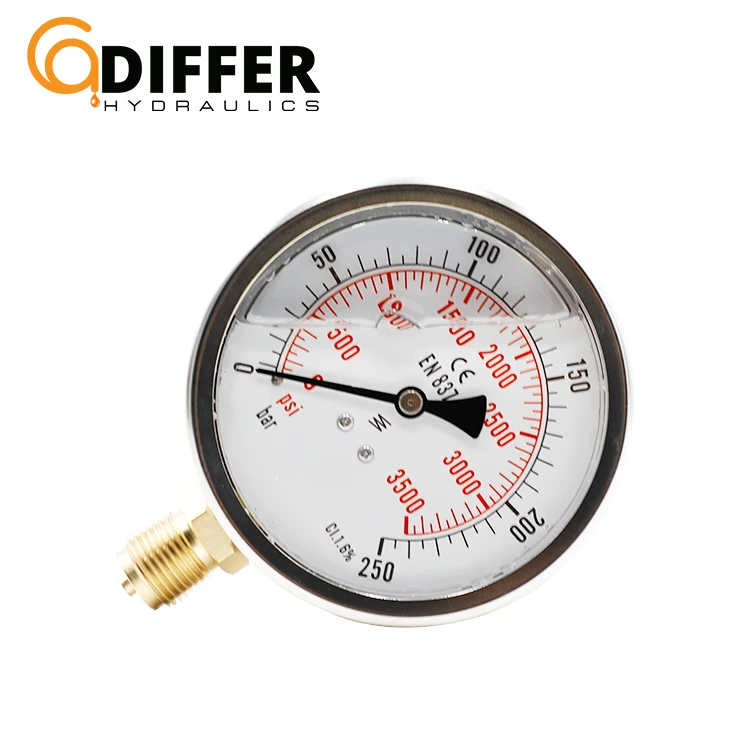

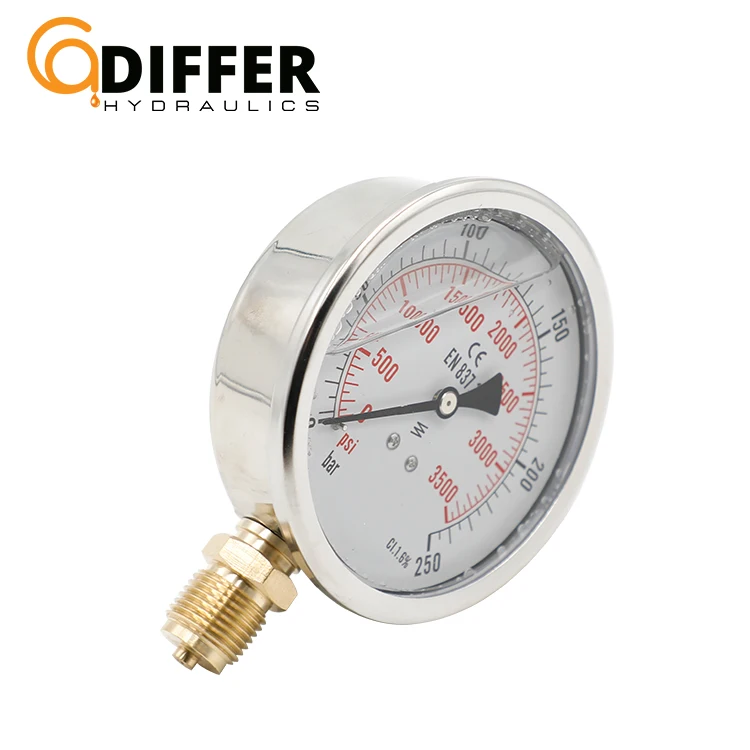

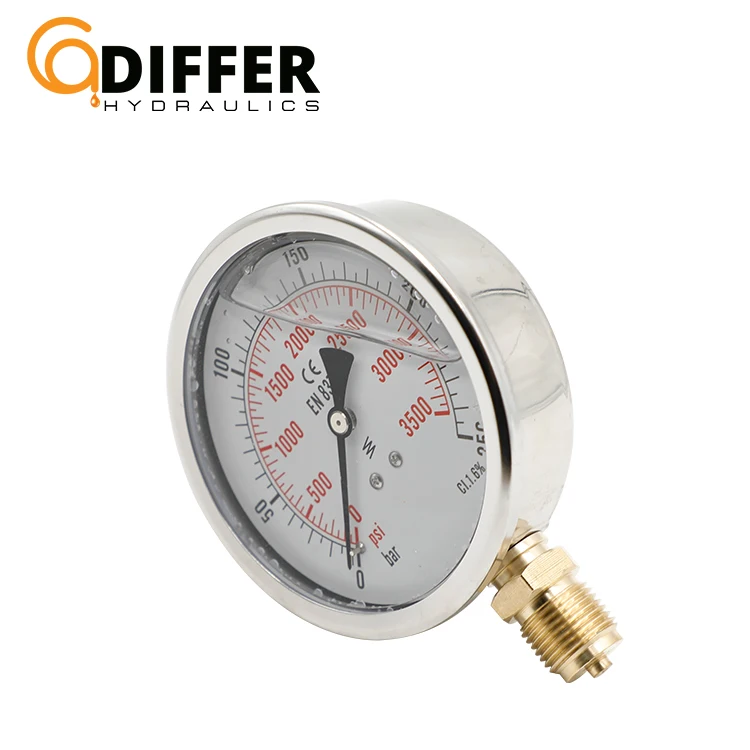

100mm High Pressure liquid oil Filled Gauge Brass bottom Connection liquid filled pressure gauge
- Category: >>>
- Supplier: Ningbo Differ Imp & Exp Co. Ltd.
Share on (1600718222993):
Product Overview
Description
Applications
Used for hydraulic and pneumatic systems
Compressors, compressed air system
Suitable for fluid medium which does not clog connection port or brassUsed for providing protection from vibration and pulsation.
Case: stainless steel
Ring: stainless steel
Window: polycarbonate(glass).
Socket & Connection: brass
Movement: semi-brass(complete brass)
Bourdon tube: copper alloy(brass)
Pointer and dial: aluminum
Liquid: glycerin, silicone
Rang: vacuum, compound 0 to 6000 psi
Accuracy Class:F3/2/3%(ASME B40.100 Grade B)
KI2.5FOR 1 1/2",2",K1 1.6 FOR 21/2",3,4
Operating temperature
Ambient:-4°F to 140°F (-20°C TO +60°C)
Media:140°F(+60°C)
Used for hydraulic and pneumatic systems
Compressors, compressed air system
Suitable for fluid medium which does not clog connection port or brassUsed for providing protection from vibration and pulsation.
Case: stainless steel
Ring: stainless steel
Window: polycarbonate(glass).
Socket & Connection: brass
Movement: semi-brass(complete brass)
Bourdon tube: copper alloy(brass)
Pointer and dial: aluminum
Liquid: glycerin, silicone
Rang: vacuum, compound 0 to 6000 psi
Accuracy Class:F3/2/3%(ASME B40.100 Grade B)
KI2.5FOR 1 1/2",2",K1 1.6 FOR 21/2",3,4
Operating temperature
Ambient:-4°F to 140°F (-20°C TO +60°C)
Media:140°F(+60°C)
Company Profile
Q:What’s the mode of payment you support?
A:TT,PAYPAL,WESTERN UNION,L/C
Q:Which transport modes do you support?
A:By sea , By air , By train ,By truck，By express ,it is up to buyer.
Q:Do you support to customize the Logo and package?
A:Yes,depends on the quantity
Q:How long can you send the products?
A:Depends on Model and quantity, we have stock for some popular models
Q:Do you support to supply sample before official order?
A:Yes ,of course we do
Q:Do you support to customize?
A:Yes, depends on Quantity.
Q:What’s the Minimum quantity？
A:MOQ is 1 pcs for any products
