Product Overview
Description

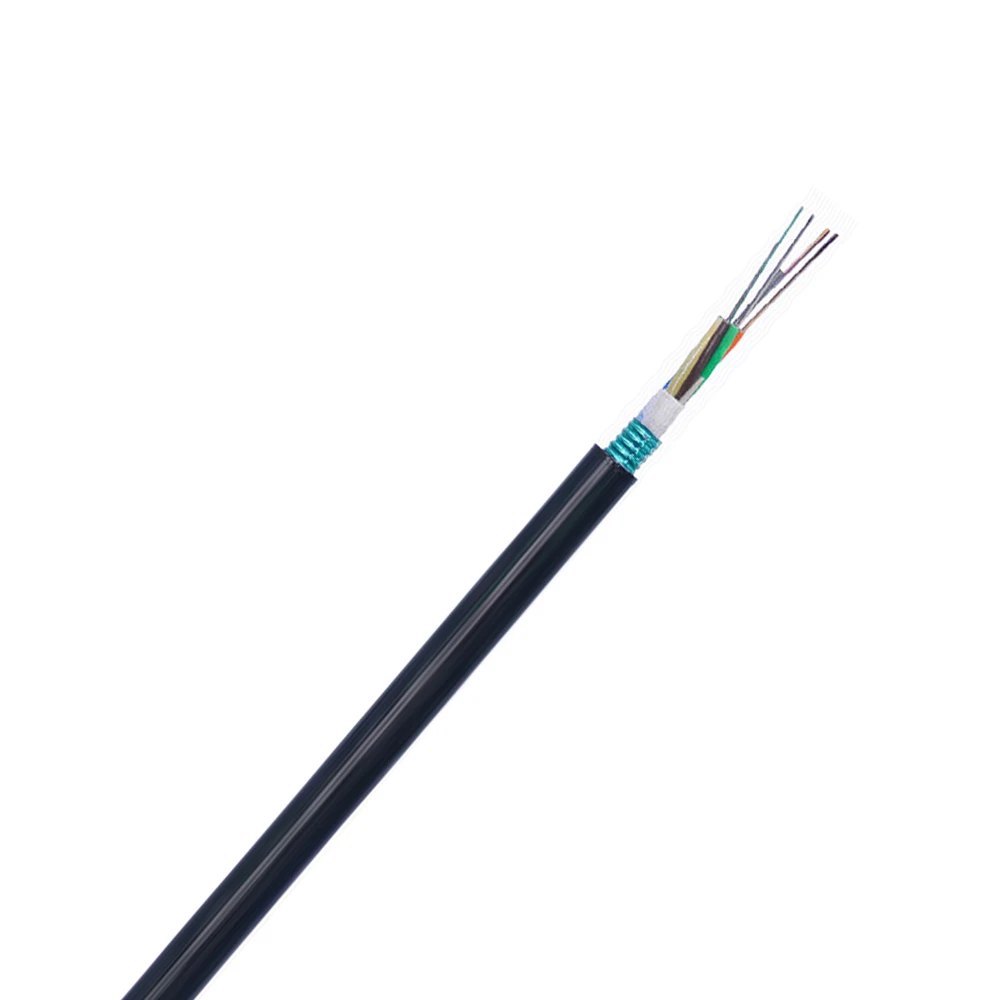

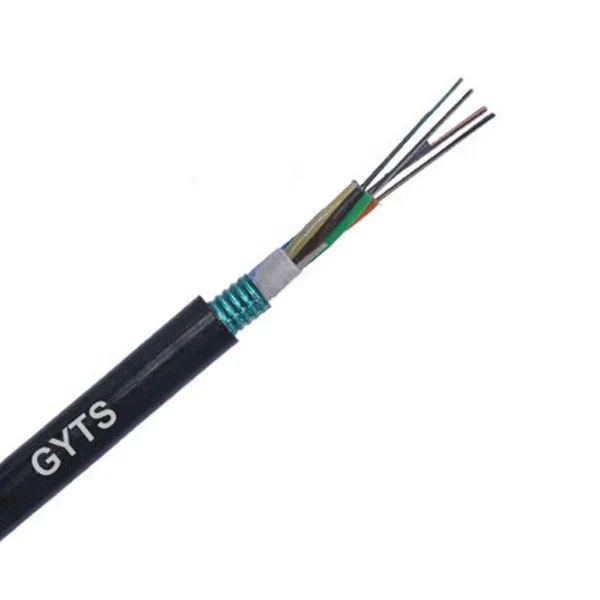

2 4 6 8 12 24 32 48 84 96 144 Core Gyts Gyta Single Mode Multimode Duct Optical Fiber Optic Coaxial Cable Communication Cable

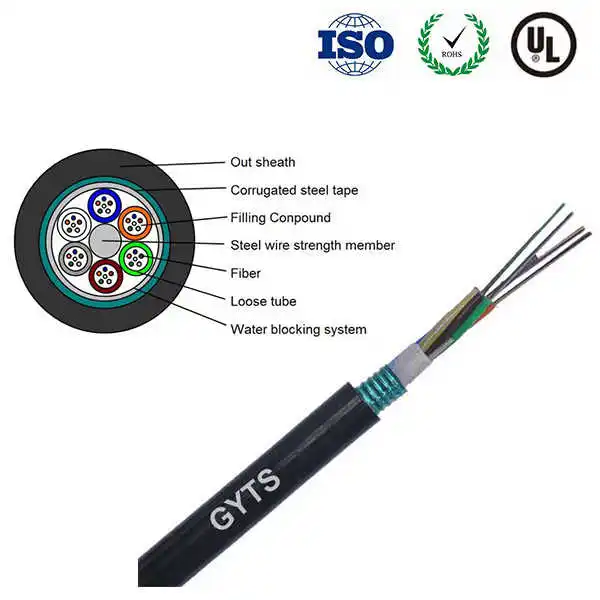

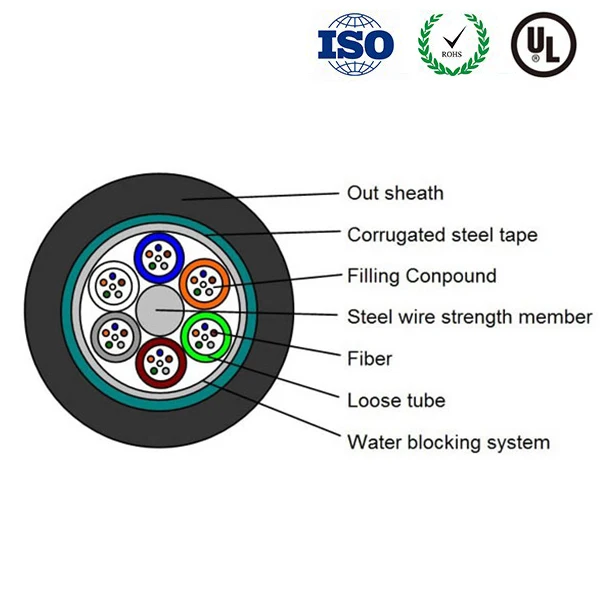

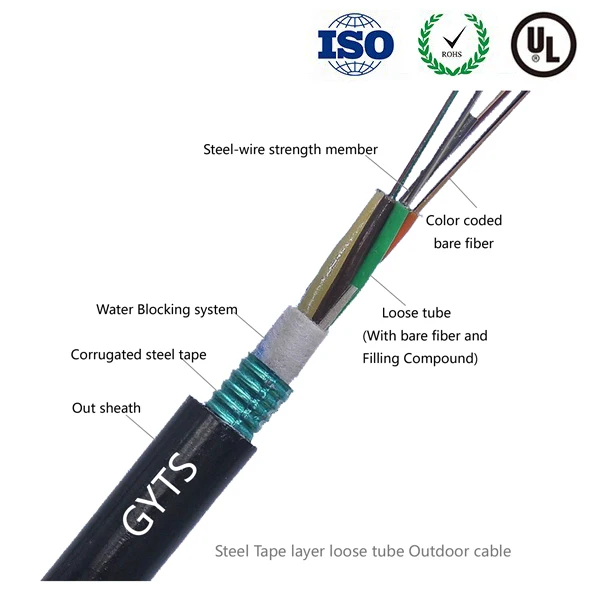

GYTS The fibers,250μmm,are position in a loose tube made of a high modulus plastic.The tube are filled with a water resistant filling compound.A steel wire,sometimes sheathed with ployethylene(PE) for cable with high fiber count,locates in the center of core as a metallic strength member.
Tubes (and fillers) are stranded around the strength member into a compact and circular cable core.The PSP is longitudinally applied over the cable core,which is filled with filling compound to protect it from water ingress,the cable is completed with a PE sheath.
Tubes (and fillers) are stranded around the strength member into a compact and circular cable core.The PSP is longitudinally applied over the cable core,which is filled with filling compound to protect it from water ingress,the cable is completed with a PE sheath.
Characteristics:
1. Steel wire strength filler protect tube fiber.steel tape armord.
2. Good ultra violet radiation resistant property.
3. Good moisture-resistance.
2. Good ultra violet radiation resistant property.
3. Good moisture-resistance.
Application
1. Adopted to Outdoor distribution.
2. Suitable for aerial pipeline laying method.
3. Long distance and local area network communication.
2. Suitable for aerial pipeline laying method.
3. Long distance and local area network communication.
Method of installation:
1. Direct burial preferred, other methods of installation are also available
Operating temperature range:
-40°C~+60°C
1. Direct burial preferred, other methods of installation are also available
Operating temperature range:
-40°C~+60°C
Cable Strusture:
Cable Count | Out sheath Dia. | Weight | Minimum allowable TensileStrength (N) | Minimum allowable Crush Load (N/100nm) | Minimum Bending Radius(MM) | Storage Temperature | ||||||
(MM) | (kg) | Short term | Long term | Short term | Long term | Short term | Long term | (°C) | ||||
24 | 10.5 | 105 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |||
36 | 10.5 | 105 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |||
42 | 10.5 | 105 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |||
48 | 10.5 | 105 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |||
60 | 10.5 | 105 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |||
72 | 13.5 | 208 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |||
96 | 13.5 | 208 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |||
144 | 15.5 | 295 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |||
