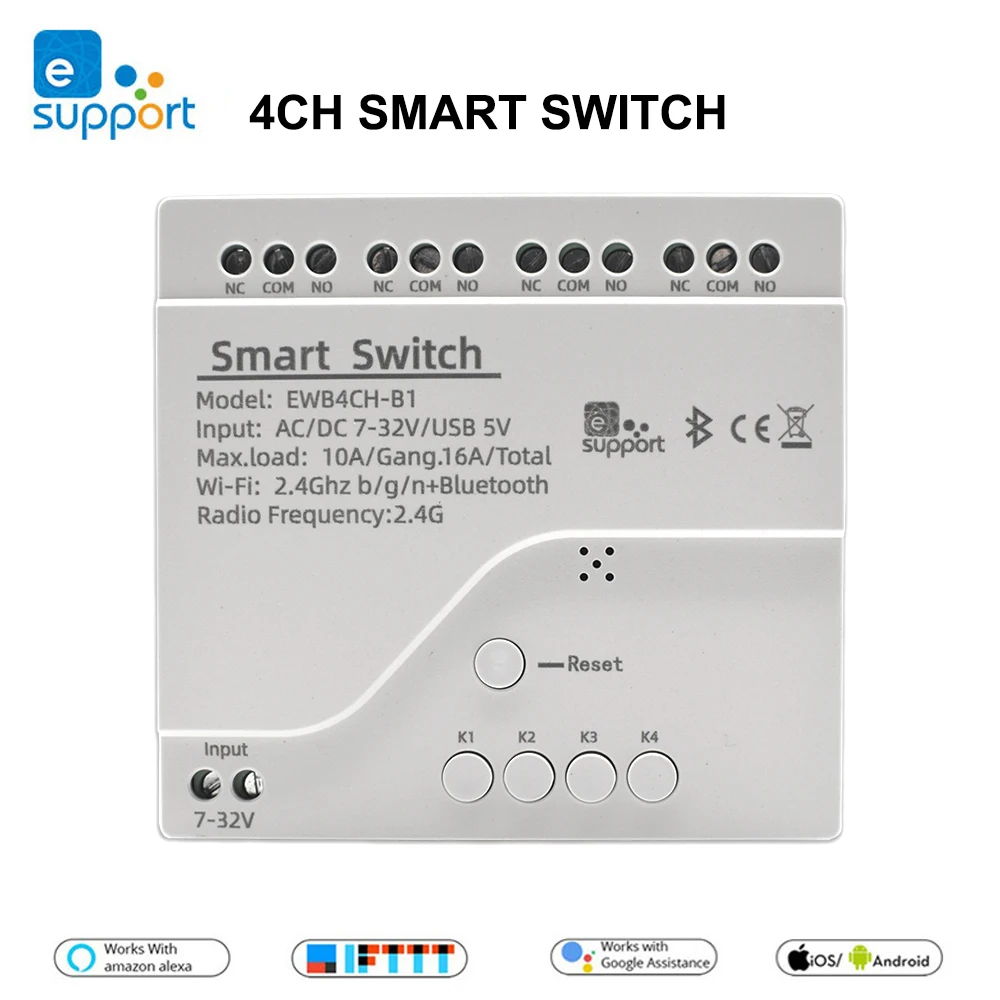

Wireless Smart Switch eWeLink 4CH Relay Module Mobile App Controller 12V 24V 7 32V Self Locking Voice Control Wifi with Alexa
- Category: >>>
- Supplier: Shenzhen Scimagic Development Technology Co. Ltd.
Share on (1600718472008):
Product Overview
Description

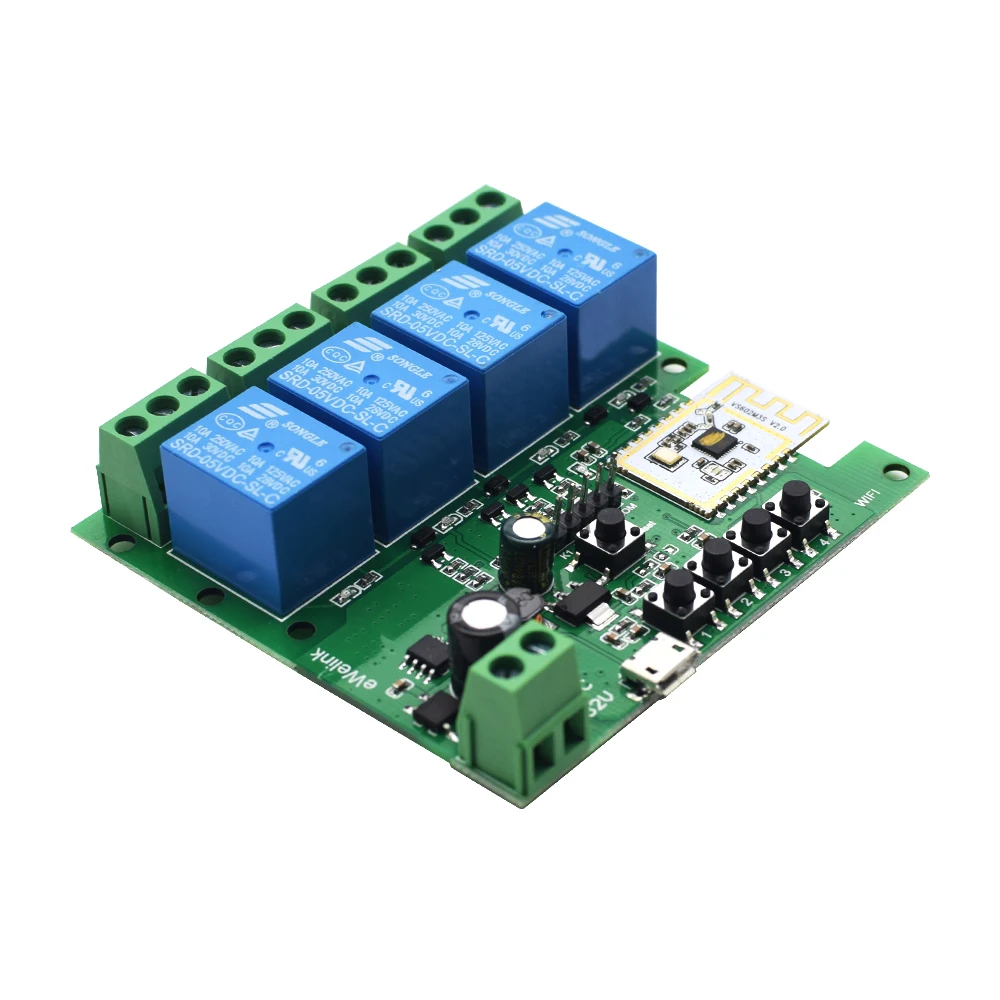

eWeLink Channel Switch Module Relay makes your home smarter
Three Working Modes
Use for
1.Remotely give a pulse signal to turn on/off Lights,Lamps and other home appliance.
2.Remotely give a pulse signal to turn on/off Garage Door,Door Access.

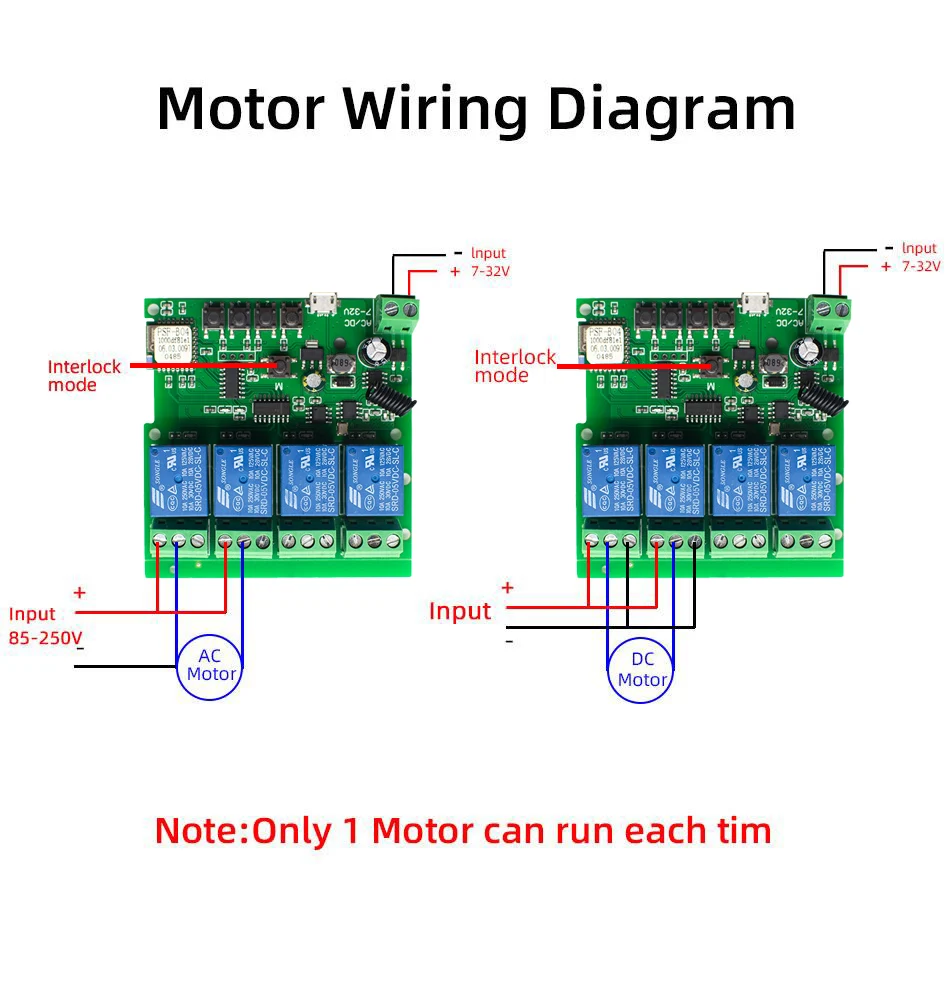

3.Remotely give a pulse signal to control DC Motor,AC Motor to Forward and Reverse.
Use for
1.Remotely give a pulse signal to turn on/off Lights,Lamps and other home appliance.
2.Remotely give a pulse signal to turn on/off Garage Door,Door Access.
3.Remotely give a pulse signal to control DC Motor,AC Motor to Forward and Reverse.
WIFI Module makes life so convenient.
[ APP Control ]
You can control the connectted home appliance in eWeLink APP anywhere and anytime.Such as light, electric kettle, electric rice cooker, electric curtain, etc.
[ Mobile Phone Control ]
When you go outside or at home,you could control the device in your smart phone by 2G/3G/4G Mobile Network or Wifi.

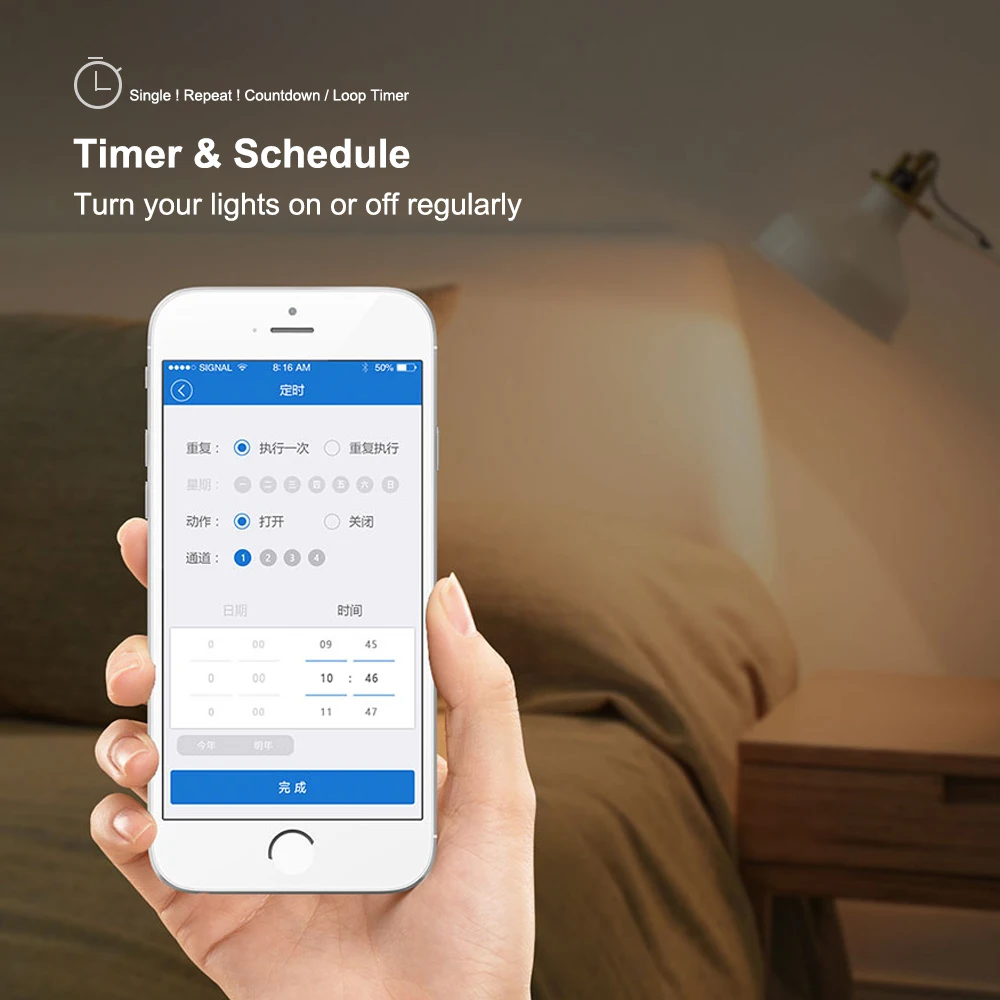

[ Timer & Schedule ]
Set up timing schedules to save the trouble of overcooking the dish.
[ Hands-free Voice Control ]
Compatible with Alexa & Google Home, you can use the voice control to turn it on/off the connectted home appliances.
[ Share Control ]
Share control of your home appliances to your family or friends so that they can also control the devices remotely.
[ Group Control ]
one phone can control Multiple smart device.You can add the wifi module and other smart device in a group,and then you can turn on/off all smart devices in the samel time.
[ Remote Control Function ]
Choose the wifi switch with RF function, work with 2.4G Remote Control
You can control the connectted home appliance in eWeLink APP anywhere and anytime.Such as light, electric kettle, electric rice cooker, electric curtain, etc.
[ Mobile Phone Control ]
When you go outside or at home,you could control the device in your smart phone by 2G/3G/4G Mobile Network or Wifi.
[ Timer & Schedule ]
Set up timing schedules to save the trouble of overcooking the dish.
[ Hands-free Voice Control ]
Compatible with Alexa & Google Home, you can use the voice control to turn it on/off the connectted home appliances.
[ Share Control ]
Share control of your home appliances to your family or friends so that they can also control the devices remotely.
[ Group Control ]
one phone can control Multiple smart device.You can add the wifi module and other smart device in a group,and then you can turn on/off all smart devices in the samel time.
[ Remote Control Function ]
Choose the wifi switch with RF function, work with 2.4G Remote Control

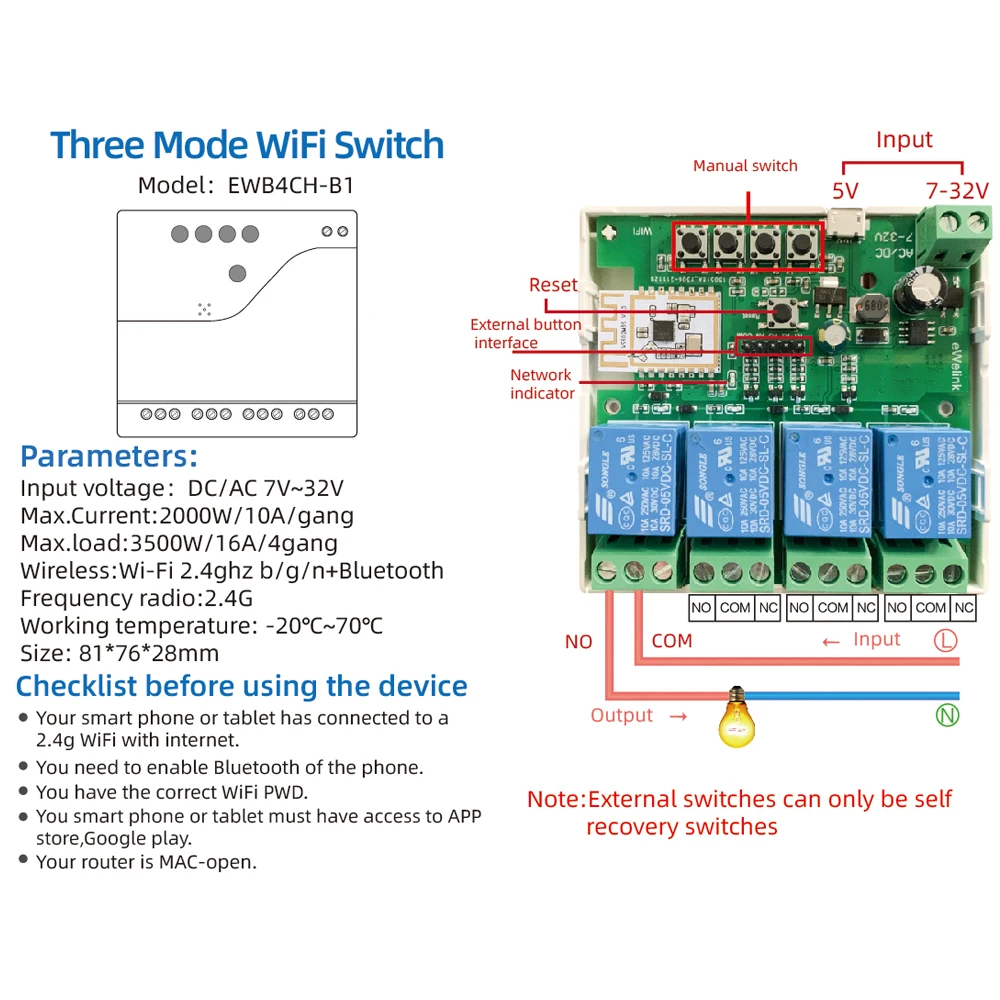

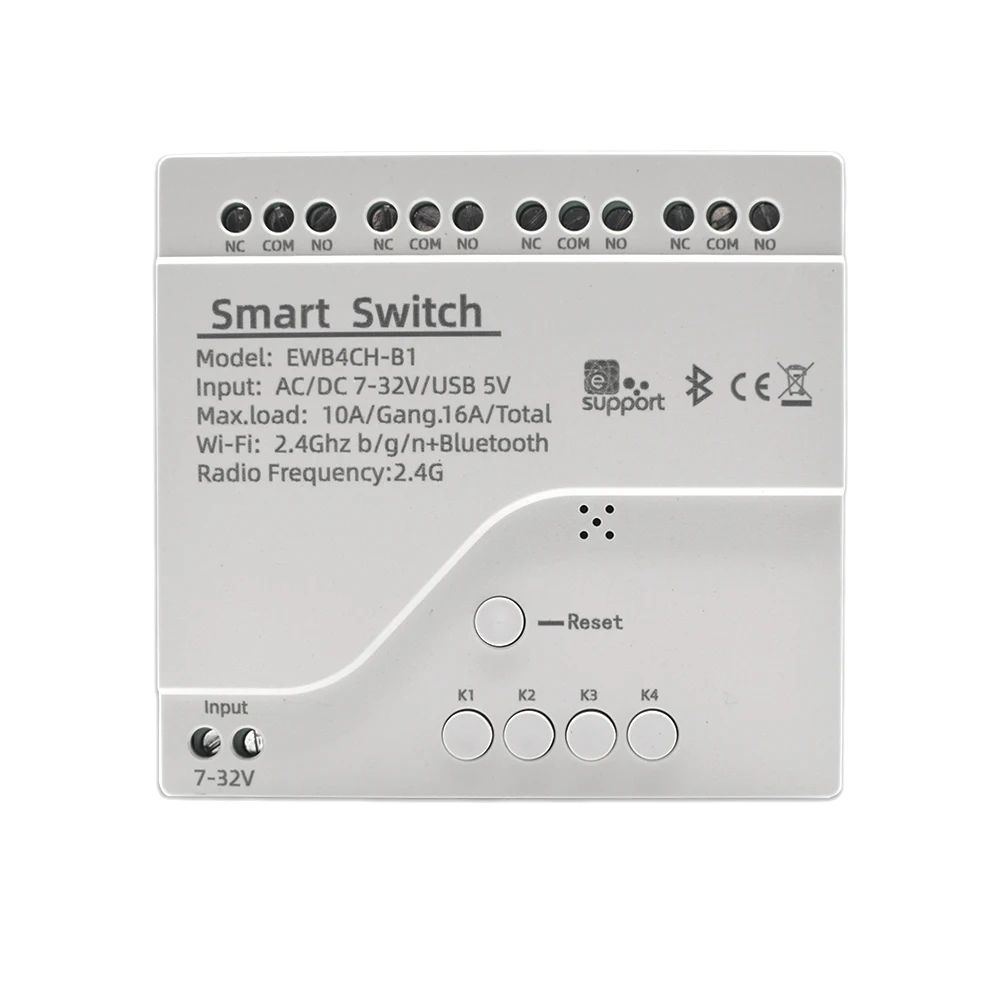

Description:
lnput voltage: USB5V DC/AC 7V~32V
Max.Current:2000W /10A/gang
Max.load:3500W / 16A/4gang
Wireless:Wi-Fi 2.4ghz b/g/ n
Frequency radio:2.4G
Working temperature: -20C~70°℃

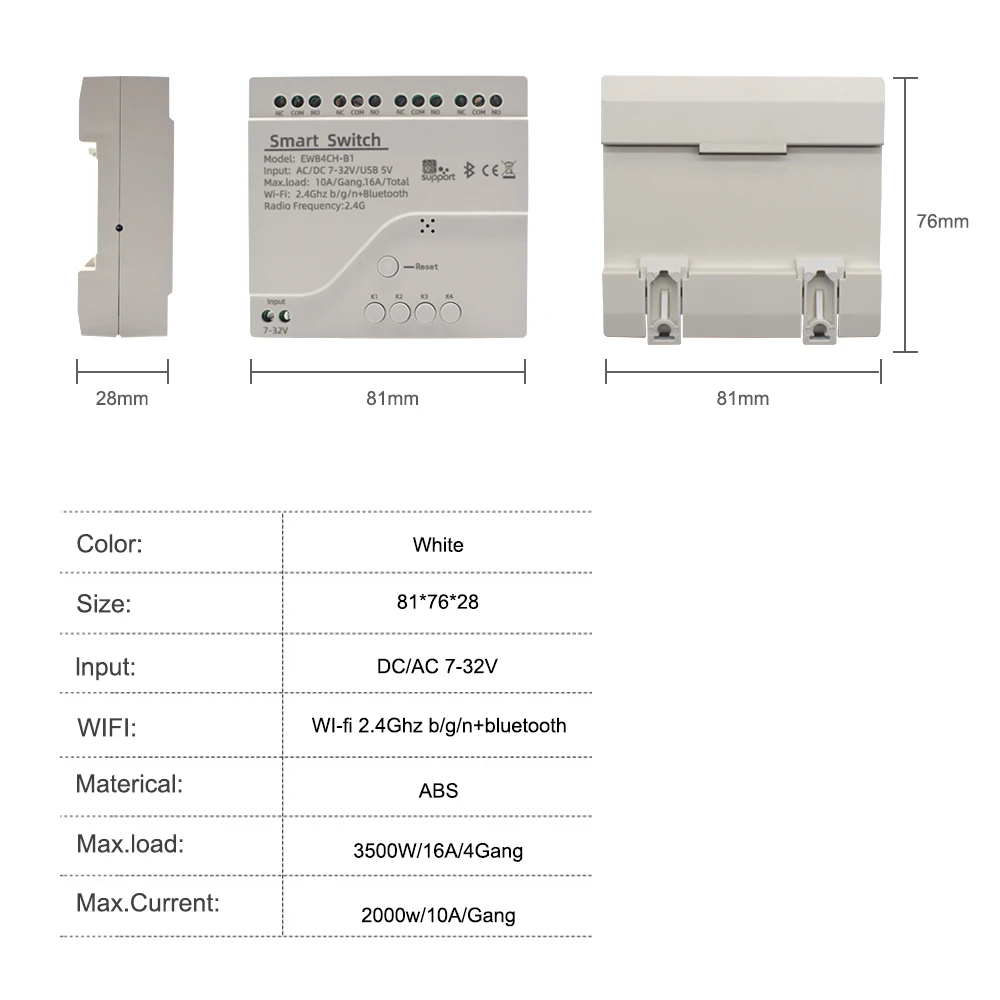

Size: 81*76*28mm
Max.Current:2000W /10A/gang
Max.load:3500W / 16A/4gang
Wireless:Wi-Fi 2.4ghz b/g/ n
Frequency radio:2.4G
Working temperature: -20C~70°℃
Size: 81*76*28mm

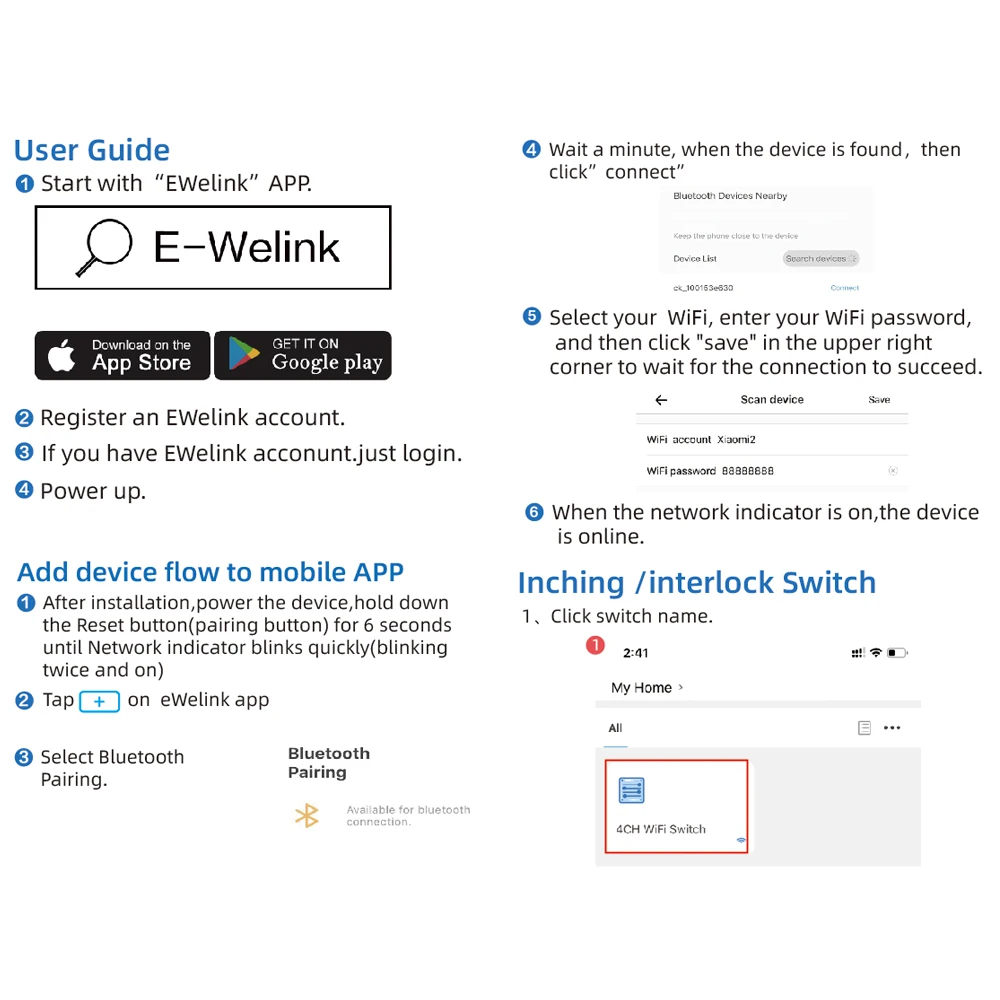

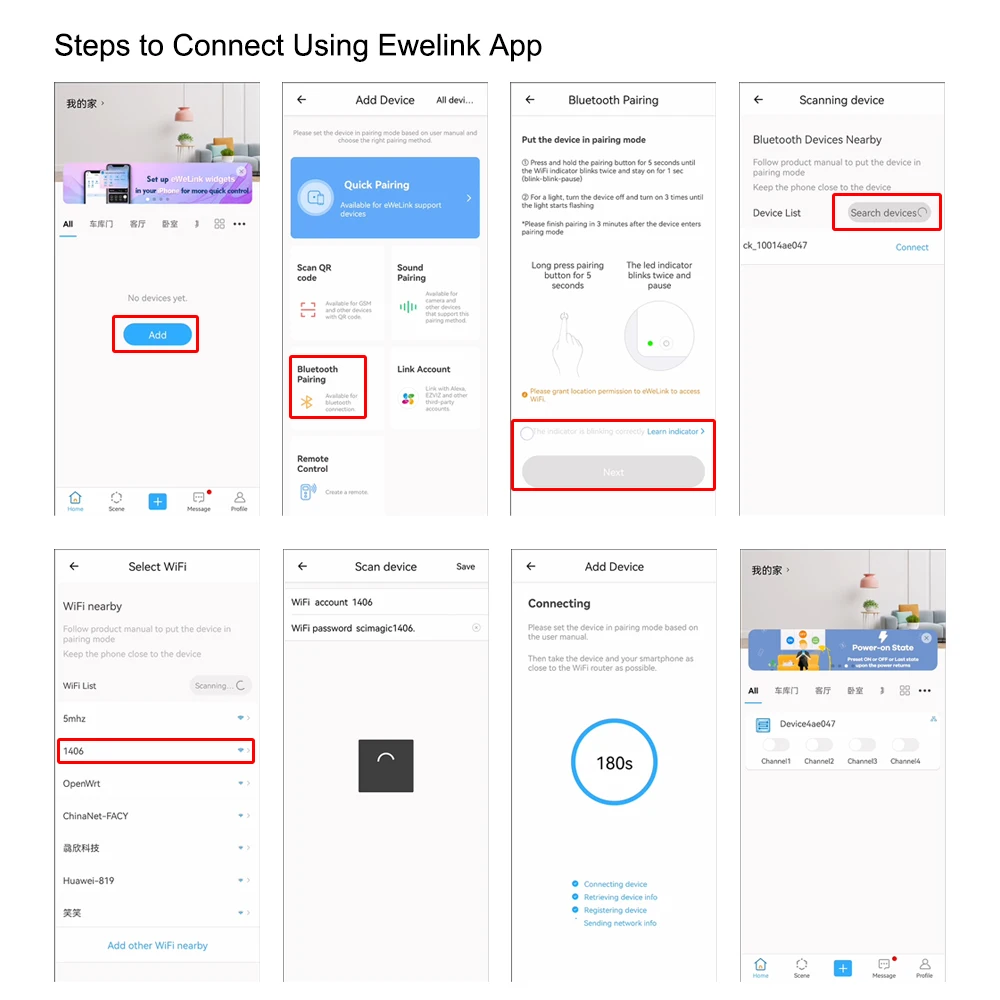

Steps to Connect Using Ewelink App

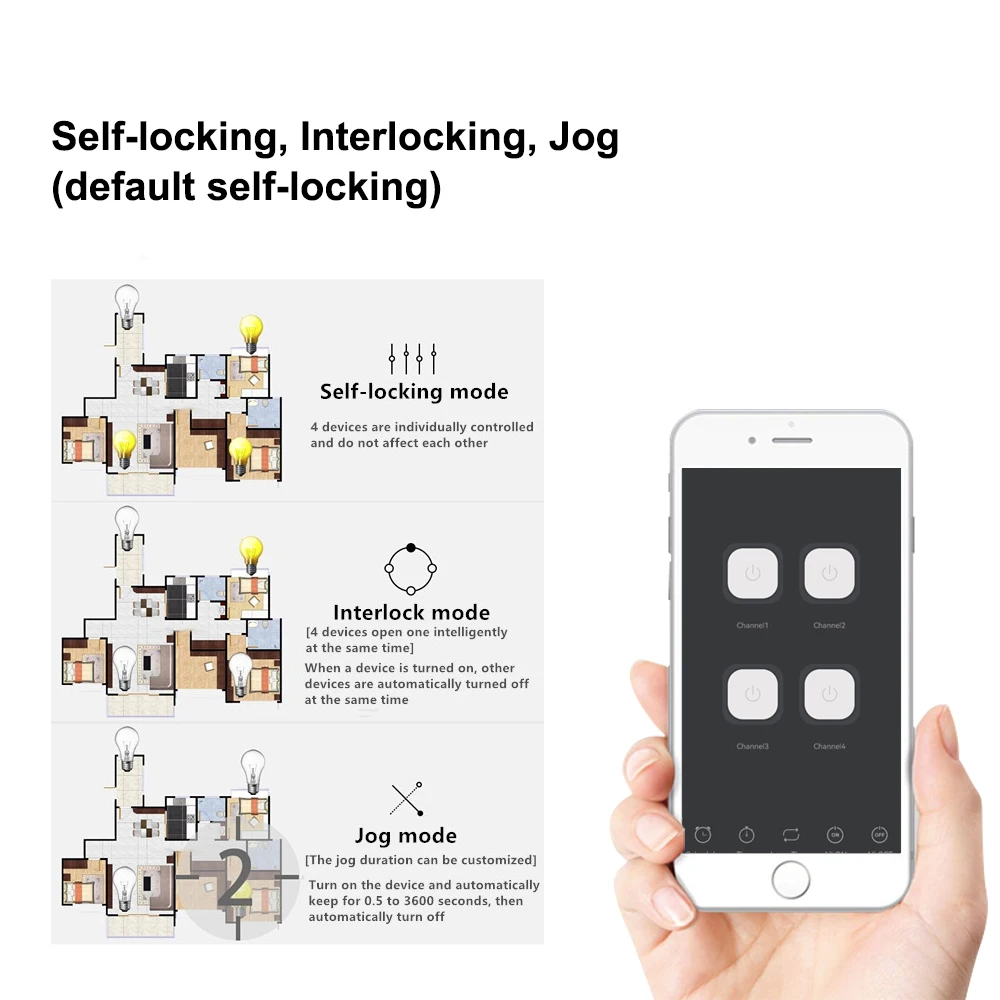

3 Working Modes

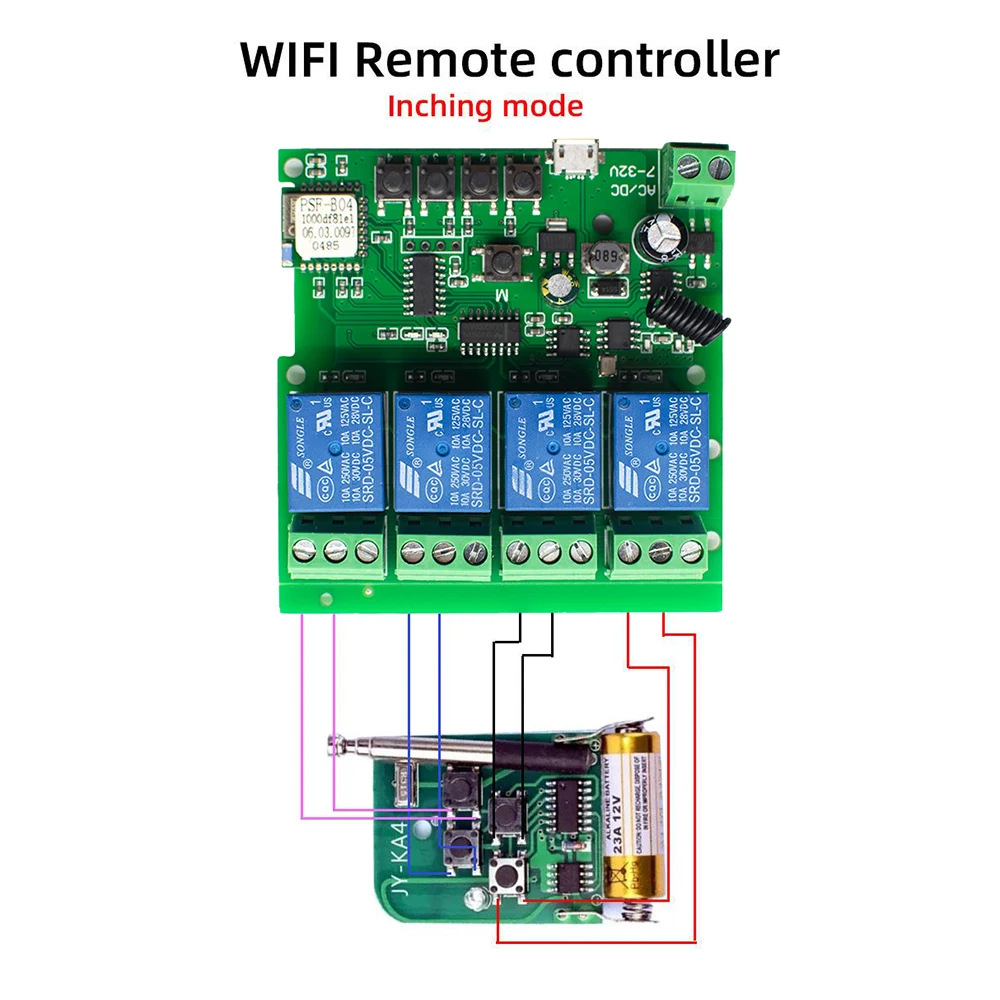

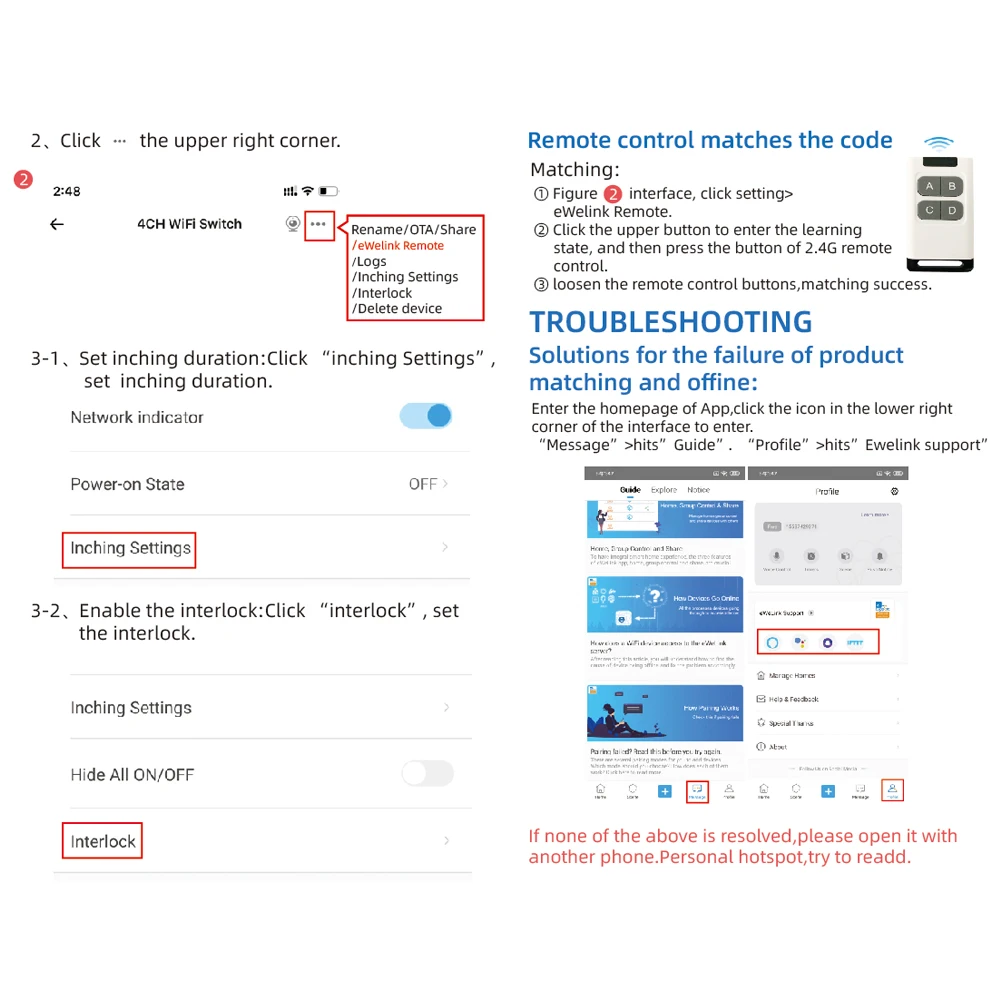

1.Inching mode : Switch on channel 1,channel 1 will be automatically closed after 1 seconds . The inching time can set in the APP
Other channel is same to the channel 1 . you can also change the inching time on the APP and need enter into the self-lock or
interlock mode
2.Self-locking : each channel could be switched on/off seperately .
3.Interlocking mode : Switch on any channel , other channels will be switched off automatically .
If you need to change the mode,you need to press the mode button
Other channel is same to the channel 1 . you can also change the inching time on the APP and need enter into the self-lock or
interlock mode
2.Self-locking : each channel could be switched on/off seperately .
3.Interlocking mode : Switch on any channel , other channels will be switched off automatically .
If you need to change the mode,you need to press the mode button

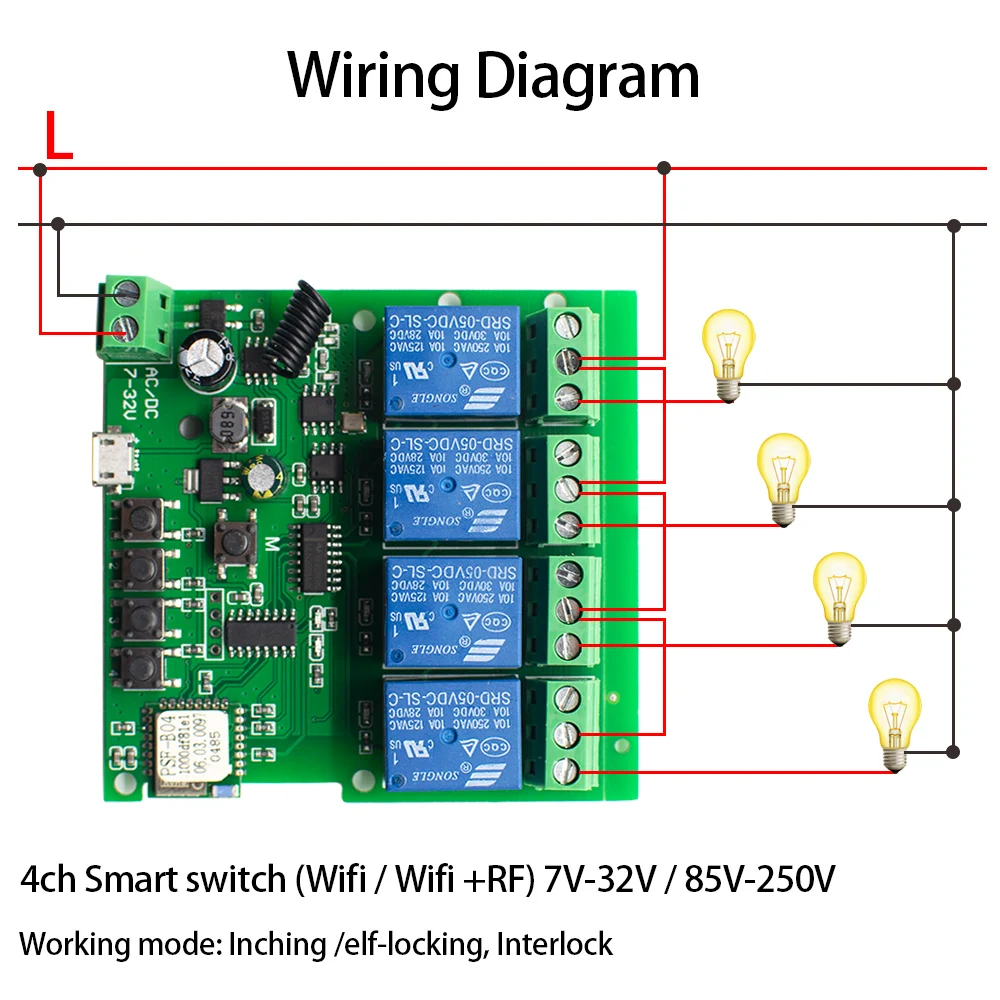

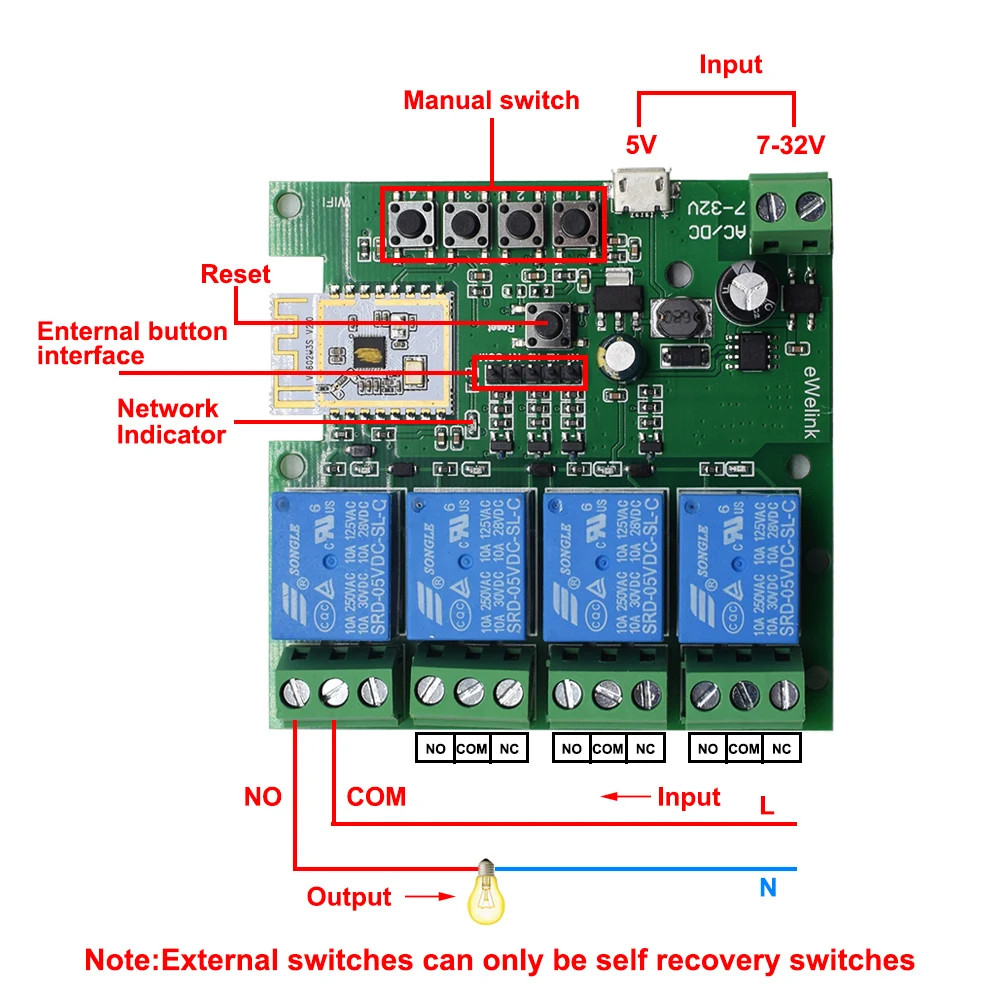

Common wiring methods
User's manual

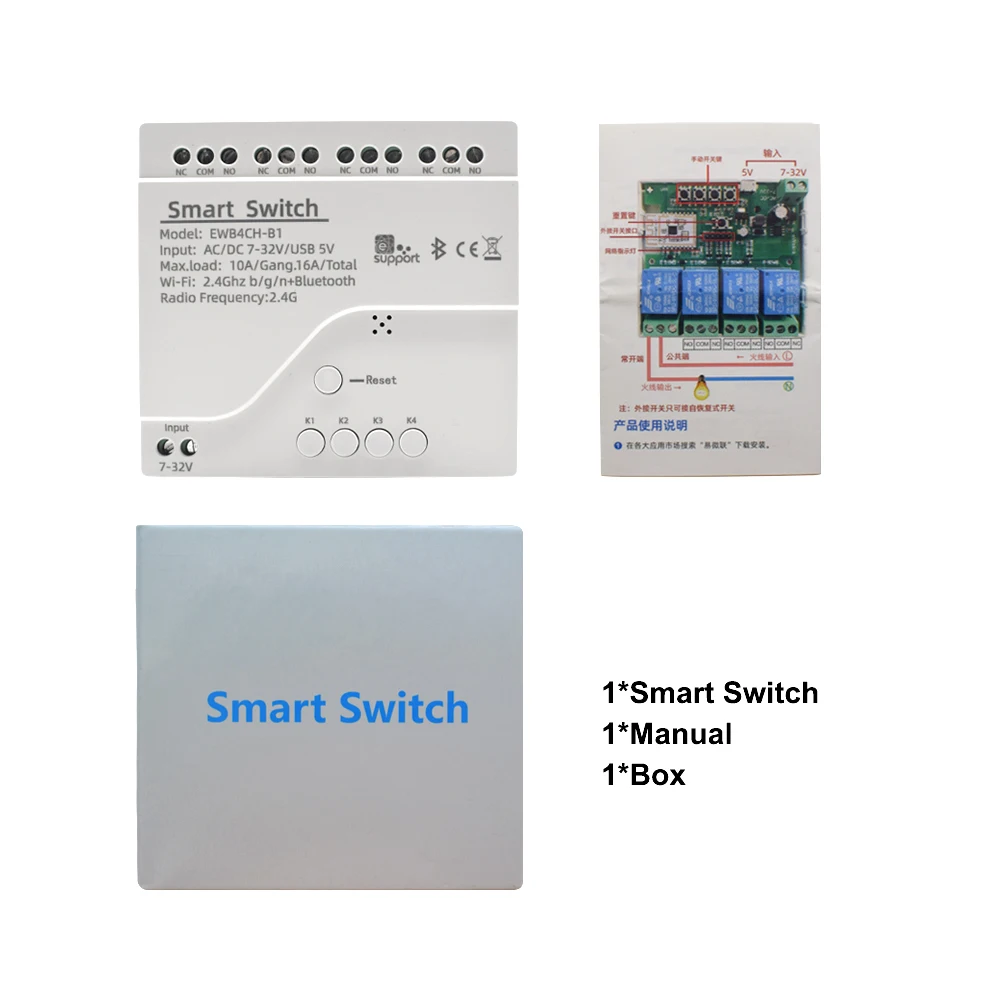

Package list :
1*Smart Switch
1 *Manual
1*Box
1 *Manual
1*Box
