High Productivity Skid Steer Mini Loader Bucket Skid Steer Loader

High Productivity Skid Steer Mini Loader Bucket Skid Steer Loader

Category: Other Farm Machines >>>
Supplier: Taian,Hysoon,Machinery,Co.,Ltd.

Price:$7,200.00 - $7,500.00

Price in USD:Details

Quantity:

Product Overview

Description

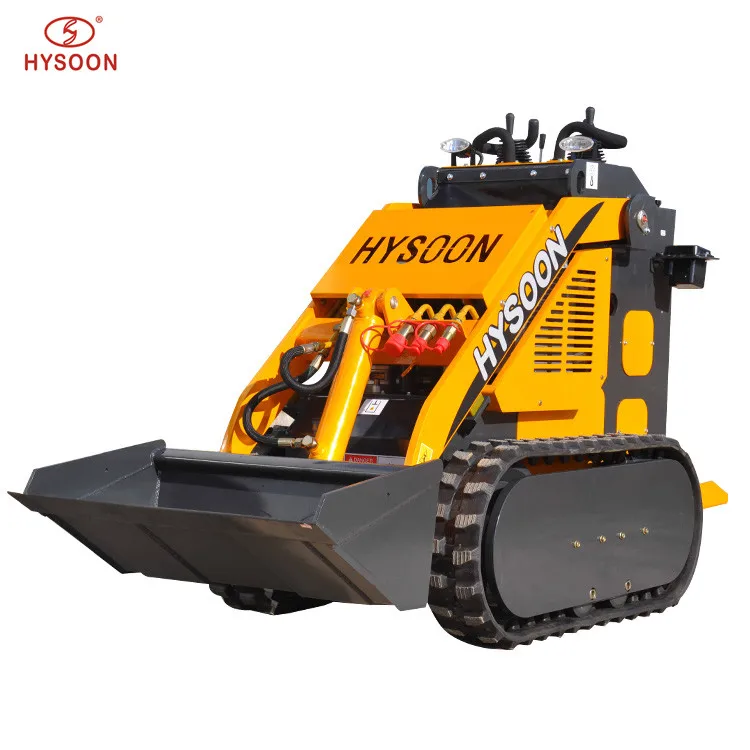

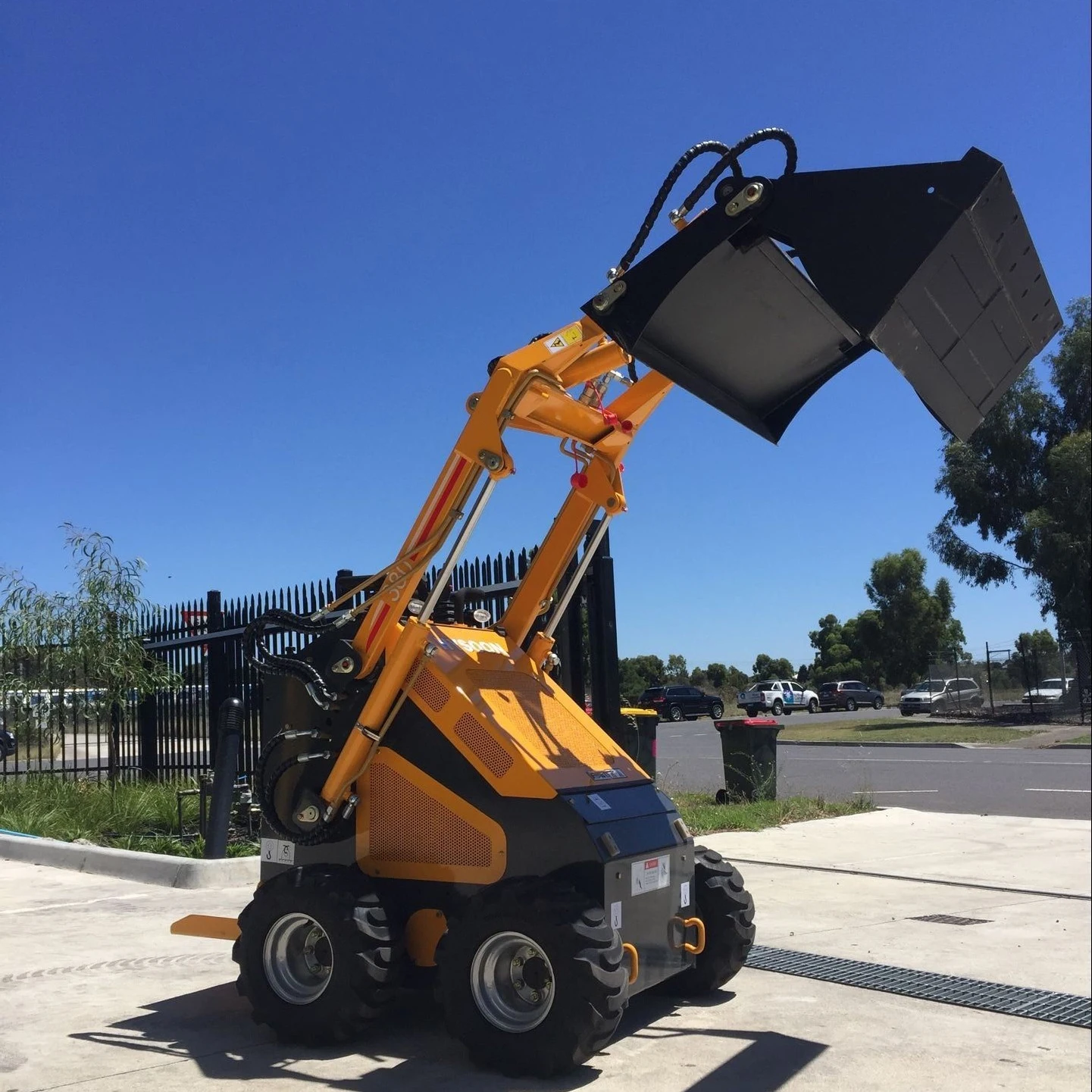

High Productivity Skid Steer Mini Loader Bucket Skid Steer Loader

Item	High Productivity Skid Steer Mini Loader Bucket Skid Steer Loader
	Wheel Type			Track Type
Max working height(A)	2143 mm			2128 mm
Max pin height (B)	1884 mm			1869 mm
Max dump height(C)	1488 mm			1473 mm
The highest point discharge distance(D)	348 mm			399 mm
Total height (H)	1233 mm			1218 mm
The height from the ground(F)	118 mm			105mm
Wheelbase (G)	636 mm			612mm
No bucket length(J)	1752 mm			1752 mm
Total width (W)	1160 mm			1060 mm
Bucket width (K)	980 mm			980 mm
Total length(L)(with bucket)	2206 mm			2206 mm
Turning radius (R)	1307 mm			1317 mm
Bucket swing angle(β)	55°			55°
Bucket unloading angle(γ)	30°			30°
Opening-closing angle(θ)	25°			25°
Angle of departure(α)	11°			10°
Engine	Rated Power (KW)	17.15KW
	Rotating Speed	3600rpm
	Noise(Dd)	≤95
Hydraulic System	Pressure	17Mpa
	Working Time(s)
	Raise	4.27
	Dump	1.34
	Lower	3.31
Performance parameters	Operating Load	200kg
	Bucket Capacity	0.15m³
	Max Lifting Force	375kg
	Travel Speed	0-5.5km/h
	Operating Weight	890kg
	Normal		Optional Item
Engine	American Briggs&Stratton gasoline engine 23HP.		Kohler gasoline engine 23.5hp
Pump	Chinese gear pump, double pump.		Chinese Triple pump; Italian servo pump(joystick)
Valve	Italian double valve.		Italian triple valve. Optional
Operating Handle:	double hydraulic mechanical handles.		one servo handle & one mechanical handle
Moving way:	wheel type with engineering tires.		wheel type with solid tires; rubber track type
Attachment:	Original with a standard bucket.		various attachments.

1. Easy controlled attachment joint and quick hitch plate, High Productivity Skid Steer Mini Loader Bucket Skid Steer Loader can change attachments quickly and easily.

2. Folding pedal designed, driver can stand up the pedal or walk behind to operate machine.

3. Clear instrument panel sign, operating conveniently.
4. Joystick handle optional, operating more comfortable.

5. International warranty engine, enjoy local 3 years free engine maintenance.

6. Wheel type and track type of High Productivity Skid Steer Mini Loader Bucket Skid Steer Loader can be chosen.

7.High Productivity Skid Steer Mini Loader Bucket Skid Steer Loader with skid steer attachments is a easier maintenance machinery,upper cover and back guard plate can be easily opened and dismounted ,you also can easily discharge the wasted egine oil outside the body, replace the spare parts easily ,like filte,engine ooil, oi filter, spark plug and so on.

·High Productivity Skid Steer Mini Loader Bucket Skid Steer Loader can for various function. High Productivity Skid Steer Mini Loader Bucket Skid Steer Loader can attach different attachments, such as bucket, digger, auger, backhoe, hydraulic breaker, pallet forks, angle broom, sweeper,lawn mower, snow blower, stump grinder, tree spade, 4 in 1 bucket, leveler, dumping hopper, ripper, grapple , tiller, mixer, stone bucket, trailer, snow blade and so on, thus ensuring there is a tool for every job you can possibly imagine. If you can think of a job for the skid steer loader, chances are there is an attachment specific to that task.

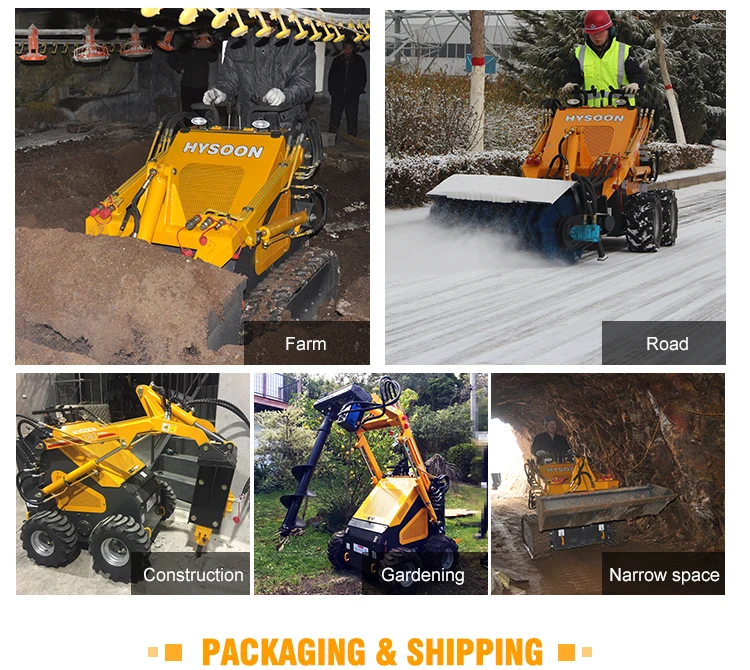

·High Productivity Skid Steer Mini Loader Bucket Skid Steer Loader can be used in gardening, landscaping, road, farm, construction, meet different jobs.
