Factory direct sales12.8V 45Ah Portable Home Lithium Storage Battery USB Interface 220V Socket
- Category: >>>
- Supplier: Shenzhen Jinghongtai Technology Limited Company
Share on (1600718513023):
Product Overview
Description
Specification
Model | JHOTA-T285 | |
Battery Energy | 576Wh | |
Battery Type | LiFePO4 | |
Battery Capacity | 45Ah | |
Weight | 9.5kg | |
Dimension L× D× H | 400*290*250mm | |
Battery Rated Voltage | 12.8V | |
Overcharge protection voltage | 14.6V | |
Overdischarge protection voltage | 9.2V | |
Maximum Charging Current | 10A | |
Maximum Discharging Current | 50A | |
DOD | 80% | |
Designed Life-span | 3000 | |
PV CHARGE | ||
Solar Charge Type | PWM | |
Maximum Output Power | ≤180W | |
PV Charging Current Range | ≤10A | |
PV Operating Voltage | 18V | |
CHARGER | ||
Charging voltage | 14.6V | |
Maximum continuous charge current | ≤10A | |
PV input/Charger input socket | Aviation socket GX16 | |
BATTERY INVERTER | ||
Output waveform | pure sine wave | |
DC input voltage | 9V-15V | |
AC output voltage | 220V | |
Rated Output Power | 500w | |
Maximum Peak Power | 1000W | |
Frequency | 50Hz | |
No-load current | 150MA | |
Protection function | Overload, short circuit, undervoltage, high voltage, over temperature | |
Over temperature protection | 60℃-70℃ | |
Low voltage cutoff | 9V | |
High voltage cutoff | 15V | |
SOCKET SPECIFICATION | ||
5521 DC output | 12V 10A (4 pieces) | |
USB DC output | 5V 3A (4 pieces) | |
Universal AC output | 500W(2 pieces) | |
PV input(18V)/Charger input | 10A(1 piece) | |
GENERAL DATA | ||
Storage time / temperature | 6 months @25℃;3 months @35℃;1 months @45℃; | |
Charging temperature range | 0~55℃ | |
Discharging temperature range | -10~55℃ | |
Operation Humidity | 5% ~85℃ | |
Cooling Mode | Air Cooling | |
Noise | 60dB (A) | |
Recommended Operation Environment | Indoor | |
Installation Method | Horizontal | |
Product Description

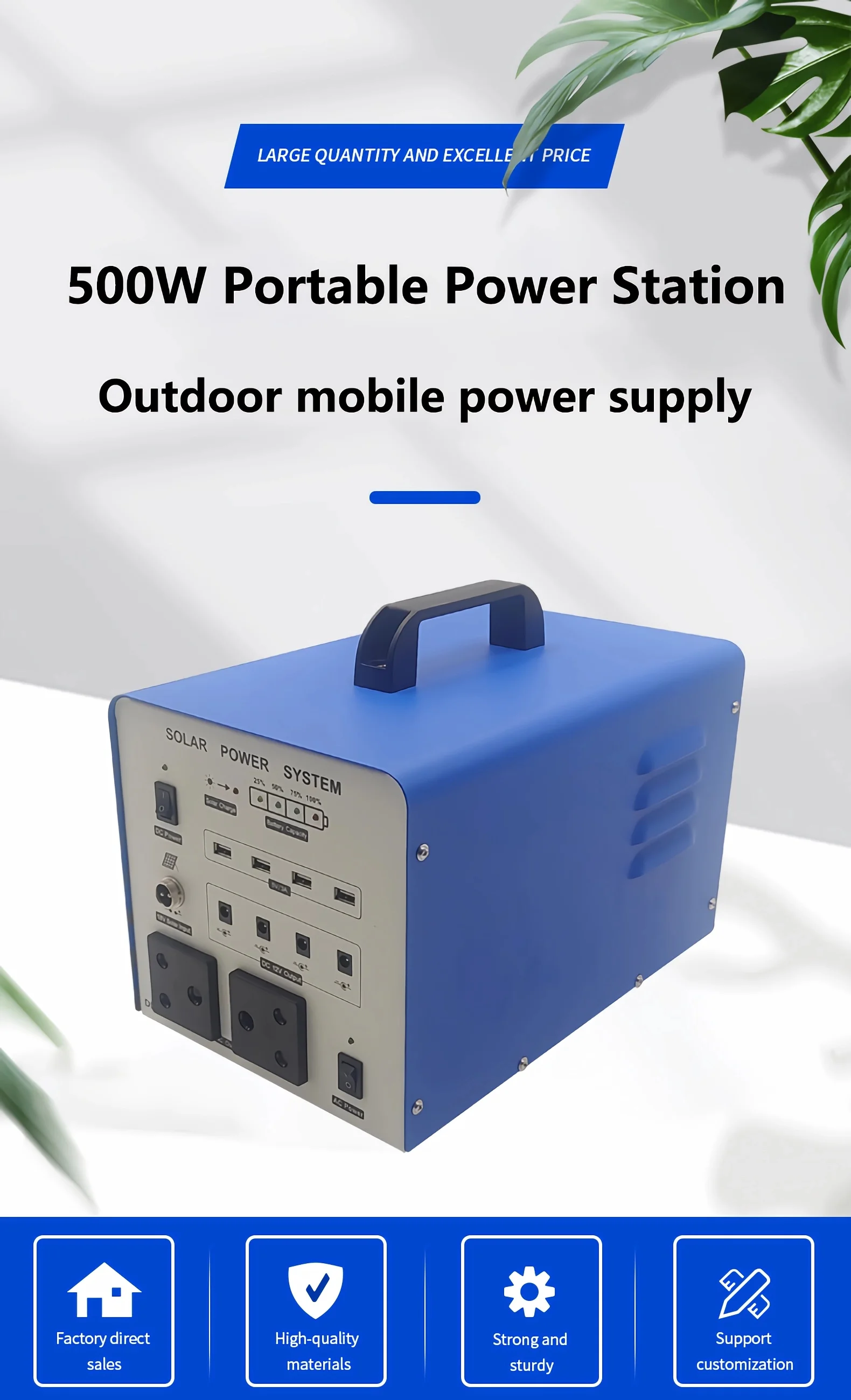

Latest New Design Short time delivery with UPS Function 576Wh Portable Power Station |
Appliciation
Details Images

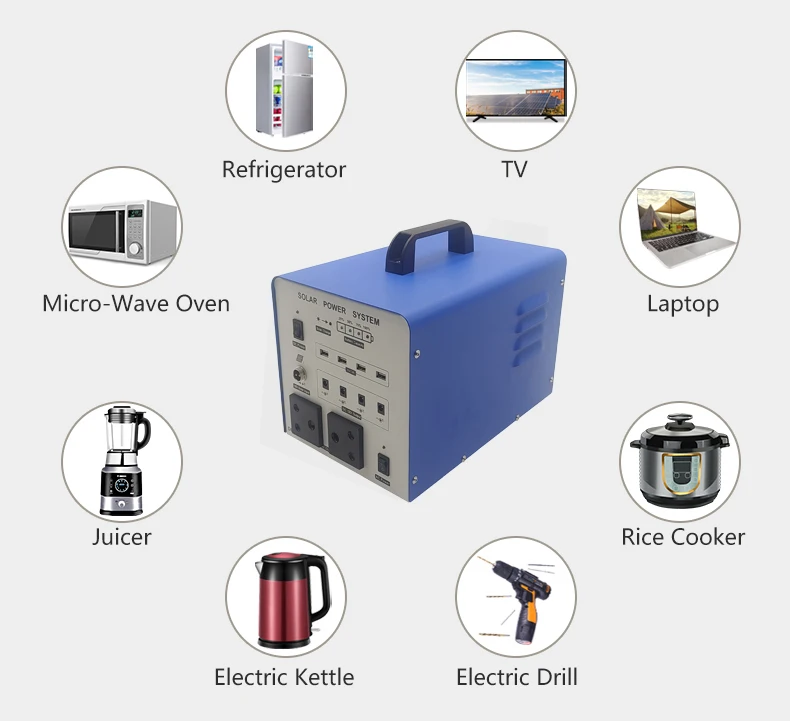

Compatible with multiple devices
Handle
Our Factory
Our Company
Front desk
Development history
Group photo
Cell warehouse
Workshop
Warehouse
Spot welding
Certificate
Packing&Shipping
FAQ
Q: How should I pay? What modes of payment do you accept?
A: T/T, Paypal, Western Union & Trading Assurance acceptable.
Q: Is sample order acceptable?
A: Yes, for most of the batteries, sample orders for testing quality is reasonable and acceptable.
Q: Is your battery quality approved?
A: Yes, we guarantee that all cells are 100% original from Panasonic, Samsung, LG and Sony. And we will have full inspection of each cells and grouping them before assembling into battery packs. And all finished battery packs will be under a full inspection before shipment
Q: How can you prove that your cells are 100% original?
A: We can show you the original pack list and other related documents.
Q: what is your lead time if I placed an order?
A: For all products in stock, our lead time is within 2 working days after payment received. For thoese that we don't stock for the moment such as customized battery packs, the lead time is around 7-10 days.
Q: What is your warranty?
A: We guarantee the quality before the item is shipped. You can enjoy 30-day free refund, 4-month free replacement, and lifetime maintenance service from the date of delivery. Any damages caused by improper use are not covered by our warranty.
A: T/T, Paypal, Western Union & Trading Assurance acceptable.
Q: Is sample order acceptable?
A: Yes, for most of the batteries, sample orders for testing quality is reasonable and acceptable.
Q: Is your battery quality approved?
A: Yes, we guarantee that all cells are 100% original from Panasonic, Samsung, LG and Sony. And we will have full inspection of each cells and grouping them before assembling into battery packs. And all finished battery packs will be under a full inspection before shipment
Q: How can you prove that your cells are 100% original?
A: We can show you the original pack list and other related documents.
Q: what is your lead time if I placed an order?
A: For all products in stock, our lead time is within 2 working days after payment received. For thoese that we don't stock for the moment such as customized battery packs, the lead time is around 7-10 days.
Q: What is your warranty?
A: We guarantee the quality before the item is shipped. You can enjoy 30-day free refund, 4-month free replacement, and lifetime maintenance service from the date of delivery. Any damages caused by improper use are not covered by our warranty.
