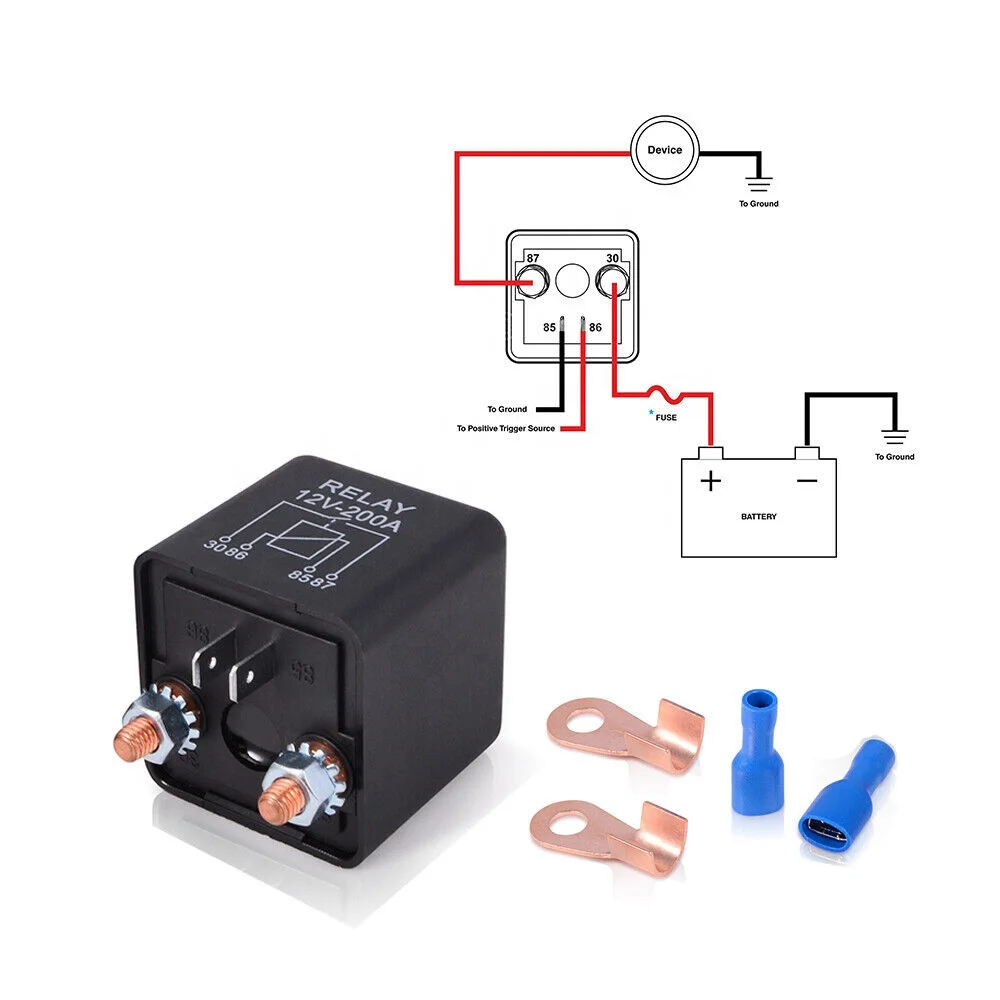

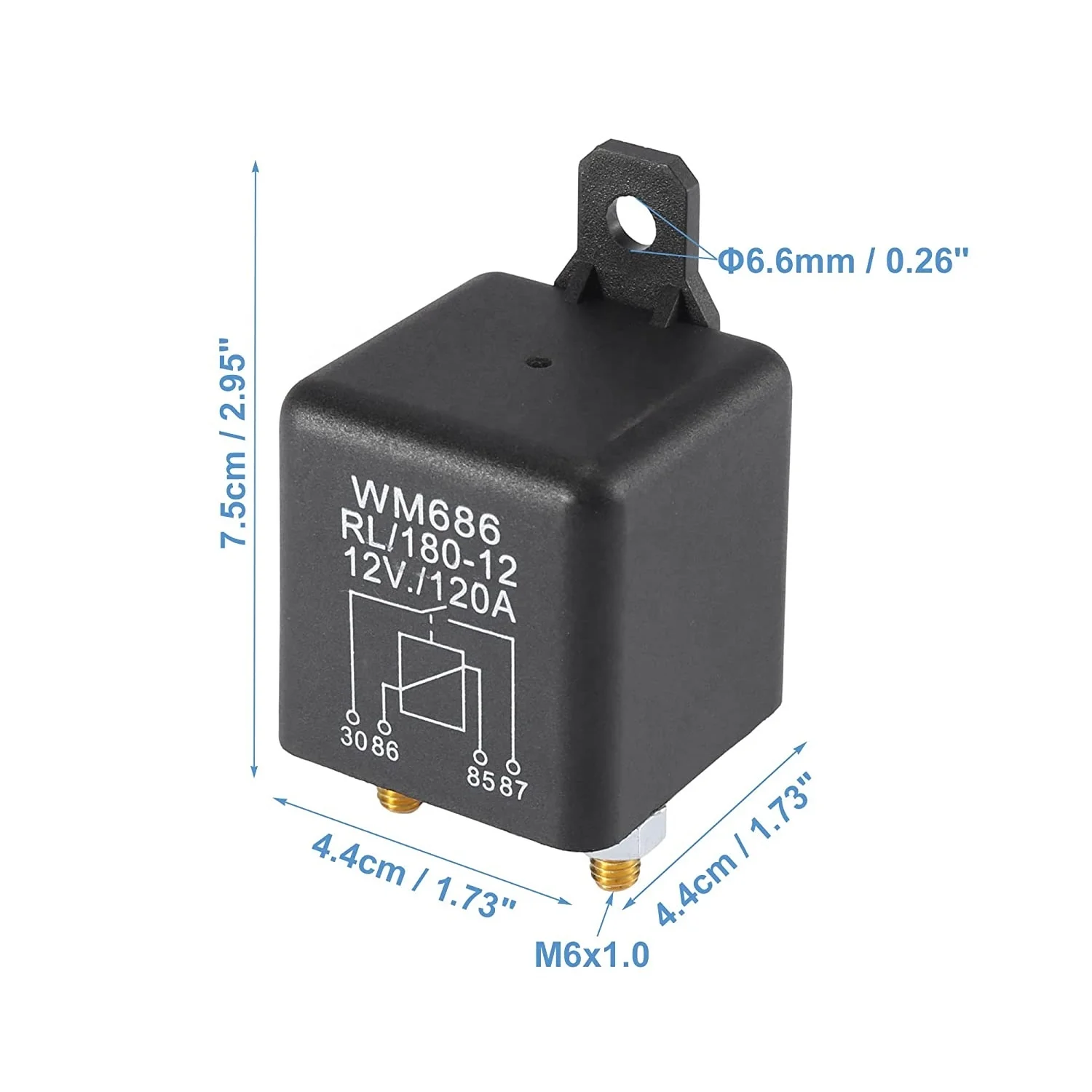

WM686 Normal Open Relays Heavy Duty Start Relay Car Truck Automotive Boat Split Charge DC12V 100A SPST Relay 4 Pin JD1912
- Category: >>>
- Supplier: Yueqing Yunxu Electric Technology Co. Ltd.
Share on (1600718568941):
Product Overview
Description
Place of Origin | China |
Brand Name | Heavy Duty Car Start Relay |
Model Number | Wm686 (RL180) |
Working Voltage | 12V/24V/36V/48V |
Nominal Current Rating | 100A/120A/200A/250A/500A |
Rated Voltage | DC12V-DC72V |
Coil Power | 2.4W-4.8W |
Contact Material | AgSnO_27 In_2O_3 3 |
Contact Ratings | NO: 120A 14VDC |
Life Expectancy Electrical | 100,000 Operations （ at 30 Operations/minute ） |
Life Expectancy Machanical | 100,000 Operations |
Temperature Range | -30 ℃～ +80 ℃ |
Humidity | 40% ～ 85% |
Weigh | 95g |

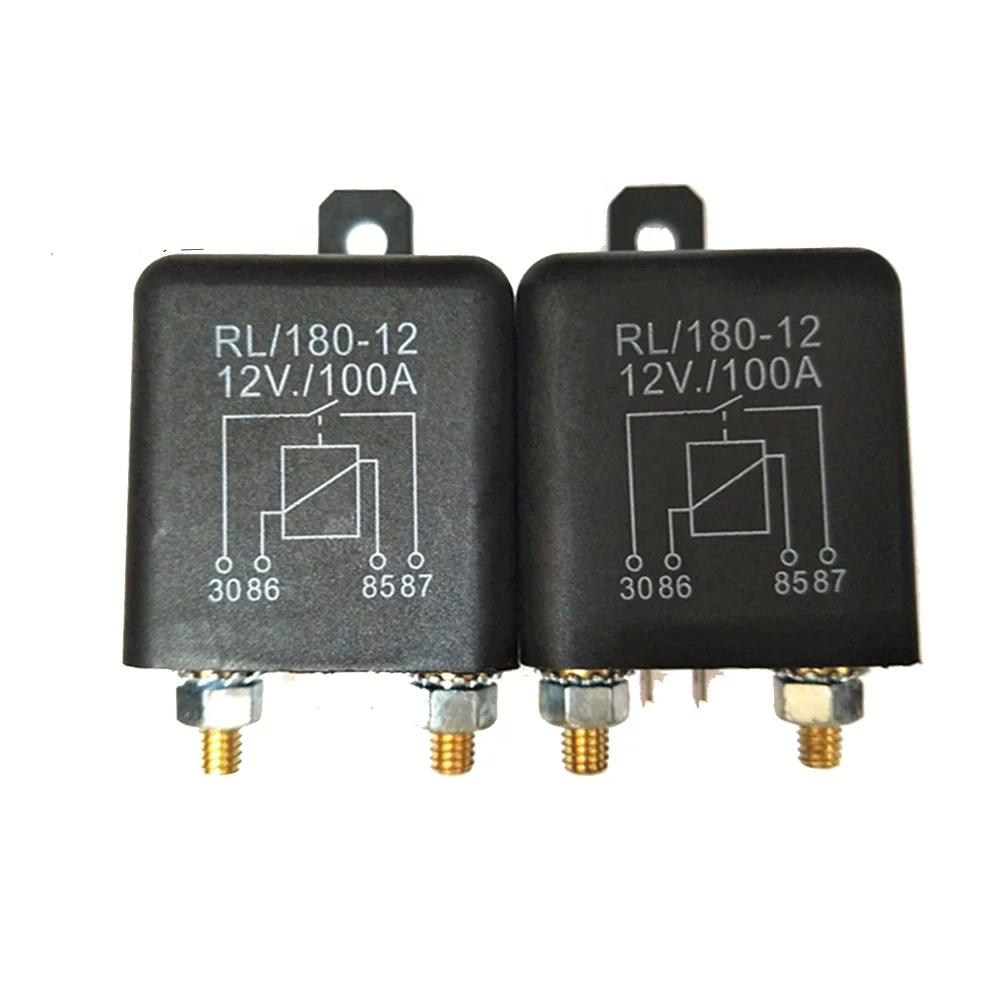

Wm686 100A 12V 24A 4 Pin Auto Relay Normally Open Heavy Duty Car Start Relay
Wm686 100A 12V 24A 4 Pin Auto Relay Normally Open Heavy Duty Car Start RelayKEY FEATURES

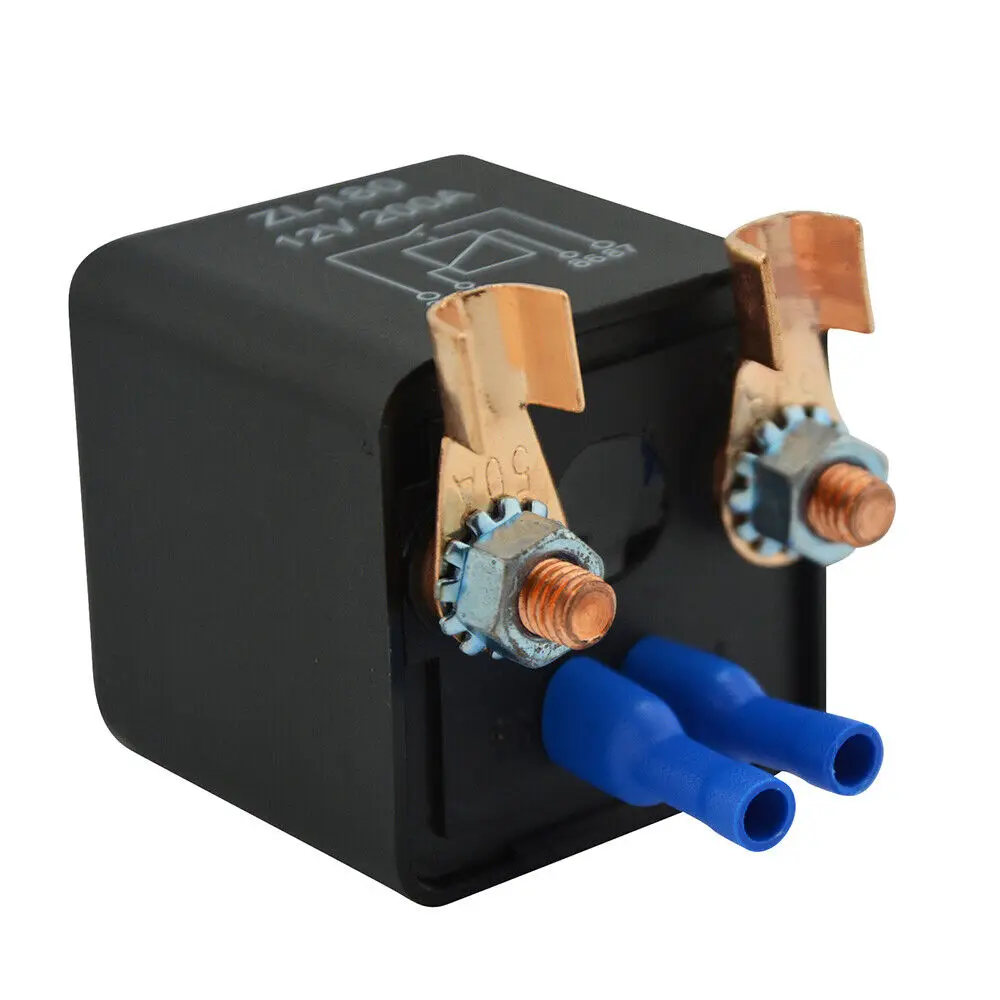

* Model: ZL180 (WM686 / RL180) SPST NO
* Nominal Current Rating:
* Nominal Current Rating:
* 100A Ith.; continuous load working current ≤ 75A
* 120A Ith.; continuous load working current ≤ 90A
* 200A Ith.; continuous load working current ≤ 150A
* Working Voltage:
* 120A Ith.; continuous load working current ≤ 90A
* 200A Ith.; continuous load working current ≤ 150A
* Working Voltage:
* 12V
* 24V
* 36V
* 48V
* Coil Consumption:
* 24V
* 36V
* 48V
* Coil Consumption:
* Intermittent work: 4.8W (utilization factor ≤ 25%), typical application: motor starter, emergency brake,
etc.
* Continuous work: 2.4W (utilization factor ≤ 50%), typical application: hydraulic pump motor control,
electric air compressor motor control, etc.
etc.
* Continuous work: 2.4W (utilization factor ≤ 50%), typical application: hydraulic pump motor control,
electric air compressor motor control, etc.
The utilization factor (or use factor) is the ratio of the time that a piece of equipment is in use to the total time that it
could be in use. In electrical engineering, utilization factor is the ratio of the maximum working time to the total time, for
example the ratio 25% means that the ZL180 can maximally work 15 minutes (continuously or in average) in one hour.
could be in use. In electrical engineering, utilization factor is the ratio of the maximum working time to the total time, for
example the ratio 25% means that the ZL180 can maximally work 15 minutes (continuously or in average) in one hour.
* Contact Resistance: ≤ 50mΩ
* Isolation Resistance: ≥ 1.0MΩ
* Electric Life: 100,000 times
* Mechanic Life: 10,000,000 times
* Electrical Isolation:
* Isolation Resistance: ≥ 1.0MΩ
* Electric Life: 100,000 times
* Mechanic Life: 10,000,000 times
* Electrical Isolation:
* Between open contacts: 2000VAC
* Between coil contacts: 1000VAC
* Between coil contacts: 1000VAC
* Working Temperature: -25°C ~ +100°C
* Product Weight: 100 g
* Product Weight: 100 g
