Harbin DaDi Ring Die Granulator for Organic Fertilizer Pellet Making Machine Granules Making Machine

Product Overview

Description

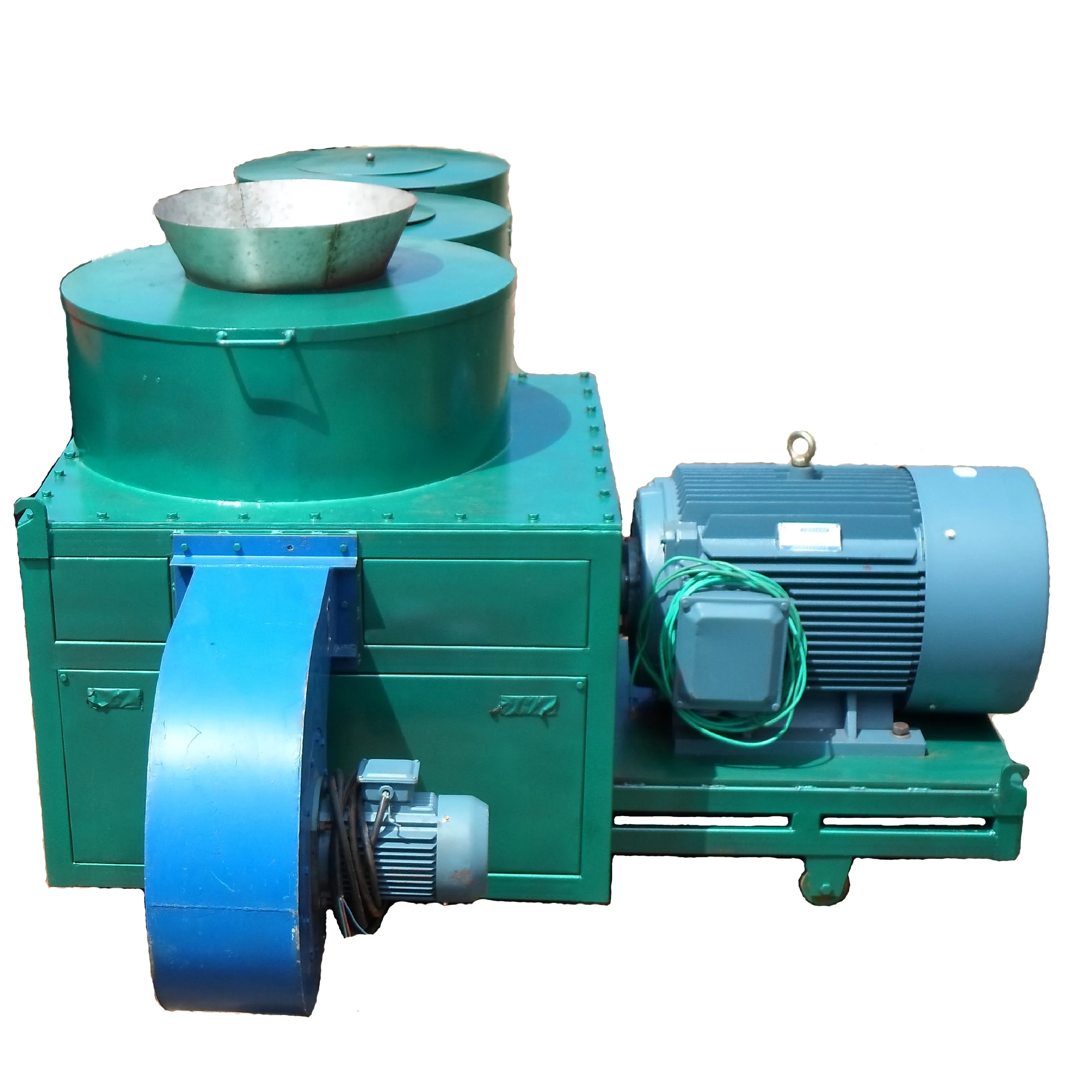

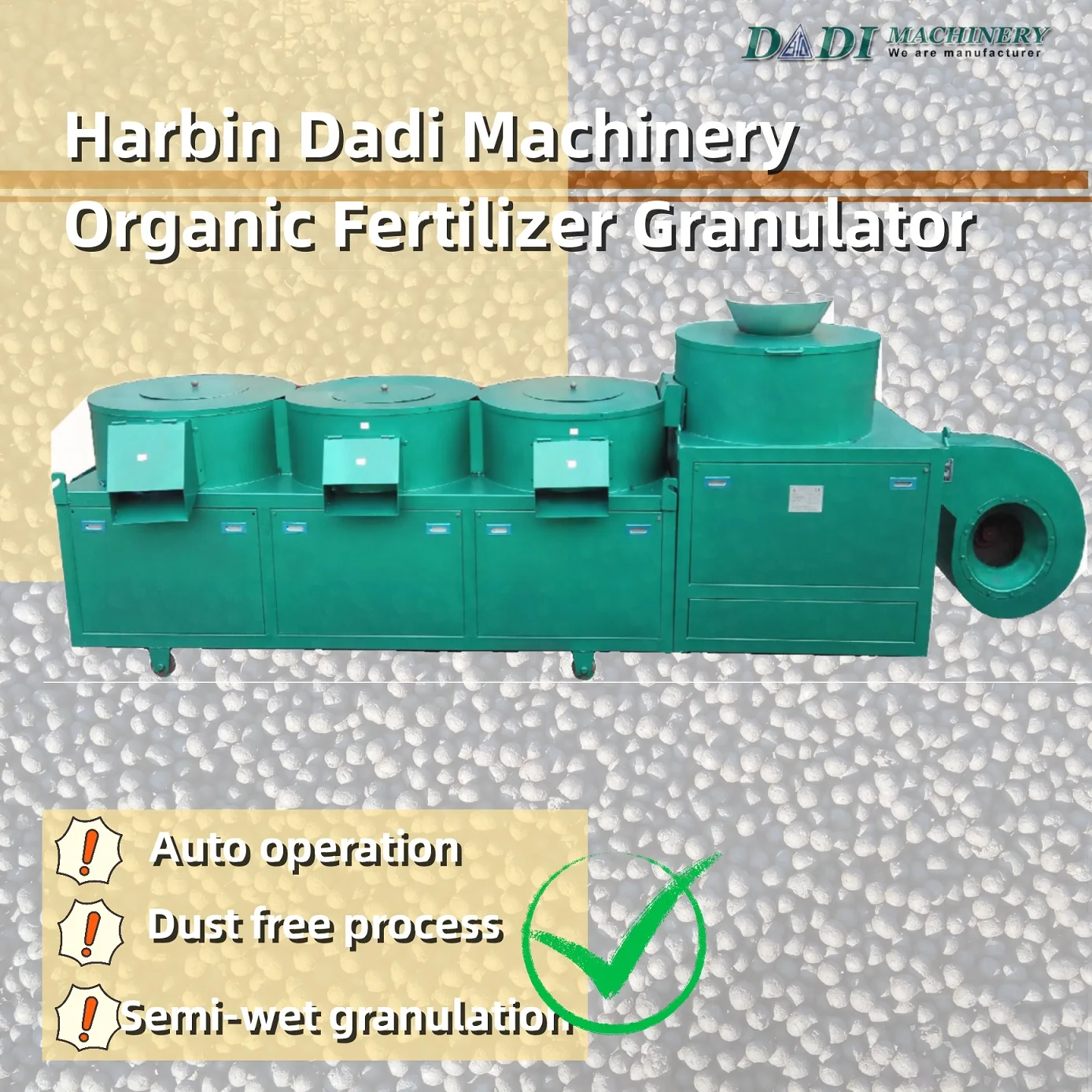

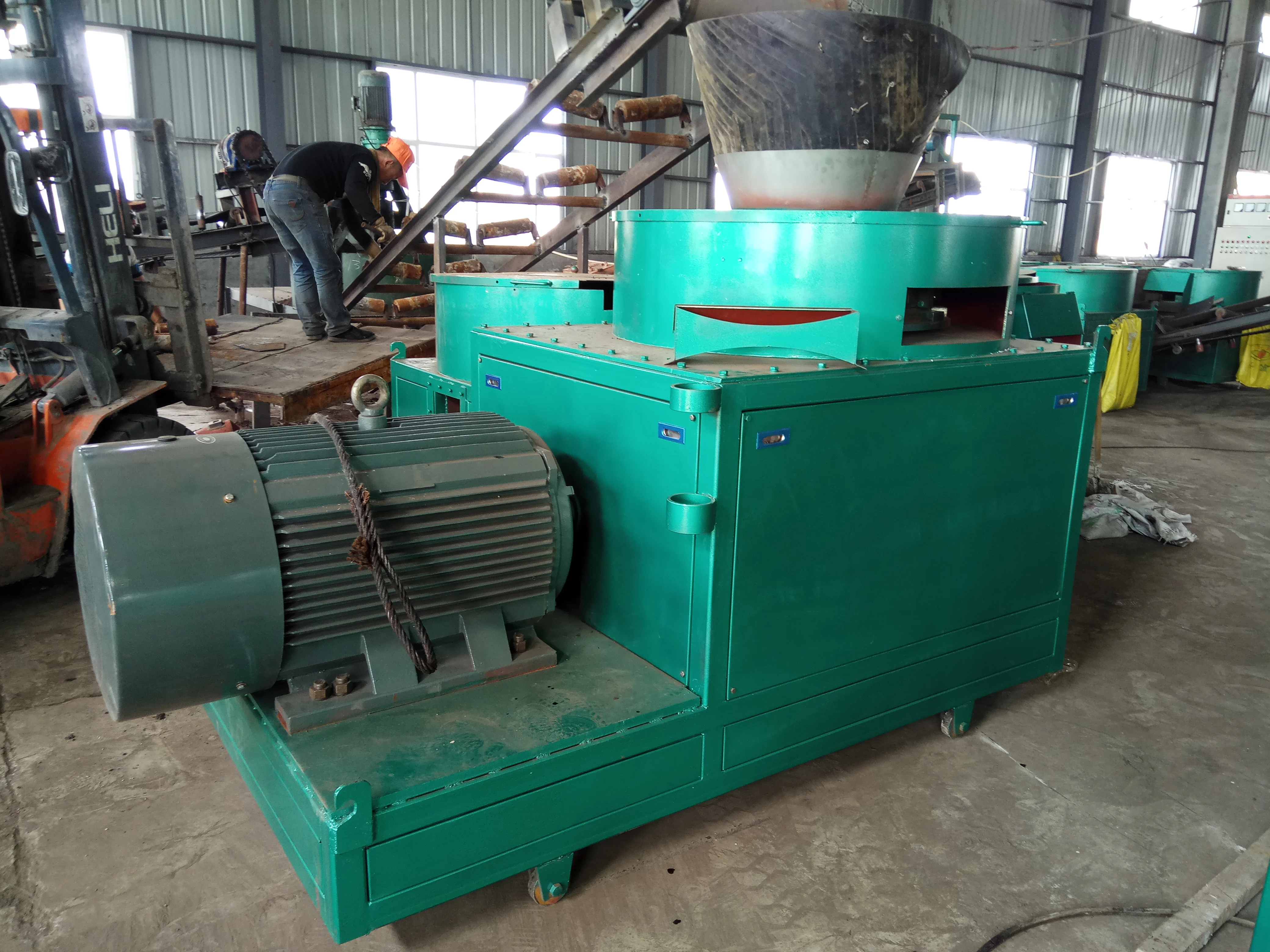

Harbin DaDi Ring Die Granulator for Organic Fertilizer Pellet Making Machine Granules Making Machine

Ring Die Type Organic Fertilizer Granulator Machine is a new improved granulation machine that specializes in making organic fertilizer granular.

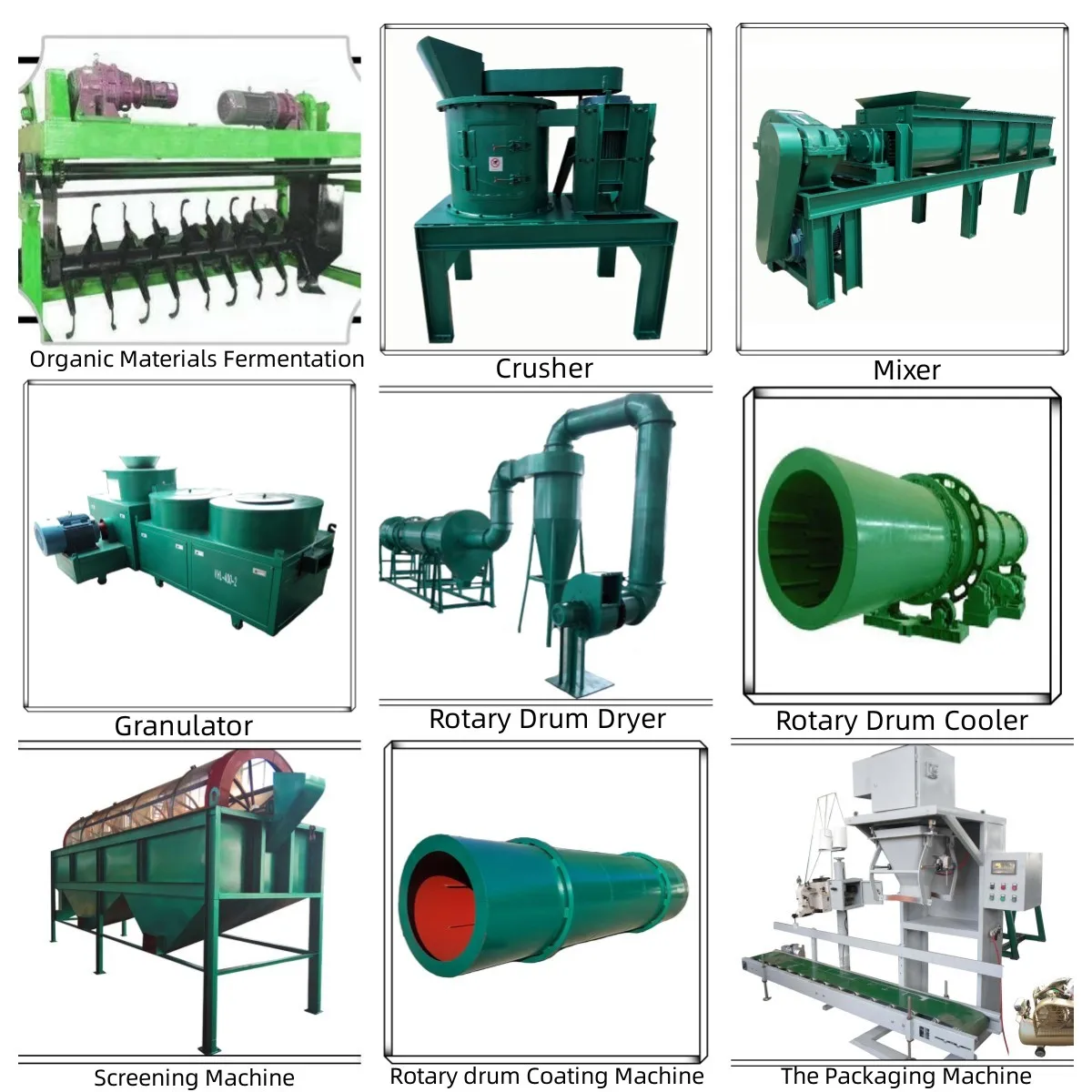

There are many kinds of organic fertilizer granulator to make organic fertilizer granules, such as Disc pan granulator, Rotary drum granulation machine, Double roller granulating machine, but Ring die system Granulator machine is becoming more and more popular. Why?

That’s because the Ring die Granulator machine has many advantages.

1) High rate of Finished product. More than 90%.

Granulation rate can reach as high as 100%, all the raw material can be made into round ball granules.

One-time production of uniform spherical granules, few returning materials.

2)  Uniform spherical granules, Narrow particle size distribution.

The diameter of granules can be controlled easily. Different sizes of granules can be produced to meet your own needs as long as you change the diameter of the ring die.

3) Good hardness, strong enough for packaging.

The granules will keep the round ball shape in the storage and transportation process, won't collapse, that's because the granulator machine has a good compressive capacity.

4) Easy operation and maintenance.

The labour do not need skill or experience. Just need to adjust the moisture content of raw material before granulation process.

5)Not need binder materials.

The organic content can reach to 100%, which is really pure organic material granulation.

6)Save energy consumption.

Not need to dry the raw material before granulating because the required moisture content is 30–35%.

Moisture content reduced during granulation process, so it can save drying cost.

7) Running stable, High efficiency, Large productivity.

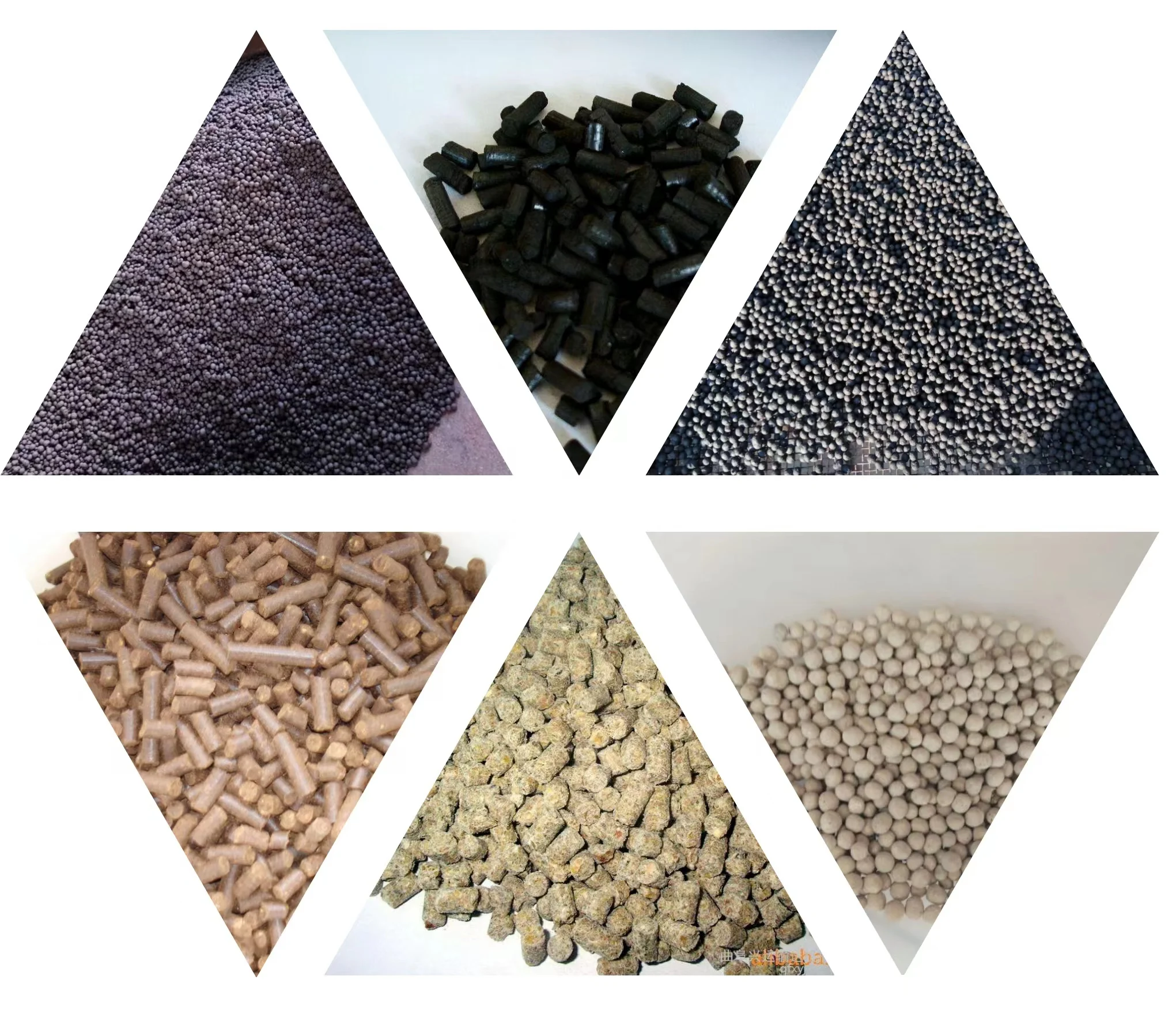

The series of granule machines can make the following raw materials into granules :

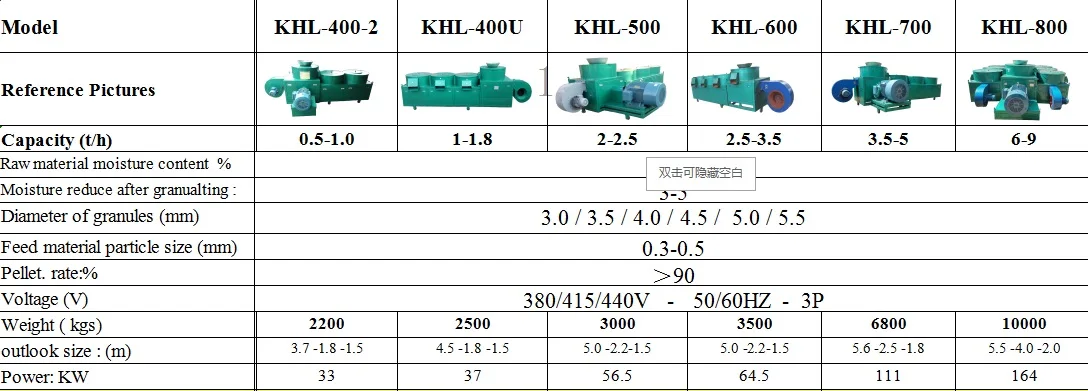

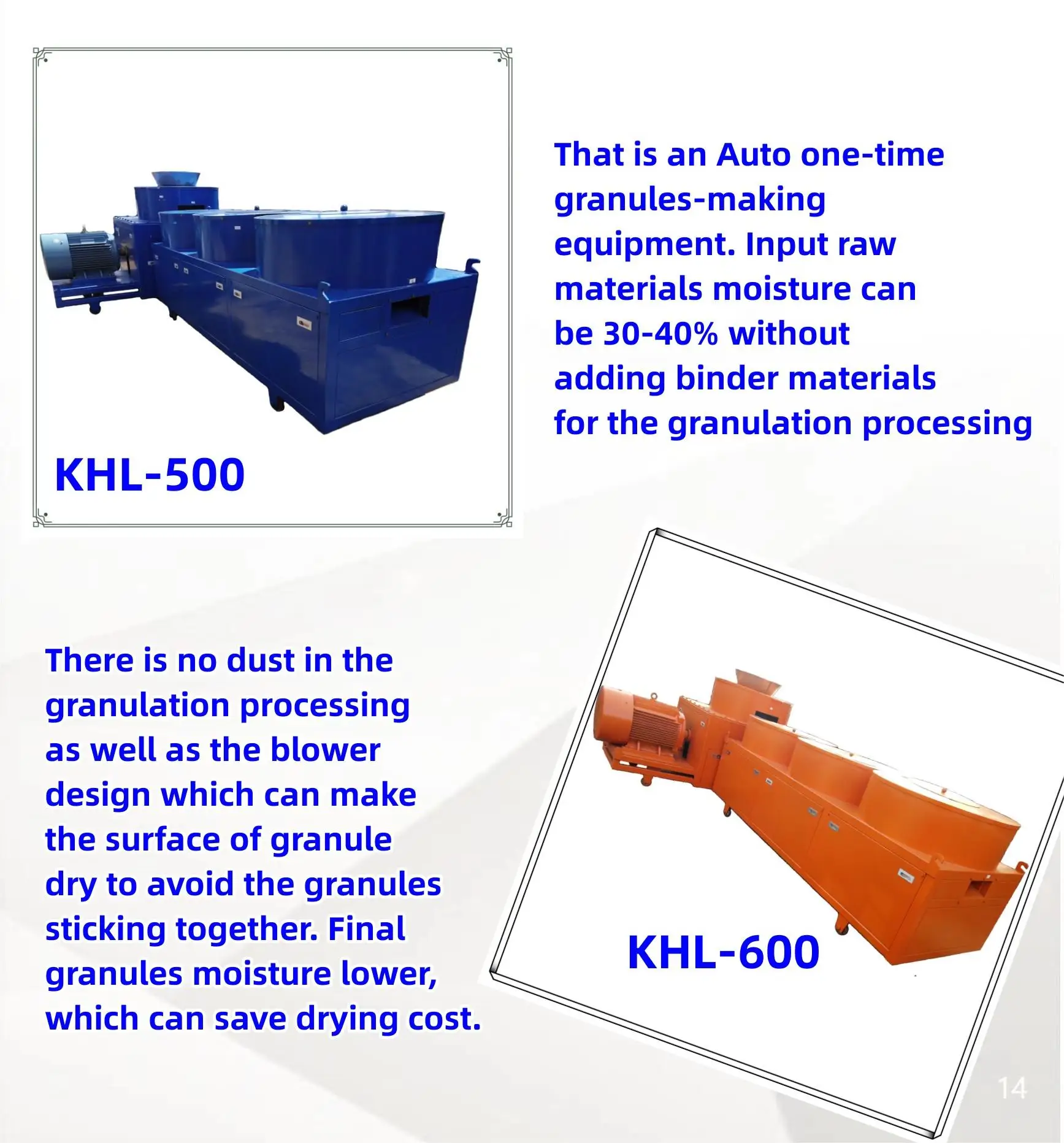

Model :	KHL-500
Capacity: T/h	2-2.5
Input moisture content required:  %	30-35
Moisture reduction after granulation: %	3
Input material particle size required: mm	0.3-0.5
Rate of finished products:%	>90
Voltage: V	380 (optional)
Granules size: mm	3.5-5.5
Power: KW	33
Total weight: Kg	300
Size: m	4.5 -1.6 -1.4

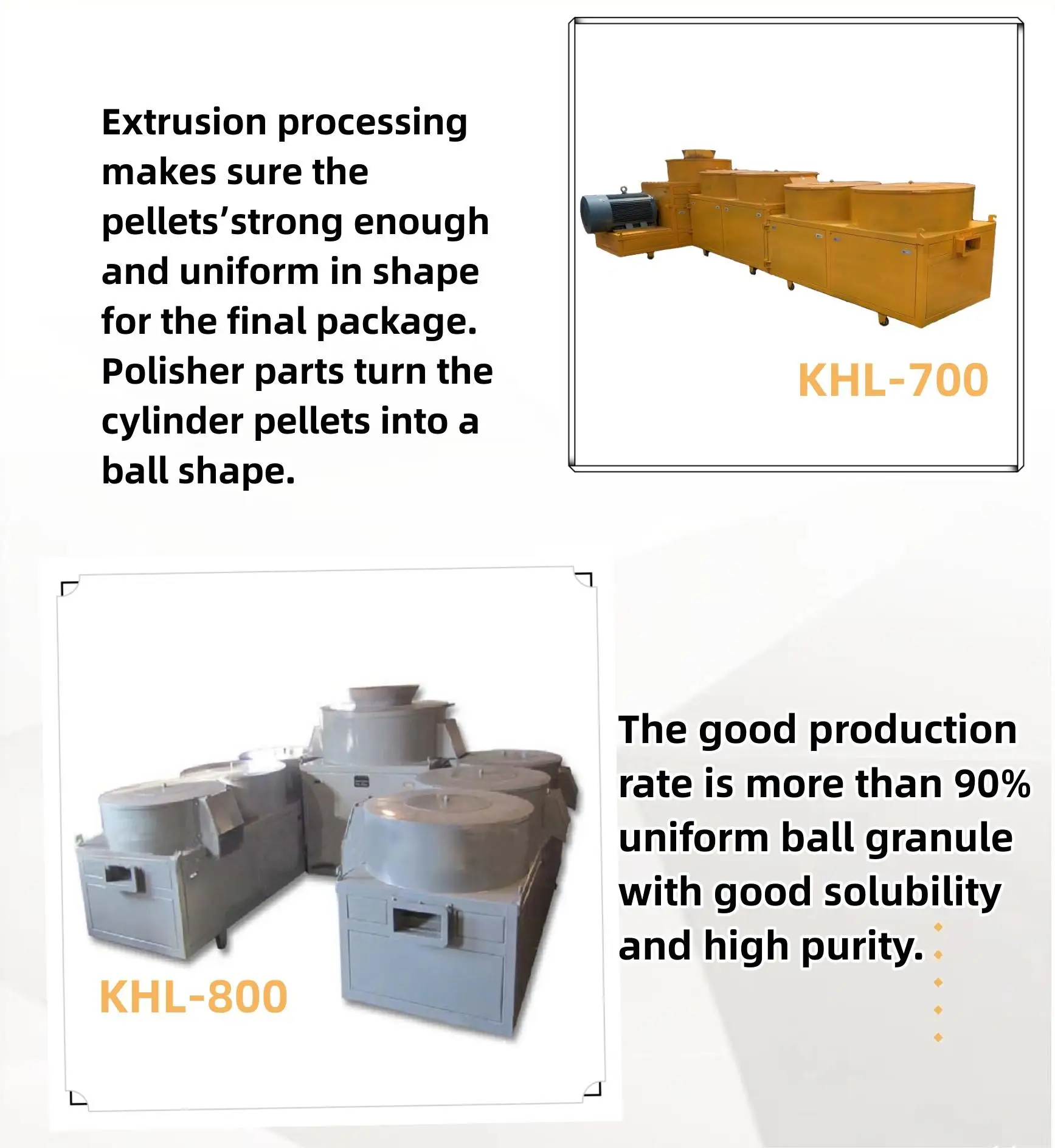

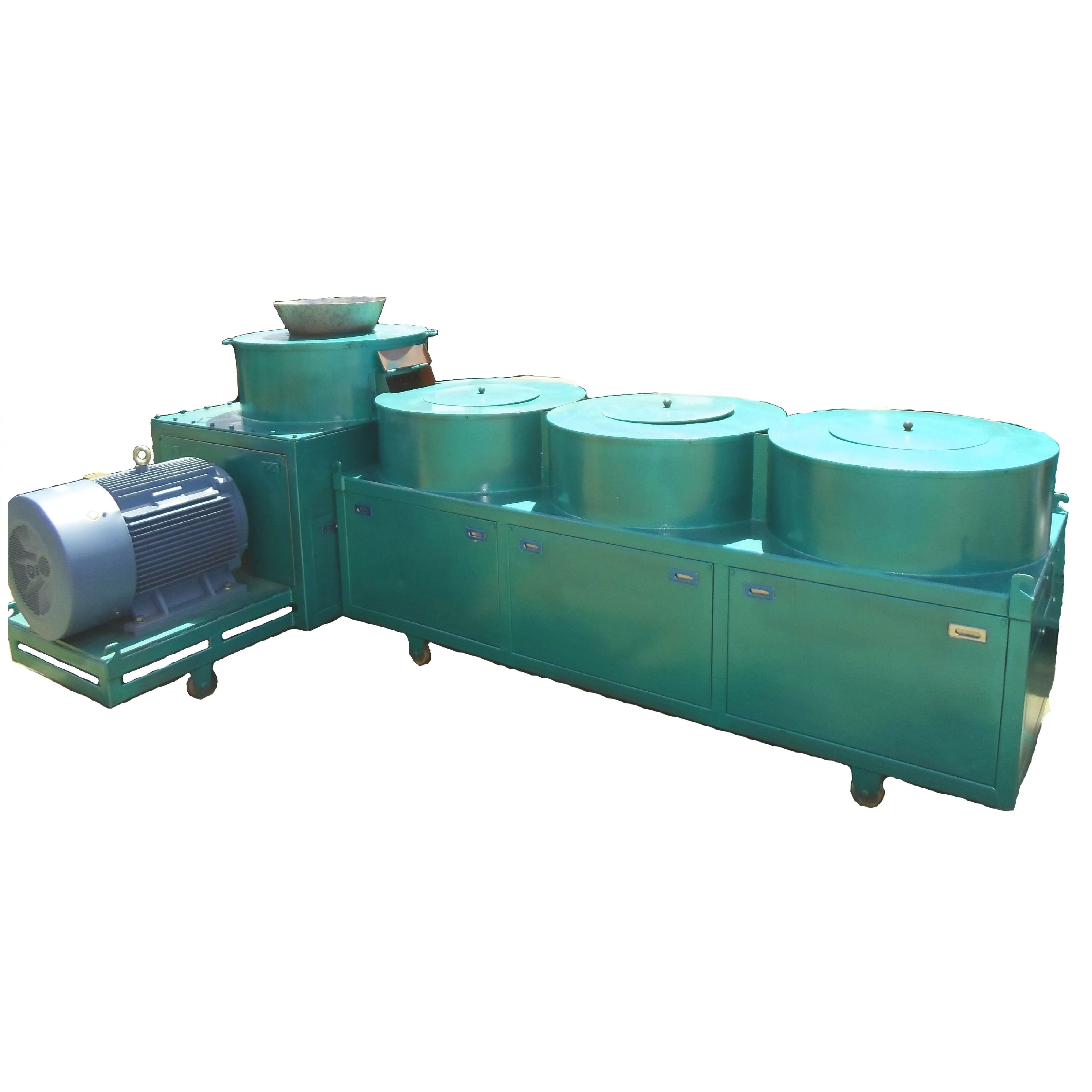

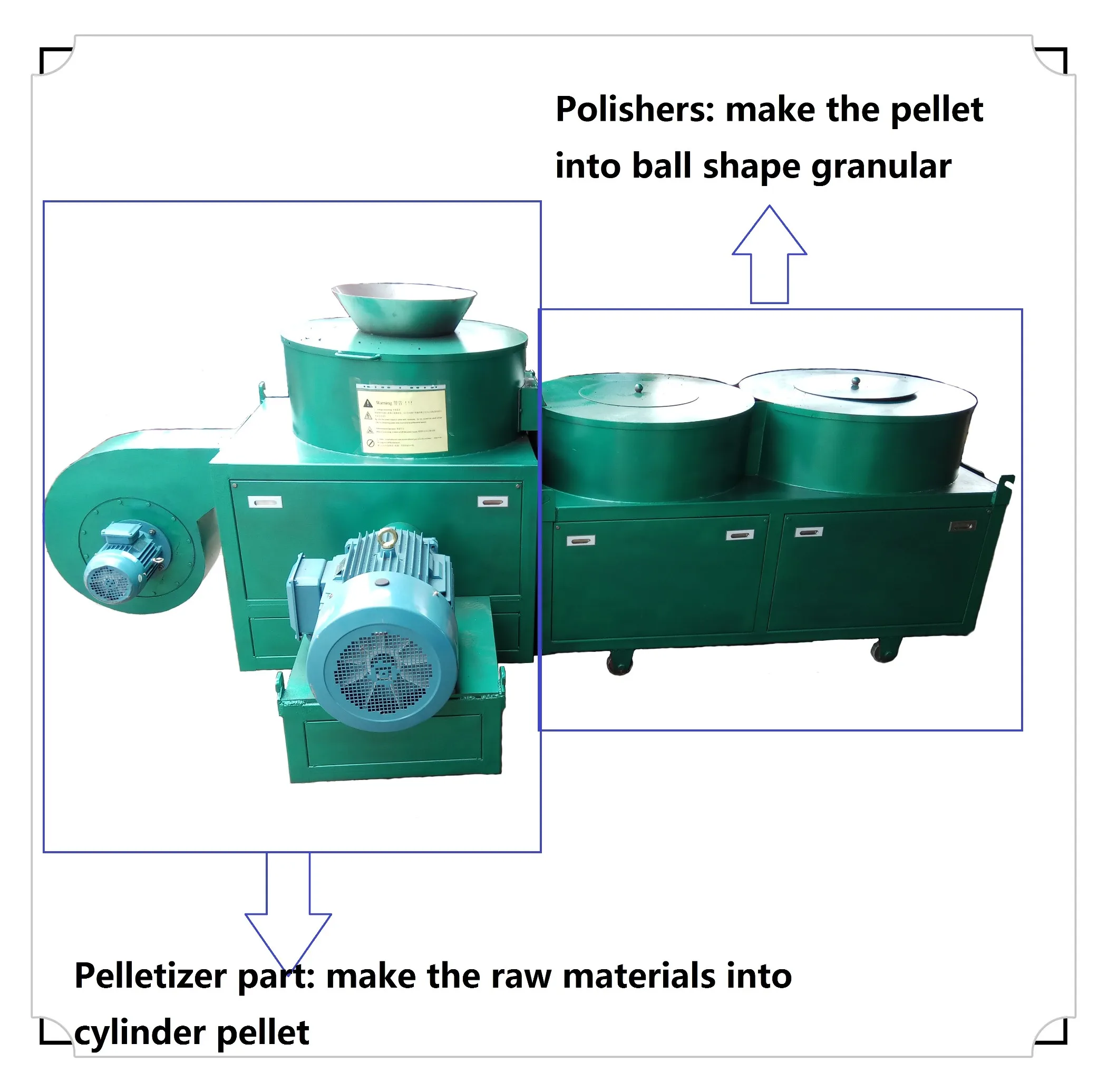

The Ring Die Granulator has two parts :

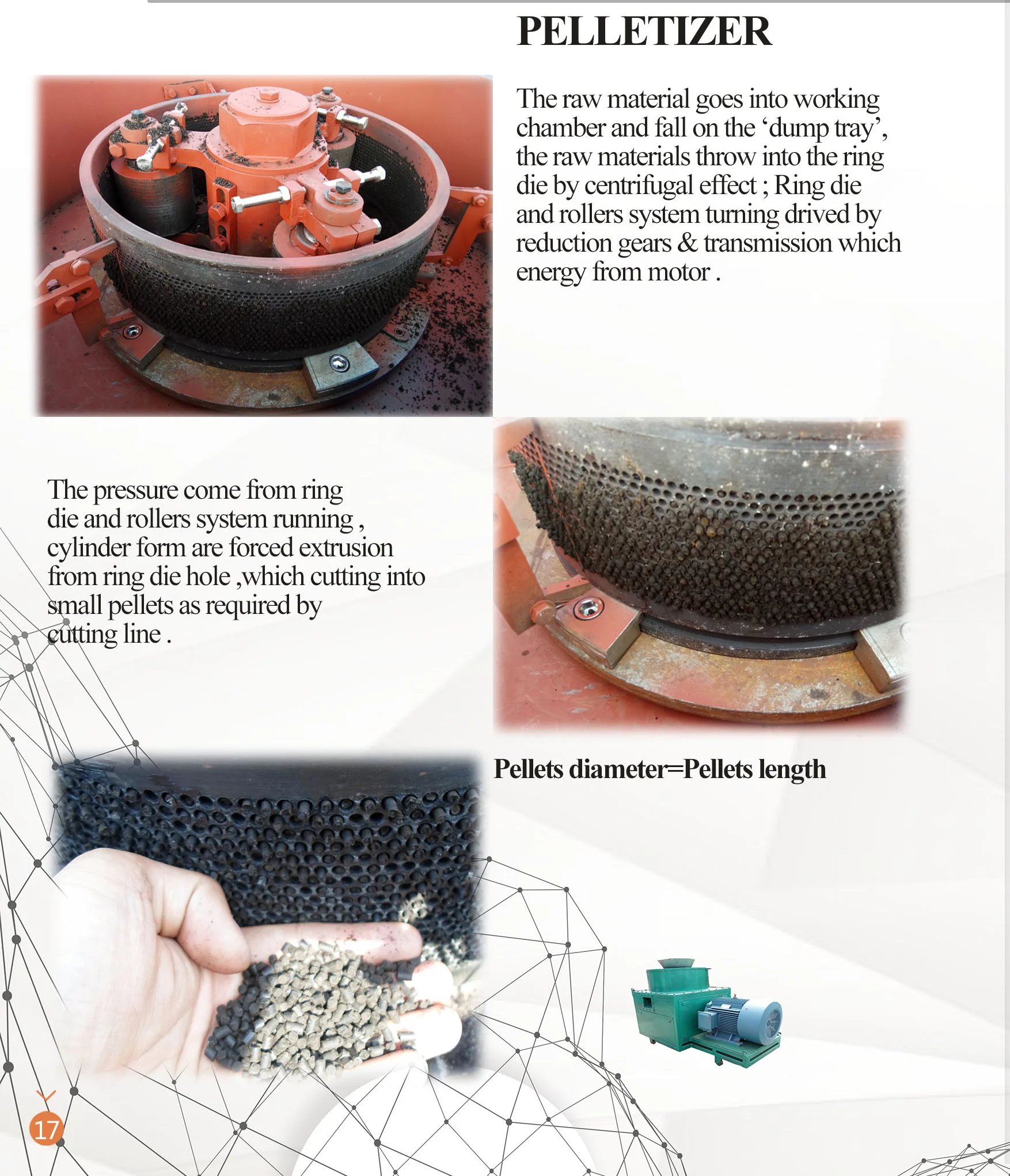

1, Pelletizer part

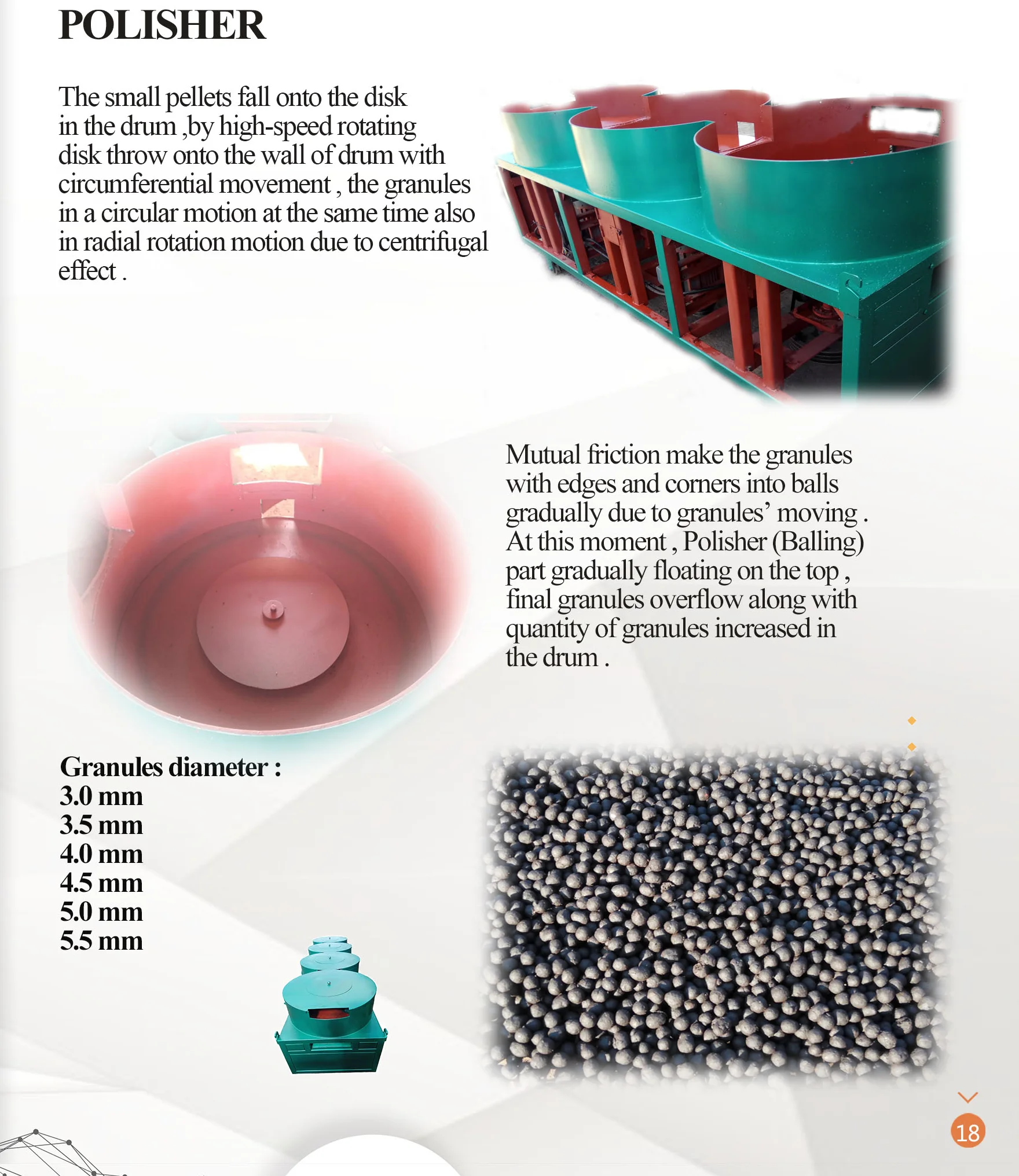

2, Polisher (Balling) part















1. Are you manufacturer or trading company? We are manufacturer.

2. What is the payment terms? We usually accept T/T. T/T: 30% in advance as down payment, the balance before delivery. We take pictures of finished products before delivery.

3. How about price? We are factory and be able to give you the lowest price than market one.

4. Do you accept customized? Yes , we have different customer make their own OEM product.So we also can make product as per your requirement.

5. Can I get some granules samples( produced by granulator)? Yes, we can supply 0.5 kg fertilizer granules samples.

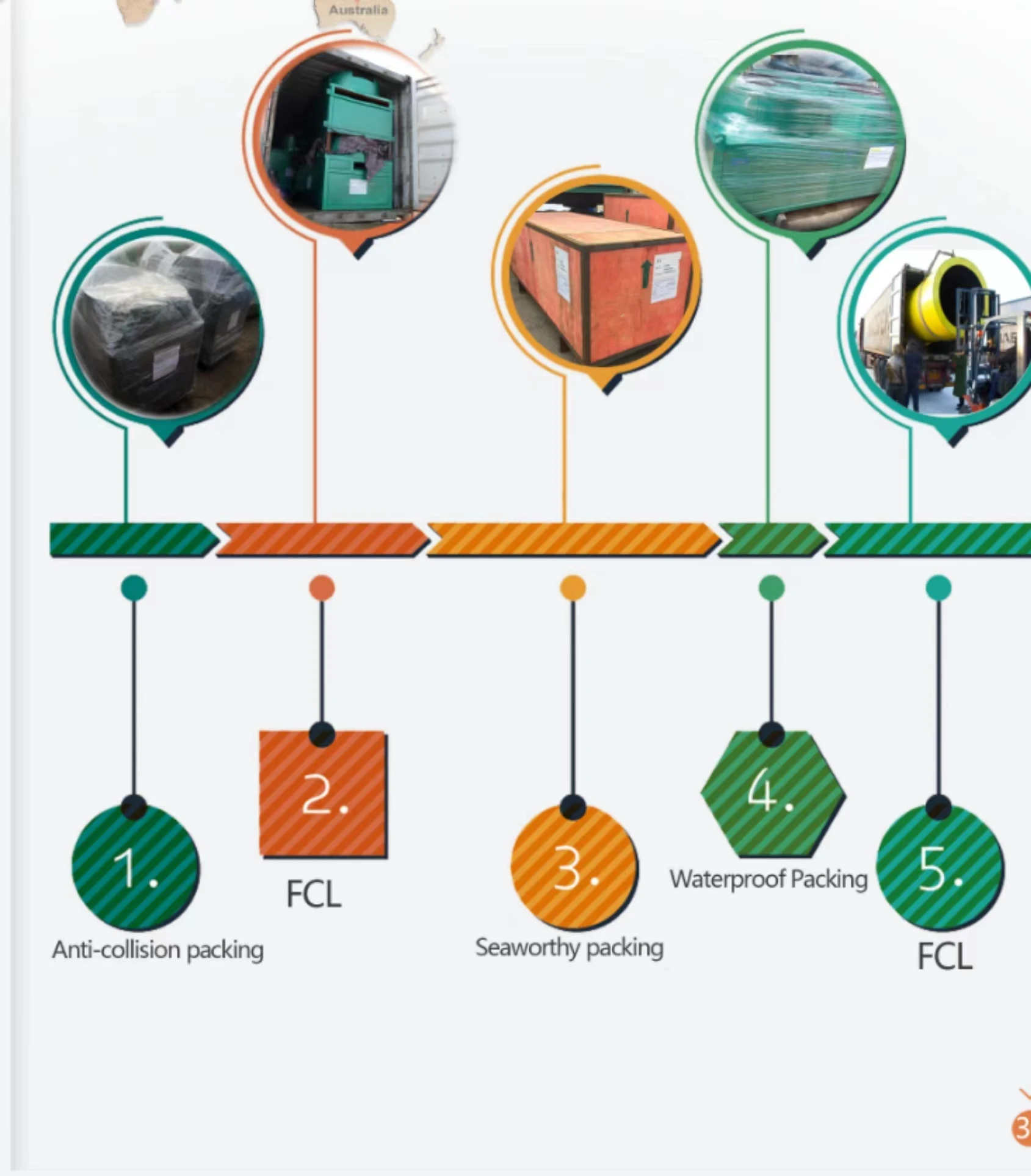

6. How is your shipping? Shipping by sea. Worldwide shipping service available Please contact before order as shipping cost varies time to time.

7. How long is your guarantee? 12 months warranty but except quick wearing parts.

We provide the integrated customer service system.
1) Pre sales: Consulting, Designing, Equipment Selection, Technology Discussion.
2) During sales: Programs and Drawings Confirmed, Installation Guide, Equipment Debugging.
3) After sales: Testing Acceptance, Customer Training, Technical Exchanges, Regular Visits.
We promise
1) All the products purchased in our company are guaranteed to keep in good repair for one year.
2) If quality problems happen in guarantee period, our company will maintain for free. And provides technical support for life.
After-sales service isn't restricted by time and we will solve your problems in time. If you are caught in some problems when
using our products, welcome to contact us at any time.
