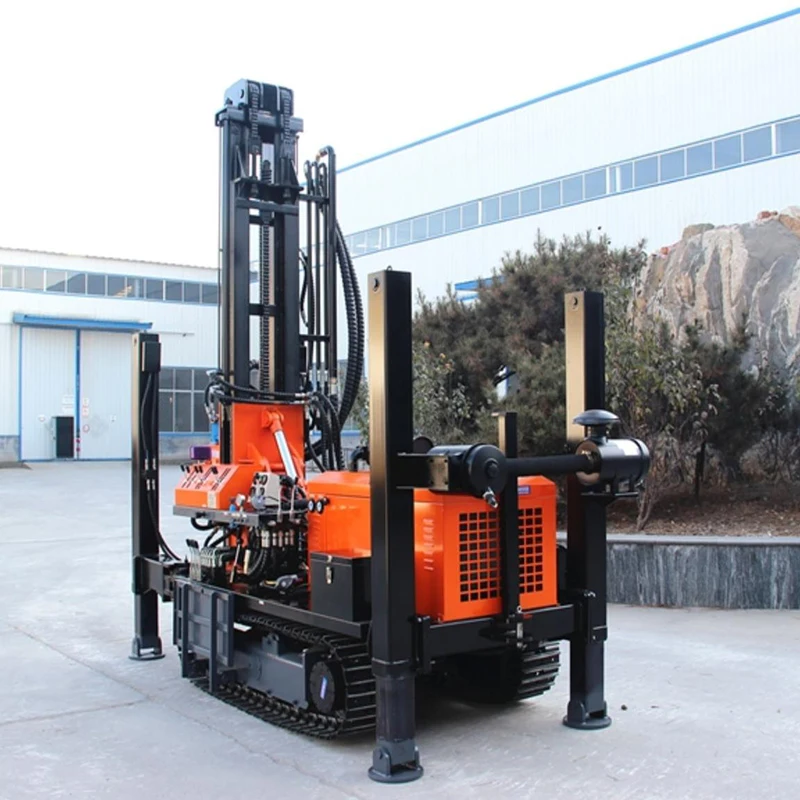

Hydraulic chain track water well drilling machine
- Category: >>>
- Supplier: Zhejiang,Ekai,Science,&,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Skid mounted Diesel Engine Borehole Water Well Drilling Rig
Scope of application:
1. This drilling rig is a high-speed drilling rig and is suitable for drilling projects such as general survey exploration, geophysical exploration,
road and building exploration, and blasting holes.
2. Alloy, diamond and composite drill bits can be selected for drilling according to the different bottom layers.
3. It can drill sandy clay and rock formations of grade 2-9.
Main feature:
1. Equipped with hydraulic automatic feed mechanism, which improves drilling efficiency and reduces labor intensity of workers.
2. The ball chuck clamping mechanism is used instead of the chuck, which can be used to reverse the rod without stopping the machine. It is easy to operate, safe and reliable.
3. The winch is equipped with a cage to form a double-sided support star wheel structure, which can withstand strong impact
4. The four sets of bearings of the vertical shaft box are positioned to ensure that the gyrator has sufficient rigidity to cope with complex geological conditions such as gravel layers and pebble layers.
5. The machine adopts a taper clutch, which has the outstanding characteristics of large transmission torque, convenient operation and maintenance-free
Technical Specication:
| Model | EK-YS130 | EK-YS180 | EK-YS200 |
| Drilling Depth (m) | 130 | 180 | 200 |
| Open hole dia.(mm) | 220 | 220 | 325 |
| End hole dia.(mm) | 75 | 75 | 75 |
| Dril rod dia.(mm) | 42-60 | 42-60 | 42-60 |
| drill angle (degree) | 90-75 | 90-75 | 90-75 |
| Matching power(KW) | 13.2 | 13.1 | 15 |
| Weight without power(kg) | 560 | 610 | 1150 |
| Machine Size(mm) | 2400*700*1400 | 2400*600*1400 | 2700*900*1600 |
| Speed(r/min) | 142/285/570 | 1300/300/480/730/830/1045 | 64/128/287/557 |
| Max pull force(kg) | 1600 | 2000 | 2400 |
| Pull speed(m/min) | 0.41-1.64 | 0.35-2.23 | 0.12-0.95 |
| Rope dia.(mm) | 9.3 | 9.3 | 9.3 |
| Roll capacity(m) | 27 | 35 | 35 |
| Rated load(ton) | 2 | 2 | 5 |
| Displacement(L/min) | 95 | 95 | 145 |
| Max.Pressure(Mpa) | 1.2 | 1.2 | 1.2 |
| times(times/min) | 93 | 93 | 93 |
| Inlet hose dia.(mm) | 51 | 51 | 51 |
| Outlet hose dia.(mm) | 32 | 32 | 32 |
