Product Overview
Description
Product Overview

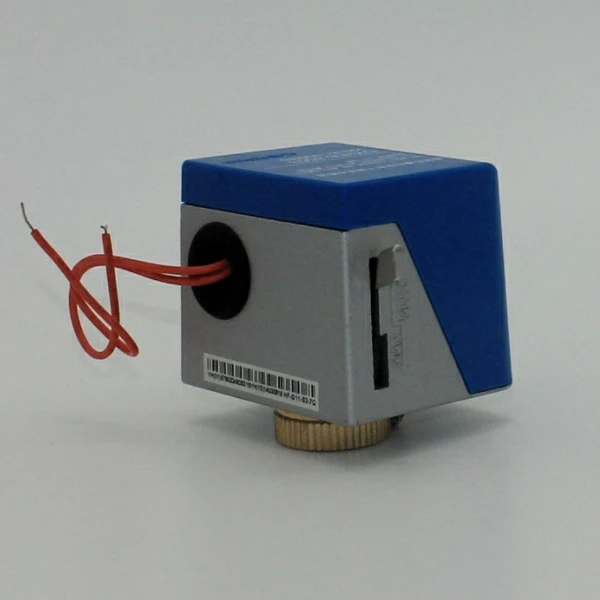

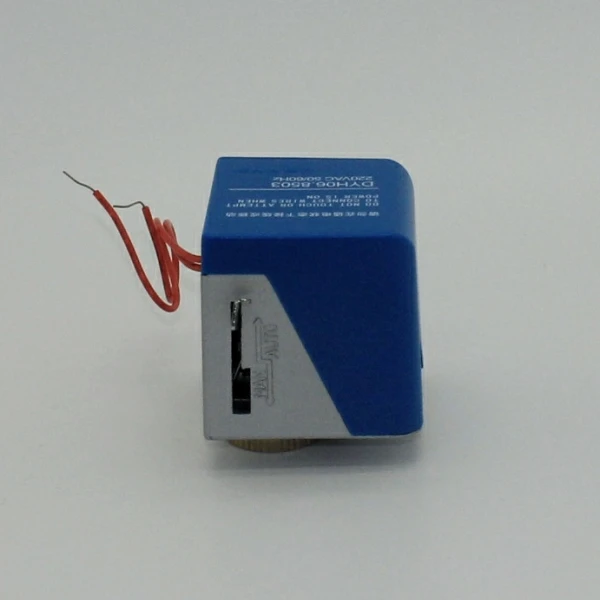

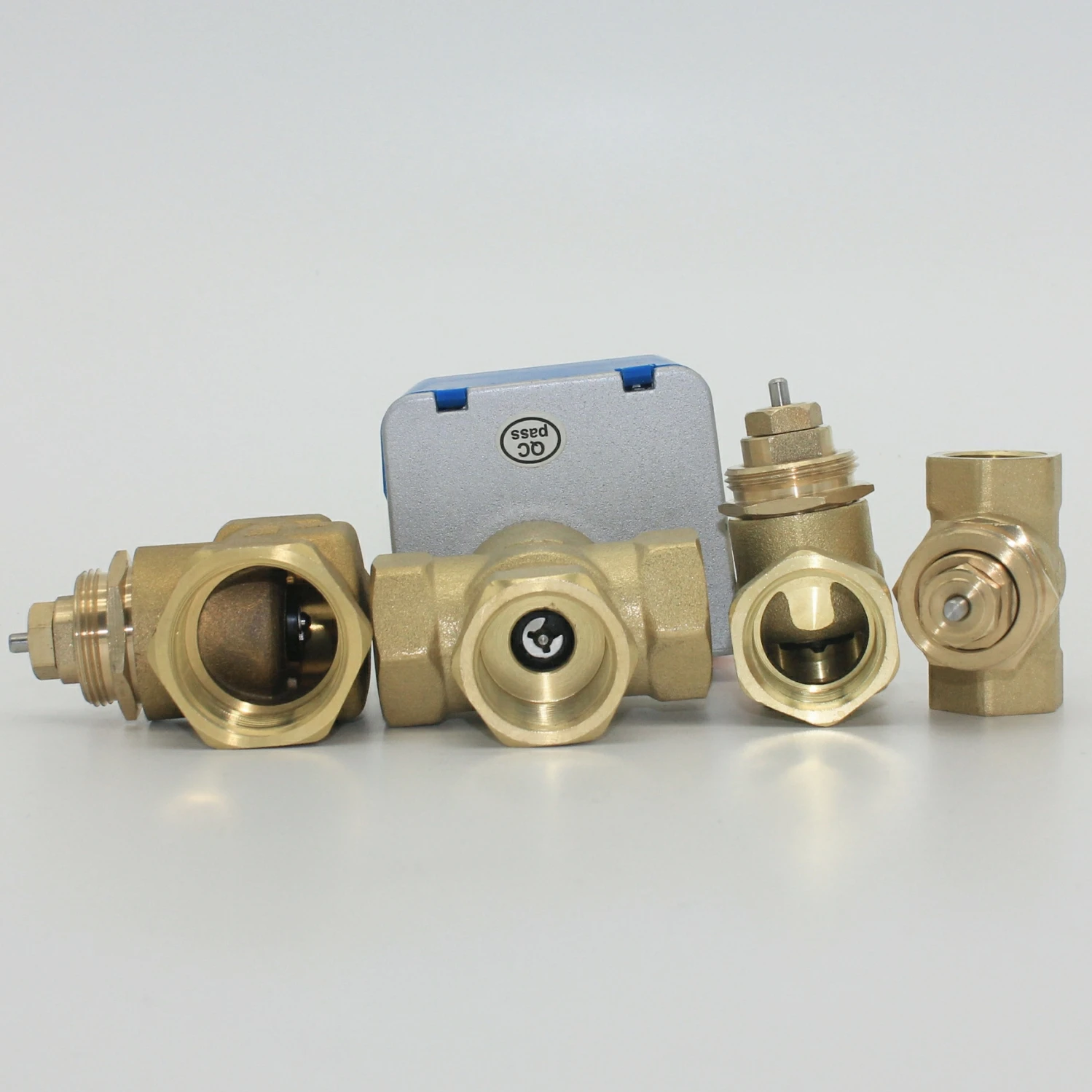

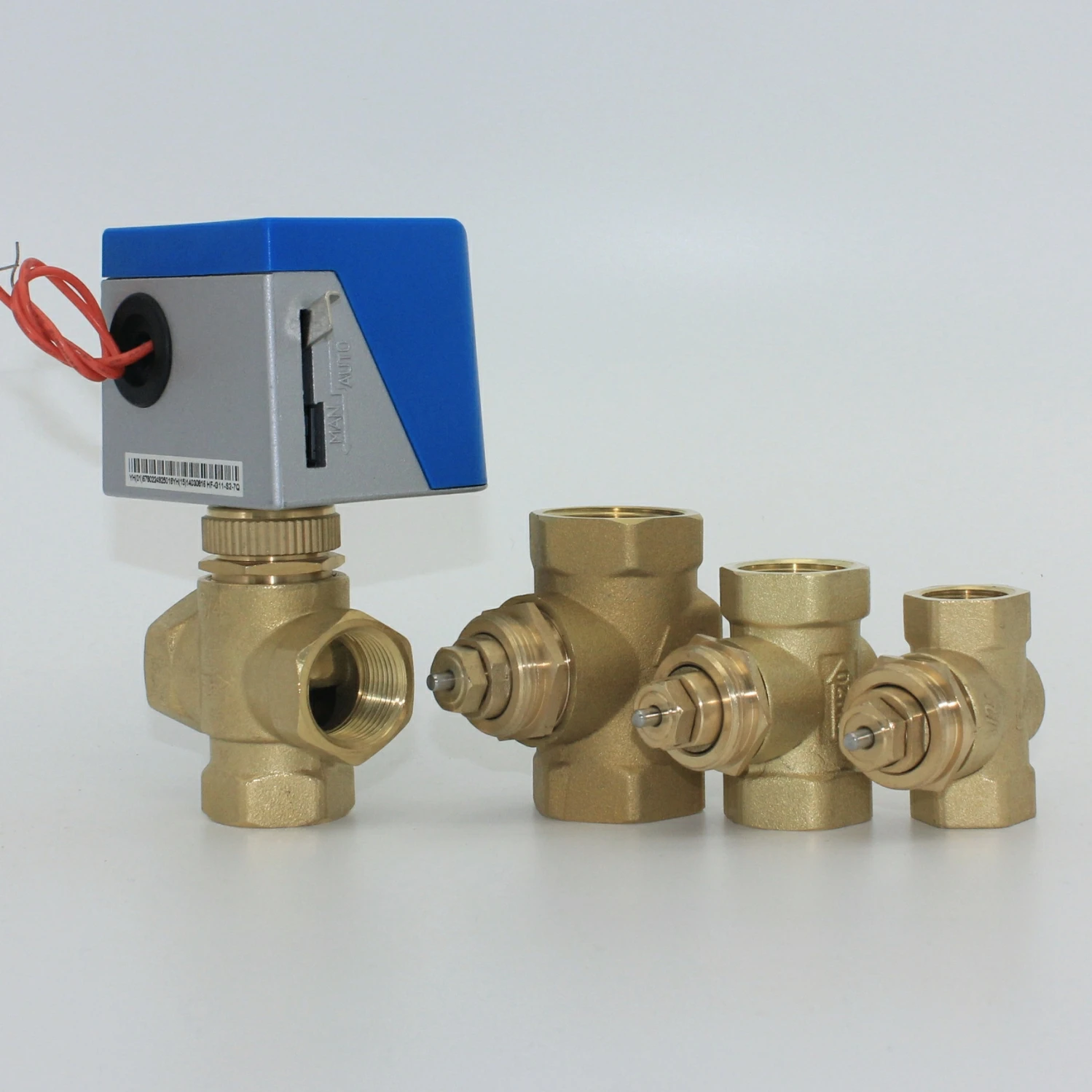

DYH06 Motorized Zone Valve
DYH06 series motorized zone valve is used to control the flow of chilled or hot water in residential, commercial HVAC system, such as fan coil unit, terminal reheat coils and water treatment industrial. The valves are driven by hysteresis synchronous motor, with valve assembly, spring return.
FEATURES AT A GLANCE
Quality Parts
--Stainless steel spring return
--Aluminum base, steel gear assembly
--Compact construction for easy installation
--The power head can be replaced without disturbing the valve
body or draining the system
--Normally closed, normally open optional
--3 way diverting and 3 way mixing optional
--Stainless steel spring return
--Aluminum base, steel gear assembly
--Compact construction for easy installation
--The power head can be replaced without disturbing the valve
body or draining the system
--Normally closed, normally open optional
--3 way diverting and 3 way mixing optional
PRODUCT SPECIFICATIONS
Item No. | DYH06.215 | DYH06.315 | DYH06.220 | DYH06.320 | DYH06.225 | DYH06.325 | |||||
Voltage Supply | AC24V/AC220V±10%, 50/60Hz | ||||||||||
Power Consumption | 6.5W | ||||||||||
Control Mode | On-Off(Open/Close) Spring Return | ||||||||||
Run time | Open<10s Close<5s | ||||||||||
Stroke(mm) | 3.25 | ||||||||||
Action Type | N.C. 2-Way | Divert 3-Way | N.C. 2-Way | Divert 3-Way | N.C. 2-Way | Divert 3-Way | |||||
Rate Pressure | 1.6MPa | ||||||||||
Services Medium | Chilled and or Hot Water, Up to 50% Glycol | ||||||||||
Lead Supply | 2 Core(Red, Blue) | ||||||||||
Environment Temperature | 0℃（32℉）-60℃（140℉） non condensing | ||||||||||
Fluid Temperature | 2℃（35.5℉）-94℃（203℉） | ||||||||||
Material | Valve Body: Forged Brass Valve Stem: SS(304) Valve Seal: EPT | ||||||||||
DN Size | DN15 | DN15 | DN20 | DN20 | DN25 | DN25 | |||||
End Connection | BSPP / NPT Internal Threaded | ||||||||||
Size(Inch) | 1/2” | 1/2” | 3/4” | 3/4” | 1” | 1” | |||||
Kv (Cv) Value | 1.6（1.9） | 1.6（1.9） | 2.5（3.5） | 2.5（3.5） | 4.0（4.8） | 4.0（4.8） | |||||
Close off Pressure (MPa) | 0.25 | 0.25 | 0.12 | 0.12 | 0.08 | 0.08 | |||||
