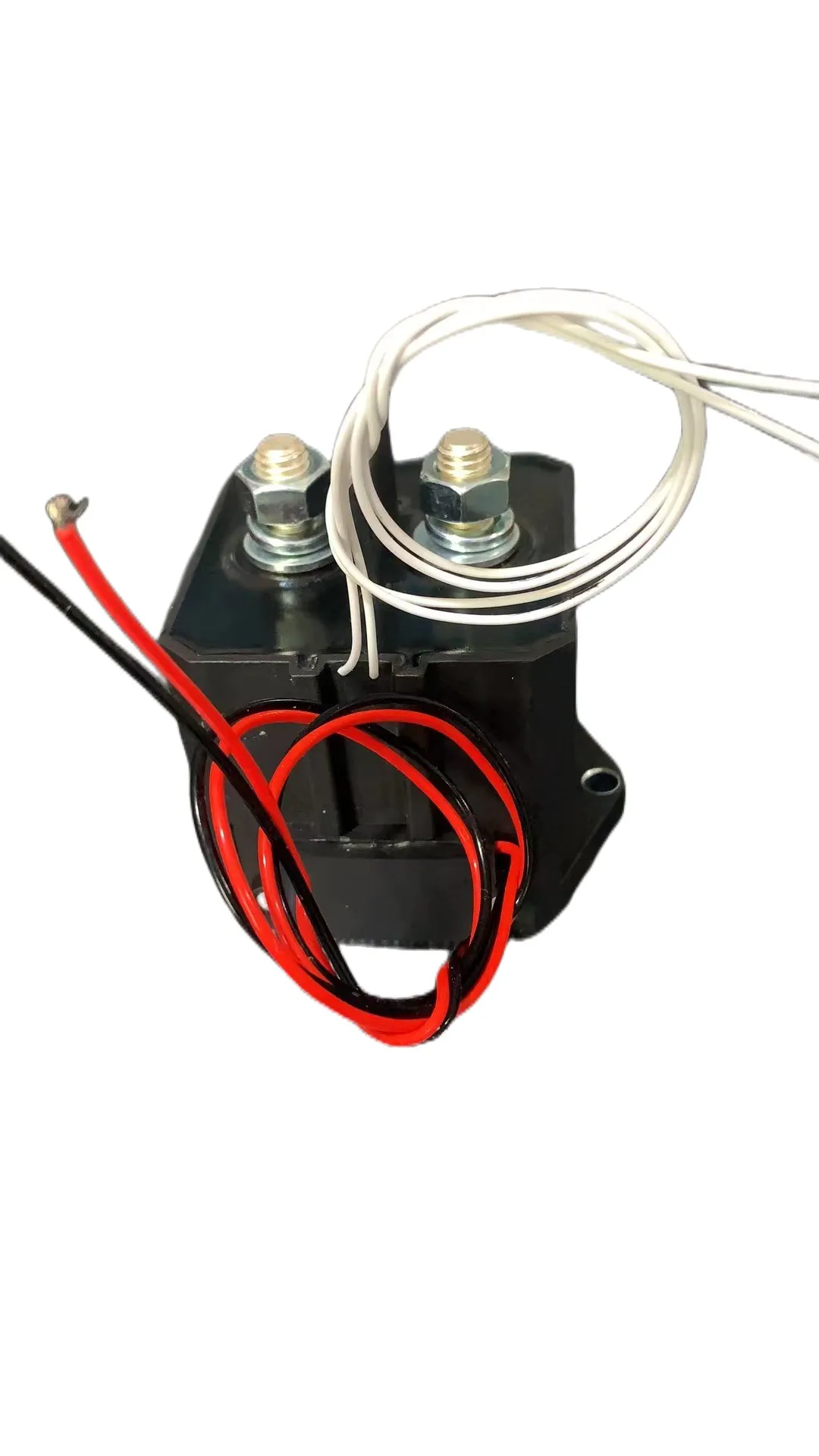

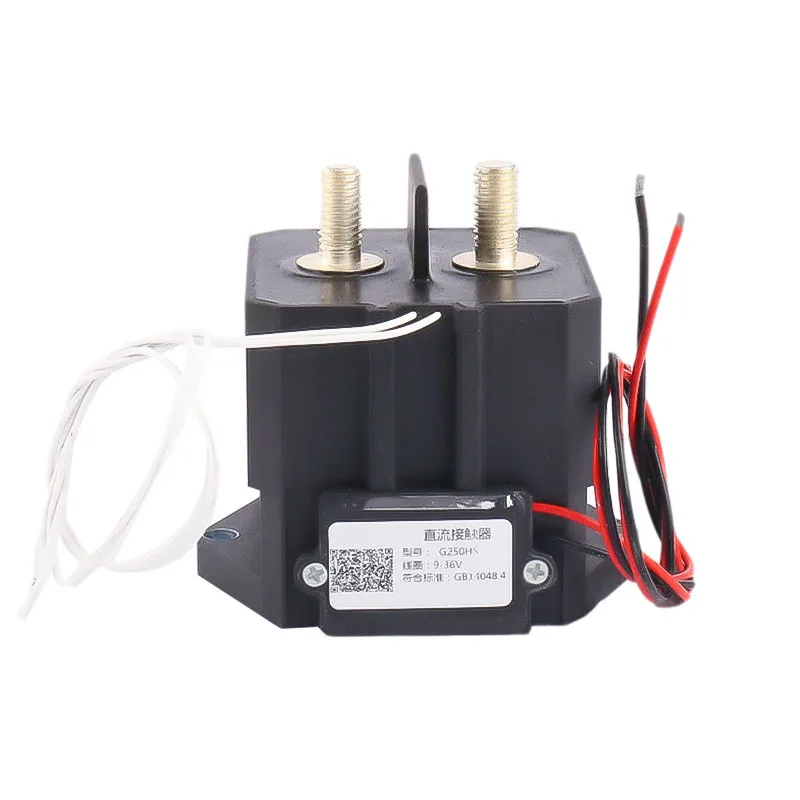

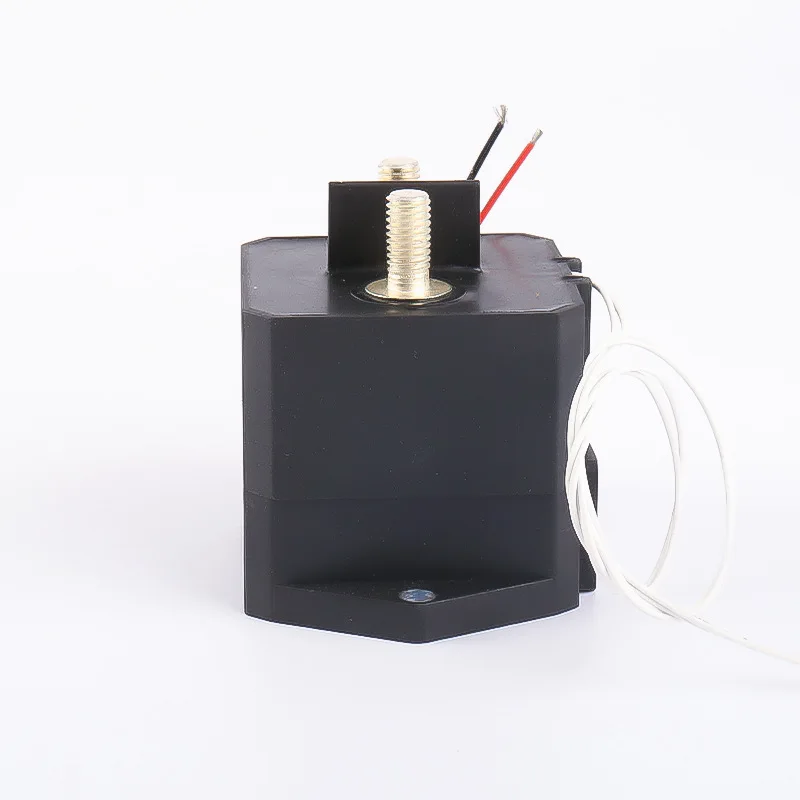

EV relays High voltage Contactors 600A 1000Vdc 1500Vdc for for EVs ESS Energy Storage System

Product Overview

Description

High Voltage DC Contactor Features:

• DC 12-1000V rated load voltage of contact circuit.


• SPST-NO of contact form, 12 volt, 24 volt coil for selecting.


• Main contact voltage drop at 250A, not above 100mV.


• The connection of contact and coil need to be nonpolarity.


• Efficient coil, retentive power is only 2-2.3W, counter electromotive force is 0V.


• The joint way of the coil is very convenient.


• The coil has no counter force of electromagnetism.


• Compare to the similar products, this product is smallest and lightest.

50A High Voltage DC Contactor Specifications:

Model	G50H	G100H	G150H	G200H	G250H	G300H
Rated Current	50A	100A	150A	200A	250A	300A
Contact type	SPST-NO
Contact rated voltage & current	12-1000Vdc
Coil voltage	12Vdc, 24Vdc, 48Vdc
Coil power consumption	≤6W
Output Connectors	M5 Bolt and Lockwasher Connections
Connectors	Wire Leads for Control Circuit
Pickup voltage	≤75%Us
Release voltage	≤7Vdc
Pickup time	≤30ms
Release time	≤20ms
Electric life (450Vdc)	≥5000 times
Electric life (750Vdc)	≥2000 times	≥1000 times
Electric life (900Vdc)	≥2000 times	≥1000 times
Ingress Protections	IP67
Working temperature	-40 to 85°C

250A High Voltage DC Contactor Electric Diagram:

250A High Voltage DC Contactor Dimension:
