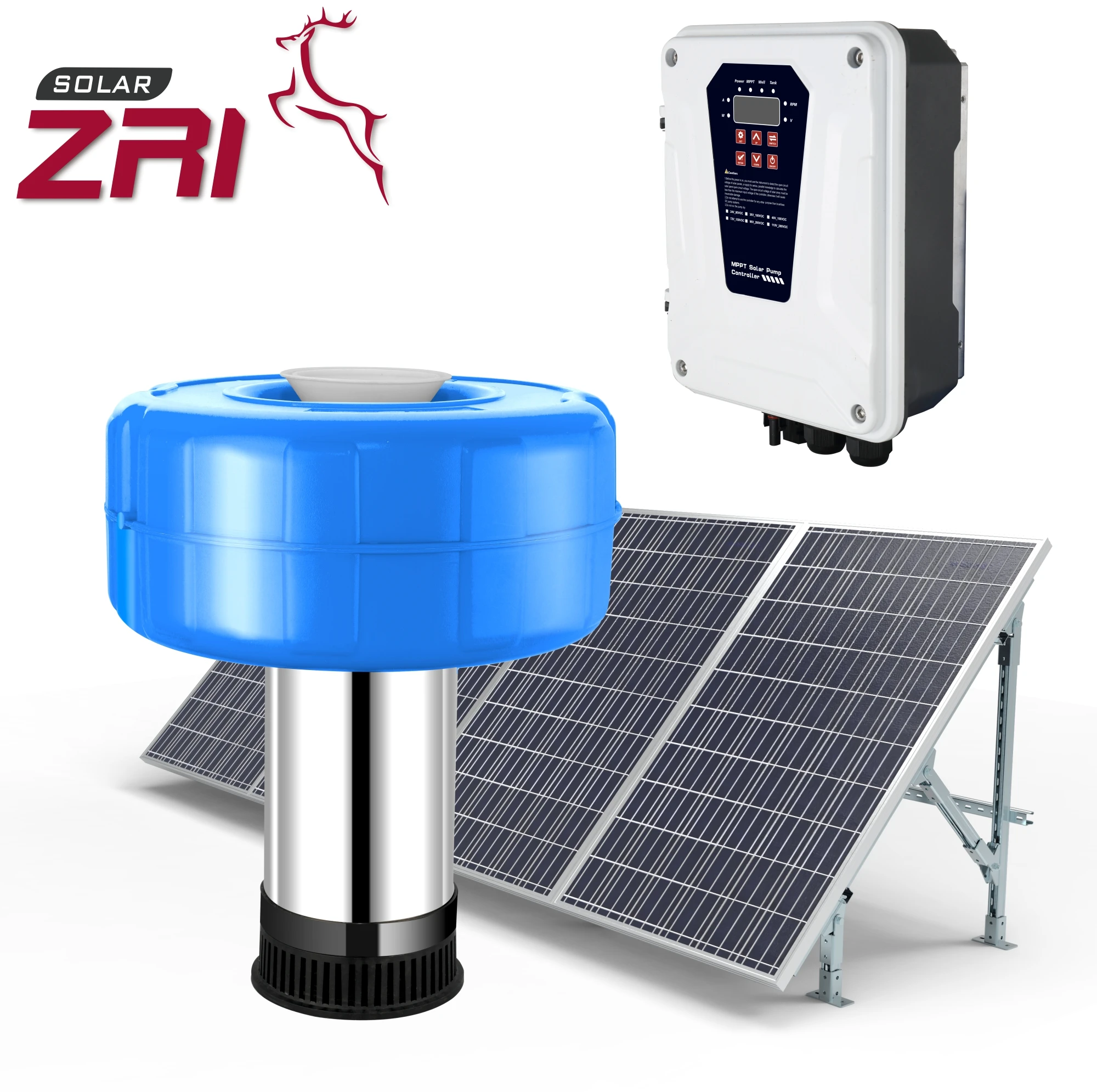

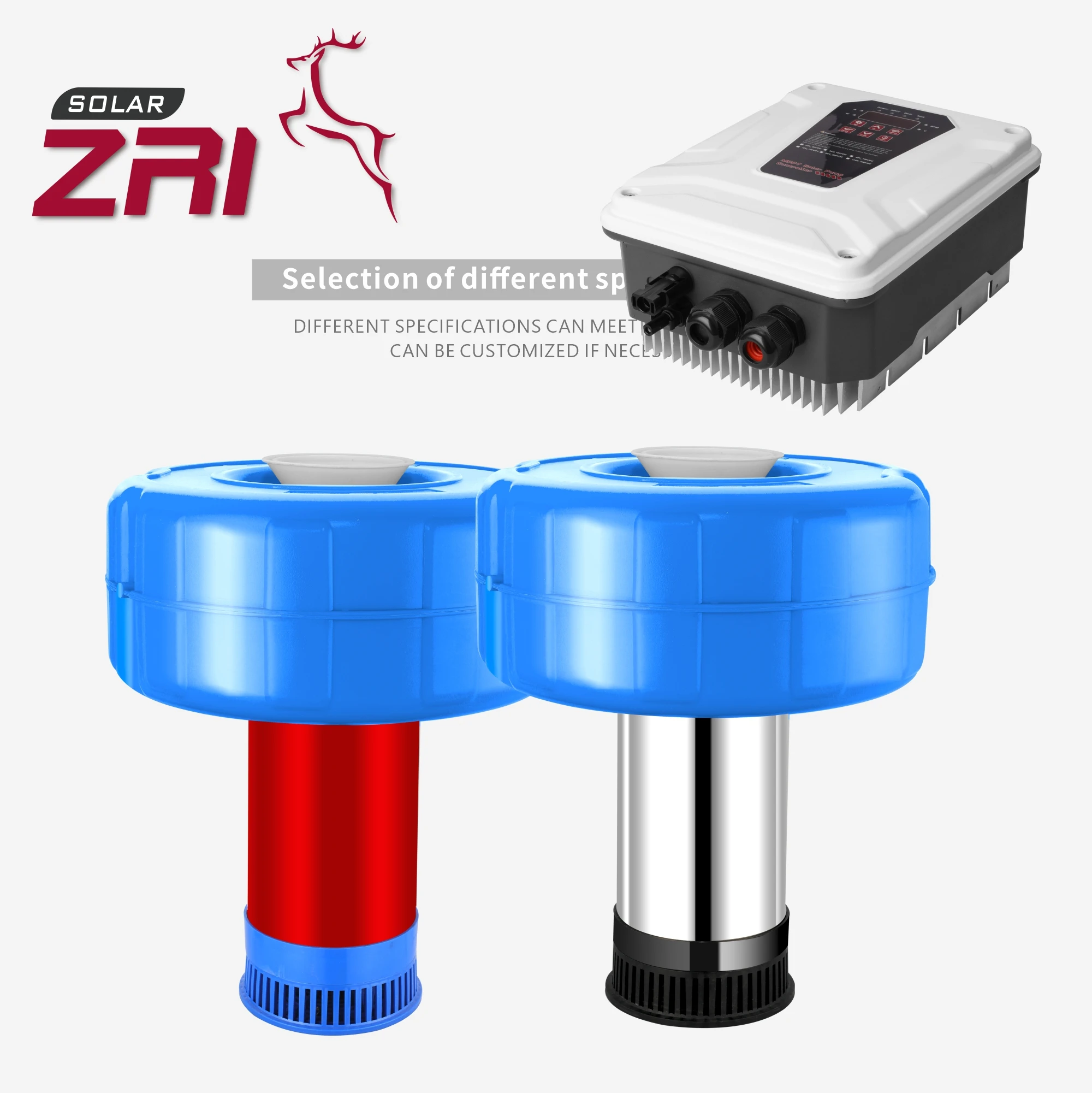

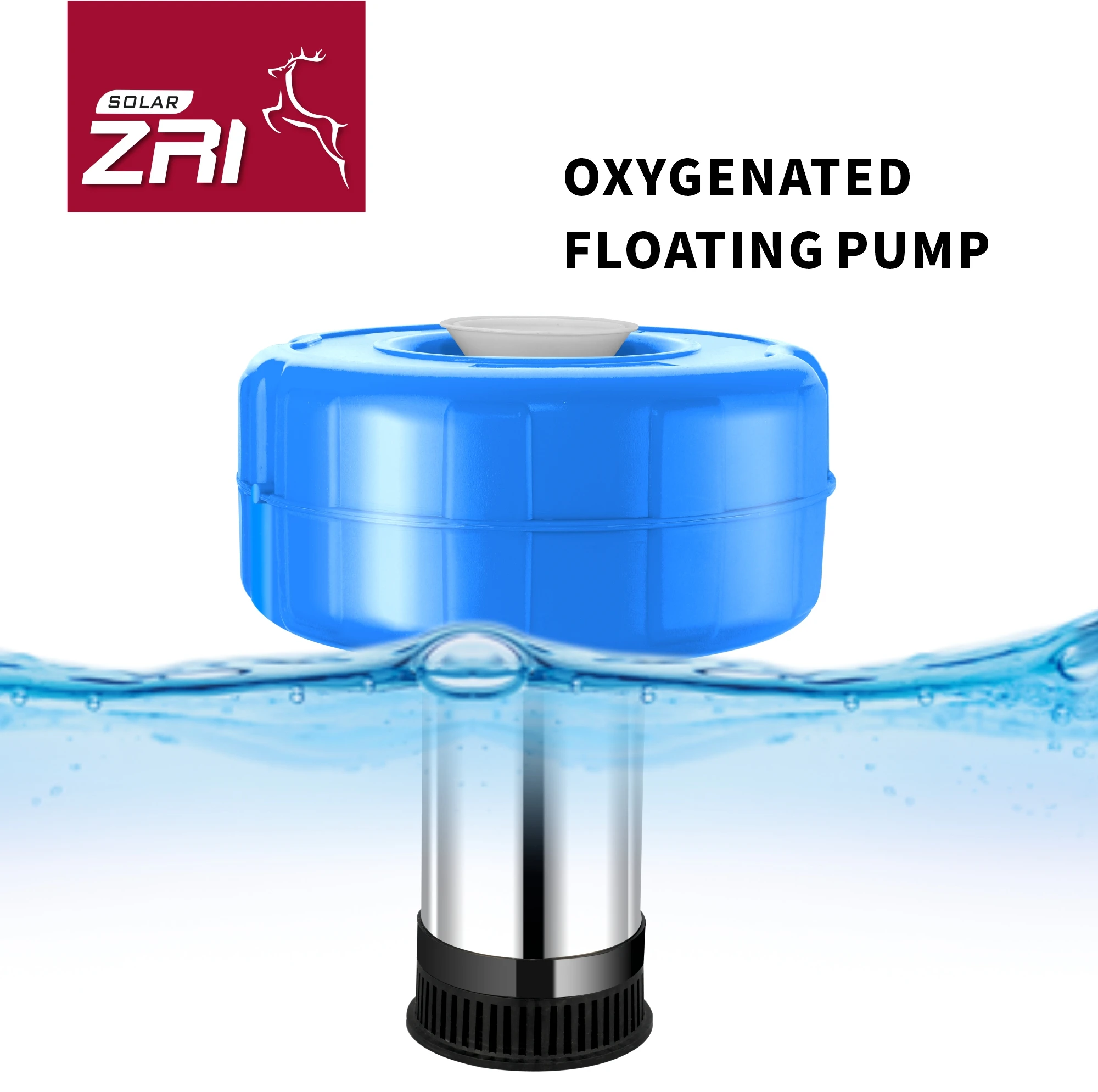

AC/DC Гибридный 1HP солнечный DC кислородный аэратор для пруда
- Category: >>>
- Supplier: Zhejiang Rambo Intelligent Technology Co. Ltd.
Share on (1600718808535):
Product Overview
Description

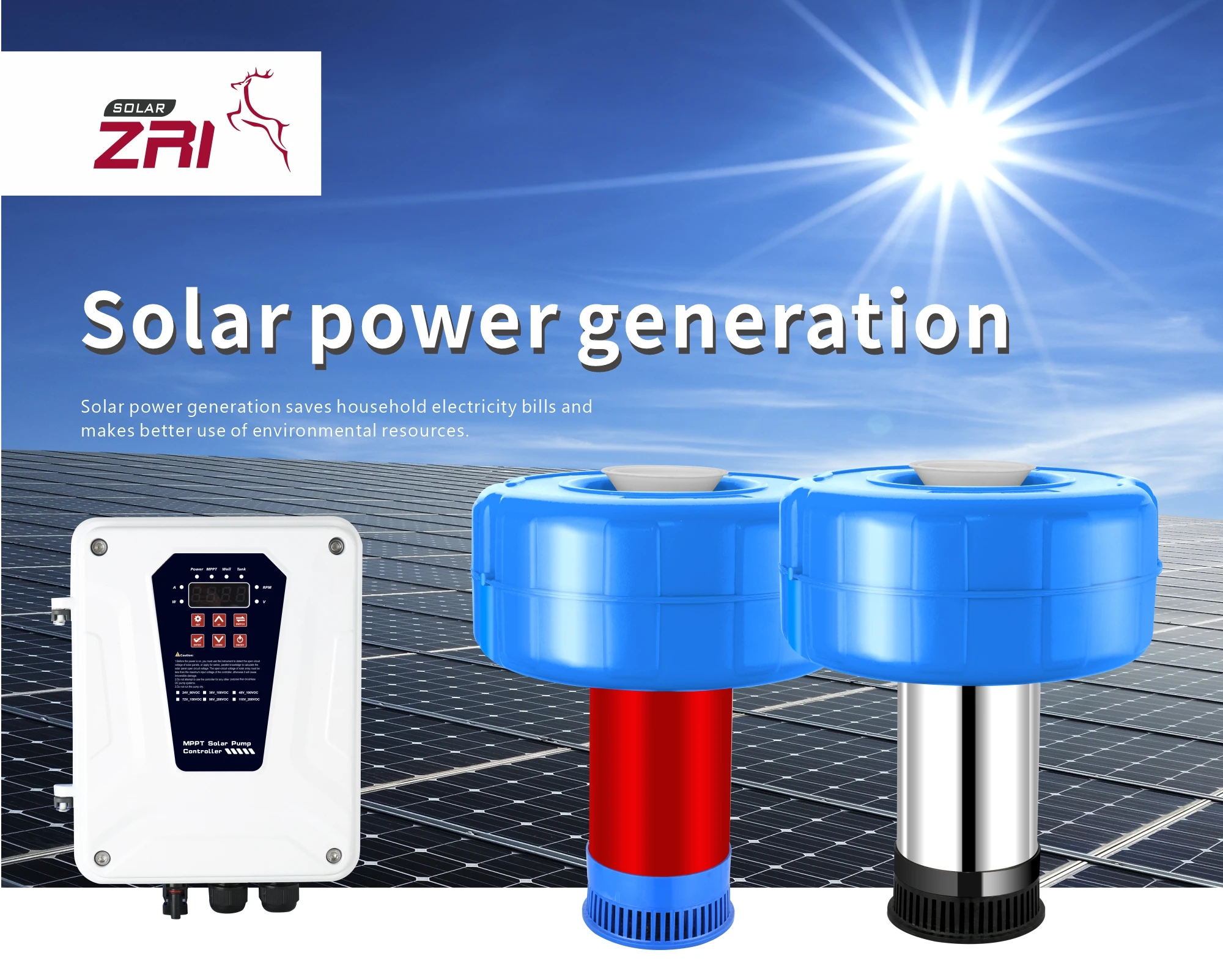

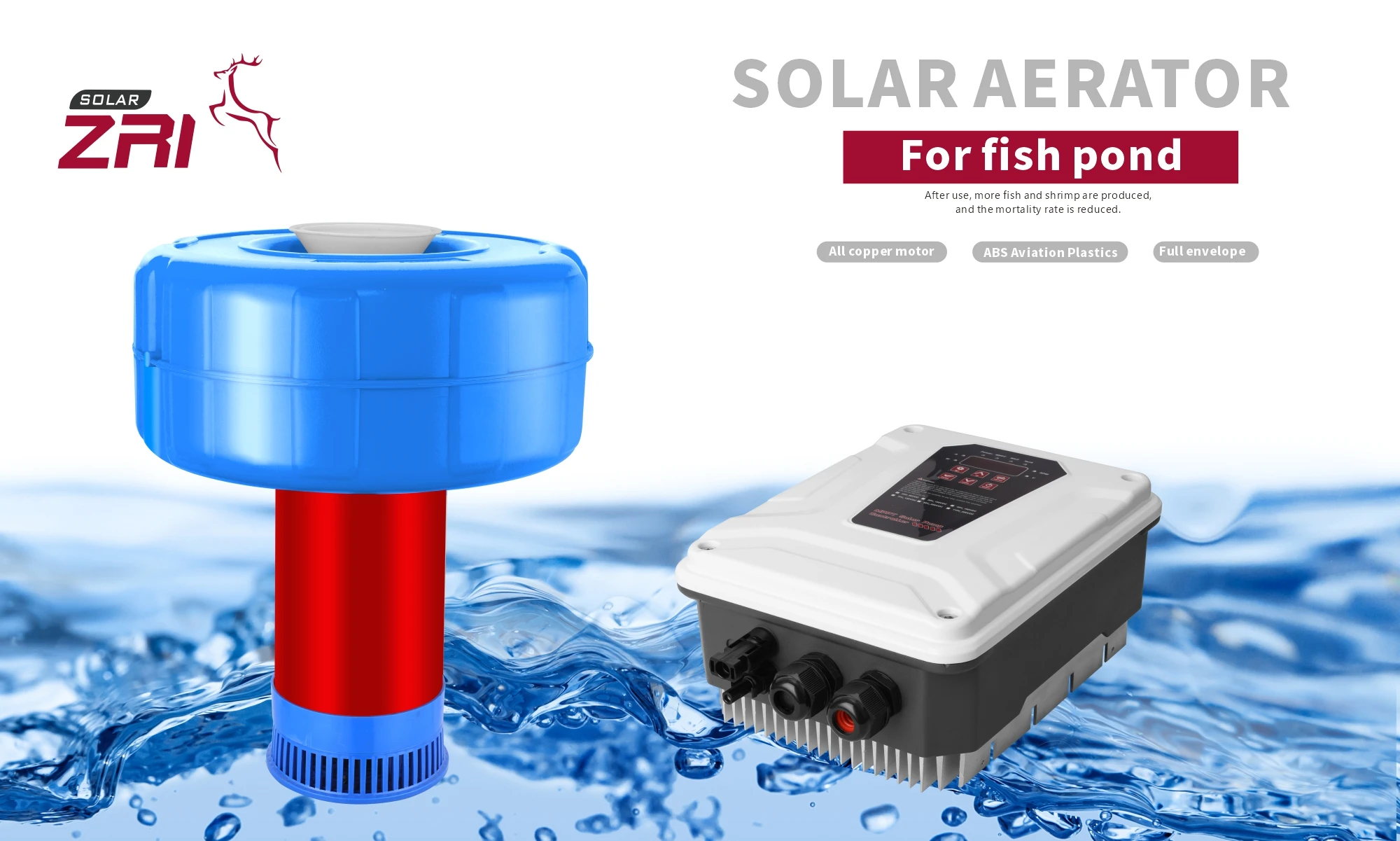

>>> SOLAR AERATOR
>>> WHY SELECT ZRI
1. No MOQ required, Most solar water pumps ready in stock(fast lead time)
2. Two Years Warranty
3. Experienced manufacturer of over 15 years
4. Top 3 leading brand in China both in terms of professionalism and market share
5. Manufacture more than 50000pcs per year
6. Exported more than 60 countries
>>> HOW TO SELECT SOLAR AERATOR
Pls select the right Aerator below yourself, or please inform us necessary information, then we can select the right model for you.
1. Where will the Aerator be used?
2. How much water Oxygenation (kgo/h) required per day or per hour?
3. How many impeller do you want?
4. How many square meter of fish pond will the aerator be used?
1. Where will the Aerator be used?
2. How much water Oxygenation (kgo/h) required per day or per hour?
3. How many impeller do you want?
4. How many square meter of fish pond will the aerator be used?
DC Solar Aerator
Item | Voltage | Best DC Voltage | Power | Max.Flow | Max.Head | Outlet | Solar Panel | ||
Voc | Power | ||||||||
ZSFA27-5-96-750 | 96V | 96-130V | 750W | 27m³/h | 5m | 3" | ˂180V | ≥1000w | |
ZSFA32-7-150-1100 | 150V | 150-280V | 1100W | 32m³/h | 7m | 3" | ˂280V | ≥1500w | |
ZSFA43-7-200-1500 | 200V | 200-380V | 1500W | 43m³/h | 7m | 3" | ˂380V | ≥2000w | |
ZSFA60-5-300-2200 | 300V | 260-420V | 2200W | 60m³/h | 5m | 4" | ˂420V | ≥3000w | |
AC/DC Hybrid Solar Aerator
Item | Voltage | Best DC Voltage | Power | Max.Flow | Max.Head | Outlet | Solar Panel | ||
Voc | Power | ||||||||
ZSFA27-5-96-750A/D | 110-240V | 96-130V | 750W | 27m³/h | 5m | 3" | ˂180V | ≥1000w | |
ZSFA32-7-150-1100A/D | 110-240V | 150-280V | 1100W | 32m³/h | 7m | 3" | ˂280V | ≥1500w | |
ZSFA43-7-200-1500A/D | 110-240V | 200-380V | 1500W | 43m³/h | 7m | 3" | ˂380V | ≥2000w | |
ZSFA60-5-300-2200A/D | 110-240V | 260-420V | 2200W | 60m³/h | 5m | 4" | ˂420V | ≥3000w | |

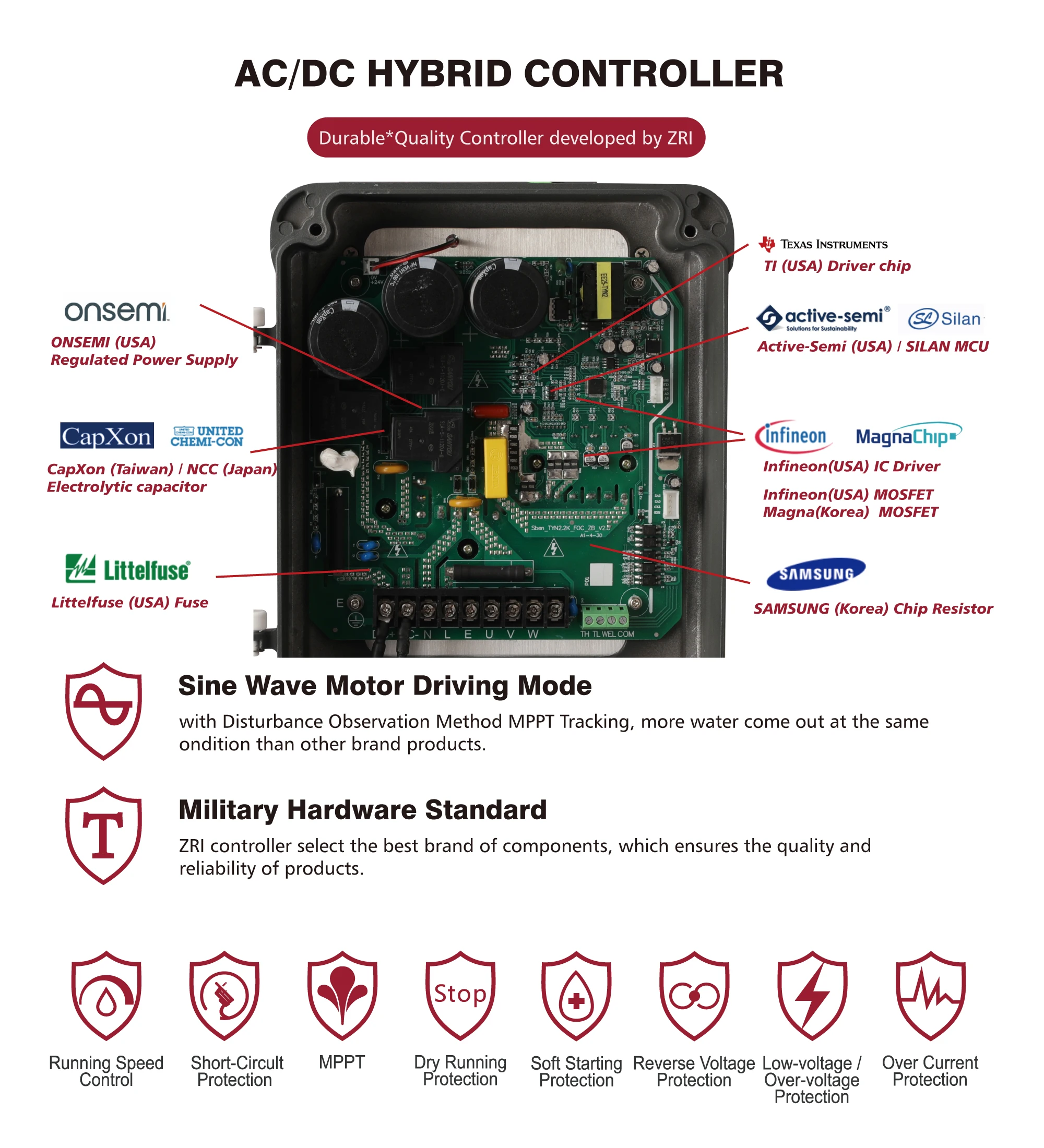

- MPPT: Maximum Power Point Tracking
- DSP: Digital Signal Processing - Running Speed Control: stepless speed regulation
- Timing function: Set pump running time
- Over current protection: Motor stops automatically when stucked
- Soft starting protection:Protect the motor & bearing
- Lack of water protection: Restart Automatically upon the Water Level
- Low-voltage / Over-voltage protection: Protect the motor & controller
- Reverse voltage protection: Circuit breaking automatically when reverse connection
- Short-circuit protection: Automatically stops when Short wiring of motor
Title goes here.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for
producing PET plastic containers and bottles in all shapes.
producing PET plastic containers and bottles in all shapes.

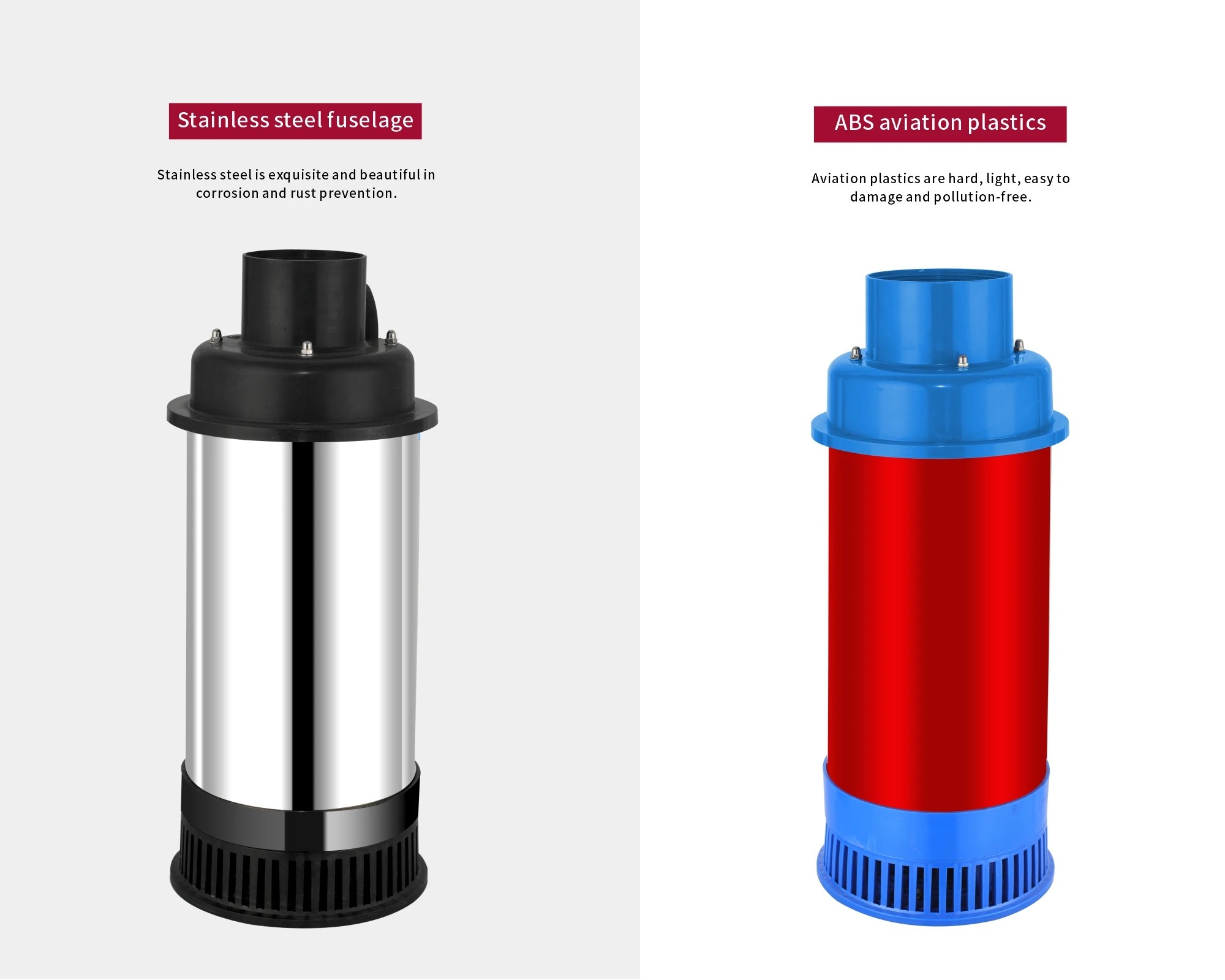

ADVANCED TECHNOLOGY
- The efficiency is improved 25% by the permanent magnetism,direct current, brushless, non-sensor motor.
- Adopt double plastic package for rotor and stator,motor insulation ≥300MΩ,the motor security was much improved.
- 100% copper wire, DW-300 cold-rolled silicon steel sheet. - Stainless steel 304 & 316 shaft , motor body, screw.

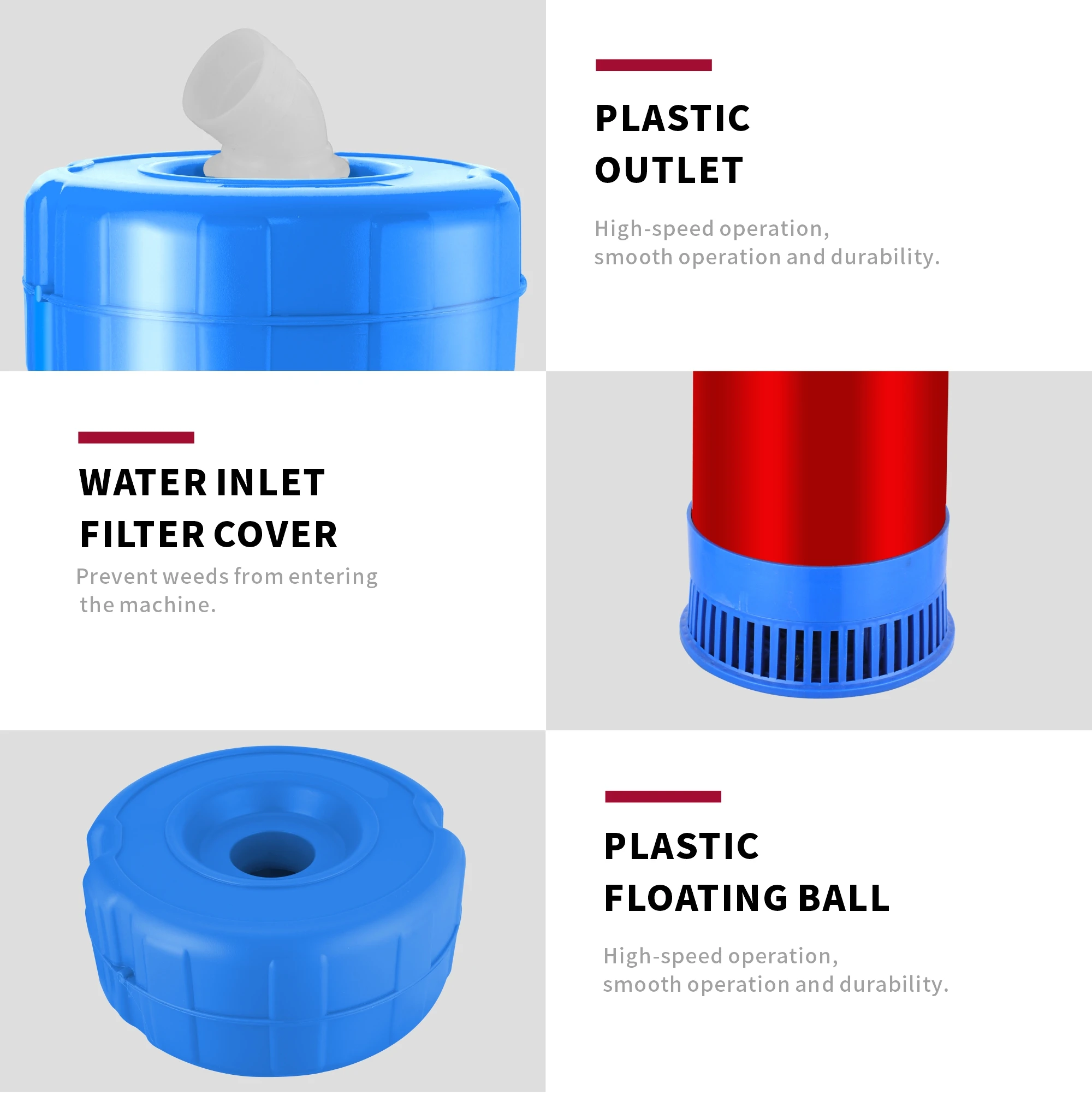

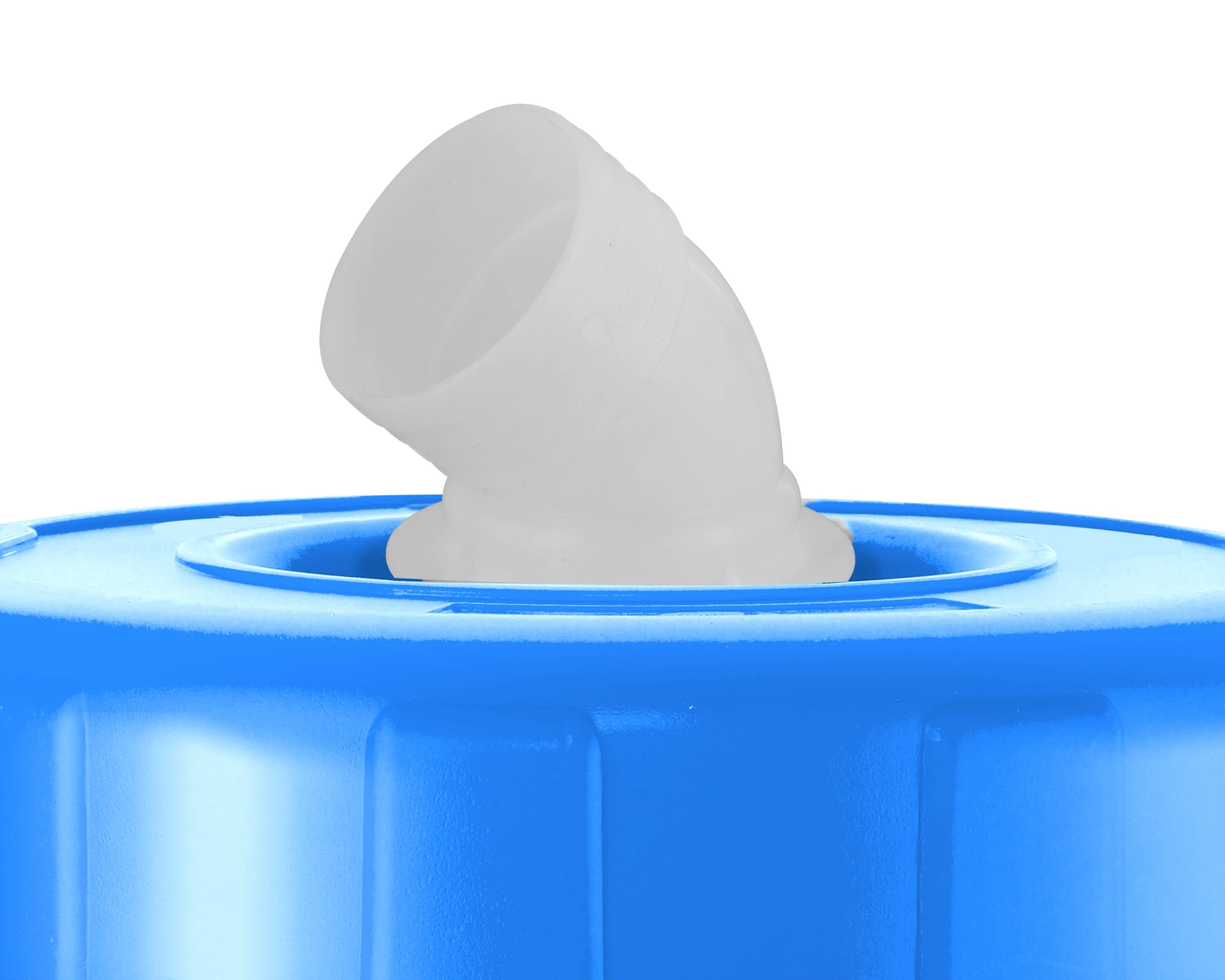

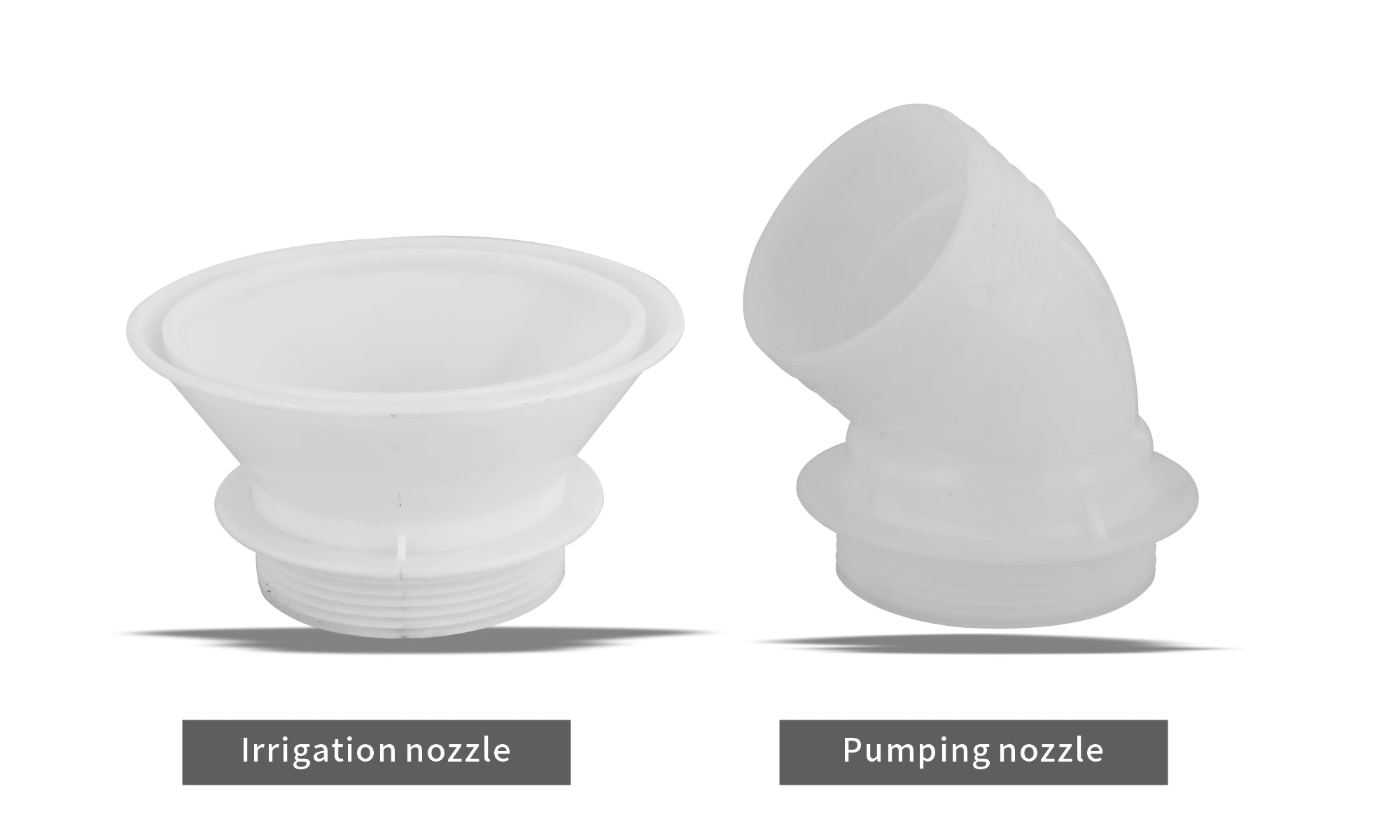

INTERFACE
High-speed operation,
smooth operation and durability.
smooth operation and durability.
Prevent weeds from entering the machine.
INTERFACE
High-speed operation,
smooth operation and durability.
smooth operation and durability.

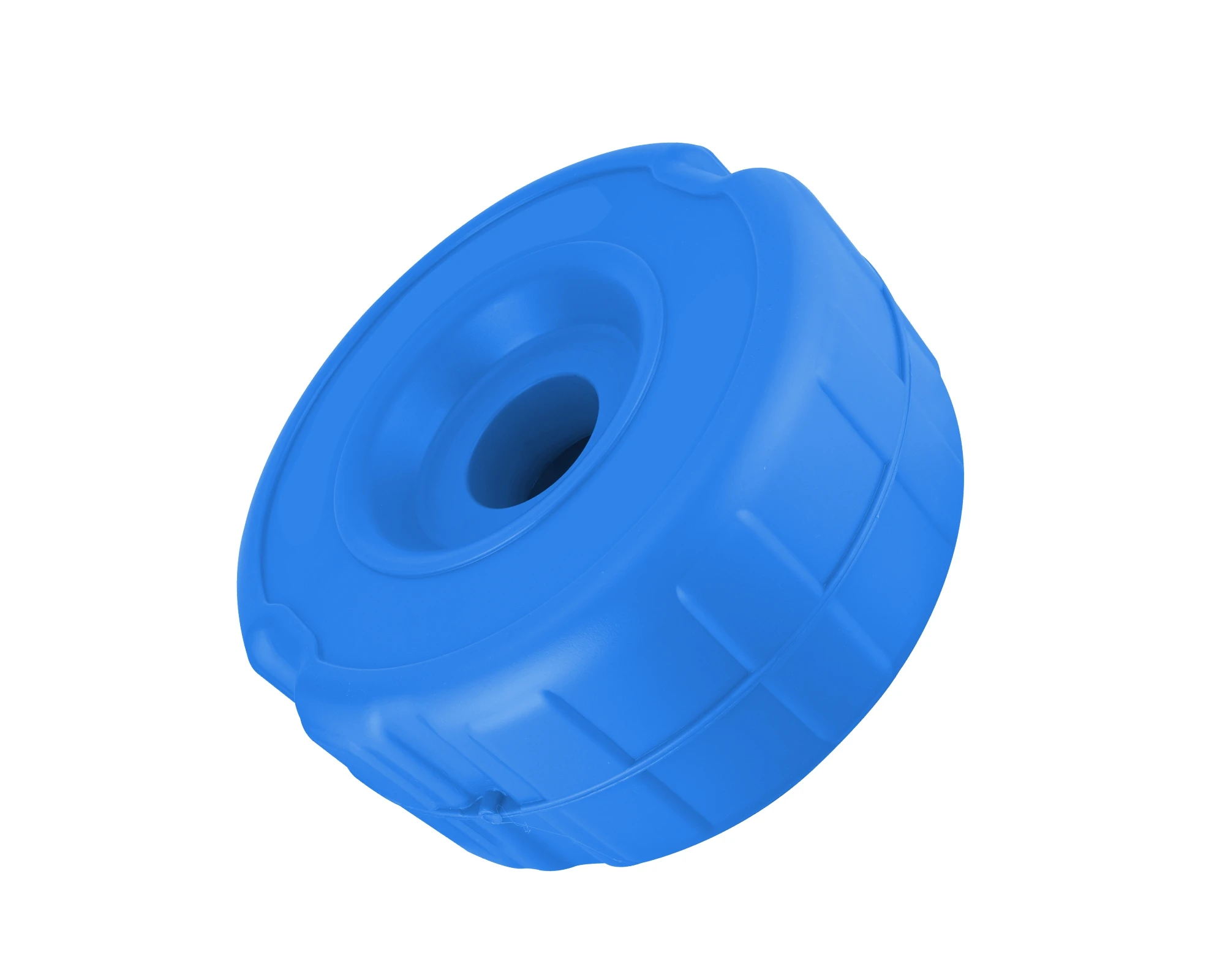

Aviation plastics are lighter,
stronger and more durable.
stronger and more durable.

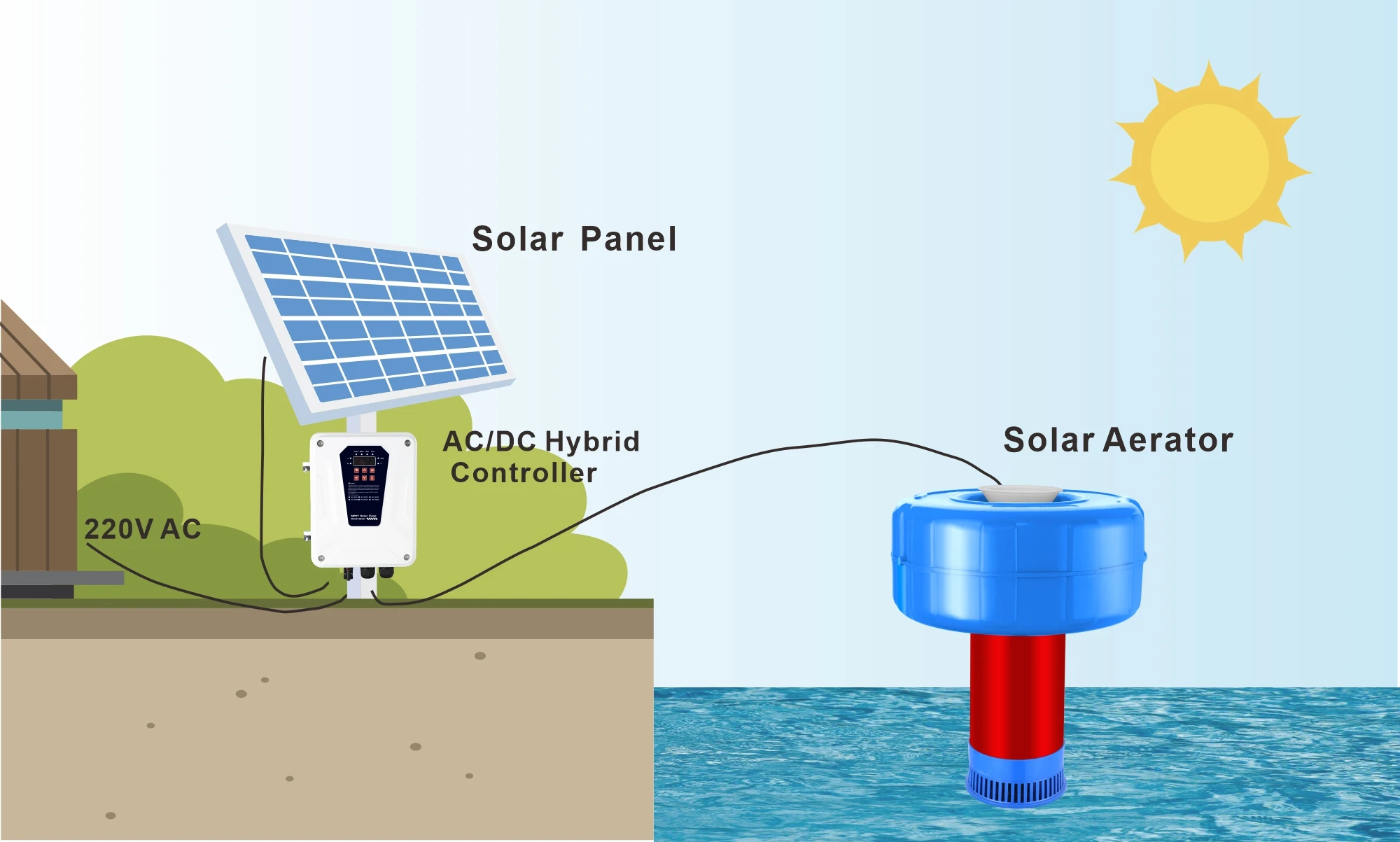

>>> HOW TO INSTALL A SOLAR AERATOR
Solar panel collects sunlight→DC electricity energy → Solar Controller (rectification,stabilization, amplification,filtering)
→available DC electricity→(charge the batteries)→Aerator
Since the sunlight/sunshine is not the same in different countries /regions on earth, the solar panels connection will be slightly changed when installed in different place, In order to ensure the same/similar performance & efficiency,The recommended solar panels power = Aerator Power * (1.2-1.5)

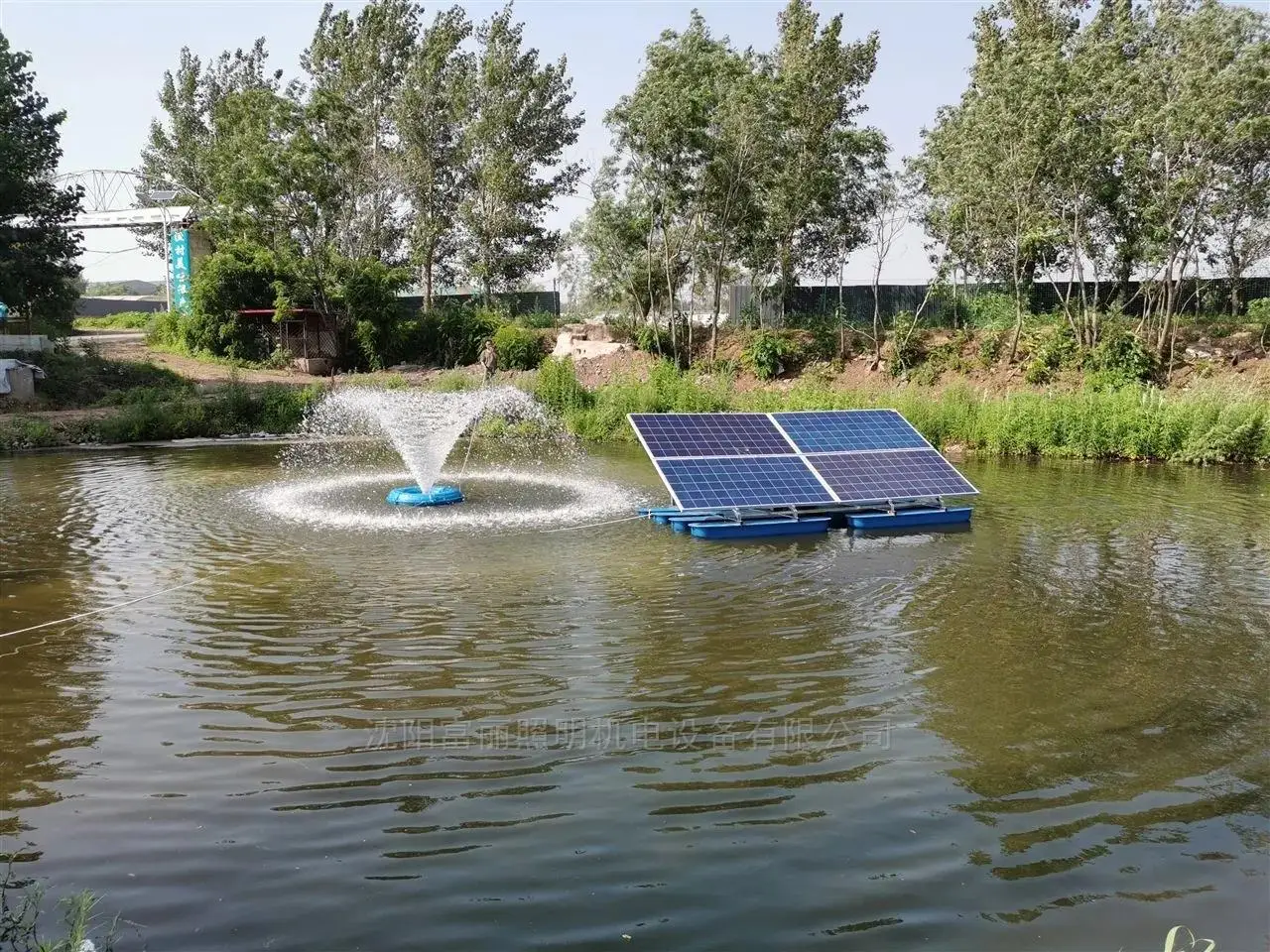

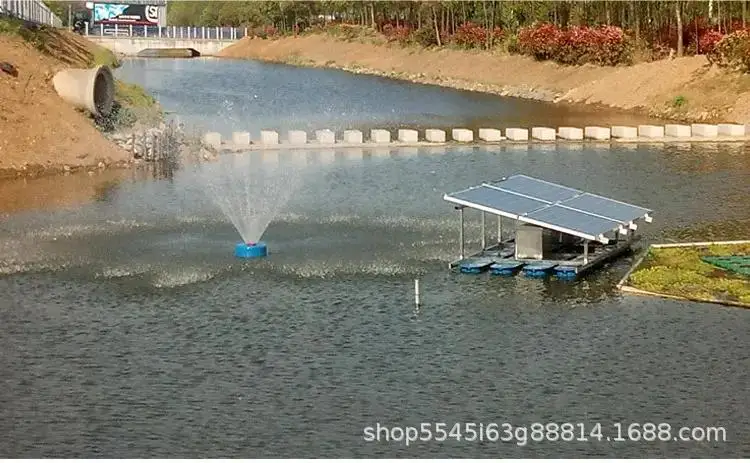

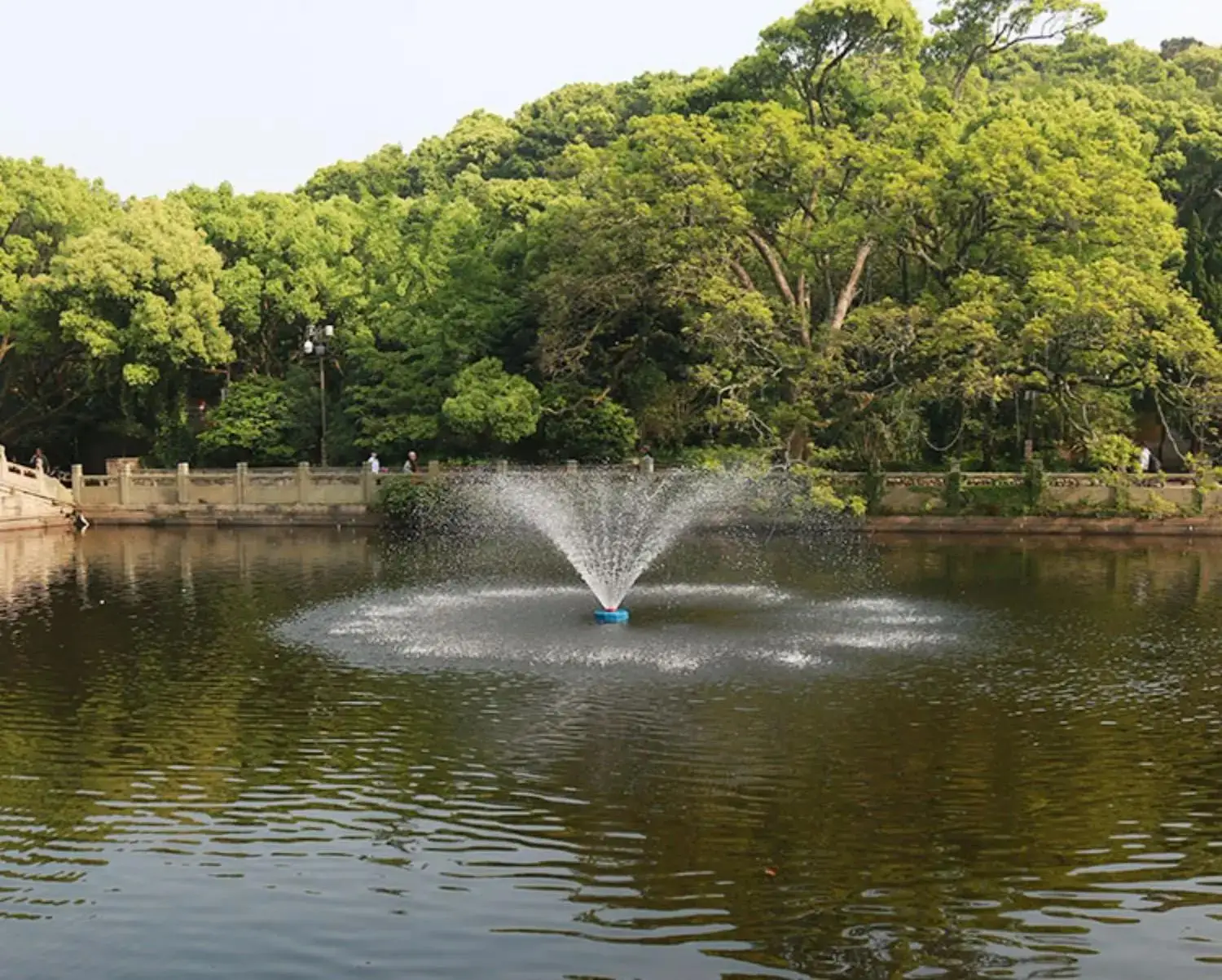

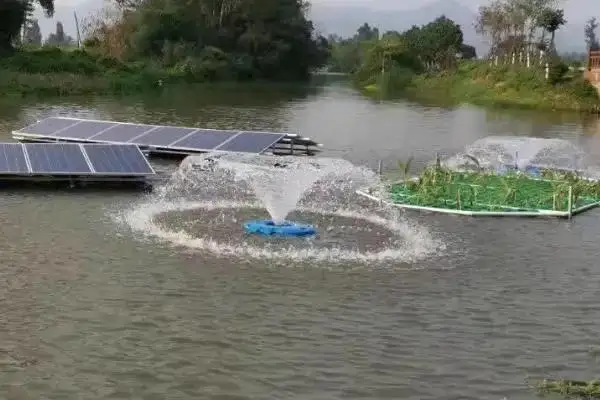

Application
@ Fish pond aeration
@ Purify water quality
@ Stirring water body
@ Purify water quality
@ Stirring water body
ZSWA SOLAR WHEEL AERATOR
Single solar DC mode
Single AC mode
AC / DC Hybrid mode(DC Power firstly)
AC / DC Hybrid mode(DC Power firstly)

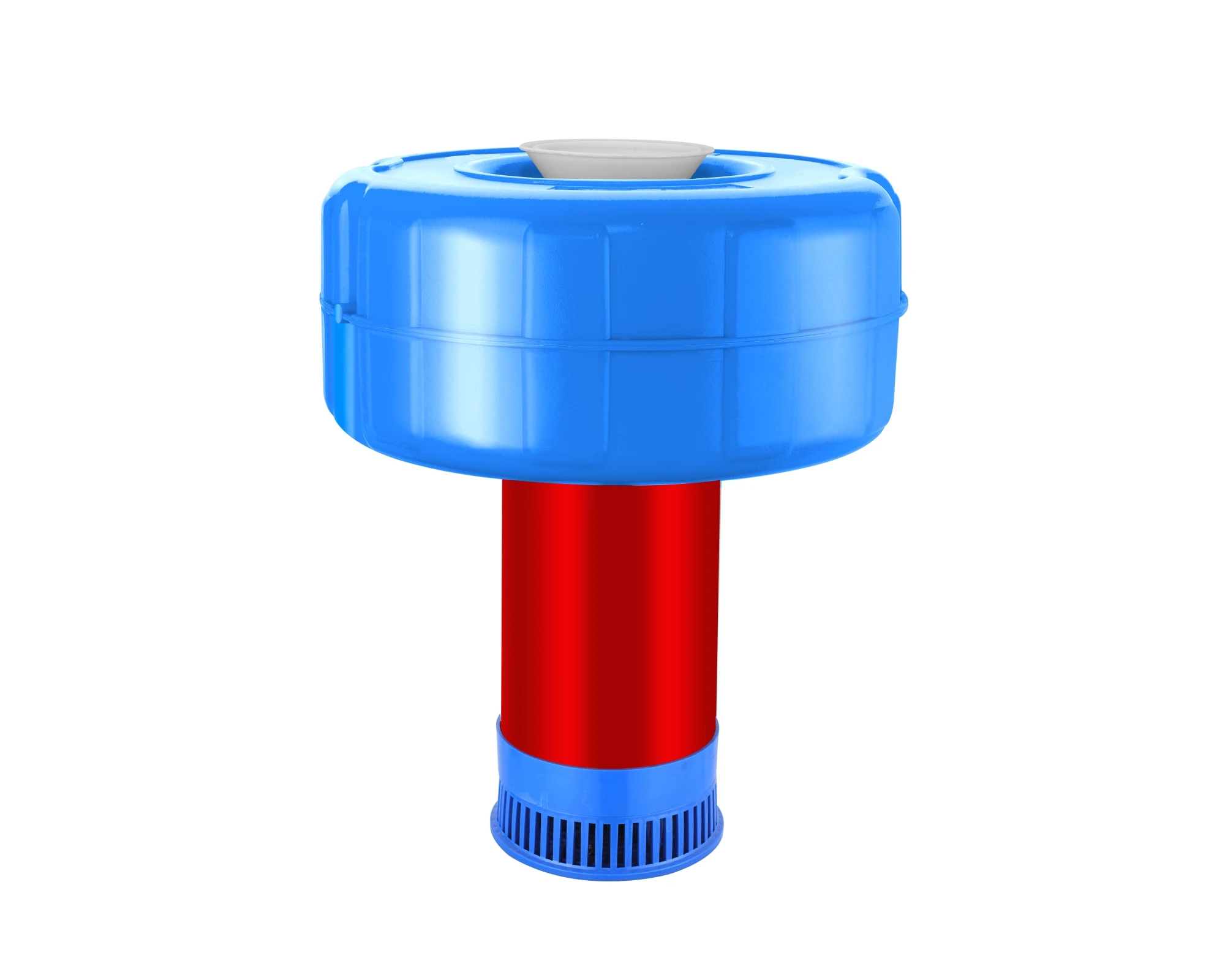

ZSFA SOLAR FLOATING AERATOR
Single solar DC mode
Single AC mode
AC / DC Hybrid mode(DC Power firstly)
AC / DC Hybrid mode(DC Power firstly)
ZSIA SOLAR IMPELLER AERATOR
Single solar DC mode
Single AC mode
AC / DC Hybrid mode(DC Power firstly)
AC / DC Hybrid mode(DC Power firstly)
ZSQA SOLAR Floating Splash AERATOR
Single solar DC mode
Single AC mode
AC / DC Hybrid mode(DC Power firstly)
AC / DC Hybrid mode(DC Power firstly)
>>> WHY YOU CAN TRUST ZRI
ZRI WORKSHOP
ZRI Certification
- Continuously diversify products range to satisfy customers' needs
CE Certification
ISO Certification
IEC 60335 Certification
>>> FAQ
Q1: What you can offer if we want to be your dealer?
Q2: What's your payment terms?
Q5: Do you offer test performance of the pumps?
An: We can provide good quality marketing photos, videos and training materials.
Q2: What's your payment terms?
An: We accept Alibaba trade assurance payment, TT payment, L/C and so on.
Q3: What is the delivery time?
An: Our lead time is around 2-5 days for small order qty less then 50 pcs, lead time for bigger quantites is around 15-20 days
An: Our lead time is around 2-5 days for small order qty less then 50 pcs, lead time for bigger quantites is around 15-20 days
Q4: Can you do our labels on the controller and pump?
An: Yes, we can do your private labels on your pump and controllers which is explained above.
Q5: Do you offer test performance of the pumps?
An: Yes, we do offer our test reports of our solar water pumps, such as flow, head etc.
Q6: What is the advantages of ZRI solar pumps? Why to choose your ZRI pumps?
An: ZRI uses Japanese bearings in all of it’s pumps as we have identified cheaper low grade bearings to be a significant issue in pumps.
ZRI’s submersible solar screw pumps are manufactured with 304 Stainless Steel,which is a high grade steel and rated higher than many other pumps which using 201 stainless steel, 316L Stainless Steel is also optional for harsh water in prolong the pump working life.ZRI use a High Grade SH Permanent Magnet brushless DC motor, Max. 4000RPM(not brush or common magnet as in low cost product, reduces life expectancy).
