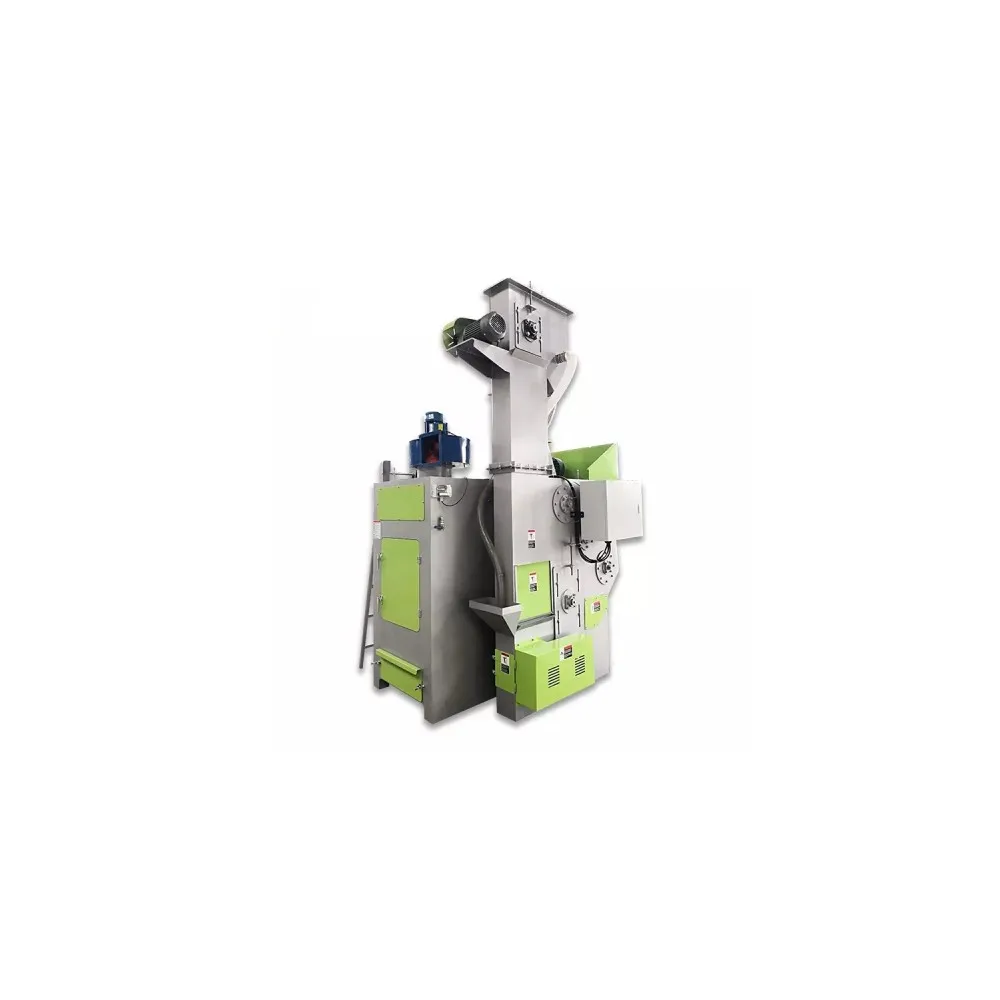

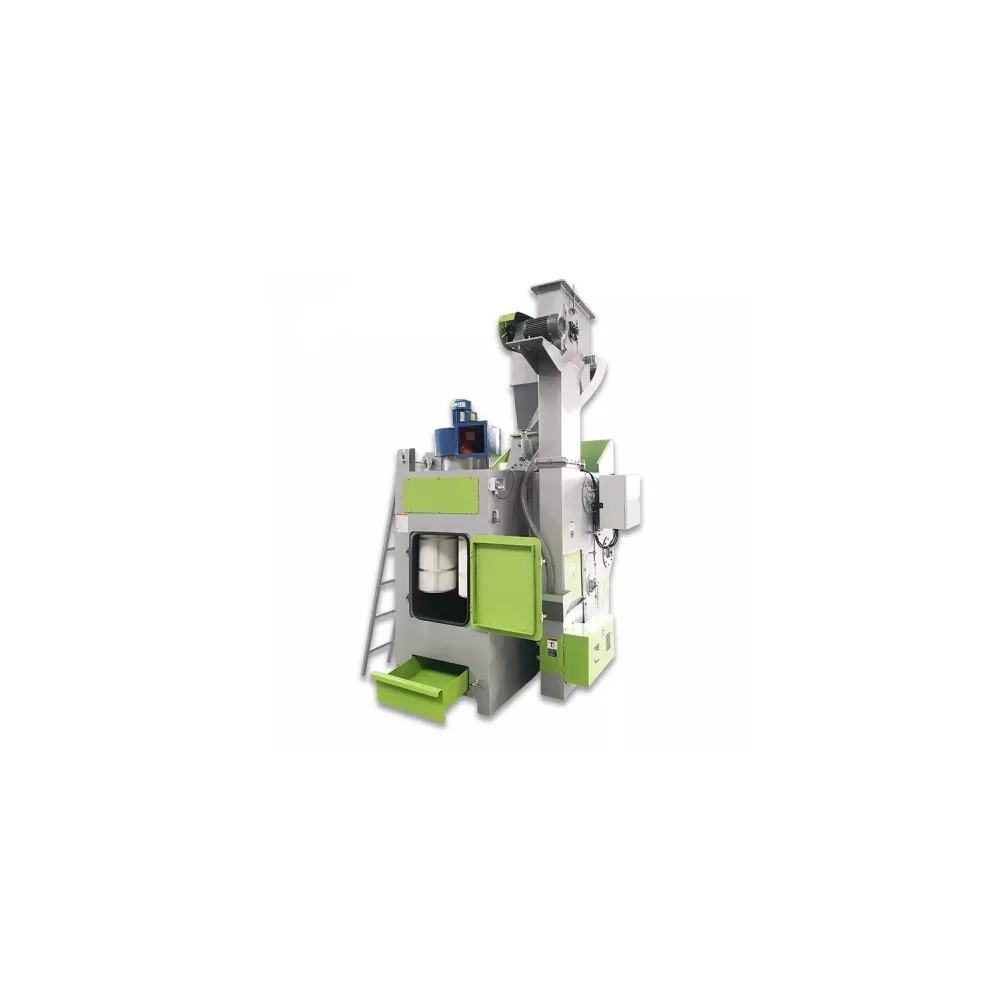

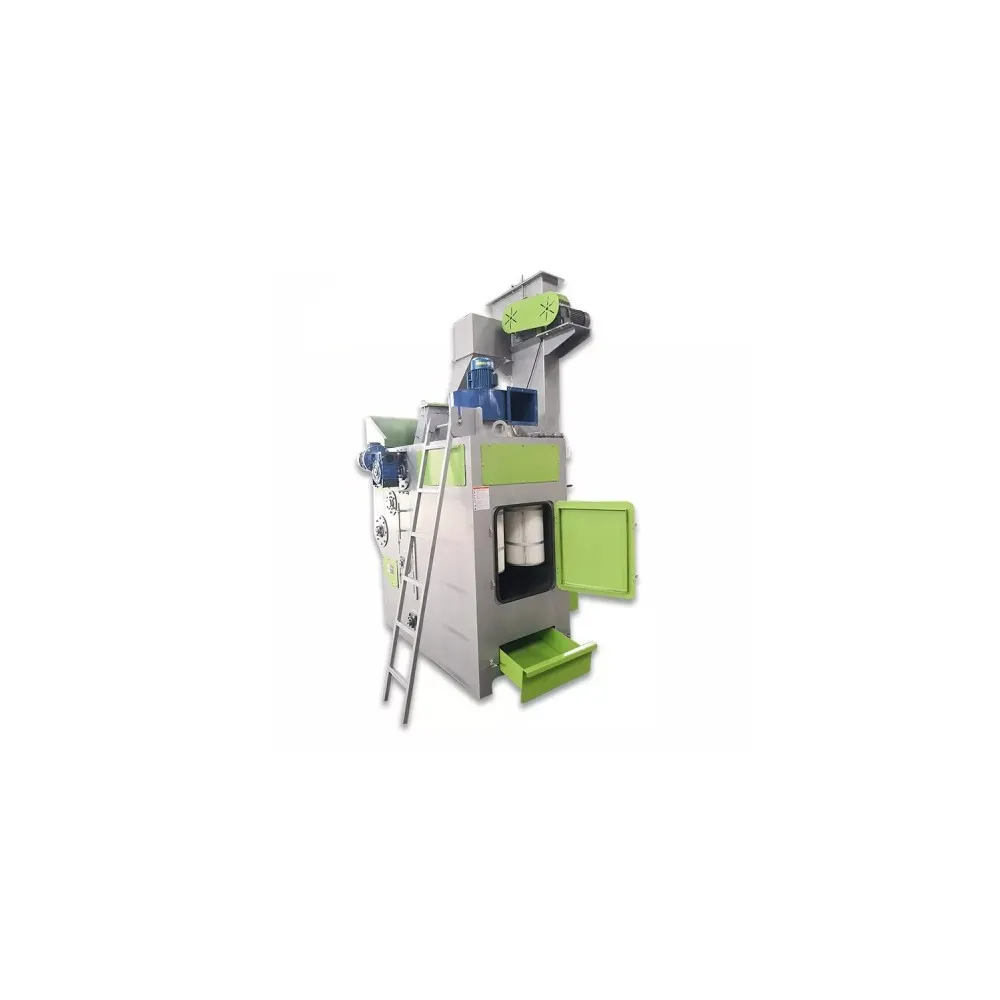

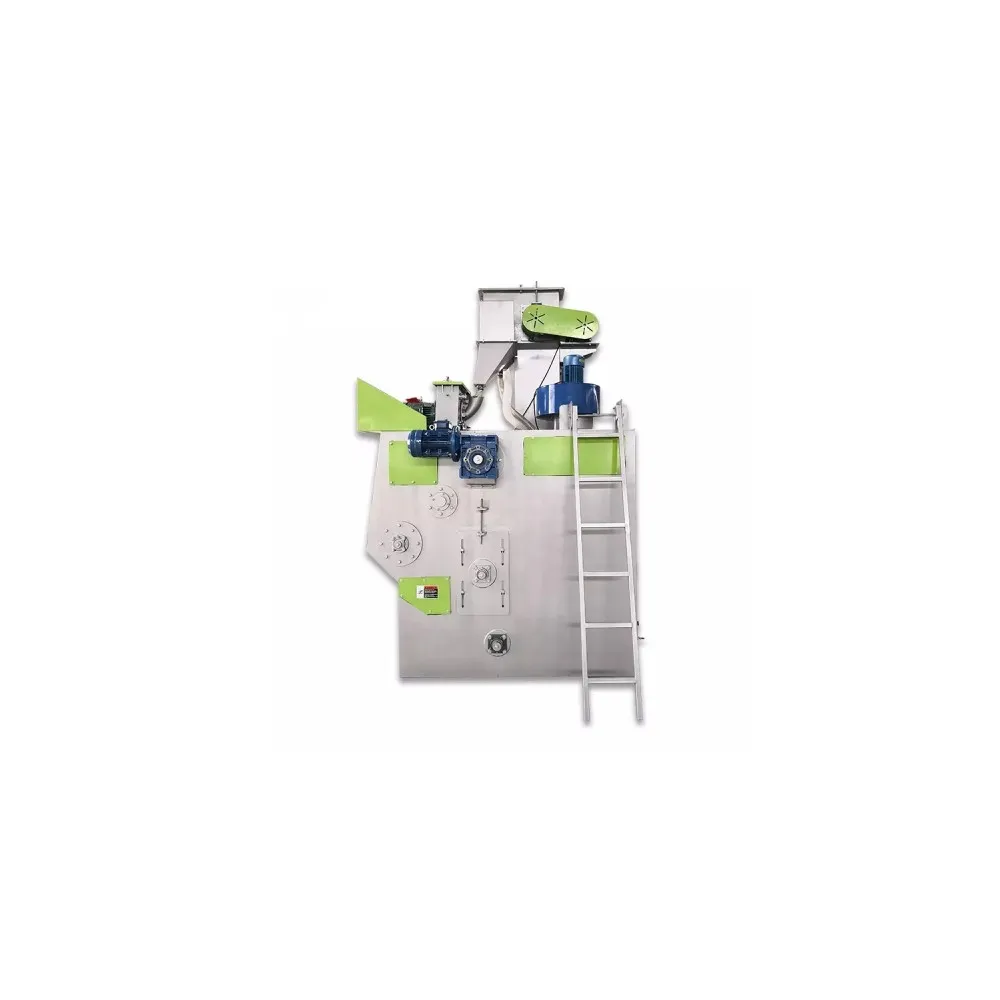

jinming gel blaster Q3210 automatic loading unloading Tumble belt carbon steel shot spare parts
- Category: >>>
- Supplier: Zibo Bonzer Machinery Co. Ltd.
Share on (1600718964342):
Product Overview
Description
Product Description
Q69 series is roller type shot blast machine, mainly used in building, bridge and other industries H beam size and other steel structure to eliminate stress and surface rust cleaning.
The structure steel and reasonable size structure piece can be once cleaning.
Not only can remove the workpiece rust, but also can remove the welding slag on the structural parts.
The workpiece can also eliminate welding stress and improve the fatigue strength of workpiece, increase film adhesion workpiece painting, and ultimately to improve the surface quality purposes.
Abrator Steel Surface Shot Blasting Machine For Plates
Parameter
The Q69 series Abrator Steel Surface Shot Blasting Machine For Plates
| Item | Q698 | Q6912 | Q6915 | Q6920 | Q6925 | Q6930 | Q6940 |
The effective cleaning width(mm) | 800 | 1200 | 1500 | 2000 | 2500 | 3000 | 4000 |
| The room feed-in size | 1000*400 | 1400*400 | 1700*400 | 2200*400 | 2700*800 | 3200*800 | 4200*400 |
The length of cleaning workpiece(mm) | 1200-12000 | 1200-1600 | 1200-12000 | 1200-12000 | 3000-12000 | 2400-12000 | 4500-18000 |
The speed of wheel conveyer(m/min) | 0.5-4 | 0.5-4 | 0.5-4 | 0.5-4 | 0.5-4 | 0.5-4 | 0.5-4 |
The thickness of cleaning steel sheet(mm) | 3-60 | 3-60 | 1.5-60 | 3-60 | 3-60 | 3-110 | 4.5-100 |
| Steel specs (mm) | 800*300 | 1000*300 | 1500*300 | 2000*300 | 2500*700 | 3000*700 | 4000*300 |
The quantity of shot blasting(kg/min) | 4*180 | 4*250 | 4*250 | 6*250 | 6*250 | 6*360 | 8*360 |
The first enclosed quantity(kg) | 4000 | 4000 | 4000 | 4500 | 4500 | 8000 | 11000 |
Roll brush adjusting height(mm) | 200 | 200 | 350 | 450 | 600 | 850 | 900 |
| Air capacity(m3/h) | 22000 | 17560 | 19000 | 19550 | 27758 | 28050 | 38000 |
| Total power(kw) | 90 | 78.3 | 113.5 | 156.6 | 204.8 | 224.55 | 293.6 |
Product Details
Application
Generic steel structural works (plates, sections, steel structural works)
Shipyard industry
Railway industry
Pieces of agricultural machines
Truck chassis
Window and door frames
Piping etc.
Work Principle
Take advantage of the high-speed rotating impeller, throw steel shot/pill on section steel surfaceto achievederusting to get metal internal molecular arrangement dislocation, reinforce section steel's resistance to fatigue strength.
Composition
Auto-loading system, Roller bed system, Shot blasting system, Auto-unloading system, Dust collect system,Electrical control system.
Characteristics
Designed and produced by adopting the advantages of similar products from both within the country and abroad. the rusting cleaning parts(shot blast cleaning)adopts high-efficiency blast wheel and full shutter type shot sand separator.the aweeping machine adopts specially made high-strength nylon rolling brush and high-pressure ventilator. the preheating and drying part may adopt various heating methods. the paint spraying parts adopt high-pressure airless spraying method. the complete set of equipment is controlled by PLC, and is the large-size complete equipment of international advance level.
Related Product
The Dust collection system
 |  |
| Bag Filter Pulse Jet Type Dust Collector | Cartridge Filter Dust Collector |
Our company has sophisticated processing equipment and innovative technology design, has now developed a standard module, the dust shell plate laser molding process, pulse air bag assembly process and machine simulation test device, etc.
All these advanced technologies provide practical quality assurance for manufacturing large, medium and small dust removal equipment.
Packaging & Shipping
Shipping Method
a.) The heavy machinery usually be shipped by Sea. It takes about 15-30 days to Asian countries, About 20-45 days to other countries.
b.) The pieces of sample or spare parts will be shipped by ocean transportation, air transportation or by express way such as DHL, UPS, TNT, FEDEX, EMS.
The nearest port from us is Qingdao.
Delivery time
within 15 working days upon your payment.
Package
Standard wooden case for export.
Plz contact us for detailed shipping freight.
FAQ
Q: How can I get the quotation?
A: Tell us the specifications, such as working situation, etc. We will send the quotation within 24 hours.
Q: How long is the delivery time?
A: About 5-40 days upon the payment.
Q: How about the after-sale installation of shot blaster?
A: 1.We provide installation manual, technical consulting forever. Our engineers are available to help you install dust collector onsite.
2.We also can provide installing turn-key projects overseas.
Q: Are you manufacturer or trading company?
A: We are professional manufacturer in this field for more than 7 years.
Q: Where is your factory located? How can I visit there?
A: We are located in Zibo city Shandong Province, Welcome you to visit us, we will pick you up in the nearest airport.
Q: How do you control the quality?
A: Quality is our culture, we always pay attention to quality control from the beginning to the end. One year warranty period, ISO9001:2008, CE, BV, SGS, ATEX Certificates. Alibaba golden credit supplier.
Pre-Sales Service * Inquiry and consulting support. * Design depend on your local environment. * View our Factory. | After-Sales Service * Training how to instal the machine, training how to use the machine. * Engineers available to service machinery overseas. |
