Product Overview
Description
Products Description

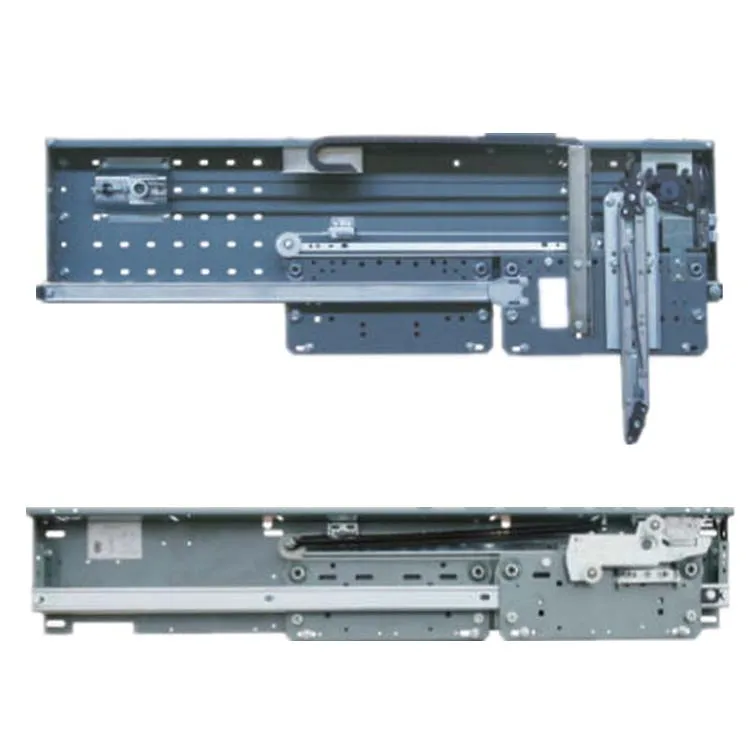

Name: 004 Two Panels Center Parting CaDooOperator
Features:
1. Modularity (various combinations between drives and models)r2. Smooth operation even at high speeds.r3. Pre-adjusted and tested in the factory with self-learning functions foopening and closing times speed.Accordingly we can have a fast and easy installation because there is no more need foadditional adjustments in the site.r4. Safety, comfortable, low noisy, stable and bettequality, high life time
Details Images

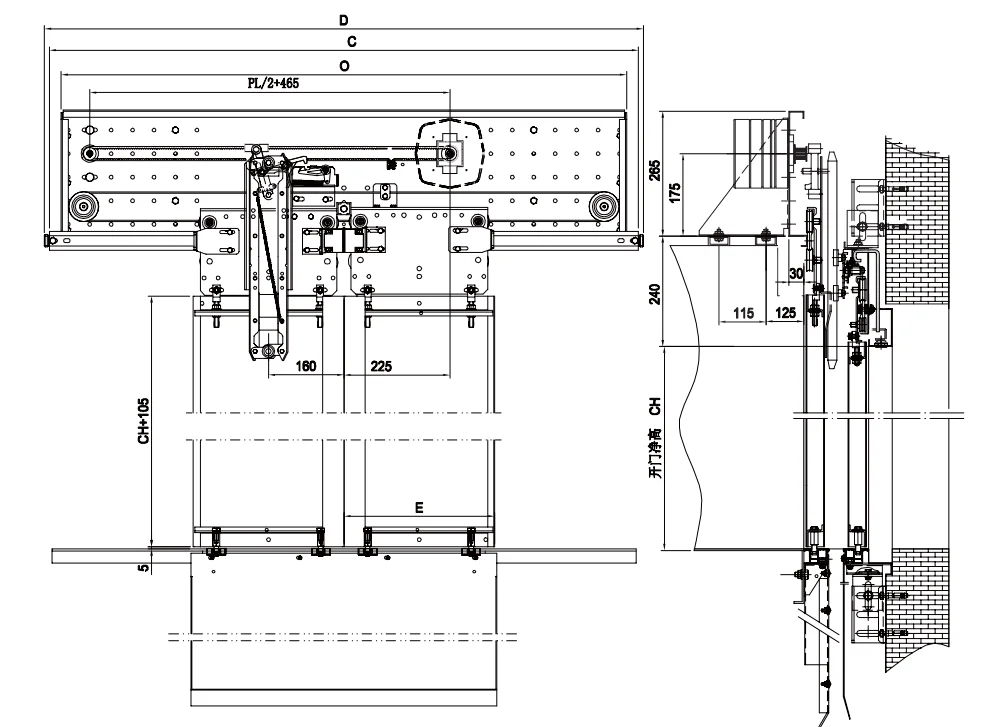

PL | 600 | 650 | 700 | 750 | 800 | 850 | 900 | 1000 | 1100 |
A | 785 | 785 | 785 | 785 | 785 | 785 | 885 | 885 | 885 |
C | 1250 | 1350 | 1450 | 1550 | 1650 | 1750 | 1850 | 2050 | 2250 |
D | 1270 | 1370 | 1470 | 1570 | 1670 | 1770 | 1870 | 2070 | 2270 |
O | 1200 | 1250 | 1400 | 1450 | 1500 | 1550 | 1600 | 1700 | 1800 |
E | 320 | 345 | 370 | 395 | 420 | 445 | 470 | 520 | 570 |
N | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 3 | 3 |
Time(s) | 1.22 | 1.27 | 1.32 | 1.37 | 1.41 | 1.45 | 1.5 | 1.58 | 1.66 |
Weight(Kg) | 52.5 | 57 | 61.5 | 66 | 70 | 74.5 | 79 | 87.5 | 95.5 |
Different Models

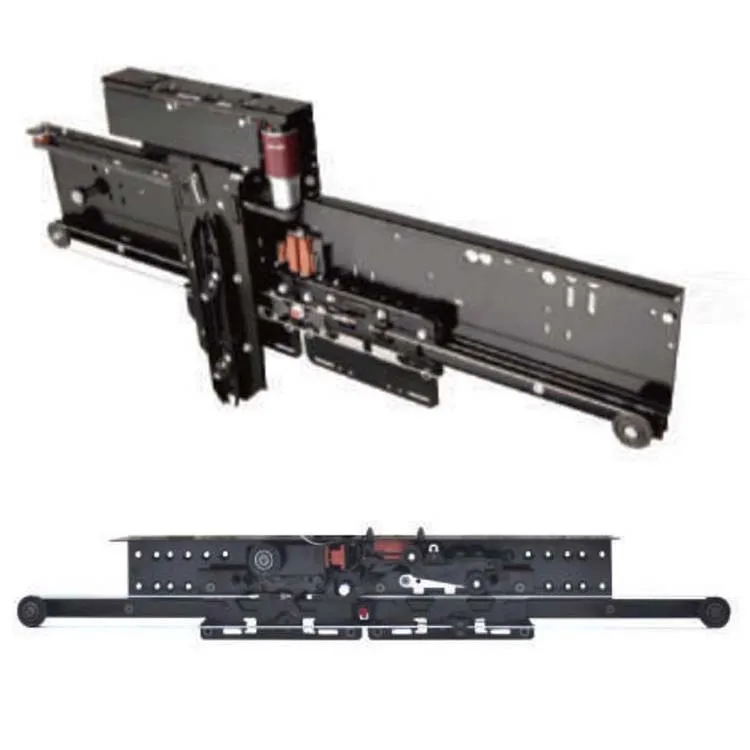

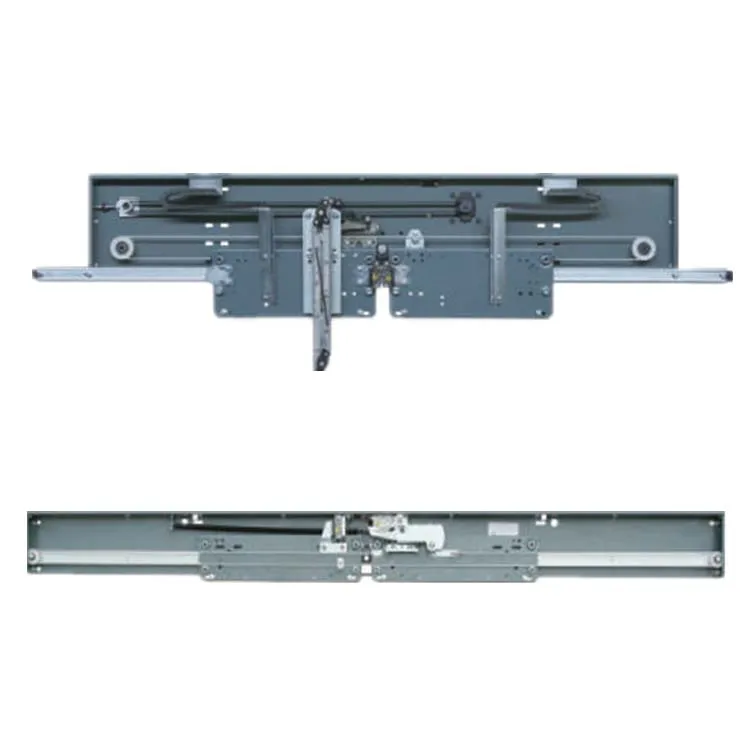

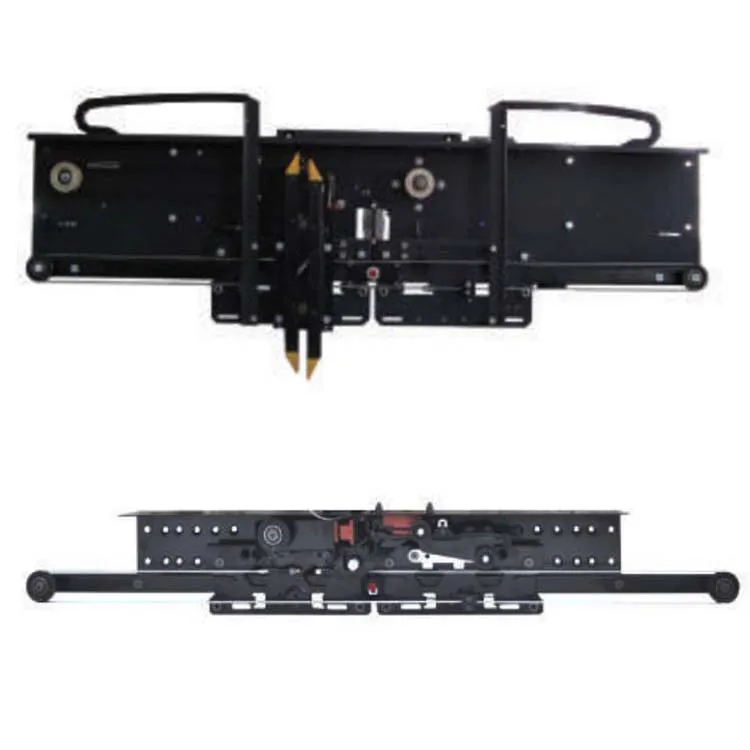

CenteOpening ElevatoCaDooOperator
Side Opening ElevatoCaDooOperator
