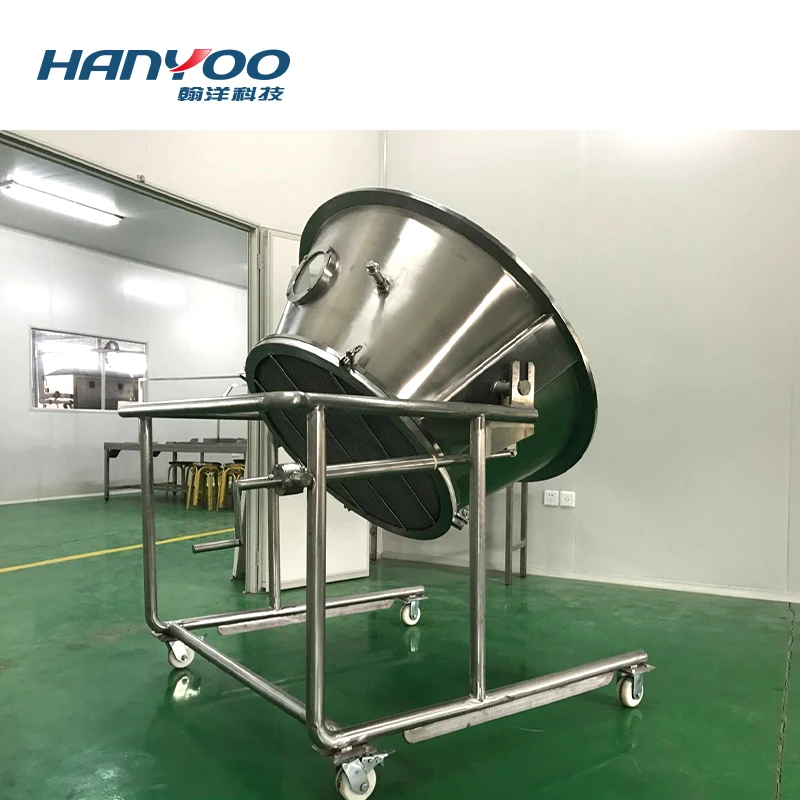

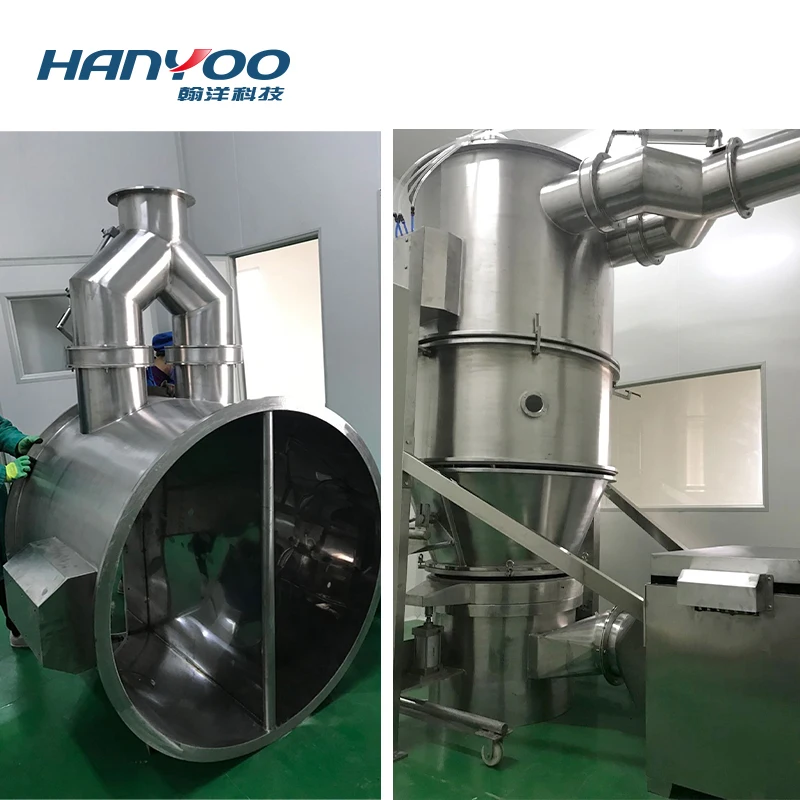

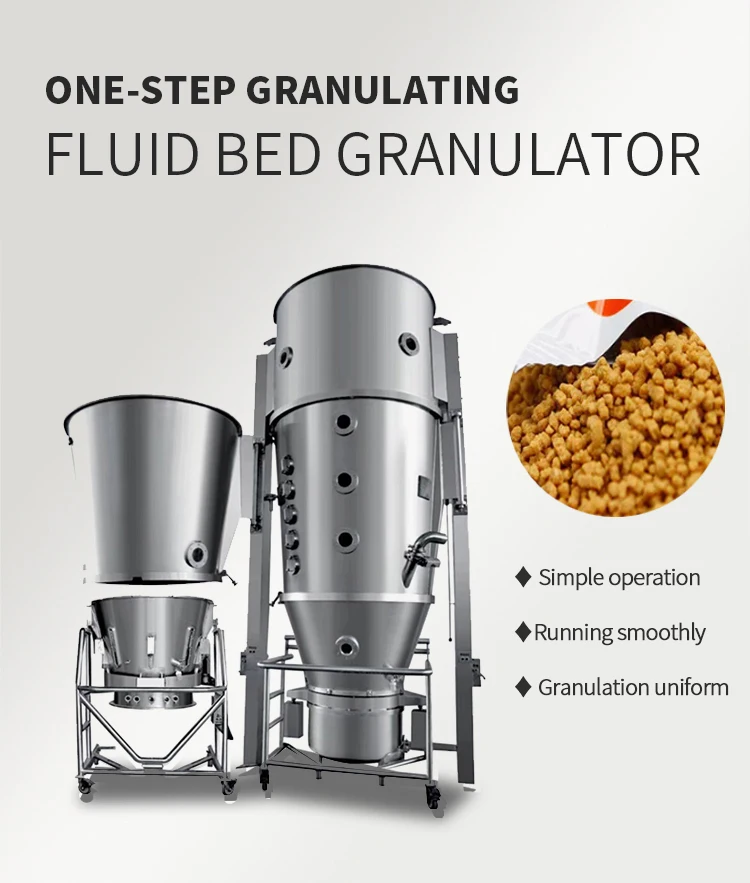

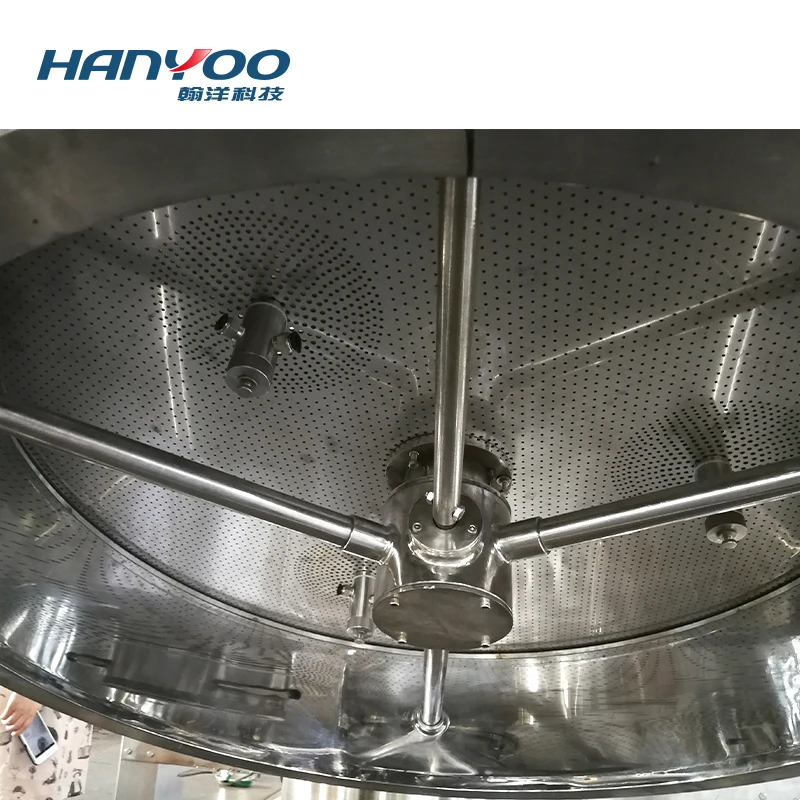

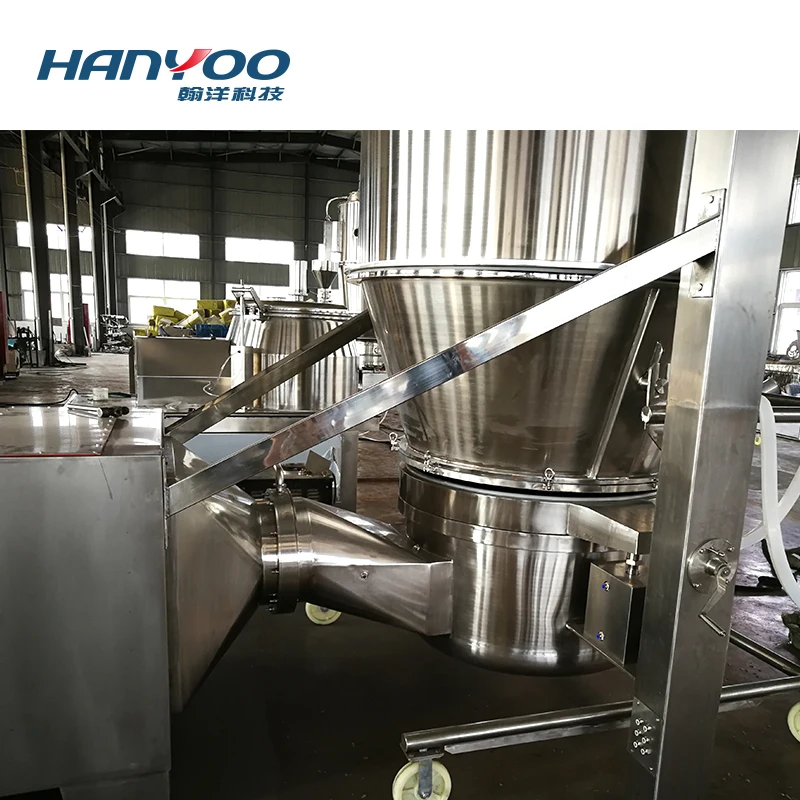

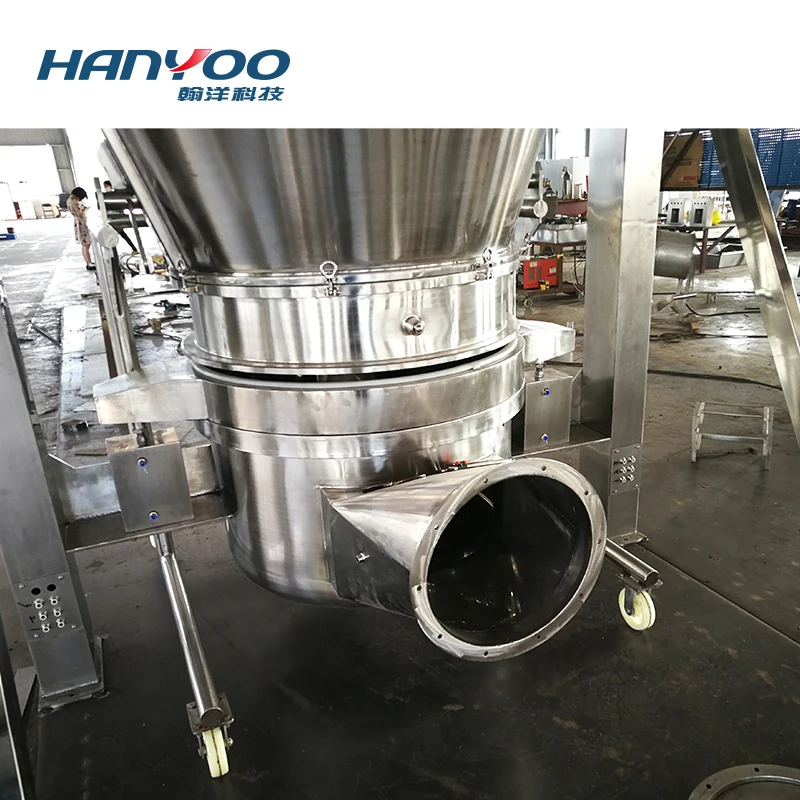

HANYOO FL Series Factory Supply High Quality fluid bed dryer fluidized bed granulator
- Category: Chemical Machinery >>>
- Supplier: Jiangsu Hanyoo Pharmatech Co. Ltd.
Share on (1600719168673):
Product Overview
Description
Product Description
Technical Parameter
Model | FL-5 | FL-10 | FL-20 | FL-30 | FL-60 | FL-120 | FL-200 | FL-300 | ||||||||
Raw material vessel volume (L) | 27 | 35 | 73 | 112 | 220 | 566 | 739 | 976 | ||||||||
Production (kg/h) | 5 | 15 | 20 | 30 | 60 | 120 | 200 | 300 | ||||||||
Steam | Pressure (Mpa) | 0.4-0.6 | ||||||||||||||
Consumption (kg/h) | 45 | 80 | 116 | 116 | 240 | 380 | 420 | 520 | ||||||||
Compressed Air | Pressure (Mpa) | 0.4-0.7 | ||||||||||||||
Consumption (kg/h) | 0.3 | 0.6 | 0.9 | 0.9 | 0.9 | 0.9 | 1.5 | 1.5 | ||||||||
Fan Power(KW) | 7.5 | 7.5 | 11 | 11 | 18.5 | 22 | 30 | 37 | ||||||||
Overall Size(mm) | W | 1200 | 1480 | 1660 | 1890 | 2090 | 2290 | |||||||||
H | 3760 | 4000 | 4420 | 4540 | 5100 | 5180 | ||||||||||
H1 | 3270 | 3600 | 3690 | 4230 | 4315 | 4420 | ||||||||||
Dia | 800 | 800 | 1000 | 1200 | 1400 | 1600 | 1800 | |||||||||

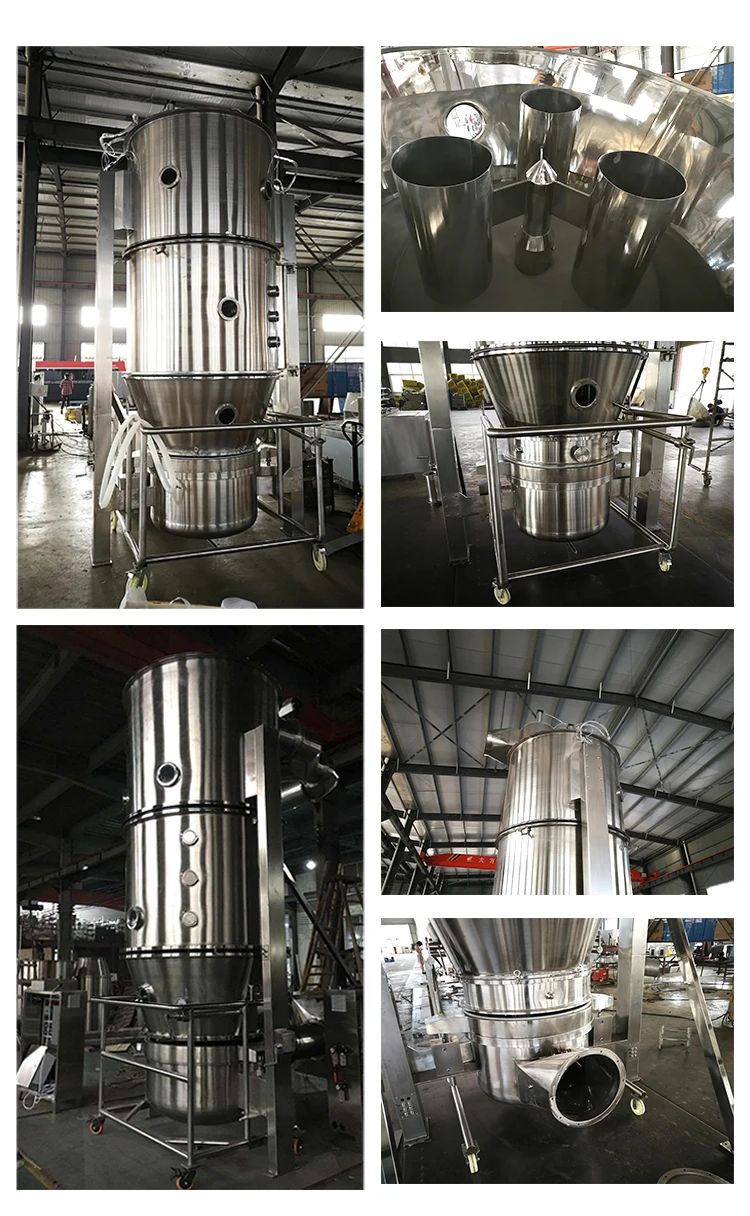

Details Images
WORKING PRINCIPLE

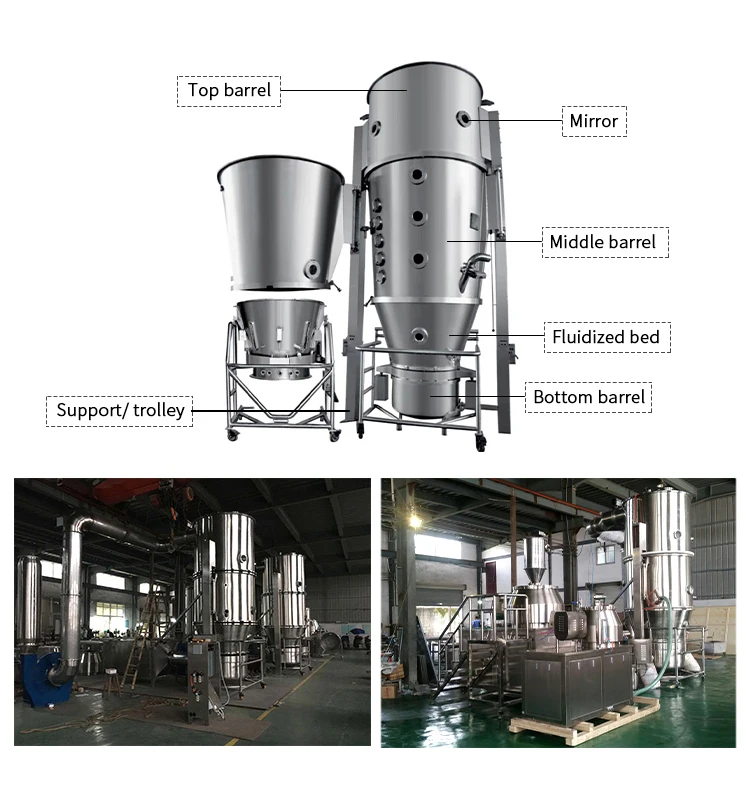

The machine is composed of main machine, air handling system, heating system, slurry handling system and control system. When it works, the materials are fed into the silo of the fluid bed granulator, and after the programs and parameters are set according to the process requirements, the machine starts to work. After filtered by the air handling system and heated by the heating system, the air enters the main machine. After going through the slurry handling system, the slurry is sent to the spray gun and sprayed to the materials inside the cavity, and then is bonded with powder to form granules. After the operation is completed according to the set programs and parameters, the silo is pushed out and connected with the lifting material transferring machine for lifting discharging or the vacuum feeder is used to pump the materials to a high position for granule sizing by the granule sizing machine, so as to effectively control dust pollution and cross contamination.
The machine is composed of main machine, air handling system, heating system, slurry handling system and control system. When it works, the materials are fed into the silo of the fluid bed granulator, and after the programs and parameters are set according to the process requirements, the machine starts to work. After filtered by the air handling system and heated by the heating system, the air enters the main machine. After going through the slurry handling system, the slurry is sent to the spray gun and sprayed to the materials inside the cavity, and then is bonded with powder to form granules. After the operation is completed according to the set programs and parameters, the silo is pushed out and connected with the lifting material transferring machine for lifting discharging or the vacuum feeder is used to pump the materials to a high position for granule sizing by the granule sizing machine, so as to effectively control dust pollution and cross contamination.
Company Overview
WHY CHOOSE US
Jiangsu Hanyoo Pharmatech Co.，Ltd.is a high technology enterprise which has strong research,production, sales and service team.We are specialized in providing the first class packaging solution and packaging equipment for food,pills,cosmetics electronics industrials.More than 20 years R&D experience in the automation equipment researching and production.The main products of our company are blister packaging machines, counting machines,cartoning machines, granulator, coating machine, blending machine etc.We have a number of inventions patented technology,with leading R&D team, with a variety of high-precision processing equipment and quality testing team to make assurance of product quality . We also have a pre-sale consulting packaging solution consulting, and worker training service, which strive to provide star service.The company passed SGS and IS9001:2016 certification, the products passed through the EU CE certification. We also have import and export right.
Now, with the efforts of all staff in Hanyoo, our products sold to more than 30 provinces in China and exported to over than 100 countries in the world such as,The United States,Canada,Russia,Britain,Germany,Spain,Malaysia, Indonesia,Thailand,India, Brazil and other dozens of countries and regions,and we won good reputation and credibility.
Now, with the efforts of all staff in Hanyoo, our products sold to more than 30 provinces in China and exported to over than 100 countries in the world such as,The United States,Canada,Russia,Britain,Germany,Spain,Malaysia, Indonesia,Thailand,India, Brazil and other dozens of countries and regions,and we won good reputation and credibility.
Packaging & Shipping
FAQ
Q1: Where is your factory? How can I visit your factory?
A1: Our factory is located in Nanjing China. We are warmly welcome you to visit the production base if you have a travel plan.
Q2: How can I know your machine is designed for my product?
A2: If you don't mind, you can send us material sample and we test it on the machine. During that time, we will take video and clear ,pictures for your reference. If possible, we even can hold video conversation online with you.
Q3: How can I trust you for the first transaction?
A3: Please note that our above business licenses and certificates. And if you don't trust us, we can use Alibaba Trade Assurance service. it will protect your money during the whole transaction.
Q4: How about the after service and guarantee period?
A4: We make the warranty of 12 months from the machine's arrival in buyer's facility. With a professional team of
experienced technicians, we can serve abroad and do the best after-sale service to assure the machine's perfect operation.
experienced technicians, we can serve abroad and do the best after-sale service to assure the machine's perfect operation.
Q5: How can we contact you?
A5: Please find the contact information on this page, Please click to send us inquiry!
