Taidacent 5V ON or OFF Water Pump Tank Tower Pool Automatic Switch Auto Water Level Relay Switch Liquid Level Control Relay
- Category: >>>
- Supplier: Shenzhen Taida Century Technology Co. Ltd.
Share on (1600719206478):
Product Overview
Description
Taidacent 5V ON or OFF Water Pump Tank Tower Pool Automatic Switch Auto Water Level Relay Switch Liquid Level Control Relay
Product Description
The DM-G305 intelligent liquid level controller uses the liquid to have a conductor function. It can judge the high or low state of the liquid level with only a wire and control the user's motor to automatically switch to automatically add water and drain the function. The product has the advantages of small size, convenient wiring, high working stability, strong anti-interference, low power consumption, large contact capacity, and wide voltage range. It can be widely used in the automatic control of water supply and drainage in industrial and agricultural production, construction projects, water supply and drainage treatment of residential buildings, and scientific experiments and other field cooperation water supply and drainage automatic components.
Specification
item | value |
Theory | Voltage Relay |
Usage | AUTO |
Size | Miniature |
Protect Feature | Epoxy |
Contact Load | Low Power |
Power supply | DC 5V |
Working Principle:
Water supply mode: When the water level of the water tank is too low (the low-level contact is disconnected and the high-level contact is also disconnected), the normally open point of the relay action is closed (understood as the knife switch is closed), and the water pump starts to work to add water to the water tank. The water tank water level rises sea by sea, the low contact contacts the water level and the water ticket continues to work. When the water level rises to the high water level, the high contact is turned on, the relay resets the normally open point and cuts off the water pump power supply, and the water pump stops. Only when the water level is lower than (low water level) again , repeat the above operation.
Drainage mode
When the water level of the water tank is too high (the high-level contact contacts the water surface conduction), the relay action will close (understand that the knife switch is closed), the water pump starts to work to drain water, the water level of the water tank gradually drops, and the water level is lower than when the high water level position (the high level contact leaves the water surface without conduction), Suwon continues to work. to the low level (the low level contact leaves the water surface without conduction), the relay resets the normally open point and cuts off the power supply, and the water pump stops. Repeat the above operation only when the water level is higher than ( high water level) again.
Function

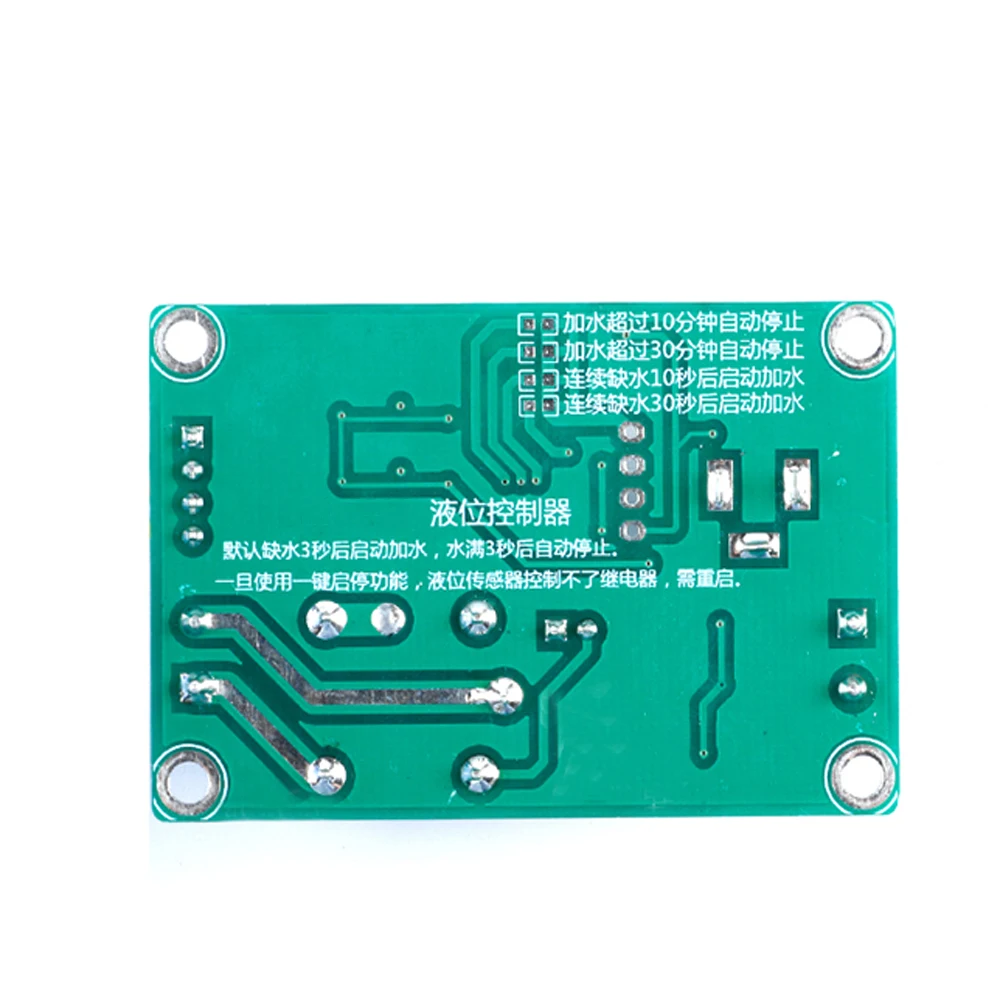

This module has the function of failure and shut-off. If the water is added and drained for too long, the relay will be automatically closed to prevent the motor from working for a long time. (It will take effect after the back of the circuit board is short-circuited)
What is the current water supply mode or drainage mode? When the power is turned on, the indicator light will be all on, it is self-test, and then all off. At this time, when the low light is on, it is the drainage mode, and the high light is the water supply mode.
How do I switch to the drainage mode when the current mode is the water supply mode? Press and hold a key to start without releasing it. When the indicator light stops flashing, release the key again, and the switching is successful. : When the light flashes and stops, which light turns on is the mode.
What is the current water supply mode or drainage mode? When the power is turned on, the indicator light will be all on, it is self-test, and then all off. At this time, when the low light is on, it is the drainage mode, and the high light is the water supply mode.
How do I switch to the drainage mode when the current mode is the water supply mode? Press and hold a key to start without releasing it. When the indicator light stops flashing, release the key again, and the switching is successful. : When the light flashes and stops, which light turns on is the mode.
Precautions and product maintenance
a. The meter should be used in the recommended working environment. A more severe environment may reduce the accuracy of the test dream count and the life of the moment product.
b. This series of meters are precision measuring equipment, and it is strictly prohibited to violently hit the meter.
c. The working power supply voltage of the instrument must meet the technical requirements. Too high power supply voltage may destroy the instrument; too low power supply voltage cannot guarantee the normal operation of the instrument. When Wang Dang is in a non-working state For a long time (more than 3 months), please keep the power on for 1 hour to maintain the working performance of the electronic components.
