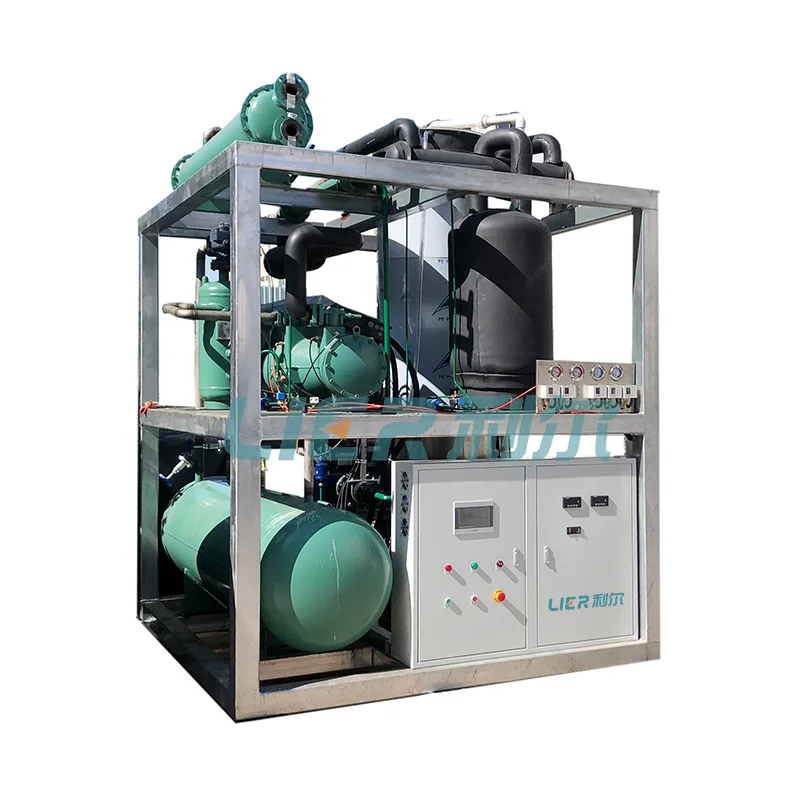

CE certified Tube Ice Machine Solid Cylinder Ice for Cold Drink, Food Processing

 H CE certified Tube Ice Machine Solid Cylinder Ice for Cold Drink, Food Processing

Water is circulated from a reservoir over the inner surface of the stainless steel tube. Ice is formed by a refrigerant being applied to the outside of the tube. When your desired thickness is achieved, a hot gas will be introduced, which releases the ice. This drops into a rotating blade, which cuts your ice and discharges into a storage container for use.

In the low side freezer the ice is frozen automatically in the vertical stainless steel tubes. The refrigerant is circulated in the freezer through an accumulator located by the side of top tank. The hot gas is then passed around the tubes to release the ice downwards by gravity which is cut by a specially designed cutter in pre-determined size of 16, 25 or 36 mm. All surfaces having contact with water or ice are made of stainless steel or other rust resistance materials.

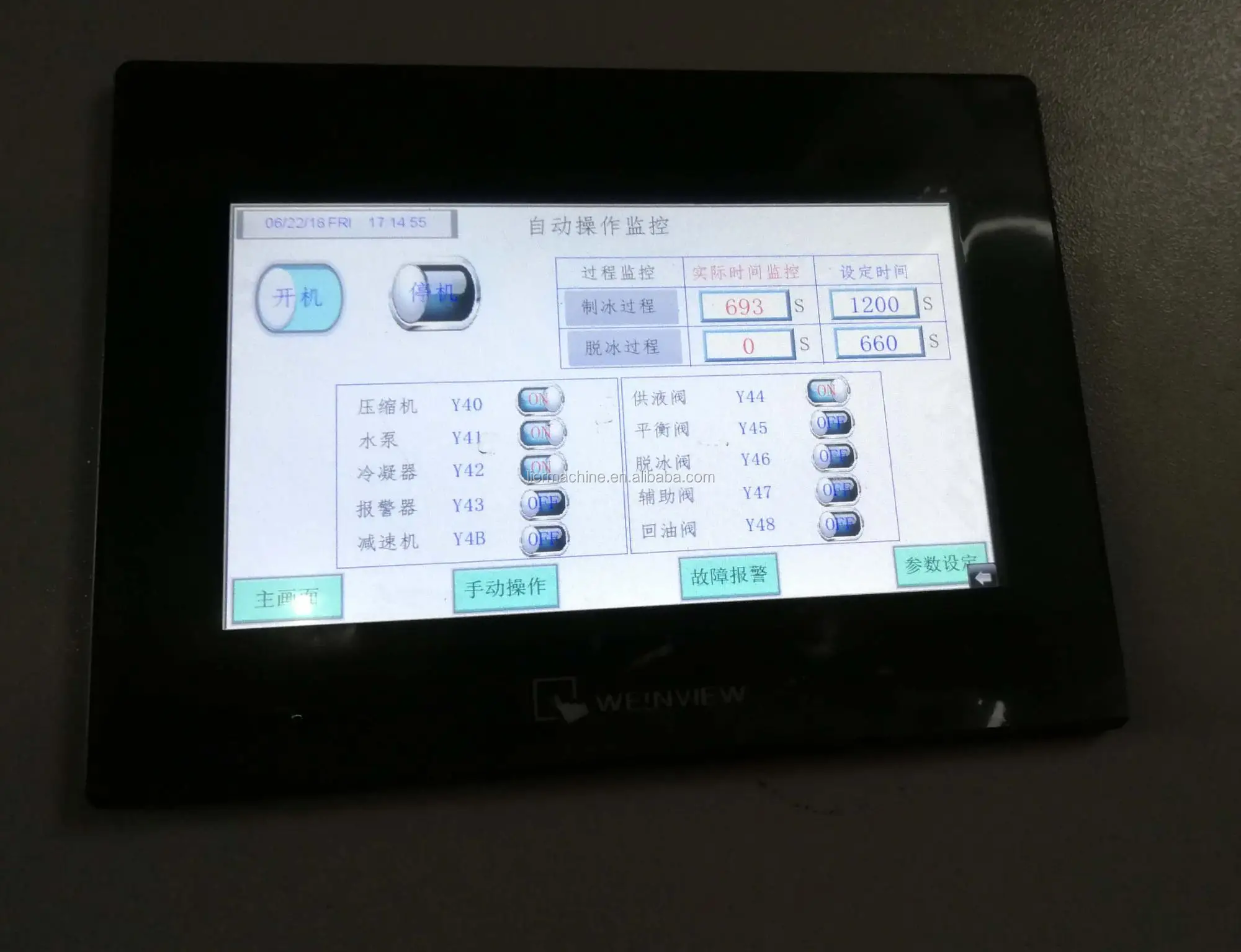

Automatic Controller 10T Ice Tube Making Machine  PLC controller

Parameter

 1.Tube ice machine,  Hanbell/BITZER compressor, refrigerant R404a, air cooling
2.Standard working condition:Ambient Temp.32℃,inlet water Temp.18℃, Evaporating Temp.: -15℃,Condensing Temp.: 40℃ , outlet water temperature: -5~-8℃
3.Tube ice diameter(mm):Φ22/φ29/φ35/φ42
4.Power supply 380V/50Hz/3P

Tube Ice applications include:

* Human consumption

* Port ice plants

* Hospitals

* Supermarkets and convenience stores

* Aquatic and fresh food preservation

* Logistic fresh preservation

* Chemical and concrete products

Outer dimension options: 22mm, 29mm, 36mm and 41mm

Longer melting time than flake ice

High suitability for transportation

Tube Ice Machines are suitable for refrigerant R22 and R717

Certification

Export case or container

  High quality Tube Ice Machines Cylinder Ice Plants with Full Automatic Packing line

A. Our pre-sale supportive service

We are ready to serve you 24 Hours A Day, 7 Days A Week by experienced colleague,

Payment service, T/T,  L/C for options. Customized service, OEM & ODM service

Provide our R&D service

B. Sale service,

We’ll in charge of everything once all information confirmed by customers after order released till cargo deliver to destination. We strictly ship goods per customer requested delivery date.

C. After-sales service

We provide after sales services, we will be responsible for the quality problem, technical issue of our products.

D. Technical service support

1, Providing project suitable scheme, recommend the best models

2, Research & development support to find a better solution for each customers if NON-standard models cannot satisfy you.

3, Installation guidance support for your installation, debugging and operation if it necessary;

4, Spare parts and technical backup at anytime;

5, Training service available if it necessary.

Shenzhen Lier Machinery Equipment Co.,Ltd is a high-tech enterprise integrating R&D, manufacturing, engineering installation and after-sale service for ice machine equipment since 2006. our company now as one of a leading manufacturers in China, our factory passed quality management system ISO9001:2008, products with CE, UL approval.

 LIER has export more than 7years export service experience, ice machine widely used for ice cooling engineering construction project , such as construction project, concrete project, and some other seafood conservation projects. we believe that we are a forward looking manufacturer worth cooperation.

LR  company Specialized in manufacturing & researching, development,distributing ice machine

Main products, ranges from 0.3T to 60T ice machine including flake ice maker, tube ice maker, block ice maker and cube ice maker

A. Established in 2007, factory around 8.000m2,

B. One of China's ice machine pioneer companies with independent export right.

C. production line 4

D. Stuff: around 150 experienced employee, innovative patent over 30,

E. Sophisticated Engineer with rich R&D and installation experience

F. passed quality management system ISO9001:2008 attestation.

G: equipment : 2.5m vertical lathe, various horizontal lathe, automatic welding machine, 850℃heat treatment equipment , acid washing pool,
