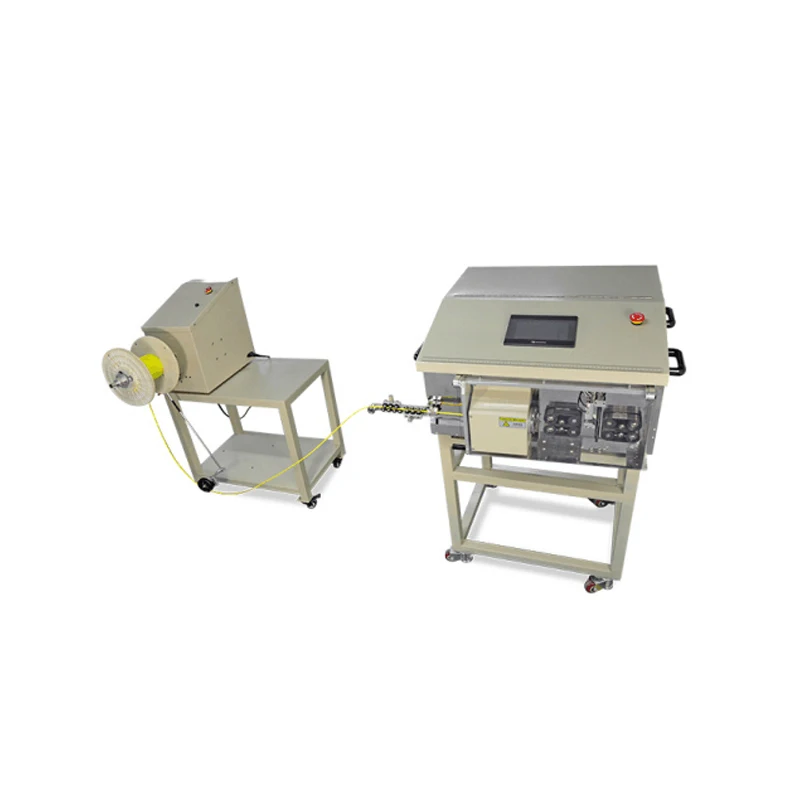

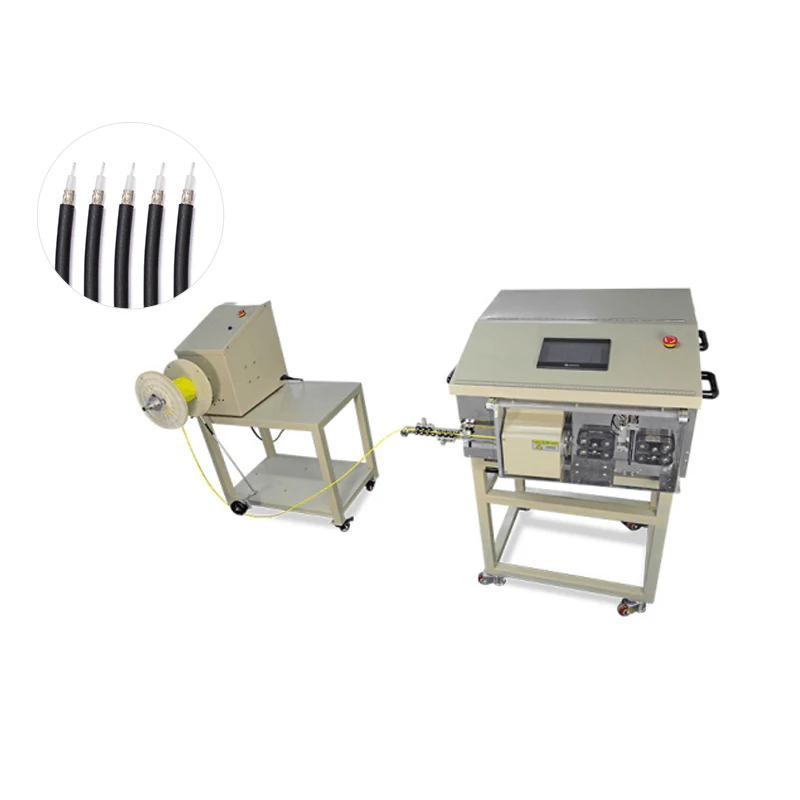

EW 06H Fully automatic thin coax cable stripping machine RF Flexible coaxial wire cut peeling machine with wire spool feeder

Product Overview

Description

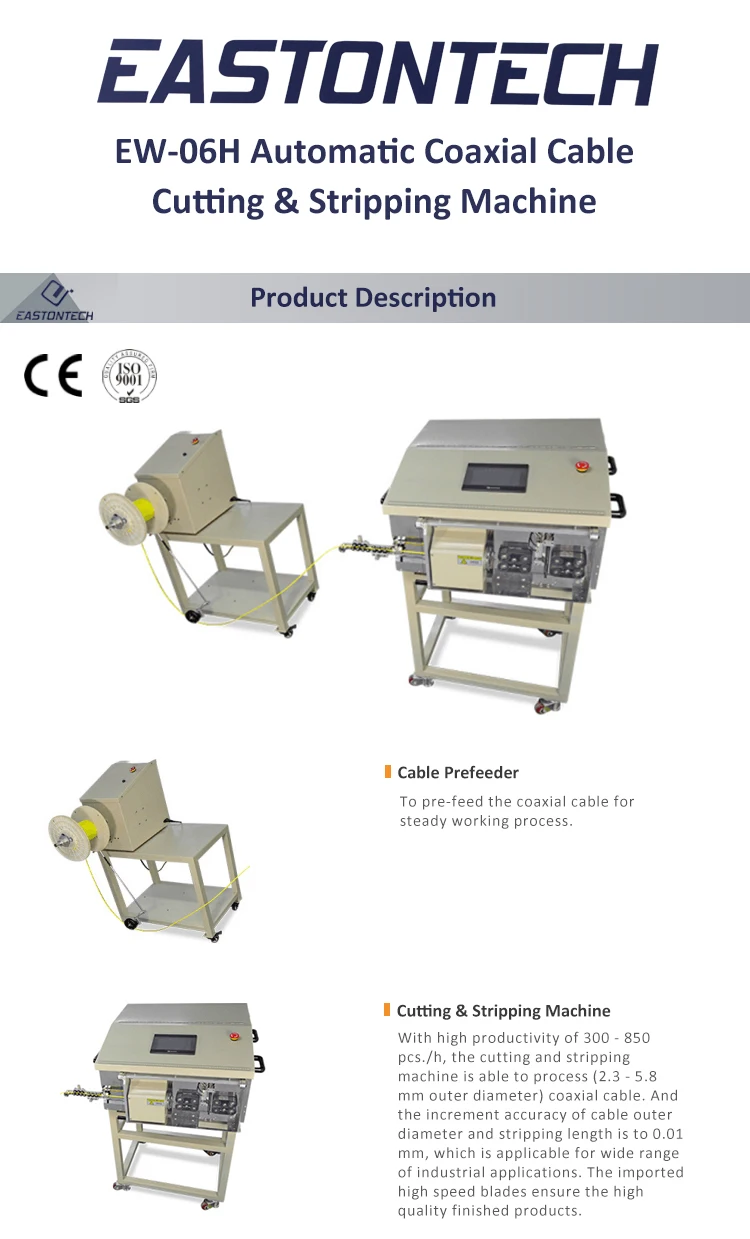

Automatic Coaxial wire harness stripping machine Multi-segment stripping machine for communication and RF industry line



• EW-06H is suitable for wire cutting, multi-segment stripping, middle opening window, stripping, and leaving glue, long and short stripping functions are complete.


• Silicone high-temperature wires, high elastic wires, precision medical wires, and high-enautomotiveve wires that cannot be processed by ordinary wire stripping machines can be processed perfectly on this machine without damaging the conductors.


• Up to groups of storage capacity, so that all kinds of processing data can be stored completely and recalled at any time.


• Advanced rotating cutter head with V-shaped cutting and stripping cutter. Make the machining process precise and extremely efficient.

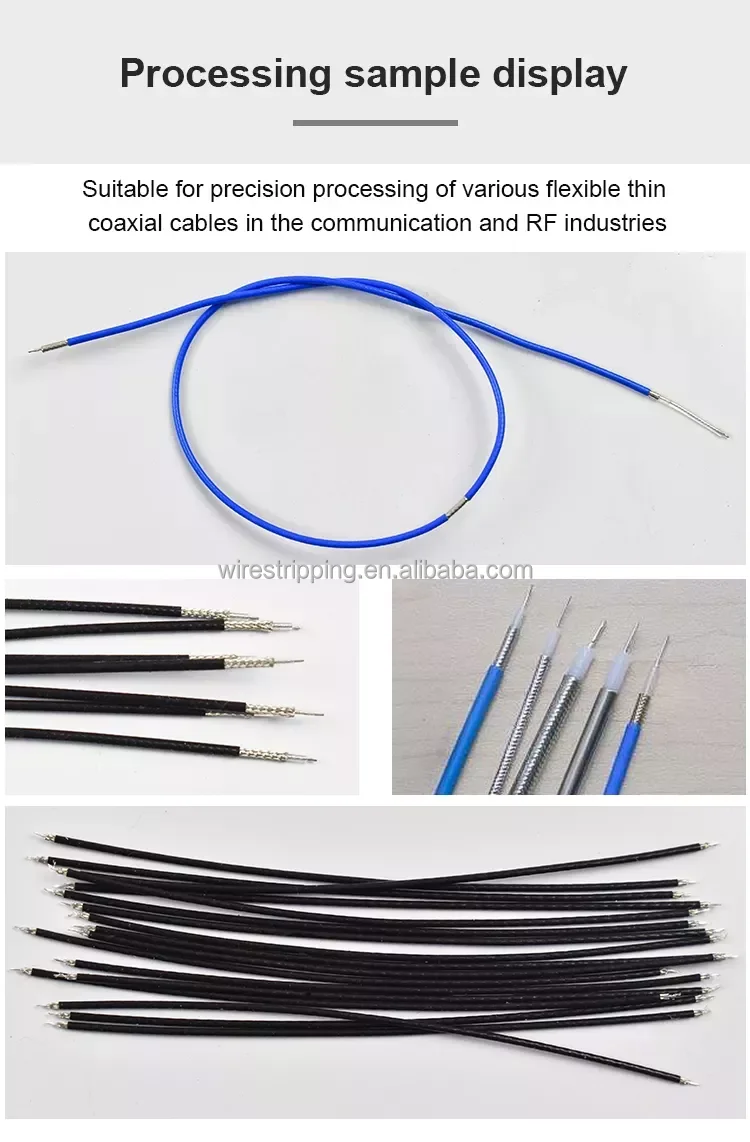

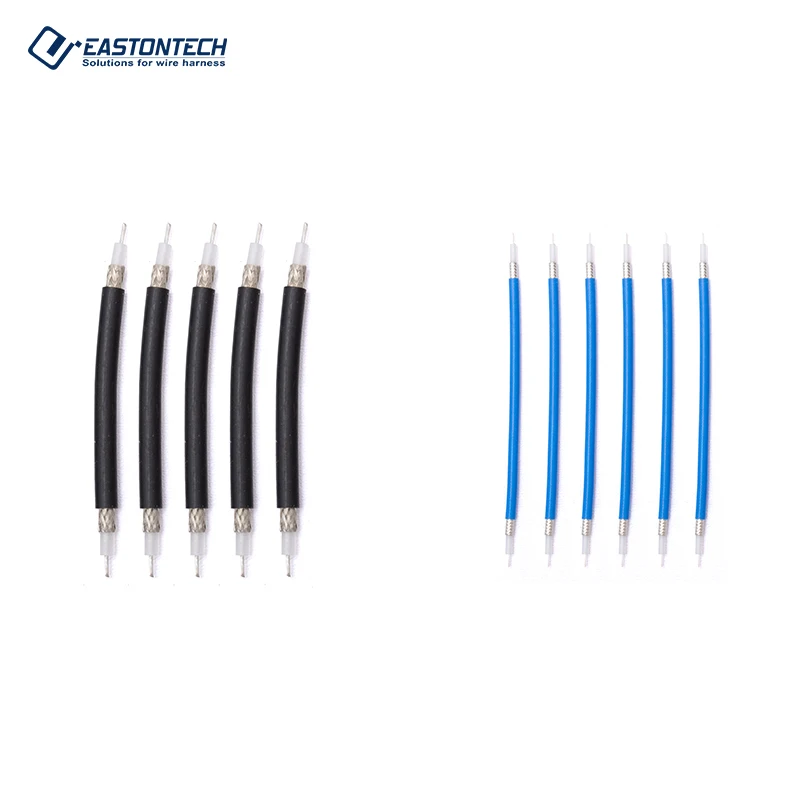

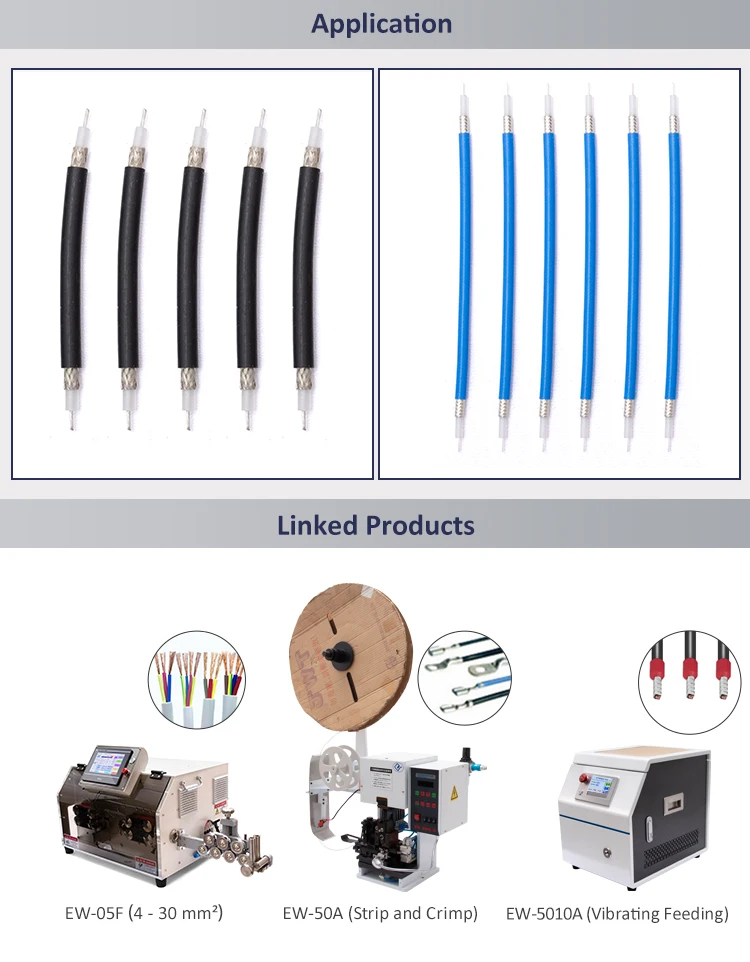

• It is using processing various flexible thin coaxial cables in the communication,  RF industries Medical, and more.

Model	EW-06H
Cable outer diameter	2.3 - 5.8 mm
Outer diameter increment	0.01 mm
Cutting length	50 - 9999 mm
Stripping length (side I)	0 - 45 mm
Stripping length (side II)	0 - 100 mm
Stripping length increment	0.01 mm
Maximum stripping steps	6
Productivity	300 - 850 pcs./h
Memory capacity	40 cables
Power supply	110, 220 V (50 - 60 Hz)
Power	800 W
Weight	120 kg
Dimension	790 * 730 * 400 mm
