MVL KF0618M 12MPE 1,1 'большой формат сенсора 6 мм с фиксированным фокусным расстоянием линзы с резьбовым соединением типа C для 12MP промышленные камеры

FA Series Lens

Self-developed FA series lens especially for vision application characteristics has the design concept of high performance and low cost. The product features high definition, better image center-edge definition consistency, and higher relative illumination to provide better choices.

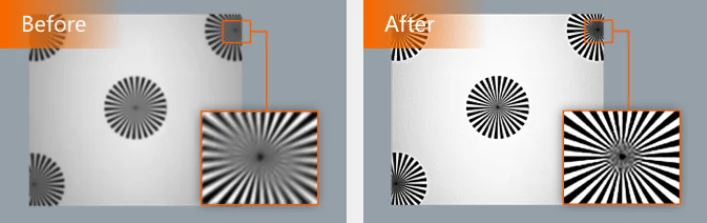

High resolution with great imaging consistency

The lens has high resolution and can support a minimum of 2.1μm pixels. It also has excellent image center and edge clarity consistency which can ensure excellent image quality.



Key Feature

• Ultra-high resolution and consistency of image clarity Lower distortion


• Super high image peripheral brightness ratio


• Excellent optical properties are maintained at different object distances

MVL-KF0618M-12MPE

KF-E series FA Lens are optimized for machine vision light sources and sensor, with high resolution, excellent image quality, high transmittance and good stability. Featured with fixed focal length, manual aperture and compact size, it is suitable for machine vision industry applications and ideal for industrial cameras.

Model	MVL-KF0618M-12MPE
Type	Fixed focal length, Manual iris, 12MP, FA lens
Performance
Focal Length	6 mm
F-Number	F1.8 ~ F16
Image Size	Φ17.6 mm(1.1’’)
Distortion	2.5%
Minimum Operation Distance	0.1 m
Field of View	D(17.52mm):118.2° H(14.14mm):104.9° V(10.35mm):86.2°
Mechanical
Iris Control	Manual
Focus Control	Manual
Mount	C-Mount
Flange Back Length	17.526 mm
Dimension	Φ66 × 77.8 mm
Weight	353 g
Temperature	-10 ~ 50℃
General
Certification	RoHS2.0

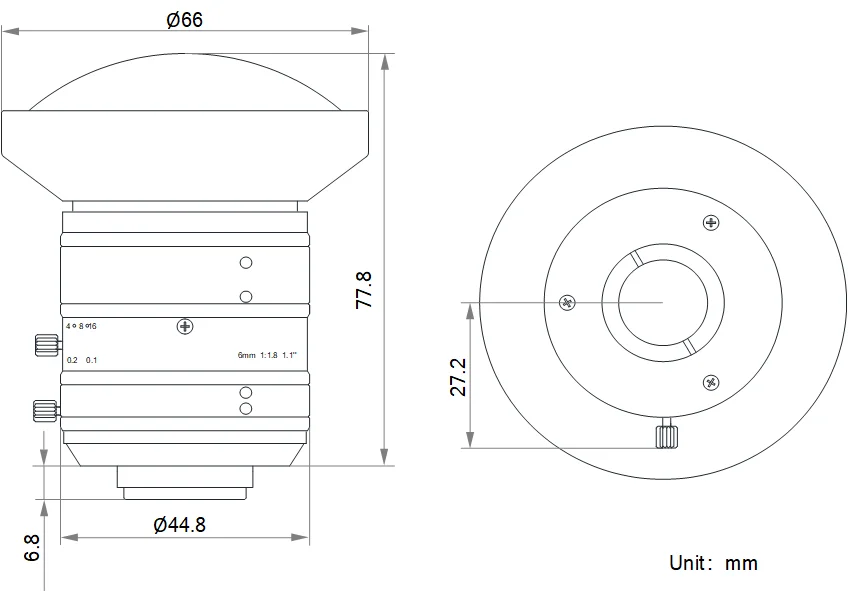

Dimension

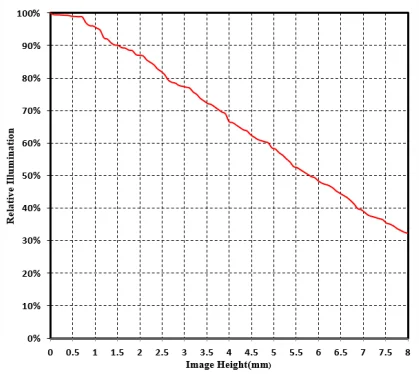

Distortion                                                                           Relative Illumination

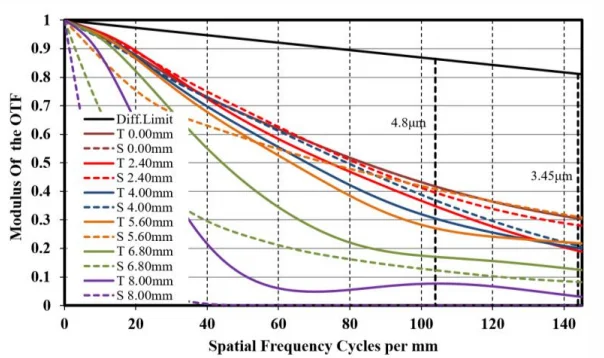

MTF

Note:The above curves are the simulate results based on F1.8,β=-0.012,WD=500 mm.



Field of View

Extension (mm)	Working Distance (mm)		Magnification	Field of View (mm)
				1.1’’ (14.14mm×10.35mm)		1’’ (12.45mm×9.83mm)		2/3’’ (8.45mm×7.07mm)
				H	V	H	V	H	V
1	near	6.27	-0.224	99.00	72.50	90.00	68.90	62.00	46.50
	far	21.56	-0.142	63.00	46.14	57.00	43.64	40.00	30.00
0	100		-0.050	291.28	217.54	256.47	202.50	174.07	145.64
	150		-0.036	407.90	298.61	359.20	283.60	243.79	203.98
	200		-0.028	525.78	384.86	462.94	365.52	314.20	262.89
	250		-0.023	641.59	469.62	564.91	446.03	383.40	320.79
	300		-0.019	766.53	561.07	674.92	532.88	458.07	383.20
	350		-0.017	877.30	642.19	772.50	609.93	524.31	438.68
	400		-0.015	997.50	730.10	878.32	693.40	596.13	498.77
	450		-0.013	1120.00	820.00	986.42	778.83	669.50	560.16
	500		-0.012	1234.25	903.43	1086.73	858.00	737.58	617.10
	550		-0.011	1387.80	1015.83	1221.90	964.79	829.35	693.90
	600		-0.010	1506.37	1102.61	1326.30	1047.20	900.20	753.18
	650		-0.009	1629.10	1192.50	1434.45	1132.58	973.58	814.58
	700		-0.009	1748.93	1280.16	1539.91	1215.84	1045.10	874.46
	800		-0.008	1990.49	1456.90	1752.59	1383.77	1189.51	995.25
	900		-0.007	2230.42	1632.59	1963.84	1550.57	1332.89	1115.21
	1000		-0.006	2473.33	1810.40	2177.70	1719.40	1478.10	1236.70
