Product Overview

Description

led driver moso x6150 v214 moso led driver 150w moso led driver x6 series

Features:

•  Universal input voltage / Full range: 90~305Vac;


• Constant power design, output current programming adjustable;


• (M types) offline programmable, (V types) output current adjustable by built-in potentiometer;


• 3-in-1 dimmable: 0~10Vdc, PWM, Timer dimming. Dim-to-off;


• (M types)Constant lumen output;


• Output and Dimming Signal Isolating;


• Surge protection: 5KV line-line, 10KV line-earth;


• Protections: SCP, OVP, OTP;


• IP67 design for indoor and outdoor applications;


• Suitable for dry / damp / wet locations;


• 5 years warranty.

Description:

The X6-150W series is 150W outdoor offline programmable LED driver that operates in constant current with high PF value and universal input voltage range 90~305Vac model. Offline Monitored by dimming cable connected with an USB kit programming device, the fully programmed drivers offer all dimming, dim-to-off, constant lumen output options and a wide range of output current in a single driver, which deliver maximum flexibility with customized operating settings and intelligent control options for lighting manufacturers, as one driver can be programmed for many different luminaire designs. X6 provides built-in timer dimming schedules further increasing the energy savings and CO2 reductions achieved with LED lighting. It also helps clients to improve the management of logistics and stock. The compact metal case and high efficiency enables the driver to operating with high reliability, and extending product lifetime. Overall protection is provided against lightening surge, output over voltage, short circuit, and over temperature, to ensure low failure rate.

Models:

Model Number	Max Output Power (W)	Input Voltage Range (Vac)	Output Voltage Range (Vdc)	Full Power Output Voltage Range (Vdc)	Full Power Current Adjustable Range (A) [2]	Default Output Current Setting(A)	Typical Efficiency [3]	Power Factor
X6-150M041	150	90~305	20-41	28-41	3.66-5.40	4.20	91%	0.97
X6-150V041	150	90~305	20-41	28-41	3.66-5.40	4.20	91%	0.97
X6-150M062	150	90~305	38-62	42-62	2.42-3.60	3.15	91%	0.97
X6-150V062	150	90~305	38-62	42-62	2.42-3.60	3.15	91%	0.97
X6-150M143	150	90~305	80-143	100-143	1.05-1.5	1.05	92%	0.97
X6-150V143	150	90~305	80-143	100-143	1.05-1.5	1.05	92%	0.97
X6-150M214	150	90~305	107-214	143-214	0.70-1.05	0.70	92%	0.97
X6-150V214	150	90~305	107-214	143-214	0.70-1.05	0.70	92%	0.97



Notes:

 [1]. M means dimmable and offline programmable, The adjustable Iout range: 10%-100% Imax;

       V means non-dimmable and output current adjusted by built-in potentiometer.

[2]. Output current adjustable range with constant power at max output power;

[3]. All specifications are measured at 25℃ ambient temperature, input voltage 230Vac, and the typical value tested by full load, if no specific note.

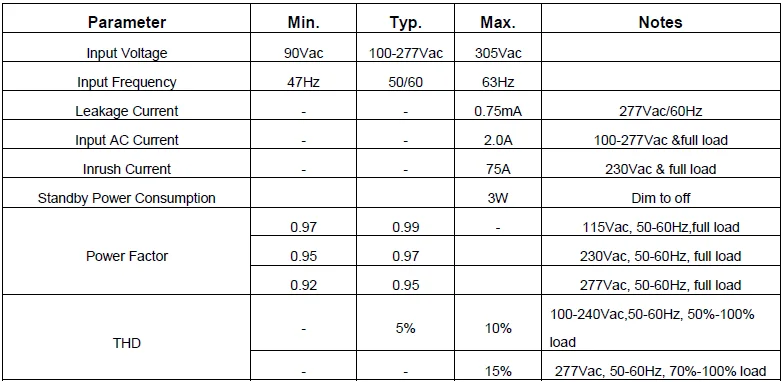

Input specification:



More requirements about the model,pls send quote request

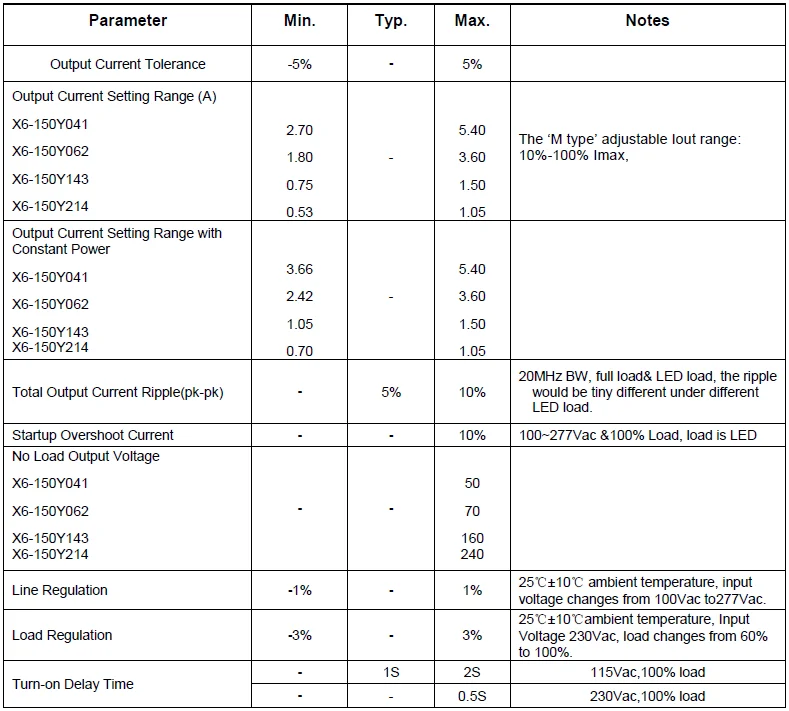

Output specification:



 More requirements about the model,pls send quote request

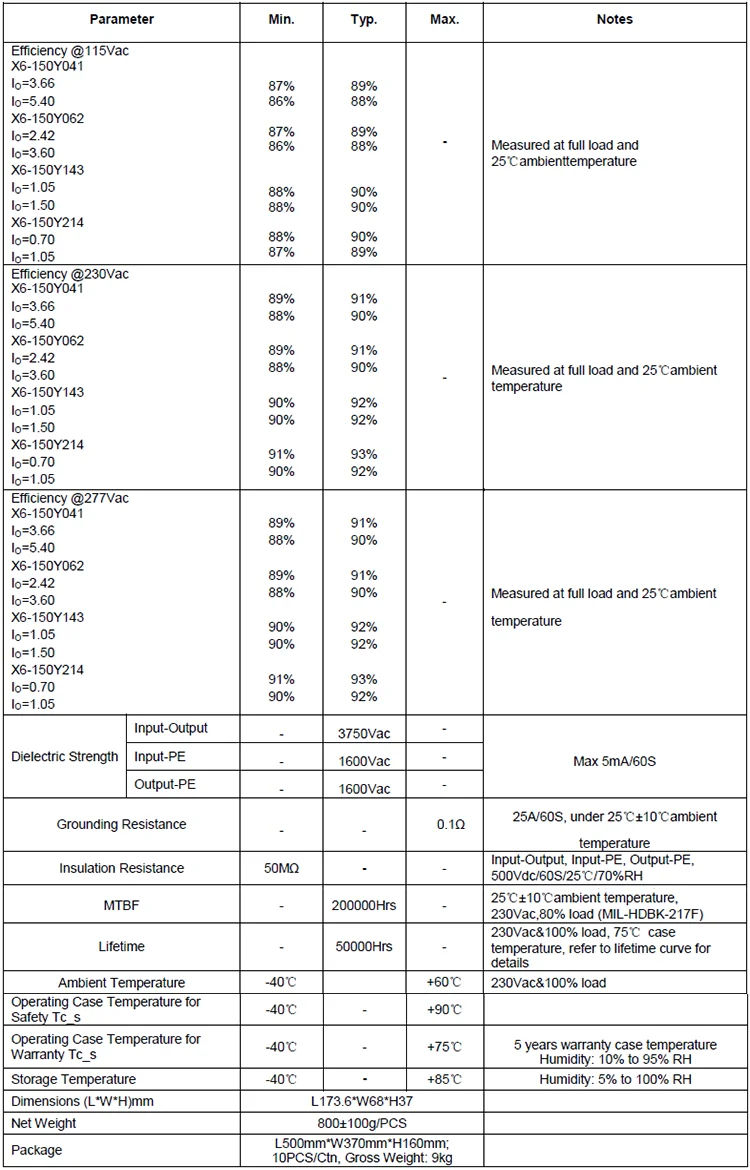

General specification:



 More requirements about the model,pls send quote request

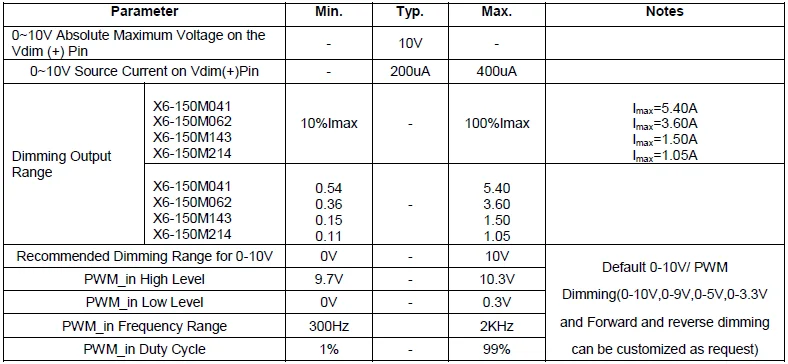

 Dimming:



 More requirements about the model,pls send quote request

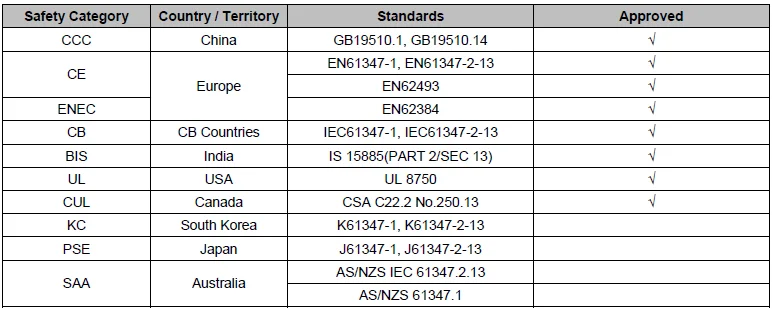

SAFTY STANDARDS:

 More requirements about the model,pls send quote request

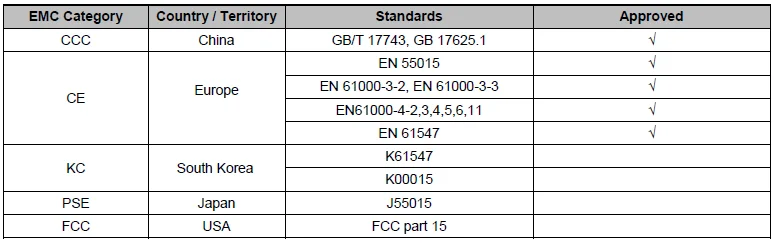

EMC COMPLIANCE:



 More requirements about the model,pls send quote request

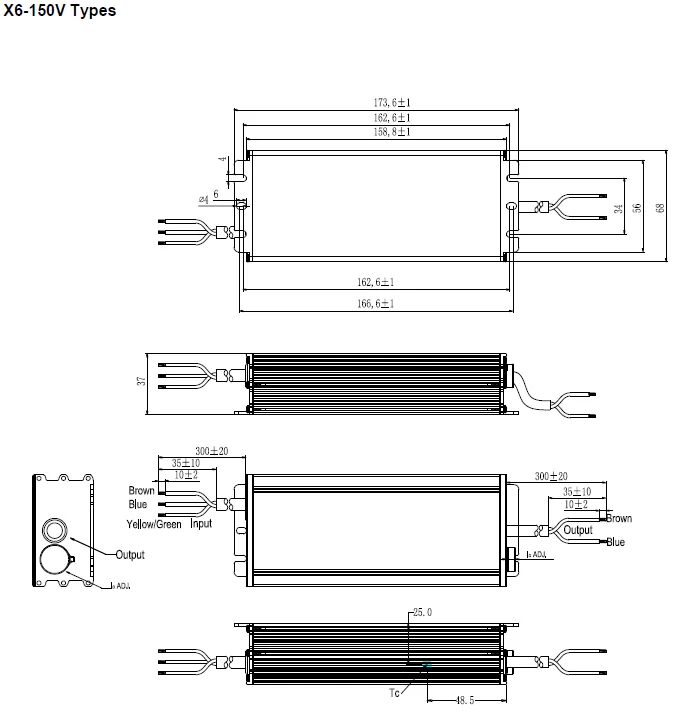

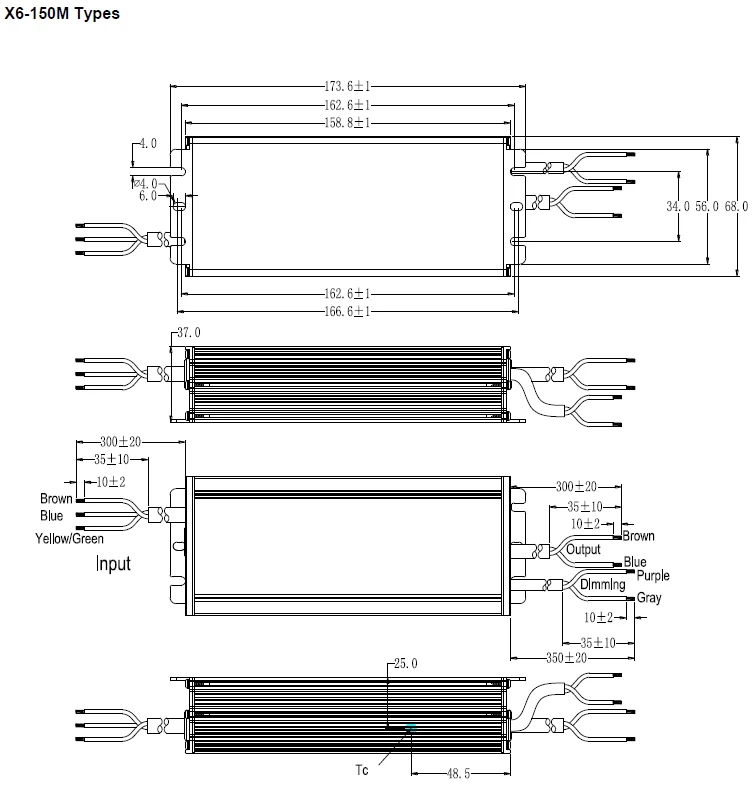

MECHANICAL OUTLINE:

                   More requirements about the model,pls send quote request
