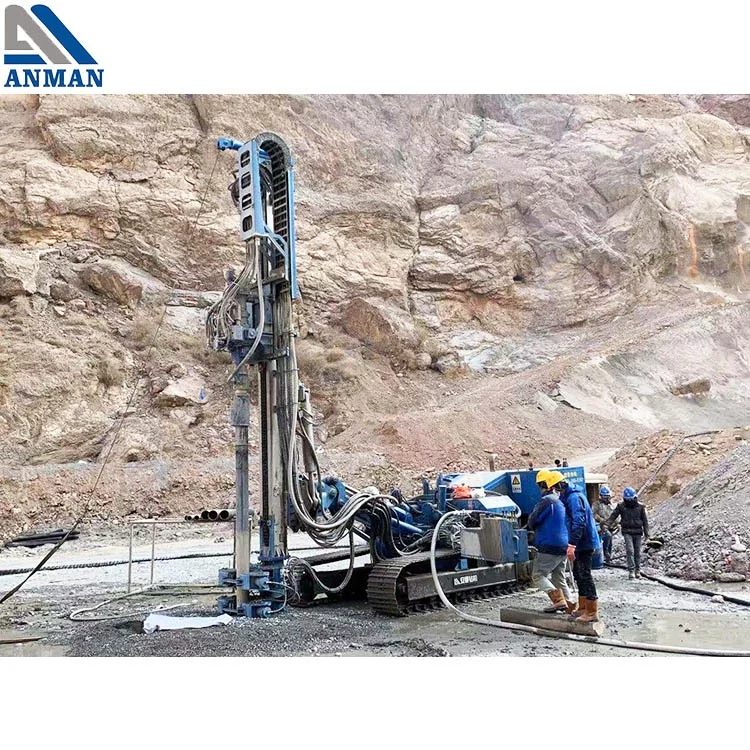

HDL 308 Shed guiding hole Top drifter low maintenance cost borehole drilling rig equipment
- Category: >>>
- Supplier: Wuxi Antian Engineering Technology Co. Ltd.
Share on (1600719531663):
Product Overview
Description
Products Description

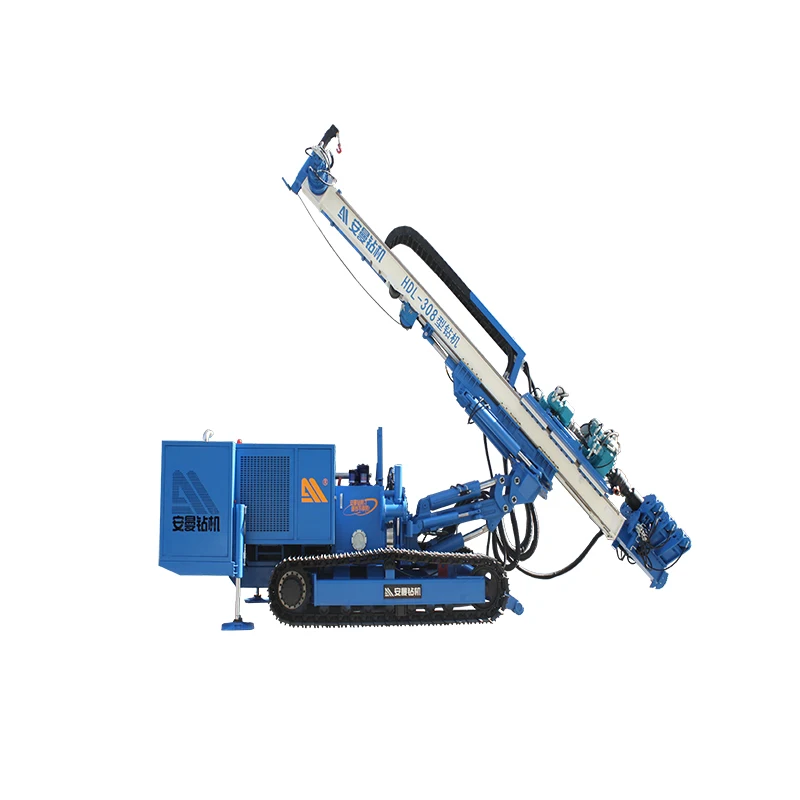

HDL series drilling rig is top drive type multifunctional drilling rig which our company design and manufacture for complex formation according to market request.

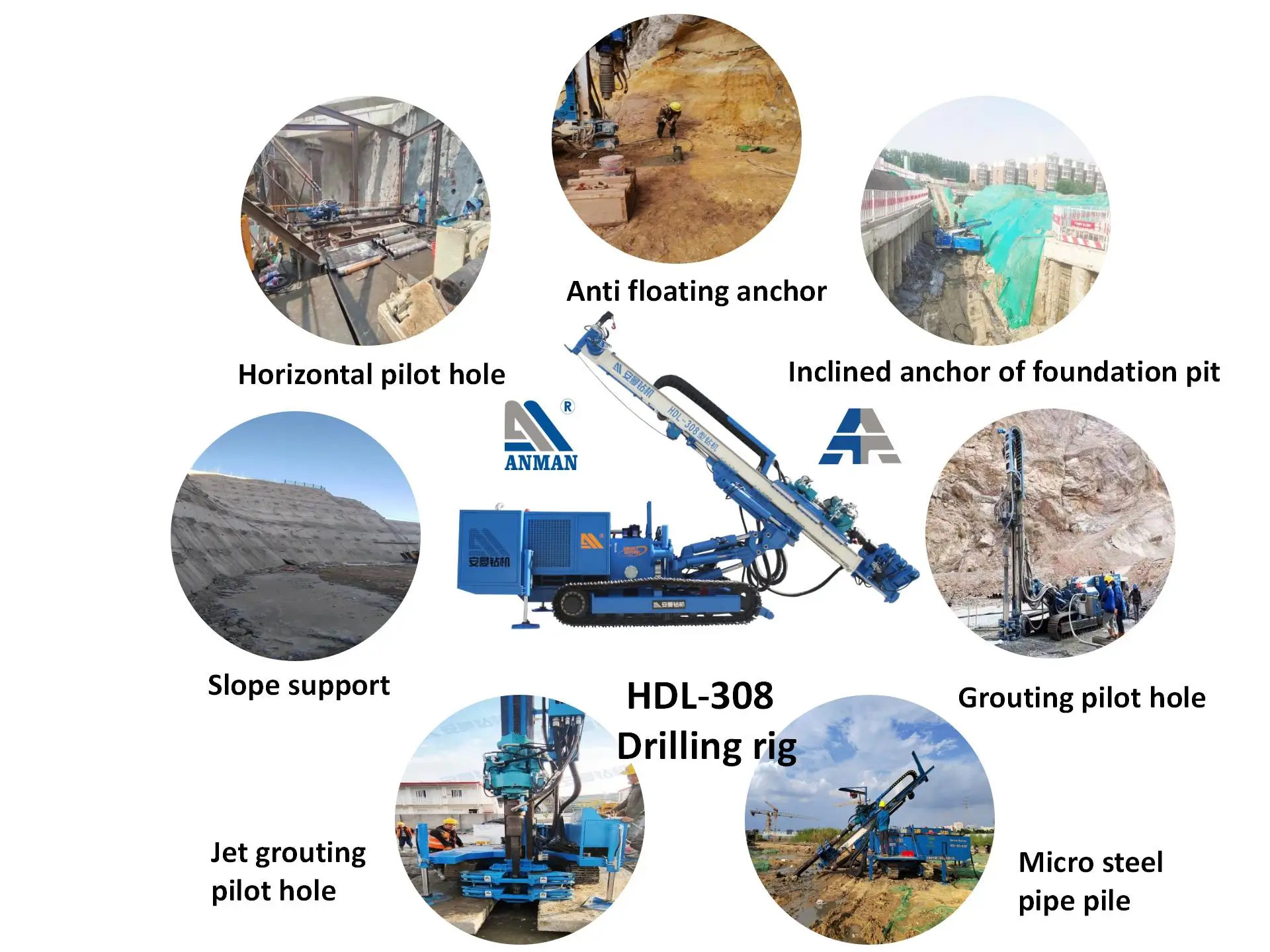

Application
PRODUCT SPECIFICATIONS
Model number | HDL-308 | ||
Drilling rod drifter | Caing rotary head | ||
Hole diameter(mm) | Φ100～Φ300 | ||
Hole depth(m) | 150~180 | ||
Rod diameter(mm) | Φ73~Φ250 | ||
Hole angle(°) | -30~105 | ||
Output speed of rotary head(max)(r/min) | 135 | 60 | |
Output torque of rotary head(max)(N.m) | 10000 | 35000 | |
Lifting speed of rotary head(m/min) | 0~10、40 | ||
Feeding speed of rotary head(m/min) | 0~10、40 | ||
Input power(Diesel)(kW) | 194 | ||
Dimension(L*W*H)(mm) | 9000*2400*3000 | ||
Vertical Working Dimension (L*W*H)(mm) | 7200*2400*9000 | ||
Weight(kg) | 18000 | ||
Elevating power of winch(KN) | 11 | ||
Impact power of rotary head（max）(N.m) | 650 | / | |
Impact frequency of rotary head（max）(b/min) | 2300 | / | |
Rated lifting force (kN) | 130 | ||
Rated feeding force (kN) | 130 | ||
Feeding stroke(mm) | 4000 | ||
Sliding stroke(mm) | 1500 | ||
Climbing angle(°) | 18 | ||
Working pressure(MPa) | 30 | ||
Walking speed(m/h) | 1600/1000 | ||
Gripper diameter(mm) | Φ73~Φ300 | ||
Fuel tank volume(L) | 320 | ||
Lifting capacity of hydraulic winch(kN) | 11 | ||
Details

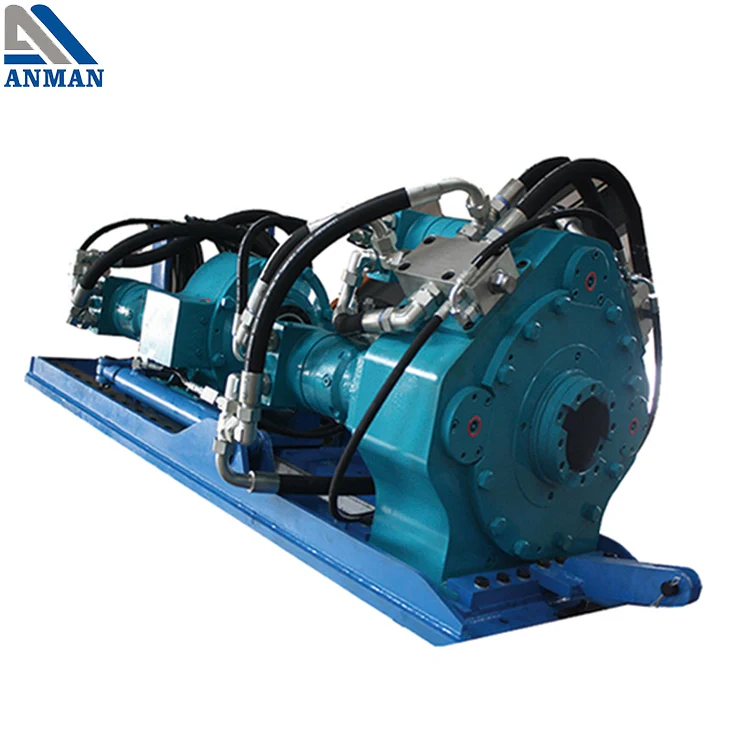

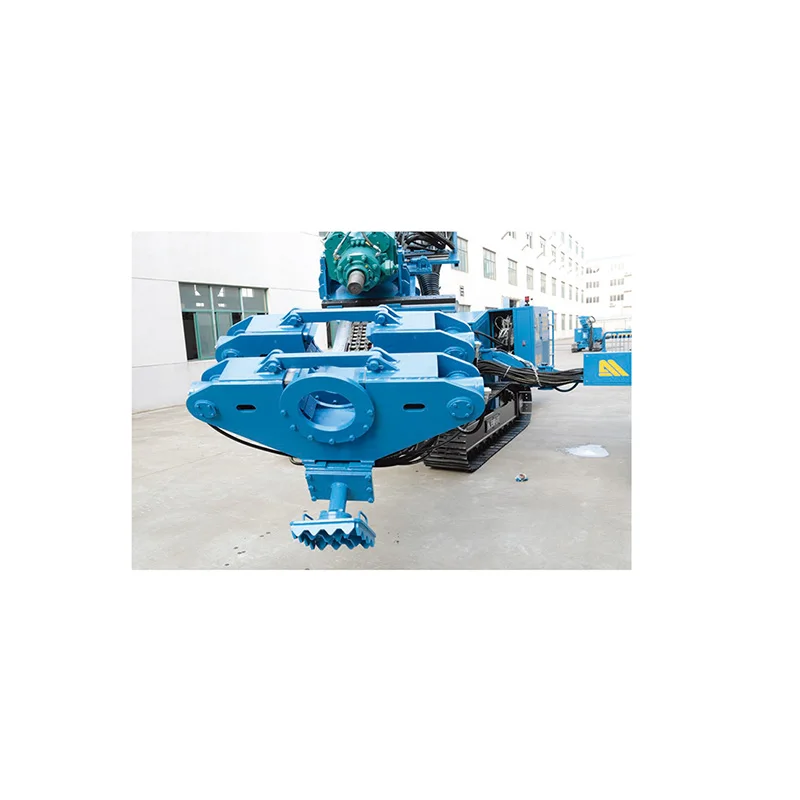

Top Drive Drilling Head——suitable for all kinds of soil condition.HDL-308 drilling rig rotary head HD-100X and HQ350.

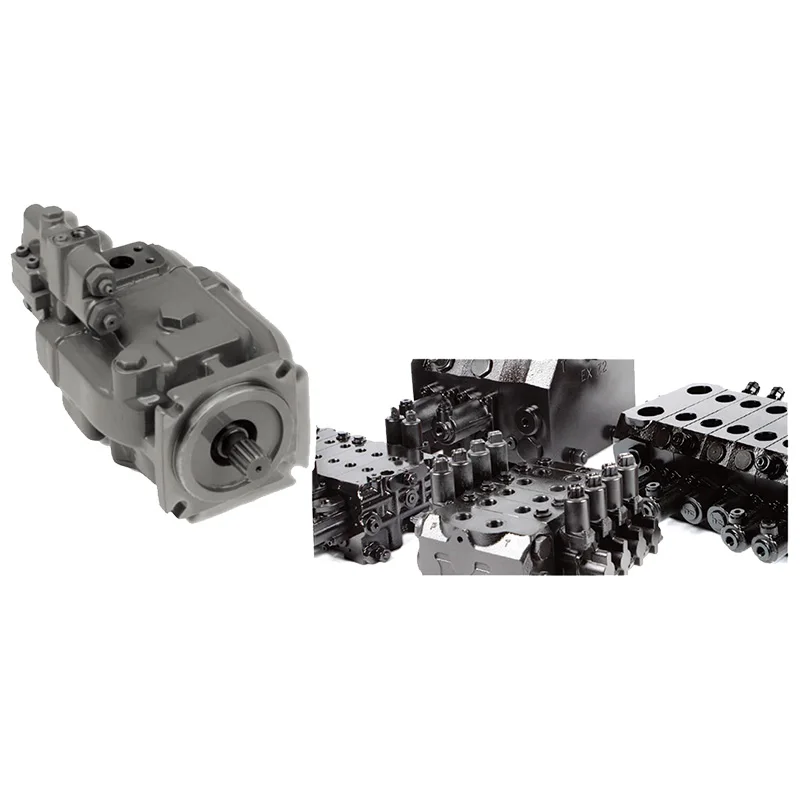

Fitted with imported hydraulic system——more stable system.

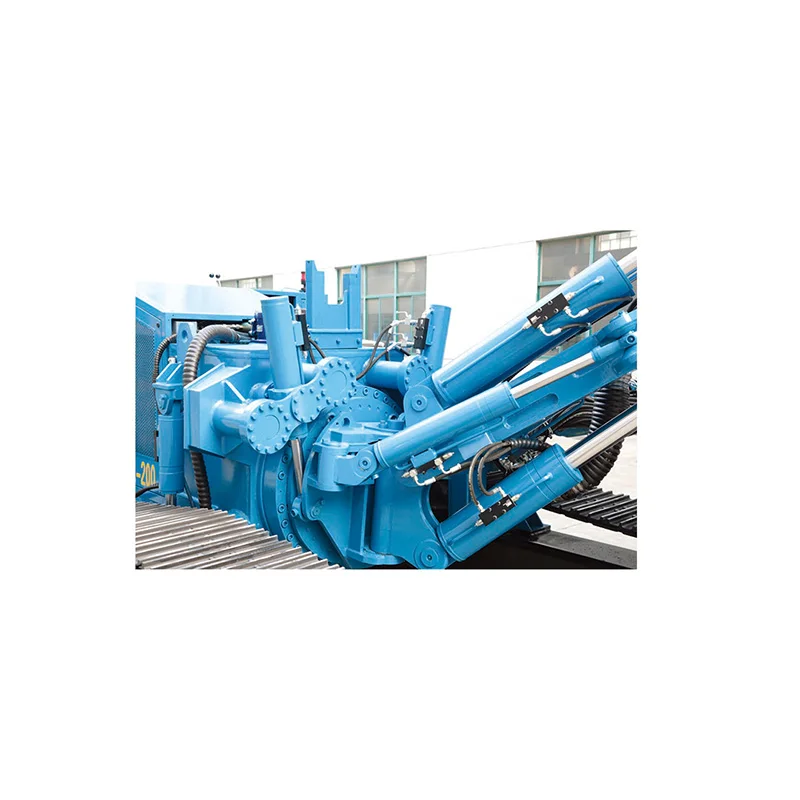

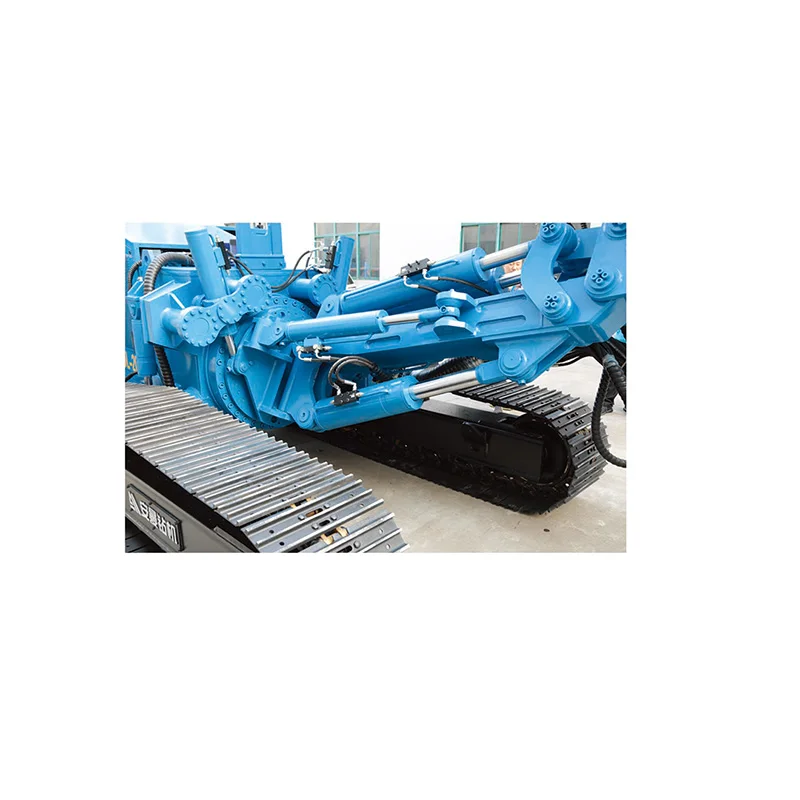

Omnidirectional variable angle mechanism——more flexible, suit for many kinds of projects.

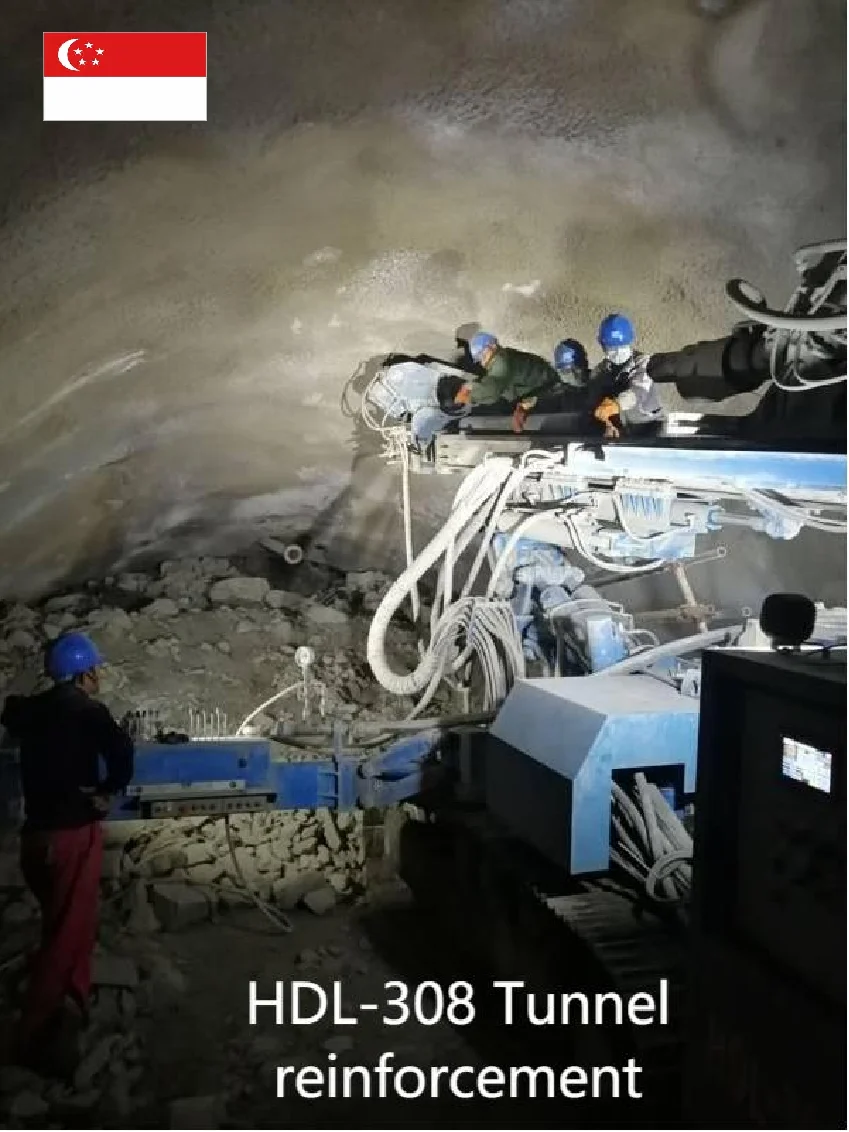

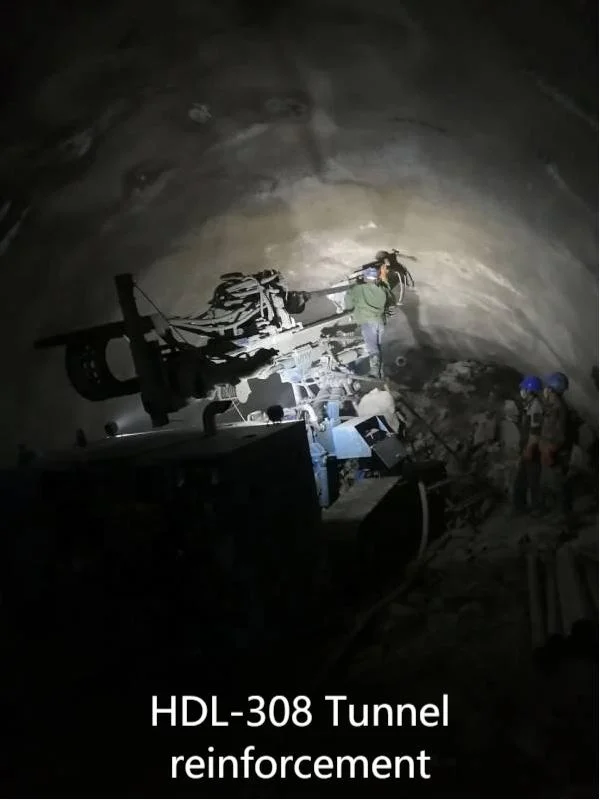

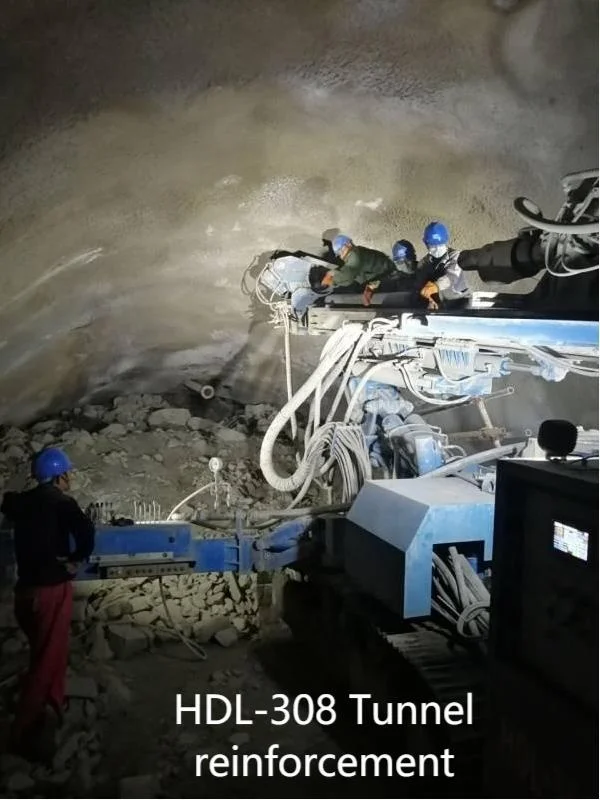

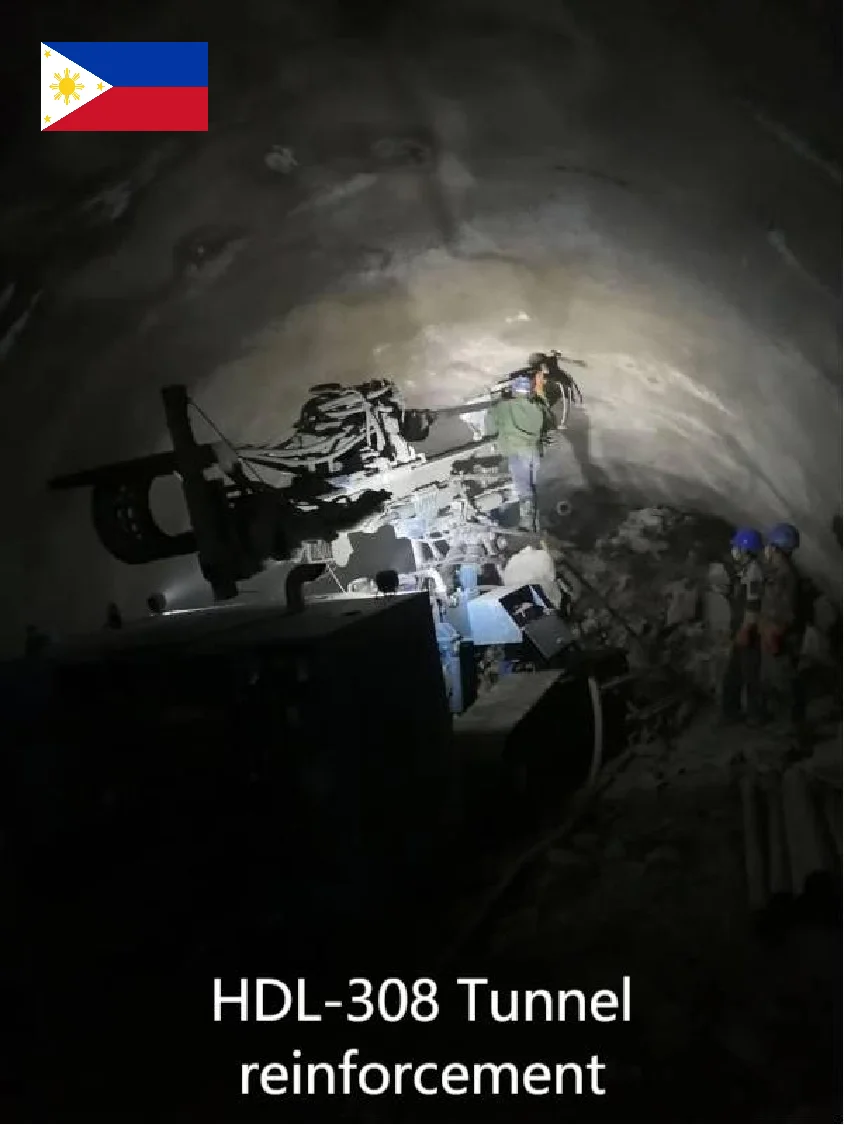

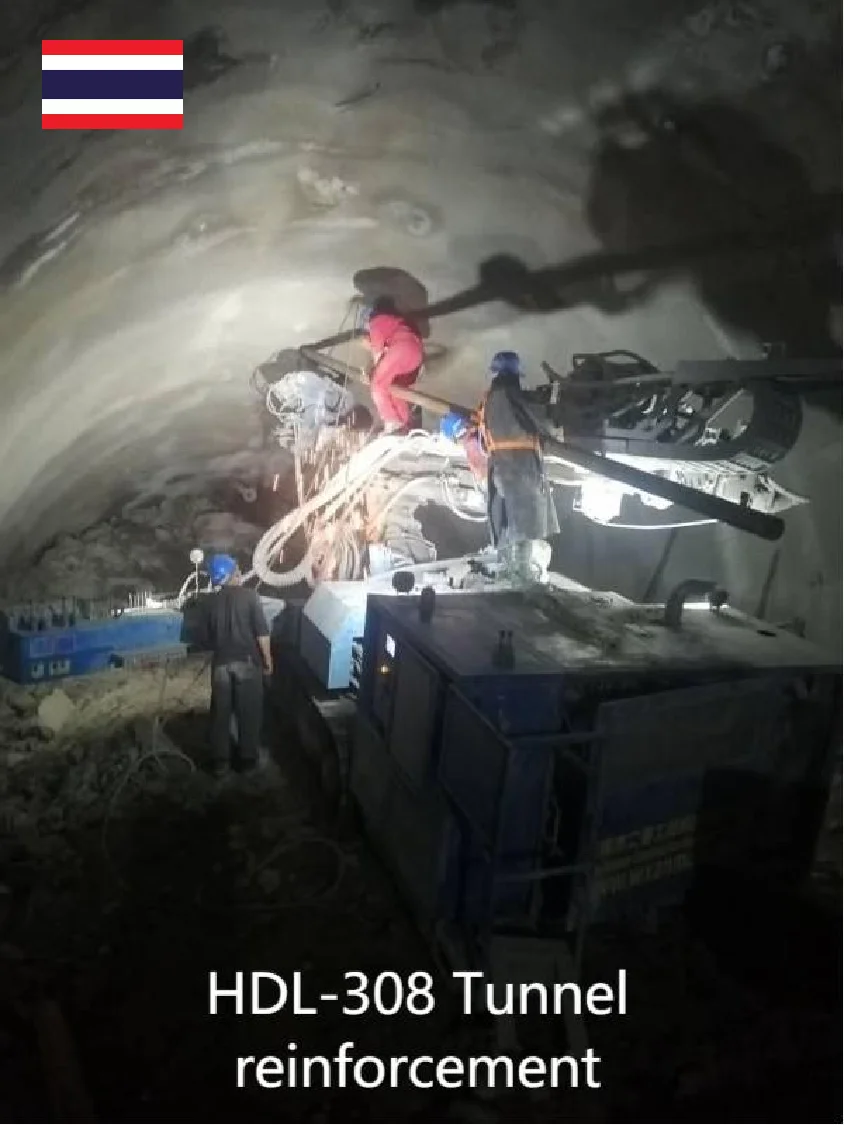

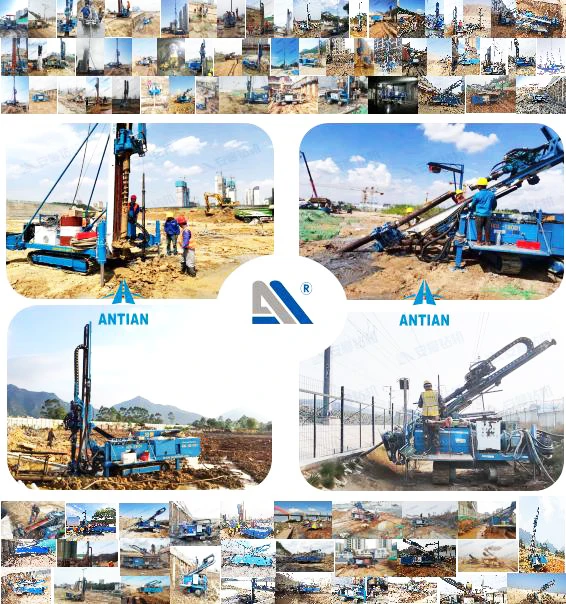

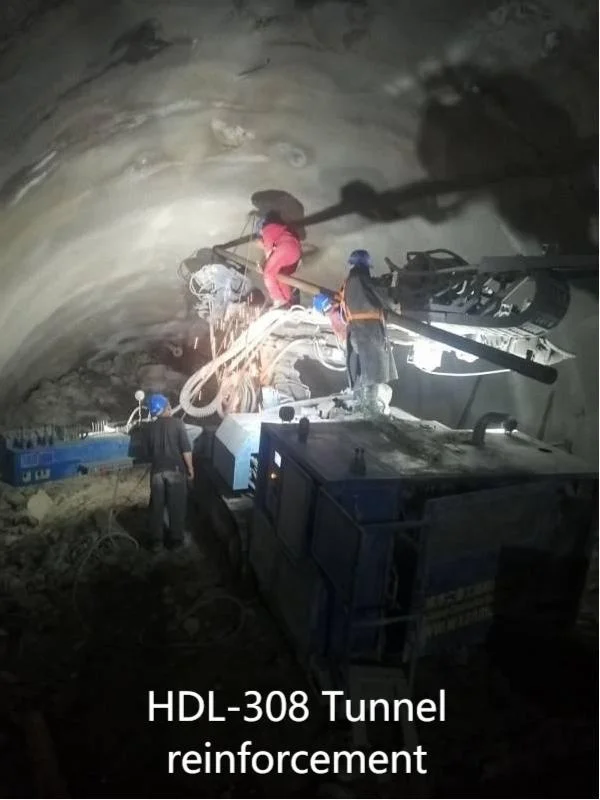

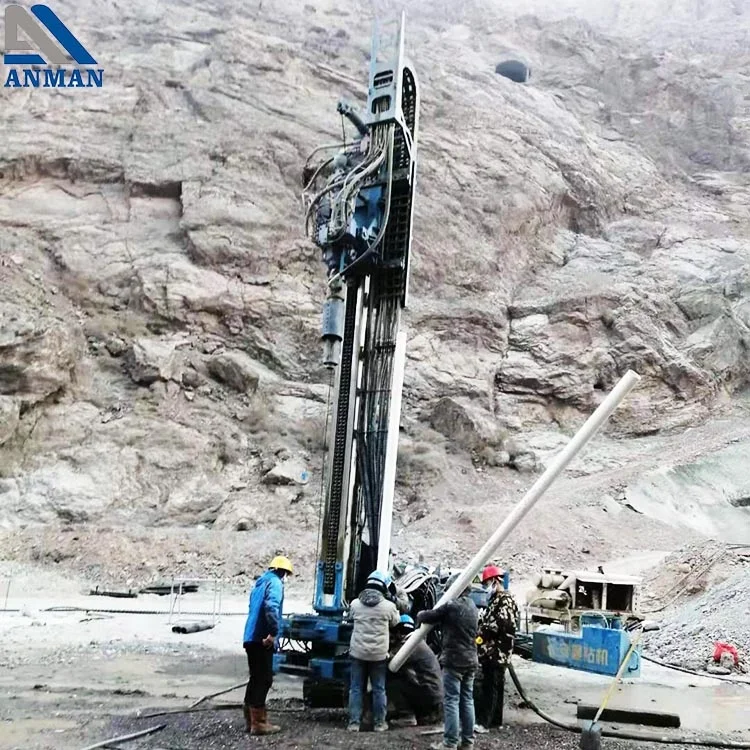

Successful projects

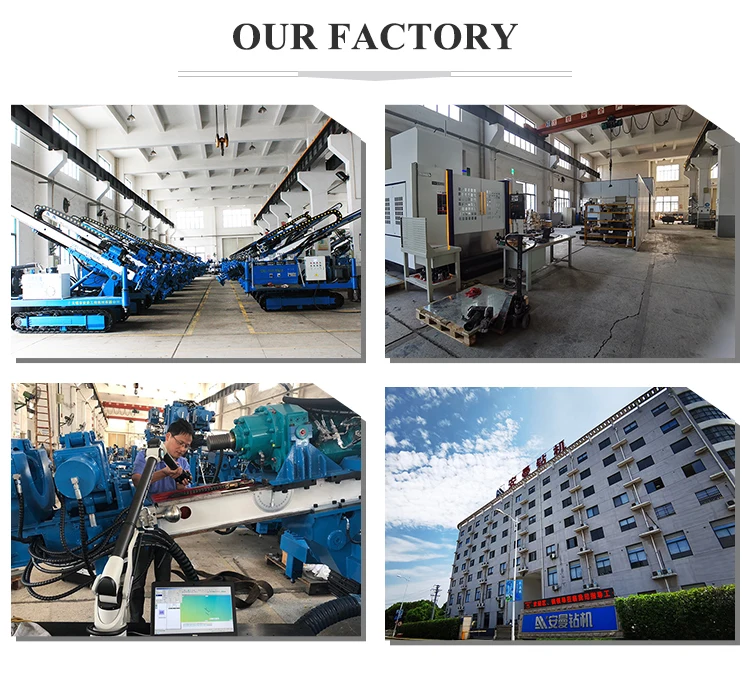

Company profile
We have 10,000+ engineering service experience
