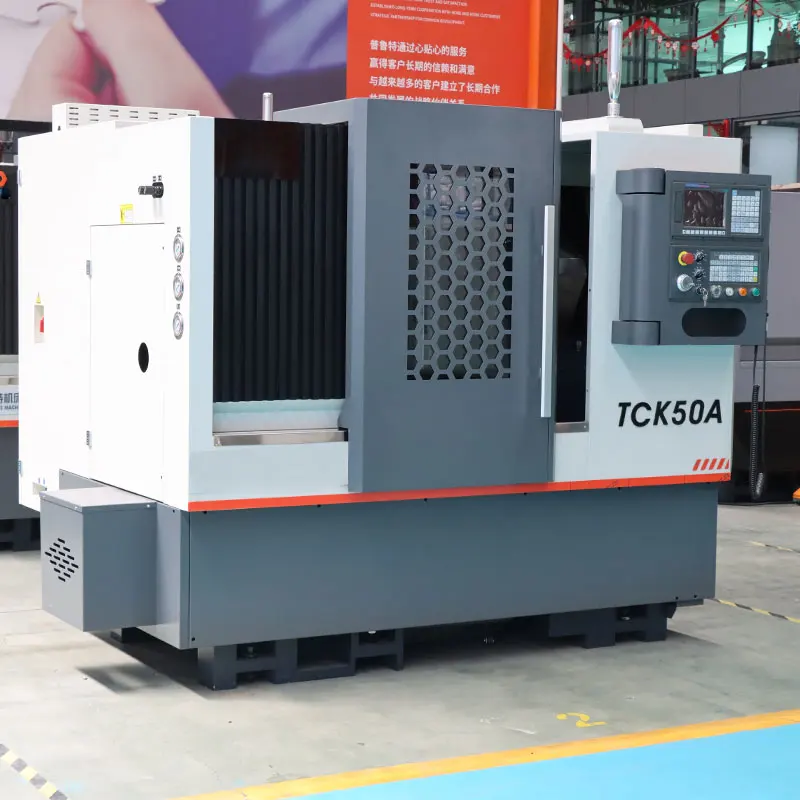

WOJIE CNC slant bed lathe machine WJ570 cnc automatic lathe cnc controller lathe
- Category: Machine Tool Equipment >>>
- Supplier: Zaozhuang,Wojie,CNC,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Product main technical specifications:
Item | unit | WJ-500 | WJ570-600/1000/1500/2000/3000 |
Swing over bed | mm | 500 | Φ570 |
Max swing over carriage | mm | 240 | Φ320 |
Maximum cutting length | mm | 450 | 500/750/1500/2000/3000 |
Maximum Cutting Disc Diameter | mm | Φ320 | Φ360 |
Maximum cutting diameter - shaft class | mm | Φ260 | Φ250 |
Spindle nose | A2-6 | A2-8 | |
Distance of spindle through hole | mm | Φ62 | Φ86 |

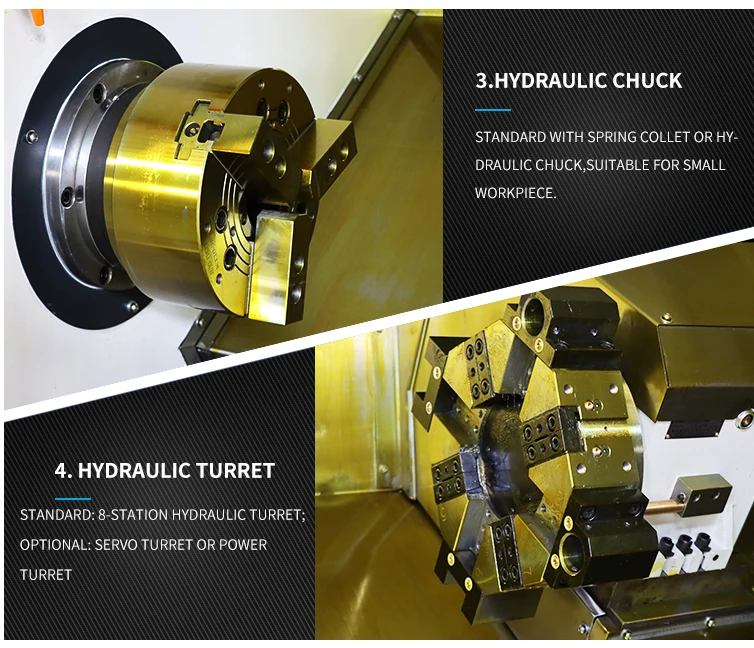

Chuck type | inch | 8" | 10 "hydraulic hollow chuck( optional 8") |
Spindle speed renge | r/min | 3500rpm | 2000,(optional 3000rpm) |
Motor power of spindle | KW | 7.5kw | 11kw (optional 15kw) |
X Axis rapid traverse | m/min | 20 | 20 |
Z Axis rapid traverse | m/min | 20 | 16 |
X Axis travel | mm | 210 | 250 |
Z Axis travel | mm | 450 | 600/860/1550/2050/3050 |
Guide way type | TAIWAN HIWIN/PMI Linear way | TAIWAN HIWIN/PMI Linear way | |

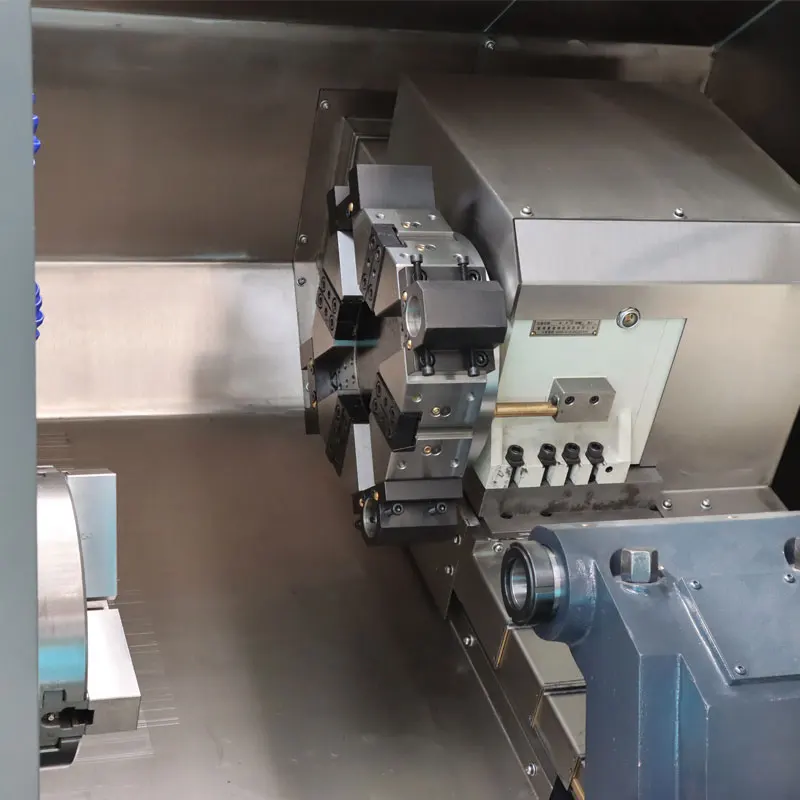

Tool post type | 8 station servo turret | 8 station servo turret（optional 12 station） | |
Tool Shank Size | mm | 25X25 Φ32 | 25X25 Φ40 |
Tailstock quill diameter/travel | mm | φ75/L100 | φ110/L100 |
Tailstock quill taper | MT4 | MT4 | |
positional accuracy X/Z | mm | 0.01/0.01 | 0.01/0.012 |
X/Z repeatability | mm | 0.006/0.006 | 0.006/0.008 |
machining precision | level | IT6 | IT6 |
roughness | um | Ra≤0.8 | Ra≤1.6 |
Machine dimension (L*W*H) | mm | 2800x1800x1600 | 2900/3100/4300/5000/5600x2000x2000 |
Machine Weight | kg | 3000 | 3600/4000/5000/6100/7500 |
Products Detail
Related Products
Sales And Service Network
Company Information
Packaging & Shipping
FAQ
1. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .
When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.
2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will besome longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You canplace order according to delivery time and ship time.we will give you the answer accordingly.
4. What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard will be packed in plywood case.
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .
When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.
2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will besome longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You canplace order according to delivery time and ship time.we will give you the answer accordingly.
4. What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard will be packed in plywood case.
