Product Overview
Description

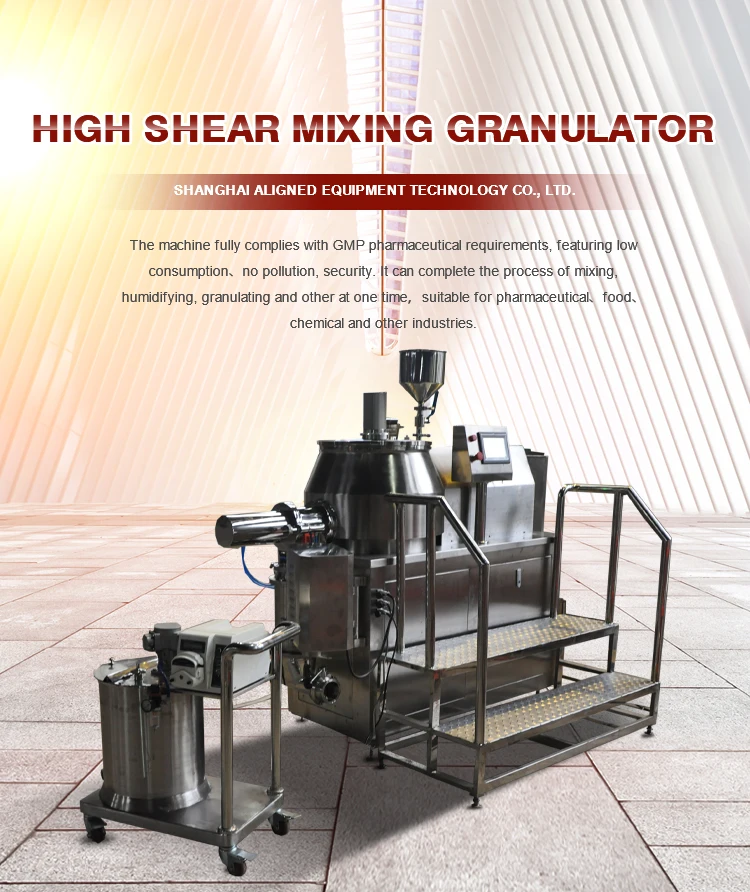

HLSG Series High Shear Mixing Granulator

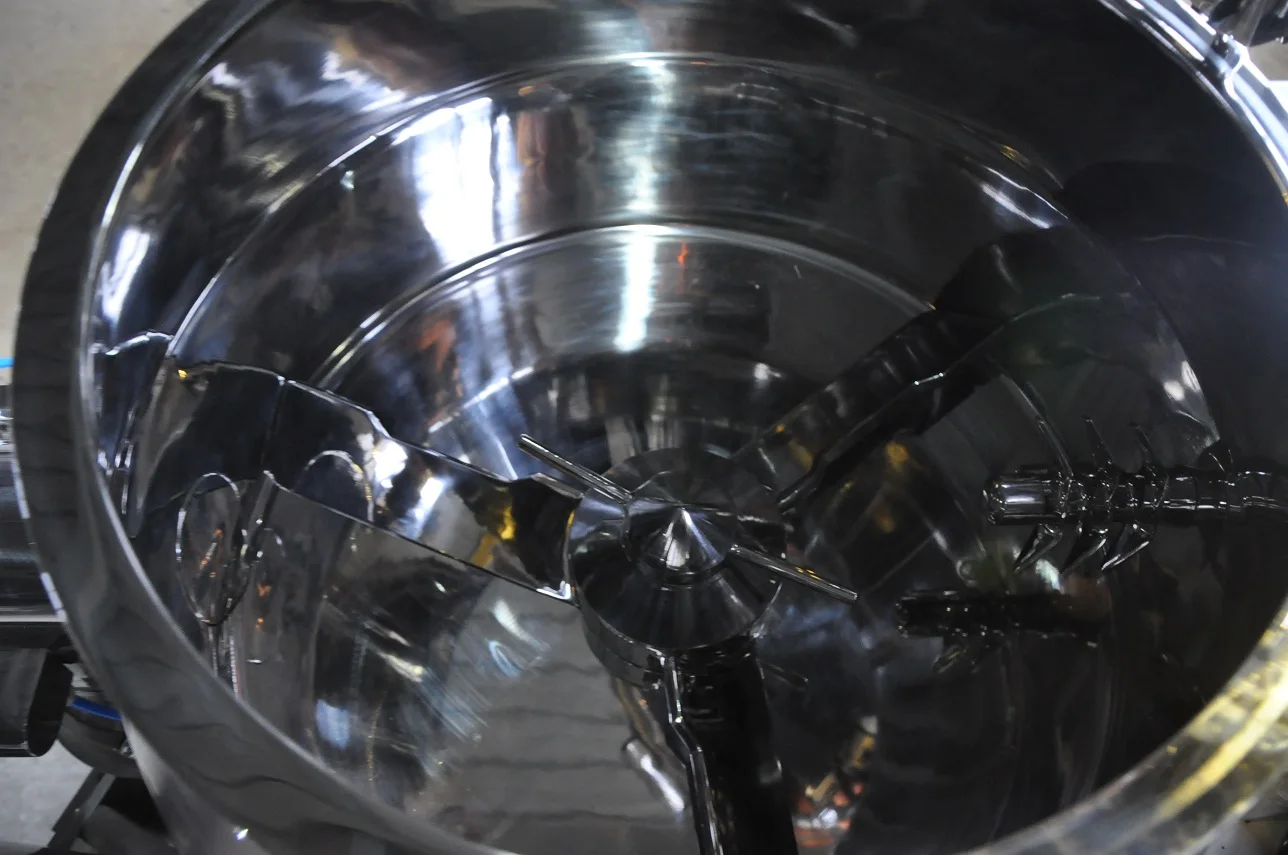

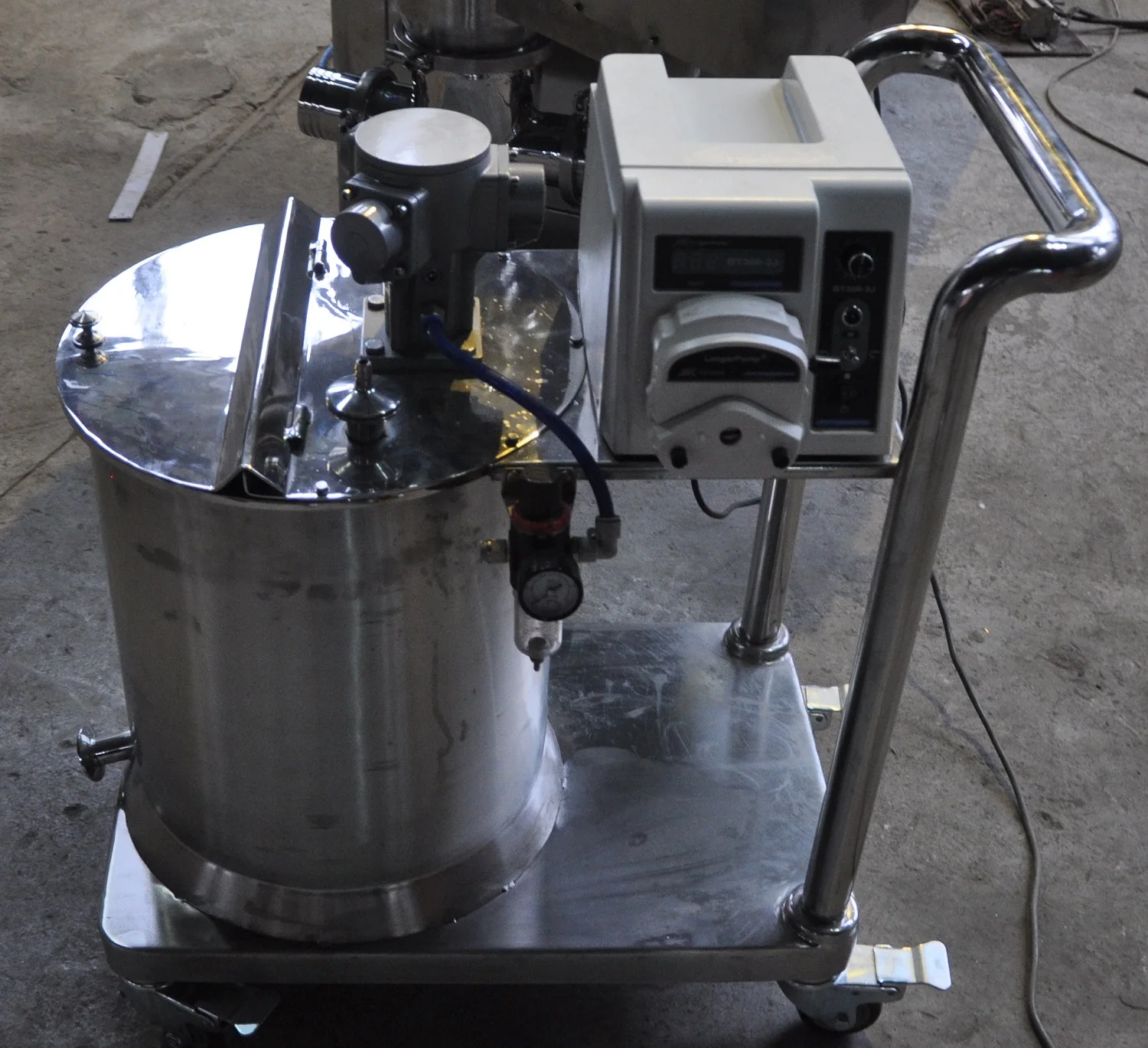

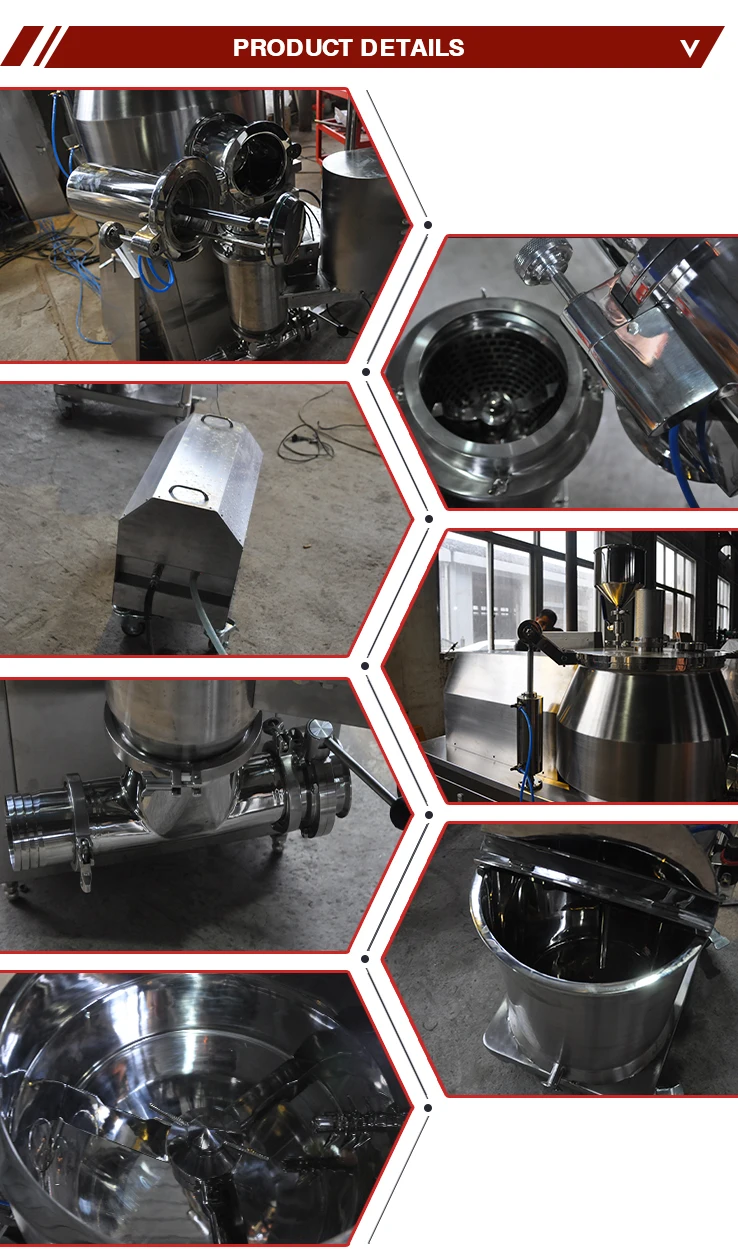

The machine fully complies with GMP pharmaceutical requirements, featuring low consumption、no pollution, security. It can complete the process of mixing, humidifying, granulating and other at one time，suitable for pharmaceutical、food、chemical and other industries. And it’s 4-5 times higher than the traditional process, which is reflected in about 2 minutes of dry mixing and 1-4 minutes of granulation for each batch. It is mainly composed of conical hopper, impeller, chopper, feeding device, liquid feeding device, discharging and control system, and auxiliary systems such as air sealing, water cleaning, and jacket water cooling. In the container, the material and the binder are fully mixed by the impeller to form a moist soft material, and then cut into uniform wet particles by the high-speed chopper blades.
Model | HLSG-100 | HLSG-200 | HLSG-300 | HLSG-400 |
Hopper Capacity | 100L | 200L | 300L | 400L |
Working Capacity | 20-80L | 40-160L | 60-240L | 100L-300L |
Feed Qty | 15-40 Kg/batch | 30-80Kg/batch | 30-120Kg/batch | 50-150Kg/batch |
Operation Time | Mixing about 2 minutes granulating about 7-14 minutes each batch | Mixing about 2 minutes granulating about 7-14 minutes each batch | Mixing about 2 minutes granulating about 7-14 minutes each batch | Mixing about 4 minutes granulating about 10-15 minutes each batch |
Finished Product Granularity | About Φ0.14-Φ1.5mm (12 mesh-100 mesh) | About Φ0.14-Φ1.5mm (12 mesh-100 mesh) | About Φ0.14-Φ1.5mm (12 mesh-100 mesh) | About Φ0.14-Φ1.5mm (12 mesh-100 mesh) |
Mixing Motor | 7.5KW | 15KW | 18.5KW | 22KW |
Mixing Blade Rotating Speed | 30-250 rpm | 30-260 rpm | 30-220 rpm | 20-200 rpm |
Granulating Motor | 3KW | 4KW | 5.5KW | 7.5KW |
Granulating Blade Rotating Speed | 50-3000 rpm | 50-3000 rpm | 50-3000 rpm | 50-3000 rpm |
Compressed Air | 0.3m³ 0.7mpa | 0.3m³ 0.7mpa | 0.3m³ 0.7mpa | 0.3m³ 0.7mpa |
Machine Size | 1760×600×1660 mm | 2180×810×1950mm | 2420×1060×2150mm | 2420×1060×2150mm |
Weight | 800kg | 1300kg | 1500kg | 1800kg |
High Shear Granulator is widely used in the granulation process of pharmaceutical, food, and feed industries. A binder liquid is fed to the powder particles in a closed container with a rapid mixer and a chopper. The result is that dense granules are then formed through the liquid binder and solid bridges. Once the powders have formed a more densely held mass, then the granulation is milled. The wet mass is forced through a sieve to produce wet granules that are then dried in a fluid bed dryer.
1 The main tower of the machine is made of SS304 or316, and divided into four sections: machine cabinet, mix system, mincing system, and control system.
2 Makes high density granules that are stronger and more round.
3 Mixing and granulating in one step.
4 Automatic discharge.
5 Improved Z shaped mixer.
6 Compressed air seal, mixer and chopper.
7 Save process time.
9 Intelligent Control System.
2 Makes high density granules that are stronger and more round.
3 Mixing and granulating in one step.
4 Automatic discharge.
5 Improved Z shaped mixer.
6 Compressed air seal, mixer and chopper.
7 Save process time.
9 Intelligent Control System.
