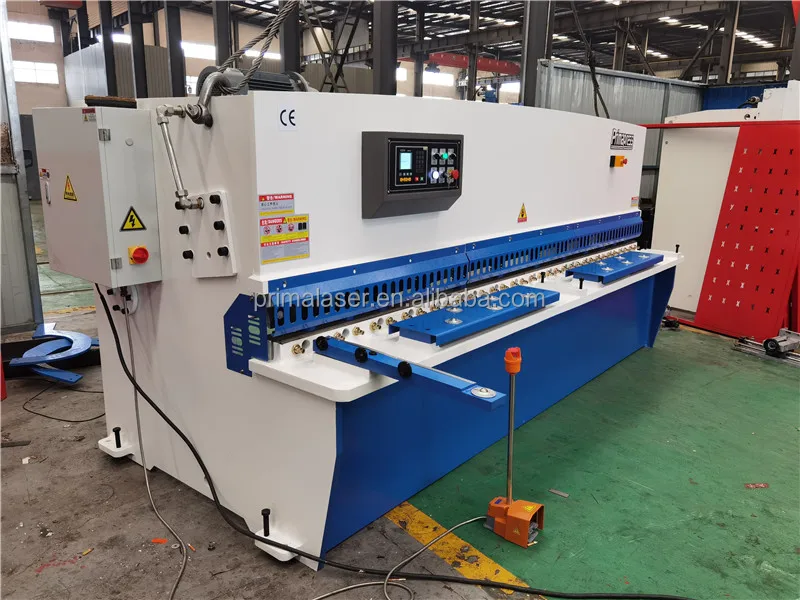

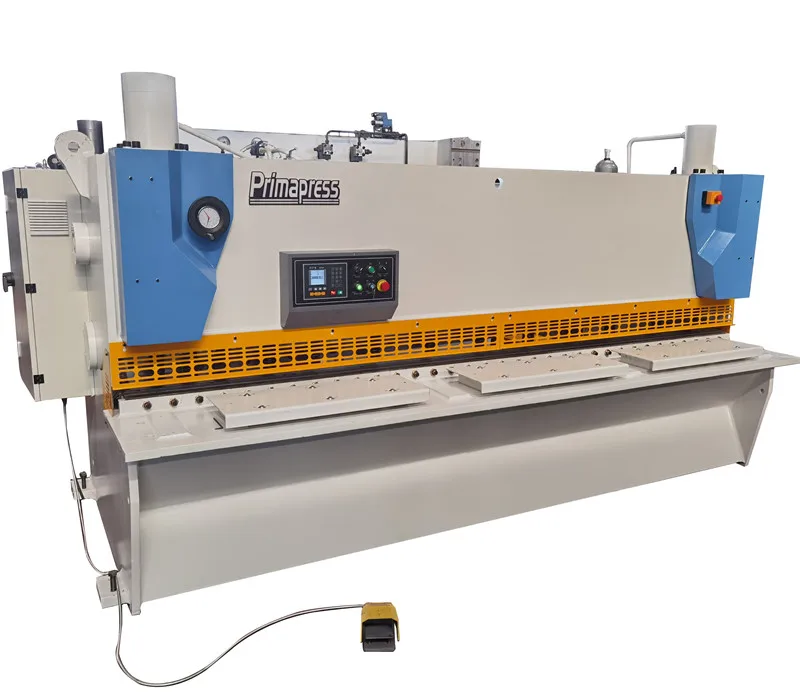

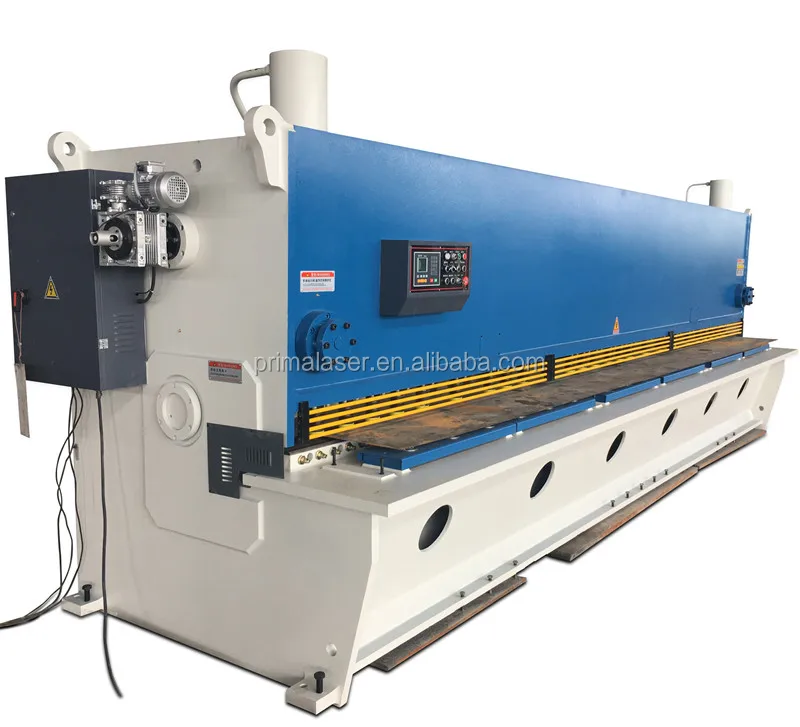

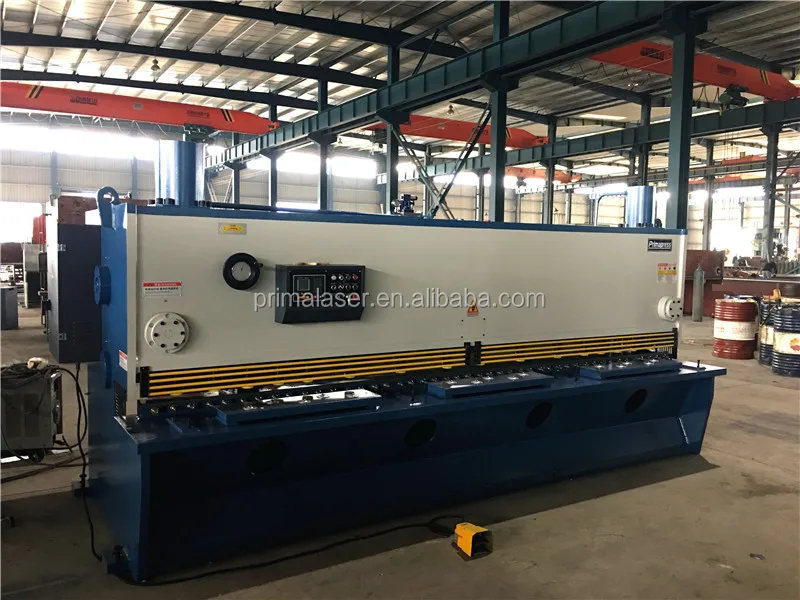

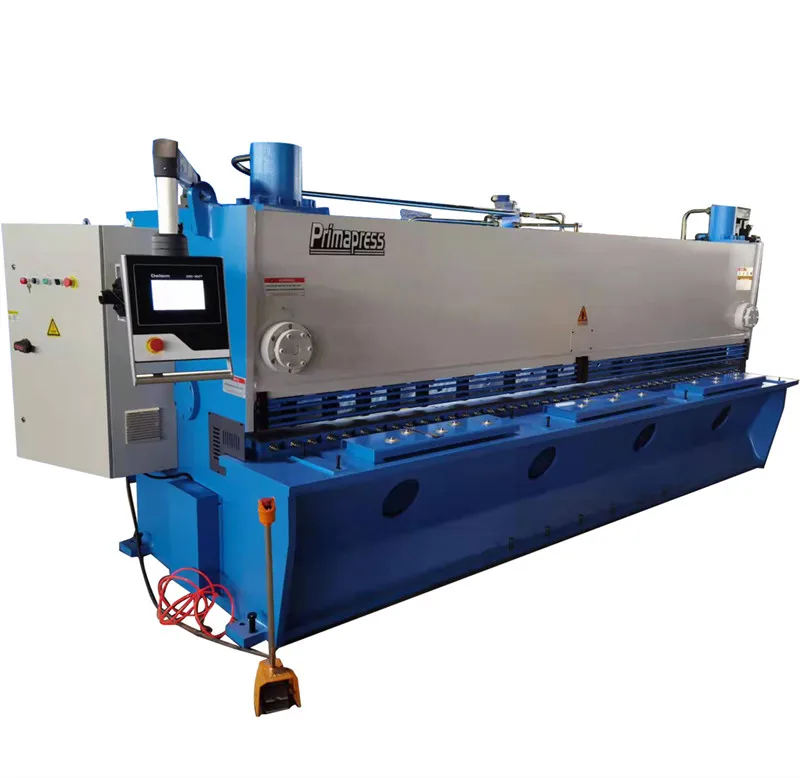

Primapress High Safety Level QC12Y 6X2500MM cutting machines Swing Beam CNC shearing machine
- Category: >>>
- Supplier: Nanjing Prima CNC Machinery Co. Ltd.
Share on (1600719618162):
Product Overview
Description
MS-3x2000 Electric Sheet Metal Mechanical Guillotine Shearing Machine
https://youtu.be/TmlPl_R2jKs
Product Description
Main Features:
1. Main Features:
1.Totally EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment.
2.Adopt integrated hydraulic system, more reliable and easy for maintenance.and the hydraulic system from Bosch-Rexroth,Germany, Easy to operate 10ft stainless steel plate cut shearing machine NC shear machine hydraulic guillotine shear sheet metal cutting machine 16mmx4000mm E21s
3.The Hydraulic Guillotine is a Swing Beam Action machine which is produced in a variety of cutting lengths and capacity.
4.The distance of the backgauge is adjusted by the motor and is well adjustment is displayed by E21with Delta inverter. QC11K 8* 6000 E21S cnc controller hydraulic guillotine metal sheet shear machine
5.Equipped with lighting-alignment, so as to align when shearing. The stroke of knife beam can be adjusted in stepless mode. 8mm hydraulic swing beam shearing machine metal cutting machine for Carbon steel
6.Safe fence and the electric inter locker have been designed for the machine to ensure the operation safety to CE regulation.
2. Standard Equipment:

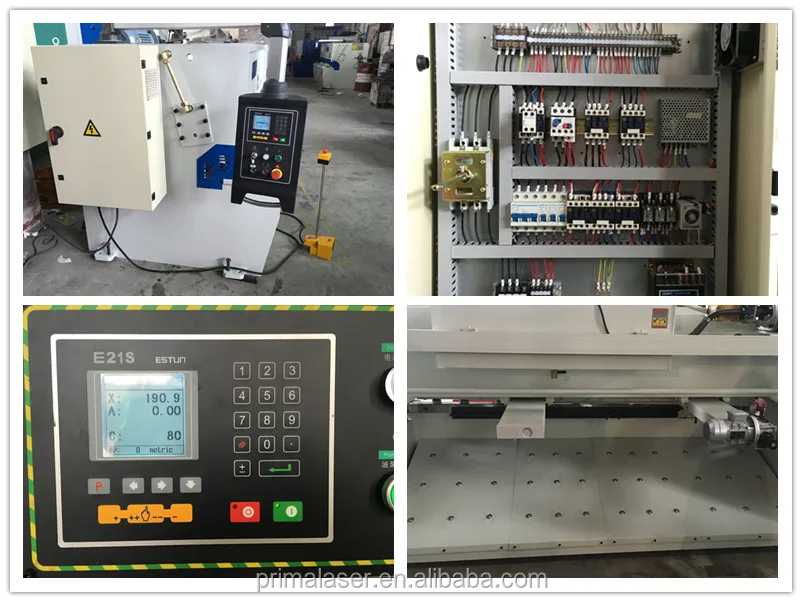

Estun E21sNC control System
Powered Back gaugeX-axis
DELTA Inverter controlled back gauge
HIWIN Ball screws & Polished rod with 0,05mm accuracy.
Squaring Arm and Front Support Arms
Germany Bosch-Rexroth Hydraulic
Germany EMB Tubing connector
Germany Siemens Main Motor
Tele mecanique/Schneider Electrics
Hydraulic &Electrical overload protection
Cutting Line Illumination and wire for shadow line cutting
Top blade with two cutting edges and bottom blade with four cutting edges.(6CrW2Si)
3. Safety Equipment:
Safety Standards(2006/42/EC):
1.EN 12622:2009 + A1:2013 2.EN ISO 12100:2010 3.EN 60204-1:2006+A1:2009
Front finger Protection(Safety light curtain)
South Korea Kacon Foot Switch(Level 4 of safety)
Back metal safe fence with CE standards
Safety relay with Monitor the pedal switch and safety protection.
2,Features of this machine
1.The second generation of shear.
2.Welded steel plate construction, heating to eliminate stress,with high strength and good rigidity.
3.Advanced integrated hydraulic system with and excellent reliabitity quality.
4.Rapidly,accurately and conveniently adjusting the blade clearance by motor
5.The adjustable rake angle can minimize plate deformation.
6.As the cutting beam has been designed in inner-inclined structure,it is easy for plates to fall down and the accuracy of products can be also guaranteed.
7.Shearing in sections,shadow-line cutting.
8.Counter for the motorized back gauge.
9.Back support device (optional). Hydraulic Guillotine Shearing Machine, Steel Plate Cutting Machine
3.Machine key components list
| No. | Name | Brand | Location |
| 1 | Motor | Siemens | Germany |
| 2 | Electrics | SCHNEIDER | France |
| 3 | Oil Cylinder | Huatong | Wuxi, China |
| 4 | Seal ring | NOK | Japan |
| 5 | Pump | Lifeng | China |
| 6 | Hydraulic system | Bosch | Germany |
| 7 | Valves | Bosch | Germany |
| 8 | Controller | Estun E21 | China Estun |
| Equipment's working environment: 2.1 Power supply:3Ph AC 220V ± 10% 60HZ ± (optional to site) 2.2 ambient temperature:-10 ºC ~ 45 ºC 2.3 Relative Humidity: ≤ 85% The back gauge structure(our patent) | |||
We can also change the components according to your demand.
4.Attachment With the machine
| No | Items | parameters | remarks |
| 1 | Upper Down blade | 2 | set |
| 3 | Bolt &Nut | 8 | |
| 4 | feet nut washer | 4 | |
| 5 | Allen wrench&Grease Gun | 1 set | 3 to 14 mm (maintenance tool) |
| 6 | technical documents | certificate of the product, including operation and maintenance manual, electrical, hydraulic schematics, purchased parts inventory, basic maps, packing list. | |

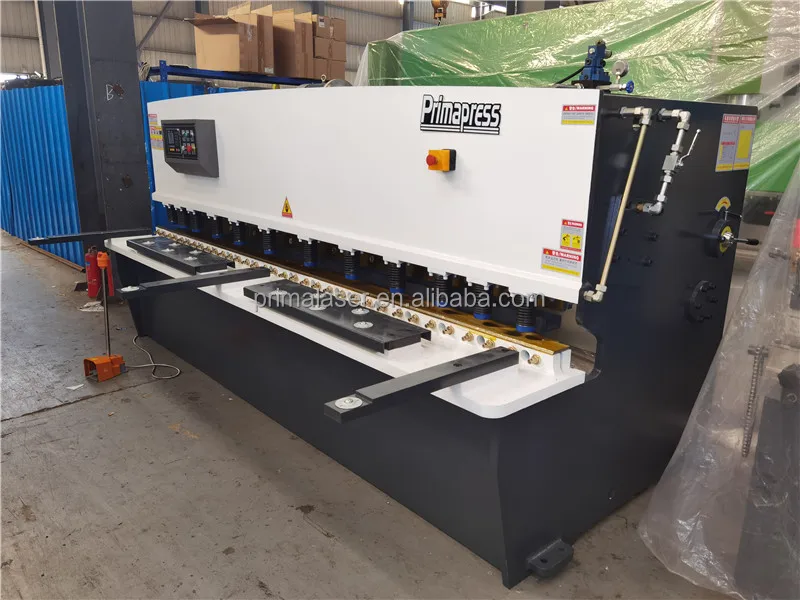

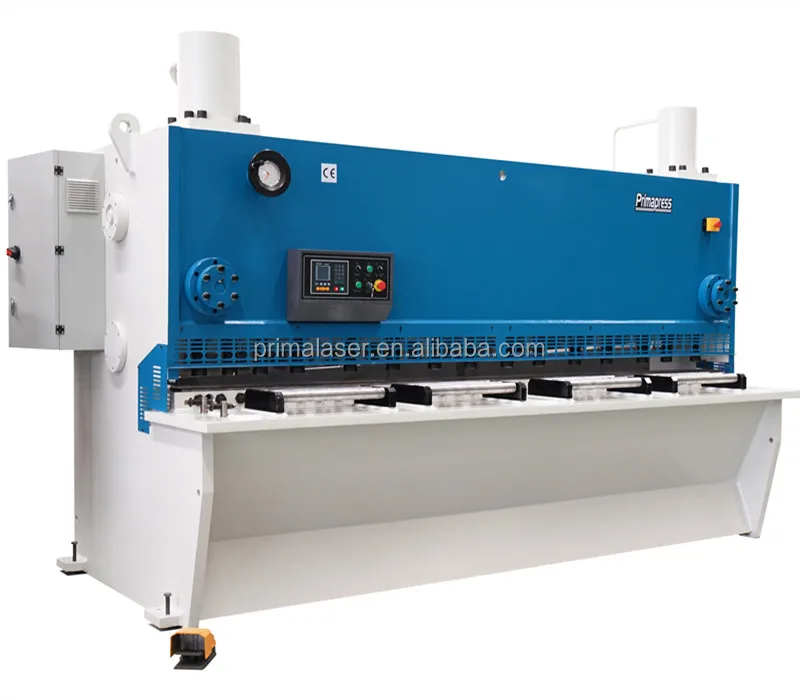

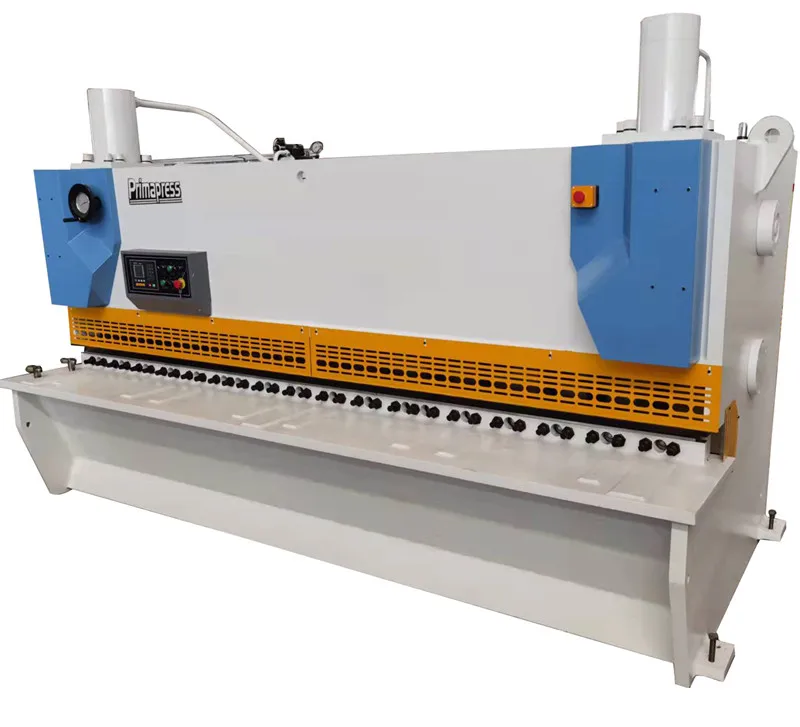

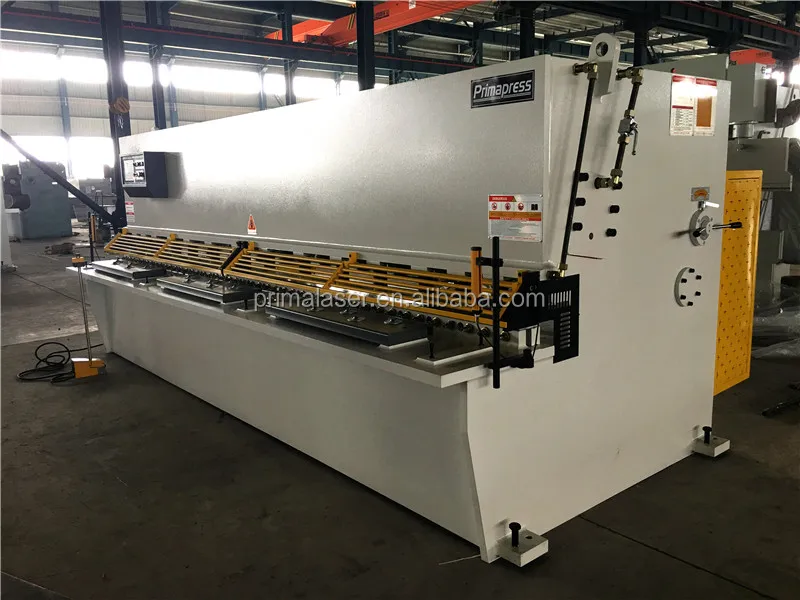

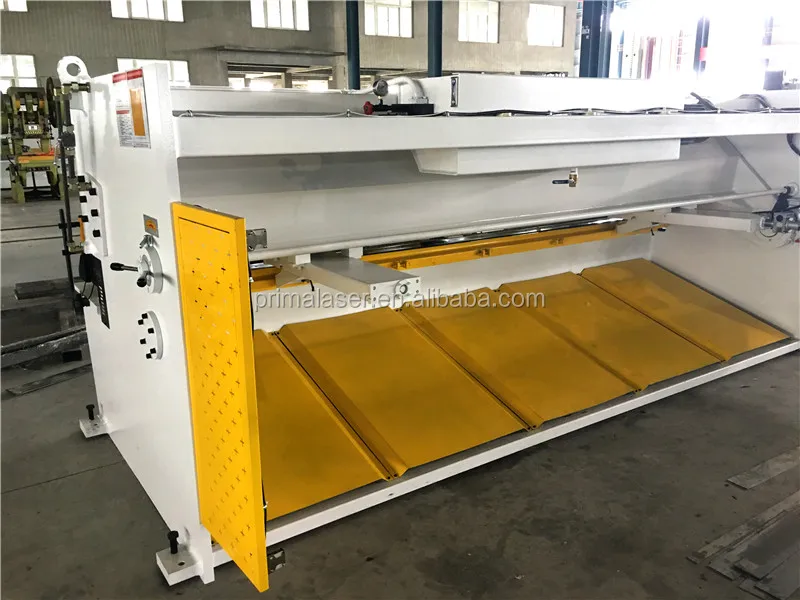

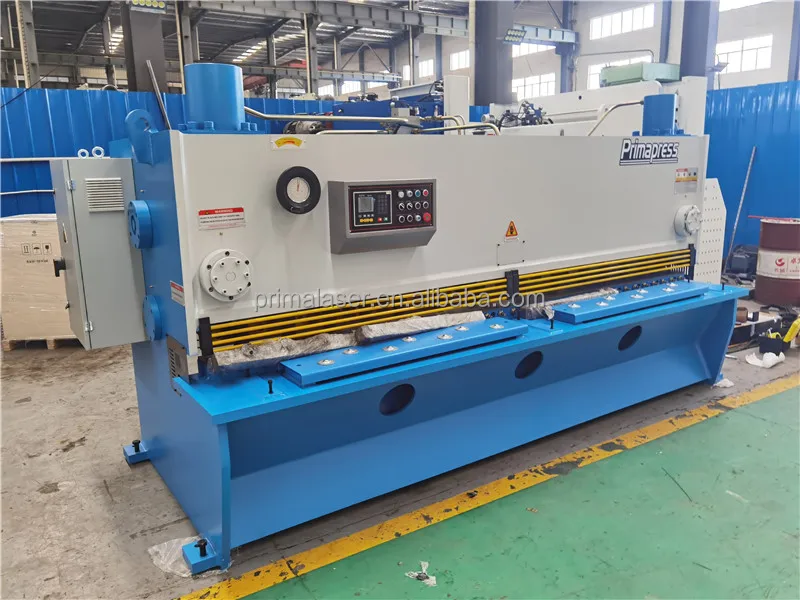

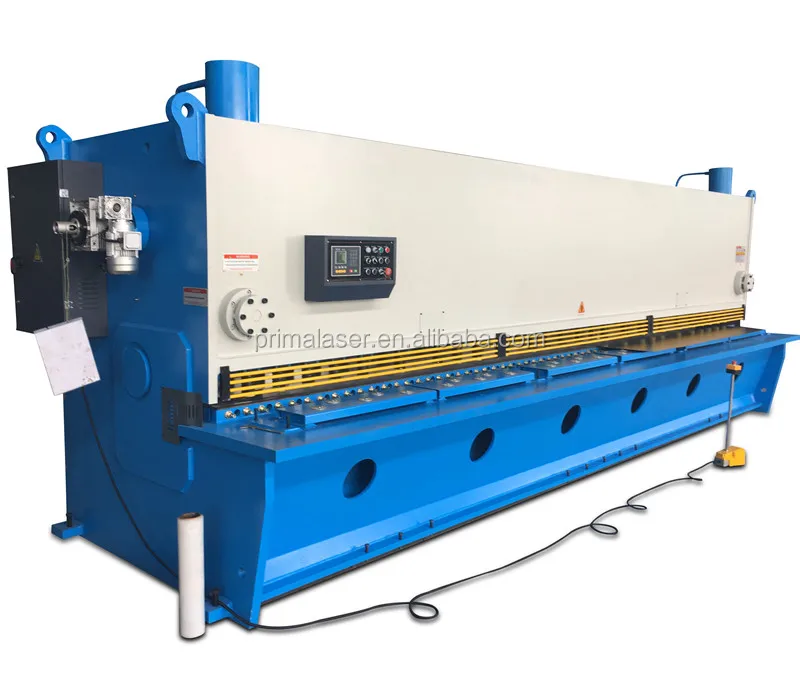

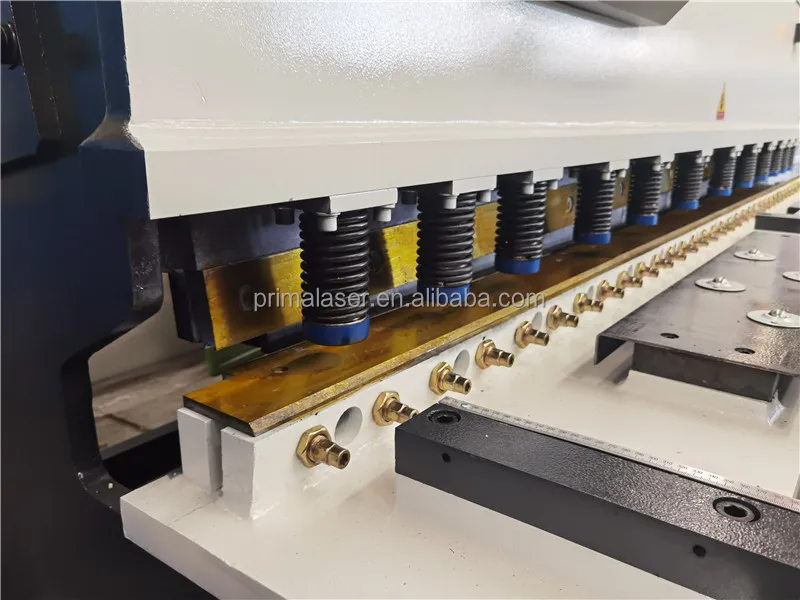

Detailed Images
Company Information
Nanjing Prima CNC Machinery Co., Ltd. is located in the center of China’s machine tool industry, Mingjue Industrial Park , Shiqiu Town, Lishui Zone, Nanjing Our company specializes in Table type CNC Fiber Laser cutting machine, exchangeable table cnc fiber laser cutting machine, press brake, shearing machine , ironworker, punching machine , HVAC ducting machine and other metal forming forging equipment development and sales, our product positioning in the middle-top quality class. We commit a modern enterprise management methods, committed management and meticulous management and zero defect operation. Based on the quality of the product management, its excellent quality, innovative design, reasonable price, and improve after-sales service to win the majority of Chinese and foreign customers praise. Metal sheet hydraulic punching shearer iron worker combined punching and shearing machine
FAQ
Price : Give me reply, i will give you my favorable price immediately !
Payment term : 30% deposit and the balance paid against copy of B/L in 3 days .

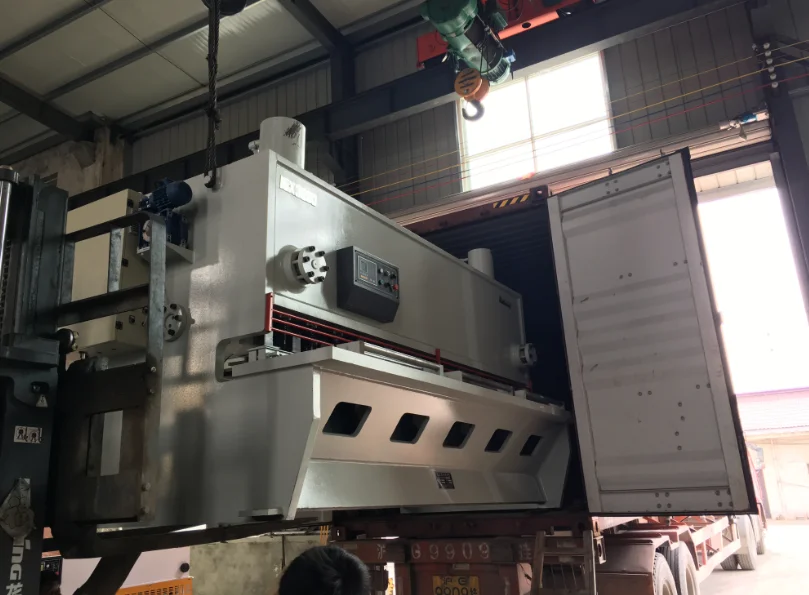

Package : Standard exporting package .
Operation manual and video disc :
When delivery machine, the related operation instruction of model will delivery together with machine. And in the instruction, there is teaching video disc .
After-sales service :
1.machine is simple, generally, user can understand how to operate. There is operation instruction and disc .
2.welcome to our factory to learn how to operate our machine, we will give good training .
3.our engineer is available for user. If there is requirement, our engineer can go to user factory, and adjust machine, give good training to user .
