Hot Selling Heat Transfer PTFE 0.13mm thickness Brown Wear-Resistant Tape
Name | Hot Selling Heat Transfer PTFE 0.13mm thickness Brown Wear-Resistant Tape |
Material | PTFE coated fiberglass |
Color | Black or brown color, white , custom color |
Size | Custom |
Width | Normal 1m, 1.2m, can be customed. |
Length | Normal 10m,30m,33m,50m, can be customed. |
Thick | 0.08mm,0.13mm,0.18mm,0.25mm++can be customed. |
Adhesive | With adhesive=tape, without adehsive =cloth |
Release paper | custom |
Package | Cartons |
Sample | Offer free sample size 297*210mm |
Logo | Can not custom logo on cloth as surface is smooth |

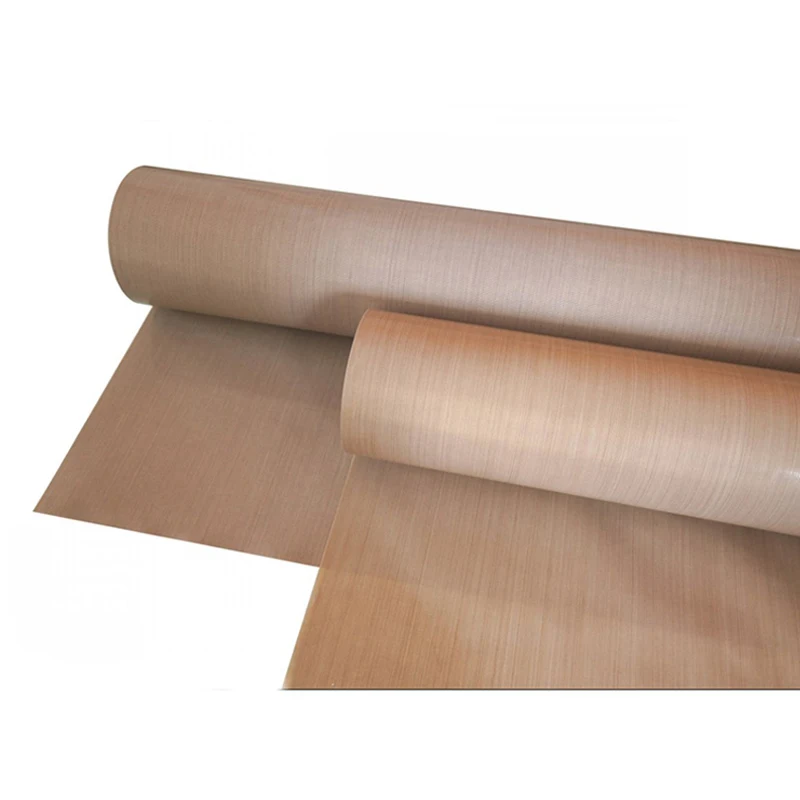

Hot Insulation PTFE Coated Fire Resisitant Fiberglass Fabric are made from best imported fiberglass as the weaving material to plain knit or specially knit into superior fiberglass basic cloth, coated with fine PTFE resin then make it into various of ptfe high temperature resistance cloth in different thickness and widths.
Features of Hot Selling Heat Transfer PTFE 0.13mm thickness Brown Wear-Resistant Tape:
1. Good temperature tolerance,24 working temperature -140 to 360 Celsius degree.
2. Non stick,easy to clear adhesives on the suface.
3. Good chemical resistance:it can almostly resist most of chemical medicines,acids,alkalis,and salt;fireproof,lower in aging.
4. Low coefficient of friction and dielectric constant,good insulating capacity.
5. Stable dimension,high intensity,elongation coefficient less 5‰
Features of Hot Selling Heat Transfer PTFE 0.13mm thickness Brown Wear-Resistant Tape:
1.Stable dimension, high intensity, elongation coefficient less 5%.
2.Good temperature resistance, 24 hours working temperature -60°C~300°C.
3.Low coefficient of friction and dielectric constant, good insulating ability.
4.Non stick, easy to clear stains and adhesives on the surface.
5. Good chemical resistance, it can resist most of chemical medicines, acids, alkalis, and salt, it is fireproofm, anti aging.
Applications of Hot Selling Heat Transfer PTFE 0.13mm thickness Brown Wear-Resistant Tape:
1.Used as various of liners to resist high temperature, such as microwave liner, and other liners.
2.Used as non stick liners, intermediate.
3.Used as various conveyor belts, fusing belts, sealing belts and those needs performances of high temperature resistance, non stick, chemical resistance etc.
4.Used as covering or wrapping material in petroleum, chemical industries, as wrapping material, insulating material, high temperature resistance material in electrical industries, desulfurizing material in power plant etc.
Specifications of Hot Selling Heat Transfer PTFE 0.13mm thickness Brown Wear-Resistant Tape:
Part | Overall Thickness (inches) | Coated Weight | Tensile Strength | TearStrength | Max.Width(mm) |
Premium Grade | |||||
9039 | 0.0029 | 0.27 | 95/55 | 1.5/0.9 | 3200 |
9012 | 0.0049 | 0.49 | 150/130 | 2.5/2.0 | 1250 |
9015 | 0.006 | 0.6 | 150/115 | 2.1/1.8 | 1250 |
9025 | 0.0099 | 1.01 | 325/235 | 7.5/4.0 | 2800 |
9028AP | 0.011 | 1.08 | 320/230 | 5.4/3.6 | 2800 |
9045 | 0.0148 | 1.45 | 350/210 | 5.6/5.1 | 3200 |
Standard Grade | |||||
9007AJ | 0.0028 | 0.25 | 90/50 | 1.7/0.9 | 1250 |
9010AJ | 0.004 | 0.37 | 140/65 | 2.6/0.7 | 1250 |
9011AJ | 0.0046 | 0.46 | 145/125 | 3.0/2.2 | 1250 |
9014 | 0.0055 | 0.54 | 150/140 | 2.0/1.5 | 1250 |
9023AJ | 0.0092 | 0.94 | 250/155 | 4.9/3.0 | 2800 |
9035 | 0.0139 | 1.36 | 440/250 | 7.0/6.0 | 3200 |
9065 | 0.0259 | 1.76 | 420/510 | 15.0/8.0 | 4000 |
Mechanical Grade | |||||
9007A | 0.0026 | 0.2 | 80/65 | 2.3/1.0 | 1250 |
9010A | 0.004 | 0.37 | 145/135 | 2.3/1.6 | 1250 |
9021 | 0.0083 | 0.8 | 275/190 | 8.0/3.0 | 1250 |
9030 | 0.0119 | 1.14 | 375/315 | 7.0/6.0 | 2800 |
Economy Grade | |||||
9007 | 0.0026 | 0.17 | 70/60 | 2.9/0.8 | 1250 |
9010 | 0.004 | 0.36 | 135/115 | 3.0/2.7 | 1250 |
9023 | 0.0092 | 0.72 | 225/190 | 4.4/3.2 | 2800 |
9018 | 0.0074 | 0.7 | 270/200 | 8.0/4.0 | 1250 |
9028 | 0.0112 | 0.98 | 350/300 | 15.0/11.0 | 3200 |
9056 | 0.0222 | 1.34 | 320/250 | 50.0/40.0 | 4000 |
9090 | 0.0357 | 2.04 | 540/320 | 10.8/23.0 | 4000 |
Porous Bleeder & Filter | |||||
9006 | 0.0025 | 0.12 | 40/30 | 5.3/4.0 | 1250 |
9034 | 0.0135 | 0.77 | 175/155 | 21.0/12.0 | 3200 |
Crease & Tear Resistant | |||||
9008 | 0.0032 | 0.31 | 90/50 | 1.6/0.5 | 1250 |
9011 | 0.0046 | 0.46 | 125/130 | 4.1/3.7 | 1250 |
9014 | 0.0056 | 0.52 | 160/130 | 5.0/3.0 | 1250 |
9066 | 0.0261 | 1.8 | 450/430 | 50.0/90.0 | 4000 |
TAC-BLACK™ (Available anti-static) | |||||
9013 | 0.0048 | 0.45 | 170/140 | 2.2/1.8 | 1250 |
9014 | 0.0057 | 0.55 | 150/120 | 1.7/1.4 | 1250 |
9024 | 0.0095 | 0.92 | 230/190 | 4.0/3.0 | 2800 |
9024AS | 0.0095 | 0.92 | 230/190 | 4.0/3.0 | 2800 |
9037AS | 0.0146 | 1.39 | 405/270 | 8.5/7.2 | 3500 |
This is custom item , listing price is for sample size 297*210mm , order exact and best price, please contact with sales directly. Thanks
Hot Selling Heat Transfer PTFE 0.13mm thickness Brown Wear-Resistant Tape
Hot Selling Heat Transfer PTFE 0.13mm thickness Brown Wear-Resistant Tape
1. MOQ: 10m2
2.FOB Price: USD0.5-0.9
3. Port: shanghai
4. Payment Terms: T / T, L / C, D / P, PAYPAL, WESTERN UNION
5. Supply Ability: 100000square meters / month
6. Delivery period: 3-10days after advance payment or confirmed L / C received
7. conventional packaging: Export carton
