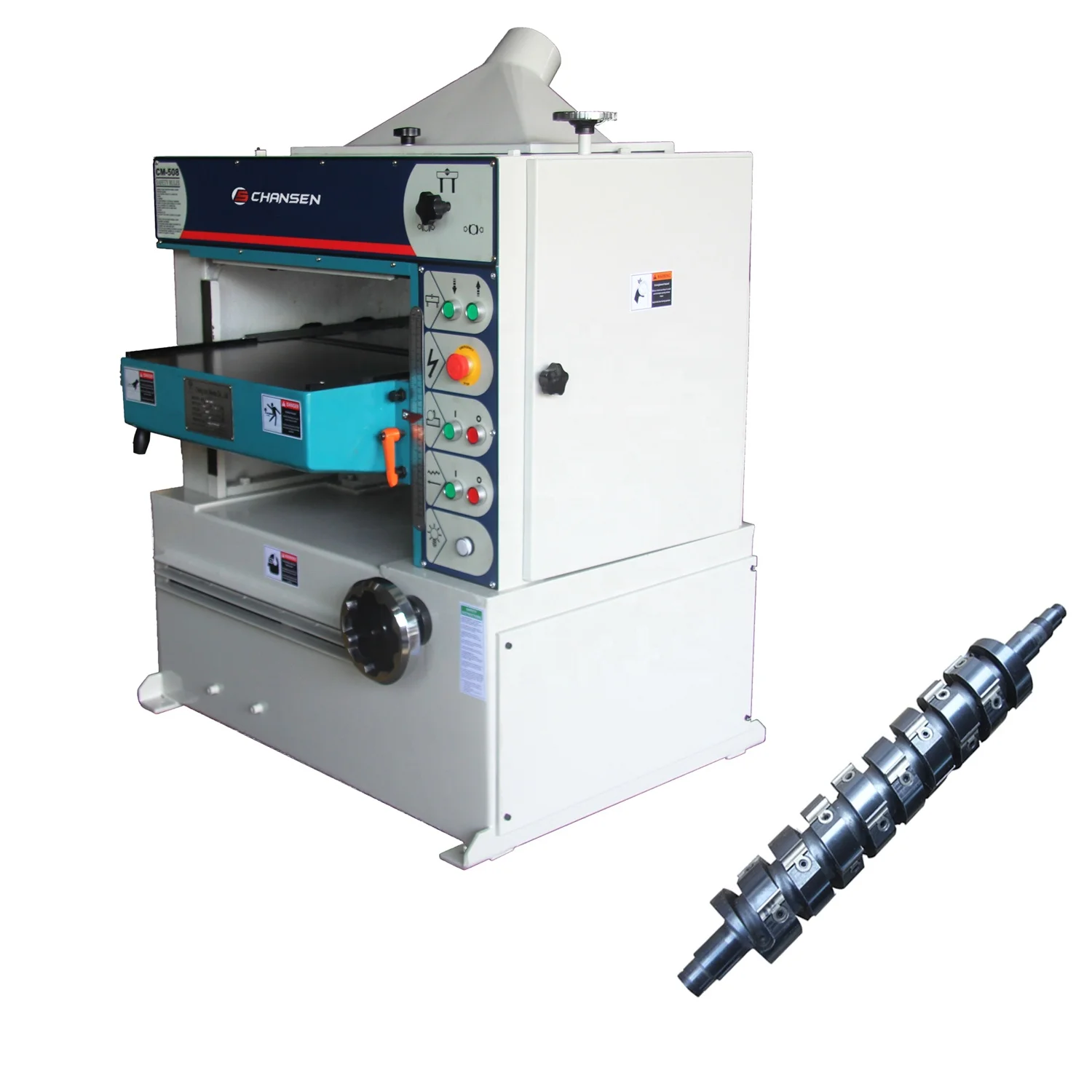

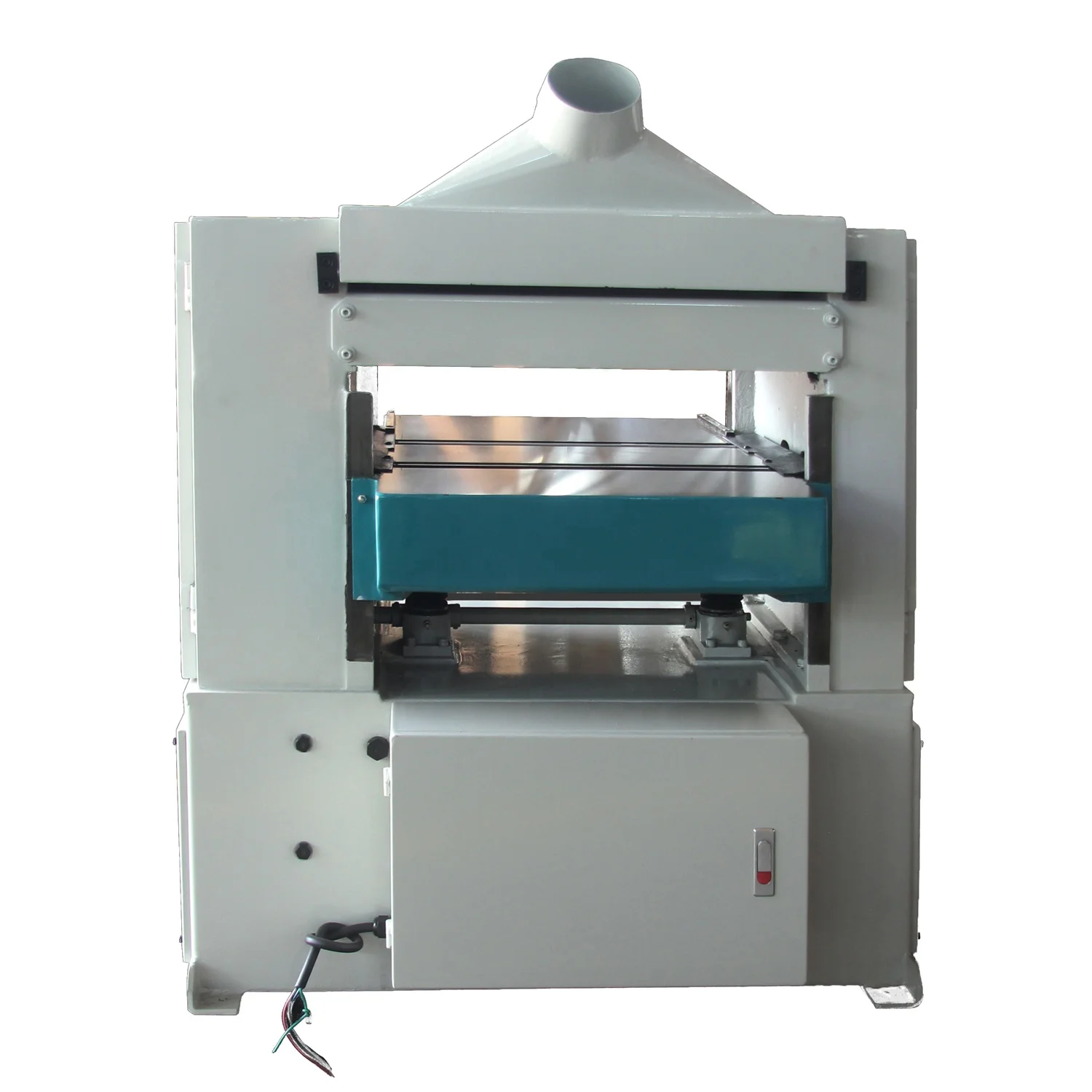

Chansen CM 508S 20inch 10HP Industrial Wood Planer Thicknesser with Helical Cutterhead
- Category: >>>
- Supplier: Chansen Industries Co. Ltd.
Share on (1600719664084):
Product Overview
Description
Products Description
Chansen 20" Industrial Wood Thickness Planer Item# CM-508S | ||||||||
Chansen CM-508S 10HP Industrial Thickness Planer is completely designed for industrial jobs, great for toughest tasks. The precision ground cast iron worktable has adjustable bed rollers. Both models have motorized table elevation. The table rollers are adjustable for height when milling rough-cut lumber. The table height micro-adjustment wheel on machine top provides accurate cutting. The variable-speed feed rate of 5m to 16m per minute means you can get the best possible finish. The built-in chip deflector leads directly into the dust hood with a 150mm dust port to help ensure the work area stays as clear as possible. CM-508 comes with helical cutterhead with 56 pcs indexable 2 edges cutter inserts for heavy cut. | ||||||||
Features
* Designed for industrial jobs
* Powerful 7.5kw/10HP motor
* Motorized table elevation with micro-adjust handwheel
* precision ground cast iron worktable with adjustable bed rollers
* Table lock
* Variable-speed feed rate from 5m to 16m per minute

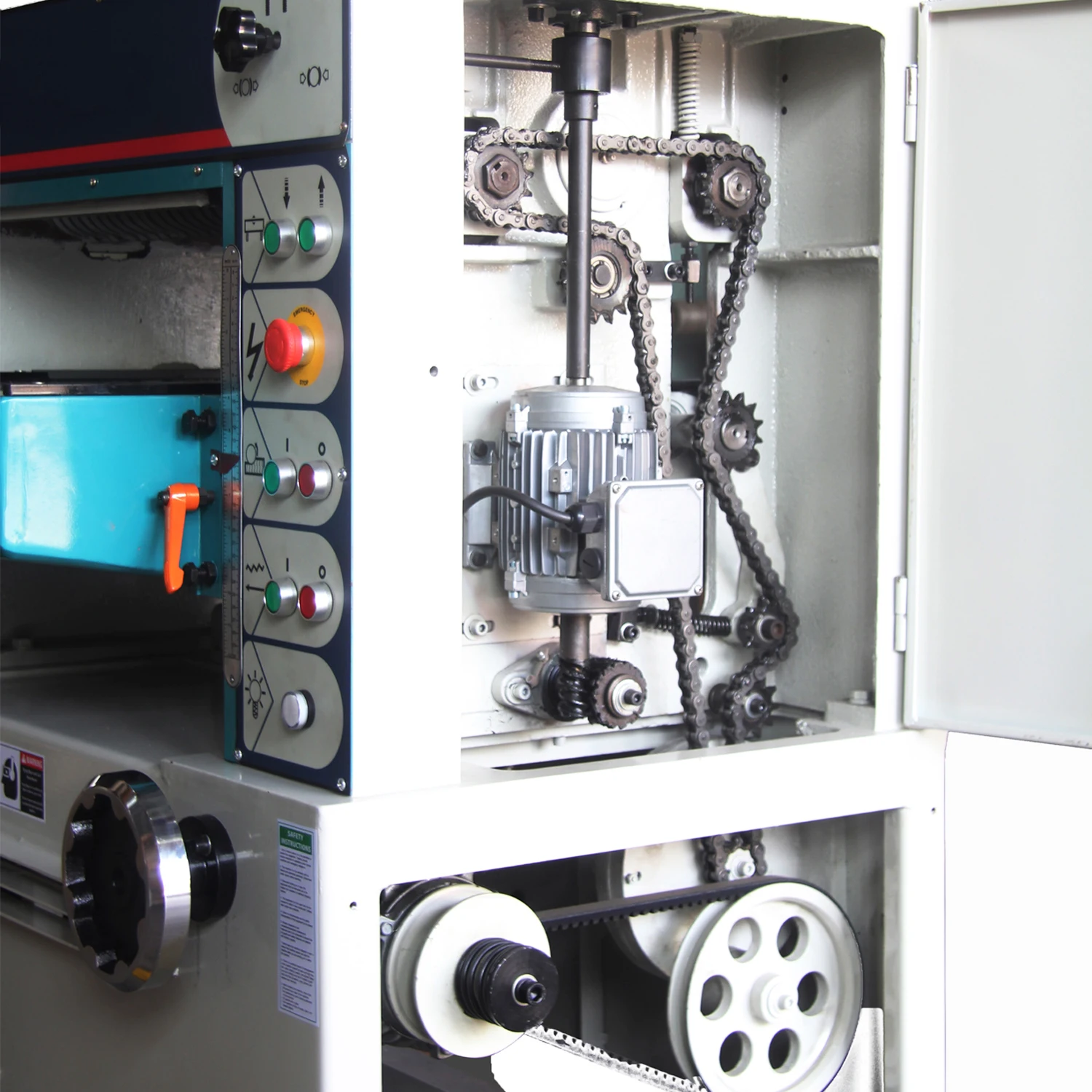

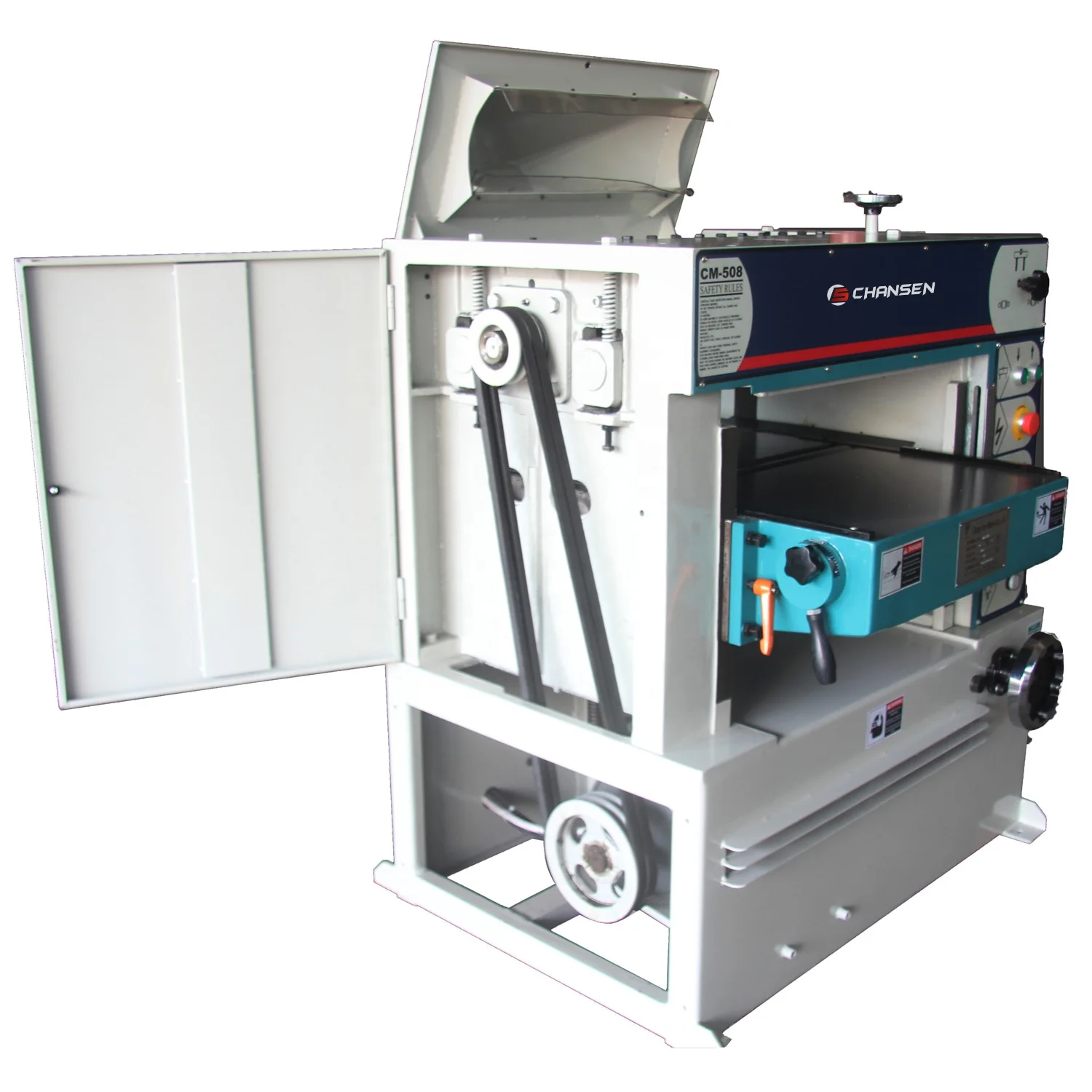

* Twin V-belt drive (cutterhead), chain drive (feed & elevation)

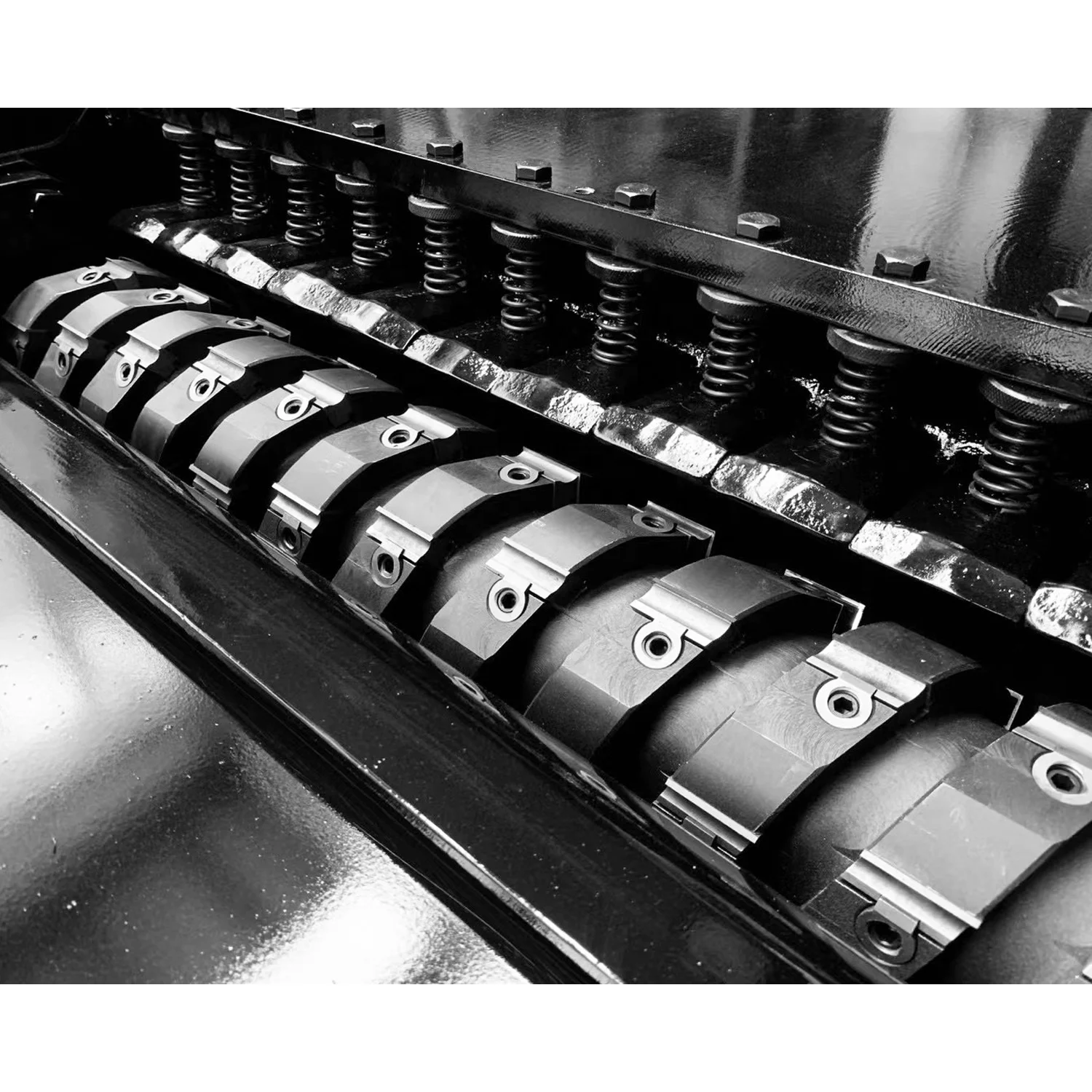

* Segmented chip breaker and feed rollers
* Convenient control panel
* 150mm dust port for efficient dust removing

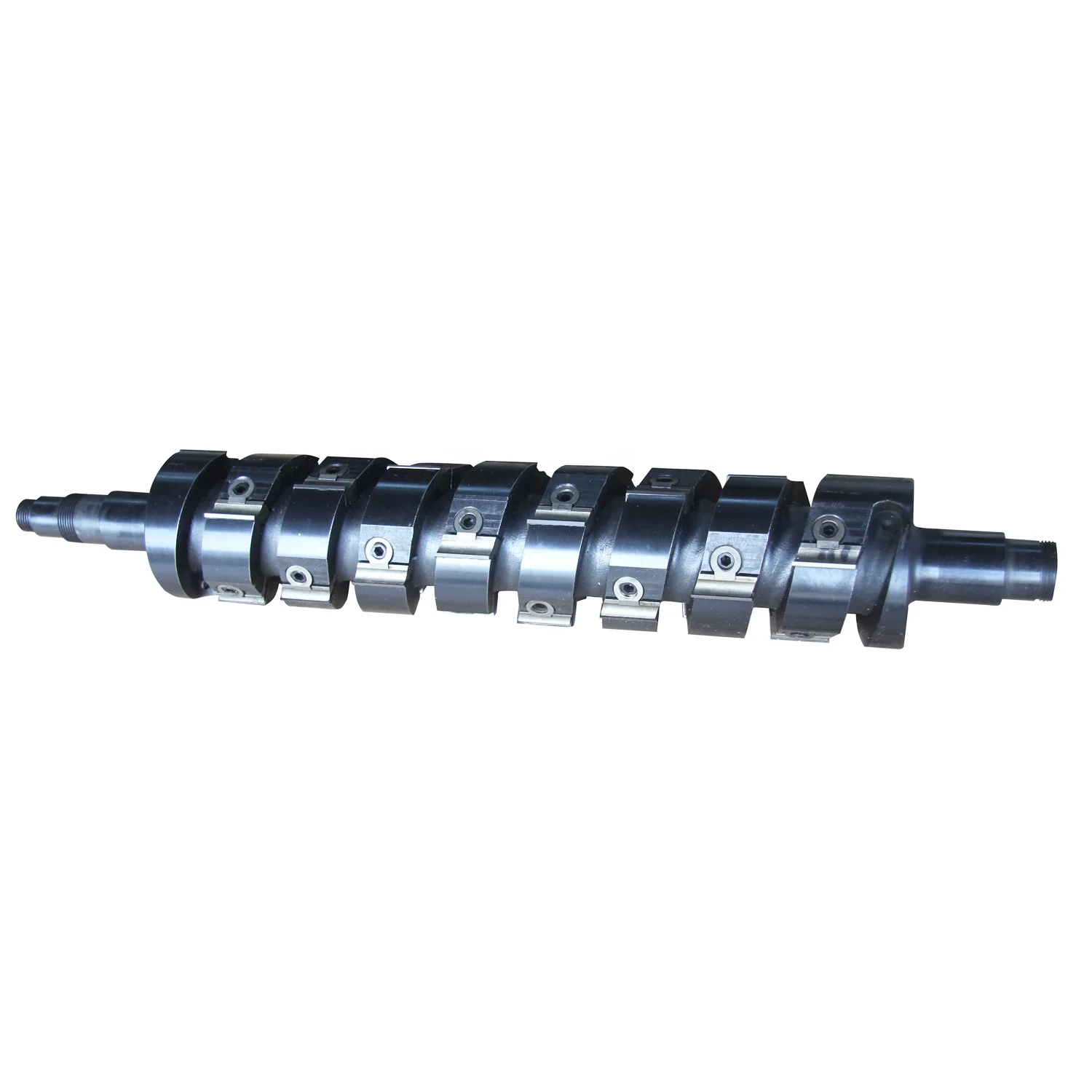

* Helical cutterhead with 56-pcs indexable 2 edges cutter inserts for heavy cutting
* Powerful 7.5kw/10HP motor
* Motorized table elevation with micro-adjust handwheel
* precision ground cast iron worktable with adjustable bed rollers
* Table lock
* Variable-speed feed rate from 5m to 16m per minute
* Twin V-belt drive (cutterhead), chain drive (feed & elevation)
* Segmented chip breaker and feed rollers
* Convenient control panel
* 150mm dust port for efficient dust removing
* Helical cutterhead with 56-pcs indexable 2 edges cutter inserts for heavy cutting
Details Images
Specification | ||||||||
Power supply | 380v/50hz/3ph | |||||||
Main motor | 10hp (7.5kw) | |||||||
Worktable size | 900mm (L) x540mm (w) | |||||||
Max. cutting width | 508mm | |||||||
Max. workpiece height | 230mm | |||||||
Min. workpiece thickness | 4mm | |||||||
Min. workpiece length | 263mm | |||||||
Max. cutting depth | 10mm | |||||||
Cutter head speed | 5000rpm | |||||||
Number of knives | Helical cutterhead with 56pcs cutter inserts | |||||||
Dia. Of cutter head | 120mm | |||||||
Blade size | 30 x12 x1.5mm | |||||||
Feeding speed | 5-16m/min | |||||||
Table elevation motor | 1/2hp | |||||||
Dust port | 150mm | |||||||
Machine weight | 750kgs | |||||||
Packing dimensions | 1220 x1020 x1300mm | |||||||
Shipping weight | 850kgs | |||||||
