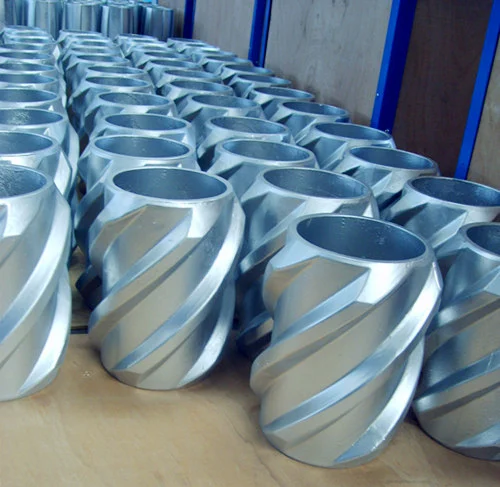

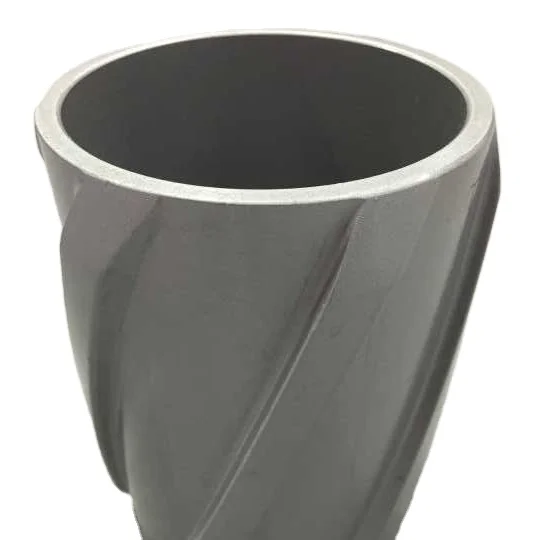

4 1/2*6inch Cast Zinc Ally Spiral Rotation Centralizer
4-1/2*6inch Cast Zinc Ally Spiral Rotation Centralizer
4-1/2*6inch Cast Zinc Ally Spiral Rotation Centralizer
4-1/2*6inch Cast Zinc Ally Spiral Rotation Centralizer
4-1/2*6inch Cast Zinc Ally Spiral Rotation Centralizer
4-1/2*6inch Cast Zinc Ally Spiral Rotation Centralizer

4 1/2*6inch Cast Zinc Ally Spiral Rotation Centralizer

Share on:


Price:$30.00
Price in USD:Details

Quantity:


Product Overview

Description


Spiral Vane Solid Rigid Centralizer









Product Description



Casing Centralizer



•Casing centralizer is a cementing tool which applied to centralize casing to improving the cementing quality.
•They are designed for High Restoring Force and Low Starting Force for centralizing the casing pipe in a Horizontal and Deviated well.




Main Features



Spiral Vane Solid Rigid Casing Centralizer




1.Available in sizes 4-1/2" to 20".
2.Casted steel/aluminum/zinc centralizer.
3.Good corrosion resistance .
4.Reducing drag force.






Specification













































































































































































  NO.

Size (in)



  Inside Diameter


(mm)



     Height


(mm)



 Total height


(mm)



  MAX Diameter


(mm)


 1  5“*12-1/4”  128-131105 690 330
 2  5”*20”  128-131105 720 535
 35-1/2”*7”   142-14855  650 215
 45-1/2”*8-1/2”   142-14855   650 225
 56”*8-1/2”   156-15855  650 235
 67”*8-1/2”   181-18655  650 235
 77”*9-5/8”   181-18655  650  255
 87-5/8”*9-5/8”   197-20155  650 275
 99-5/8”*12-1/4”   250-25555  650 330
 1013-3/8”*17-1/2”  342-34755  650 450
 11  5-1/2”*8-1/2”  142-148110  650 225
 127”*9-5/8”   181-186110  650 255

 13


7”*8-1/2”  181-186110  650 235
 14  5”*6-1/2”  128-131110  650 175
 157-5/8”*9-1/2”    196-200 110  650 250
 1610-3/4”*12-1/4”   274-276110  650 330
 17  5”*6-1/4”  130-132110  650 170
 18  9-5/8”*12-1/4”   250-255 110  650 330
 19  9-5/8”*12-1/4”  342-347110  650 450
 20  5-1/2”*8-1/2”   142-148 55  650 225




Product Details


2LOGO





Company Information


Restructured from SINOPEC in 1997, we has 19 years manufacturing experience of petroleum machinery





products with competitive prices.





Main products of Cementing Equipment and casing accessories : spring centralizer, solid rigid centralizer,float





equipment, cementing plug etc.





We have 9 factories, more than 500 employees, and many kinds of production equipments.





We have certificates of API 5CT,6A,10D,11AX,11E, ISO 14001 and 9001.





With 10 years exporting experience,we have exported to more than 30 countries such as  Russia,





America,Canada,Venezuela,Columbia,Thailand,Indonesia ,UAE,Saudi Arabia,Kazakhstan etc.








Other Products



   Integral Casing Centralizer   Spring Casing Centralizer       Steel Rigid Casing Centralizer


.jpg


   Cast Aluminum Centralizer          Float Collar/Shoe              Non-Rotating Cementing Plug
